Opel R15 BT USB User manual

Infotainment Manual

Introduction .................................... 4
Radio ........................................... 47
CD Player .................................... 56
AUX input ..................................... 60
USB port ...................................... 62
Bluetooth music ........................... 65
External devices .......................... 71
Navigation .................................... 73
Voice recognition ....................... 102
Phone ........................................ 105
Index .......................................... 122
Contents

4 Introduction
Introduction
General information ....................... 4
Control elements overview ............ 6
Theft-deterrent feature ................. 29
Usage .......................................... 30
Touch operation overview ........... 38
Tone settings ............................... 39
Volume settings ........................... 41
System settings ........................... 42
General information
The Infotainment system provides
state-of-the-art in-car information and
entertainment.
The radio is equipped with assignable
channel presets for FM, AM and also
DAB wavebands (depending on
version).
The audio player can play audio CDs,
MP3 CDs and also WMA CDs
(depending on version).
External data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable player can be connected to
the Infotainment system. External
audio sources can also be connected
via Bluetooth.
The digital sound processor provides
several preset equalizer modes for
sound optimisation.
The navigation system's dynamic
route planning will reliably guide you
to your destination and can help avoid
traffic jams and other traffic problems.
Optionally, the Infotainment system
can be operated using controls on the
steering column or via the voice
recognition system.
In addition, the Infotainment system
can be equipped with a handsfree
phone system.
The well-thought-out design of the
controls and the clear displays enable
you to control the system easily and
intuitively.
Note
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety
9Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before
operating the Infotainment
system.

Introduction 5
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to:
● changes in distance from the
transmitter
● multi-path reception due to
reflection
● shadowing
In case of poor radio reception the
volume will automatically drop as to
minimize the disturbance effect.
Using this manual
● This manual describes features
that may or may not be on your
specific vehicle, either because
they are optional or due to
changes subsequent to the
printing of this manual. Please
refer to the purchase
documentation to confirm each of
the features found on the vehicle.
● Certain controls and
descriptions, including symbols,
displays and menu functions may
not apply to your vehicle due to
model variant, country
specifications, special equipment
or accessories.
● The table of contents at the
beginning of this manual and
within each section shows where
the information is located.
● The index will enable you to
search for specific information.
● The vehicle display screens may
not support your specific
language.
● Display messages and interior
labelling are written in bold
letters.
● The operations given within this
manual refer to Infotainment
system controls. For equivalent
steering column controls, refer to
the control elements overview
3 6.
Warnings and cautions
9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".

6 Introduction

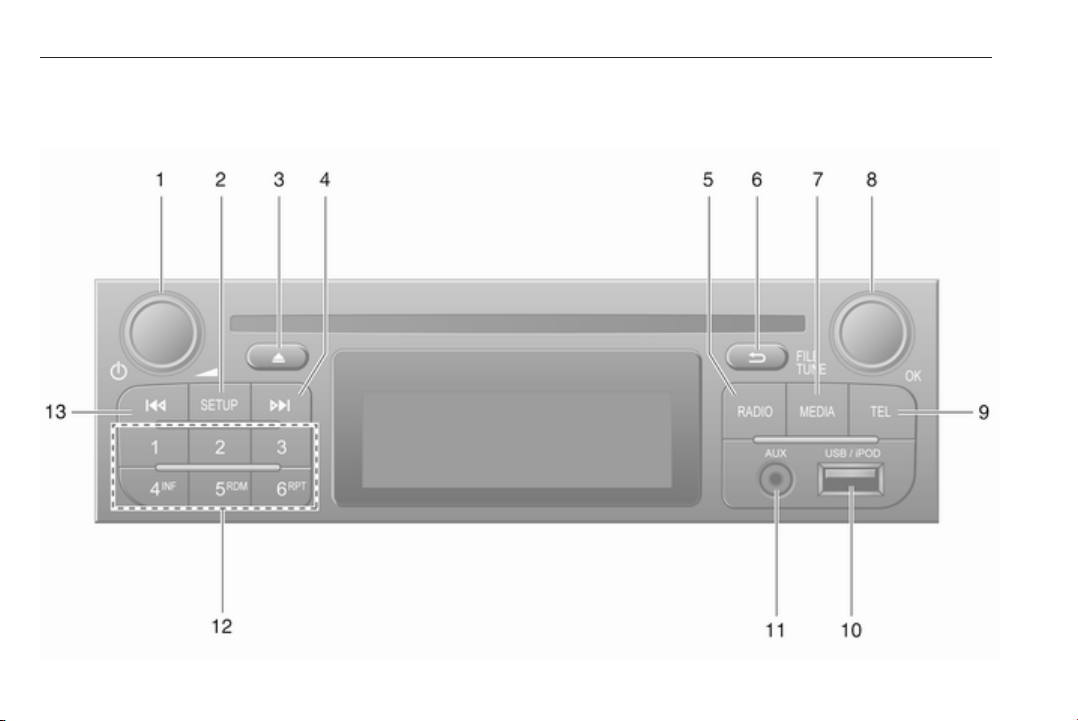

Control elements overview
R15 BT USB

Introduction 7
1m - Press: Switch on/off ........ 30
Press: Mute/unmute .............. 30
Turn: Adjust volume .............. 30
2 SETUP - Short press:
Settings menu ....................... 30
Display radio text
information ............................ 52
Long press: Automatic
station storing ........................ 51
3Mute/unmute ......................... 30
43 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
5 RADIO - Change audio
source, waveband ................. 47
6/ - Return to previous
menu, cancel an action ......... 30
7 MEDIA - Change audio
source ................................... 57
8 OK rotary knob ...................... 30
Press: Confirm an action ....... 30
Turn: Access display
menu options ........................ 30
Turn: Change radio
frequency .............................. 49
9 TEL - Telephone menu ....... 105
10 M USB port ............................ 62
11 AUX input .............................. 60
12 Station buttons 1...6 .............. 49
Short press: Select station .... 49
Long press: Save station ...... 49
13 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49

8 Introduction

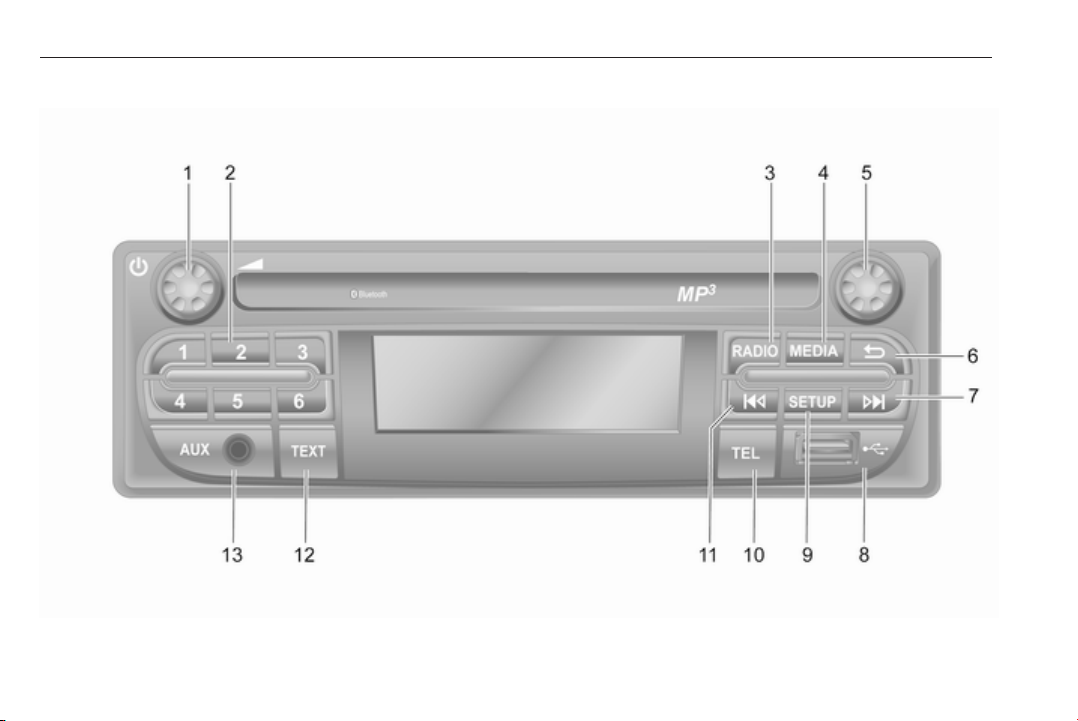

R16 BT USB

Introduction 9
1m - Press: Switch on/off ........ 30
Turn: Adjust volume .............. 30
2Station buttons 1...6 .............. 49
Short press: Select station .... 49
Long press: Save station ...... 49
3 RADIO - Change audio
source, waveband ................. 47
4 MEDIA - Change audio
source ................................... 57
5Rotary knob ........................... 30
Short press: Confirm an
action .................................... 30
Turn: Access display
menu options ........................ 30
6/ - Return to previous
menu, cancel an action ......... 30
73 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 57
Long press: Fast forward ...... 57
8M USB port ............................ 62
9 SETUP - Short press:
Settings menu ....................... 30
10 TEL - Telephone menu ....... 105
11 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
12 TEXT - Display radio text
information ............................ 52
13 AUX input .............................. 60

10 Introduction

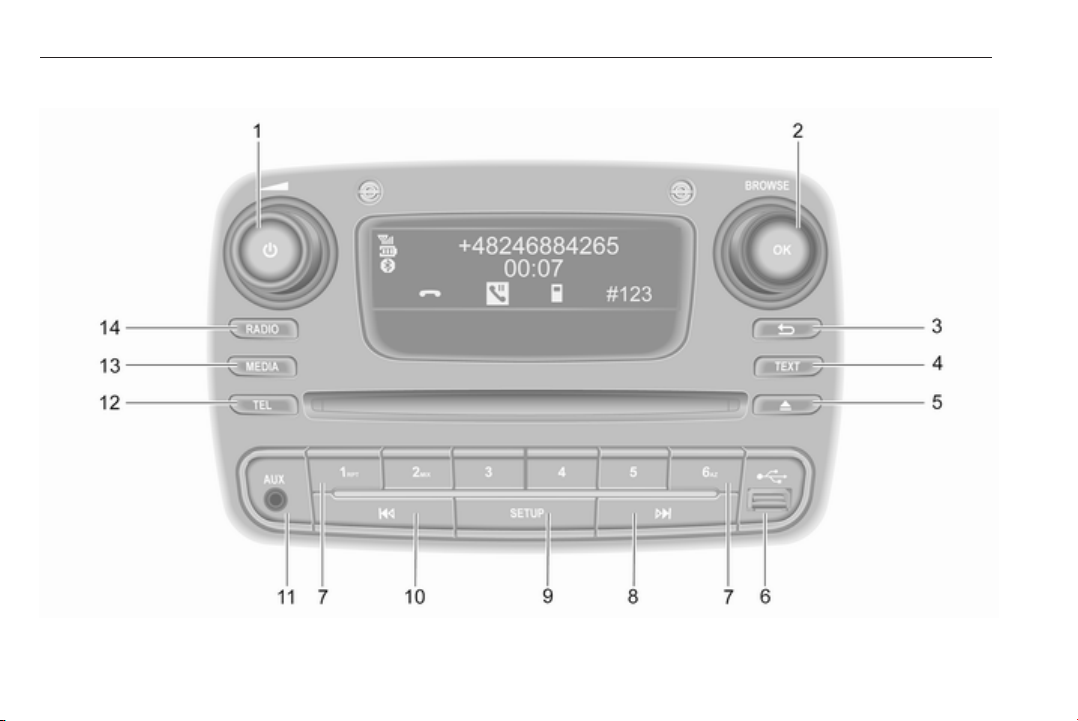

CD16 BT USB

Introduction 11
1m - Press: Switch on/off ........ 30
Turn: Adjust volume .............. 30
2Station buttons 1...6 .............. 49
Short press: Select station .... 49
Long press: Save station ...... 49
RPT: Repeat a track ............. 57
MIX: Random playback ......... 57
3 RADIO - Change audio
source, waveband ................. 47
4 MEDIA - Change audio
source ................................... 57
5Rotary knob ........................... 30
Short press: Confirm an
action .................................... 30
Turn: Access display
menu options ........................ 30
6/ - Return to previous
menu, cancel an action ......... 30
73 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 57
Long press: Fast forward ...... 57
8M USB port ............................ 62
9 SETUP - Short press:
Settings menu ....................... 30
10 TEL - Telephone menu ....... 105
11 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 57
Long press: Fast rewind ....... 57
12 d - CD ejection ..................... 57
13 AUX input .............................. 60

12 Introduction
CD18 BT USB

Introduction 13
1m - Press: Switch on/off ........ 30
Turn: Adjust volume .............. 30
2 OK rotary knob ...................... 30
Short press: Confirm an
action .................................... 30
Turn: Access display
menu options ........................ 30
3/ - Return to previous
menu, cancel an action ......... 30
4 TEXT - Display radio text
information ............................ 52
5d - CD ejection ..................... 57
6M USB port ............................ 62
7Station buttons 1...6 .............. 49
Short press: Select station .... 49
Long press: Save station ...... 49
RPT: Repeat a track ............. 57
MIX: Random playback ......... 57
83 - Radio, Short press:
Search for next radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 57
Long press: Fast forward ...... 57
9 SETUP - Short press:
Settings menu ....................... 30
10 2 - Radio, Short press:
Search for previous radio
frequency .............................. 49
Long press: Automatic
station search ........................ 49
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 57
Long press: Fast rewind ....... 57
11 AUX input .............................. 60
12 TEL - Telephone menu ....... 105
13 MEDIA - Change audio
source ................................... 57
14 RADIO - Change audio
source, waveband ................. 47

14 Introduction

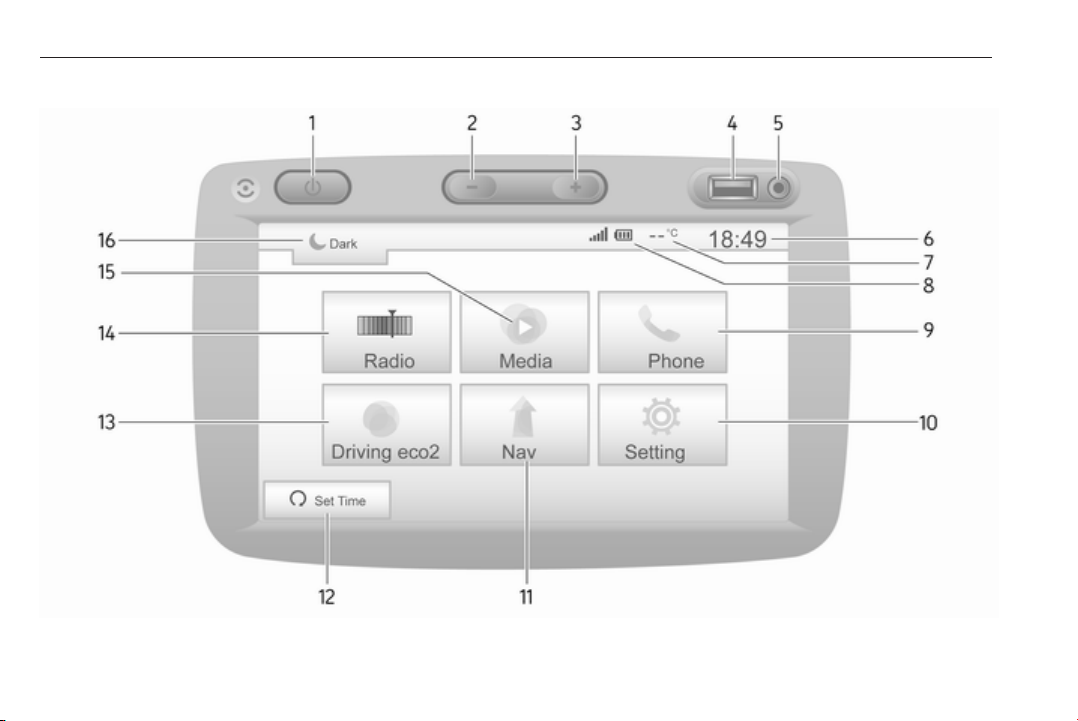

NAVI 50 IntelliLink (Type A)

Introduction 15
1m: Switch on/off .................... 30
2]: Decrease volume ............. 30
3<: Increase volume ............... 30
4M USB port ............................ 62
5AUX input .............................. 60
6Clock ..................................... 30
7yPHONE: Telephone
menu ................................... 105
8ÿSETTINGS: Audio
settings, e.g. "Tone
settings" ................................ 39
"Volume settings" .................. 41
Bluetooth settings ................. 30
Display settings ..................... 30
System settings ..................... 42
9æDark: Darken screen
(only clock and audio
system information are
displayed) .............................. 30
10 yNAVI: Navigation menu ...... 73
11 sMAP: View map ................. 73
12 èRADIO: Change audio
source to radio ...................... 47
13 tMEDIA: Change audio
source - USB, iPod ............... 62
BT (Bluetooth) ....................... 65
AUX ....................................... 60

16 Introduction
NAVI 50 IntelliLink (Type B)

Introduction 17
1m: Switch on/off .................... 30
2]: Decrease volume ............. 30
3<: Increase volume ............... 30
4M USB port ............................ 62
5AUX input .............................. 60
6Clock ..................................... 30
7Outside temperature
(depending on version) ......... 30
8Ý: Phone reception
(when connected) ............... 105
Ü: Phone battery life
(when connected) ............... 105
9yPhone: Telephone menu . 105
10 ÿSetting: Audio settings,
e.g. "Tone settings" ............... 39
"Volume settings" .................. 41
Bluetooth settings ................. 30
Display settings ..................... 30
System settings ..................... 42
11 ýNav: Navigation menu ........ 73
12 yMAP: View map .................. 73
13 ñRadio: Change audio
source to radio ...................... 47
14 üMedia: Change audio
source - USB, iPod ............... 62
BT (Bluetooth) ....................... 65
AUX ....................................... 60
15 æ: Darken screen (only
clock and audio system
information are displayed) .... 30

18 Introduction

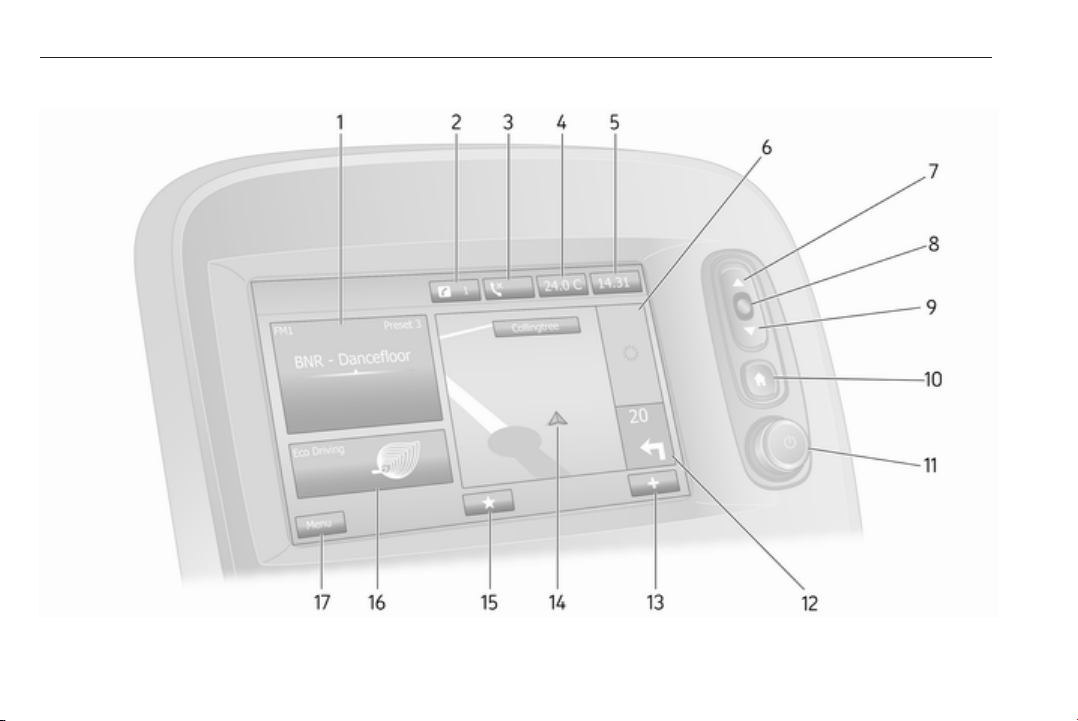

NAVI 80 IntelliLink (Type A)

Introduction 19
1Audio information, e.g.
Radio ..................................... 47
Auxiliary devices ................... 60
M USB devices ...................... 62
Bluetooth music .................... 65
2H: System notifications (if
equipped) .............................. 30
3y: Telephone status ........... 105
Call log ................................ 113
4Outside temperature ............. 30
5Clock ..................................... 30
6Traffic information (if
applicable) ............................. 94
7R: Display lists - Scroll up .... 30
Map: Change scale ............... 94
8Enter menus, confirm
actions ................................... 30
9S: Display lists - Scroll
down ..................................... 30
Map: Change scale ............... 94
10 ;: Home page ...................... 30
11 m - Press: Switch on/off ........ 30
Turn: Change volume ........... 30
12 Navigation: Direction and
distance to next change of
direction ................................ 73
13 <: Pop-up menu ................... 30
14 Navigation display ................. 73
Map ....................................... 94
15 f: Favourites, e.g. for
Navigation ⇑ ......................... 73
Media t (e.g. Radio) ............ 47
Phone g.............................. 105
Services N........................... 76
16 Driving economy (Eco
Driving) .................................. 30
17 Menu: Access Main menu ..... 30

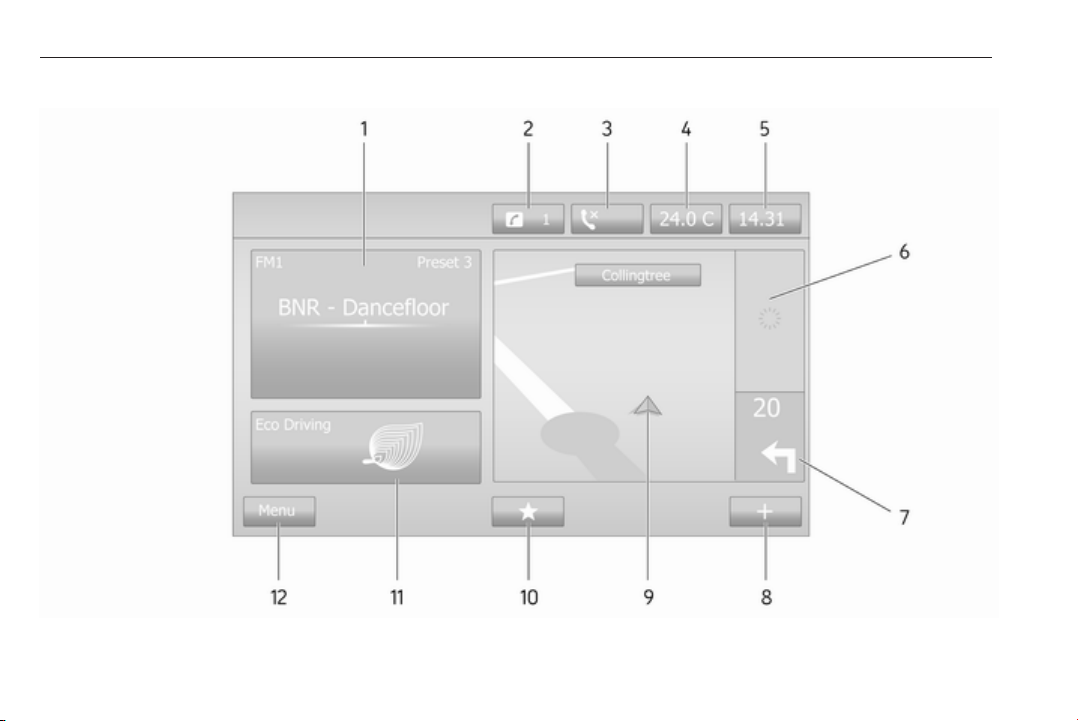

20 Introduction
NAVI 80 IntelliLink (Type B)
