Opera Static User manual

operabeds.com | 0333 222 8584 | 1
INSTALLATION GUIDE AND
TECHNICAL SPECIFICATIONS
Opera®Smart Adjustable Beds

2| Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
Contents
Explanations of Symbols
Installation and Commissioning
Bed Operation and Maintenance
Troubleshooting
Safety Instructions
General Information
Technical Specification
Opera Warranty Terms and Conditions
3
4
16
19
21
25
26
27

operabeds.com | 0333 222 8584 | 3

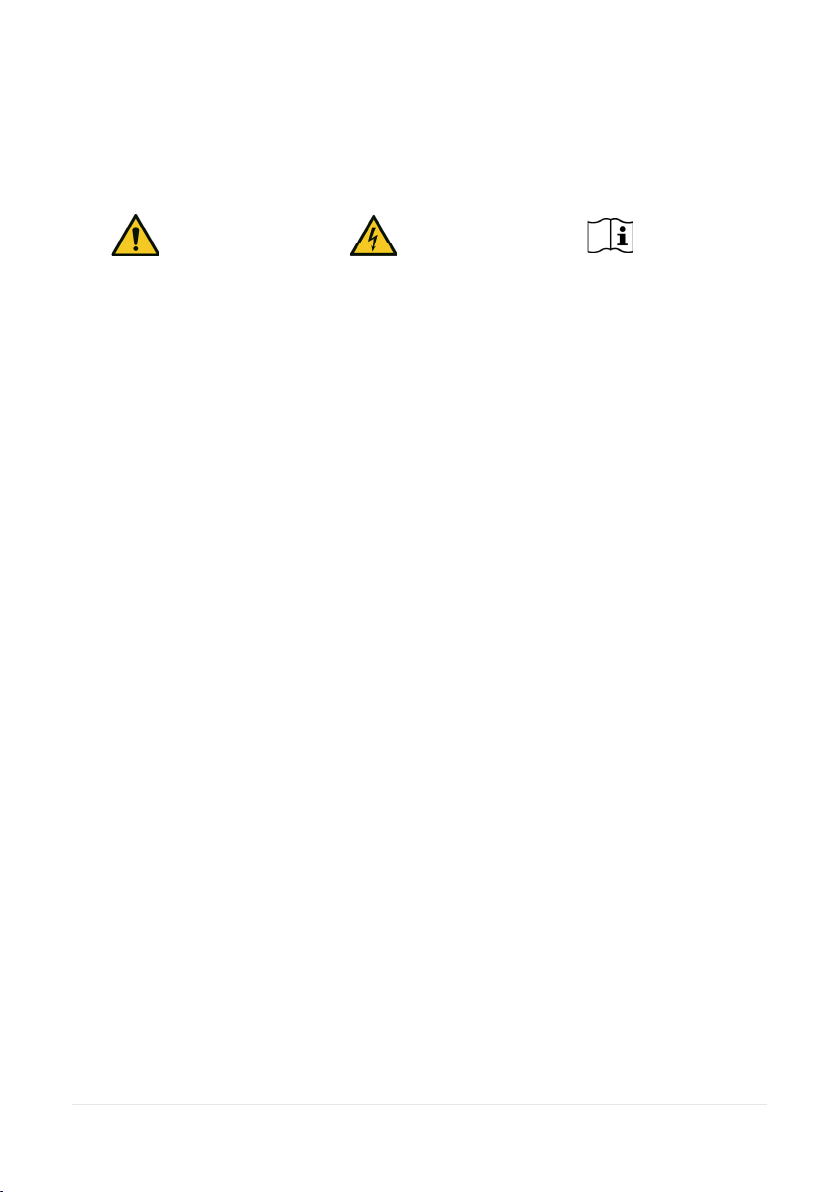

Read information with this
symbol carefully and urgently
follow instructions. This
information is safety-relevant.
This symbol indicates
hazards due to electrical
voltage. There is mortal
danger!
Read instructions.
Explanations of Symbols1

4| Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2

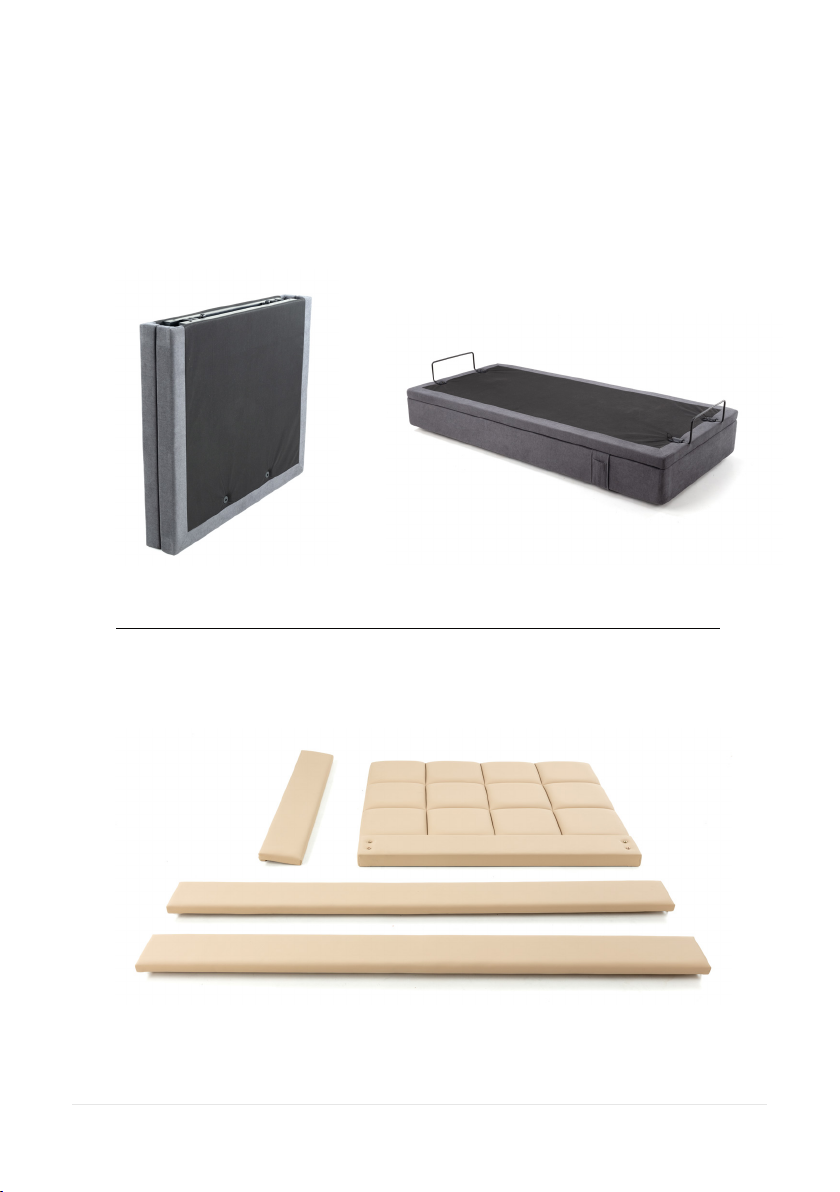

OP050 Smart Base
Installation and Commissioning2
OP060 Bedstead Surround (Optional)
Static / Motion™/MotionPlus™ (Folding Deck)
MotionLuxe™ (Full Deck)

operabeds.com | 0333 222 8584 | 5
Before you begin, you will also need:
• Wall space with a plug socket nearby (not required for Static Version)
• Pair of scissors

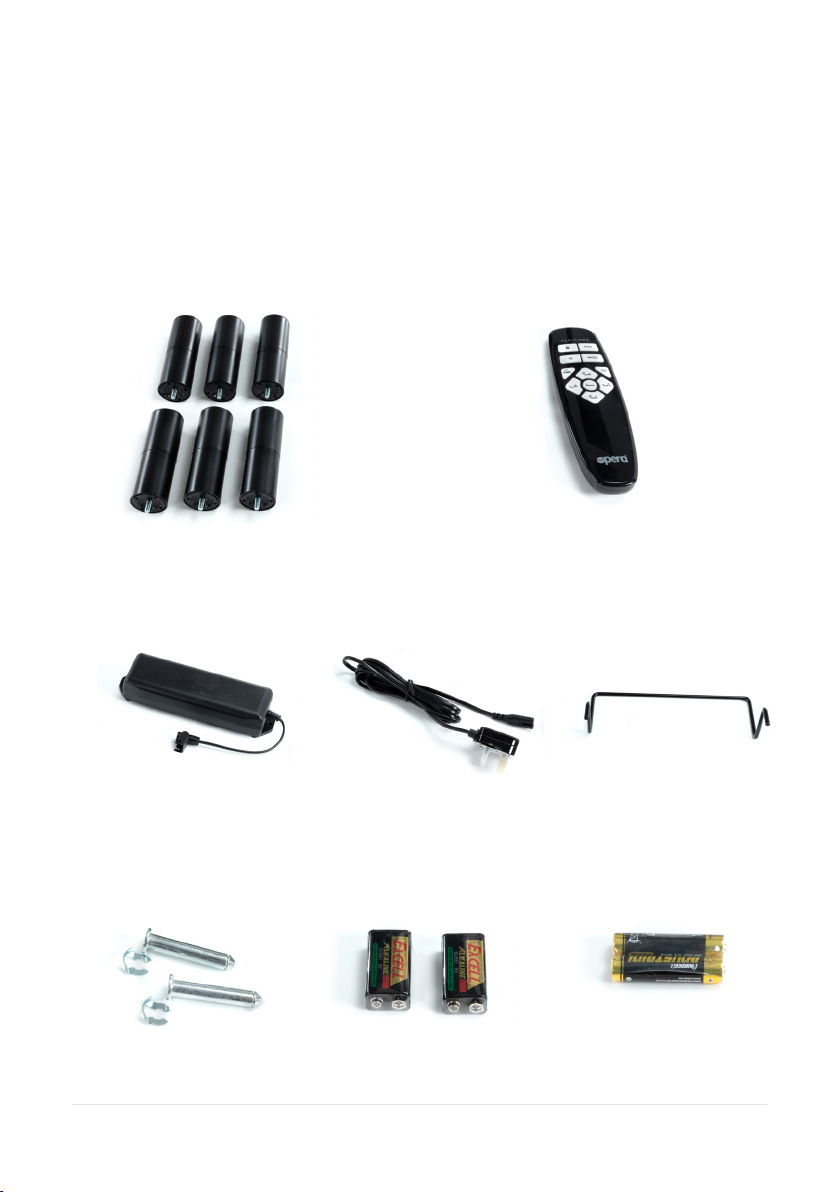

OP051 Screw-In Feet x6
N.B. The MotionLuxe™ base has 4 feet
OP053
Power Transformer*
OP056 Deck Securing
Pins and Clips x2
N.B. Not required for the
MotionLuxe™ base
OP054
Mains Power Cable*
OP057
9V Batteries x2*
OP055 Mattress
Retention Bar*
N.B. The MotionLuxe™ base
has 2 retainer bars
OP058
AAA Batteries x2*
OP052 Smart Base Handset*
N.B. Handset buttons vary depending on the
smart base model
* Not included with Static Version

6| Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
Before you begin!
We recommend that two people install this bed due
to the weight of individual parts.
1 | Remove outer
packaging
Slide base out of cardboard
box and remove protective
outer wrapping.

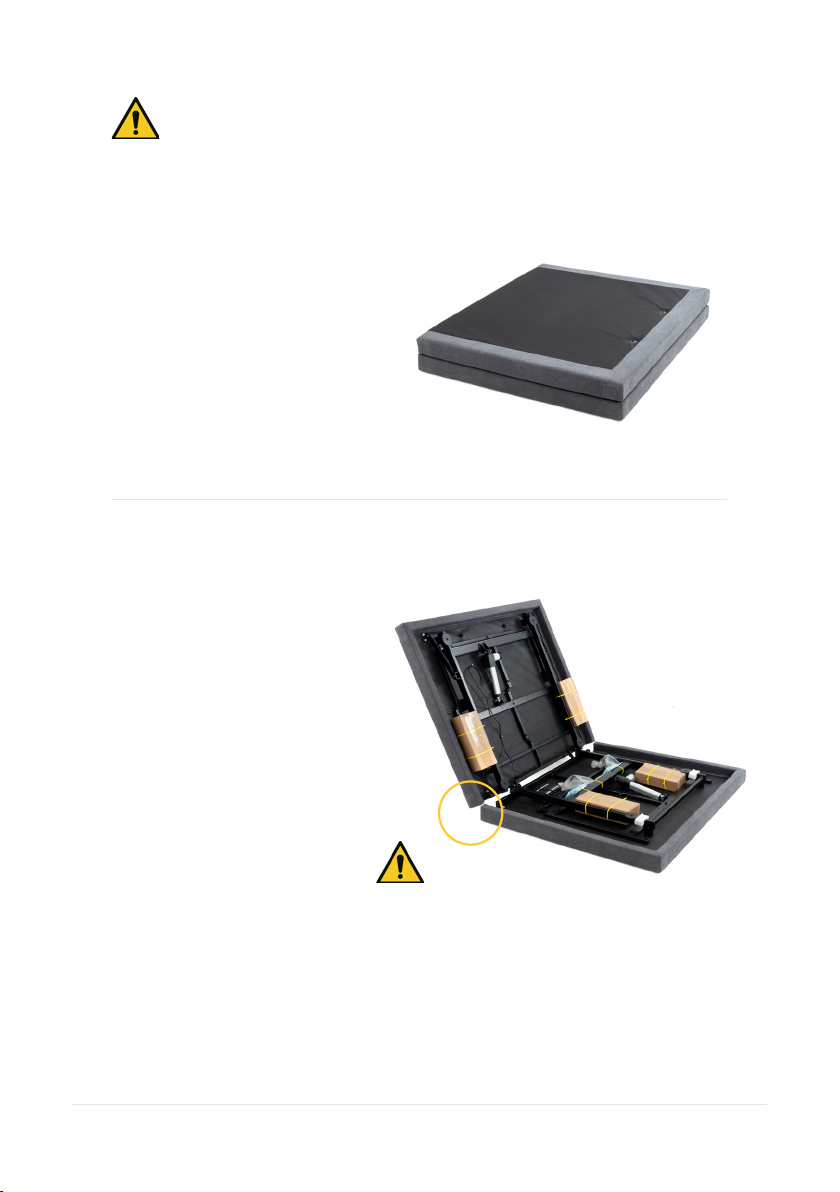

2 | Unfold smart base
deck
Lay the smart base flat on
the floor and unfold.
N.B. The MotionLuxe™ base comes as a one-
piece deck - this step is not required.
CAUTION:
Keep hands clear of hinge
pinch point. Lay the base
flat before unfolding.

operabeds.com | 0333 222 8584 | 7
3 | Detach boxes
Remove the boxes
attached to the base by
cutting through the yellow
cable ties.
4 | Open boxes and check contents
Open the boxes carefully and remove contents. Check all
components are present by referencing the list below or referring to
page 5.
Motion™ & MotionPlus™
6 x OP051 Screw-In Feet
1 x OP052 Handset
1 x OP053 Power Transformer
1 x OP054 Mains Power Cable
1 x OP055 Mattress Rention Bar
2 x OP056 Deck Securing Pins/Clips
2 x OP057 9V Batteries
2 x OP058 AAA Batteries
MotionLuxe™
4 x OP051 Screw-In Feet
1 x OP052 Handset
1 x OP053 Power Transformer
1 x OP054 Mains Power Cable
2 x OP055 Mattress Rention Bars
2 x OP057 9V Batteries
2 x OP058 AAA Batteries
Static
6 x OP051 Screw-In Feet
2 x OP056 Deck Securing Pins/Clips

8| Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
5 | Insert deck securing pins
Secure the two halves of the folding deck by inserting the deck
securing pins (OP056) through the adjoining holes. Secure the pins
with the C clips.
N.B. The MotionLuxe™ base comes as a one-piece deck - this step is not required.

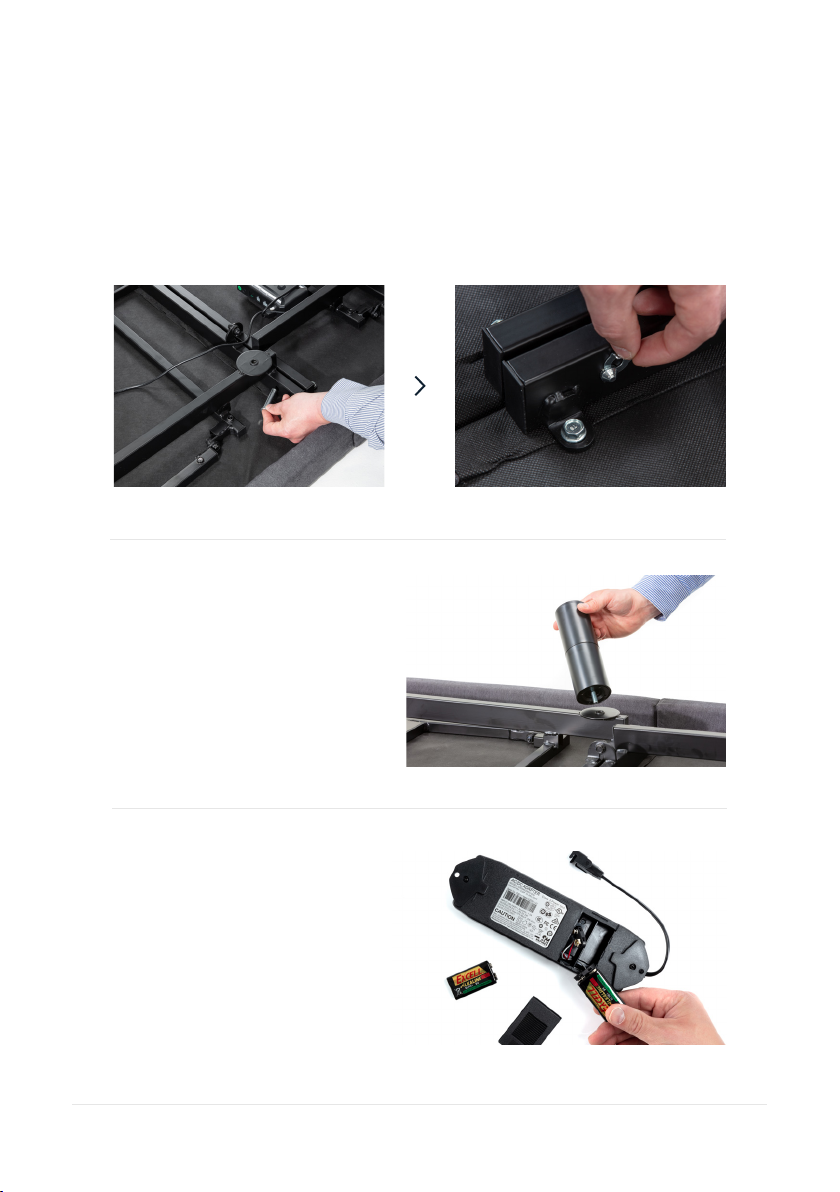

6 | Attach feet
Screw the feet (OP051) into
the threaded screw holes in
the base. For the Motion™ and
MotionPlus™ there are six feet
and for the MotionLuxe™ there
are four feet.
N.B. At this stage the Static Assembly is
complete and can be turned onto its feet.
7 | Add batteries to
transformer
Insert the two 9V batteries
(OP057) into the power
transformer (OP053). This will
ensure back-up power for
your bed in the event of a
power cut.

operabeds.com | 0333 222 8584 | 9

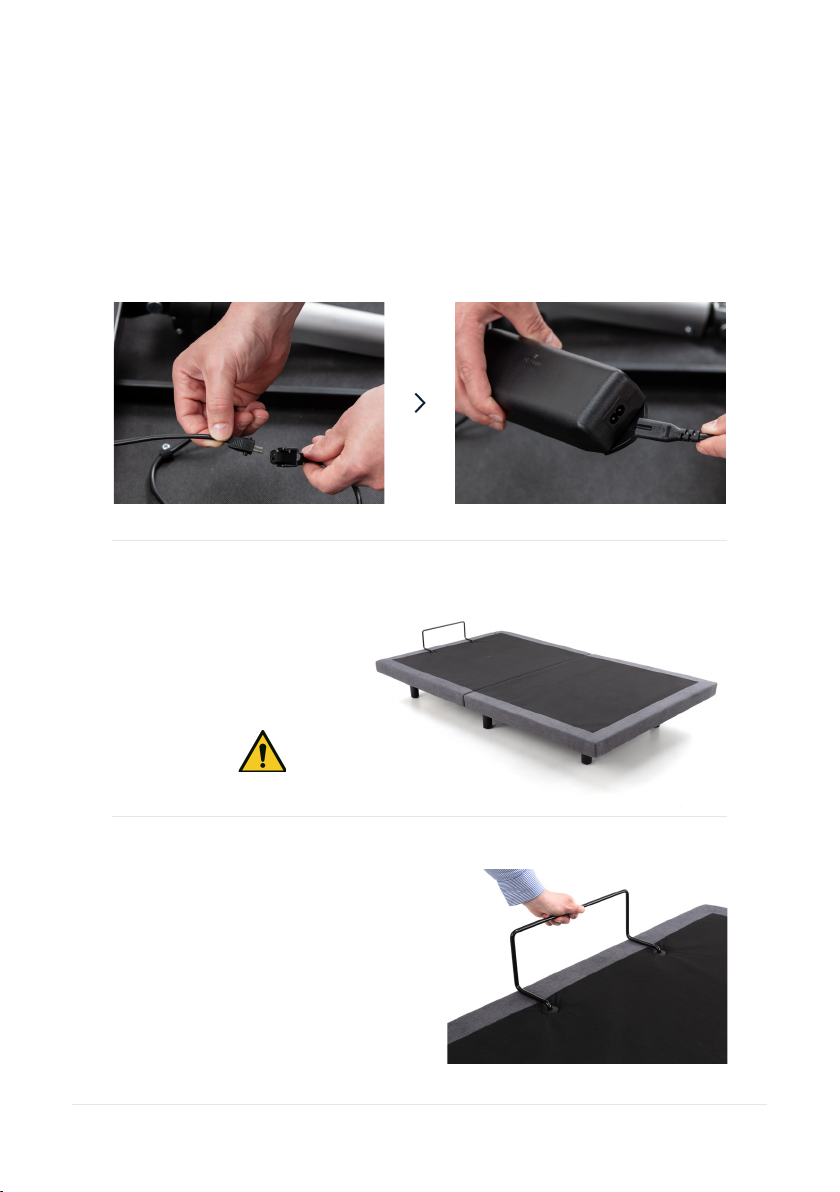

8 | Connect power transformer
Locate the base power inlet lead (marked with ‘POWER’ at the inlet
of the control box). Connect this lead to the power transformer
(OP053) by coupling the plug/socket and secure by clipping the
cover latch. Then insert the mains power cable (OP054) into the
power transformer.
9 | Turn base onto
its feet
Using two people, turn the
smart base over and onto
its feet.
10 | Add mattress retention
bar/s to the base
Add the mattress retention bar by
inserting into the holes at the footend
of the smart base.
N.B. The MotionLuxe™ base has an additional retention
bar for the head end and the bars can be secured by
securing clips.
CAUTION:
The base is heavy. Ensure you
use two people to turn it over.

10 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
13 | Pair the handset
When you switch on the
mains power to the base,
a light on the control box
underneath the base will
illuminate and flash blue.
This indicates the bed is in
pairing mode.
Hold the PAIR button down
on the handset for 5-10
seconds until the control
box light underneath the
base changes to green.

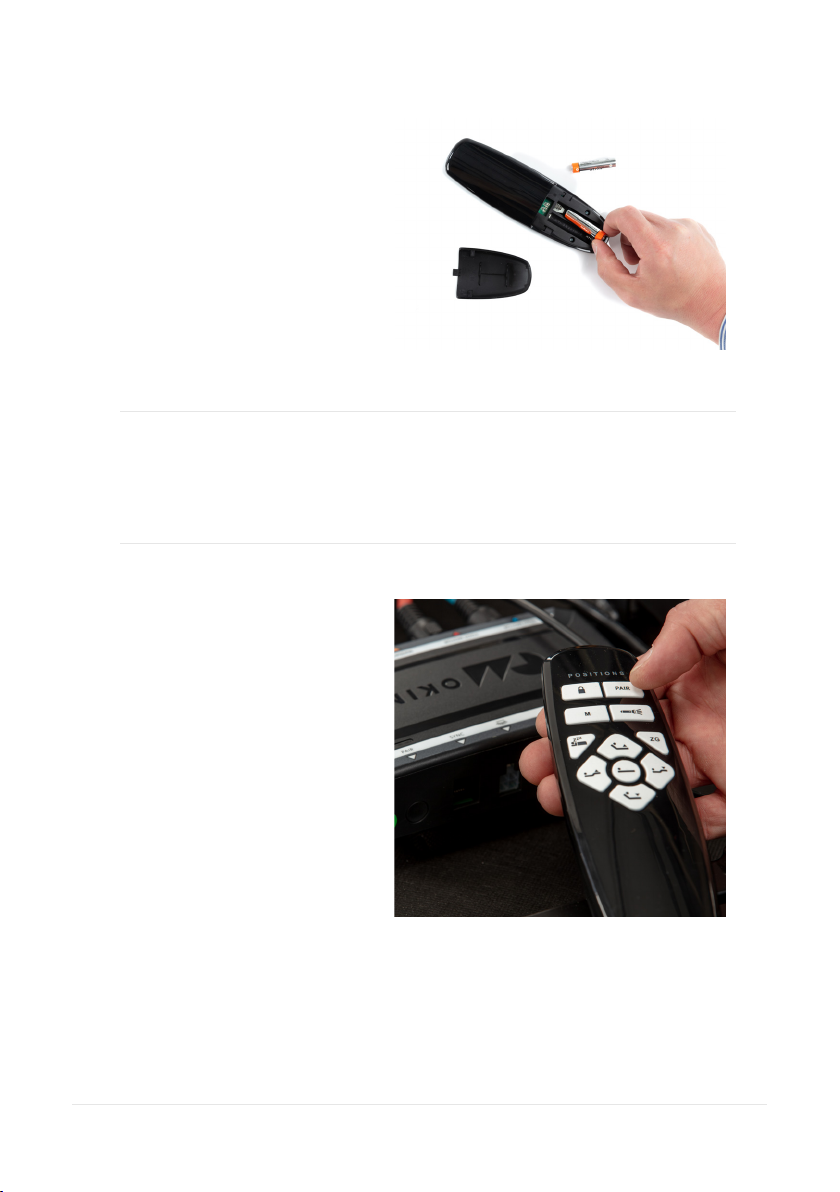

11 | Add batteries to
handset
Insert the two AAA
batteries (OP058) into the
handset (OP052). Check
the handset is powered by
pressing any button and
watch out for the button
back lighting illuminating.
12 | Connect the bed to mains power
Plug in the smart base to a mains power outlet and switch on.
If your smart base does not pair first time or becomes
disconnected, there is a PAIR button on the control box. Press this
to reactivate pairing mode and the control box light will illuminate
blue to indicate the base is ready to pair.

operabeds.com | 0333 222 8584 | 11
14 | Test functions
Using the handset control, test the key functions on your smart
base. Handset functions diagram can be found on page 17.
1. Raise and lower back rest (N.B. On MotionLuxe™ base the whole upper
deck will glide back towards the wall/headboard).
2. Raise and lower leg rest.
3. Activate anti-snore mode (this will raise the backrest to a gentle incline).
4. Activate zero-gravity mode (this will partially raise the back and leg rests
to simulate weightlessness).
5. Select centre ‘flat’ button (this returns your smart base to a flat position).
MotionPlus™ and MotionLuxe™ bases:
6. Select the underbed light button and confirm illumination.
7. Place a mattress and lie on the base before testing massage functions.
Installation of your smart base is now complete!

12 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
Optional Bedstead Surround
If you purchased your smart base with a bedstead surround,
please follow the following steps carefully to assemble the
surround.
1 | Remove outer packaging
Unwrap the headboard,
footboard, side skirts and feet.
You should have:
1 x Headboard
1 x Footboard
2 x Side Skirts
4 x Feet
1 x Allen Key
2 | Prepare
headboard
Lay the headboard on
its side or back near to
where the bed will be
positioned in the room.
Loosen the four threaded
bolts (two at either
side of the base of the
headboard) but do not
remove entirely. You can
use the Allen key provided
or finger loosen.

operabeds.com | 0333 222 8584 | 13
3 | Connect side skirts
Connect the side skirts to the headboard by hooking the brackets
around the securing bolts. Secure the skirts by tightening the
securing bolts with the Allen key. Repeat for both sides of the bed.
4 | Add footboard
Attach the footboard to the
other end of the skirts by
loosening the securing bolts
and hooking the brackets
over them in the same way as
the headboard. Tighten the
securing bolts.
Ahead of attaching the feet, you
may find it easiest if you place
the bedstead surround on its
end or side.

14 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
5 | Attach feet
Attach the four feet to the underside four corners of the bedstead.
There are two types of feet with diering fixing methods:
Threaded Feet
These feet come with threaded
metal bars in the top. Simply insert
the threaded bar into the threaded
holes in the four corners of the
bedstead and screw in until tight.
Repeat for each of the four corners.
Screw Corner Feet
Position the corner feet into
the corners of the bedstead
inset by 10mm from the edge of
the surround. Using 60-80mm
countersunk screws and a
screwdriver, fasten the feet to the
bedstead surround. Each foot has
2-4 pre-drilled screw holes.
6 | Position bedstead
surround
The bedstead is now
complete. Rest the
surround on its feet and
position it where you want
the finished bed to be
located.

operabeds.com | 0333 222 8584 | 15
7 | Prepare smart base
To complete the installation, you need to place the smart base into
the surround. It is easiest if you first raise the back and leg rest of
the base so you can easily access the frame underneath for lifting
and positioning within the surround.
Installation of your bed is now complete!
8 | Insert smart base
into surround
Unplug the smart base
and drop into the
surround, feeding the
mains power cable
out of the back of the
bed underneath the
headboard. Restore
power to the bed and
lower the base to a flat
position.

16 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
Smart Base Operation3

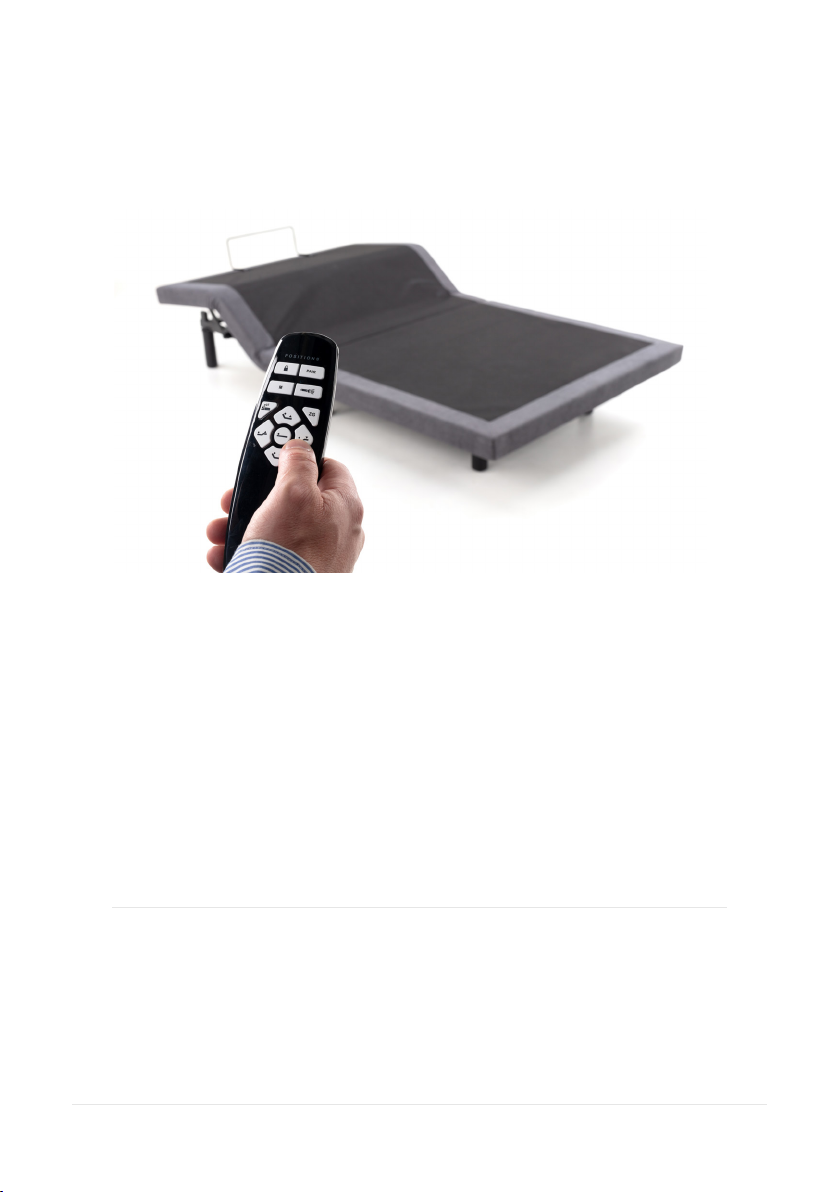

1. Electrically adjustable back rest
2. Electrically adjustable leg rest
3. Electrically adjustable neck tilt
1
5
6
2
3
4

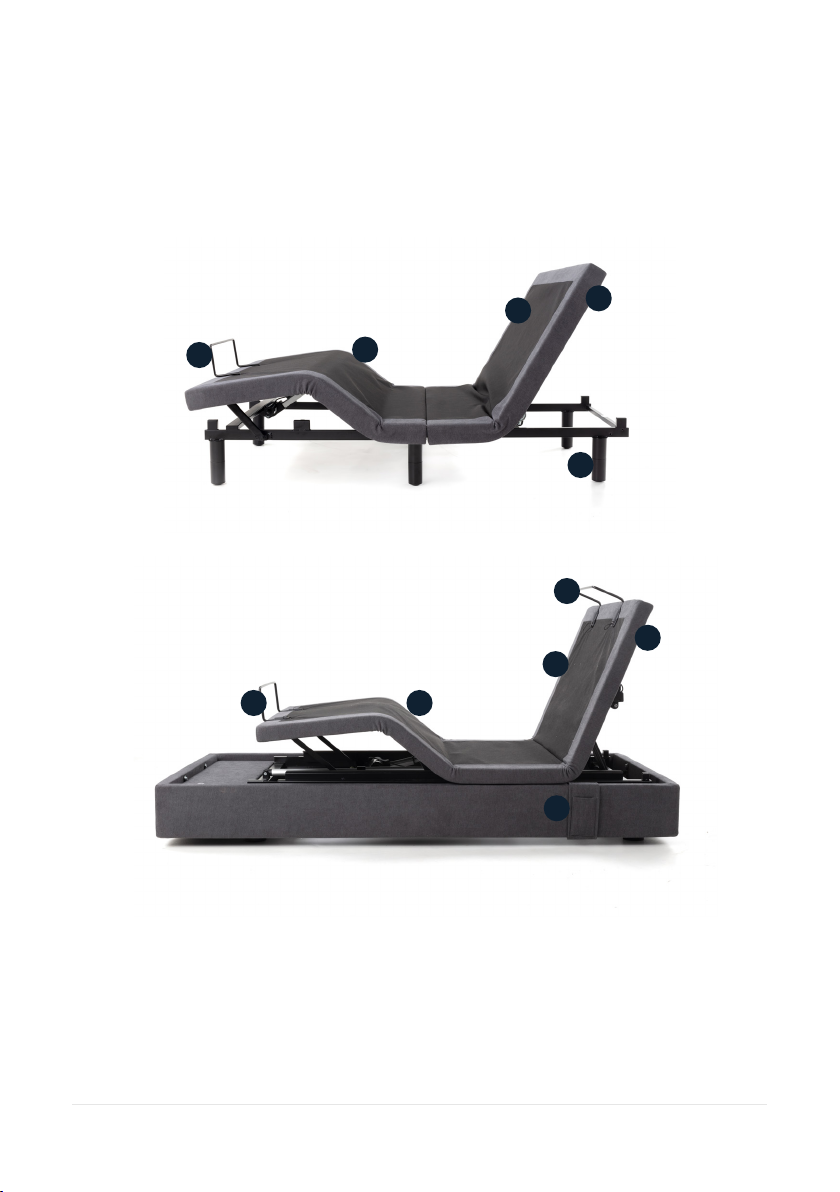

3.1 Overview
1
2
3
4
4
4. Mattress retention bar
5. Screw-in legs
6. Wireless handset pouch
Motion™ / MotionPlus™
MotionLuxe™
3.1 Overview

operabeds.com | 0333 222 8584 | 17
3.2 Handset Functions

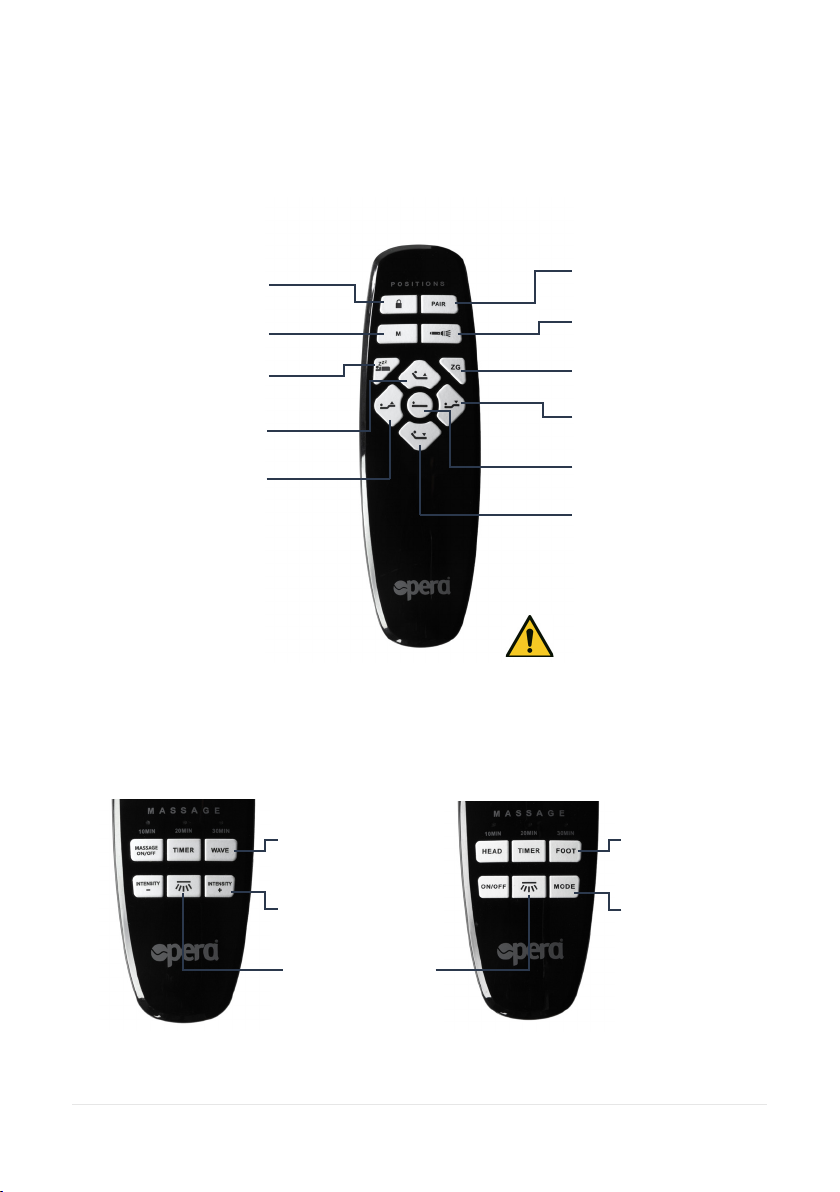

Pair to base
Handset torchlight
Zero-gravity mode
Leg rest down
Return to flat
Back rest down
The smart base motorised functions can be operated via the handset.
Attention:
Press only one button at a time,
as the system could overload
and become damaged.
All Smart Bases
Lock handset
Memory program
Anti-snore mode
Back rest up
Leg rest up
MotionPlus™ MotionLuxe™
SleepWave™
Back Massage
Massage
Intensity
Underbed Light
SleepWave™
Massage
Massage Mode

18 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
3.3 Program Functions
Lock
Locks and unlocks handset control. Press and hold lock
button until lock button flashes red. To unlock, press
and hold for 5 seconds.
Memory
Adjust head and/or foot section(s) to desired positions.
Press and hold MEMORY button until the back-light
on handset flashes. Release button and wait for flash
to stop. Button has now been programmed. Repeat
process if new preset position is desired.
3.4 Reprogramming Functions for Sync
When syncing two bases together, the ANTI-SNORE, ZERO GRAVITY and
MEMORY functions may need to be reprogrammed to ensure both bases are
fully synchronised. This is how each function is reprogrammed:
Anti-Snore
After connecting the sync cable into both bases, press the FLAT button on the
handset. Press the HEAD UP button until the 2 bases are at an 8 degree angle.
Push and hold the ANTI-SNORE button until the handset back lights blink.
Zero Gravity
Press the FLAT button on the handset. Press the HEAD UP button until the 2
bases reach the 17 degree angle. Next, push FOOT UP button until the foot
section of both bases reach the 25 degree angle. Next, press and hold the
ZERO GRAVITY button until the handset back lights blink .
Memory
Press the FLAT button on the handset. Using the HEAD UP and FOOT UP,
adjust the base to a comfortable position. Next, press and hold MEMORY
button until the handset back lights blink.

operabeds.com | 0333 222 8584 | 19
Troubleshooting4
In the event the base fails to operate, investigate the causes and possible
solutions provided below:
Handset control illuminates and appears to be operable, but no
features of the base will activate.
• Unplug power cord, wait 30 seconds and plug in to reset electronic
components.
• Defective surge protection device or electrical outlet. Test outlet by
plugging in another working appliance.
• Electrical circuit breaker may be tripped. Check electrical service breaker
box to verify.
• Re-pair the handset control (see Pairing Handset section of this manual
for programming procedures).
• Replace batteries in the handset control & re-pair handset control.
No features of the base will activate.
• Unplug power cord, wait 30 seconds and plug in to reset electronic
components.
• Defective surge protection device or electrical outlet. Test outlet by
plugging in another working appliance.
• Electrical circuit breaker may be tripped. Check electrical circuit breaker
box to verify.
Head section will elevate, but will not return to the horizontal (flat)
position.
• Base mechanism may be obstructed. Elevate base and check for
obstruction. Remove obstruction.
• Headboard may be too close to the edge of the mattress. Verify that
distance between headboard brackets and mattress is sucient. Adjust
if required.

20 | Opera Smart Adjustable Bed Installation Guide and Technical Specification | Version 2
Head or foot lift function has minor interference during operation.
• Check batteries in handset, replace if necessary.
• Make sure that you are following the duty cycle of the motor (do not
operate more than one (1) minute over a nine (9) minute period, or
approximately a 12% duty cycle).
• Press the lift buttons squarely and accurately.
• Control box may be experiencing common Radio Frequency Interference
from other radio transmitting devices (see Pairing Handset section).
Reset handset to original factory settings.
To reset the factory ANTI-SNORE, ZERO GRAVITY, MEMORY settings, hold down
the FLAT and ZERO-GRAVITY buttons until the back light blinks.
Bases are not properly synced to one another.
Refer to the REPROGRAMMING FUNCTIONS FOR SYNC section; page 18.
Emergency lowering of the base.
If you cannot find the handset control, locate, press and hold the PAIR button
located on the main control box on the bottom of the bed (shown to the left).
