Optex IVPC-DS User manual

No.59-2723-5 1904-09
SETTINGSand INSTALLATION GUIDE

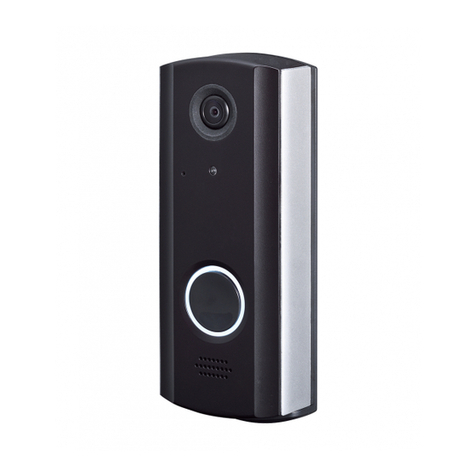

Door station IVPC-DS
Mobile station IVPC-MS
or a device (not included) running the OPTEX Vision App.
- 1 -
This guide covers the installation and setup of the basic IVPC Wireless Intercom System. The basic system
contains an IVPC-DS door station and an IVPC-MS mobile station or a device running the OPTEX Vision App.
By the end of the steps, you will be ready to try some of the operations covered in the user manual.
Thank you for choosing OPTEX!
Introduction
General Information
<< LED indications >>
HD camera
Light sensor
Speaker
Power on/off
(Short press to turn
power on/off)
Micro USB port
(For battery charging)
Doorbell
button
LED indicator
Microphone
Factory reset
(Press & hold for 5 seconds, until
white & blue LED starts blinking)
* Lift rubber plug for access.
Internal 5,000 mAh
rechargeable battery
AC/DC power Input
Internal/external
antenna switch
*Memory card slot
(Memory card is installed
as a factory default)
Screw pack USB charging cable
Power cable
Bypass cable
< Accessories >
2. Open the front cover
1.Open the rubber bushing
INT/EXT External antenna jack
IVPC-DS
Device ID
Back up QR code
(Do not remove)
Mounting plate
Back cover
Front view
Rear view
(Mounting plate/
back cover removed)
Bottom view
Power on
(Wired operation)
Power on
(Battery operation)
Wi-Fi pairing mode
Active Call/Live View
* Low battery warning: The device will cease to function within a week if not recharged
** Low battery error: The battery is completely drained. Please recharge immediately.
*** Device error: Please contact a service provider.
Solid light (White)
LED OFF
White & Blue alternating
Slow blinking (White)
Solid light (White)
** Low battery error
Battery power charging
Firmware update in progress
*** Device error
Slow blinking (Blue)
Fast blinking (Blue)
Slow blinking (White) off
Solid light (Blue)
Fast blinking (Blue & White)
Active Call/Live View
(2-way Audio Activated)
*Low battery Warning
Full charged
Cable connector
EN

Wi-Fi router
SSID;
Password;
1Collect information
- Ask the user for the Wi-Fi SSID and password.
Record them on the two lines below.
- Peel the Device ID (DID) QR code from the mounting plate of the IVPC-DS and place on the space provided below.
- Note the location name, changed Device password and Admin password set during the installation.
- Hand the user this page when the installation process is finished for their record.
Device password: default 123456
It is used when pairing the IVPC-DS with the IVPC-MS or a device running the OPTEX Vision App.
It is necessary to change at the first pairing.
Admin password: default 123456
Used when changing settings. It is necessary to change after the first settings change.
What to expect
Collect information; to register (pair) the IVPC system to the Wi-Fi network.
Set up for pairing; prepare each device for the pairing processes.
Pair the IVPC-DS; pair the IVPC-DS to the IVPC-MS or a device running the OPTEX Vision App and test them.
Choose the location; check the installation site to see if it meets performance needs.
Mount the IVPC-DS; install on the site.
Confirm operation; final check of the operations and customize settings if necessary.
1
2
3
4
5
6
Place DS #1
QR Code
Place DS #2
QR Code
Place DS #4
QR Code
Place DS #5
QR Code
Place DS #6
QR Code
- 2 -
AC/DC adapter
(micro USB)
Volume UP/DOWN
(7 steps)
Power ON/OFF
Speaker
Micro USB port
(for battery charge)
Unused
Micro SD card slot
Microphone
< Accessories >
7-inch
Stand
IVPC-MS
Location name
Admin. password
Device password
Place DS #3
QR Code
NOTE
Wi-Fi direct
SSID; RVDP- xxxxxxxx
Password; 12345678
For iOS only
When using a device operated by iOS,
following password may be required for pairing.

2Set up for pairing
IVPC-DS
Loosen the lock screw.
1
2
Slide the
main unit.
Pull off the main unit.
Remove the
rubber bushing.
Remove the front cover.
Push the power on/off button.
Confirm LED is flashing blue & white.
This is the pairing mode.
(Hold the factory reset button if not in
the pairing mode.)
1
Replace the
rubber bushing.
Replace the front cover. Push the front cover to secure.
IVPC-MS
Plug into an AC outlet.
Press the button to turn on.
Confirm that the LED turns on.
Use the stand for
convenience.
The display shows the
startup screen.
1
12
21
2
4 5
3
6
1 2 3
- 3 -
Search “OPTEX Vision”
in the store.
<< To use the system with a device running the OPTEX Vision App. (option) >>
Download OPTEX Vision
OPTEX Vision
Visit either “App store”
or “Google play” .
Find “OPTEX Vision”
to download it.
1 2 3
Insert a flat driver bit to pry open.
If having trouble with the cover,
make sure the bushing is not in the way.
Plug into the
USB port.
!Caution
Do not use other AC/DC
adapter than included.
Remove the mounting plate.
Lift up.
Power on.
Push.
Power on.
Plug in. Wait for startup screen.
OPTEX Vision App
An internet connection is required.

3Pair the IVPC-DS
- Follow the guidance on the screen to register the IVPC-DS to the IVPC-MS.
- Changes can be made using the device and app settings covered in the user manual.
IVPC-MS
1,500
(5’ )
770
(2’ 6” )
1,120
(3’ 8” )
135°
Display image
Top view
Mounting height
= 1,500 mm (5’ )
Recommended
Mounting height
= 1,000 mm (3’ 4” )
Review required
Unit; mm (ft’ inch”)
500
(1’ 8” )
!
4Choose the location
Hold the IVPC-DS at the intended mounting place.
Press the doorbell.
The IVPC-MS or a device running the OPTEX Vision App should respond
confirming Wi-Fi communication with the router.
♬
NOTE
- Reference Step 1 or scan the QR code on the
back side of the IVPC-DS to get the Device ID.
- Follow the guidance on the screen to register the IVPC-DS to a device running the OPTEX Vision App.
Startup Start of the registration steps End of the registration steps
Start up Start and end of the registration steps
- 4 -
<< To use the system with a device running the OPTEX Vision App. (option) >>
<< Confirm good Wi-Fi signal at the location before mounting >>
1
2
3
NOTE
75°
12
3
Excellent
Good
Fair
Wi-Fi signal indicator
Press the icon.
!Caution
Consider how lighting may change throughout the day.
Avoid backgrounds with bright lights such as direct sunlight.

- 5 -
5Mount the IVPC-DS
Battery operation
Wired operation (New installation); 10 to 24 V AC/DC
Fix the mounting plate.
Attach the
main unit.
Slide down.
Remove the back
cover.
Wire the power cables.
Replace the back
cover. *1
Fix the mounting
plate.
Attach the
main unit.
Slide down.
<< Battery charging >>
Micro USB port
(For battery charging)
- Charging not needed for wired operation.
- Use the included USB cable with any USB
port power supply or charge station capable
of delivering 5 V DC at 1A or greater.
- Full charge time will be approximately 10 hours.
Please recharge only when temperature is +10°C to + 40°C.
(+50°F to +104°F)
Tighten the lock screw.
- Choose battery or wired operation.
123
1
2
1 2 3
Tighten the lock screw.
1
2
4
5 6
- See “Retrofit wiring” on the next page, if replacing an existing door chime.
Make sure to turn
off power.
!Caution
NOTE
Polarity is not a concern.
*1 The back cover protects against water intrusion. Make sure nothing is interfering with it.
*2 If the power source is kept off, the IVPC-DS is driven by the inner battery.
It may cause unexpected system shutdown if power is not restored before the battery depletes.
USB port: 5 V 1 A or greater power supply
ON
OFF
78Turn on power. *2
Mount the main unit.
Assemble the main unit.
!Caution

- 6 -
6Confirm operation
After completing installation, follow up with a final operation test:
1. Push the doorbell button on the IVPC-DS to confirm audio and video on the IVPC-MS or a device running the OPTEX Vision App.
2. Go through the settings section of the user manual to customize the settings.
3. Hand this guide and the user manual to the end user for safekeeping.
4. The information from can be used to expand the device network later on.
<< Retrofit wiring >>
FRONT
TRANS
REAR
Existing chime
(not used)
Power source
10 to 24 V AC/DC
Remove the existing doorbell. Mount the IVPC-DS instead. *1
(Refer to )
Wired operation
- Existing cables and power source for a door chime can be used to power the IVPC-DS.
- Existing door button and chime are not used for this installation.
123
4
Turn off power. Disconnect all wires
from the existing chime.
Connect the power source to the
IVPC-DS. If necessary, use the bypass
cable (included) for the connection.
5Turn on IVPC-DS power. *2
5
1
OFF
ON
FRONT
TRANS
REAR
Existing
chime
Power source
10 to 24 V AC/DC
Existing doorbell IVPC-DS
!Caution
*1 The back cover protects against water intrusion. Make sure nothing is interfering with it.
*2 If the power source is kept off, the IVPC-DS is driven by the inner battery.
It may cause unexpected system shutdown if power is not restored before the battery depletes.
Reference
Expanding the system
- Refer to the product lineup information in the user manual if unsure of how the system can be expanded.
1 2 3
4 5
Bypass cable

- 7 -
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes
or modifications not expressly approved by party responsible for compliance could void the user’ s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter (see ** ).
IC RSS warning
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. (1/2) This radio transmitter (identify
the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
IC Radiation Exposure Statement:
This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter (see **).
** For the IVPC-DS, the equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
148
(5.83)
61(2.4) 32(1.26) Unit:mm (inches)
83.5(3.29)
36(1.42)
70(2.56
)
190 (7.49)
126 (4.96)
16 (0.63)
7-inch
<< Specifications >>
Model
Video
Audio direction
Wi-Fi
Sub 1 G
Power
Battery life *
Battery charging time
Night vision
Operating temperature
Operating humidity
IP rate
Memory card **
* at 25℃ ** 4 GB microSD card is included.
Video format
Recording file format
View angle
Network connectivity
Frequency
Frequency
IVPC-DS
H.264 720p HD/VGA
MP4
H135°/ V75°
Two ways (Full duplex)
Wi-Fi 802.11 b/g/n
2.4 GHz
916 MHz
10 to 24 V AC/DC or
Rechargeable battery (included)
2 months/1 year (battery saving OFF/ON)
10 h with 5 V DC, 1 A supply
IR lighting LED
-20℃to 50℃(-4℉to 122℉)
< 90% (no condensation)
IPX5
microSD card; UHS-I 4 to 32 GB
Model
Audio direction
Wi-FI
Power
Battery life
Charging time
LCD display
Operating temperature
Operating humidity
Network connectivity
Frequency
IVPC-MS
Two ways (Full Duplex)
Wi-Fi 802.11 b/g/n
2.4GHz
AC adapter 5 V/1.5 A
Approximate 8 h in standby
10 h by included AC/DC adapter
7-inch Touch LCD 1,024 x 600
0°C to 40°C (32°F to 104°F)
< 90% (no condensation)
°
- Specifications and designs are subject to change without prior notice.

- 8 -
Status Check point
The registration was not completed
successfully.
The IVPC-DS will change from
blue/white blinking to no light or
solid white.
Press and hold the factory reset button on the IVPC-DS, to enter the
Wi-Fi registration mode. Retry to set each item.
Communication status with the Wi-Fi router is not
good. Or, not connected.
Check the communication status between the
Wi-Fi router and the IVPC-MS or a smartphone.
Refine the communication state by changing the installation location
of the Wi-Fi router. Move the Wi-Fi router closer to the IVPC-DS.
Also, an IVPC-ANT (optional External Antenna) is available.
A Wi-Fi range extender may expand the Wi-Fi coverage.
The chime does not sound even if
the doorbell button of the IVPC-DS
is pressed (LED does not light).
Power is not supplied to the IVPC-DS. In case of
battery operation, check the remaining battery level
with the IVPC-MS or a smartphone application.
In case of wired operation, check the power supply
wiring and voltage.
In case of battery operation, charge the battery. Charging time is
about 10 hours with 5 V DC, 1 A supply.
In case of wired operation, supply 10 to 24 V AC/DC to the power
supply terminals.
Audio is interrupted.
Communication status with the Wi-Fi router may be
bad. Check the communication status between the
Wi-Fi router and the IVPC-MS or a device running
the OPTEX Vision App.
When the communication state is less than fair, refine the
communication state by changing the installation location of the
Wi-Fi router.
Move the Wi-Fi router closer to the IVPC-DS.
Also, an IVPC-ANT (optional External Antenna) is available.
When the communication state is excellent or good, try raising the
volume of the IVPC-MS or a device running the OPTEX Vision App.
The picture is distorted.
Communication status with the Wi-Fi router may be
bad. Check the communication status between the
Wi-Fi router and the IVPC-MS or a device running
the OPTEX Vision App.
Check whether any device that uses 2.4 GHz band
such as a kitchen microwave or a baby monitor is
located nearby the unit.
When the communication state is less than fair, refine the
communication state by changing the installation location of the
Wi-Fi router. Move the Wi-Fi router closer to the IVPC-DS. Also,
an IVPC-ANT (optional External Antenna) is available.
Move away from those devices.
Solution
<< Troubleshooting >> Additional troubleshooting available online at URL; ivisionplusconnect.info/techtips.
Copyright (C) 2019 OPTEX CO.,LTD.
OPTEX CO., LTD. (JAPAN)
URL: www.optex.net
OPTEX INC. (U.S.)
URL: www.optexamerica.com
NOTE Test the total operation after the installation is completed.
Dispose of used products and batteries should be in accordance with local
government regulations/laws.
p. 800-966-7839
[email protected]
[email protected]
Warranty
1. This product is under warranty for normal usage for 18 months from the week of the
year manufactured which can be identified from the serial number indicated on the label
placed in the unit of the IVPC series.
Serial number: YYWWAAAAAZZZZ (e.g. 1850502590001)
YY indicates last two digits of the year manufactured (e.g. “18” = Year 2018)
WW indicates the week number of the year manufactured (e.g. “50” = 50th week)
AAAAA indicates the model in 5-digit code (e.g. “50259” = IVPC-DS)
ZZZZ indicates a serial number of the week manufactured
(e.g. “0001” = the first product in the week)
2. The warranty may not be applicable when any of following circumstances is found.
- Physical or electrical modification is made to the product.
- Product malfunction is resulting from an improper usage, an accident,
natural disaster or any environmental event.
- Please call our technical support before arranging a return.
Did something go wrong during the wizard?
e.g. Wi-Fi password is incorrect.
Device is not in device list. Retry the registration process for the device. Manually enter the
Device ID, if necessary.
ivisionplusconnect.info/techtips
