1TECHNICAL SUMMARY
1.1 BRIEF DESCRIPTION
1.1.1 OVERVIEW
The OSD2151 is designed to convert between 10/100/1000Base-T copper cabling and 1000Base-Fx
fiber cabling with the added feature of Link Loss Forwarding. It has one RJ45 copper port and one SFP
port which can be specified by the user for one or two fiber configuration.
The OSD2151 incorporates Link Loss Forwarding (LLF) function providing fault detection and shut
down when a link fails.
The unit will operate on either singlemode or multimode fiber. Operation over at least 500m of
multimode fiber or 50km of singlemode fiber is possible by use of the appropriate optical devices.
A major benefit of the OSD2151 is its reliable operation over the -20°C to +65°C temperature range
which allows it to be used in environments such as roadside cabinets, mine sites and factories.
1.1.2 APPLICATIONS
▲ Any network utilising a mix of copper
and fiber
▲ Industrial IP communications
▲ Gigabit Ethernet backbone networks
1.1.3 FEATURES AND BENEFITS
▲ Complies with
IEEE802.3i/802.3u/802.3ab
10/100/1000Base-T, IEEE802.3z
1000Base-Lx/Sx standards.
▲ Supports network traffic of up to
1000Mbps.
▲ Has one fixed 10/100/1000BaseT
copper port and one Gigabit SFP port
which may be either copper of fiber
▲ Automatic MDI/MDIX setup: no need
for crossover cables.
▲ Can be used with either singlemode or
multimode fiber over a variety of link
budgets
▲ Advanced features like Link Loss
Forwarding to detect the link status of
link partners either on the fiber and/or
copper port.
▲ Available for operation over 1 or 2
fibers.
▲ Powered by non critical 12V
DC
or
24V
AC
supplies
▲ Operates over the temperature range
of -20 to +65°C

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 6
1.2 TYPICAL CONFIGURATION
Figure 1 below indicates the typical set-up for an OSD2151 system.
FIGURE 1: OSD2151 TYPICAL CONFIGURATIONS
PC
Network Switch
1000Base
-
T Ethenet
LAN
1 or 2 Fibers
OSD2151

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 7
1.3 TECHNICAL SPECIFICATIONS
TABLE 1: TECHNICAL SPECIFICATIONS
SPECIFICATION PERFORMANCE
Electrical Data Interface IEEE802.3i/802.3u/802.3ab 10/100/1000Base-T Ethernet
Electrical Data Rate 10, 100, 1000Mbps with energy detect, auto negotiate, auto MDIX
Optical Data Interface IEEE802.3z 1000Base-Lx/Sx
Optical Data Rate 100Mbps or 1000Mbps
Operating Mode
Half or full duplex for 10/100
Full duplex for 1000
Pause frames for 1000Mbps flow control
Electrical Data Connector RJ45
Optical connector SFP
SFP Options Short haul, long haul, single fiber operation, etc
Please consult OSD datasheet #102100002 or contact OSD
User Controls
Three externally accessible switches;
1. 100/1000BASE-X for optical port
2. Link Loss Forwarding Enable/Disable
3. Fault Detection on fiber port or RJ45 port / both
Dimensions (mm) 60W x 94D x 26H
Weight 0.3kg (module)
Power Requirements +8V
DC
to +35V
DC
or 20 to 28V
AC
@ 4VA
Power Connector 2 Way Terminal Block
Operating Temperature -20°C to +65°C
Relative Humidity 0 to 95% non-condensing
Cassis Current Consumption 0.4Amp
1022215101

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 8
1.4 OSD2151 FRONT AND REAR PANELS
There is one fixed copper port for 10/100/1000Base-T and one SFP port on the front panel. The SFP
device is sold separately giving the user choice to use either one or two fiber communications with
various optical power outputs depending on the distance required. The rear panel consists of a 2-way
term-block power connector and a 3-Way DIP switch. Each section will be described further
throughout this manual.
FIGURE 2: OSD2151 CONNECTORS
Fixed RJ45 Copper Port
LED Indicators
SFP port
3-Way DIP switch
Power Connector

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 9
2INSTALLATION AND OPERATION
2.1 INTRODUCTION
This section outlines the methods required to install and operate the OSD2151 successfully. It should be
studied carefully if damage to the equipment or poor results are to be avoided.
This equipment has been fully tested prior to dispatch and is ready for immediate operation. However it
is advisable to check for external transportation damage before operation. If damage is evident, return
the unit with the packaging to your supplier immediately.
2.2 INSTALLATION
2.2.1 WARNING AND PRECAUTIONS
▲ ELECTROMAGNETIC COMPATIBILITY
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
▲ OPTICAL OUTPUT OPERATION
WARNING: Laser Safety: Class 1 Laser Product per IEC/EN 60825-1:20011 standard.
Class 1
The OSD2151 is a Class 1 laser product.
PRECAUTIONS
▲ All service personnel should be provided training as to the hazards of direct viewing of laser
radiation and of the precautionary measures during servicing of equipment
▲ Areas where laser products are installed should be restricted in access to trained service
personnel only and appropriate warning signs posted in the work area.
▲ All laser apertures should be covered by protective covers when not connected to optical
fibers. Never leave outputs uncovered.
▲ Laser equipment should be positioned above or below eye level where possible. Apertures
should be positioned away from personnel.
▲ Protective eyewear should be worn in the vicinity of laser equipment.

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 10
2.2.2 OSD2151 DRAWINGS AND DIMENSIONS
The OSD2151 is designed to be mounted on an even surface and to be secured by means of M4 or
smaller screws.

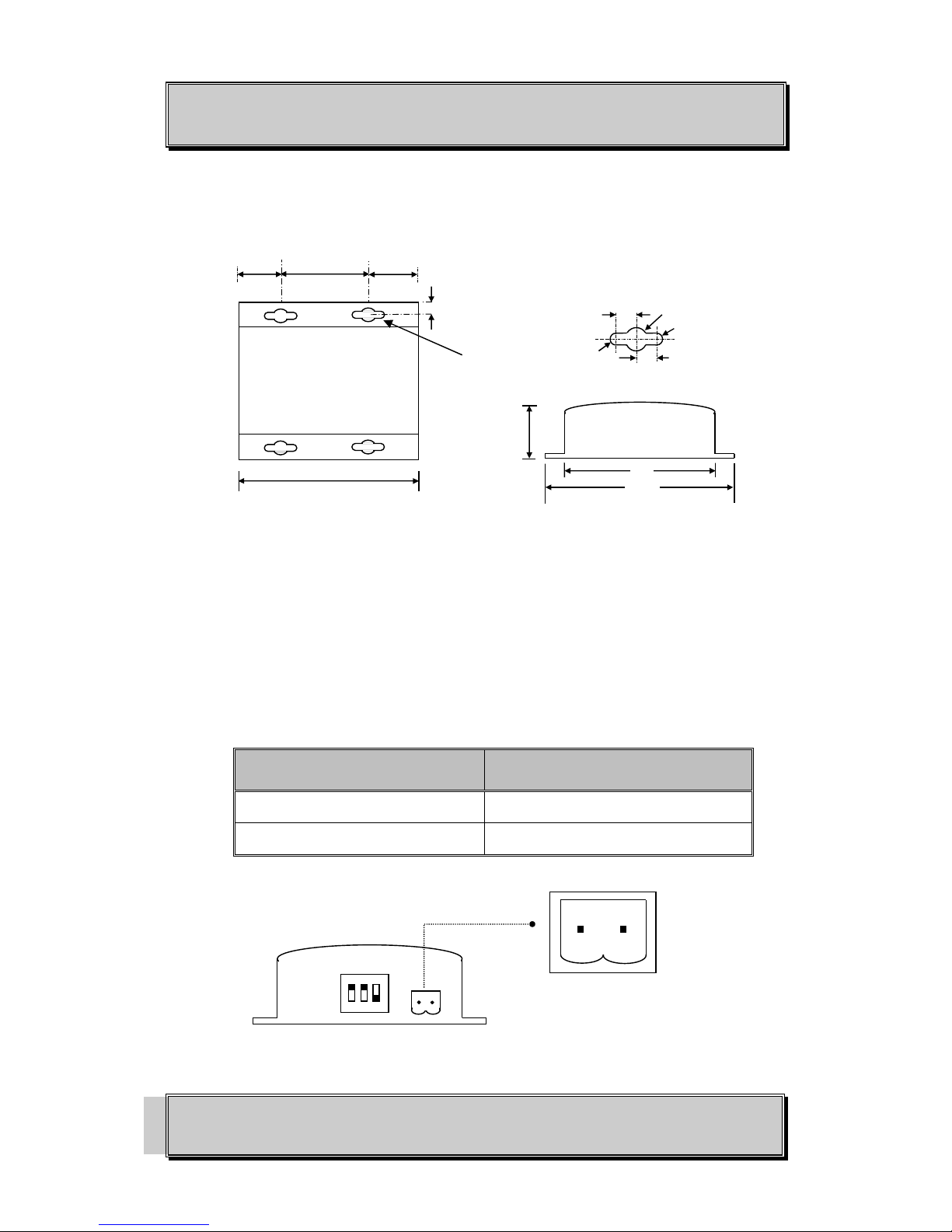

FIGURE 3: OSD2151 MOUNTING DIMENSIONS
2.2.3 POWER SUPPLY CONNECTIONS
The OSD2151 module requires external DC or AC power. The voltage range of the OSD2151 is +8V
DC
to +35V
DC
or 20 to 28V
AC
@ 4VA. Power should be connected to the power socket located at the back
of the case as indicated in Table 2.
TABLE 2: DC POWER CONNECTION
External Power Pin Specification
Pin 1 +8 to +35V
DC
or 20 to 28V
AC
@ 4VA
Pin 2 Ground – 0V
FIGURE 4: 2151 POWER SUPPLY CONNECTIONS
R2.1
R2.1
Ø8.5
8.0
8.0
DETAIL A
26.4
60
83.4
DETAIL A
6
94
38
25.6
25.6
Power Connector
2 1

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 11
2.2.4 FIXED RJ45 COPPER PORT PIN ASSIGNMENTS
Figure 5 shows the pin configuration for the fixed RJ45 copper port.
FIGURE 5: FIXED RJ45 ETHERNET CONNECTORS
2.2.5 LED INDICATORS
FIGURE 6: LED INDICATORS
TABLE 3: LED FUNCTION
No
Function
On Off Blinking
Copper Link
Amber: 10Mbps
Bi-colour: 100Mbps
Green: 1Gbps
No Copper Link Activity
(1)
Full Duplex on Copper Port Half Duplex on Copper Port -
Power On Power Off -
Fiber Link No Fiber Link Activity
(1)
Link Loss Forwarding
Enabled
Link Loss Forwarding
Disabled -
Note: (1) Activity indicates traffic for both copper and fiber port.
1: Tx+
2: Tx-
3: Rx+
4: Not Used
5: Not Used
6: Rx-
7: Not Used
8: Not Used
Green LED:
Fdx
Amber LED:
100/1000/Act
8 7 6 5 4 3 2 1
Fixed Copper Port
1
11
1
2
22
2
3
33
3
4
44
4
5
55
5
100/1000/Act
Fdx
Power
Fiber Link/Activity
Link Loss Forwarding
1
11
1
2
22
2
3
33
3
4
44
4
5
55
5

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 12
2.2.6 CONTROLS
The OSD2151 has a 3-way DIP switch to control a number of functions. Table 4 outlines the function
of each switch. For correct operation, set the required switch settings before powering the unit.
FIGURE 7: OSD2151 3-WAY DIP SWITCH
TABLE 4: OSD2151 3-WAY DIP SWITCH SETTINGS
SWITCH
NUMBER DESCRIPTION SWITCH POSITION FUNCTION
1 Fault Detection
OFF Detect LLF for copper and fiber loss
ON Detect LLF for fiber loss only
2 Link Loss Forwarding
OFF Disable
ON Enable
3 Optical Port Speed
OFF 1000BASE-X
ON 100BASE-FX
ON Position
OFF Position
1 2 3
Fault Detection
Link Loss Forwarding
Fiber Speed

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 13
2.2.7 FITTING SFP CONNECTORS
Care should be taken when inserting/removing the SFP connectors from the SFP port as SFP modules
are Electrostatic (ES) sensitive and Electrostatic Discharge (ESD) precautions should be taken when
installing. Ensure that the SFP is fully engaged and latched into position.
Inserting SFP – Ensure that the SFP lever is in the locked position and insert into appropriate SFP
port. Gently push the SFP until it locks into place. Remove plastic/rubber dust cap and fit appropriate
fiber cable.
Removing SFP – Remove fiber connector. Pull the SFP lever down to unlock SFP from housing.
Using the lever, gently pull the SFP out.
Fiber SFP
FIGURE 8: FITTING/REMOVING SFP CONNECTORS
2.2.8 BASIC CONNECTIONS
Figure 9 shows basic user connections to the OSD2151
FIGURE 9: BASIC CONNECTIONS
Inserting
SFP
Removing
SFP
1
2
Power
RJ45 Ethernet Cable
OSD2151
LC Fiber cable

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 14
2.3 OSD2151 OPERATION
This section outlines the OSD2151 connections and switch settings. Read this section carefully for
trouble free set up and operation.
There are two possible configurations for the OSD2151 namely Single Unit Configuration and Dual
Unit configuration.
Figure 10 is a flow chart of the OSD2151 Link Loss Forwarding (LLF) function and operation.
FIGURE 10: LINK LOSS FORWARDING FUNCTION
2.3.1 SINGLE UNIT CONFIGURATION
The single unit configuration enables the user to connect the OSD2151 to any 1000Base-X switch via
the fiber port. The fixed RJ45 copper port can be connected to a switch or PC using standard CAT5 or
higher cable.
FIGURE 11: SINGLE UNIT CONFIGURATION
1000Base
-
X Switch
PC
OSD2151
FiberCopper

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 15
The following tables outline the recommended switch settings for the OSD2151. Any changes in switch
settings require power up to take effect.
Table 5: CONFIGURATION WITH LLF ENABLED
Configurations Case1 Case2 Case3 Case4
Switch
Setting
Configurations
1. LLF detects fiber &
copper
2. LLF is enabled
3. Fiber port is
100BASE-FX
1. LLF detects fiber &
copper
2. LLF is enabled
3. Fiber port is
1000BASE-X
1. LLF detects fiber
only
2. LLF is enabled
3. Fiber port is
100BASE-FX
1. LLF detects fiber
only
2. LLF is enabled
3. Fiber port is
1000BASE-X
Fiber link
loss
Response
Action Disable Tx of copper port Disable Tx of copper port
Restore
Sequence
1. Fix fault and reconnect
2. Wait for link to be reestablished
1. Fix fault and reconnect
2. Wait for link to be reestablished
Copper
link loss
Response
Action Disable Tx of fiber port NULL
Restore
Sequence
1.Fix fault and reconnect
2.Wait for link to be reestablished NULL
TABLE 6: CONFIGURATION WITH LLF DISABLED
Configurations Case1 Case2
Switch
status
Configurations
of SIP switch
1. Invalid
2. LLF is disabled
3. Fiber port is
1000BASE-X
1. Invalid
2. LLF is disabled
3. Fiber port is
1000BASE-X
1. Invalid
2. LLF is disabled
3. Fiber port is
100BASE-FX
1. Invalid
2. LLF is disabled
3. Fiber port is
100BASE-FX
Fiber link
loss
Response
Action NULL NULL
Restore
Sequence NULL NULL
Copper
link loss
Response
Action NULL NULL
Restore
Sequence NULL NULL

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 16
Examples
Figure 12 is an example of a copper connection loss. The OSD2151 will detect that there is no copper
connection received and then disable the transmission to the fiber port. The 1000Base-X switch will
thus be notified that there has been a copper link loss.
FIGURE 12: COPPER CONNECTION LOSS
Figure 13 is an example of a fiber connection loss. If the OSD2151 does not receive a valid optical
signal from the switch, transmission to copper port will be disabled.
FIGURE 13: FIBER CONNECTION LOSS
OSD2151
1000Base-X
Switch
Switch or PC
Fiber Copper
Tx
Rx Tx
Tx
Tx
Rx Rx
Rx
OSD2151
1000Base-X
Switch
Switch or PC
Fiber Copper
Tx
Rx Tx
Tx
Tx
Rx Rx
Rx

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 17
3MAINTENANCE
3.1 INTRODUCTION
The following section outlines the fault-finding procedure for the OSD2151 modems. Please take note
of the following:
▲ Personnel without appropriate training should not attempt any maintenance except that outlined
below.
▲ If further maintenance is attempted you are warned that every care should be taken to ensure that
internal measurements made while the equipment is operational are taken carefully as some
components within the unit are expensive and may be damaged by failure of any portion of their
support circuitry.
▲ Some components within the unit are Electrostatic (ES) sensitive and Electrostatic Discharge
(ESD) precautions should be taken when performing maintenance upon the unit.
3.2 EXTERNAL INSPECTION
Visually check for the following:
▲ Check that the correct power source is connected to the power socket.
▲ Check that the Ethernet cables are connected to the modem correctly and that the distant OSD2151
modem has been connected correctly to any external equipment.
▲ Inspect the optical connectors (for fiber SFP option) for any contamination and clean using
isopropyl alcohol and a lint free tissue if any contamination is detected.
3.3 ROUTINE MAINTENANCE
▲ There is no routine maintenance required with the OSD2151.

OPTICAL SYSTEMS DESIGN
DOC ID: 10110603
OSD2151 OPERATOR MANUAL
PAGE 18
4WARRANTY
Thank you for purchasing equipment designed, manufactured and serviced by Optical Systems Design
(OSD). OSD warrants that at the time of shipment, its products are free from defects in material and
workmanship and conforms to specifications. Our Warranty conditions are outlined below:
4.1 WARRANTY PERIOD
For warranty period, please call your local OSD distributor.
4.2 REPAIRS
Optical Systems Design reserves the right to repair or replace faulty modules/units. Please obtain a
“Return Material Authorisation” (RMA) form and number before returning goods.
Goods must be returned in adequate packing material to Optical Systems Design, Warriewood or its
nominated authorised representative, for all repairs.
4.2.1 WARRANTY REPAIRS
Return shipments to OSD shall be at customer's expense and freight back to the customer will be at
OSD expense.
4.2.2 OUT-OF-WARRANTY REPAIRS
OSD reserves the right to repair or replace any faulty goods. Freight costs and insurance for both
journeys are met by the user. All equipment repaired by OSD will have a 3-Month Warranty from the
date of dispatch.
4.2.3 SITE REPAIRS
By agreement site repairs may be undertaken for which out of pocket, hotel and travel expenses will be
charged.
4.2.4 EXCLUSIONS
This warranty does not apply to defects caused by unauthorized modifications, misuse, abuse or
transport damage to the equipment. All modifications to OSD’s standard product will need written
authorization and will be charged at normal repair rates. All modifications are to be carried out by OSD
Technicians. Warranty is void if unauthorized removal and/or tampering with serial number and/or
repair labels is evident.

Optical Systems Design Pty. Ltd.
7/1 Vuko Pl. Warriewood 2102
P.O. Box 891 Mona Vale
N.S.W. Australia 2103
Telephone: [phone]
Facsimile: [phone]
Email: [e-mail]
Web Site: www.osd.com.au
OPTIC L
SYSTEMS
DESIGN
PTY LTD A.B.N. 83 003 020 504
Printed in Australia
