Optimus Single Channel 170 MHz Wireless FM PA Amplifier... User manual

© 1999 Tandy Corporation.
All Rights Reserved.
RadioShack and Optimus are registered trademarks used by Tandy Corporation.
Cat. No. 32-1240
Single Channel 170 MHz Wireless
FM PA Amplifier System
Your Optimus Single Channel 170
MHz Wireless FM PA Amplifier is de-
signed for classrooms, meeting
rooms, or anywhere sound reinforce-
ment is desired. It can serve as a sin-
gle channel wireless microphone
receiver, a wired microphone amplifi-
er or both. It has a 20 watt audio am-
plifier and two audio inputs you can
control separately. It is powered by AC
120V/60Hz or DC 12V.
Note: This system requires a wireless
or wired microphone (not supplied) for
operation. Your local RadioShack
store has a variety of wireless and
wired microphones.
170 MHz Operation Frequency —to
assure accurate sound reproduction.
Volume Controls —let you adjust the
volume of a wireless and wired micro-
phone.
Compander Noise Reduction —
greatly reduces low-frequency noises.
Internal Helical Antenna —receives
microphone signals up to 150 feet
away.
Wired and Wireless Microphone
Use Simultaneously —lets you use
wired and wireless microphones at the
same time.
Your amplifier is ETL listed to UL stan-
dards and meets all applicable FCC
standards.
We recommend you record your amplifi-
er’s serial number here. The number is
on the back of the amplifier.
Serial Number____________________
WARNING:To reduce the risk of fire or shock
hazard, do not expose this product to rain or
moisture.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
This symbol is intended to alert
you to the presence of uninsu-
lated dangerous voltage within
the product’s enclosure that might
be of sufficient magnitude to con-
stitute a risk of electric shock. Do
not open the product’s case.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature accom-
panying this product.
!
!
32-1240.fm Page 1 Monday, July 26, 1999 12:09 PM

2
FCC NOTICE
This device complies with Part 15 of the
FCC Rules
. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the
FCC Rules
. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications.
However, there is no guarantee that in-
terference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television reception, which can be deter-
mined by turning the equipment off and
on, the user is encouraged to try to cor-
rect the interference by one or more of
the following measures:
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
• Consult your local RadioShack store
or an experienced radio/TV techni-
cian for help.
Changes or modifications not expressly
approved by RadioShack may cause in-
terference and void the user’s authority
to operate the equipment.
Product: Single Channel 170
MHz Wireless FM PA
Amplifier System
Model: 32-1240
Responsible Party: RadioShack
100 Throckmorton
Fort Worth, TX 76102
Phone: 817-415-3200
32-1240.fm Page 2 Monday, July 26, 1999 12:09 PM

3
Connecting Power
You can power your amplifier with the
supplied AC and DC power cords.
AC Power Cord
Caution:
You must use only the sup-
plied AC power cord. If you
lose or damage this cord, order
a replacement from your local Ra-
dioshack store. Using other power cords
could damage the amplifier. Be sure am-
plifier POWER is set to OFF before you
connect the power cord. Always plug the
power cord into the amplifier’s 120V AC
60Hz jack first, and always unplug the
power cord from the AC outlet first.
Set the amplifier to OFF. Plug the power
cord’s small plug into the amplifier’s
120V AC 60Hz jack. Then plug the other
end of the cord into a standard AC out-
let.
DC Power
Caution:
You must use only the sup-
plied DC power cord. If you
lose or damage this cord, order
a replacement from your local Ra-
dioshack store. Using other power cords
could damage the amplifier. Be sure am-
plifier POWER is set to OFF before you
connect the power cord. Always plug the
power cord into the amplifier’s DC 14.4V/
2.5A jack first, and always unplug the
power cord from the12V accessory out-
let outlet first.
Make sure the amplifier is set to OFF
and plug the power cord’s barrel plug
into the DC 14.4V/2.5A jack. Then plug
the other end of the cord into a standard
DC source such as an automobile 12V
accessory outlet.
!
!
32-1240.fm Page 3 Monday, July 26, 1999 12:09 PM

4

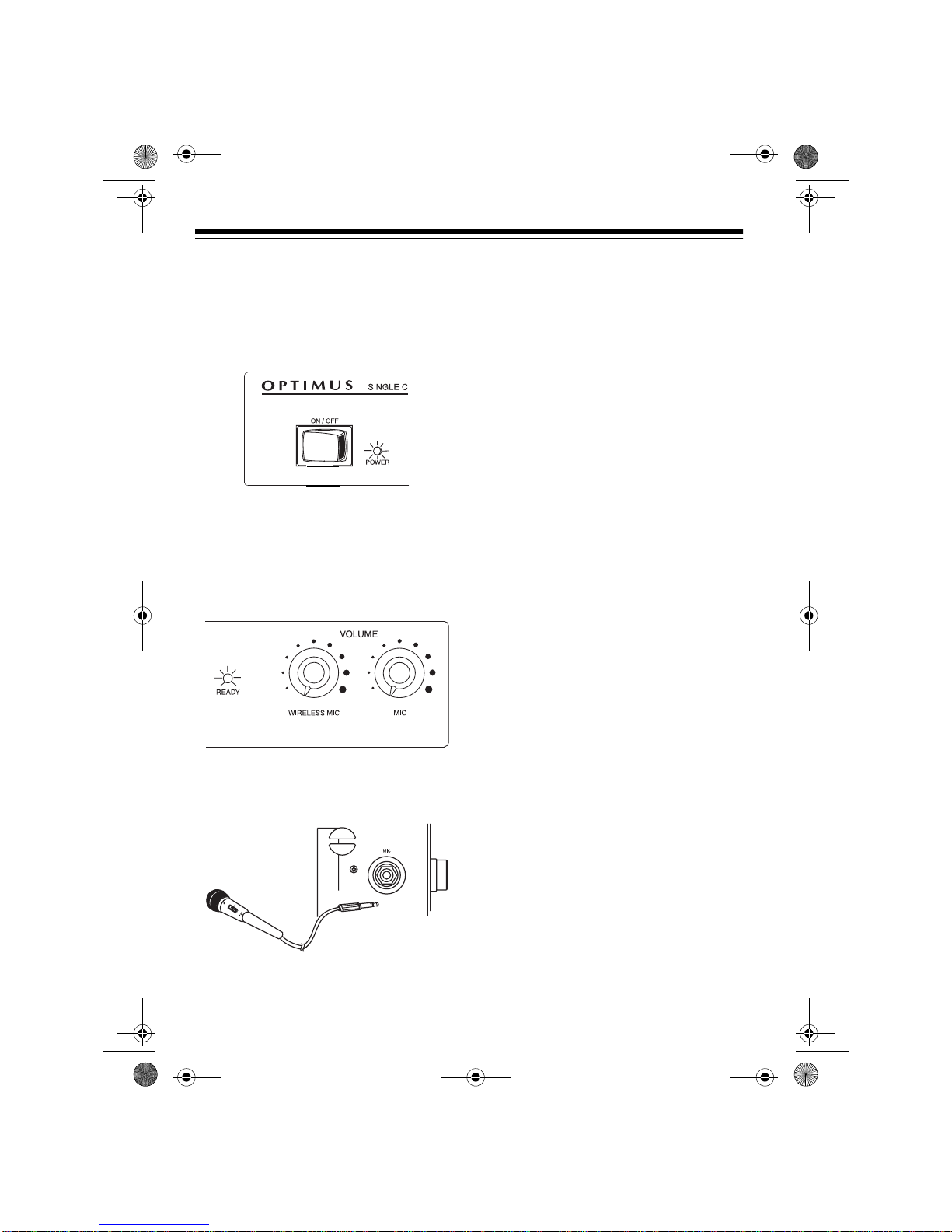

Operation
1. Set VOLUME to the minimum level.
2. Set ON/OFF to ON. The power indi-
cator lights.
3. Set the wireless microphone’s OFF/
STANDBY/ON switch to ON. The
READY indicator lights.
4. Adjust WIRELESS MIC VOLUME to
the desired level slowly.
5. Connect the wired microphone to
the amplifier’s MIC jack located on
the back of the amplifier.
6. Set the microphone’ switch to ON.
7. Adjust your amplifier’s wired micro-
phone volume control to the desired
level.
8. Turn the volume levels to the mini-
mum position and press the power
switch to OFF when the amplifier is
not in use.
Note: You can use a wireless micro-
phone and a wired microphone at the
same time.
32-1240.fm Page 4 Monday, July 26, 1999 12:09 PM

5
Troubleshooting
If you have problems operating your amplifier, try these suggestions. If you still have
problems, contact your local RadioShack store for assistance.
Problem Suggestion
No power Make sure the AC cord is properly connected.
Make sure the DC power is properly connected.
Make sure the power is turned on.
Check the fuse and replace it if needed.
No sound (wireless microphone) Make sure your transmitter and amplifier are
operating on the same frequency.
Adjust the wireless microphone volume control.
Make sure the microphone transmitter is work-
ing and you are within the 150 ft range of opera-
tion.
No sound (wired microphone) Make sure your wired microphone is properly
connected and the microphone is not defective.
Adjust the wired microphone volume control.
32-1240.fm Page 5 Monday, July 26, 1999 12:09 PM

6
Replacing the Fuse
If the amplifier does not operate, you
might need to replace the fuse on the
back of the amplifier.
Important: Let the amplifier cool down
and see if it starts again before you re-
place the fuse.
Caution: Do not use a fuse with ratings
other than those specified here. Doing
so might damage your amplifier.
1. Set the amplifier to OFF and unplug
it.
2. Insert a flat-blade screwdriver into
the fuse holder’s cap located on the
back of the amplifier and carefully
rotate it counterclockwise.
3. Remove the fuse holder’s cap then
pull out the cap to remove the fuse.
4. If the fuse is blown (the inside wire
is broken), remove it and replace it
with the same type of 1.5A/125V
fuse.
5. Insert the fuse holder’s cap back
into the socket on the back of the
amplifier.
6. Carefully tighten the fuse holder’s
cap by rotating it clockwise.
Care
To enjoy your Optimus Single Channel
170 MHz Wireless FM PA Amplifier for a
long time:
• Keep the amplifier dry. If it gets wet,
wipe it dry immediately.
• Use and store the amplifier only in
normal temperature environments.
• Handle the amplifier gently and
carefully. Don’t drop it.
• Keep the amplifier away from dust
and dirt.
• Wipe the amplifier with a damp cloth
occasionally to keep it looking new.
Modifying or tampering with the amplifi-
er’s internal components can cause a
malfunction and invalidate its warranty
and void your FCC authorization to op-
erate it. If your amplifier is not perform-
ing as it should, take it to your local
RadioShack store for assistance.
32-1240.fm Page 6 Monday, July 26, 1999 12:09 PM

7
SPECIFICATIONS
Channel Frequency ..................................................................... Single Channel (1/8)
Operating Frequencies:
Channel Frequency
A ...................................................................................................... 169.445 MHz
B .......................................................................................................169.505 MHz
C ..................................................................................................... 170.245 MHz
D ...................................................................................................... 170.305 MHz
E ...................................................................................................... 171.045 MHz
F ...................................................................................................... 171.105 MHz
G ...................................................................................................... 171.845 MHz
H ...................................................................................................... 171.905 MHz
AC Power .................................................................................................. 120V/60Hz
DC Power Jack .................................................................................................. 14.4V
Fuse ........................................................................................................... 1.5A/125V
Audio Output @ 10% THD .................................................................................. 13 W
Distortion of Wired Microphone at Maximum Output ............................................. 3%
Sensitivity of Wired Microphone .......................................................................... 5mV
Wired Microphone S/N Ratio .............................................................................. 50dB
Frequency Response of Wireless Microphone ................................ 300-3000Hz 0dB
HUM Noise at Wireless Microphone .................................................................. 10mV
Sound Level (10 feet away) ......................................................................... 85dBSPL
Specifications are typical: individual units might vary. Specifications are subject to
change without notice.
32-1240.fm Page 7 Monday, July 26, 1999 12:09 PM

RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
811082090A
07A99 Printed in China
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workman-
ship under normal use for one (1) year from the date of purchase from RadioShack company-owned
stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, Ra-
dioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED
HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RE-
SPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY
LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-
MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUD-
ING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF
TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSI-
BILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of in-
cidental or consequential damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack
sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un-
less otherwise provided by law: (a) correct the defect by product repair without charge for parts and
labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase
price. All replaced parts and products, and products on which a refund is made, become the prop-
erty of RadioShack. New or reconditioned parts and products may be used in the performance of
warranty service. Repaired or replaced parts and products are warranted for the remainder of the
original warranty period. You will be charged for repair or replacement of the product made after the
expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or
maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs
other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs
of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
RadioShack Customer Relations, 200 Taylor, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
04/99
32-1240.fm Page 8 Monday, July 26, 1999 12:09 PM
This manual suits for next models
1
Table of contents
Other Optimus Amplifier manuals

Optimus
Optimus A-065M User manual

Optimus
Optimus XL-200 User manual

Optimus
Optimus AXF-240 User manual

Optimus
Optimus 120-1971 User manual

Optimus
Optimus A-120M User manual

Optimus
Optimus PM-CH7 User manual

Optimus
Optimus AXD-30 User manual

Optimus
Optimus C-810PRJ User manual

Optimus
Optimus A-035 User manual

Optimus
Optimus AXD-30 User manual

Optimus
Optimus C-810PAL User manual

Optimus
Optimus UP-66 User manual

Optimus
Optimus AM-120Z Manual

Optimus
Optimus A-5120M2 User manual

Optimus
Optimus M50 User manual

Optimus
Optimus MT-1500 User manual

Optimus
Optimus MP-120D1 User manual

Optimus
Optimus UP120M4 User manual

Optimus
Optimus A-240MZ User manual

Optimus
Optimus MA-30M User manual
