1. INTRODUCTION
The OPTIMUS DVA-102ETH unit is an Ethernet-
controlled player of digital messages in WAV or OGG
format.
The digital messages are stored on a 2 GB Compact
Flash memory card, which is supplied together with the
DVA-102ETH.
It occupies one unit of height in 19” Rack cabinets.
As an element of the OPTIMAX Public Address and Voice
Alarm system, the following functions are supported:
Playing of the messages pre-recorded on the
Compact Flash card through the Ethernet link
towards the OPTIMAX digital power units.
Recording of messages on the Compact Flash card
from the following sources:
-Local microphone input
-Ethernet link
Activation of messages and selection of zones to
which these are to be directed by means of:
-P.A. Manager Software, by means of Ethernet
commands
-Activation of local contacts
Reception of system alarms via IP and display of
these on the front LCD screen.
Another functionality of the DVA-102ETH is that it
works autonomously, as a source of messages towards
analog power units or as a link between an installation
in an OPTIMAX network and conventional PA systems
with analog power units. In the latter case, it supports:
Reception of audio via IP and transmission of this
through the analog audio output.
Playing of pre-recorded messages from the Compact
Flash card and transmission of these through the
analog audio output.
Recording of messages on the Compact card from
the following sources:
-Local microphone input
-Ethernet link
Activation of messages and selection of zones to
which these are to be directed by means of:
-P.A. Manager Software, by means of Ethernet
commands
-Activation of local contacts
Translation of the zone selection commands received
via IP into RS485 commands (by polling in
installations with UDCE-01 zones and by CSMA in
installations with UMX-02/0 zones).
In installations with UMX-02/0 zones, reception of
the system alarms via RS485 CSMA and display of
these on the front LCD screen.
Therefore, this unit adds more power to the
management of pre-recorded messages in PA systems,
and it perfectly complements the capacities of the
OPTIMAX digital system, designed for PA and Voice
Evacuation systems according to the European standard
UNE-EN 60849.

DVA-102ETH version 1.2 R&D Department 6
DVA-102ETH
Digital voice announcer
and Optimax system gateway
2. FRONT VIEW
(1) Monitor loudspeaker volume adjustment
(2) Download DIP switch
Allows the user to switch between normal working
mode and firmware download mode.
(3) Download connector
Used to update the firmware of the DVA-102ETH.
(4) LCD screen
(5) MENU navigation keys and OK/CANCEL
selection
(6) ALARM indicator
Lights when an alarm is received from the unit itself or
from the system.
(7) RX and TX indicators
Their blinking indicates transmission (TX) or reception
(RX) of data through the RS485 port.
(8) Monitor loudspeaker
This is used to monitor the pre-recorded messages.
(9) Power indicator
Power supply indicator.
(10) Analog function indicators
- Emergency Mode. When lit, it indicates that the
DVA-102ETH has gone into emergency mode.
- Emergency Play Message. Lights when an
emergency message is played.
- Priority. Lights when an emergency message with
priority is played.
- Program. Lights when an emergency message
without priority is played.
(11) Ethernet B input status indicators
- RX. When lit, it indicates that data is being received
through the ETHERNET B input.
- TX. When lit, it indicates that data is being
transmitted through the ETHERNET B input.
- 10 Mb. Indicates the speed of the Ethernet network
connected to the Ethernet B input. If the LED is lit,
it indicates a speed of 10 Mb. If unlit, it indicates a
network speed of 100 Mb (use of a transmission
speed of 100 Mbps is highly recommended).
- LINK. When lit, it indicates the connection of the
Ethernet B input with the HUB or SWITCH.
(12) Ethernet A input status indicators
These serve the same purpose as the ETHERNET B
indicators, applied in this case to the ETHERNET A
input.
(13) Power switch
ON/OFF switch.
(14) Recording input
Used for connection of a microphone to record
messages. The input sensitivity is -60 dBm.
Figure 1
FIRMWARE DOWNLOAD
MODE
NORMAL MODE

DVA-102ETH version 1.2 R&D Department 7
DVA-102ETH
Digital voice announcer
and Optimax system gateway
3. REAR VIEW
(1) Power supply fuse
3 A fuse.
(2) Power supply input
To power the DVA-102ETH, connect a power supply of
24 V DC / 2 A to this input.
(3) Input contacts 1 to 19
(4) Output contacts 1 to 19
(5) RX and TX indicators
Their blinking indicates transmission (TX) or reception
(RX) of data through the RS485 port.
(6) RS485 IN connector
RJ45 type connector. This is used to connect the
DVA-102ETH to the RS485 communication bus.
(7) RS485 OUT connector
RJ45 connector. Used to give continuity to the RS485
bus. If this output is used, the RS485 ON/OFF switch
(8) must be moved to the ON position.
(8) RS485 OUT ON/OFF switch
In the ON position, the RS485 output is activated.
(9) Ground to chassis connection
(10) RS485 ADDRESS DIP switch
In mixed or analog installations, the DVA-102ETH
communicates with the various elements of the
SMP-250 system (SU-114N, UMX-02/0, MD-500,
MD500EM...) through an RS485 bus. By means of this
DIP switch a communication address can be assigned to
the unit, inside the RS485 bus. Each unit connected to
an RS485 bus must have a different address. To
configure it, refer to section 4.
(11) AUDIO OUTPUT connector
Balanced analog output of 0 dBm, through the RJ45
connector. To connect it, refer to section 7.4.
(12) AUDIO INPUT connector
Balanced analog input of 0 dBm, through the RJ45
connector. To connect it, refer to section 7.2.

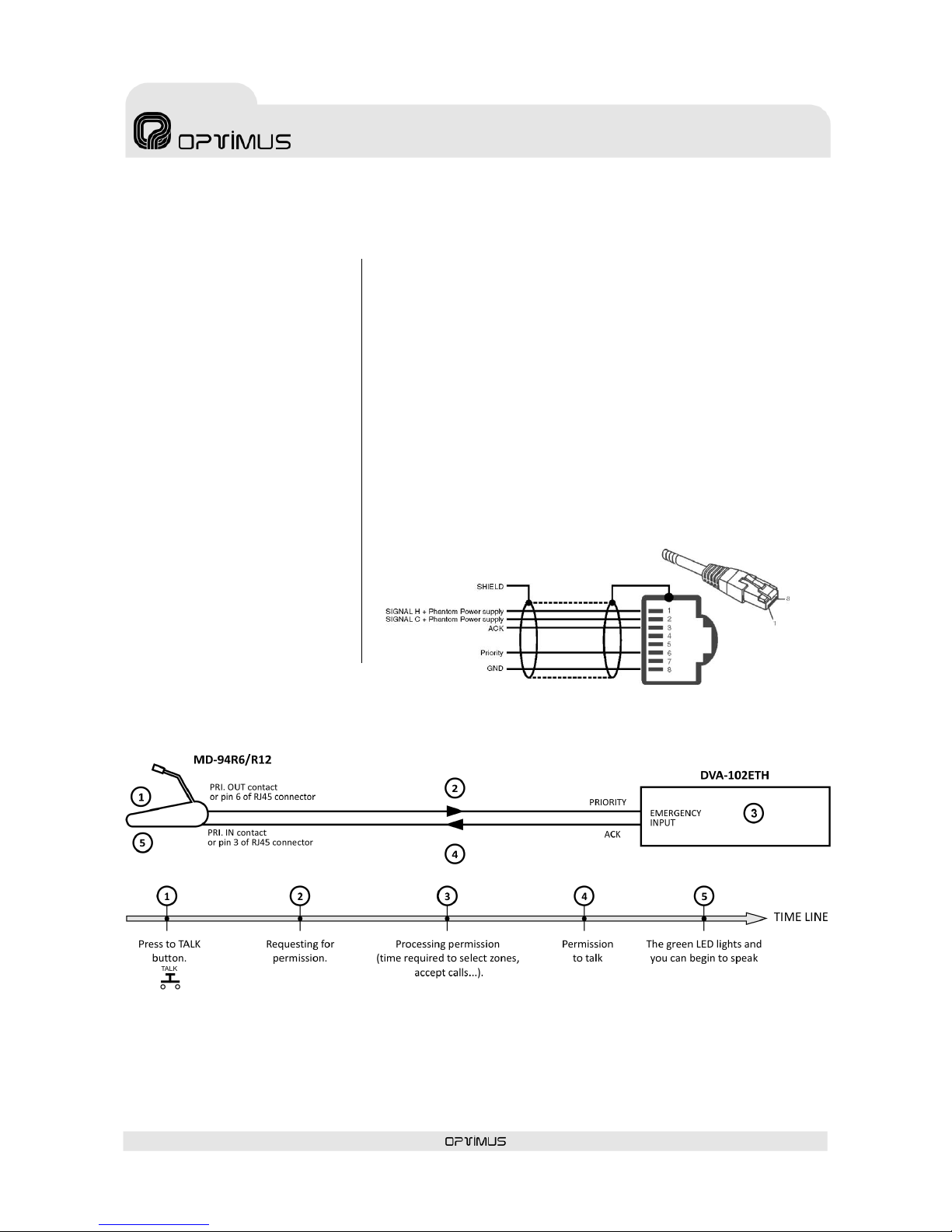

(13) AUDIO EMERGENCY INPUT connector
Analog local input, balanced, with an RJ45 connector
and a sensitivity of 0 dBm, especially suitable for
receiving emergency announcements.
It takes priority over any other signal (ETH inputs,
AUDIO INPUT and pre-recorded messages). To connect
it, refer to section 7.3.
(14) FAIL relay
This is activated when the unit is switched off, when a
failure in the Ethernet connection is detected or an
internal communication error occurs.
(15) IP ADDRESS DIP switches
The IP address of the unit is configured through these 4
DIP switches. This address identifies the DVA-102ETH
in the network, so each unit must have a unique
address.
(16) Ethernet B connector
RJ45 type connector. Used, in a redundant network, as
a secondary connection to the IP network. In
installations with a redundant network, if the
connection to ETH A fails, the unit automatically
switches to this B connection, so that the PA system
continues to operate.
(17) Ethernet B input 10 Mb indicator
Indicates the speed of the Ethernet network connected
to the Ethernet B input. If the LED is lit, it indicates a
speed of 10 Mb. If it is not lit, it indicates a network
speed of 100 Mb.
(18) Ethernet B input ACT indicator
When lit, it indicates that data is being sent or received
through the ETH B input.
(19) Ethernet B input LINK indicator
When lit, it indicates the connection of the ETH B input
with the HUB or SWITCH.
(20) Ethernet A connector
RJ45 type connector. Used for connection to the IP
network.
(21) 10 Mb, ACT and LINK LED indicators of the
Ethernet A input
These serve the same purpose as the ETH B indicators,
applied in this case to the ETH A input.
(22) CTRL OUT strip
Not used.
(23) COMPACT FLASH memory
Figure 2

DVA-102ETH version 1.2 R&D Department 8
DVA-102ETH
Digital voice announcer
and Optimax system gateway
4. CONFIGURATION OF THE RS485 ADDRESS
On an RS485 BUS, each unit must
have a different address. Table I shows
the configuration of the RS485
ADDRESS DIP switches and their
possible values.
Table I

DVA-102ETH version 1.2 R&D Department 9
DVA-102ETH
Digital voice announcer
and Optimax system gateway
ATTENTION:
When the unit starts to run, the dipswitches IP address is
automatically saved in the DVA-102ETH flash memory. To
change the address, it is necessary to delete first the IP
address which is saved in the flash memory.
5. CONFIGURATION OF THE IP ADDRESS OF THE UNIT
On the back of the unit there are some DIP switches by means of which the IP address can be configured manually.
This address identifies the unit in the network, so each unit must have a unique IP address.
An IP address is represented by means of a 32-bit binary number. The IP addresses are expressed as decimal notation
numbers: the 32 bits of the address are divided into four octets (an octet is a group of 8 bits). Each octet is
represented by A0 to A7 for the first octet, B0 to B7 for the second octet, C0 to C7 for the third octet and D0 to D7 for
the fourth octet.
Each bit can have the value 0 (DIP switch OFF) or 1 (DIP switch ON). In order to obtain the decimal value of the octet,
the decimal values of each bit that is in the ON position must be added up (from the top down: 1, 2, 4, 8, 16, 32, 64
and 128).
5.1. UNIT IP ADDRESS CONFIGURATION BY MEANS OF DIPSWITCHES
1. Switch off the unit.
2. Set the required address in the IP Config dipswitches. Table
II on the next page shows all the DIP switch combinations
from 0 to 255.
3. Switch on the unit.
Figure 3 shows an example in which the IP address
192.168.100.128 is configured.
5.2. DELETE THE IP ADDRESS BY MEANS OF DIPSWITCHES
1. Switch off the unit.
2. Set the 0,0,0,0 address in the IP Config dispswitches.
3. Switch on the unit and after 15 seconds, switch it off. The IP address saved in the flash memory has been deleted.
NB: The IP address can also be set by software. To do so, refer to section 5.3.
Figure 3

DVA-102ETH version 1.2 R&D Department 10
DVA-102ETH
Digital voice announcer
and Optimax system gateway
TABLE II

DVA-102ETH version 1.2 R&D Department 11
DVA-102ETH
Digital voice announcer
and Optimax system gateway
NB: To view the page, it is necessary to deactivate the proxy in the configuration
of the web browser.
ATTENTION
If the IP is activated by software, the functionality of IP
address selection by DIP switches will be deactivated.
Once the change has been made, it can be undone by
deleting the IP software via the web, or by selecting
the address 0.0.0.0 on the DIP switches and restarting
the unit.
ATTENTION:
Once the IP address of the unit has been changed, it is necessary to modify this in the P.A. Manager software as well (see
section 8.1) and to send configurations to the unit (see section 8.6).
5.3. CONFIGURATION OF THE IP OF THE UNIT BY SOFTWARE
(Is necessary configure previously the parameters of the equipment according to paragraph 8)
It is possible to change the IP configuration of the unit by means of the IP ADDRESS DIP switches on the back of the
unit or remotely, without the need for access to the unit, through the P.A. Manager software.
To make the change by software, right click with the mouse on the name of
the DVA-102ETH on the message panel and select the option Web Connection
(1).
If the PC is remote with respect to the installation, open the Internet browser
and enter the IP of the unit in the address bar (for example: http://10.1.1.2).
This IP address is the address configured through the IP ADDRESS DIP
switches situated on the back of the unit.
In both cases, a web page belonging to the unit will load.
Proceed as follows:
1. Enter the password in
the Administrator
Login (2) (contact
technical staff at
Optimus and they will
provide you with this)
and click on Login.
2. Open the Expert menu (3) and click
on the Set IP address option (4).
3. Write the new IP in the IP Address field (5) (for example:
10.1.1.100) and click on Save IP Address (6).
(1)
(2)
(3)
(4)
(5)
(6)

DVA-102ETH version 1.2 R&D Department 12
DVA-102ETH
Digital voice announcer
and Optimax system gateway
6. INTERNAL CONFIGURATIONS
To gain access to
the DIP switches
and internal
jumpers, it is
necessary to
remove the cover
of the unit. Ensure
that the power
supply to the unit
has been
disconnected
before performing
this operation.
J3
jumper
Separates the shields of the EMERGENCY
INPUT, AUDIO INPUT and AUDIO OUTPUT
connectors from the ground connection of
the signal circuit.
J3 positioned: Shields grounded
(factory configuration)
J3 not positioned: Shields and ground
connection separated
J6
jumper
Connects the live voice priority contact of
the EMERGENCY INPUT connector to the
output priority contact of the AUDIO
OUTPUT connector.
J6 positioned: Priorities connected
(factory configuration)
J6 not positioned: Priorities independent
Dipswitch
SW3
DIPSWITCH 1= ON
DIPSWITCH 2= OFF
GND on PIN 8 of the EMERGENCY
INPUT connector (factory
configuration
DIPSWITCH 1= OFF
DIPSWITCH 2= ON
ALARM indicator contact on PIN 8 of
the EMERGENCY INPUT connector.
This contact is an open collector
output, in accordance with the
figure 4b below.
Dipswitch
SW4
DIPSWITCH 1= ON
PHANTOM power supply of the
AUDIO INPUT ENABLED
DIPSWITCH 1= OFF
PHANTOM power supply of the
AUDIO INPUT DISABLED
(factory configuration)
DIPSWITCH 2= ON
PHANTOM power supply of the
EMERGENCY INPUT ENABLED
(factory configuration)
DIPSWITCH 2= OFF
PHANTOM power supply of the
EMERGENCY INPUT DISABLED
Figure 4
Figure 4b

DVA-102ETH version 1.2 R&D Department 13
DVA-102ETH
Digital voice announcer
and Optimax system gateway
Figure 5
Figure 6
7. EQUIPMENT CONNECTIONS
7.1. RECORDING MICROPHONE
CONNECTION
The unit has a mono female JACK input of 6.35 mm on
the front to connect a microphone for recording
messages. The input sensitivity is -60 dBm.
For its connection, refer to Figure 5.
7.2. AUDIO INPUT CONNECTION
Analog local input, balanced, with an RJ45 connector
and a sensitivity of 0 dBm.
For its connection, refer to Figure 6.
Pin 1: Audio H (Hot).
Pin 2: Audio C (Cold).
Through contacts 1 and 2, this input can provide a
“PHANTOM”-type power supply of 24 V DC. See section
6. INTERNAL CONFIGURATIONS.
Pin 3: Acknowledge. This output contact allows
synchronisation with external desks (MD-94 family),
avoiding initial signal loss from the desk due to possible
delays in activation.
Pin 6: Priority input contact.
Pin 8: GND
When the internal jumper JP3 is removed (see section
0), the shield of the Cat 5 FTP cable is separated from
the ground connection of the signal circuit. In certain
installations, this makes it possible to eliminate
alternating noises caused by ground loops.

DVA-102ETH version 1.2 R&D Department 14
DVA-102ETH
Digital voice announcer
and Optimax system gateway
Figure 8
Figure 7
7.3. EMERGENCY INPUT CONNECTION
Analog local input, balanced, with an
RJ45 connector and a sensitivity of 0
dBm, especially suitable for
emergency announcements.
This input has priority over any
other signal from the unit.
The emergency announcements are
activated when pin number 6
(speech preference) is connected to
pin number 8 (GND) of the
connector.
Although the DVA-102ETH may not
be powered, the signal applied to
this input appears in the AUDIO
OUTPUT when speech preference is
activated.
For its connection, refer to Figure 7.
Pin 1: Audio H (Hot).
Pin 2: Audio C (Cold).
Through contacts 1 and 2, this input provides a “PHANTOM”-type power
supply of 24 V DC (see section 6) to power the emergency desk.
Pin 3: Acknowledge. Allows synchronisation with external desks (MD-94
family), avoiding initial signal loss from the desk due to possible delays in
activation. Figure 8 shows an example of ACK operation between micro
MD-94 and DVA-102ETH.
Pin 6: Priority contact of the live voice emergency message.
It is connected to pin 6 of the AUDIO OUTPUT (priority output) connector
through the internal jumper J6 (see section 0).
Pin 8: GND.
By changing the configuration of some internal DIP switches (see section
6), this contact becomes an open collector output which is activated
whenever the system detects an alarm.

DVA-102ETH version 1.2 R&D Department 15
DVA-102ETH
Digital voice announcer
and Optimax system gateway
7.4. AUDIO OUTPUT CONNECTION
Balanced analog output, with an RJ45 connector and a sensitivity of 0 dBm.
For its connection, refer to Figure 9.
Pin 1: Audio H (Hot).
Pin 2: Audio C (Cold).
Pin 3: 24 V DC input. Provides the EMERGENCY INPUT
with a phantom power supply, even when the DVA-
102ETH is not powered.
Pin 6: Output priority contact. It is activated:
when a Compact Flash message from the DVA-
102ETH is played,
when the priority contact of the AUDIO INPUT is activated,
when priority digital audio is received through the ETH A or B inputs,
when an input contact configured as Local message activation is activated.
Pin 8: GND.
7.5. INPUT CONTACTS
CONNECTION
The unit has 19 input contacts, which can be
configured by means of the P.A. Manager
software.
To activate a contact, this contact must be
grounded.
These inputs are used for:
Local pre-recorded message activation:
When the input contact is activated, a pre-
recorded message is sent from the DVA-
102ETH to one or several zones.
Zone selection: When the input contact is
activated, a destination zone is pre-
selected. When the priority of the AUDIO
INPUT is activated, the signal applied to the
AUDIO INPUT will be sent to this zone.
7.6. OUTPUT CONTACTS CONNECTION
The unit has 19 output contacts, which can be configured by means of the P.A.
Manager software.
They are open collector outputs, as shown in the diagram in Figure 11. These
outputs can be used, for example, to activate analog zones, to select zones of an
MC12/24L, to activate the priority of external devices, to light a LED…
Figure 11
Figure 9
Figure 10. Example of input contacts connection for activation of pre-
recorded messages from the DVA-102ETH.
Figure 11

DVA-102ETH version 1.2 R&D Department 16
DVA-102ETH
Digital voice announcer
and Optimax system gateway
7.7. RS485 BUS CONNECTION
One of the DVA-102ETH functions is that it can act as a link between an installation in an OPTIMAX network and
analog PA systems with UMX-02/0 or UDCE-01 zones and analog power units.
For this purpose, the DVA-102ETH must communicate with the various elements of the analog system (UMX-02/0,
MD-500, MD-500EM, UDCE-01…) through an RS485 bus.
This communication allows to:
Translate the zone selection commands received via Ethernet into RS485 commands (by Polling in installations
with UDCE-01 zones and by CSMA in installations with UMX-02 zones).
Receive system alarms via RS485, display them on the front LCD screen and communicate them to other units
with an ETHERNET connection (DC-600ETH, FC-600ETH…).
RJ45 connectors with a metal housing are used for the RS485 connection.
If the unit is positioned as the first or last element of the RS485 bus, the RS485 OUT switch must be moved to the OFF
position. Otherwise, the RS485 output must be enabled by moving the switch to the ON position.
Use category 5 FTP cable to connect different units to each other on the same RS485 bus.
Figure 12

DVA-102ETH version 1.2 R&D Department 17
DVA-102ETH
Digital voice announcer
and Optimax system gateway
8. CONFIGURATION BY SOFTWARE
For the unit implementation in the installation, it is necessary to have a PC connected to the DVA-102ETH, either
through the ETHERNET network, or through a crossed network cable.
The PC must have the P.A. Manager software installed.
1. Open the P.A. Manager software and on the installation screen add the DVA-102ETH to the installation structure.
The DVA-102ETH must be associated with a PA Area.
2. Configure the configuration parameters of the unit. They are divided into three sections, accessed via tabs:
General: The general communication parameters, such as IP, RS485 addresses, etc., can be configured here
(see section 8.1).
Parameters: This is where the language of the menus, the passwords and the digital audio volume can be
configured (see section ¡Error! No se encuentra el origen de la referencia.).
Contacts: The functions of the input and output contacts of the DVA-102ETH can be configured here (see
section 8.3).
3. Connect the equipment to the installation structure (see section 8.4).
4. The DVA-102ETH must be associated with the Server PC (see section 8.5).
5. Send the configurations to the unit (see section 8.6).
8.1. GENERAL CONFIGURATION
(1) Name
Enter a name to identify
the unit (maximum of 20
characters).
RS485 PARAMETERS
(2) Address
Every equipment unit
connected to an RS485
bus must have a unique
address which
distinguishes it from the
other units connected to
the same bus. Enter a
value of between 1 and
99. The address entered
must coincide with the
address configured
through the RS485
ADDRESS DIP switch on
the rear panel of the DVA-
102ETH.
(3) RS485 Polling Freq.
Frequency with which the
DVA-102ETH
communicates with each
unit in the installation (DALA-01/0B, UMX-02/0,
MD500, MD500EM...) in order to receive information
about the status of each of these units (incidents). The
incidents are displayed on the screen of the unit.
Values: Between 1 and 60 seconds.
It is recommended to have the highest possible polling
frequency, in accordance with the characteristics of
each installation.
Default value: 10 seconds.
Figure 13
(1)
(3)
(4)
(6)
(5)
(7)
(11)
(12)
(14)
(15)
(16)
(17)
(8)
(9)
(13)
(10)
(2)

DVA-102ETH version 1.2 R&D Department 18
DVA-102ETH
Digital voice announcer
and Optimax system gateway
POLLING
CSMA
DVA-102ETH
•
•
DALA-01/0B
•
•
MD-500EM
•
SU-114N
•
SU-214/0N
•
UMX-02/0
•
ECM-01
•
UDCE-01
•
(4) CSMA/POLLING
The DVA-102ETH can use two different types of RS485
protocol: POLLING or CSMA (Carrier Sense Multiple
Access).
Select the type of
protocol according
to the units
connected to the
RS485 bus, taking
account of the table
attached.
It must be
remembered that
units which use
different protocols
cannot be
connected on the
same RS485 bus.
IP DATA
(5) IP Address
Enter the IP address of the unit. This IP must be unique
in the installation and it must coincide with the
configuration of the DIP switches on the back of the
unit, or with the address configured through the Web
connection (see section ¡Error! No se encuentra el
origen de la referencia..1). It must be a fixed IP
address.
(6) Netmask (7) Gateway
In installations that require it. Consult the network
administrator of the installation.
MULTICAST DATA (also see pages 17 and 18)
(8) IP Multicast
Default setting 239.5.5.5. Do not modify this field
unless the installation topology makes it necessary. All
the units with an IP connection in the installation must
have the same IP multicast address.
(9) Multicast Port
Default setting 5000. Do not modify this field unless the
installation topology makes it necessary. All the units
with an IP connection in the installation must have the
same multicast port.
(10) Send “Heart beat”every n seconds.
Frequency with which the unit sends a heart beat signal
to the multicast group. This signal informs the other
units with an Ethernet connection in the installation
that the DVA-102ETH is operating perfectly.
(11) Local Manager and (12) Global Manager
Only on Optimax systems. Defines whether the
DVA-102ETH is to function as a priority manager of the
Optimax system, either locally at PA Area level or
globally for the installation, and establishes the priority
of this management with respect to other equipment
units (1 = maximum priority). It is not advisable to
activate this management on the DVA-102ETH (see
Notes on Local and Global Co-ordinators on page 19).
(13) RS485 Gateway
Enable this function in installations in which the DVA-
102ETH is connected to another equipment unit by
means of the RS485 bus.
If there is more than one DVA-102ETH connected to the
RS485 bus, only one of them will have the RS485 Gateway
function activated.
(14) Associated Audio Input
Used on DVA-102ETH units whose AUDIO OUT output is
connected to an UMX-02/0 input card. Open the drop-
down menu and select this input. Beforehand, it is
necessary to configure the UMX-2E cards of the
UMX-02/0.
(15) Emergency source
Defines the priority level of the EMERGENCY INPUT of
the DVA-102ETH with respect to the other audio signals
in the installation.
When the DVA-102ETH is added to the installation, the
Emergency DVA sound source is automatically created,
and this source is associated with the EMERGENCY Mode;
in this way, the priority of this input with respect to the
other signals in the installation is established.
This default configuration can be modified through the
menu Optimax > Modes and Sound Sources.
(16) Priority source
Defines the priority level of the AUDIO INPUT of the
DVA-102ETH with respect to the other audio signals in
the installation, when this input receives a priority
signal (when the priority contact of the AUDIO INPUT is
activated).
When the DVA-102ETH is added to the installation, the
Priority DVA sound source is automatically created, and
this source is associated with the PRIORITY Mode;in this
way, the priority of this input with respect to the other
signals in the installation is established.
This default configuration can be modified through the
menu Optimax > Modes and Sound Sources.
(17) Program source
Defines the priority level of the AUDIO INPUT of the
DVA-102ETH with respect to the other audio signals in
the installation, when this input receives a program
signal (when the priority contact of the AUDIO INPUT is
not activated).
When the DVA-102ETH is added to the installation, the
Music DVA sound source is automatically created, and
this source is associated with the Music Mode;in this
way, the priority of this input with respect to the other
signals in the installation is established.
This default configuration can be modified through the
menu Optimax > Modes and Sound Sources.

DVA-102ETH version 1.2 R&D Department 19
DVA-102ETH
Digital voice announcer
and Optimax system gateway
a) Information about the multicast configuration in Optimax equipment
It is possible to modify the multicast configuration of all the equipment units in the installation simultaneously. Proceed as follows:
1. From the installation screen, open
the Options menu and select
Multicast Configuration.
2. A window with the configurations
of the multicast group appears.
Double click on the data item
that you wish to change.
3. Modify the value and click on
Accept.
4. Confirm the change by clicking on
Yes.
5. Close the multicast configuration window by clicking on OK.
ATTENTION: The values that are modified from the multicast configuration window affect all the equipment units in the
multicast group in the installation.

DVA-102ETH version 1.2 R&D Department 20
DVA-102ETH
Digital voice announcer
and Optimax system gateway
Default base Multicast addresses, ports and configurations
Broadcast address
Broadcast port
Initial configuration download
255.255.255.255
3333
Multicast address
Multicast port
Initial configuration download
239.5.5.5
8001
Multicast address
Multicast port
Others
Control data
239.5.5.5
5000
Heart beat every 10 seconds
Global audio channels
239.1.0.x
6000 + x
8 simultaneous channels
Local audio channels
239.1.PAArea.x
6000 + (PAArea*100) + x
5 simultaneous channels
Valid ranges (according to the IANA Guidelines for IPv4 Multicast Address)
Multicast address
Multicast port
Others
Control data
Between 239.0.0.0 and
239.255.255.255
Between 1025 and 65536
Heart beat between 1 and 65000
seconds.
Global audio channels
Between 239.0.0.0 and
239.255.255.255
Between 1025 and 65536
1-50 simultaneous channels
Local audio channels
Between 239.0.0.0 and
239.255.255.255
Between 1025 and 65536
1-50 simultaneous channels
b) Notes on Local and Global Co-ordinators
The system requires management of the digital audio channels at all times, so that the data may circulate freely across the network.
This function is performed by two applications: one at a local level, known as LCC, which manages the digital channels at PA Area
level, and another, known as GCC, which manages the digital channels at a global level (between different PA areas and/or servers).
Each PA Area needs at least one LCC process on one of its equipment units.
If there is more than one PA Area in an installation, and announcements have to made or music programs have to be sent between
PA Areas, a minimum of one GCC process is required on an equipment unit in the installation.
If the number of equipment units so permits, it is advisable to have each process available on at least two equipment units. In this
way, the applications continue to work even when a fault in one of the equipment units occurs.
There are specific equipment to run these applications: CC-100ETH, UMX-CC and UMX-ETH (Control). It is recommended that they
are the ones who made the role of coordinator. If these equipment are not present in the installation, it is advisable that the COU-
02/0ETH, performs the functions of co-ordinator.
The recommended order of priority depending on the model is as follows:
CC-100ETH
UMX-CC
UMX-ETH
(Control)
COU-02/0ETH
SU-114N
SU-214/0N
UP-xETH
(Backup amplifier)
UP-xETH
UMX-ETH
(program
or priority)
DVA-102ETH
DC-600ETH
FC-600ETH
>
>
>
>
>
