Optoma EP737 User manual

1
English
Usage Notice
Precautions ........................................................................................................ 2
Introduction
Product Features ............................................................................................... 4
Package Overview ............................................................................................. 5
Product Overview............................................................................................... 6
Main Unit ...................................................................................................... 6
Panel Control ................................................................................................ 7
Connection Ports .......................................................................................... 7
Remote Control wit Mouse Function & Laser Pointer ................................ 8
Installation
Connecting t e Projector ................................................................................... 9
Powering On/Off t e Projector ........................................................................... 10
Powering On t e Projector ........................................................................... 10
Powering Off t e Projector ........................................................................... 11
Adjusting t e Projected Image ........................................................................... 12
Adjusting t e Projector Heig t...................................................................... 12

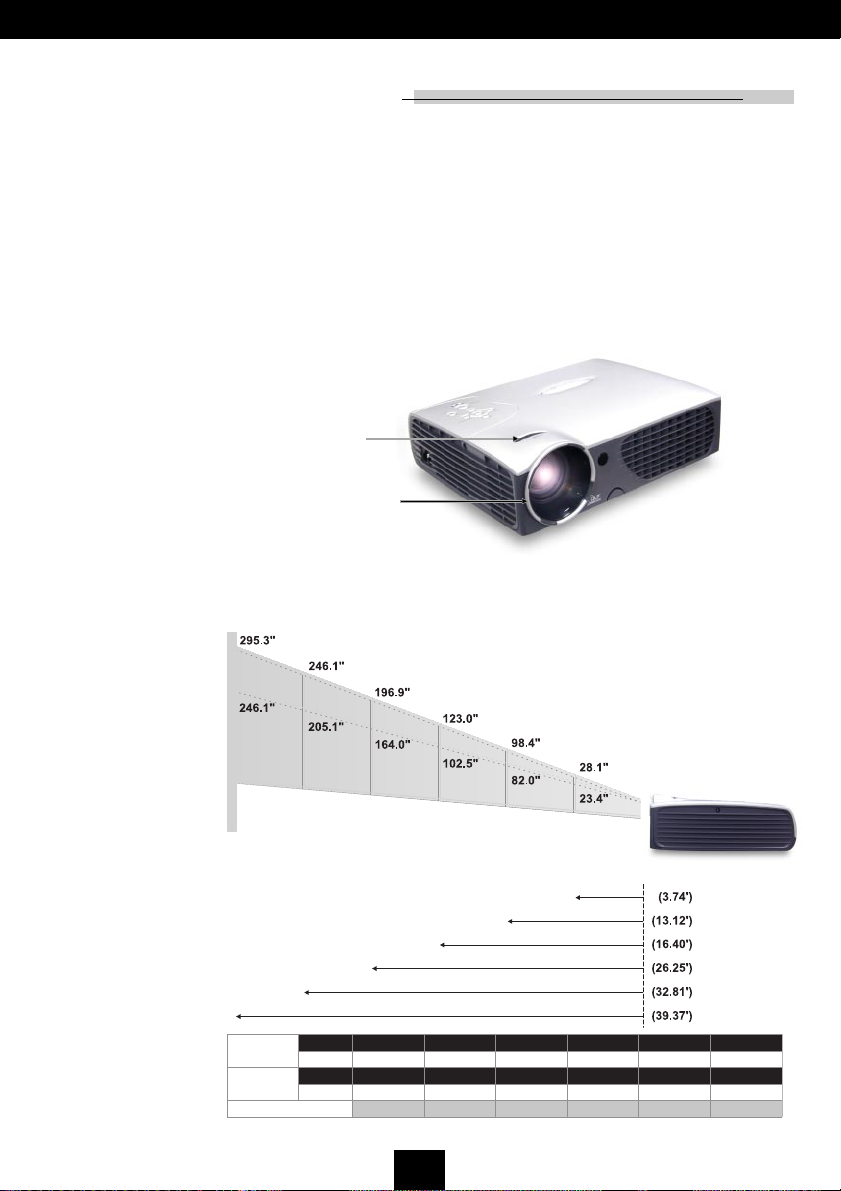

Adjusting t e Projector Zoom/Focus ............................................................ 13
Adjusting Projection Image Size .................................................................. 13
User Controls
Panel Control & Remote Control ........................................................................ 14
On-Screen Display Menus ................................................................................ 17
How to Operate ............................................................................................ 17
Image-I (Computer mode) ............................................................................ 18
Image-I (Video mode)................................................................................... 19
Image-II (Computer mode) ........................................................................... 21
Image-II (Video mode).................................................................................. 22
Audio ............................................................................................................ 23
Language ..................................................................................................... 24
Management ................................................................................................. 25
PIP (Computer mode) .................................................................................. 26
Appendices
Troubles ooting ................................................................................................. 27
C anging t e Lamp ............................................................................................ 30
Specifications ..................................................................................................... 31
Compatibility Modes........................................................................................... 32
Table of Contents

2
English
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom-
mended in this users guide to maximize the life of your unit.
Warning- Do not look into the lens. The bright light may hurt
your eyes.
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning- After changing a new lamp, please reset the lamp life
from O D menu.
Warning- Before switching off the product, please keep the
cooling fan running for a few minutes.
Warning- When connecting the projector to computer, please turn
on the projector first.
Warning- To reduce the risk of injury to the eyes, do not look
directly into the laser light on the remote control and do
not point the laser light into anyones eyes. This remote
control is equipped with a Class II laser that emits
radiation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the
lamp, follow the procedures listed under Changing
the Lamp.

3
English
Do:
vTurn off the product before cleaning.
vUse a soft cloth moistened with mild detergent to clean the
display housing.
vDisconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Dont:
vBlock the slots and openings on the unit provided for
ventilation.
vUse abrasive cleaners, waxes or solvents to clean the unit.
vUse under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Usage Notice

"
English
Product Features
This product is an XGA single chip 0.7” DLPTM projector. The
outstanding features of it are listed as follows:
True XGA, 1024 x 768 addressable pixels
Single chip DLPTM technology
PureProgressiveTM processing technology for artifact-free
film materials.
HDTV compatible (480i,480P,720P,1080i)
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV compatible
High-tech DVI connection for digital and analog video
connectivity
Full function remote with mouse control and laser
pointer
Multimedia audio integration
User friendly multilingual on-screen display menu
Advanced electronic keystone correction and high quality
full screen re-scaling image
User friendly control panel
Luxurious carrying case included
SXGA compression and VGA, SVGA re-sizing
150 Watts user replaceable P-VIP lamp
Mac compatible
Introduction

#
English
RS232 Cable
S-Video Cable
Power Cord
Remote Control with
Mouse Function and
Laser Pointer
Audio Cable
M1-A to VGA and USB
cable
Battery x 2
User’s Guide
Introduction
Composite Video Cable
Projector with lens cap

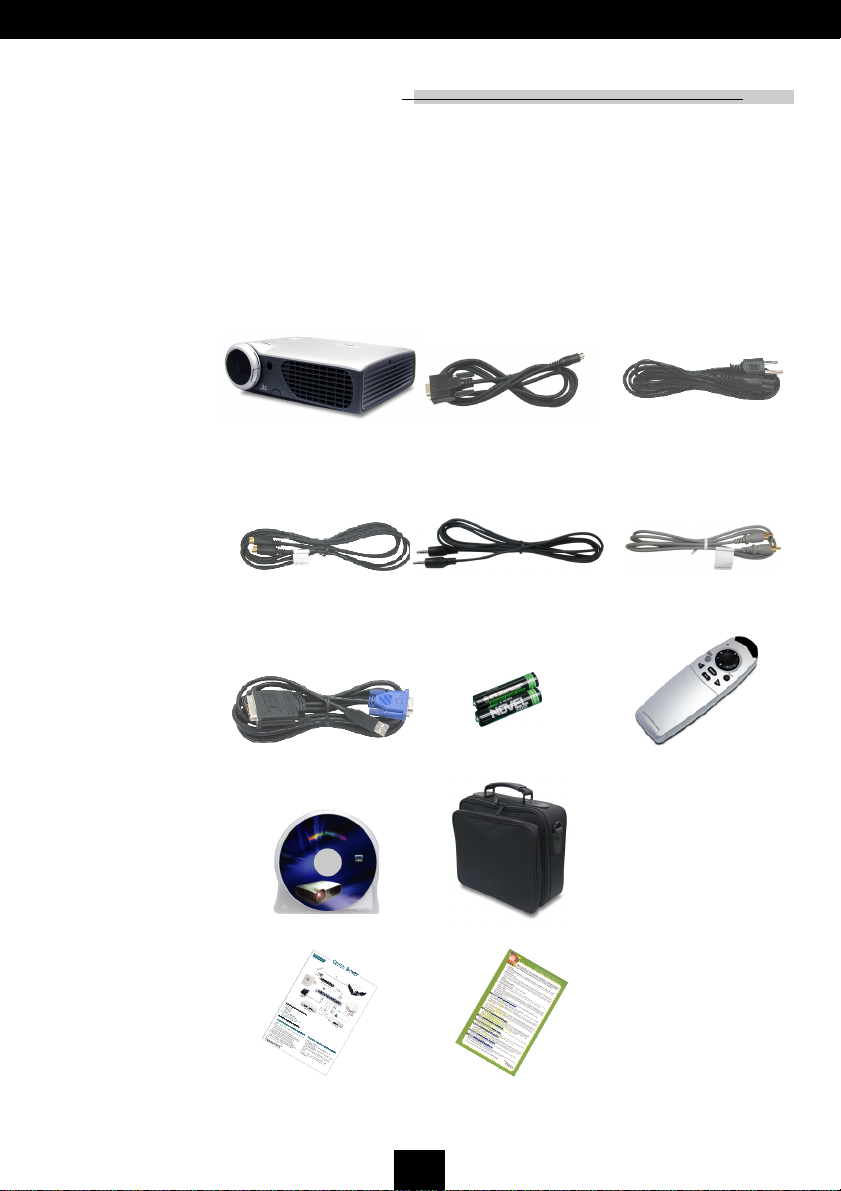

Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immedi-
ately if anything is missing.
Carrying Case
Quick Start Card Warranty Card

6
English
Introduction
Main Unit
Product Overview
1. Panel Control
2. Power Connector
3. Connection Ports
4. Focus Ring
5. Zoom Lens
6. Zoom Ring
7. peaker
8. Remote Control Receiver
9. Elevator Button
10. Elevator Foot
1
2
3
4
5
8
6
7
10

7
English
Panel Control
Introduction
5
4
7
6
8
2
1. Lamp Warning LED
2. Temperature Warning LED
3. Power Indicator Light
4. Power / tandby
5. Menu (On/Off)
6. Four Directional elect Keys
7. Enter
8. Re-sync
9. ource
1
3
Connection Ports
23 14 5 6 7
1. KensingtonTM Lock Hole
2. Monitor Loop-Through Connector
3. R 232 Input Connector
4. Composite Video Input Connector
5. Audio Input
6. -Video Input Connector
7. VE A M1-DA Analog RGB/Digital/HDTV/Component
Video/U B Mouse Input Connector

8
English

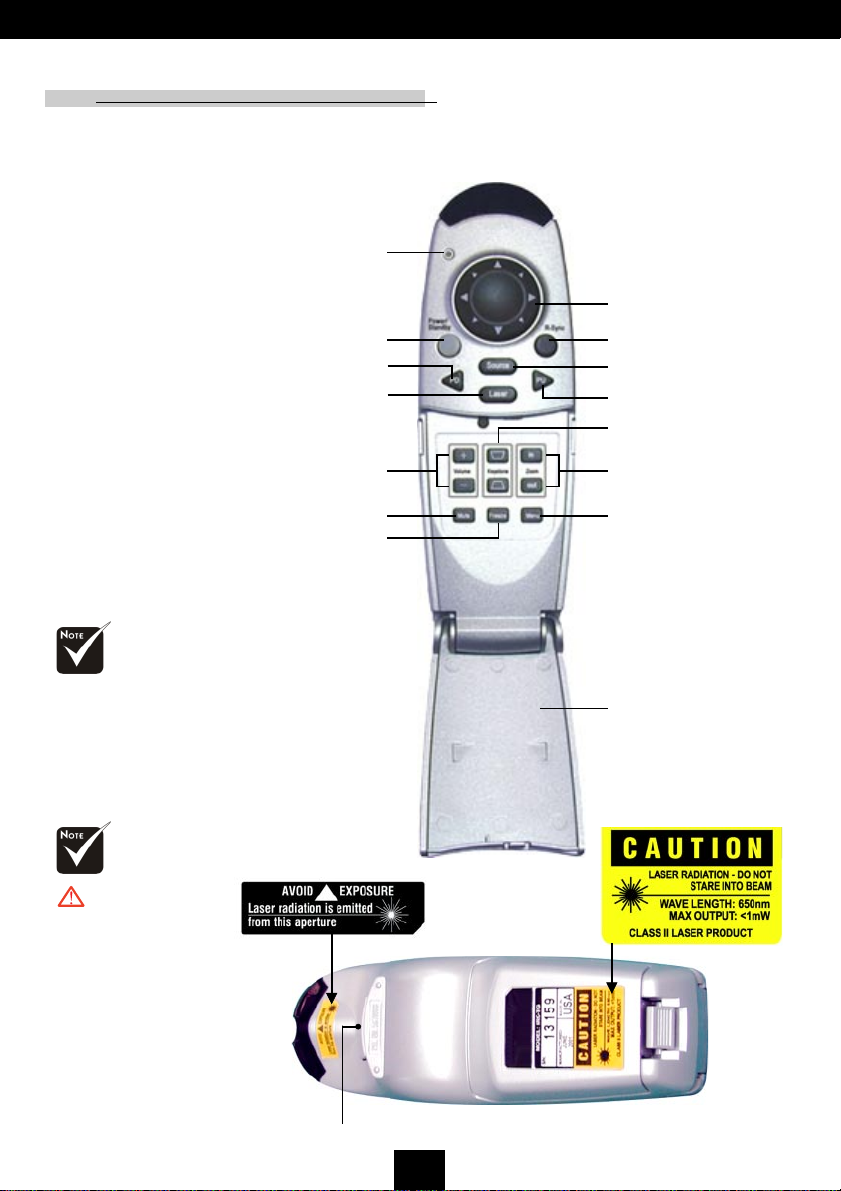

Remote Control with Mouse Function & Laser
Pointer
Introduction
ource
Re-sync
Freeze
Keystone Correction
Power / tandby
Volume ( + / - )
Mute
Multi-Directional
elector
Menu
Laser
Pointer
Zoom In /
Zoom Out
Page Up
LED
Cover
Page Down
vClose the cover of the
remote control when
you want to use the
remote mouse.
Enter Key
Caution : To
reduce the risk of
injury to the eyes, do
not look directly into
the laser light on the
remote control and do
not point the laser light
into anyones eyes.
This remote control is
equipped with a Class
II laser that emits
radiation.

9
English
Connecting the Projector
vTo ensure the projector works well with your computer, please
configure the display mode of your graphic card to make it less
than or equal to 1 24 X 768 resolution. Make sure timing of the
display mode is compatible with the projector. Refer to the
Compatibility Modes section on page 32.
-Video Output
Video Output
1
2
3
4
7
6
Digital Tuner Output
Antenna
RGB
R 232
5
Installation
1. R 232 Cable
2. Power Cord
3. -Video Cable
4. Audio Cable
5. Composite Video Cable
6. M1-A to VGA and U B Cable
7. M1-A to HDTV and U B Cable
(optional)
8. M1-D to DVI-D and U B Cable
(optional)
DVI
8

10
English
Lens cap
Power / tandby
Installation
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
connected.
3. Turn on the lamp by pressing Power/ tandby button on
the control panel. 
The startup screen will be displayed for 20 seconds and the
Power/ tandby indicator will light solid green.
4. Turn on your source (computer, notebook, or video player ,
etc...) The projector will detect your source automatically.
vIf the screen displays No Signal , please make sure the signal
cables are securely connected.
vIf you connect multiple sources at the same time, use the Source
button on the Remote Control or Panel Control to switch.
Powering On/Off the Projector
vTurn on the projector
first and then the
computer.
1
2
