optonica 237 User manual

Features
DIY modular assembly
Remote control
Multiple color changes
Multiple mode changes
High efficiency, energy saving and environmental protection
Easy to install and versatile
Instructions for use
Refer to the instruction manual to assemble the floor - standing atmosphere lamp kit into a
finished lamp, and then power on test;
The remote control can control a variety of RGB color static changes;
The white light mode can be independently controlled by there motecontrol and thebrightness
can be adjusted;
The dynamic color change of the ambient light can be adjusted;
USER MANUAL
Floor lamp

Technical Parameters
SKU237
130*1045mm
20W
DC 12V 1.5A
5050 RGB
5050 RGB
RGB+3000K
>80Ra
500lm
Aluminum+ABS+Silicon
Product Size
Rated Power
Working Voltage
Led Style
LED Quantity
Color Temperature
Color Rendering Index
Lumen
Shell Body Material
Storage Environment
-20℃+40℃
-20℃+40℃
Work Environment
Product size chart

Installation Instruction
Fix the
Aluminium profile
into the Top
Connector
Insert the aluminum
profile into the
controller connector to
fix it;
Align the external
thread of the controller
with the internal thread
on the base and tighten
it;
Fix the
Aluminium profile
into the
Connector
Insert the 4-base
widening piece into the
base card slot from
top to bottom to fix it;
1 2 3 4 5
Paste the strip from
bottom to top
Tear off the 3M glue centrifugal paper on the male end of the strip,
and then insert the male end of the strip into the female end of the
controller, tear off all the 3M glue centrifugal paper on the strip, and
put the strip from bottom to top. Stick it into the groove and fix it;
6First snap the silicone strip lampshade into the
controller card slot,Then snap into the Profile
slot from bottom to top to fix it;
7
Insert the decorative parts of
the controller;
89 Connect adaptor with controller; 10 Power-on test;
controller
Adapter
controller
Insert
Controller
decoration
controller Insert to connect
Silicon
Lampshade
Silicon
Lampshade LED light
controller
The silicone strip
lampshade snaps
into the control
box card slot;
Aluminium
Profile 2
Insert to connect
Connector
Insert to connect
Aluminium
Profile 1
Aluminium
Profile 4
Insert to connect
Connector
Insert to connect
Aluminium
Profile 3
controller
Base
profile Fastener
Base
Base widened
piece
Aluminium
Profile
Aluminium
Profile
Aluminium
Profile
Aluminium
Profile
Insert to
connect
Insert to
connect
Insert to
connect
Insert to
connect
controller
Top controller
Flexible
Strips
Insert the male end
of the LED strip into
the female end of
the control box and
fix it;
Tear off the 3M glue
centrifugal paper on
both sides of the
light bar

IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: [phone];
1. Avoidinstalling above heat source objects, direct sunlight, areas where airflowandtemperature
change significantly;
2. Please do not look directly at the LED lights with youreyes for a long time, otherwise it may cause
eye discomfort or damage your eyes;
3. Avoidexposingthe product to the outdoors, direct rain, anddo not immerse the product in water,
otherwise it maybe short-circuited or damaged;
4. Do not hit the ambient light with sharp objects or rough contaminants, so as not to affect the function
and appearance;
5. Press the"IC set"button to activate the system when you find only half of strip is light at the first set
up.

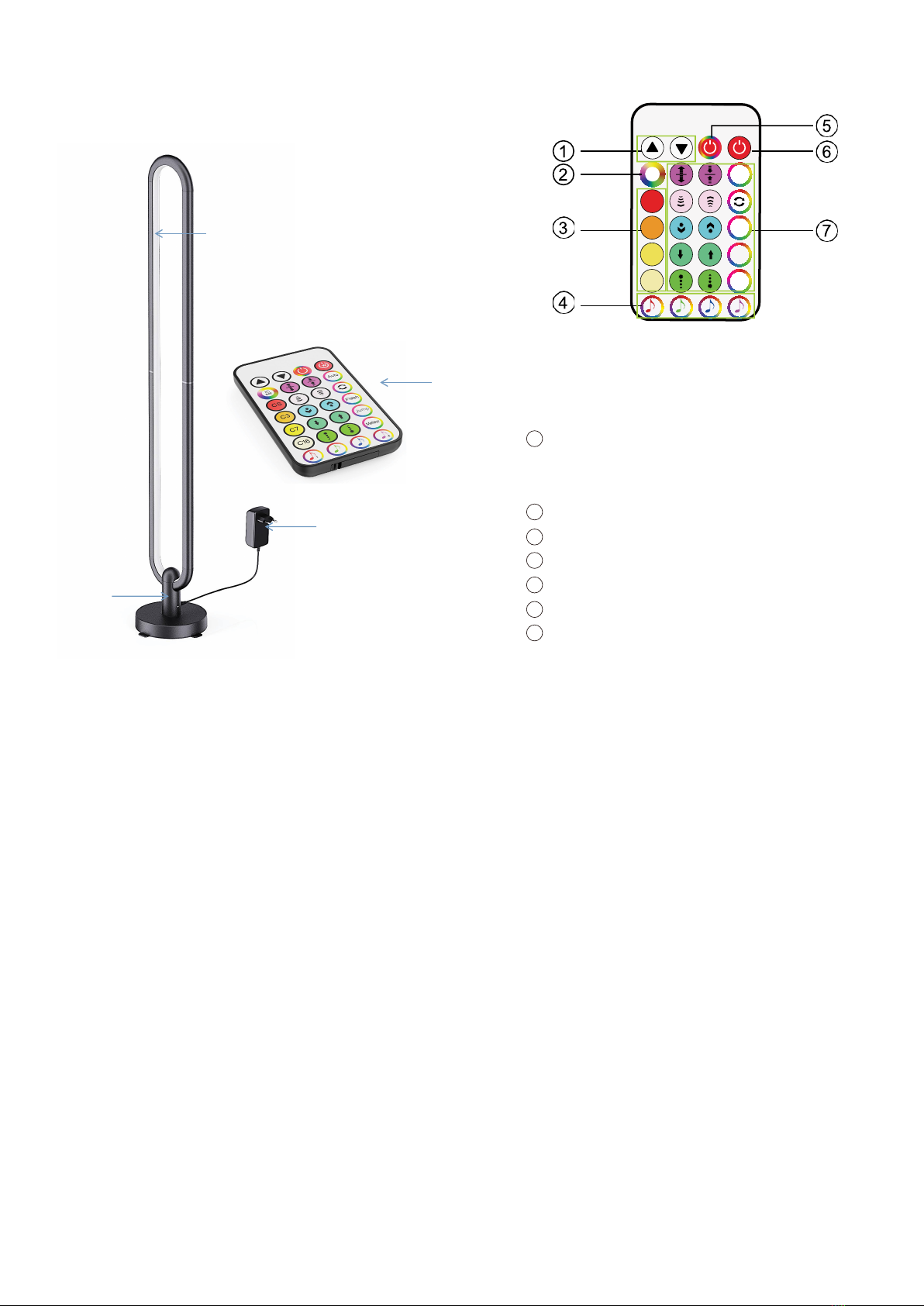

Functions introduction diagram
Silicon Lampshade
controller
Adapter
remote control
1 . Increase/decrease LED brightness in RGB
static or white light mode Increase/decrease
speed in RGB dynamic mode
2 . IC set to activate the system when set up first time
3 . RGB static color
4 . Music mode
5 . RGB light switch
6 . White light switch
7 . RGB phantom display
1234
RGB
w
IC
set
CS
C3
C7
C16
Auto
Flash
Jump
Meteor
WARNING
