optonica 6376 User manual

● Touch panel 4 zone 1-4 color DMX512 master, can also be used as 4 zone 1-4 color RF remote.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When used as RF remote, each zone can remote control multiple RF 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color wheel.
● Touch keys with LED indicator.
● White & Black glass panel available.
Output signal DMX512, RF 2.4GHz
Input voltage 100-240VAC
Input current Max 0.1A
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Dimming data
Dimming range
Touch key + RF 2.4GHz
10m(Barrier-free space)
256 levels
0 -100%
Technical Parameters
Input and Output
Warranty
3 years
Warranty
Input signal
RF Control distance
Dimming level
Ta: -30
O
C ~ +55
O
C
T c: +65
O
C
Wall Mounted Touch Panel
SKU: 6376/ 6377
4 Zone/1-4 color/Glass touch panel/Color wheel/AC input/DMX 512 and RF 2.4G signal output
Features
Page 1
Mechanical Structures and Installations
LVD RED
6376
Light type
Output DMX channel number
Model No. 6376/ 6377
Dual color
8
Turn on key tone: Long press power key for 5s when all zone light is off, will turn on or turn off key tone.
6376/ 6377 Dual color panel
Turn on/off all zone light.
Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light.
4 zone control seperately or synchronously, each zone could control multiple receivers.
ZON E ZON E ZON E ZON E
Key function
POWER
BRIGHT
ZONE ZONE ZONE ZONE
Brightness,10 levels.
Color temperature wheel.
BRIGHT
Weight
0.181kg
Gross weight
Net weight
0.234kg
Typical base as below:
European style
Baseplate Base
Uninstall
Installation diagram:
86 size
Touch panel
86 . 00 mm
86 . 00 mm
52 . 00 mm
52 . 00 mm
59 . 00 mm
33.00 mm
11. 50 mm
LN
IN PU T 100 -2 40 VAC
GN D D+D-
DM X OU TPU T
D+D-
6376/ 6377
DMX output +
DMX output -
DMX signal GND
AC input L
AC input N
DMX output -
DMX output +
Safety and EMC
EMC standard (EMC) ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment(RED) ETSI EN 300 328 V2.2.2
Certification CE,EMC,LVD,RED
EN 62368-1:2020+A11:2020
Safety standard(LVD)
6377

Touch Panel work as DMX512 Master
After connect with DMX decoders, please set the DMX decoders address as below:

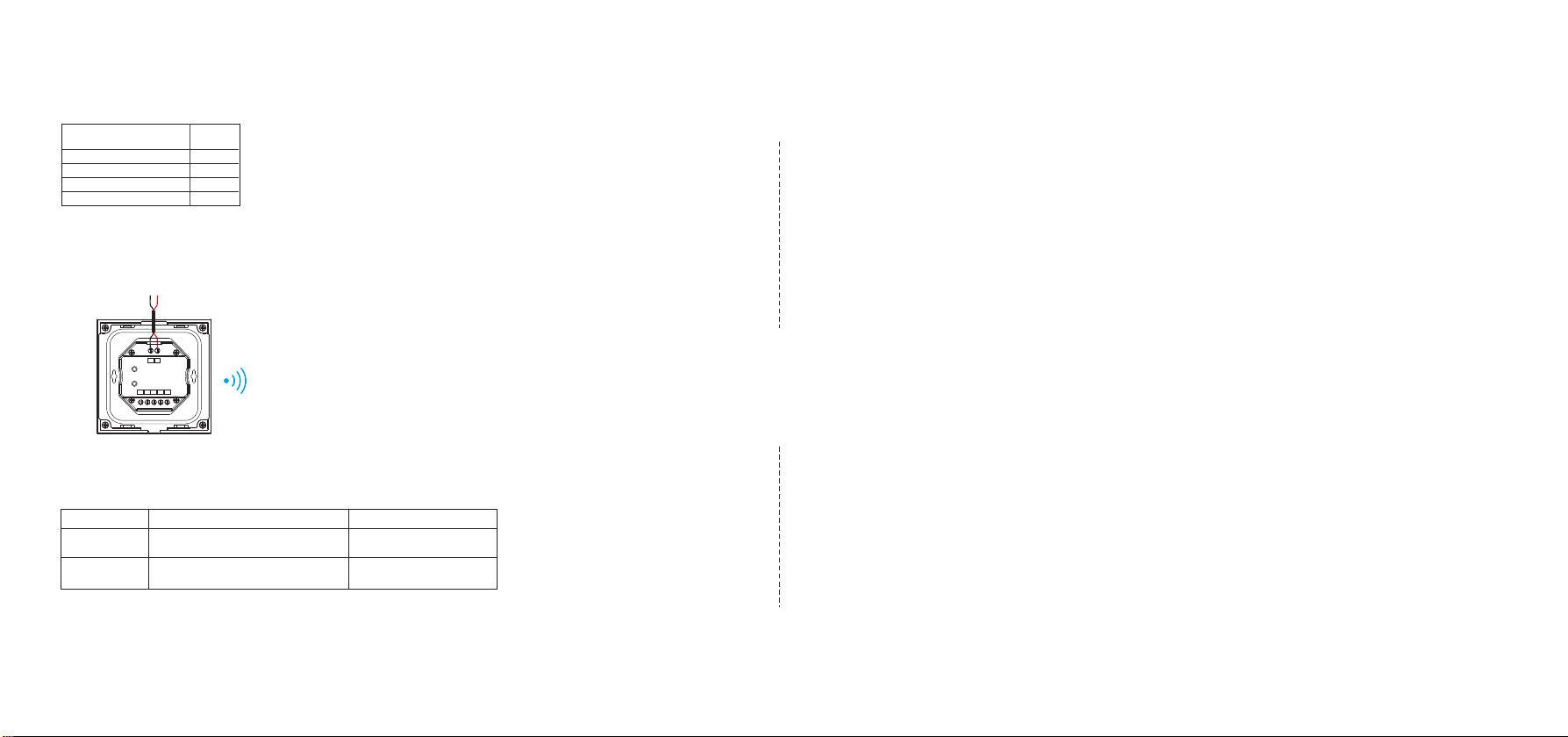

Wiring Diagram for touch panel work as RF remote
AC100-240V
Page 2
Malfunctions analysis & troubleshooting
Causes Troubleshooting
1. No power.
2. Wrong connection or insecure.
1. Check the power.
2. Check the connection.
1. DMX decoder first address error.
2. Wrong connection of output wires.
1. Check the DMX first address.
2. Reconnect output wires.
Wrong color
Malfunctions
No light
Zone 1 DMX decoder’s address
SKU 6376/ 6377
1 2
3 4
Zone 2 DMX decoder’s address
Zone 3 DMX decoder’s address
Zone 4 DMX decoder’s address
5 6
7 8
WW WH
LN
INPU T 100-2 40VAC
GND D+D-
DMX OU TPUT
D+D-
6376/ 6377
Touch Panel work as DMX512 master match RF remote
Use On/Off key
Match:
Turn on light, turn off, immediately press the On/Off
key of the panel for 5s,
then press any zone key of the RF remote within 5s.
The LED indicator fast flash 3 times
means match is successful.
Use Power Restart
Match:
Switch off the power of the panel, then switch on power,
repeat again.
Immediately short press any zone key 3 times on the remote.
The LED indicator fast flash 3 times
means match is successful.
.
Delete:
Switch off the power of the panel, then switch on power,
repeat again.
Immediately short press any zone key 5 times on the remote.
The LED indicator fast flash 6 times
means all matched remotes were deleted.
Delete:
Turn on light, turn off, immediately press the On/Off
key of the panel for 10s to delete all match,
The LED indicator fast flash 6 times
means all matched remotes were deleted.
Touch panel 4 zone DMX512 master can also match with 4 zone RF remote (Optional).
End user can choose the suitable match/delete ways. Two options are offered for selection:
Touch Panel work as RF remote
Use the controller’s Match key
Match:
Short press match key, immediately press zone
key of the touch panel.
The LED indicator fast flash a few times
means match is successful.
Use Power Restart
Match:
Switch off the power of the receiver, then switch on power,
repeat again.
Immediately short press zone key 3 times on the touch panel.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power of the receiver, then switch on power,
repeat again.
Immediately short press zone key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
Touch panel 4 zone remote can match with RF controller for the corresponding light type.
End user can choose the suitable match/delete ways. Two options are offered for selection:
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: [phone];
