INSTALLATION INSTRUCTIONS
JEEP Wrangler JK Full/Mid Width Front
Bumper 2007-2017
Item Kit No.
Centered Fairlead for Regular
Winches Kit
Non-Hoop
83228/83230
83238/83234
Offset Fairlead for Larger Winches
–
Non-Hoop (Warn PowerPlant Included)
2012+ Models May Require: 87046 Relocation Kit
83227/83229
83237 / 83233
WARNINGS/CAUTIONS
Before you install this kit, read and understand
all instructions, warnings, cautions, and notes in
this instruction sheet and in the vehicle owner’s
manual.
Proper installation of this kit requires knowledge
of the factory recommended procedures for removal
and installation of original equipment components.
We recommend that the factory shop manual and
any special tools needed to service your vehicle
be on hand during the installation. Installation of
this kit without proper knowledge of the factory
recommended procedures may affect the perfor-
mance of these components and the safety of the
vehicle. We strongly recommend that a certified
mechanic familiar with the installation of similar
components install this kit.
Many states and municipalities have laws
restricting bumper heights and "type". Consult
state and local laws to determine if the changes
you intend to make to the vehicle comply with
the law.
Always wear eye protection when operating
power tools.
If parts are missing from kit, please be prepared
to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
NOTE
Kit parts are prefaced by the word kit
and appear in bold print.
BEFORE STARTING INSTALLATION
1. Carefully read all warnings and instructions
completely before beginning.
2. Instructions are written for installation of
both centered (83228/83230/83238/83234)
and offset (83227/83229/83237/83233)
bumper. Pay close attention for minor differ-
ences during install.
3. Verify all parts have been received in this kit
by checking the parts list at the end of this
document..
4. Only install this kit on the vehicle for
which it is specified. If anytime during
the installation you encounter something
different from what is outlined in the
instructions, call technical support at the
number below.
4. Park vehicle on a clean, dry, flat, level sur-
face and block tires so vehicle cannot roll in
either direction.
ENGINE COMPARTMENT
1. Disconnect both battery cables. Disconnect
negative cable first, then positive cable.

WRANGLER JK Full-Mid Width Winch Bumper 2 Kit 83227-228-229-230-233-234-237-238
Prepare to Install Bumper

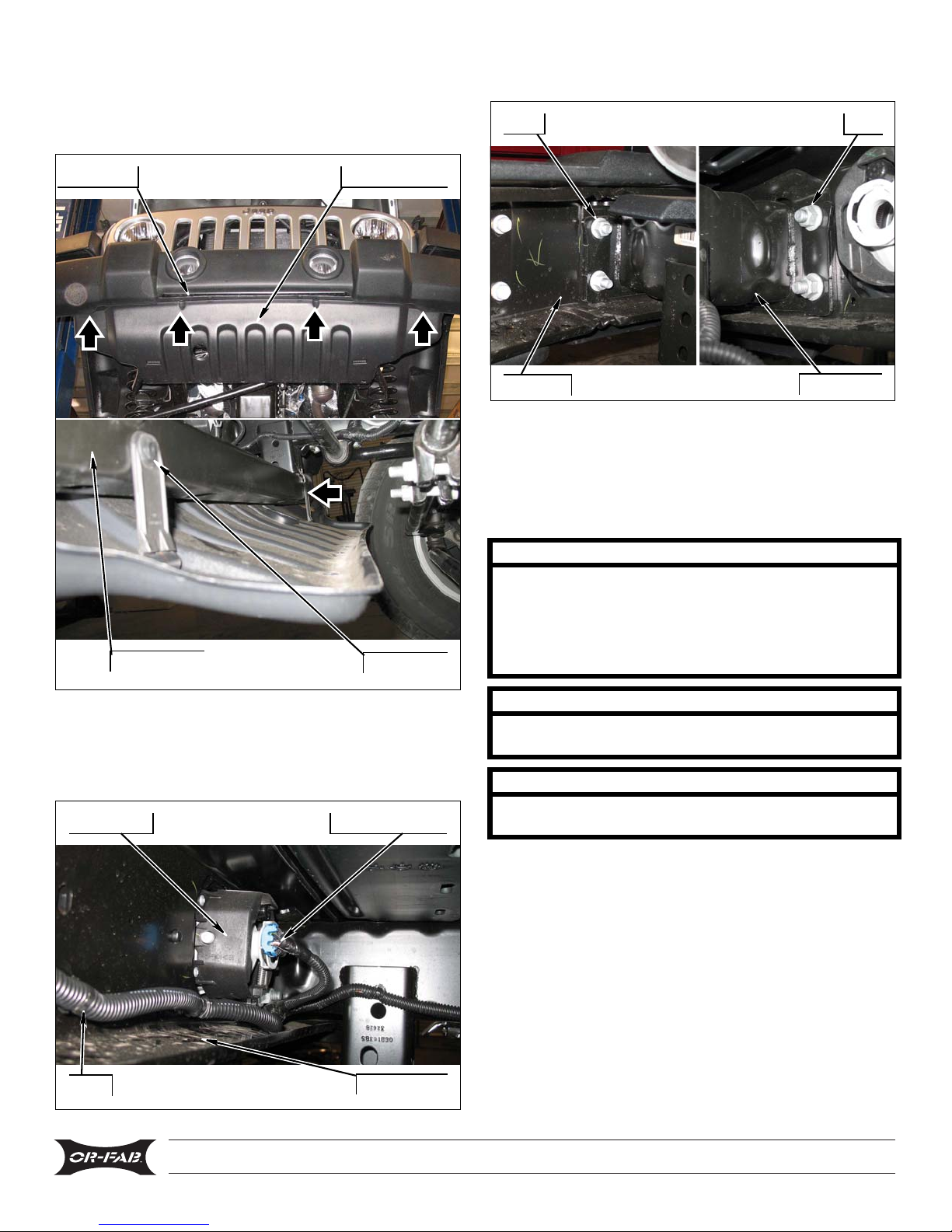

1. Remove four bolts, two push clips and lower splash
guard from lower crush zone and front bumper.
Push Clips Splash Guard
Push Clips
Crush Zone
2. Disconnect fog lights wiring harnesses from fog
lights if equipped.
3. Remove wiring harness and clips from lower crush
zone.
Fog Lights Wiring Harness
Crush Zone
Clips
4. Remove four nuts, four spacer plates and front
bumper from frame horns.
Nuts Nuts
Frame Rail
Bumper
OUTSIDE
INSIDE
5. Remove eight screws and two fog lights from front
bumper.
Install Bumper
NOTE
Bumper is designed to work with many Mile Marker
and Warn Winches. Check measurements to verify fit-
ment of winches before purchase. In general this
bumper will fit smaller mid-sized winches. For larger,
such as the WARN PowerPlant, winches bumper P/N
#83227/83229/83237/83233 will be required.
NOTE
Bumper can be installed without winch. Follow
directions excluding winch install step directly below.
NOTE
2012+ Model: May require installation steps & kit
87046 Vacuum Pump Relocation Kit

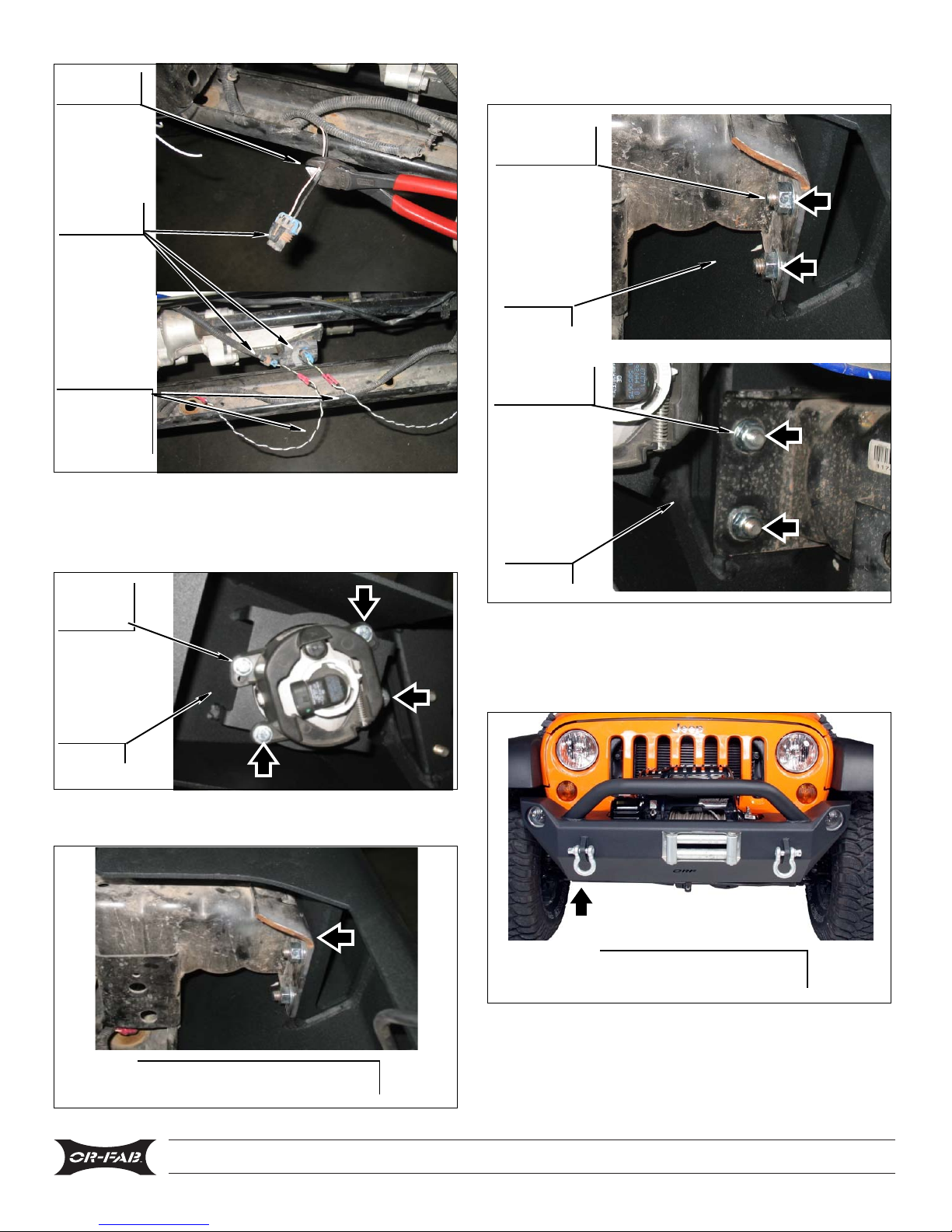

1. Extend OEM fog lamp harnesses
a. Cut OEM harness approximately 3 inches from
the end of each plug. Use a set of wire strippers
and remove small amount of insulation from tips
of cut wire.
b. Use four kit butt connectors (RED), per lamp
harness, and crimp one kit butt connector to
end of each stripped wire.
c. Use half (18”) of kit black & white wires pro-
vided in the kit to extend each lamp plug. Strip
each end of wire and crimp kit black & white
wires into place accordingly.
421 MAIN STREET, RIVERSIDE CA, 92501 | UNITED STATES | (951)-680-9595 | WWW.ORFAB.COM

WRANGLER JK Full-Mid Width Winch Bumper 3 Kit 83227-228-229-230-233-234-237-238
Use kit wire loom isolator to cover exposed kit wires
d. Install OEM fog lamp using four kit bolts
(1/4”-20 x 3/4”), flange nuts and washers per
OEM fog lamp.
Note: Use 1/4” drill bit to enlarge fog lamp mounting hole.
Note: WARN PowerPlant winches will require you to cut
a small section off of the drivers inside frame mount as
shown below:
Cut
Harness
Extend Har-
ness using
kit wires &
connectors
Harness
Plug
1/4” Bolts,
Nuts &
Washers
Bumper
Remove small section of frame
horn as shown in image above
2. Installing main bumper.
a. Install bumper using eight kit flange nuts(7/16”).
b. Note: 2010 - 2016 Models mark and drill
passenger side lower crash bar. Mark and drill
(using a 1/2” drill bit) passenger side lower crash
bar so kit bolts (1/2-13 x 1 1/4” button head)
may install through bumper & crash bar.
7/16” Kit
Flange Nuts
Bumper
7/16” Kit
Flange Nuts
Bumper
Drill 1/2” hole on Passenger
side crash bar.
421 MAIN STREET, RIVERSIDE CA, 92501 | UNITED STATES | (951)-680-9595 | WWW.ORFAB.COM

421 MAIN STREET, RIVERSIDE CA, 92501 | UNITED STATES | (951)-680-9595 | WWW.ORFAB.COM
WRANGLER JK Full-Mid Width Winch Bumper 4 Kit 83227-228-229-230-233-234-237-238

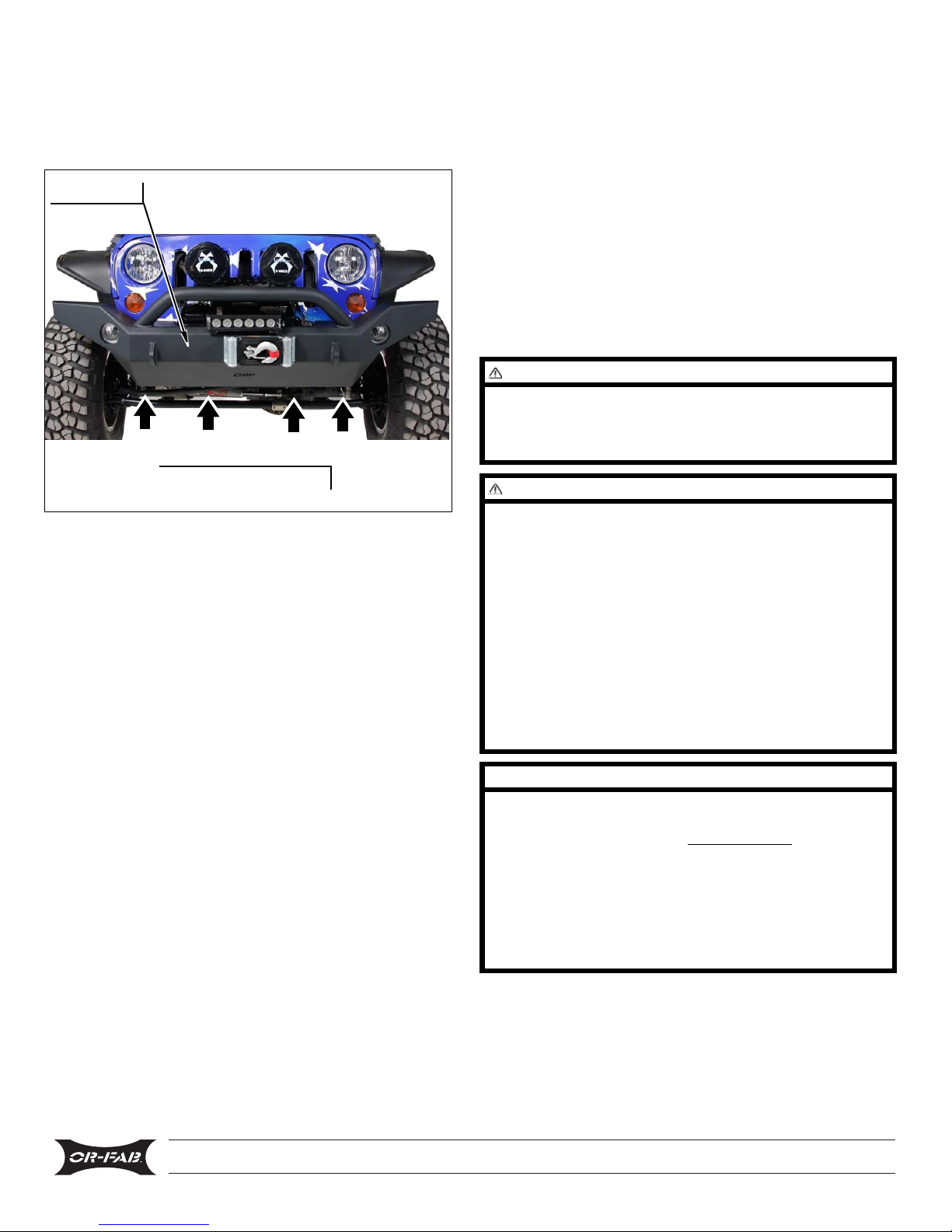

c. Install four kit bolts (1/2” x 1 1/4” Button Head)
with large thick washer and flange nut through
outer holes on bottom of bumper.
(Note: Some models are not equipped with one hole. It
will be necessary to drill a 1/2” hole to complete step.)
d. Tighten all remaining bumper hardware.
e. Reconnect OEM fog light harness into both fog
lamps.
3. If installing winch, consult manufacturers
instructions for wiring and other installation and use
notes.
Kit Bolt (Button Head)
Kit Bumper
After Completing Installation
Engine Compartment
1. Connect both battery cables. Connect positive cable
first, then negative cable.
Miscellaneous
1. Check all fasteners to ensure they are tight.
2. Ensure all wires are properly connected and there is
ample slack.
WARNING
Retorque all fasteners after 500 miles and after off road
use. All body lift components should be visually
inspected and fasteners retorqued during routine vehi-
cle servicing.
CAUTION
OR-FAB Inc. does not recommend any particular
wheel and tire combinations for use with its products
and cannot assume responsibility for the customer’s
choice of wheels and tires. Refer to your owner's
manual for recommended tire sizes and warnings
related to the use of oversized tires. Larger wheel and
tire combinations increase stress and wear on steering
and suspension components, which leads to increased
maintenance and higher risk for component failure.
Larger wheel and tire combinations also alter
speedometer calibration, braking effectiveness, center
of gravity, and handling characteristics. Consult an
experienced local off road shop to find what wheel and
tire combinations work best with your vehicle.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner. Information
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications made to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.

421 MAIN STREET, RIVERSIDE CA, 92501 | UNITED STATES | (951)-680-9595 | WWW.ORFAB.COM
WRANGLER JK Full-Mid Width Winch Bumper 5 Kit 83227-228-229-230-233-234-237-238
Kit Parts List
Qty. Description
1 Bumper
2 D-Rings
1 Hardware Pack
4 Bolt, Button Head (1/2”-13 x 1-1/4”)
8 Bolt, Hex Head (1/4”-20 x 3/4”)
4 Nut, Flange (1/2”-13)
8 Nut, Flange (7/16”-14)
8 Nut, Flange (1/4”-20)
8 Washer, SAE (1/4”-20)
4 Washer, Large “Special”
8 Connector, 16 Gauge (Red)
1 Wire, 3ft. - 16 Gauge (Black)
1 Wire, 3ft. - 16 Gauge (White)
1 Isolator, 3ft. (Black)
Copyright 4/12
OR-FAB Inc.
www.orfab.com
