ORANGE LIVERADIO B31100004-B Instruction sheet

Liveradio
read me
please read me before turning on your Liveradio

REF : B31100004-B
Table of contents
1. Before you begin........................................................................................................................... 3
What’s in the box ................................................................................................................................ 3
What else do you need ....................................................................................................................... 3
How does your Liveradio work ........................................................................................................... 3
What’s on the front ............................................................................................................................. 4
What’s on the back ............................................................................................................................. 4
Powering up your Liveradio ................................................................................................................ 5
2. Connecting your Liveradio to your wireless network ............................................................... 6
Choose the language .......................................................................................................................... 6
Link your Liveradio to your wireless network ..................................................................................... 6
Enter your wireless security code ....................................................................................................... 7
Select the time zone ........................................................................................................................... 9
3. Using your Liveradio................................................................................................................... 10
Basic navigation................................................................................................................................ 10
Radio stations ................................................................................................................................... 11
Time / information ............................................................................................................................. 12
Standby mode................................................................................................................................... 12
Menu mode ....................................................................................................................................... 13
Set-up mode ..................................................................................................................................... 14
Playback mode ................................................................................................................................. 18
Fast forward/backward mode........................................................................................................... 20
Favourites mode ............................................................................................................................... 20
Presets .............................................................................................................................................. 21
Alarm / timer function........................................................................................................................ 21
Music on your PC through your Liveradio ........................................................................................ 22
4. Customizing your Liveradio: www.orange.co.uk/liveradio .................................................... 25
5. Appendix ...................................................................................................................................... 26
Technical specifications.................................................................................................................... 26
Additional information ....................................................................................................................... 27
Warranty............................................................................................................................................ 28
Troubleshooting ................................................................................................................................ 29
Technical support ............................................................................................................................. 30
Quick glossary................................................................................................................................... 31

Liveradio – User guide
page
2 / 32
Important information
For best results, follow the instructions in the easy set-up guide.
During set-up and installation, you may find it useful to keep the instructions for your Live radio and
your Livebox (or other wireless router) to hand.
The most recent information and downloads for your Liveradio are accessible on our website:
http://www.orange.co.uk/liveradio
Please keep this instruction manual for future reference.
Important safety information
DO NOT MAKE OR CHANGE ANY ELECTRICAL CONNECTIONS WHEN THE DEVICE IS
SWITCHED ON.
Before turning the system on, make sure that the power source shown on the system label
corresponds to your local electricity supply. If not, see your distributor.
Radio equipment for wireless applications is not protected from interference caused by other
radio services.
When the system is in standby mode it still consumes electricity. To switch it off fully, unplug
the adaptor from the power socket.
Do not allow the product to get wet. Objects containing liquid,should not be placed on or
near the product.
The system should not be exposed to excessive humidity, rain or sand or to sources of heat
such as a radiator or direct sunlight.
Leave a little space around the Liveradio to ensure sufficient ventilation.
Do not attempt to open the Liveradio. In case of technical difficulties, contact your Orange
reseller.
European regulations
This product was designed, tested and manufactured in compliance with European Directive R&TTE
1999/5/EC.
According to this directive, the product may be used in the following countries:
United Kingdom, Europe
WARNING
This product is designed for use with the rechargeable batteries that came with it. There is a risk of
explosion if the batteries are replaced with non-rechargeable batteries. Discard all used batteries in
compliance with the instructions.

Liveradio – User guide
page
3 / 32
1. Before you begin

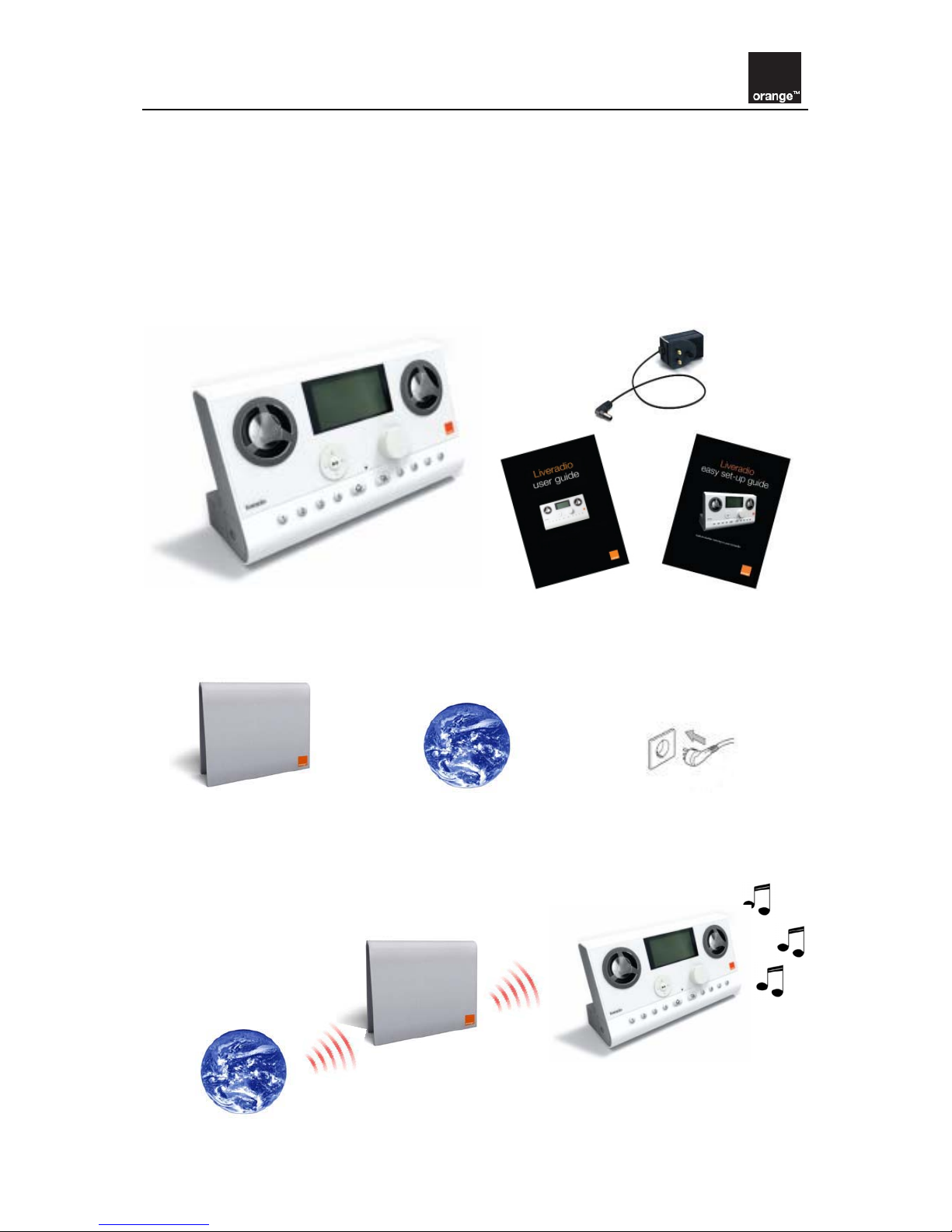

What’s in the box
1 x Liveradio with its 4 rechargeable AA batteries inserted
1 x universal power adaptor with UK plug
1 x user guide
1 x easy set-up guide
What else do you need
Livebox or other wireless
modem
Active internet connection Power socket
How does your Liveradio work

Liveradio – User guide
page
4 / 32

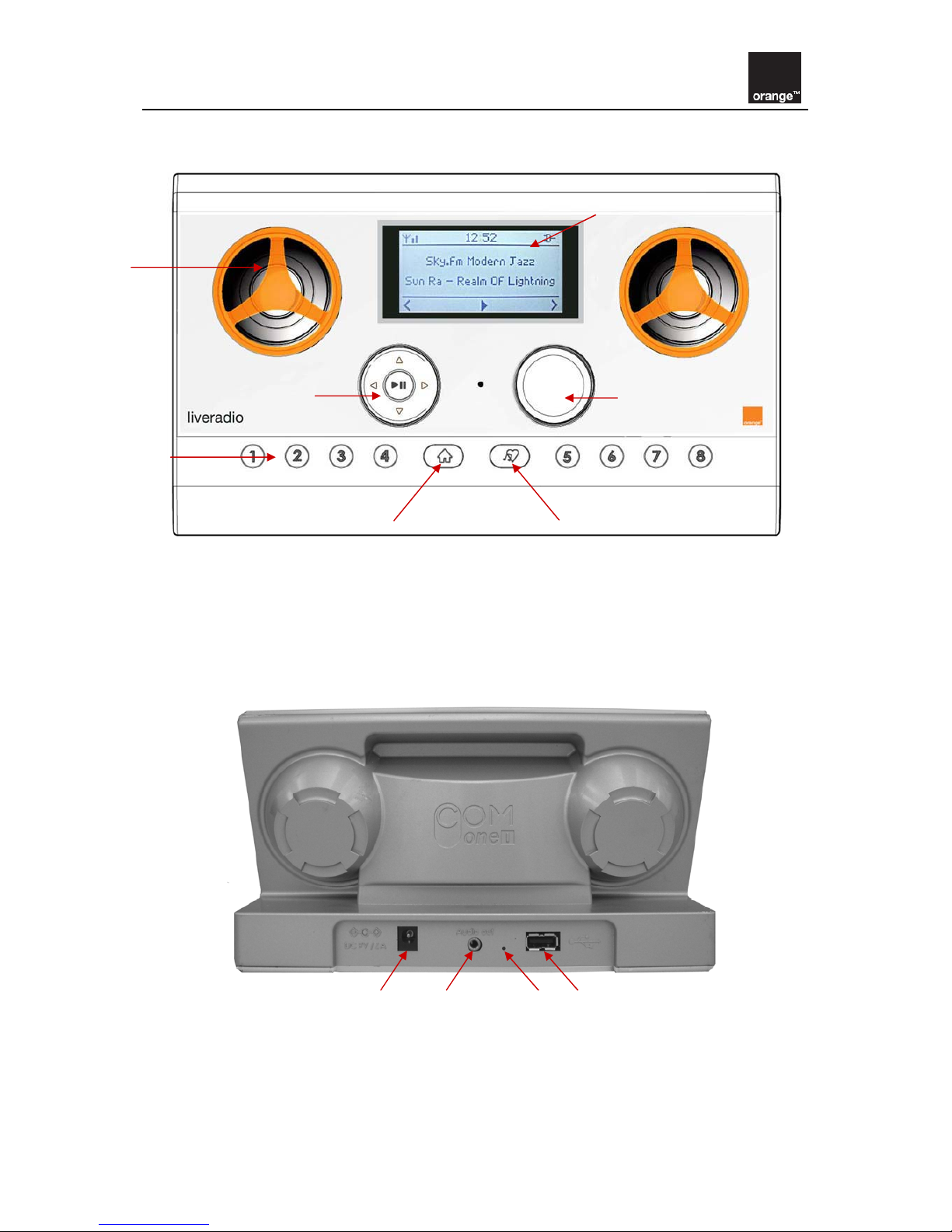

What’s on the front
1. LCD screen 5. Preset keys
2. Speakers 6. Home button
3. Navigation pad 7. Favourites button
4. Volume control
What’s on the back
8. Power input
9. Headphone socket
10. Factory reset button
11. USB socket (to connect a USB memory key in order to listen to your music via the Liveradio)
2
1
4
5
3
67
8 9 10 11

Liveradio – User guide
page
5 / 32
Powering up your Liveradio

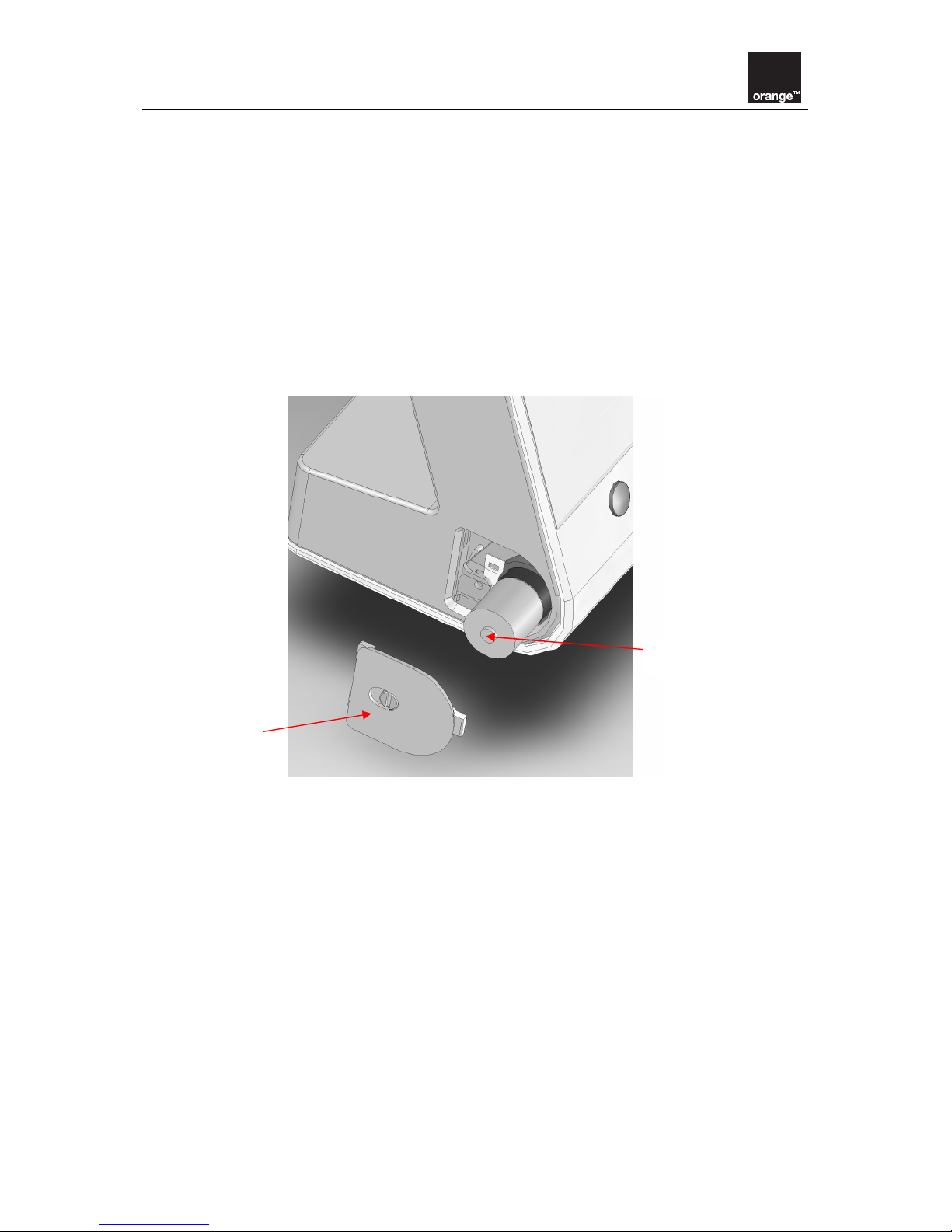

The Liveradio already has its rechargeable batteries inserted: simply pull the plastic tab from the
Liveradio battery compartment. You can then connect the power adaptor.
Batteries
Four rechargeable AA batteries (2500mA NimH) are provided with your Liveradio. These batteries
recharge automatically when the Liveradio is powered up. When using your Liveradio for the first
time, we recommend that you connect it to the mains electricity to fully charge the batteries. A full
charge will give you four hours’ listening time. When wireless connection isn’t active, the Liveradio’s
battery life is six hours.
Installation is complete when the battery hatch is firmly back in place.
+ End
Flap

Liveradio – User guide
page
6 / 32
2. Connecting your Liveradio to your wireless network
Use the controls on the front of your Liveradio to set up the connection to your Livebox (or other
wireless router).
See the Navigation in menus section for details on using the navigation pad .
When you turn the Liveradio on for the first time, an Orange welcome screen will be displayed and
you will be invited to set your Liveradio up.
Please follow the following steps to set up your Liveradio:

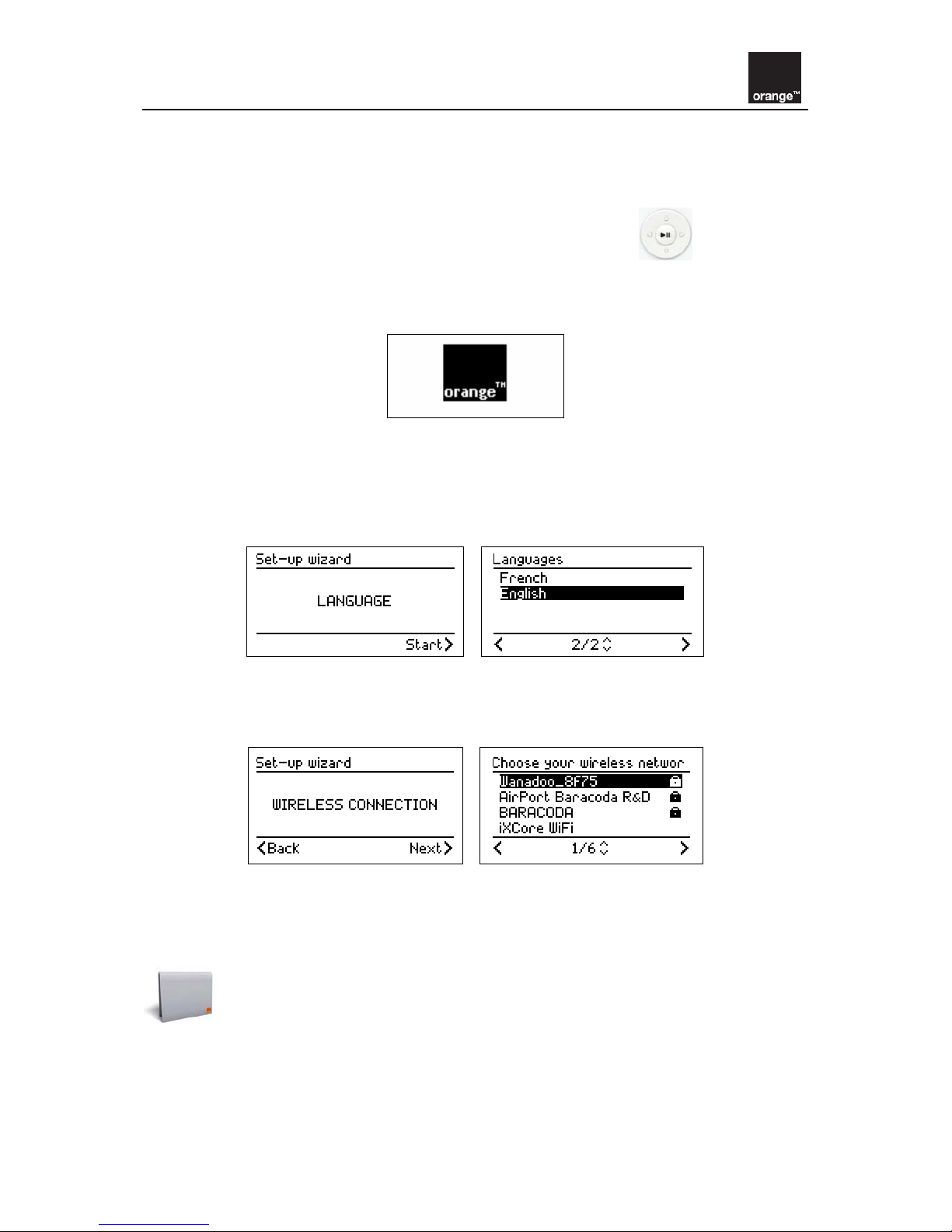

Choose the language
Select the language that you want to use.
Link your Liveradio to your wireless network
Select your wireless network from the list shown:
Note: The Liveradio works with all wireless routers using Wi-Fi. Liveradio does not need a Livebox or
an Orange broadband account to work.
Your Livebox has a name (SSID) of the type ORANGE-XXXX that you can find on the
underside of your Livebox.

Liveradio – User guide
page
7 / 32
Enter your wireless security code
There are three types of security for a wireless network:
xNon-secure: no padlock
xSecure WEP: padlock
xSecure WPA: padlock
Note: The security type of your wireless network will be detected automatically by your Liveradio.
You should enter the code (WEP or WPA) corresponding to your wireless network. This is a string of
characters indicated on your wireless network, accessible from your PC or via the information system
administration manager.
If you are using a Livebox, this is a string of 26 characters (letters and numbers). This
code is written on the label under your Livebox.
How to enter the security code:

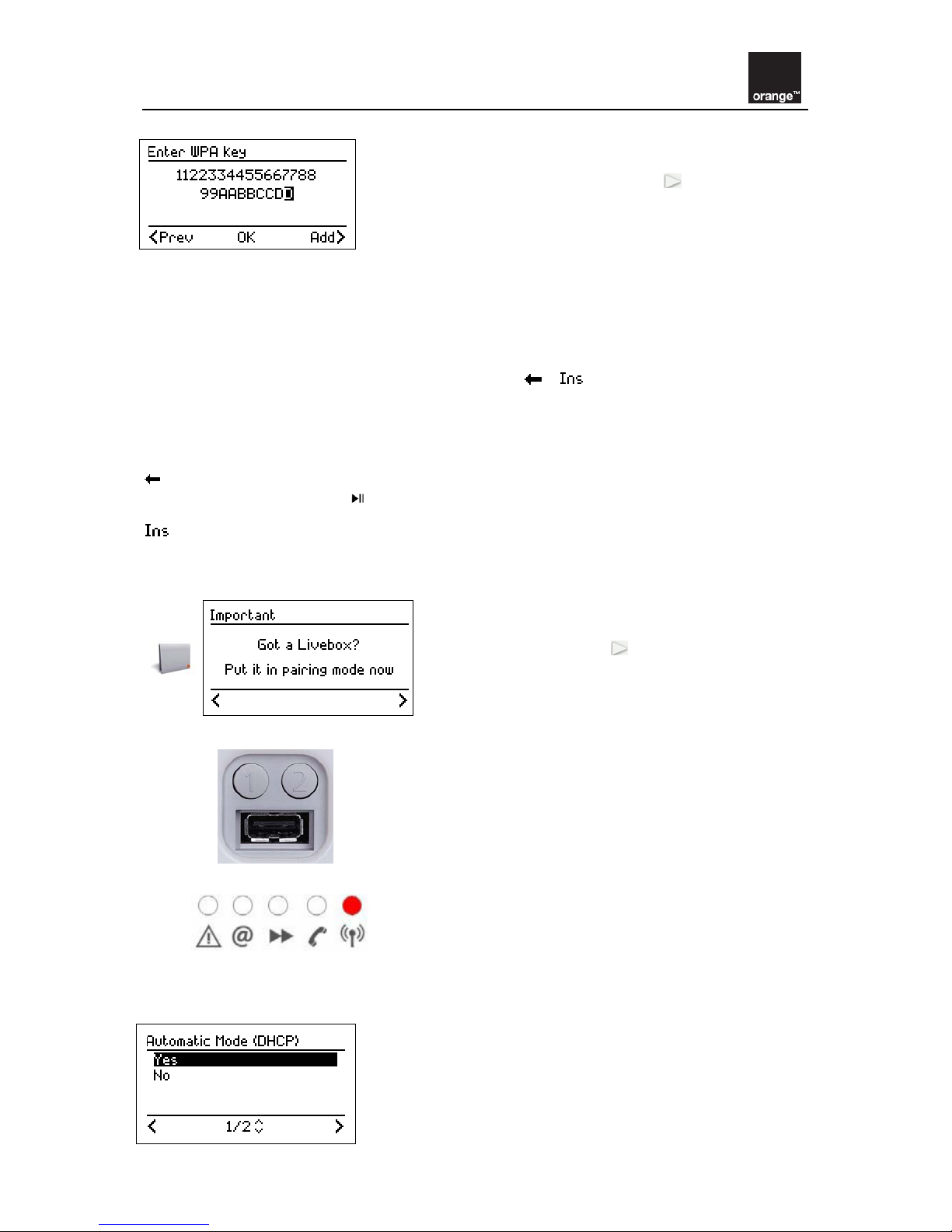

Enter the WEP / WPA code by turning the volume control (4) to scroll through the characters on the
screen:
xTo confirm a character, press
xTo correct an incorrect character, press , then re-enter using the volume control (4)
Once the characters have been entered, press to go to the next step
Non-secure wireless network:
No data entry is required. The Liveradio will automatically jump to the next step.
WEP-secure wireless network:
When you select a WPA-secure wireless network, this screen is
displayed. Enter the WPA key for your Livebox or other router.
When you have entered the characters, press Źto confirm.
WPA-secure wireless network:
When you select a WPA-secure WiFi access point, this screen is
displayed. Enter the WPA key of your access point.

Liveradio – User guide
page
8 / 32
When you have entered the characters, press to confirm.
Turn the volume control (4) to access the characters below:
0 1 2 3 4 5 6 7 8 9
a A b B c C D D e E F F g G h H i I j J k K l L
m M n N o O P P q Q R R s S t T u U v V w W x X
y Y z Z [ \ ] ^ _ ` { | } ~ ! « # $ % & ‘ ( )
* + , - . / : ; < = > ? @
ű
3 special characters are available to facilitate the WPA security capture:
űMove with this cursor through the character string using ŻŹkeys;
Erase a series of characters wrongly entered. You just have to position this cursor at the end
of the series and press ;
Insert characters in already entered string of characters.
Pairing with your Livebox
This is only needed if you have a Livebox. If you do not
have a Livebox, confirm with to go on to the next step.
If you have a Livebox, perform the steps described below
before validation.
If you have a Livebox, press the button marked “1” on the
back of the box.
When the wireless LED on the top of your Livebox starts to
blink, the Livebox is ready to be paired with your Liveradio.
Network set-up (DHCP)
Select ‘Yes’ (recommended) and confirm.
Warning: if you select ‘No’ (advanced users) you will have to enter
the IP address of your Liveradio, the subnetwork mask, the
gateway and the preferential DNS server.

Liveradio – User guide
page
9 / 32

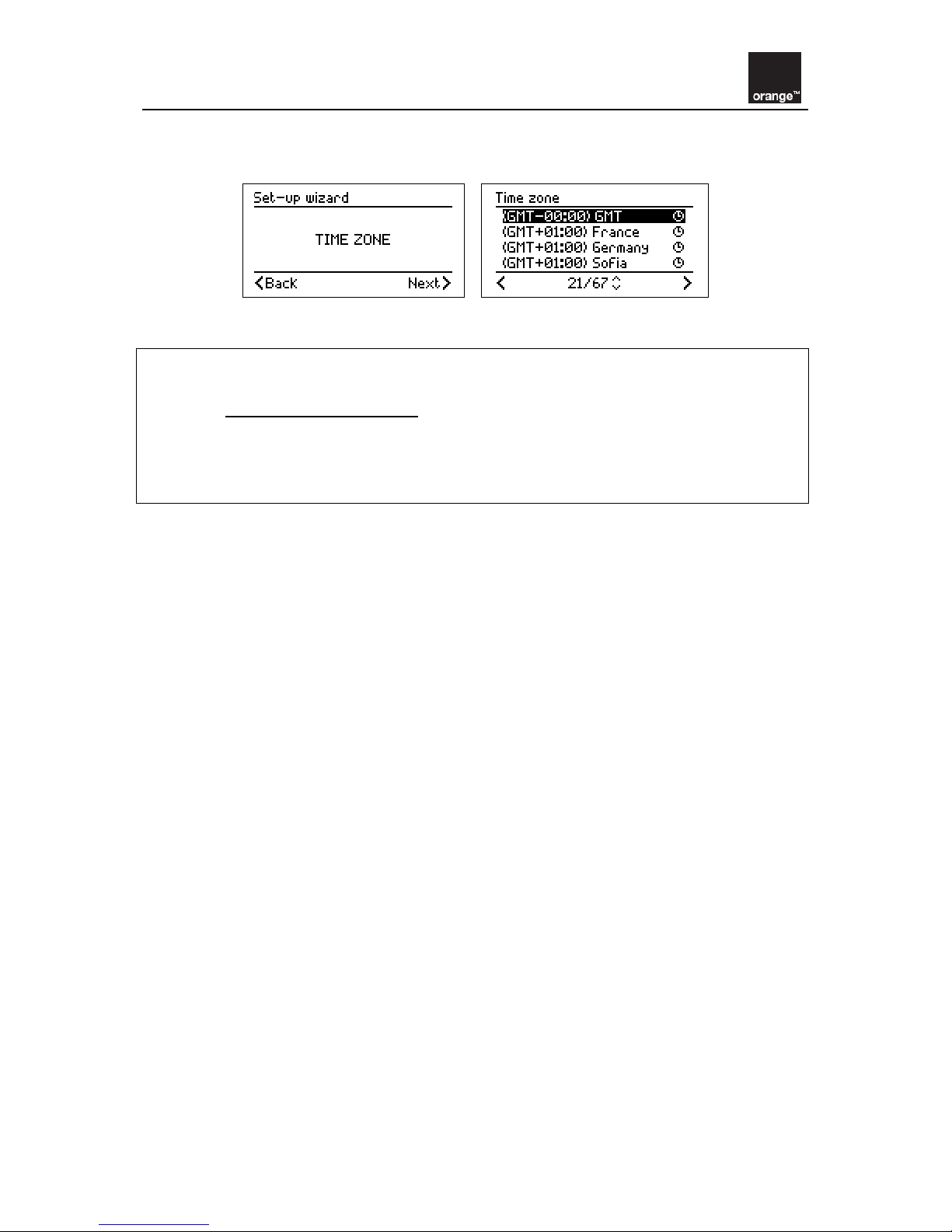

Select the time zone
Select your time zone from the list below:
Your Liveradio is now correctly set up and ready to use.
TIP: Create your personal space by registering on the website
Connect to www.orange.co.uk/liveradio from a computer connected to the internet, with a web
browser such as internet Explorer, Firefox or Safari.
The Liveradio lets you receive many types of content and access many services. Some of these are
available as soon as you start up the Liveradio, others only through the internet.

Liveradio – User guide
page
10 / 32
3. Using your Liveradio

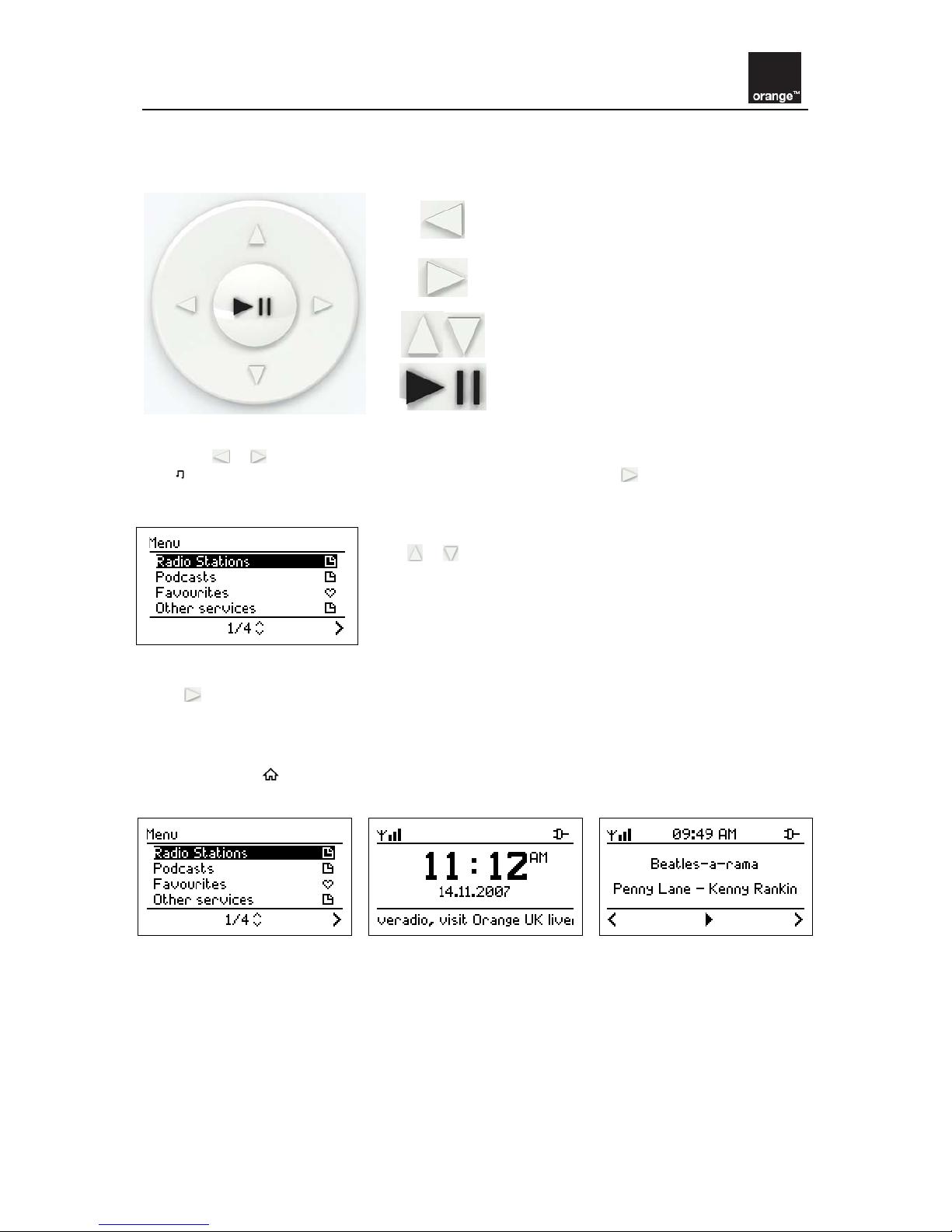

Basic navigation
Return to previous screen
Confirm a choice in the menu
Move the cursor in the menu
Confirm a choice in the menu. In a listening
mode: start / stop playing.
When you navigate through the menus and submenus, you can go backward or forward in the menu
tree using or , every time that you see the icons >or <on the screen.
The icon indicates an audio file; you can listen to it by selecting it with .
Highlighting an item
Press or .
Hold the button down to scroll through quickly.
Selecting the item
Press . The LCD screen displays the new items or starts playing the audio file.
Switching between menus

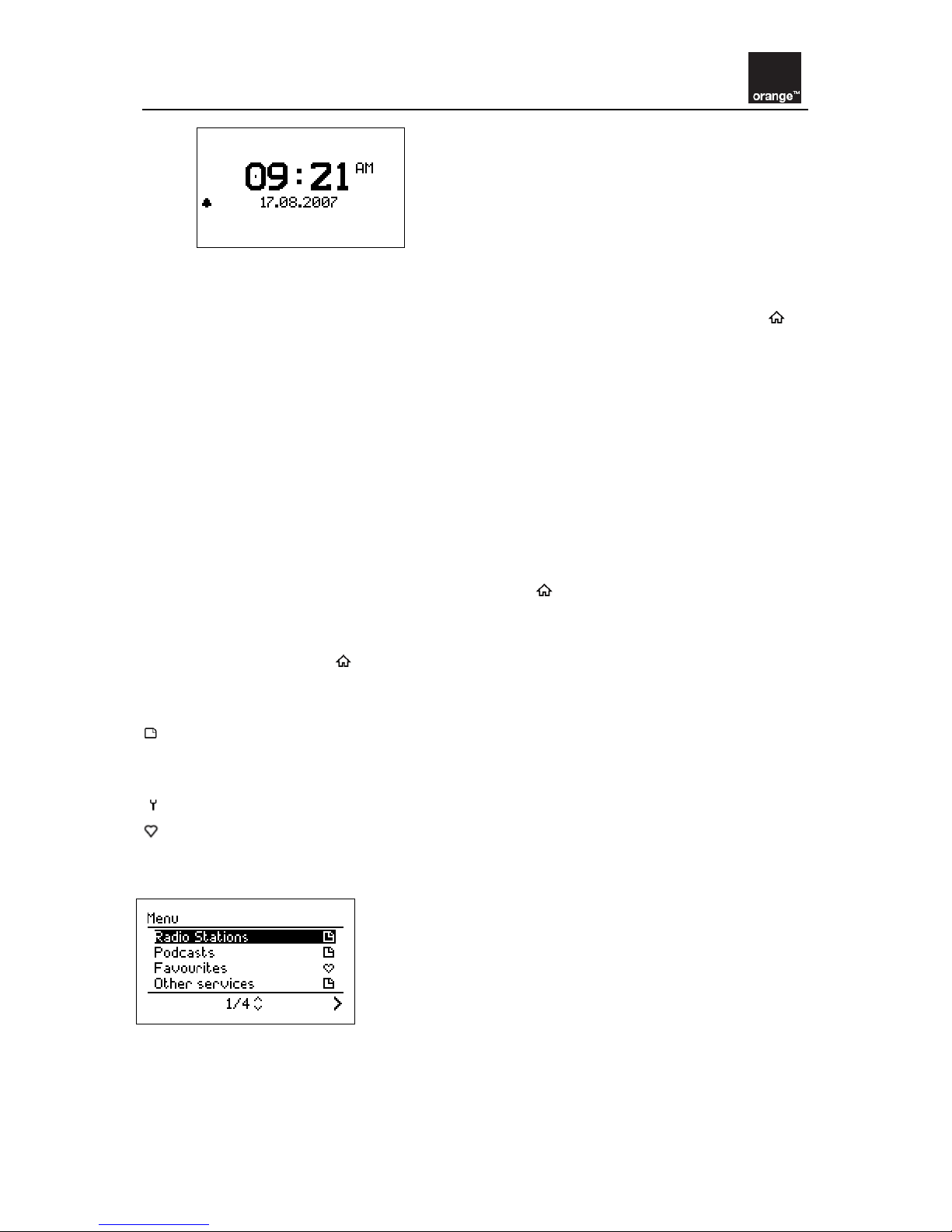

The Home button (6) allows you to return to the root of the menu you are in.
Repeatedly pressing this button displays the Time / information mode or the audio file being played.

Liveradio – User guide
page
11 / 32
Radio stations

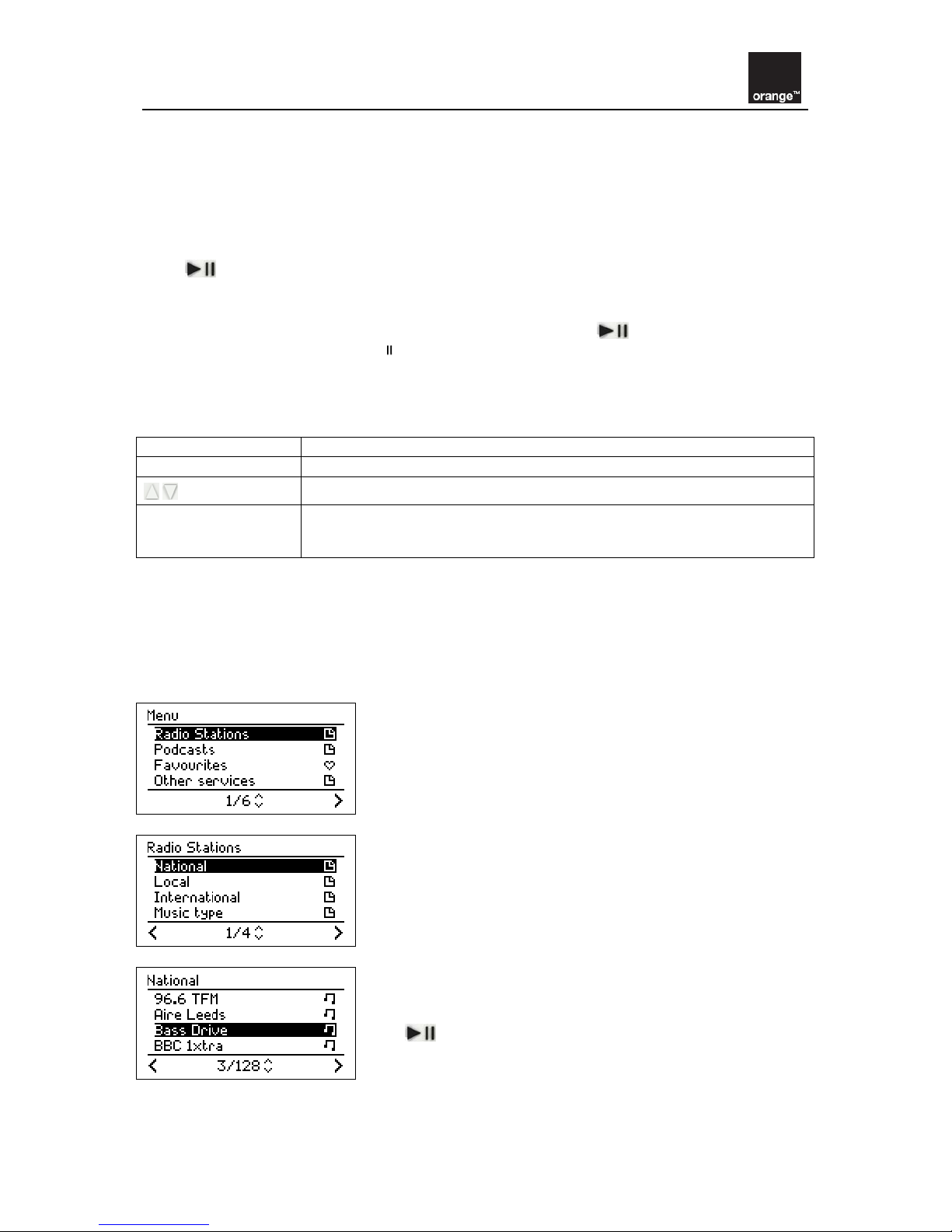

You can browse the internet radio stations database and search by type: style of music, country and
station. Stations are displayed in a hierarchical menu (which is similar to how files are organized in
submenus on a PC). Items in the menu are displayed on the LCD screen of the Liveradio and you can
browse the menu using the navigation button (3). Files that can be played are identified by Ź.
Play
Press to play an audio file.
Stop playing
While playing, Źis displayed on the screen in the bottom bar. Press to pause playing. If you do
this while listening to a radio station, will be displayed in the bottom bar.
Other options
When listening to a radio station, the following options are available:
Press >Display the options associated with an audio file
Press <Go backwards through the menu structure to the previous submenu
Change radio station by going to the next / previous item on the menu
Press and hold >or <
Fast forward / backward. For more information on this option, see fast
forward / backward mode on page 20. This option is only available while
playing an audio file (audio book, podcast etc) not the radio.
While listening to an audio file, navigation is still possible in all operational modes.
(For technical reasons, navigation in Set-up mode (Reset, Update, Wireless, Alarms) will potentially
stop the radio playing.)
Example:
To start playing a radio station, select "Radio stations" in the menu.
Then select a folder, for example "National".
Now select a radio station from the list shown.
Press to start playing.

Liveradio – User guide
page
12 / 32
Information displayed on the active audio file
When listening to an internet radio station, the LCD (1) screen of your Liveradio displays information
related to the station and track (not all stations publish song titles). If you are navigating through
another menu and you want to display the information on the current station / track, press the Home
button (6) .
Time / information
In this mode, your Liveradio will show the time, date and data (news and weather) scrolling along the
bottom of the screen. News is updated regularly.
The following icons are available on the Liveradio LCD screen (1) in Time / information mode:
Wireless network reception level
Battery level (if there are batteries in the Liveradio)
When your Liveradio is plugged into the mains, the icon is displayed.
Wake-up alarm indicator.
An icon is displayed when one or two alarms are activated (see alarm Function p14)
Note: Time / information is the default mode
Note: To ensure a good internet connection, we recommend that you keep your Liveradio within a
50-metre radius of your Livebox (or other wireless router). When in an enclosed space (eg a house),
the more walls and floors there are between your Liveradio and your Livebox or wireless router, the
shorter the reception distance will be. If no bars are shown on your wireless network reception level
indicator, you may not be able to connect and listen to the radio.
Standby mode
Standby mode interrupts all main functions of the Liveradio. For example, in this mode the Liveradio
will not be connected to the internet through the wireless network.
When the Liveradio is reactivated from standby mode, it will automatically re-connect to the wireless
network it was previously connected to. (It may take a few moments to make the connection.) If the
LCD screen does not turn on, please refer to the Troubleshooting section of this manual.
Example Explanation
Bartok Radio Radio name
LISZT Ferenc Artist name
BARTOK Bel Track title

Liveradio – User guide
page
13 / 32
In standby mode, your Liveradio will have the
following properties:
Only the time and date will be shown on the screen.
The Liveradio will not read any audio or text content.
Backlighting will not be active.
The wireless connection will be inactive.
Placing in standby mode
You can place the Liveradio in standby mode at any time, simply by pressing the Home key (6)
and holding it down for two seconds. Your Liveradio will revert to standby mode if no action is taken
on the device for more than 5 minutes and no files are being played.
Note: If you are listening to or reading a file, placing your Liveradio in standby mode will stop the
process instantly.
Activating your Liveradio
If the Liveradio is in standby mode, pressing any button will re-activate it. The time / information
mode will then be displayed. If you were listening to an audio file before the Liveradio went into
standby mode, it will start playing again.
Menu mode
To navigate through the main menu press the Home button (6) on your Liveradio, wherever you are
in the directories.
Note: If you are listening to an audio file, this will keep playing. You can go back to the reading screen
by pressing the Home button several times.
The following are the main icons that may appear in this menu, together with their functions:
Menu containing submenus
>Move forward through the submenu structure
<Move backward through the menu structure
Configuration
Favourites
Several submenus are available in Menu mode:
xRadio stations (page 11)
xPodcasts (page 18)
xOrange services (page 25)
xFavourites (page 18)
xUSB key (page 18)
xSetup (page 14)
xStandby mode

Liveradio – User guide
page
14 / 32
Set-up mode
The set-up menu is accessible by pressing the Home button (6).
Select “Set-up” in the main menu by pressing >.
The set-up menu allows you to modify all the settings of your Liveradio:
xAlarm
xTime zone
xWireless connection
xLanguages
xUpdate
xScrolling
xScreen
xSerial number
xReset

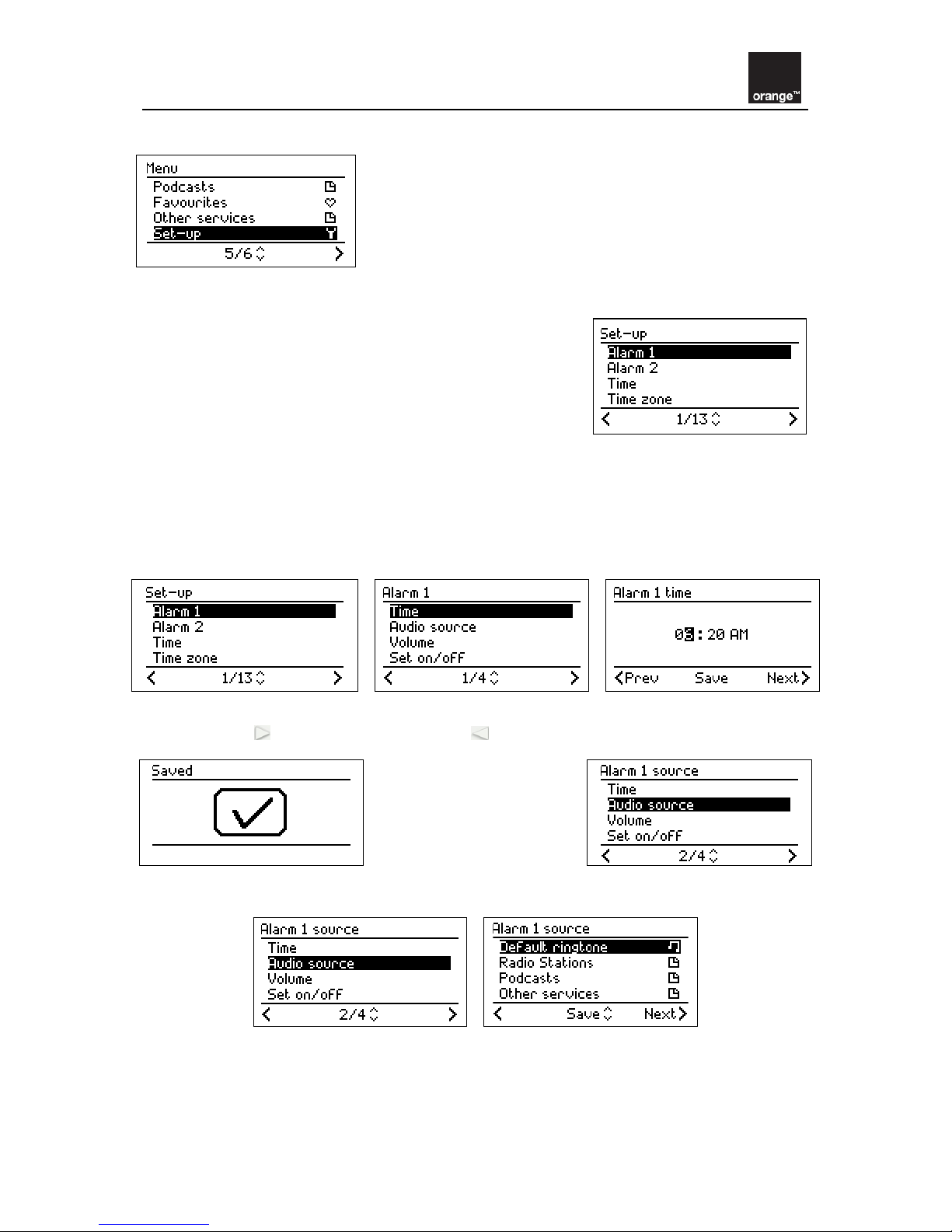

Alarms set-up
Your Liveradio lets you set up two different alarms, for each of which you can choose a different
audio source. The screens below show how to set an alarm and how to choose the audio source.
First, set the time for the alarm :
Enter the time using the volume control (4) to scroll through the characters on screen. To confirm a
character, press . To correct a character, press .
You can now select the audio
source you want to use.
Option 1 : Ringtone
Option 2 : Radio stations

Liveradio – User guide
page
15 / 32
Option 3 : Podcasts
Time format set-up
To set the time on your Liveradio, just select the format (automatic or manually), as shown below:
You can select the time by turning the volume control (4) to scroll characters. To validate the chosen
character, press Ź. To correct a wrong character, press Ż. Once time is selected, press to
validate.
Time zone set-up
To set the time zone on your Liveradio, just select the time zone that suits you, as shown below:
Wireless connection set-up
See Link your Liveradio to your wireless network page 6.
Language set-up
To set the language your screen will display, just select the one that suits you, as shown below:

Liveradio – User guide
page
16 / 32
Update
Your Liveradio can be easily updated from the internet. Select Update and the Liveradio will
automatically check the internet for a more recent version of the software you are using.
Scrolling
You can set the pixels and scrolling speed of characters on your Liveradio screen, as shown below:
Set the pixels and character scrolling speed by turning the volume control (4).
Active modes screen settings
You can set the contrast and brightness of the Liveradio screen, as shown below:
Select Contrast or Brightness using the buttons and turn the volume control (4) to turn contrast
and brightness up or down.
Standby mode screen settings
Contrast and brightness can be set when the screen is inactive by choosing this option in the
configuration menu and turning the volume control (4) to increase or reduce the intensity.

Liveradio – User guide
page
17 / 32

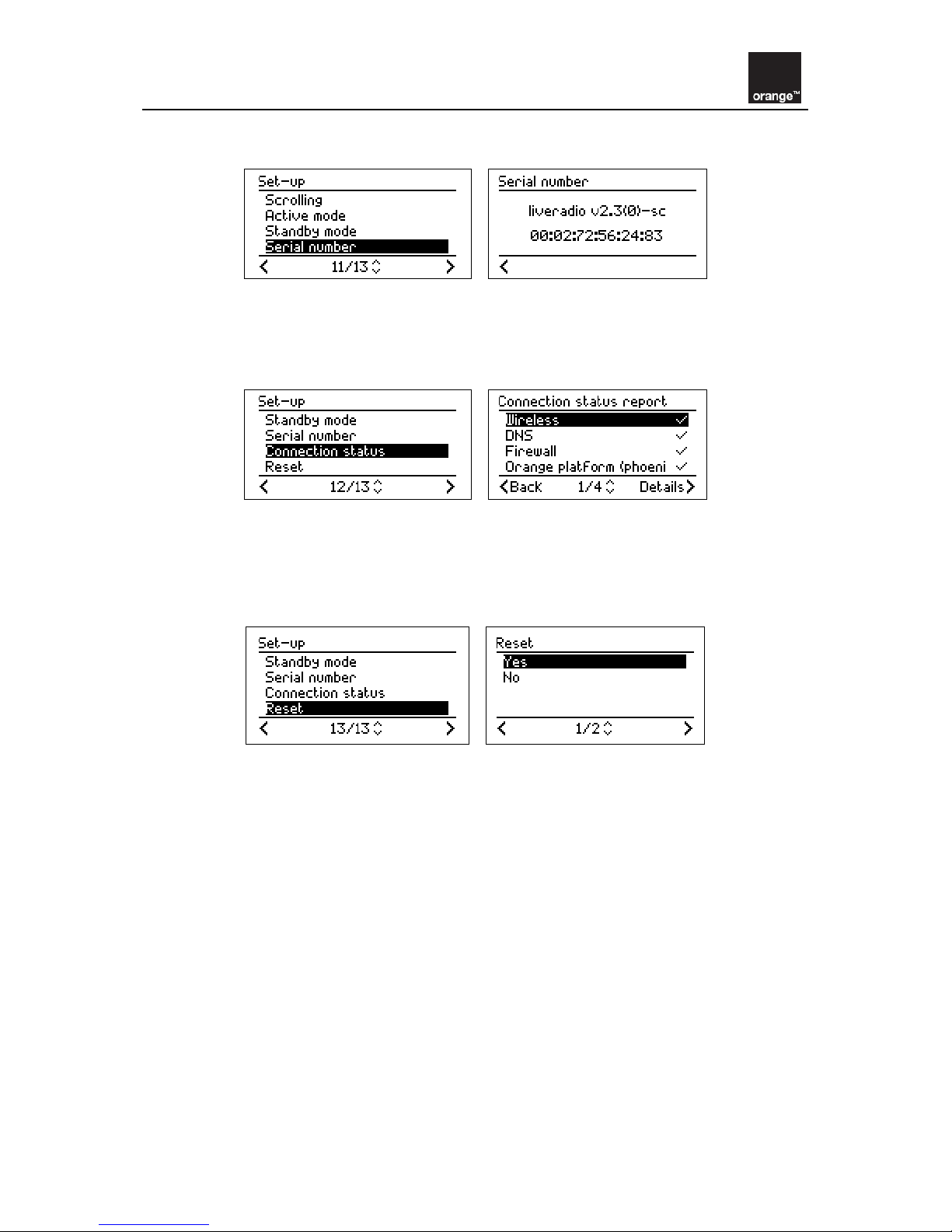

Serial number
The serial number is the unique identification of your Liveradio.
Connection status
The Connection status mode has been designed to provide you optimal technical support. This
function will be useful for our technical staff if ever you still have technical problems with your
liveradio.
Reset
Using the "Reset" function will restore the factory default settings on your Liveradio. See the screens
below for how to access reset. Once it has been reset, your Liveradio will start up again and the set-
up wizard will allow you to reconfigure the settings. NB You will have to go through the initial set-up
procedure again (see Link your Liveradio to your wireless network page 6).

Liveradio – User guide
page
18 / 32
Playback mode
USB key
You will find a USB port (11) on the back of your Liveradio. You can connect a USB key to listen to
audio files in the memory of your USB key.
The file formats supported are: WAV, MP3 (320 kb/s 4 max), WMA (320 kb/s 4 max), Real Audio.
When a USB key is connected, the screen below is displayed:
The files on your USB key then appear on the screen:
1. Select the desired folder and confirm by pressing
2. When the Ɖicon appears, you can play the file
3. The files will be played in order of appearance on the screen (from top to bottom)
4. You can go to the previous or next file using and fast forward / backward by holding
down or for 2 seconds
When the USB key is disconnected, the screen below is
displayed:
Podcasts
Podcasting is the (usually free) distribution of audio (or video) files on the
internet. Podcasting allows users to automate the downloading of audio files
for immediate or later playback. Authors distribute audio files, which may
appear like a conventional radio broadcast. It is then up to the audience to
create their own playlists through subscriptions: downloading programmes
from multiple sources that they have chosen is then automatic.
NB: A "subscription" to a podcast means that feeds are updated automatically
using RSS technology (see RSS – podcast in the glossary).
Podcasts are accessible in the Podcasts menu (see page 18).

Liveradio – User guide
page
19 / 32
Unlike a radio station, which broadcasts directly, a podcast can group one or more feeds. Every feed
is a file of finite size, regularly and automatically updated.
The podcast and associated feeds may be played at any time. On your Liveradio, you can listen to up
to 10 feeds of the same podcast, which may be several weeks or several minutes old.
Idea: You can customize your podcasts by adding new podcasts to your Liveradio via your personal
space on www.orange.co.uk/liveradio.
Playing a podcast
Playing a podcast is like listening to a radio station. Select the podcast you want to listen to with ,
then choose the feed and press to confirm. Fast forward or backward during a feed by pressing
and holding down >or <for 2 seconds (see fast forward / backward mode page 20).
Note:Feeds are displayed from the newest to the oldest. The first is always the most recent of the
existing feeds.
Other options
You can access the following options in podcast with :
Fast forward / backward
Equalizer
Assign to alarm 1 (if you want to be woken up with the last updated feed)
Assign to alarm 2 (if you want to be woken up with the last updated feed)
Audio book
An audio book is a book that is read out loud, which you listen to. Audio books are available on CDs
and in MP3 format for download.
Even the most recent books are available in an audio version (free or for a charge, via internet sales
sites).
Like a printed book, an audio book consists of several chapters. Every chapter is a file of finite size,
which you can listen to separately from the other chapters, or you can simply choose to listen to
chapters one after another.
Idea: Enjoy more audio books by adding new books to your Liveradio via your personal space on
www.orange.co.uk/liveradio.
Listening to an audio book
To listen to an audio book, select the one that you want to hear with , then select the chapter you
want to hear, confirming your choice using .
You can move backwards and forwards in a chapter by holding down the button for 2 seconds
(see fast forward / backward mode below).
Note : Broadcasts appear on screen in order of the chapters in the book, from the first to the last
chapter. So, for example, to move on to the next chapter, press .
Other options
You can access the following options in Audio book with :
Fast forward / backward
