Oregon Scientific RGR382 User manual

EN
1
Wireless Rain Gauge with Rainfall
Memory and Digital Clock
MODEL: RGR382
USER MANUAL
CONTENTS
Introduction ............................................................... 2
Main unit overview ................................................... 2
Front view / LCD display ........................................ 2
Back view ............................................................... 2
Rain gauge ................................................................ 3
Overview ................................................................ 3
Set up rain gauge ................................................... 4
Rainfall ....................................................................... 5
Rainfall history ........................................................ 5
Total rainfall ............................................................ 5
Rainfall alarm ......................................................... 5
Signals ....................................................................... 6
Calendar clock .......................................................... 6
Reset .......................................................................... 7
Precautions ............................................................... 7
Specifications ........................................................... 7
About Oregon Scientific .......................................... 8
EU-Declaration of conformity .................................. 8
Fcc statement ........................................................... 8
Declaration of Conformity ....................................... 9

EN
2
1. Total rainfall indicator
2. Rain gauge RF reception status
3. Number of days of rainfall history
4. Rain alarm indicator
5. Clock alarm indicator
6. Clock AM / PM indicator
7. Rain collector battery low indicator
8. Total rainfall measurements indicator
9. Rainfall history
10. SINCE indicator
11. Main unit battery low indicator
12. Calendar clock / clock alarm / start date of total rainfall
record
13. SINCE button: Toggles between starting date of total
rainfall calculation and clock; Press and hold to reset
the total rainfall counter to start again
BACK VIEW
2
3
4
5
1
6
7
8
9
10
INTRODUCTION
Thank you for selecting the Wireless Rain Gauge RGR382.
NOTE Keep this manual handy as you use your new
product. It contains practical step-by-step instructions, as
well as technical specifications and warnings you should
know about.
MAIN UNIT OVERVIEW
FRONT VIEW / LCD DISPLAY
SINCE
1
7
8
9
10
11
12
13
2
3
4
5
6

EN
3
1. RAIN ALM button: Press to display rain alarm (default
30mm). Press again to return to the rainfall display
2. ALARM button: Turns daily alarm off
3. MODE button: Toggles display between clock with
seconds, clock with weekday, calendar and alarm time
4. HIST / UP button: Displays rainfall history in normal
mode; Increases a value in rainfall alarm / calendar
clock setting mode
5. DOWN button: Decreases a value in rainfall alarm /
calendar clock setting mode
6. RAIN ALM ON / OFF button: Enables or disables the
rainfall alarm
7. SEARCH button: Search for the rain collector
8. RESET hole: Returns all settings to their default values
9. IN / MM button: Selects between inch and millimeter
measurements
10. Battery compartment
RAIN GAUGE
OVERVIEW

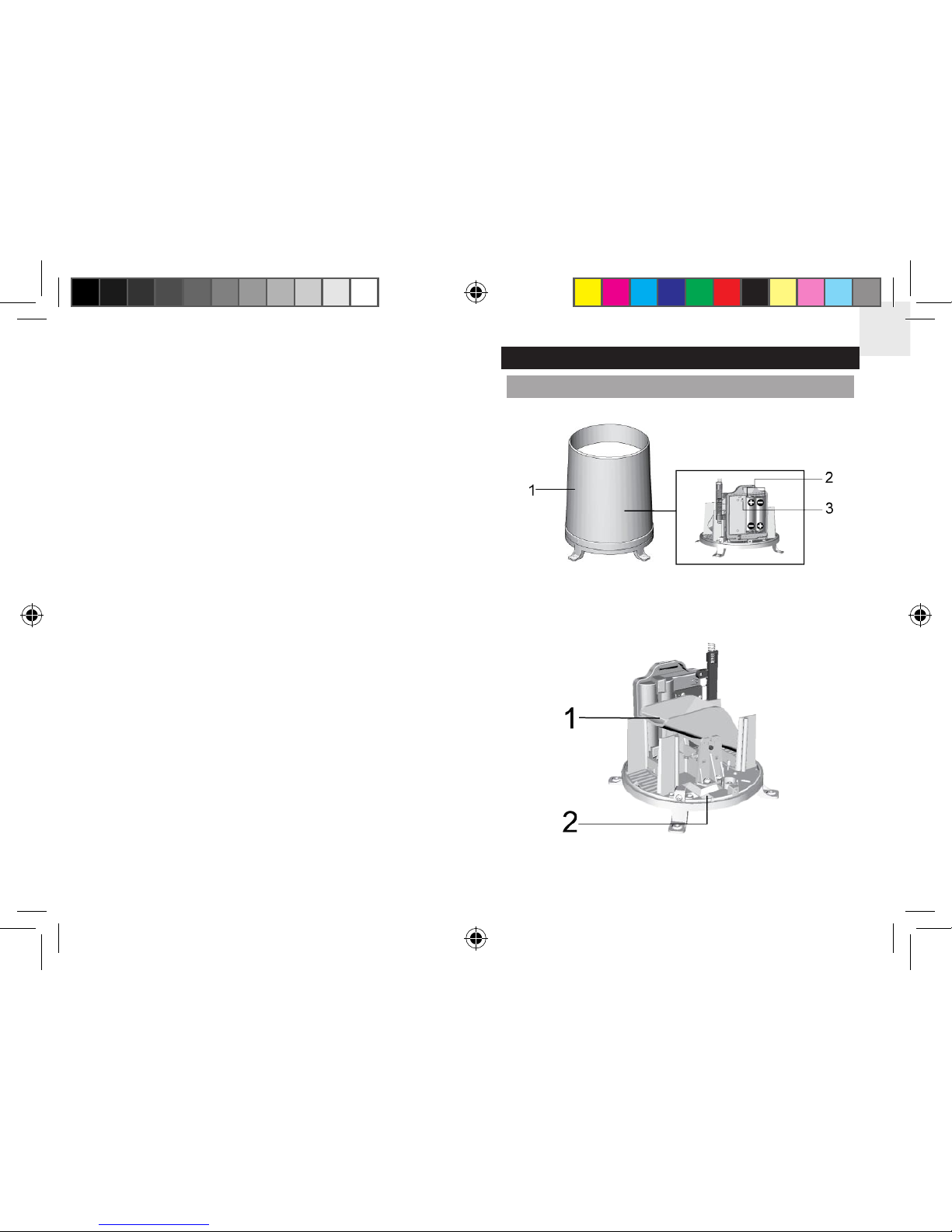

Base and funnel:
1. Rain gauge
2. Battery compartment
3. RESET button
1. Funnel
2. Indicator

EN
4
SET UP RAIN GAUGE
The rain gauge collects rain and takes readings of rainfall
rate and the total rainfall over a period of time. The sensor
can remotely transmit data to the base station.
The base station and rain gauge should be positioned within
an effective range: about 100 meters (328 feet) in an open
area.
The rain gauge should be mounted horizontally about 1
meter (3 feet) from the ground in an open area away from
trees or other obstructions to allow rain to fall naturally for
an accurate reading.
To set up the Rain Gauge:
1. Remove screws and slide the cover off in an upwards
motion.
2. Insert the batteries (2 x UM-3 / AA), matching the
polarities (+ / -). Press RESET after each battery
change.
3. Remove the fibre tape.
To ensure a level plane:
Put a few drops of water on the cross at the base of the
funnel to check the horizontal level.
1
23
4
Water will pool to the center of the cross when the rain
gauge is level.
If water remains on 1-4, the gauge is not horizontal.

EN
5

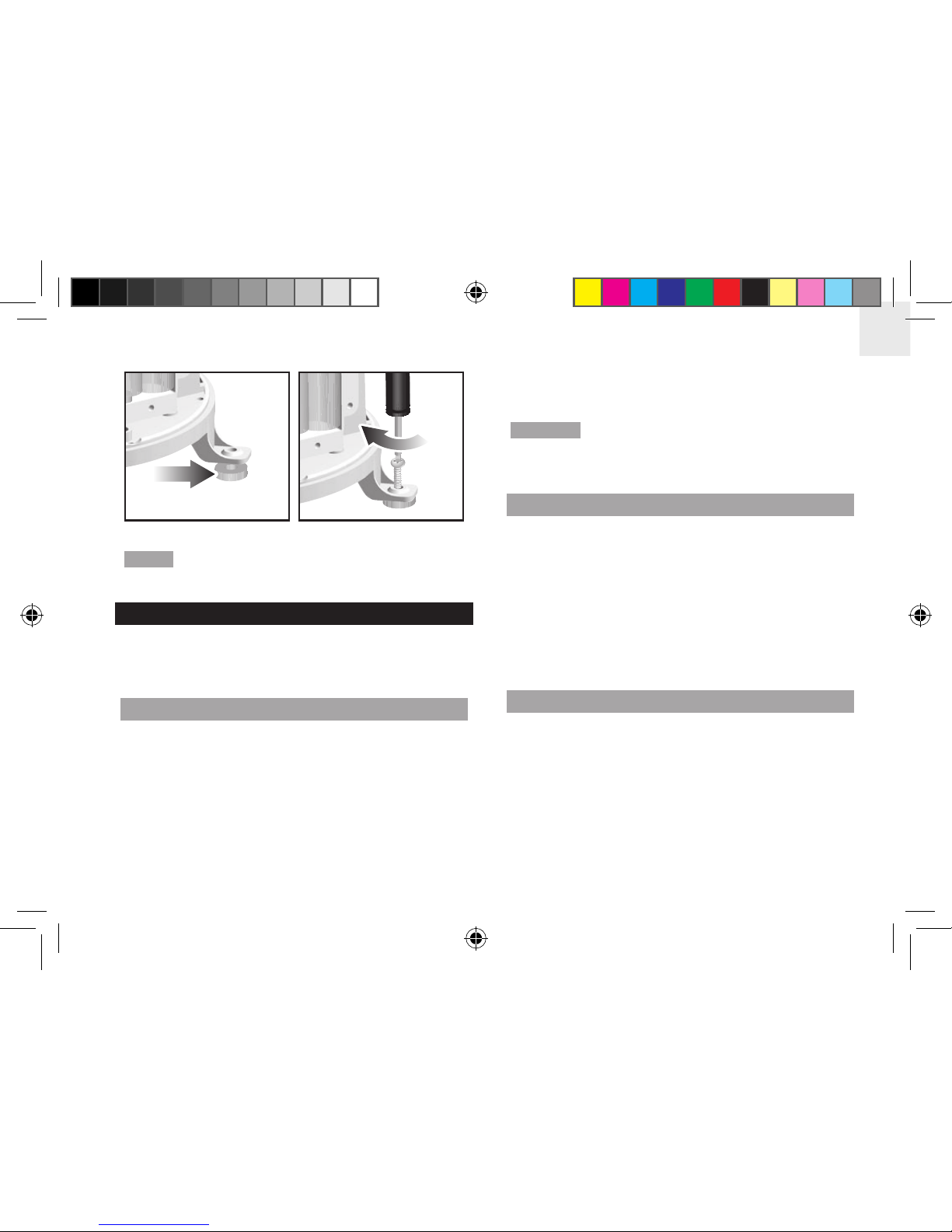

If necessary, adjust the level using the screw.
NOTE For best results, ensure the base is horizontal to
allow maximum drainage of any collected rain.
RAINFALL
Today’s rainfall appears on the 1st line of the display and
total rainfall is shown on the 2nd line. Press IN / MM to
toggle between inches and millimeters.
RAINFALL HISTORY
The rainfall history is displayed on the second line of the
LCD display. The main unit can record and store up to nine
days of rainfall.
To display the record for a particular day:
Use HIST / UP to toggle between daily rainfall and rainfall
history over the past nine days. The day of the record will be
displayed with a minus (-) sign. Zero (0) means the record
is for the current day.
To clear the current day’s rainfall:
Press and hold SINCE for two seconds. Note that this will
also clear the total rainfall record.
CAUTION Other sensors using the 433 MHz transmission
frequency may influence the rainfall reading. Please avoid
placing those sensors too close to the unit.
TOTAL RAINFALL
The total rainfall is displayed on the 1st line of the LCD
display.
To display the commencing date of the total rainfall record,
press SINCE. The date will appear on the bottom line of
the display.
To clear the existing commencing date and reset it to start
again, press and hold SINCE. The total rainfall and today
rainfall will be reset to zero and the unit will start again to
collect the rainfall data.
RAINFALL ALARM
The rain alarm value can be displayed at any time by
pressing RAIN ALM.
To set the rainfall alarm:
1. Press and hold RAIN ALM for two seconds.
2. Use HIST / UP or DOWN to set the desired value.
3. Press RAIN ALM to confirm. The alarm will be
activated.

EN
6
The rain alarm indicator will light up.
The alarm will go off for one minute when the rainfall reaches
the preset value and the rain alarm indicator will flash. A
reminder beep will be emitted every minute. Once the rain
alarm is on the indicator will not stop flashing unless RAIN
ALM is pressed or the rain alarm value is changed. To stop
the alarm and reminder beep, press any button or change
the rainfall alarm value.
To toggle the alarm ON / OFF, press RAIN ALM ON / OFF.
SIGNALS
If without obvious reason the main unit display goes blank,
press and hold SEARCH for 2 seconds to enforce an
immediate search of the rain collector.

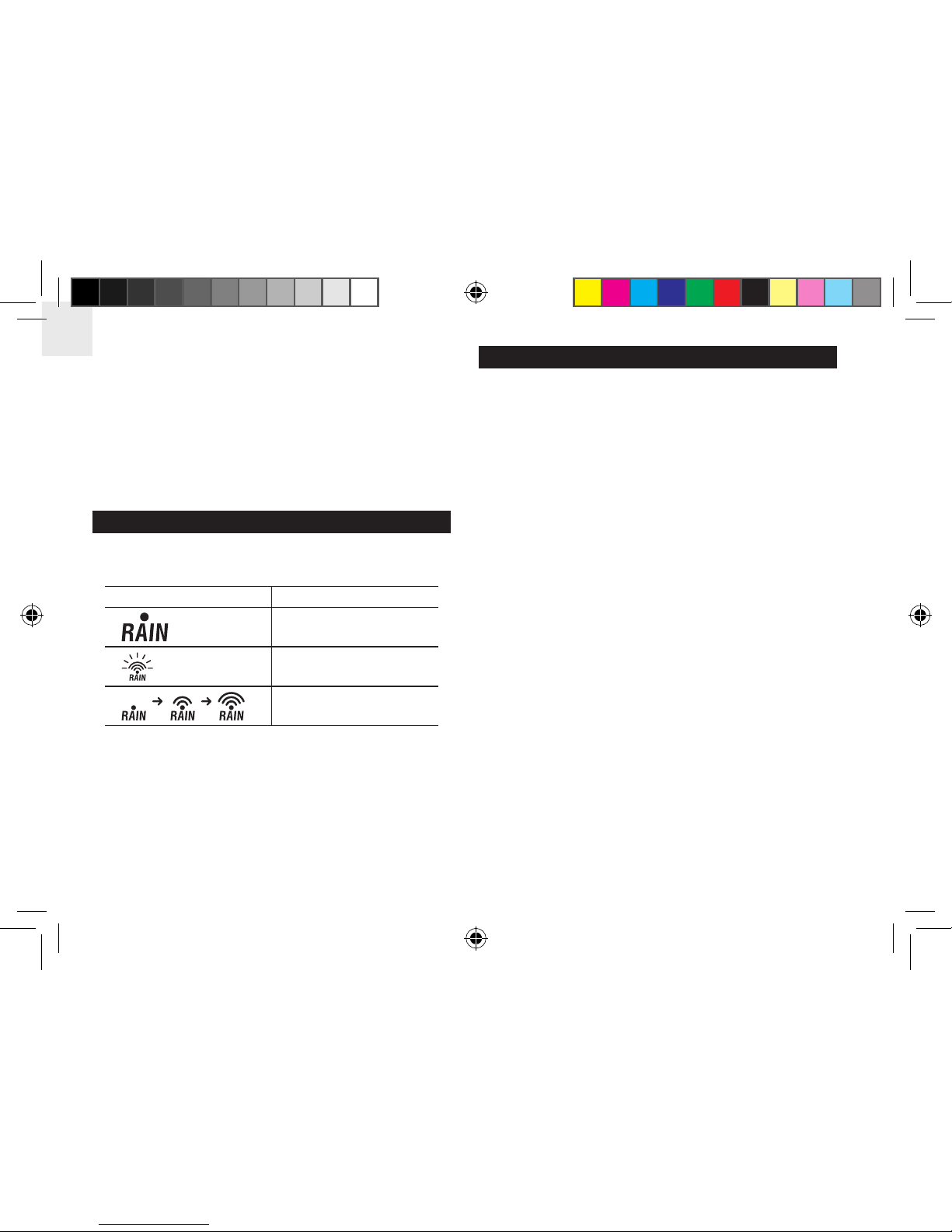

ICON DESCRIPTION
No signal
Searching for signal
Signal connected
If that fails, check:
• The remote rain collector is still in place.
• The batteries of the main unit and rain collector have
not run out of power. Replace them if necessary.
• The transmission is within range and path is clear of
obstacles and interference. Shorten the distance if
necessary.
Then press SEARCH again.
CALENDAR CLOCK
The calendar clock is displayed on the bottom line of the
display. Use MODE to toggle between clock, calendar and
daily alarm.
To set the clock:
1. Press MODE to display the clock or calendar.
2. Press and hold MODE for two seconds and use HIST
/ UP or DOWN to set the desired clock or calendar
value.
3. Press MODE and repeat from step 2 to complete all
settings.
4. Press MODE to confirm.
To set the daily alarm:
1. Press MODE to display the daily alarm. The daily alarm
will be activated automatically. The daily alarm indicator
will light up.
2. Press and hold MODE for two seconds and use HIST /
UP or DOWN to set the desired value. Press and hold
for faster increments.
3. Press MODE and repeat from step 2 to complete all
settings.
When active, the daily alarm will go off for one minute at the
set time and the daily alarm indicator will flash.
To stop the alarm:
Press any button. The alarm is still active and will go off at
the set time the following day.

EN
7
To activate / deactivate the daily alarm:
Press ALARM.
RESET
Press RESET to return the unit to the default settings.
PRECAUTIONS
This product is engineered to provide years of satisfactory
service if you handle it carefully. Here are a few
precautions:
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials. They may scratch the plastic parts and
corrode the electronic circuit.
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity, which may result in
malfunction, shorter electronic life span, damaged
battery and distorted parts.
• Do not tamper with the unit’s internal components.
Doing so will invalidate the warranty on the unit and
may cause unnecessary damage. The unit contains no
user-serviceable parts.
• Only use fresh batteries as specified in the user manual.
Do not mix new and old batteries.
• Due to printing limitations, the displays shown in this
manual may differ from the actual display.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
NOTE The technical specifications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
Display rainfall
range (total)
0 to 25.4 m
(0 to 999.99 in)
Display rainfall range
(history / daily)
0 to 2.54 m
(0 to 99.99 in)
Rainfall resolution 1 mm (0.04 in)
Measuring accuracy 0 -15 mm per hour: +/- 10%
Over 15 mm per hour: +/- 15%
Display temperature
range
-5°C to 50°C
(23°F to 122°F)
Operating temperature
range
-5°C to 50°C
(23°F to 122°F)
Transmission range 100 m (328 ft) unobstructed
ALARM CLOCK AND CALENDAR
Clock HH:MM 12 / 24 hour format
Calendar Month / Day, Day / Month
Alarm 1-min. daily alarm
POWER

EN
8
Main unit 2 UM-4 or “AAA” 1.5V
alkaline batteries
Remote rain gauge 2 UM-3 or “AA” 1.5V
alkaline batteries
WEIGHT
Main unit 117 g (4.1 oz) without battery
Remote rain gauge 241 g (8.5 oz) without battery
DIMENSIONS
Main Unit
(L x W x H)
93 x 52 x 118 mm
(3.7 x 2.0 x 4.6 in)
Remote rain gauge
(L x W x H)
114 x 114 x 145 mm
(4.5 x 4.5 x 5.7 in)
NOTE It is recommended that you use alkaline batteries
with this product for longer performance.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products.
If you’re in the US and would like to contact our Customer
Care department directly, please visit:
www2.oregonscientific.com/service/support.asp
For international inquiries, please visit: www2.
oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Wireless
Rain Gauge with Rainfall Memory and Digital Clock
(Model: RGR382) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon
Scientific Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland
and Norway
CH
N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance

EN
9
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientific.com/service for all enquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,
Tualatin, Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: RGR382
Product Name: Wireless Rain Gauge with 10-Day
Rainfall Memory and Digital Clock
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St., Hung
Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may
not cause harmful interference. 2) This device must accept
any interference received, including interference that may
cause undesired operation.
