Orbit Fitness Raptor CDX User manual

Raptor CDX
Raptor CDX Elliptical
User Manual

Table of Contents
Table of Contents.........................................................................................................................
Important Safety Information............................................................................................
Before You Begin..........................................................................................................................
Assembly...........................................................................................................................................
Stride Adjustment.......................................................................................................................
Console Overview.......................................................................................................................
Console Operation.....................................................................................................................
Monitoring Your Heart Rate.................................................................................................
Chest Strap Operation.............................................................................................................
Stretching & Flexibility.............................................................................................................
Warm-Up/Cool Down Exercises.........................................................................................
Maintenance...................................................................................................................................
Troubleshooting Guide...........................................................................................................
2
3
4
5 - 24
25 - 26
27 - 28
29 - 34
35
36
37
38 - 44
45
46
2

Important Safety Information
Save this Owner’s Manual!
Before beginning any fitness program, you should obtain a complete physical
examination from your physician.
When using exercise equipment, you must always take basic precautions, including the
following:
Read all instructions before using.
your safety and to protect the unit.
 DO NOT allow children on or near the equipment.
Use the equipment only for its intended purpose as described in this guide.
DO NOT use accessory attachments that are not recommended by the
manufacturer. Such attachments might cause injuries and will void your warranty.
Wear proper exercise clothing and shoes for your workout, no loose clothing.
 DO NOT use cleats, spikes or any other non-athletic shoes.
 DO NOT use this product while barefoot or wearing only socks.
Use care when getting on or off the unit.
DO NOT overexert yourself or work to exhaustion. If you experience any pain such
as chest pains, nausea, dizziness, shortness of breath or abnormal symptoms, stop
your workout immediately and consult your physician before continuing.
Never operate the unit when it has been dropped or damaged.
Return the equipment to a service center for examination and repair.
Never drop or insert objects into any opening in the equipment.
Always check the unit for loose components before each use.
DO NOT turn pedals by hand.
DO NOT use the equipment outdoors or near water. It is imperative that your
elliptical is used in a climate controlled environment. If your elliptical
has been exposed to colder temperatures or to high moisture climates, it is strongly
recommended that the elliptical is brought to room temperature before use. Failure
to use this equipment in a climate controlled environment may cause premature
electronic failure.
 Unplug the elliptical before moving or cleaning it. DO NOT pull the power cord to
move this product. Keep the power cord away from heated surfaces.
 Place a mat under the unit to protect the floor or carpet and for easier cleaning
is recommended.
This ellipticals are designed for your enjoyment. By following these precautions and
using common sense, you can have many safe and pleasurable hours of healthful exercise
with your elliptical.
3
These instructions are written to ensure

Before You Begin
The Raptor CDX is carefully tested and inspected before shipment. We have
shipped the unit in several pieces that require assembly. Carefully unpack the unit in
a clear area and lay the pieces on the floor near the area where you plan to use the
equipment. Remove the packing material. Do not dispose of the packing material
until assembly is complete and the unit is working properly. Place the unit on a clean
level surface for assembly. Make sure there is easy access to an electrical outlet. Be-
fore assembling, the unit should be placed as close as possible to its final location. Be
careful to assemble all components in the sequence presented in this guide.
PERSONAL SAFETY DURING ASSEMBLY
It is strongly recommended that a qualified dealer assemble the equipment.
Assistance is required.
Before beginning assembly, please take the time to read the instructions
thoroughly.
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment
which will void the warranty.
Assemble and operate the elliptical on a solid, level surface.
Locate the unit a few feet from the walls or furniture to provide easy access.
AFTER ASSEMBLY
Once the unit is assembled, you should check all functions to ensure correct opera-
tion. If you experience problems, first recheck the assembly instructions to locate
any possible errors made during assembly.
4

Step 2
A. Insert Mainframe Cover (K) into Mainframe (A) and secure using:
Six 63 (M5x12 phillips pan head bolt)
NOTE: The Mainframe Cover (K) is in a small unmarked box.
7

Step 3
A. Insert Right Stride Adjustment Frame (S) and Left Stride Adjustment
Frame (J) onto Upright (F).
B. Secure Right Stride Adjustment Frame (S) to Upright (F) using:
One 78 (M10x20 hex head bolt)
One 90 (M10 spring washer)
One 84 (M10 washer)
C. Insert End Cap (122) into Right Stride Adjustment Frame (S).
D. Secure Left Stride Adjustment Frame (J) to Upright (F) using:
One 78 (M10x20 hex head bolt)
One 90 (M10 spring washer)
One 84 (M10 washer)
E. Insert End Cap (122) into Left Stride Adjustment Frame (J).
9

Step 4
A. Remove the Hex Nut (B) and Busing (A) step by step.
B. Assemble the linkage (D), the Adjust Knob (E) sequentially, and
tighten the Philip Head Screw (F) on the Adjust Knob (E).
11

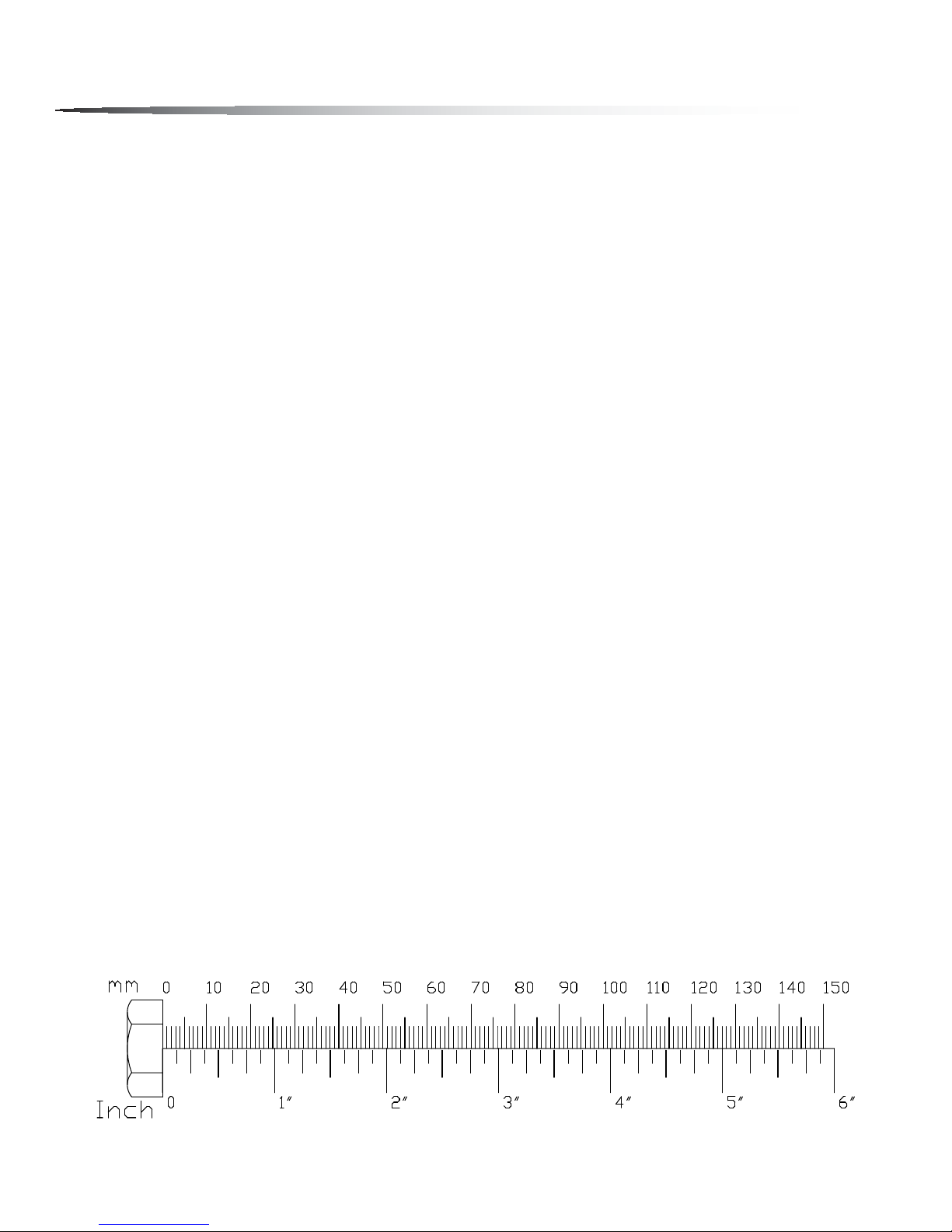

Step 5
A. Lift and place Right Junction Frame (B) onto Shaft Sleeve (163) and
secure using:
Four 54 (M8x12 allen head)
Four 86 (M8 flat washer)
B. Lift and place Left Junction Frame (B) onto Shaft Sleeve (163) and
secure using:
Four 54 (M8x12 allen head)
Four 86 (M8 flat washer)
13

Step 6
A. Connect Leg (L) to Right Stride Frame (R) using:
One 81 (M10x81.5 hex head bolt)
One 98 (M10 nut)
NOTE: It is recommended that two adults align and secure the Legs to the
Stride Frame.
B. Connect Leg (M) to Left Stride Frame (N) using:
One 81 (M10x81.5 hex head bolt)
One 98 (M10 nut)
NOTE: Please ensure that Pedal (25) is centered onto Shaft Sleeve (163) as
shown in the diagram on the far right.
15

Step 7
A. Connect Bracket Cover (30) to Right Stride Adjustment Frame (S)
using:
One 66 (M5x12 phillips head pan screw)
NOTE: Do not overtighten screw, this will damage Bracket Cover (30).
B. Connect Bracket Cover (30) to Left Stride Adjustment Frame (J)
using:
One 66 (M5x12 phillips head pan screw)
NOTE: Do not overtighten screw, this will damage Bracket Cover (30).
17

Step 8
A. Insert Right Arm (G) into Right Stride Adjustment Frame (S) and
secure using:
Three 77 (M8x16 allen head bolt)
B. Insert Left Arm (I) into Left Stride Adjustment Frame (J) and secure
using:
Three 77 (M8x16 allen head bolt)
19
