Owner’s manual OBK103
MAGNETICBIKE
OWNER'S MANUAL(BGB103)
CONTENTS
IMPORTANT INFORMATION -----
ASSEMBLY INSTRUCTIONS-----
COMPLETE EXPLOSION DRAWING -----
PARTS LIST-----
CONSOLE INSTRUCTION-----

IMPORTANT INFORMATION
SAFETY
1.Please keep this manual in a safe place for your reference when necessary.
2.Please do not assembly or use this equipment until you read this manual
thoroughly & carefully. The safety and efficiency only can be achieved when the
equipment is assembled ,maintained and used properly. It is your responsibility to
ensure that all the users are informed of all the warnings and precautions.
3.For totally safe use, a stable , leveled surface is required. Protect your floor with a
mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc.
For safety space, the equipment must have at least 0.5meter of free space all around
it.
4.Before starting any exercise program you must consult your doctor to determine if
you have any physical or health conditions that could create a risk to your health and
safety, or prevent you from using the equipment properly. Your doctor's advice is
essential if you are taking medication that affects your heart rate, blood pressure or
cholesterol level.
5. Be aware of your body's signals. Incorrect or excessive exercise can damage
your health. Stop exercising if you experienced any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light
headed, dizzy or nauseous. If you do experience any of these conditions you must
consult your doctor before continuing with your exercise program.
6.Keep children and pets away from the equipment, the equipment must be
assembled and used by adults only.

7.The equipment is designed for home use only, Maximum weight of the user
is :100kg.
8.The equipment is not suitable for therapeutic use.
9.Wearing proper clothing while using the equipment, Avoid wearing loose clothing
that may get caught in the equipment or that may restrict or prevent movements.
10.Keep your back straight while exercising.
11.Before using the equipment, check the handle bar, seat, and the nuts & bolts are
securely tightened.
12.For adjustable parts, bear the maximum position in your mind, do not exceed the
mark "stop", otherwise will cause risk.
13.Always use the equipment as indicated. If you find any defective components
while assembling or checking the equipment ,or if you hear any unusual noises
coming from the equipment during use, stop immediately. Do not use the equipment
until the problem has been solved.
14.Care must be taken when lifting or moving the equipment so as not to injure your
back. always use proper lifting techniques and /or seek assistance if necessary.
15.All moveable accessories(e.g. pedal, handlebar, saddle...etc.) require weekly
maintenance. Check them before use every time. If anything broken or loose, please
fix them immediately. You may continue using them only after they return to good
conditions.
16.Pay attention to the absence of a free wheel system which will cause serious
risk.
17. You can adjust the resistance by turning around the resistance adjuster.
18.Lock the equipment when stop using.

MAINTENANCE
1. The safety level of the equipment only can be maintained if it is regularly
examined for damage and or /wear and tear.(e.g. handle bar, pedals and
seat ...etc.).It is vital that any faulty parts are replaced and the it is not used until
completed repaired.
2. Regularly check that the elements fastened with nuts and bolts are correctly
tightened.
3.Remember regularly to grease moving parts.
4. Special attention to the component, most of them are susceptible to wear like
brake system, foot pad etc..
5. As sweat is very corrosive, do not allow it to come into contact with the enameled
or chromed parts of the equipment, particularly the computer. Immediately wipe the
equipment after using. The enameled parts can be cleaned using a damp sponge. All
aggressive or corrosive products must be avoided.
6.Stor the equipment in a clean and dry environment away from children.

ASSEMBLY INSTRUCTIONS

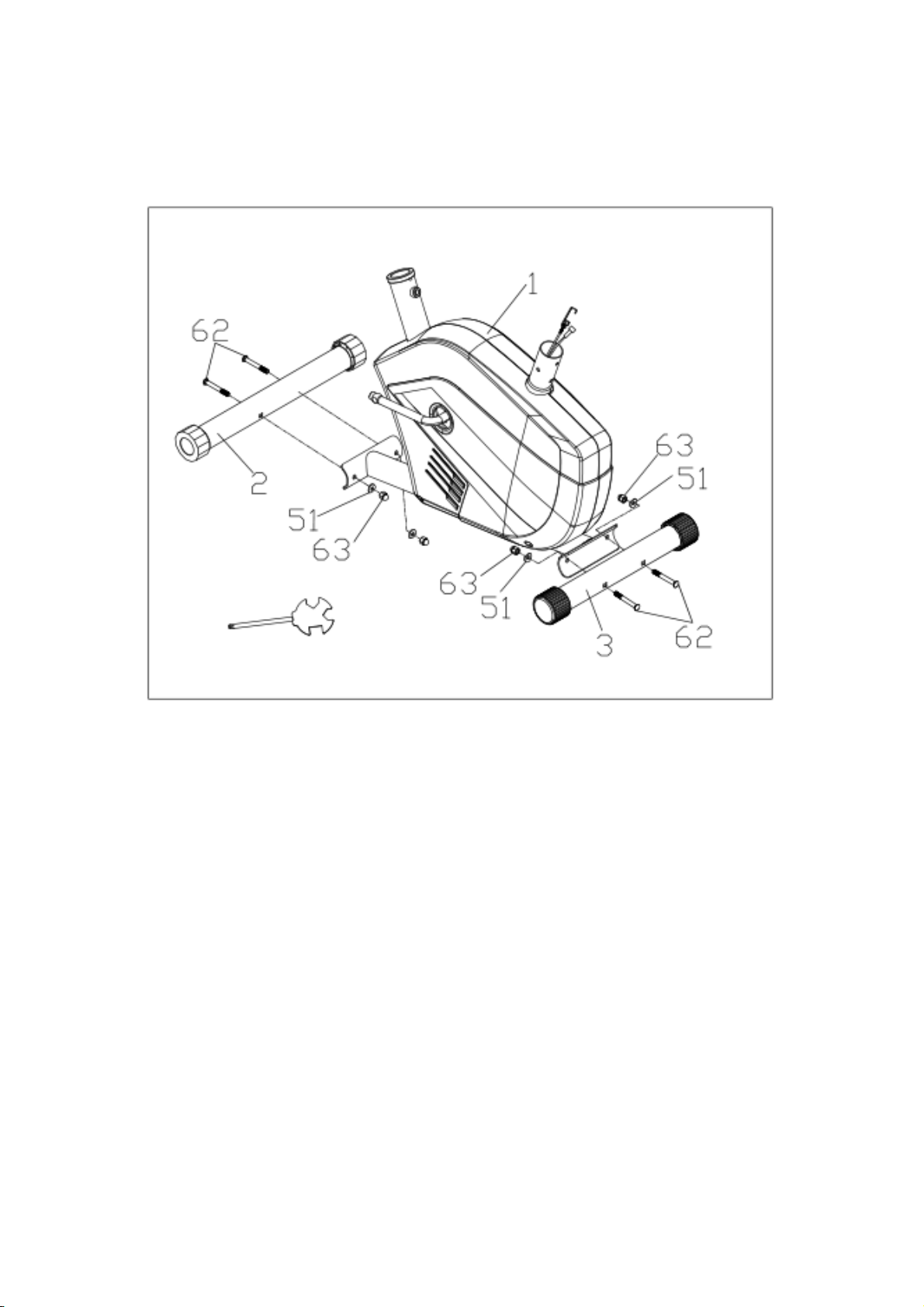

Step1
Fix the rear & front stabilizer(2)&(3)on the main frame(1) with four sets of waved
washer(51), domed nut(63) & bolt(62) tightly by multi-function spanner.
Note: the front stabilizer is with transport wheels.

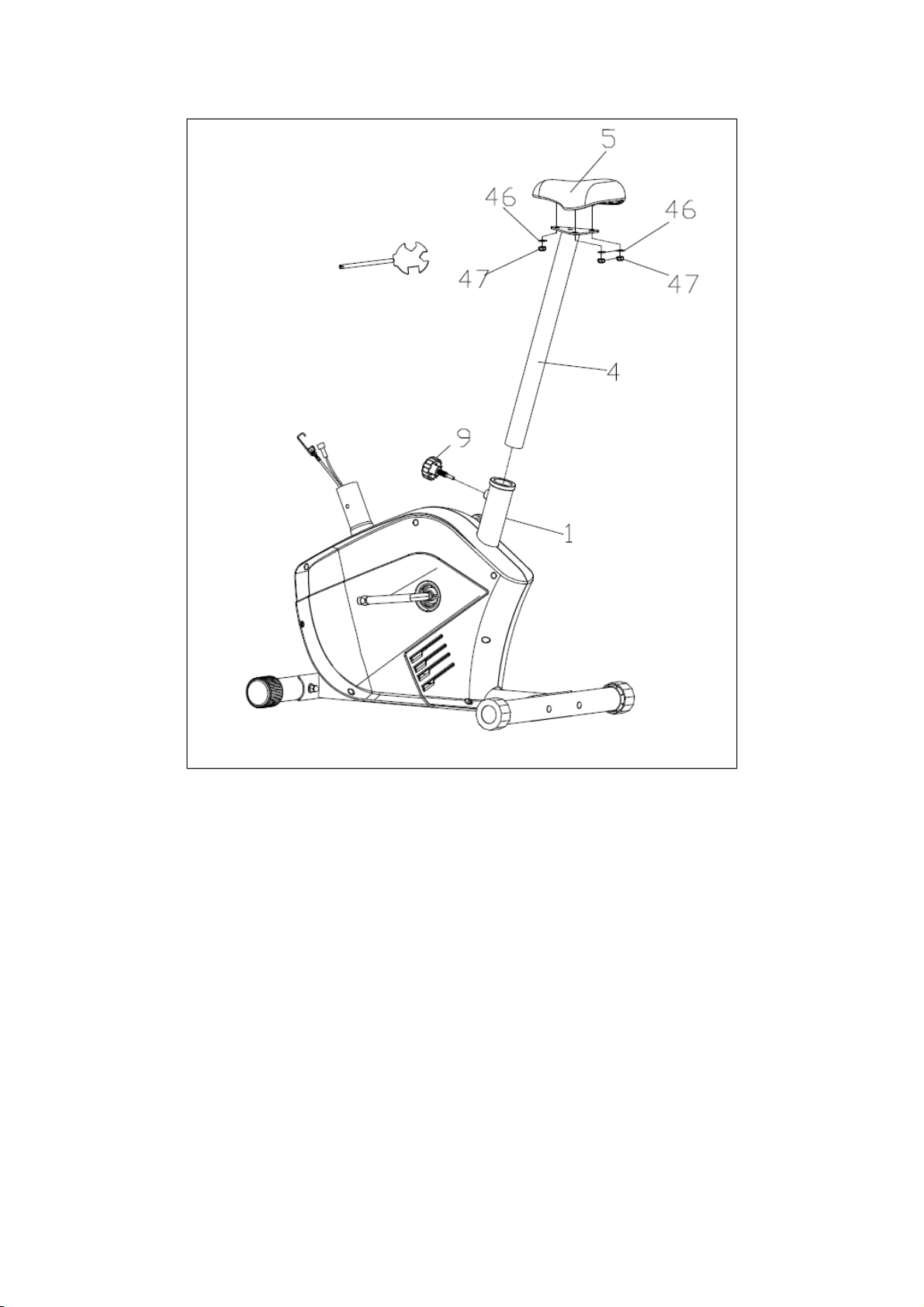

Step2
--Loosen the adjusting knob(9) and pull it out first before sliding the seat support
post(4) into the seat support post housing on the main frame(1), and align holes for
your desired height, then release the adjusting knob and tighten it properly.
--Then fix the seat(5) on the plate of the seat support post (4) properly by
multi-function spanner.
Note: Do not exceed the mark "stop".

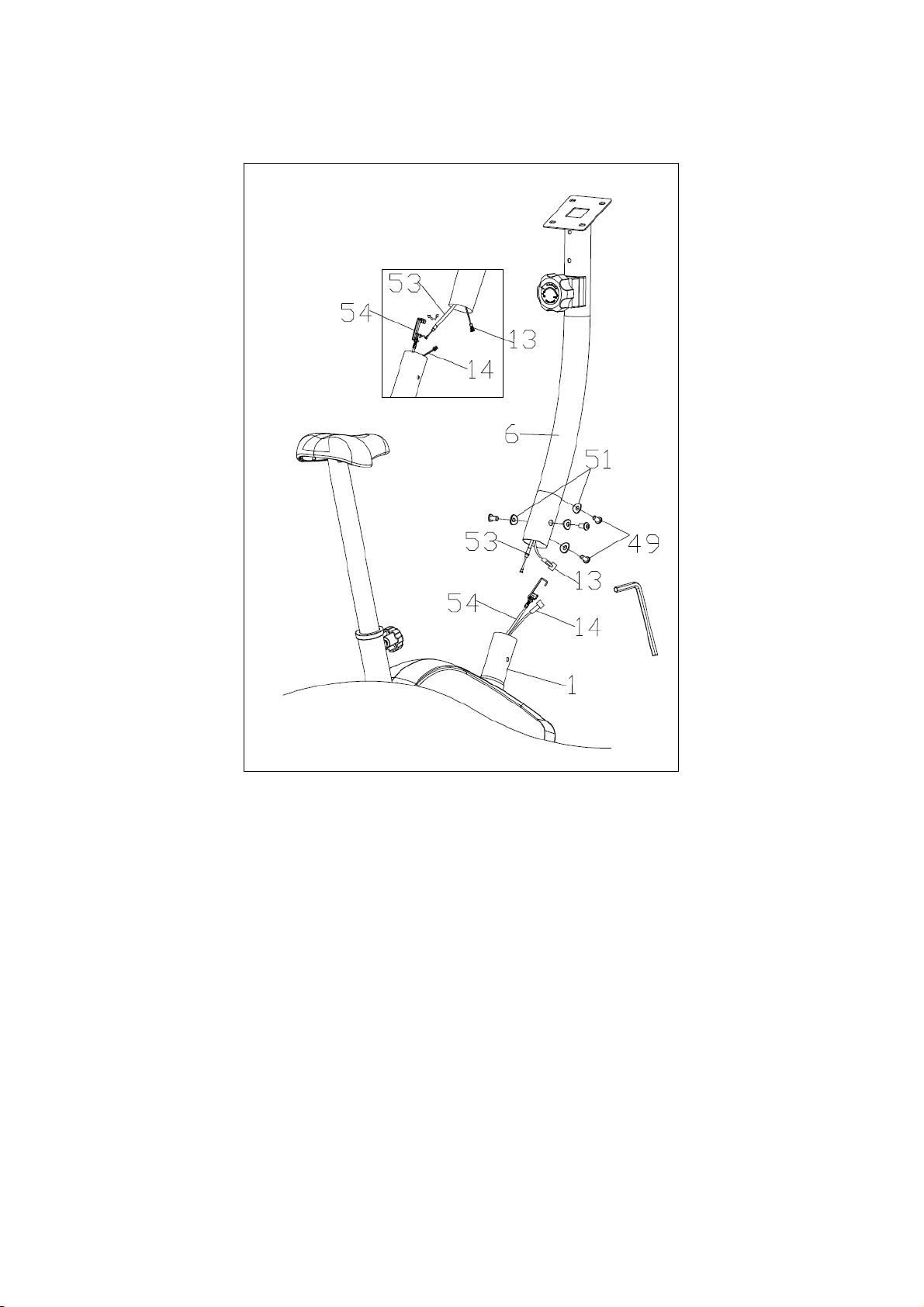

Step3
--Connect the resistance adjuster wire (53)with (54) properly as well the console wire
(13)with (14).please do it carefully following the assembly photo as attached.
--Fix the front post (6) on the main frame with four sets of mushroom head allen
screw (49)& Waved washer(51) tightly by allen spanner.

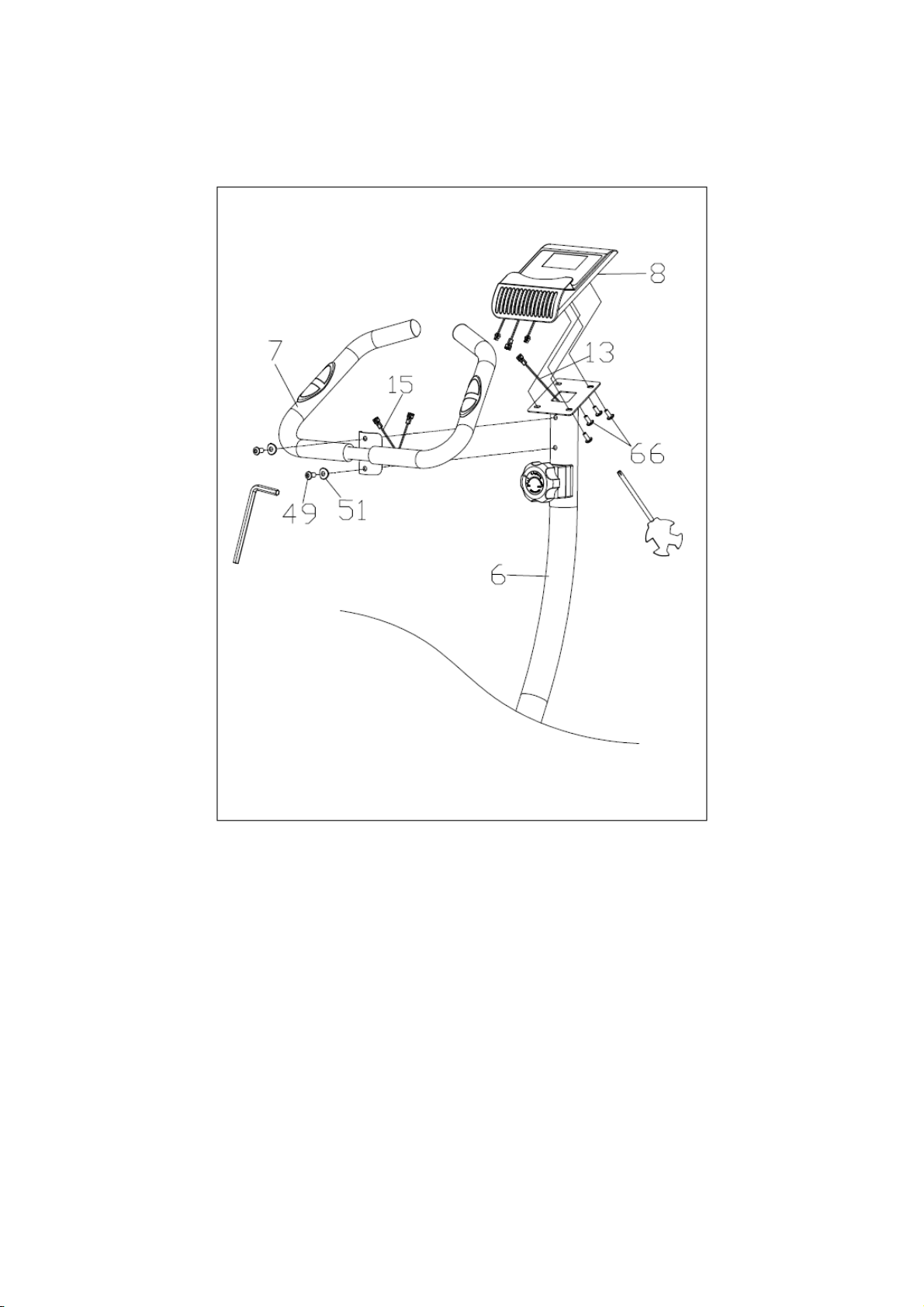

Step4
--insert the pulse sensor wires (15) of the handle bar(7) into the hole that on the
front post(6) and pull it out.
--Fix the handle bar(7) on the handle bar fixing socket with two sets of mushroom
head allen screw(49) &waved washer(51) properly and tighten it by allen spanner.
--Screw out the Cross recess head screw(66) from the console(8), and connect
the console wires properly, then align the console(8) with the plate welded on the
front post(6), then fix the console(8) with the cross recess head screw(66) tightly
by multi-function spanner.

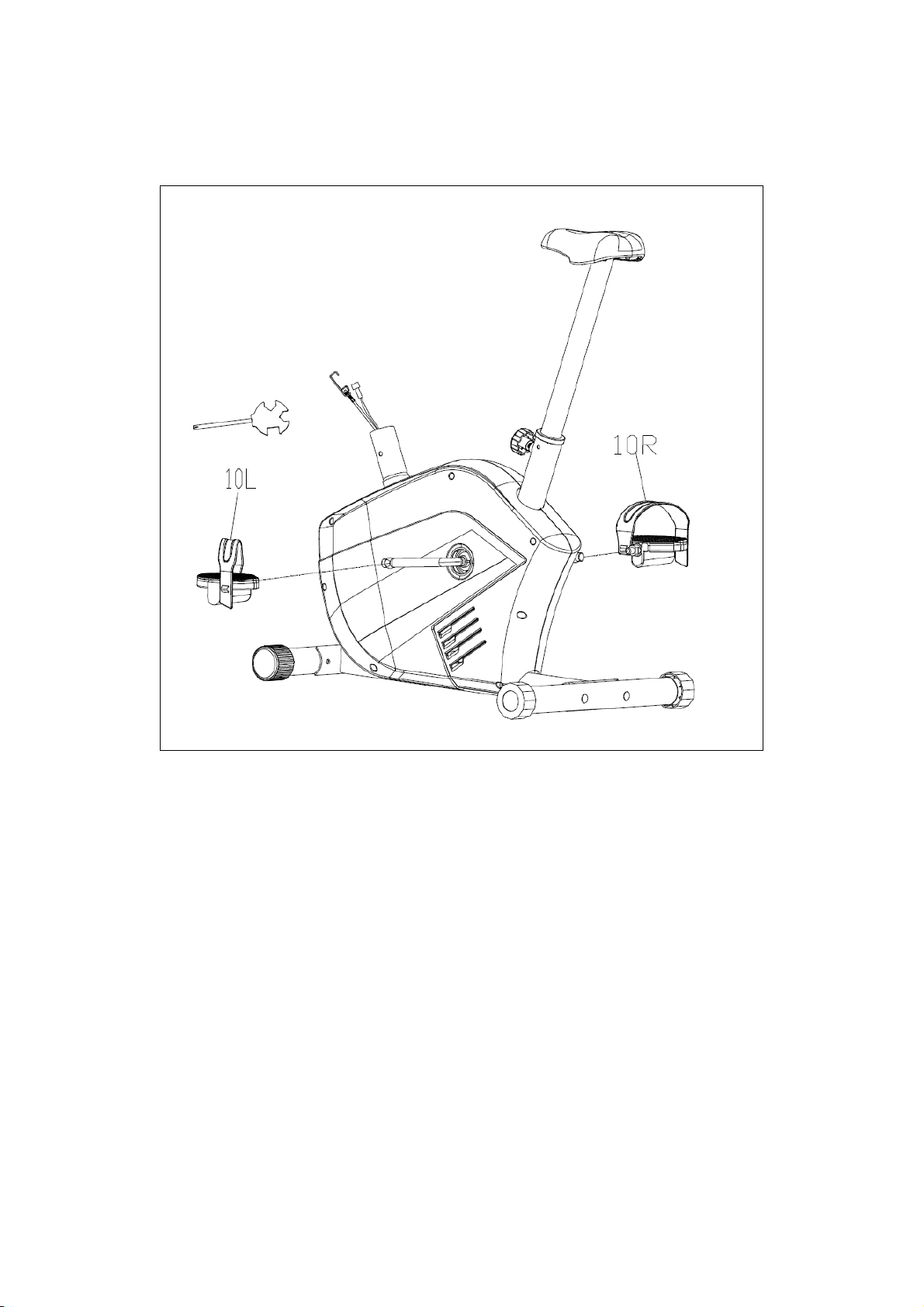

Step5
Fix the pedal(10L) which is marked "L" on the crank(21) marked "L" tightly by
multi-function spanner in anticlockwise, then fix the pedal (10R) which is marked "R"
on the crank(21) marked "R" tightly by multi-function spanner in clockwise.
Now the equipment is completed assembled, if you find it not leveled on the floor, you
can adjust it by the adjusting foot pad(12).

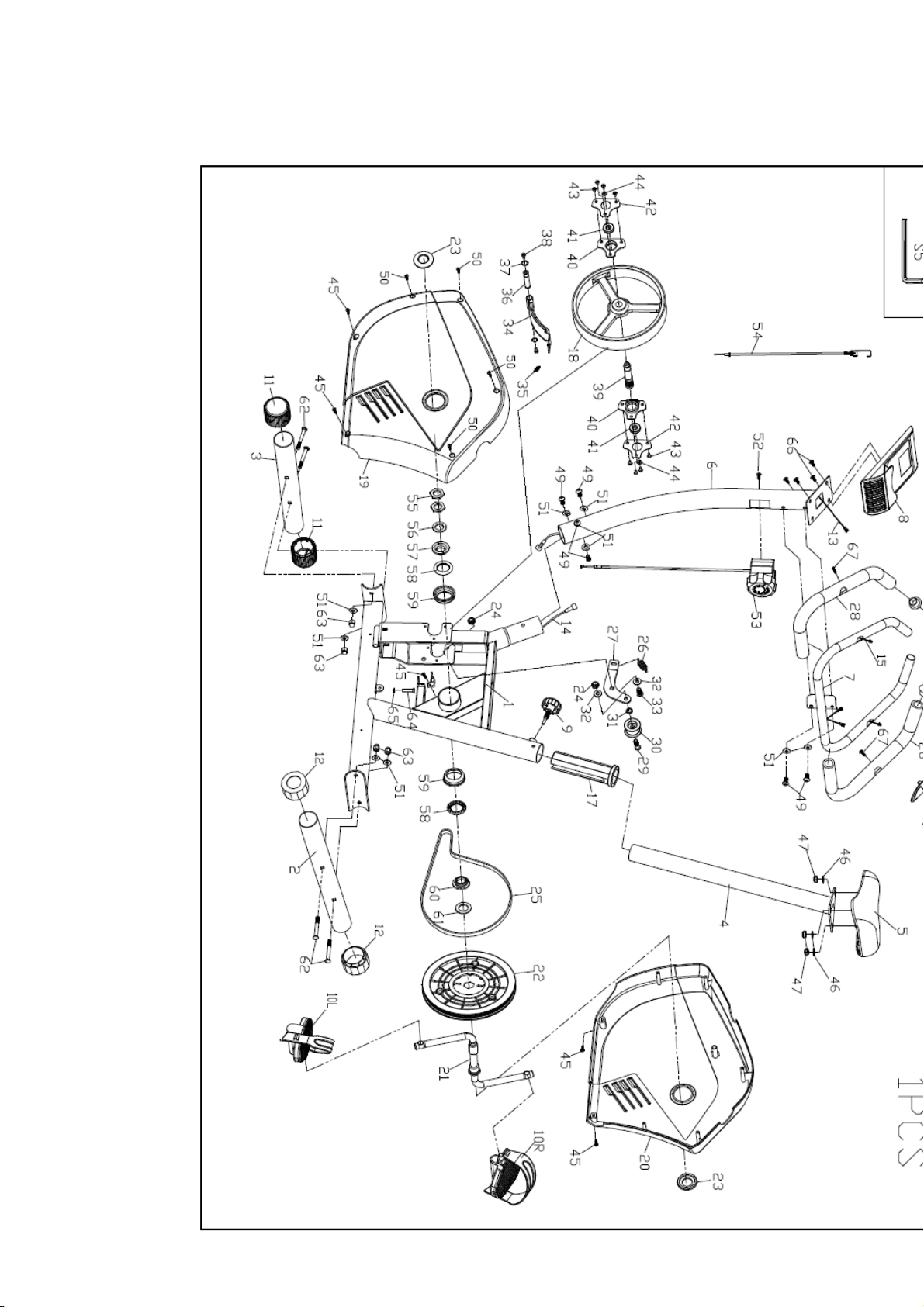

COMPLETE EXPLOSION
DRAWING

PARTS LIST
NO.
NAME/SPECIFICATION
QTY
NO.
NAME/SPECIFICATION
QTY
1
Main Frame
1
34
Magnet board
1
2
Rear Stabilizer
1
35
Tensi o n spri n g
1
3
Front Stabilizer
1
36
Axle of rotation
1
4
Saddle Support Post
1
37
Circlip
2
5
Seat
1
38
mushroom head allen screw
2
6
Front Post
1
39
Flywheel axle
1
7
Handle Bar
1
40
Bearing seat
2
8
Console
1
41
Bearing
2
9
Adjusting Knob
1
42
Bearing end cover piece
2
10L
Pedal(L)
1
43
cross recess head screw
8
10R
Pedal(R)
1
44
Washer
2
11
Front Stabilizer Tube Plug
2
45
cross recess head
self-tapping drilling screw
4
12
Rear Stabilizer Tube Plug
2
46
Washer
3
13
Console Wire(top)
1
47
Nylon nut
3
14
Console Wire(bottom)
1
48
Tube plug of handle bar
2
15
Pulse Sensor Wire
1
49
mushroom head allen screw
6
16
Handle Pulse Sensor
1
50
cross recess head
self-tapping screw
9
17
Tube Bushing
1
51
Waved washer
10
18
Flywheel
1
52
cross recess head screw
1
19
Left Cover
2
53
Resistance adjuster wire
(top)
1
20
Right Cover
2
54
Resistance adjuster wire
(bottom)
1
21
Crank
1
55
Hex nut
2
22
Belt Pulley
1
56
Locking washer
1
23
Crank cover
1
57
Ball race(L)
1
24
Nylon nut
1
58
Ball
2
25
Belt
1
59
Ball retainer
2
26
Tensi o n spri n g
1
60
Ball race(R)
1
27
U bracket
1
61
Washer
1
28
Foam
1
62
Bolt
4
29
Screw
2
63
Domed nut
4
30
Guide pulley
1
64
Hex screw
1
31
Idler shaft bushing
2
65
Hex nut
1
32
Washer
2
66
Cross recess head screw
4
33
Screw
1
67
cross recess head
self-tapping screw
2

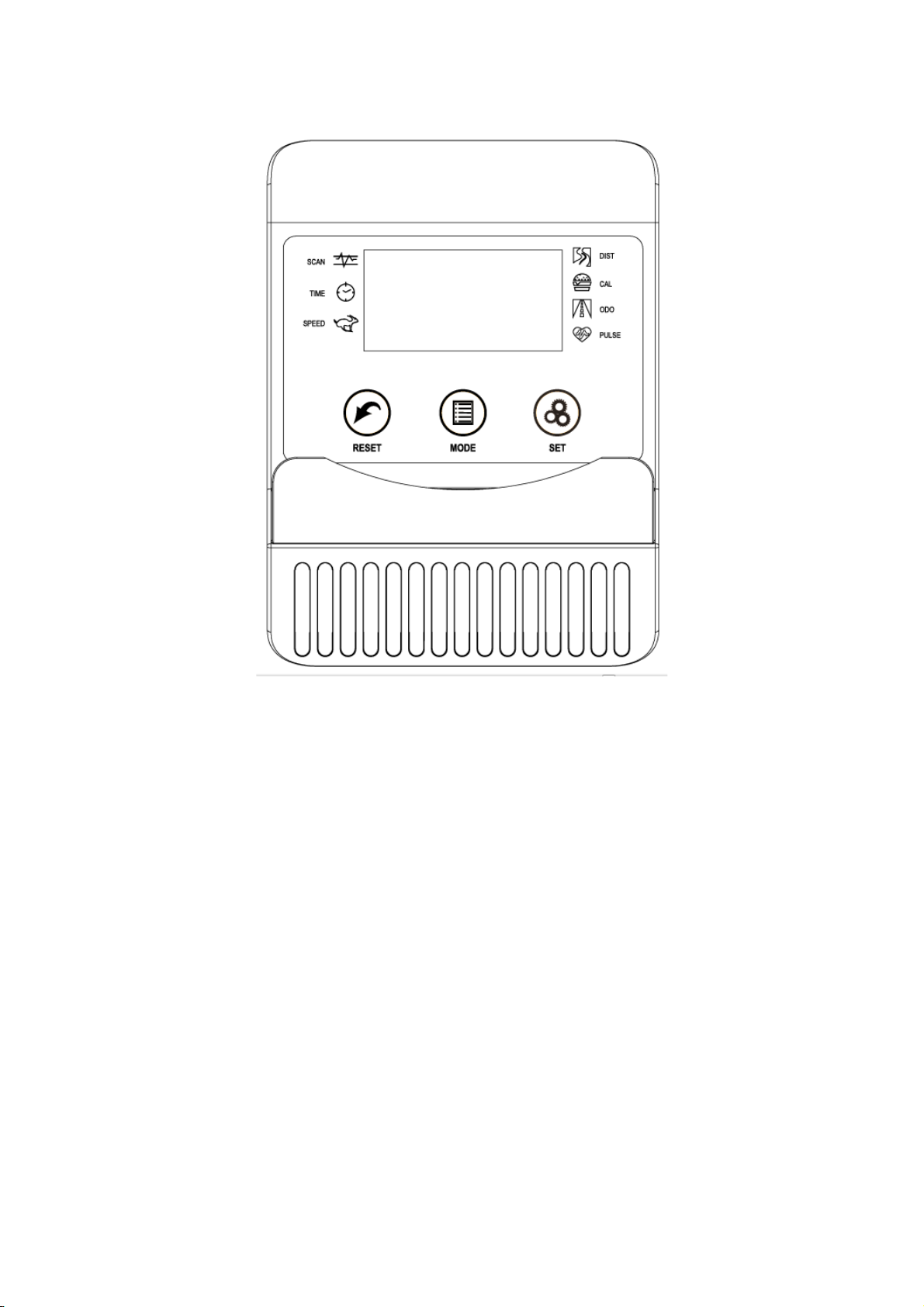

CONSOLE INSTRUCTION
SPECIFICATIONS
：
TIME
（
TMR
）
……………………………………………………………….…00:00-99:59
SPEED(SPD) …………………………………………………………0.0-99.9KM/H(ML/H)
DISTANCE(DIST) ………………………………………………………0.00-99.99KM(ML)
CALORIES(CAL) ……………………………………………………………0.0-999.9KCAL
※
ODOMETER(ODO) ………………………………………………………0-9999KM(ML)
※
PULSE(PUL) ………………………………………………………………. …40-240BPM
KEY FUNCTIONS:
MODE: This key lets you to select and lock on to a particular function you want.
※
SET (IF HAVE): Can to proceed the data establish for “TIME”“DISTANCE” “CALORIES”.
※
RESET(IF HAVE): The key to reset the value to zero by pressing the key.
OPERATION PROCEDURES:
1. AUTO ON/OFF
◆ The system turns on when any key is pressed or when it sensor an input from the speed
sensor.
◆ The system turns off automatically when the speed has no signal input or no key are pressed
for approximately 4 minutes.
2. RESET
The unit can be reset by either changing battery or pressing the MODE key for 3 seconds.
3. MODE

To choose the SCAN or LOCK if you do not want the scan mode, press the MODE key when the
pointer on the function you want which begins blinking.
FUNCTIONS:
1. TIME: Press the MODE key until pointer lock on to TIME. The total working time
will be shown when starting exercise.
2. SPEED: Press the MODE key until the pointer advance to SPEED. The current
speed will be shown.
3. DISTANCE: Press the MODE key until the pointer advance to DISTANCE. The
distance of each workout will be displayed.
4. CALORIE: Press the MODE key until pointer lock on to CALORIE. The calorie
burned will be displayed when starting exercise.
5. ODOMETER (IF HAVE): Press the MODE key until the pointer advance to
ODOMETER. The total accumulated distance will be shown.
6. PULSE (IF HAVE): Press the MODE key until the pointer advance to PULSE.
User’s current heart rate will be displayed in beats per minute. Place the palms of
your hands on both of the contact pads (or put ear-clip to ear), and wait for 30
seconds for the most accurate reading.
7.SCAN: Automatically display changes every 4 seconds.
BATTERY:
If improper display on monitor, please reinstall the batteries to have a good result.
