Oregon Scientific RRM313P User manual

EN
1
Radio-Controlled Projection Clock
with FM Radio
Model: RRM313P
Self-Setting Atomic Projection Clock
with FM Radio
Model: RRM313PA
USER MANUAL
CONTENTS
Introduction
...............................................................
2
Product Overview
.....................................................
2
Front Vie
w
..............................................................
2
Back View
..............................................................
2
LCD Display
...........................................................
3
Geting Started
...........................................................
3
Batteries
.................................................................
3
AC Ada
pter
.............................................................
pter .............................................................pter
4
Clock Reception
.......................................................
4
Turn the Radio Reception On / Off
.........................
Turn the Radio Reception On / Off ......................... Turn the Radio Reception On / Off
4
Clock / Calendar
.......................................................
Clock / Calendar .......................................................Clock / Calendar
5
Clock / Calendar Display
........................................
5
Set Clock / Calendar
.............................................
5
FM Radio
..................................................................
5
Operating the Radio
..............................................
5
Sleep
......................................................................
6
Backlight
...................................................................
6
Alarm
.........................................................................
6
Alarm Display and Sou
nd
.......................................
6
Set the Alarm(S)
.....................................................
6
Activate / Deactivate the Alarm(S)
.........................
6
Snooze / Turning the Alarm OFF
...........................
6
Projection Unit
..........................................................
7
Reset The Clock
.......................................................
7
Warnings
...................................................................
7
Troubleshooting
.......................................................
8
Technical Specifi cations
.........................................
8
Notices
.......................................................................
9
Statement of Responsibility
....................................
9
About Oregon Scientifi c
..........................................
9
EU-Declaration of Conformity
.................................
9
FCC Statement
........................................................
1
0
Declaration of Conformity
.....................................
1
0
RRM313P_M_EN_op.indd 1 2006.4.6 3:19:31 PM

EN
2
INTRODUCTION
Thank you for selecting the Oregon Scientific™
projection clock with FM
radio.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.

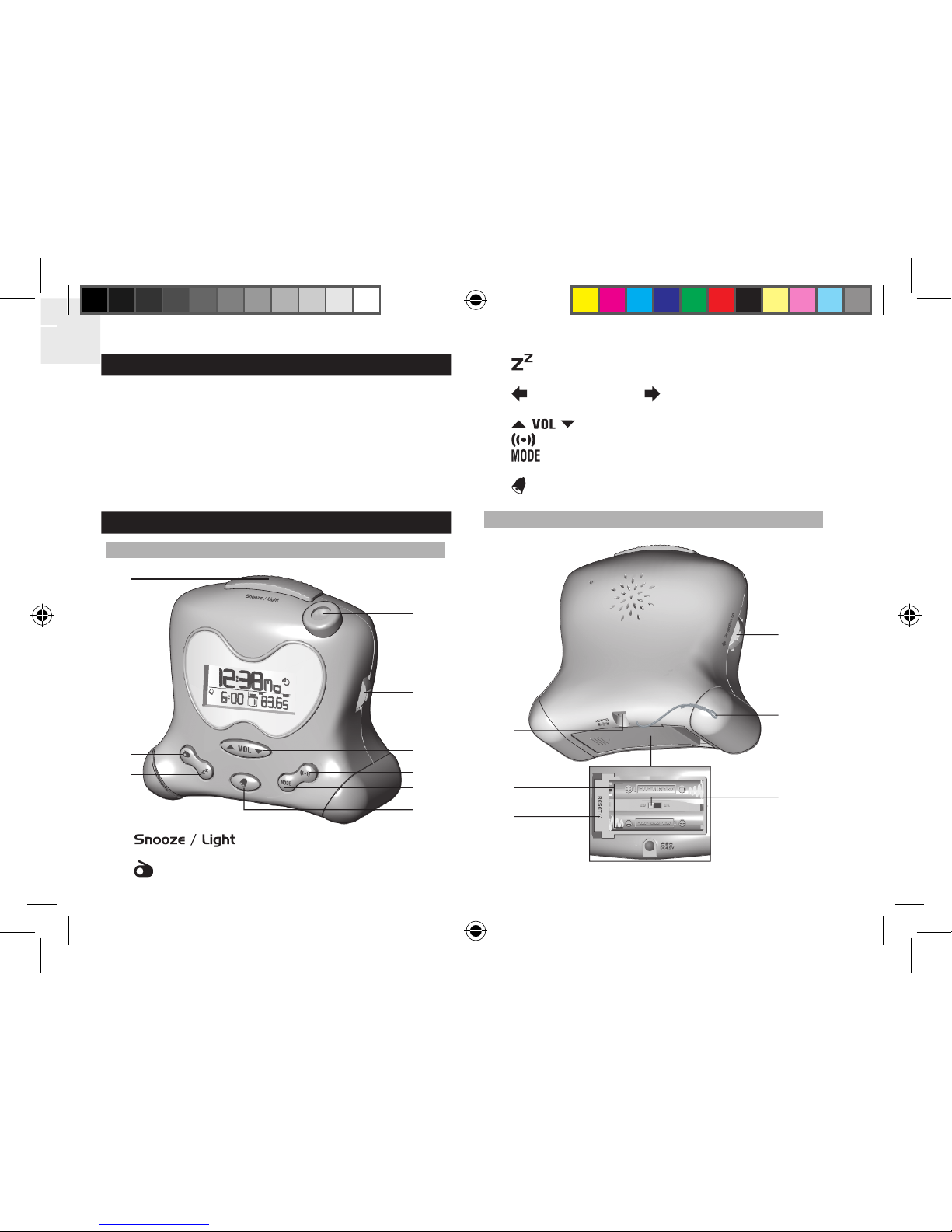

PRODUCT OVERVIEW
FRONT VIEW
1.
:
Activate 8-minute snooze function,
or backlight and projector
2.
or backlight and projector
:
Switch radio on or off
3.
:
Activate sleep function
4.
Projector:
Projects time and alarm status
5.
Station/Tuning
:Toggle up or down through
radio frequencies / memorized station
6.
:
Increase or decrease volume
7.
:
Toggle between alarm and calendar display
8.
:
Toggle between setting modes /
confirm
settings
9.
settings
:
Switch alarm on or off
BACK VIEW
1
4
6
5
2
3
1
4
5
2
3
6
7
8
9
RRM313P_M_EN_op.indd 2 2006.4.6 3:19:39 PM

EN
3
1.
4.5V AC / DC
Adapter Socket
2.
Battery
Compartment (cover on)
: 2 x UM-3 / AA
1.5V batteries
3.
RESET:
Press to return all values to the default
settings
4.
PROJECTION ON / OFF
: Slide to ON for continuous
image projection when the AC power is connected
5.
Radio Antenna
6.
EU / UK
(RRM313P only) Select nearest radio signal
base i.e. England or Germany
LCD DISPLAY
1. Time
2. Alarm on / off
3. Radio alarm on / off
4.
Alarm time / Calendar
5. Offset time zone
6. Radio-controlled clock reception
7. Battery status
8. AC adapter is disconnected
9. FM radio display / sleep / volume level
GETING STARTED
BATTERIES
Batteries are supplied with this product:
• 2 x UM-3 / AA 1.5V batteries
NOTE
The batteries are for back-up use only. Please
The batteries are for back-up use only. Please
use the adapter for continuous use.
NOTE
It is recommended that you use alkaline batteries
with this product for longer performance.
Insert batteries before first use, matching the polarity
(+ and -) as shown below. Press
RESET
after each
battery change.
NOTE
Do not use rechargeable batteries with this
Do not use rechargeable batteries with this
product.
RRM313P_M_EN_op.indd 3 2006.4.6 3:19:43 PM

EN
4
BATTERY ICON MEANING
Batteries are low, or there are no
batteries installed and only the
adapter
is connected
adapter is connectedadapter
AC ADAPTER
The batteries serve as a back-up power supply. For
continuous use of the projector, install the AC
adapter
at the base of the unit as shown below.
NOTE
To help conserve energy, turn the
switch to OFF when you do not
wish to use it.
wish to use it.
CLOCK RECEPTION
This product is designed to synchronize its calendar
clock automatically once it is brought within range of
a radio signal:
RRM313P:
• DCF-77 generated from Frankfurt, Germany for
Central Europe
• MSF-60 generated from Rugby, England
The radio signal range is 1500km (932 mil
es).
RRM313PA:
• WWVB-60 generated from the atomic clock in Fort
Collins,
Colorado
The radio signal range is 3219km (2000
miles).
RRM313 only - slide the
EU / UK
switch to the appropriate
EU / UK switch to the appropriate EU / UK
setting based on your location. Press
RESET
whenever
you change the selected setting.
NOTE
For best results, place the clock away from metal or
For best results, place the clock away from metal or
electrical objects, and near a window with a clear view to the sky.
TURN THE RADIO RECEPTION ON / OFF
To turn the radio reception ON:
• Press
and hold for 2 seconds.
• The reception icon will appear and flash on the
display to indicate it is searching for the signal.
Once batteries have been installed in the clock, the reception
icon will flash to indicate it is searching for a signal.
When the reception signal has been received the
reception icon will show the signal strength by displaying
between 0 and 3 waves:
STRONG SIGNAL WEA
K SIGNAL NO SIGNAL
STRONG SIGNAL WEA
K SIGNAL NO SIGNAL
BATTERY ICON MEANING
Batteries are low, or there are no
RRM313P_M_EN_op.indd 4 2006.4.6 3:19:46 PM

EN
5
To turn the radio reception OFF:
• Press and hold
for 2 seconds.
•
The reception
icon will disappear from the display.
CLOCK / CALENDAR
CLOCK / CALENDAR DISPLAY
Press
MODE
to toggle between 3 types of display
(Clock with seconds, Clock with day, Clock with time
zone offset).
T
SET CLOCK / CALENDAR
1. Press and hold
MODE
for 2 seconds. The time zone
offset hour digits will flash. When an offset hour has
been set (e.g. +1), the time displayed will be the
radio-controlled clock time plus 1 hour.
2. Press
or
to change the setting.
3. Press
MODE
to confirm the setting and move onto
the next one.
4. The settings appear in the following order: Time
zone hour offset, 12 / 24 hour format, hour, minute,
year, MM / DD or DD / MM format, month, day and
language for day of the week.
5. Press
,
,
St
ation
/
Tuni
n
g
,
or
to exit the
Clock Setting Mode.
FM RADIO
This product has a built-in FM radio that can store up to
8 stations. In order to conserve power, the FM radio only
works when the AC adapter is plugged in.

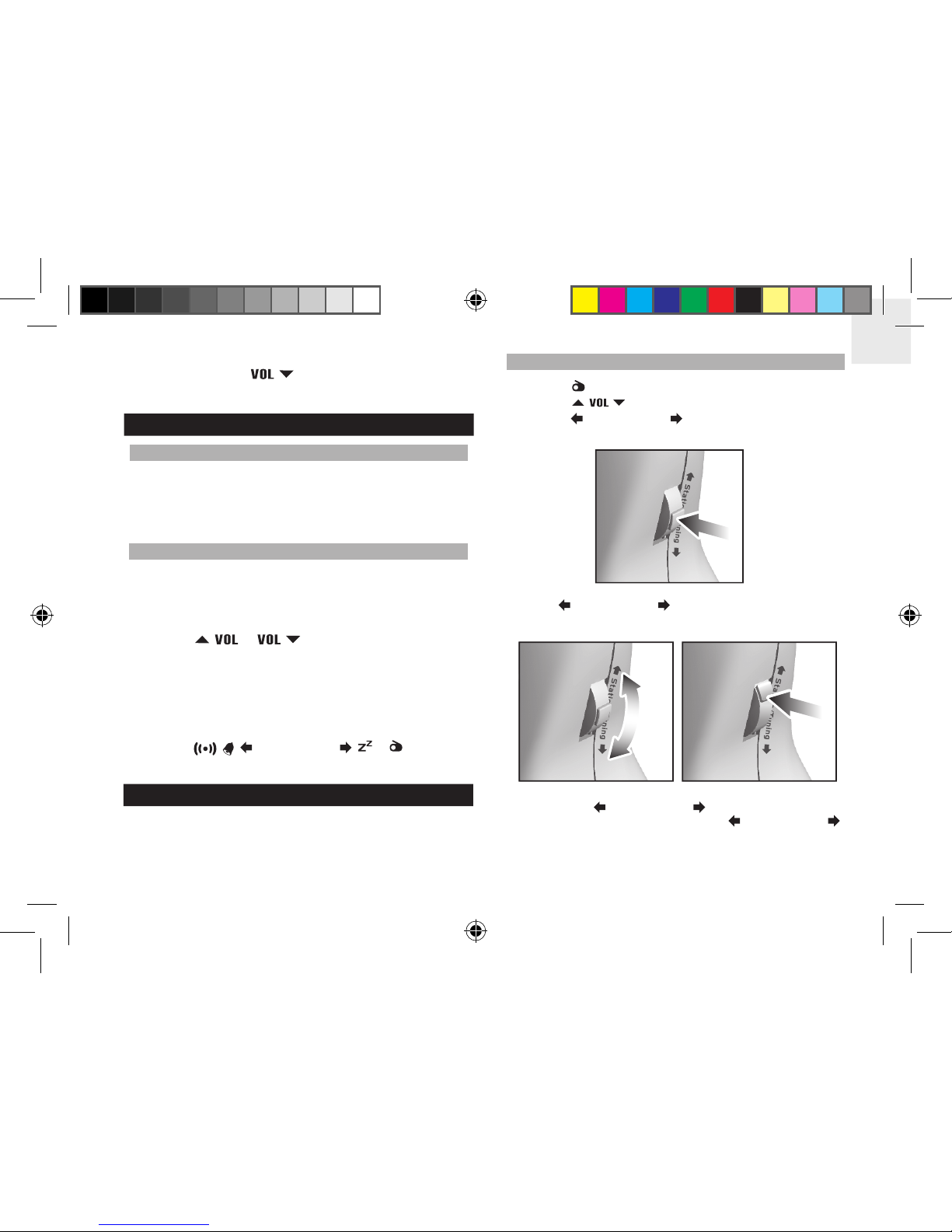

OPERATING THE RADIO
1. Press
to switch the radio on.
2. Press
to change the radio volume.
3. Press
St
ation
/
Tuni
n
g
straight
in to scroll through
the 8 preset channels.
4. Roll
St
ation
/
Tuni
n
g
towards the up or down arrow
to change the selected channel’s radio frequency.
Roll and hold
St
ation
/
Tuni
n
g
to enable auto-search
for an available frequency. Press
St
ation
/
Tuni
n
g
straight in to store the radio station.
RRM313P_M_EN_op.indd 5 2006.4.6 3:19:50 PM

EN
6
SLEEP
The radio is equipped with a countdown sleep timer
that can be set to switch the radio off after up to 120
minutes.
1. Press
to enter sleep mode.
2. Use the
button to change the sleep time setting
(120, 90, 60, 45, 30, 15, 0).
3. Press any key to exit sleep mode – the sleep timer
will be automatically activated.
BACKLIGHT
Press
to
activate the backlight for 5
seconds.
ALARM
ALARM DISPLAY AND SOUND
This product has two types of daily alarm that can be set
to go off at the same time every day. You can choose to
be woken up by the radio or by a buzzer alarm. Press
at any time to toggle between the calendar and the
alarm display.
NOTE
I
f the radio alarm time is reached when the AC
adapter
is not connected the unit will default to
buzzer
alarm.
buzzer alarm.buzzer
SET THE ALARM(S)
1. Press and hold
for 2 seconds.
2. Use
or
to change the flashing setting.
to change the flashing setting.
3. Press
to confirm the setting and move onto the
next one.
4. The settings appear in the following order: Hour,
minute, alarm type (i.e. radio alarm or buzzer
alarm).
5. If radio alarm is selected, preset station and preset
volume can also be altered.
6. Press
to exit alarm setting mode.
7. The daily alarm will be on automatically after
setting.
ACTIVATE / DEACTIVATE THE ALARM(S)
•
Press to
enable or disable the daily alarm.
• When the buzzer alarm / radio alarm icon appears
on the display the alarm is activated. When the
icons do not appear the buzzer alarm / radio alarm
is deactivated.
SNOOZE / TURNING THE ALARM OFF
When activated, the alarm icon flashes, the backlight
and projector turn on for 8 seconds. The buzzer alarm
sounds for 2 minutes if no key is pressed. The radio will
remain on for 120 minutes if no key is pressed.
To silence the alarm:
• Press to silence the buzzer alarm
for 8 minutes. The buzzer alarm icon will flash to show
snooze is enabled. (Please note that you cannot use
the snooze function on the radio alarm.)
OR
RRM313P_M_EN_op.indd 6 2006.4.6 3:19:51 PM

EN
7
• Never immerse the product in water. This can cause
electrical shock and damage the product.
• Do not subject the product to extreme force, shock,
or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this
product.
• Remove the batteries if storing this product for a long
period of time.
• Do not scratch the LCD display.
• Placement of this product on wood surfaces with
certain types of finishes, such as clear varnish, may
result in damage to the
finish. Cons
ult the furniture
manufacturer’s care instructions for direction as to
the types of objects that may safely be placed on
the wood surface. Oregon Scientific shall not be
responsible for any damage to wood surfaces from
contact with this product.
• Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
NOTE
The technical specification of this product and
The technical specification of this product and
contents of this user manual are subject to change
without notice. Images not drawn to scale.
• Press any key except to mute any
alarm and activate it again in 24 hours.
PROJECTION UNIT
The projection unit can display both time and alarm
status. To use this feature:
• Slide the
switch
ON
to activate
continuous projection. However, this function will
not work unless the AC / DC
adapter
is used.
adapter is used.adapter
NOTE
You can also press the
You can also press the
button
to project the time and alarm status for 5 seconds.
RESET THE CLOCK
To reset the unit, insert a thin blunt instrument into the
reset hole.
WARNINGS
This product is designed to give you years of service
if handled properly. Oregon Scientific will not be
responsible for any deviations in the usage of the
device from those specified in the user instructions or
any unapproved alterations or repairs of the product.
Observe the following guidelines:
• Do not clean any part of the product with benzene,
thinner or other solvent chemicals – this may cause
permanent damage that is not covered by the
guarantee. When necessary, clean it with a damp
cloth.
RRM313P_M_EN_op.indd 7 2006.4.6 3:19:52 PM

EN
8
TROUBLESHOOTING
PROBLEM SYMPTOM
REMEDY
Clock time is No radio signal
Place the clo
ck far
not correctly set
reception
not correctly set reception not correctly set
away from PCs,
phones, and other
electronic equipment
and near a windowsill.
Wait for at least 24
hours
No alarm Alarm does not
Turn on the sett
ing
sound
Operation
Certain funct
ions
Reset the clock
not normal do not perform
Calendar Strange day
Check it is set to
your
own language
Clock Cannot change
Disable the radio
clock signal and set
manually
Clock / Calendar
Cannot auto- 1. Ad
Clock / Calendar Cannot auto- 1. Ad Clock / Calendar
just batteries
synchronize 2. Press
RESET
the clock
TECHNICAL SPECIFICATIONS
TYPE DESCRIPTION
Main Unit Dimensions
L x W x H 110 x 57 x 100 mm
(4.33 x 2.24 x 4.05 inches)
Weight (without battery) 201 g (0.44 lbs)
Main Unit RF
RF Clock Frequency
DCF-77 (EU), MSF60 (UK)
System
and WWVB-60 (US)
Synchronization Auto or disabled
FM Band Range 87.5-108.0 MHz
Main Unit Display
Clock HH:MM:SS
HH:MM: Day of week
HH:MM: Time zone hour offset
Hour Format
12hr AM / PM (MSF Format)
24hr (DCF Format)
Calendar
DD / MM or MM / DD, user
selectable. Weekday language:
E, D, F, I, S.
Alarm • 2-minute alarm
• 8-minute snooze
Power
Main Unit 2 x UM-3 / AA 1.5V batteries
or
4.5V
AC / DC
adapter
TYPE DESCRIPTION
Synchronization Auto or disabled
FM Band Range 87.5-108.0 MHz
L x W x H 110 x 57 x 100 mm
(4.33 x 2.24 x 4.05 inches)
Weight (without battery) 201 g (0.44 lbs)
Clock HH:MM:SS
HH:MM: Day of week
24hr (DCF Format)
E, D, F, I, S.
Alarm • 2-minute alarm
• 8-minute snooze
Main Unit 2 x UM-3 / AA 1.5V batteries
or
PROBLEM SYMPTOM
Clock time is No radio signal
reception
hours
No alarm Alarm does not
sound
not normal do not perform
Calendar Strange day
Clock Cannot change
clock signal and set
manually
Cannot auto- 1. Ad
synchronize 2. Press
the clock
hours
sound
Reset the clock
clock signal and set
manually
Cannot auto- 1. Ad
synchronize 2. Press
RRM313P_M_EN_op.indd 8 2006.4.6 3:19:52 PM

EN
9
NOTE
NOTE
It is recommended that you use alkaline batteries
with this product for longer performance.
NOTE
Design and specifications are subject to change
Design and specifications are subject to change
without notice.
NOTICES
STATEMENT OF RESPONSIBILITY
Oregon Scientific will not be held liable for any bodily
injury, death, property damages, or any other claims of
whatever nature resulting from the misuse or negligence
of the product, whether intentional or unintentional.
Oregon Scientific will not be responsible for any
deviations in the usage of the device from those specified
in the user instructions or any unapproved alternations
or repairs of the product.
ABOUT OREGON SCIENTIFIC
Visit our website (
www.oregonscientific.com
www.oregonscientific.com
) to learn
more about Oregon Scientific products such as digital
cameras; MP3 players; children’s electronic learning
products and games; projection clocks; health and
fitness gear; weather stations; and digital and conference
phones. The website also includes contact information
for our Customer Care department in case you need
to reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on our
website, however if you’re in the US and would like to
contact the Oregon Scientific Customer Care department
directly, please visit:
www2.oregonscientific.com/service/default.asp
www2.oregonscientific.com/service/default.asp
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Radio-
Controlled Projection Clock with FM Radio (RRM313P)
is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
A copy of the signed and dated Declaration of Conformity
is available on request via our Oregon Scientific
Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
ALL EU countries, Switzerland
CH
and Norway
N
CH
RRM313P_M_EN_op.indd 9 2006.4.6 3:19:53 PM

EN
10
•
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please call our customer service
number (listed on our website at
www.oregonscientific.com
www.oregonscientific.com
),
or on the warranty card for this product) for all inquiries
instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95
th
Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.:
RRM313P / RRM313PA
Product Name: Self-Setting Atomic Projection
Clock with FM Radio
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St.,
Hung Hom, Kowloon, H
ong Kong
is in conformity with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: 1) This device
may not cause harmful interference. 2) This device must
accept any interference received, including interference
that may cause undesired operation.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING
Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found
This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
RRM313P_M_EN_op.indd 10 2006.4.6 3:19:54 PM

EN
11
Radio-Controlled
Projection Clock with FM Radio
Model: RRM313P
Self-Setting Atomic
Projection Clock with FM Radio
Model: RRM313PA
USER MANUAL
RRM313P_M_EN_op.indd 11 2006.4.6 3:19:54 PM

EN
12
086L004358-018
© 2006 Oregon Scientifi c. All rights reserved.
RRM313P_M_EN_op.indd 12 2006.4.6 3:19:54 PM
