Weather Day & Night
Model: BAR339DP / BAR339DPA /
BAR339DPU / BAA339DPH
USER MANUAL
CONTENTS
Overview ...................................................................2
Front View .............................................................. 2
Back View ..............................................................3
Remote Sensor ......................................................3
Getting Started .........................................................3
Main Unit Installation .............................................3
Remote Sensor Installation .................................... 4
Clock .........................................................................5
Clock Reception ..................................................... 5
Manually set Clock ................................................. 6
Alarm ........................................................................6
Weather Forecast ....................................................6
Temperature ............................................................7
Projection .................................................................7
Backlight ..................................................................7
Reset .........................................................................7
Specifications .......................................................... 8
Main Unit ................................................................ 8
Remote RF Clock Thermo Sensor ......................... 8
Precautions ..............................................................8
About Oregon Scientific .........................................9
EU-Declaration of Conformity ................................ 9
FCC Statement .........................................................9
Declaration of Conformity .................................... 10
BAR339DP_M_EN_R6.indd 1 6/18/08 12:29:43 PM

2
E N
OVERVIEW

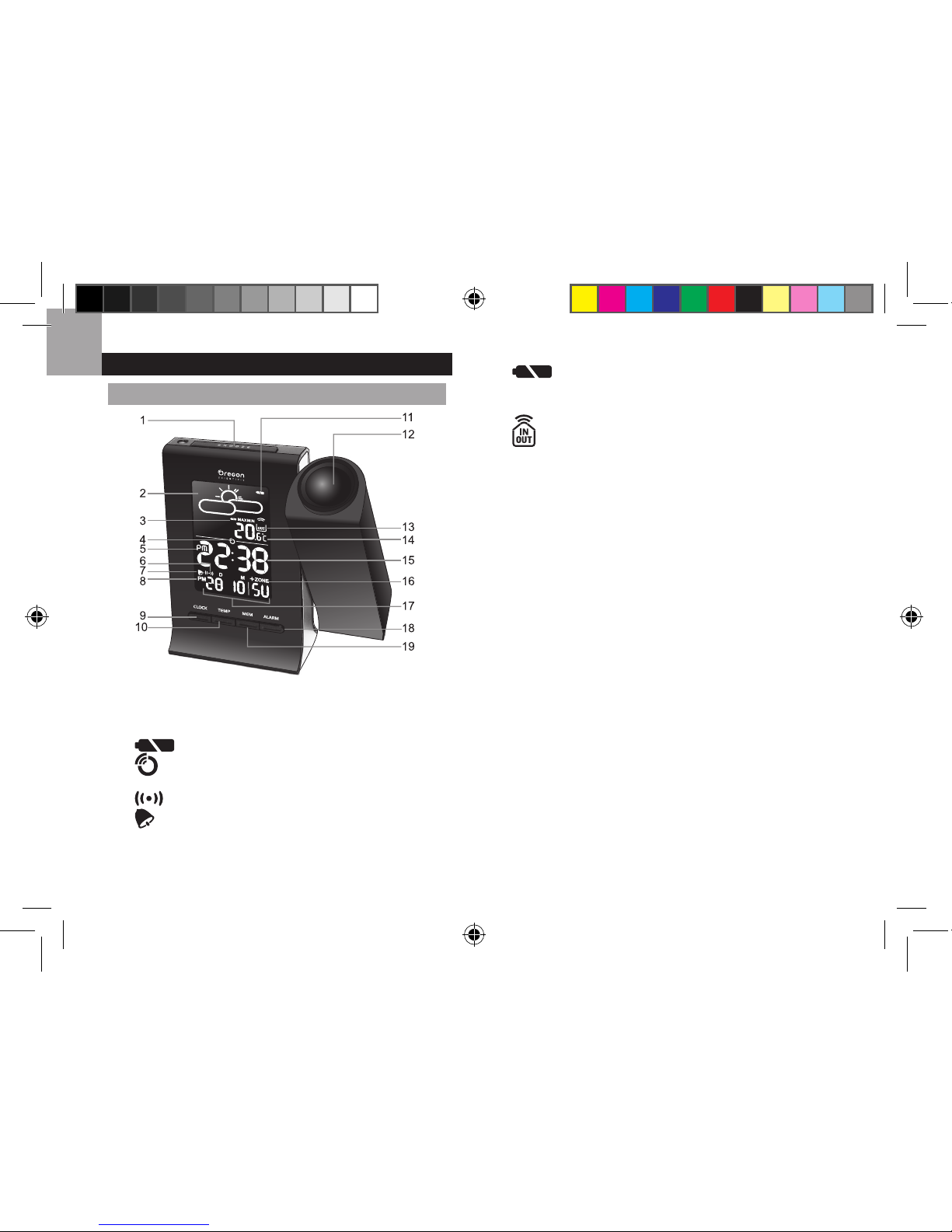

FRONT VIEW
1. SNOOZE: Activate snooze alarm; turn on backlight;
flip projected image 180º
2. Weather forecast
3. Outdoor remote sensor battery low
4. Radio controlled clock reception icon
5. PM: Indicates PM (12 hour mode)
6. Indicate alarm time is displayed
7. Indicate daily alarm is On
8. PM: Indicates PM (12 hour mode)
9. CLOCK: Change display; set clock
10. TEMP: Toggle between indoor / outdoor temperature
display; activate / deactivate auto-scan
11. Main unit batteries low / no battery
12. Projector: Project time / outdoor temperature and
weather forecast
13. Indicate indoor / outdoor sensor reception
status
14. Outdoor Temperature (Current / Max / Min)
15. Clock
16. Time Zone Offset
17. Calendar with weekday / seconds
18. ALARM: View alarm status / set alarm
19. MEM: Toggle between current / maximum /
minimum temperature display; clear records
BAR339DP_M_EN_R6.indd 2 6/18/08 12:30:06 PM

E N
3

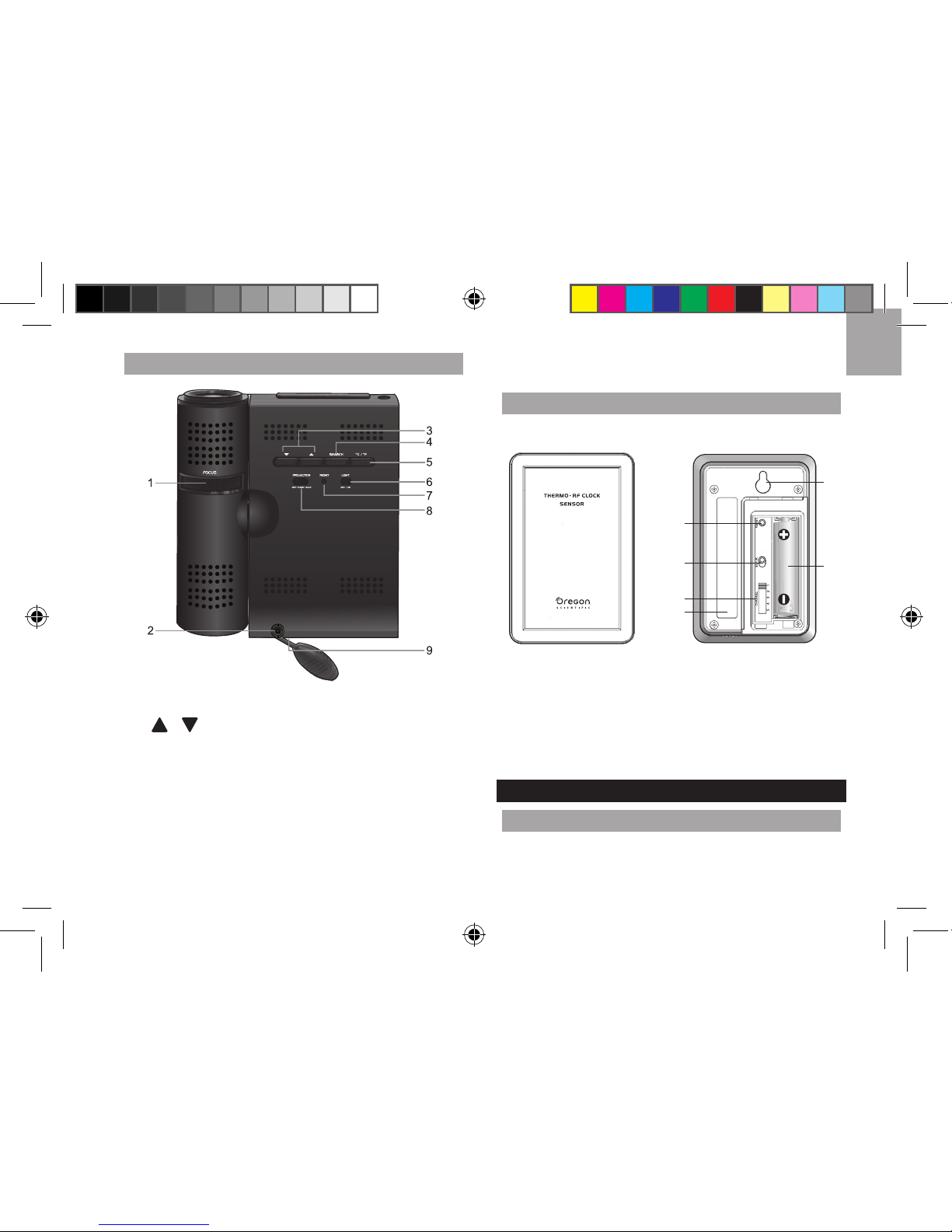

BACK VIEW
1. FOCUS Wheel: Adjust projection focus
2. AC/DC Adaptor socket
3. / : Decrease / increase value of the setting;
enable / disable clock reception
4. SEARCH: Initiate sensor search
5. °C / °F: Select temperature unit
6. LIGHT ON/OFF: Turn backlight continuously On
(adaptor installed) / only when SNOOZE key is
pressed
7. RESET: Reset unit to default settings
8. PROJECTION OFF- CLOCK - AUTO: Select
projection display
9. Battery compartment
REMOTE SENSOR
FRONT VIEW BACK VIEW
1
2
3
4
5
6
1. RESET: Reset unit to default settings
2. EU / UK Switch (RTHN318D sensor only)
3. Channel Switch
4. Double sided adhesive tape
5. Wall mount hole
6. Battery compartment
GETTING STARTED
MAIN UNIT INSTALLATION
Batteries serve as a back-up power supply. For
continuous use of projector and backlight, install
adapter.
BAR339DP_M_EN_R6.indd 3 6/18/08 12:30:38 PM

4
E N
• Plug AC/DC adaptor into socket. Make sure the
adapter is not obstructed and is easily accessible
to the unit.
To completely disconnect from power, the adapter
should be disconnected from the main unit.
NOTE The main unit and adapter should not be
exposed to wet conditions. No objects filled with liquid,
such as vases, should be placed on the main unit and
adapter.
Memory backup:
1. Remove the battery compartment cover.
2. Insert the batteries, matching the polarities.
NOTE Batteries should not be exposed to excessive
heat such as sunshine or fire.
REMOTE SENSOR INSTALLATION
1. Slide open the battery door.
2. Slide channel switch to channel 1.
3. Select EU/UK. (RTHN318D only)
4. Insert the battery, matching the polarities (+ / -).
5. Press RESET after each battery change.
6. Close the battery door.
7. Press and hold SEARCH on main unit to initiate
search and start receiving time and temperature
data from the sensor.

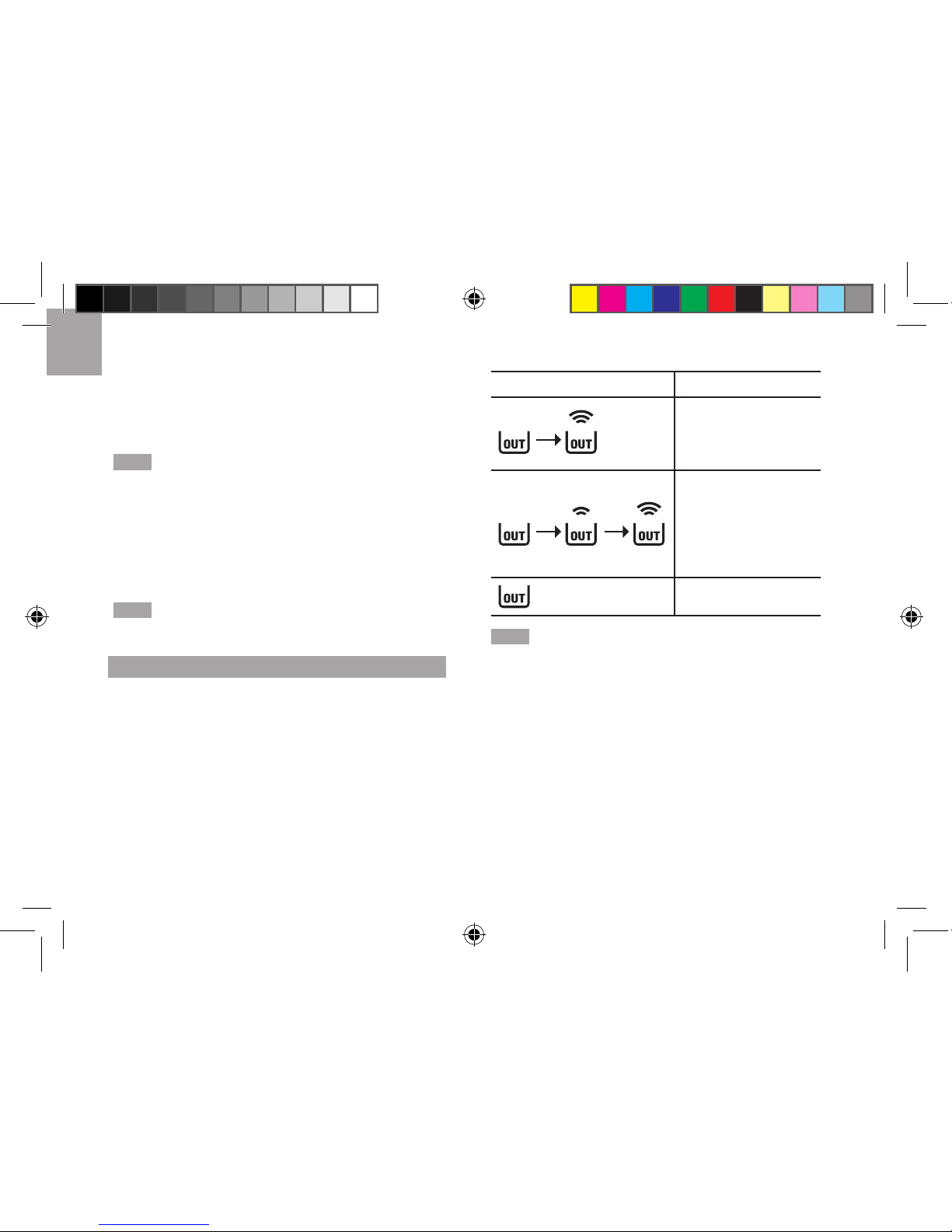

The sensor reception icon shows the status:
ICONS MEANING
Main unit is searching
for sensor(s)
A sensor channel
has been found and
logged on
No sensor found
NOTE After every sensor initialisation, the main unit
may take up to 30 minutes to receive the time from
the sensor.
8. Secure the sensor in the desired location using the
wall mount hole or double sided adhesive tape.
BAR339DP_M_EN_R6.indd 4 6/18/08 12:30:50 PM

E N
5
For best results:
• Place the sensor within 30 m (100 ft) of the main
unit.
• Place the sensor out of direct sunlight and
moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to
the sky, away from metallic / electronic objects.
• Position the sensor close to the main unit during
cold winter months as below-freezing temperatures
may affect battery performance and signal
transmission.
TIP The transmission range may vary depending
on many factors. You may need to experiment with
various locations to get the best results.
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures
below freezing.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal received from
provided remote sensor.
To enable / disable signal reception:
Press and hold to enable or to disable signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is
weak, it can take up to 24 hours to get a valid signal.
Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
NOTE Clock reception is dependent on the successful
transmission of data from remote sensor. If is
displayed, press RESET on sensor and press and
on the main unit and ensure sensor has been
successfully logged.
BAR339DP_M_EN_R6.indd 5 6/18/08 12:31:03 PM

6
E N
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal
reception first.
1. Press and hold CLOCK.
2. Press / to change the settings.
3. Press CLOCK to confirm.
The settings order is: time zone, 12/24 hr format,
hour, minute, year, calendar mode (month – day / day
– month), month, day and language.
BAR339DP: Time zone offset sets the clock +/- 23
hours from the received clock signal time.
NOTE If you enter + 1 in the time offset setting, this will
give you your local time plus one hour. If you are in the
US (BAR339DPA only) set the clock to:
0 for Pacific time +1 for Mountain time
+2 for Central time +3 for Eastern time
NOTE The language options are English (E), Spanish (S),
Italian (I), French (F), German (D), and Russian (R).
To select clock display mode:
Press CLOCK to toggle between clock with seconds,
clock with weekday.
ALARM
To set the alarm:
1. Press and hold ALARM.
2. Press / to change the settings.
3. Press ALARM to confirm.
indicates alarm is on.
To activate / deactivate alarm:
1. Press ALARM to display alarm time.
2. Press ALARM again to turn alarm on / off.
To silence the alarm:
• Press SNOOZE to silence it for 8 minutes
OR
• Press any key to turn the alarm off and activate it
again after 24 hours.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of
weather within a 30-50 km (19-31 mile) radius with a
75% accuracy.
Main unit Projector
Sunny
Partially Cloudy
Cloudy
Rainy
Snowy
BAR339DP_M_EN_R6.indd 6 6/18/08 12:31:20 PM

E N
7
TEMPERATURE
To toggle between indoor / outdoor temperature
display:
Press TEMP.
To toggle temperature unit:
Press °C / °F.
To auto-scan between sensors:
Press and hold TEMP.
To deactivate auto-scan function:
Press TEMP.
To toggle between current, minimum and maximum
records for indoor / outdoor:
Press MEM repeatedly.
To clear records:
Press and hold MEM.
PROJECTION
This unit projects time, outdoor temperature information
and weather forecast for your convenience.
NOTE Install adapter to use projection feature.
To flip projected image by 180°:
• Press SNOOZE.
To project weather forecast and time:
• Press SNOOZE when PROJECTION switch is in
OFF mode
OR
• Slide PROJECTION switch to CLOCK mode for
continuous display.
To project weather forecast and activate toggling
display of time / outdoor temperature:
• Slide PROJECTION switch to AUTO mode.
To deactivate projection:
• Slide PROJECTION switch to OFF mode.
To focus image:
• Turn FOCUS wheel.
NOTE If projection is illuminated, do not look directly
into the projector.
BACKLIGHT
To activate continuous backlight:
• Slide LIGHT – ON / OFF switch to ON.
To deactivate continuous backlight:
• Slide LIGHT – ON / OFF switch to OFF (Press
SNOOZE to activate LED backlight for 5 seconds).
RESET
Press RESET to return to the default settings.
BAR339DP_M_EN_R6.indd 7 6/18/08 12:31:25 PM

8
E N
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 142 x 42 x 158 mm
(5.59 x 1.65 x 6.22 in)
Weight 270g (9.52 oz) without battery
Power 5V AC adaptor
2 x CR2032 batteries
(for backup)
REMOTE RF CLOCK THERMO SENSOR
TYPE DESCRIPTION
L x W x H 64 x 25 x 98 mm
(2.52 x 0.98 x 3.86 in)
Weight 80 g (2.8 oz) without battery
Temperature range -20°C to 60°C (-4°F to 140°F)
Resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Transmission range 30 m (98 ft) unobstructed
No. of channels 5
Power 1 x UM-3 (AA) 1.5 V batteries
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment and not
as normal household waste.
• Placement of this product on certain types of
wood may result in damage to its finish for which
Oregon Scientific will not be responsible. Consult
the furniture manufacturer’s care instructions for
information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before first use.
BAR339DP_M_EN_R6.indd 8 6/18/08 12:31:26 PM

E N
9
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products. If you’re in
the US and would like to contact our Customer Care
department directly, please visit:
www2.oregonscientific.com/service/support.asp
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Weather
Day & Night (Model: BAR339DP / BAR339DPA /
BAR339DPU / BAA339DPH) is in compliance with the
essential requirements and other relevant provisions
of Directive 1999/5/EC. A copy of the signed and dated
Declaration of Conformity is available on request via
our Oregon Scientific Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland
and Norway
CH
N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
BAR339DP_M_EN_R6.indd 9 6/18/08 12:31:29 PM

10
E N
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientific.com/service for all enquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: BAR339DP / BAR339DPA /
BAR339DPU / BAA339DPH
Product Name: Weather Day & Night
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received,
including interference that may cause undesired
operation.
BAR339DP_M_EN_R6.indd 10 6/18/08 12:31:30 PM
