Heart Rate Monitor
MODEL: SE128
USER MANUAL
CONTENTS
Introduction ...............................................................2
Know Your Data ........................................................2
Training Zones.............................................................2
Receiver / Wrist Watch Control Buttons.................3
The Transmitter..........................................................4
The Receiver..............................................................4
Effective Range..........................................................5
Use in the Water........................................................5
Operation...................................................................5
The Backlight..............................................................5
Activating Keypad lock........................................ .......5
Operating Modes........................................................5
HR / KCAL Mode........................................................6
Heart Rate Limits........................................... ............6
Time and Date...........................................................6
Stopwatch...................................................................7
User Data...................................................................8
Additional Information.............................................8
Battery........................................................................8
Energy Saving Feature..............................................9
Specifications...........................................................9
Precautions...............................................................9
About Oregon Scientific.........................................10
EU-declaration of Conformity.................................10
SE128 EN R5.indd 1 2007.7.6 10:27:22 AM

EN
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM Heart Rate
Monitor (SE128). The SE128 is a very useful sports &
fitness product that can help you achieve and maintain your
optimum exercise zone by monitoring your heart rate while
exercising. The SE128 bundles a heart rate transmitter and
receiver watch complete with real-time clock, stopwatch,
and backlight functions.
KNOW YOUR DATA
To help achieve the maximum health benefits from your
workout program, it is important to know your:
• Maximum heart rate (MHR) training zone
• Upper heart rate limit
• Lower heart rate limit
MHR is expressed in beats per minute. You can get
your MHR from a MHR test, or you can estimate it
using the following formula:
220 - age = MHR
There are several training zones that that are relevant
to a fitness program. The most popular zone range is
from 50% to 80% of your maximum heart rate. This is
where you achieve cardiovascular benefits, burn fat,
and become fitter. When programming your watch, the
lower % of the zone you choose becomes your lower
heart rate limit and the higher % becomes the upper
heart rate limit.
50%
60%
70%
80%
90%
100%
Moderate Activity
Weight Management
Aerobic Zone
Anaerobic Threshold Zone
Red Line Zone ( maximum capacity )
The upper and lower heart rate limits are calculated
by multiplying your MHR by the percentages of the
selected training zone.
For example:
A 40-year-old user training for basic health
maintenance:
• His Upper Heart Rate Limit [220 - 40(age)] x 78%
• His Lower Heart Rate Limit [220 - 40(age)] x 65%
TRAINING ZONES
Always warm up before exercise and select the training
zone that best suits your physique. Exercise regularly,
20 to 30 minutes per session, three to four times a
week for a healthier cardiovascular system.
There are three training zones, as described below:
TRAINING
ZONE MHR% DESCRIPTION
Health
Maintenance 65-78%
This is the lowest
training intensity
level. It is good
for beginners and
those who want to
strengthen their
cardiovascular
systems.
SE128 EN R5.indd 2 2007.7.6 10:27:22 AM

EN
3
Aerobic
Exercise 65-85%
Increases strength
and endurance. It
works within the
body’s oxygen intake
capability, burns
more calories and
can be maintained
for a long period of
time.
Anaerobic
Exercise 78-90%
Generates speed
and power. It works
at or above the
body’s oxygen intake
capability, builds
muscle, and cannot
be maintained for a
long period of time.
WARNING Determining your individual training zone
is a critical step in the process towards an effi cient
and safe training program. Please consult your doctor
or health professional to help you determine your
maximum heart rate, upper and lower limits, exercise
frequency and duration appropriate for your age,
condition and specifi c goals.

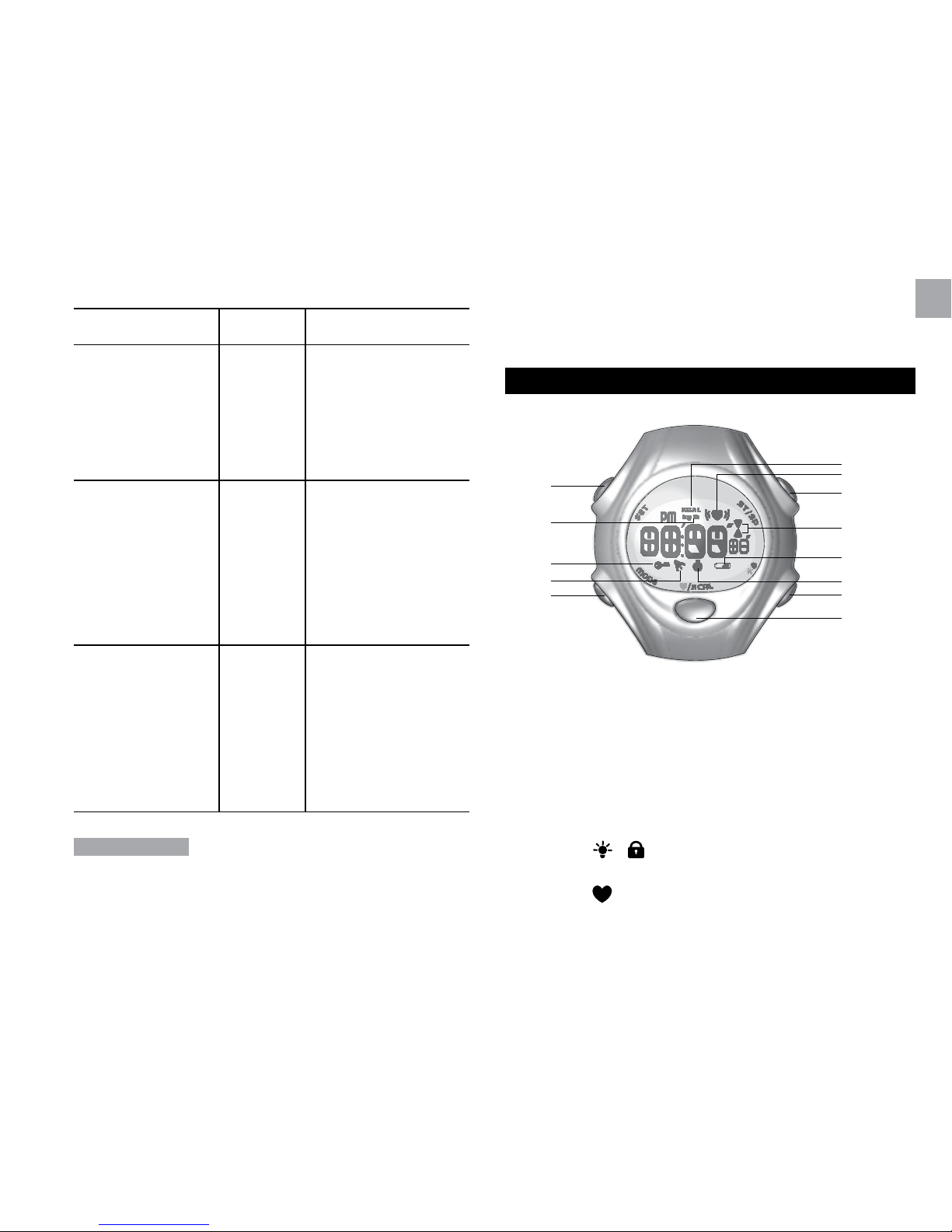

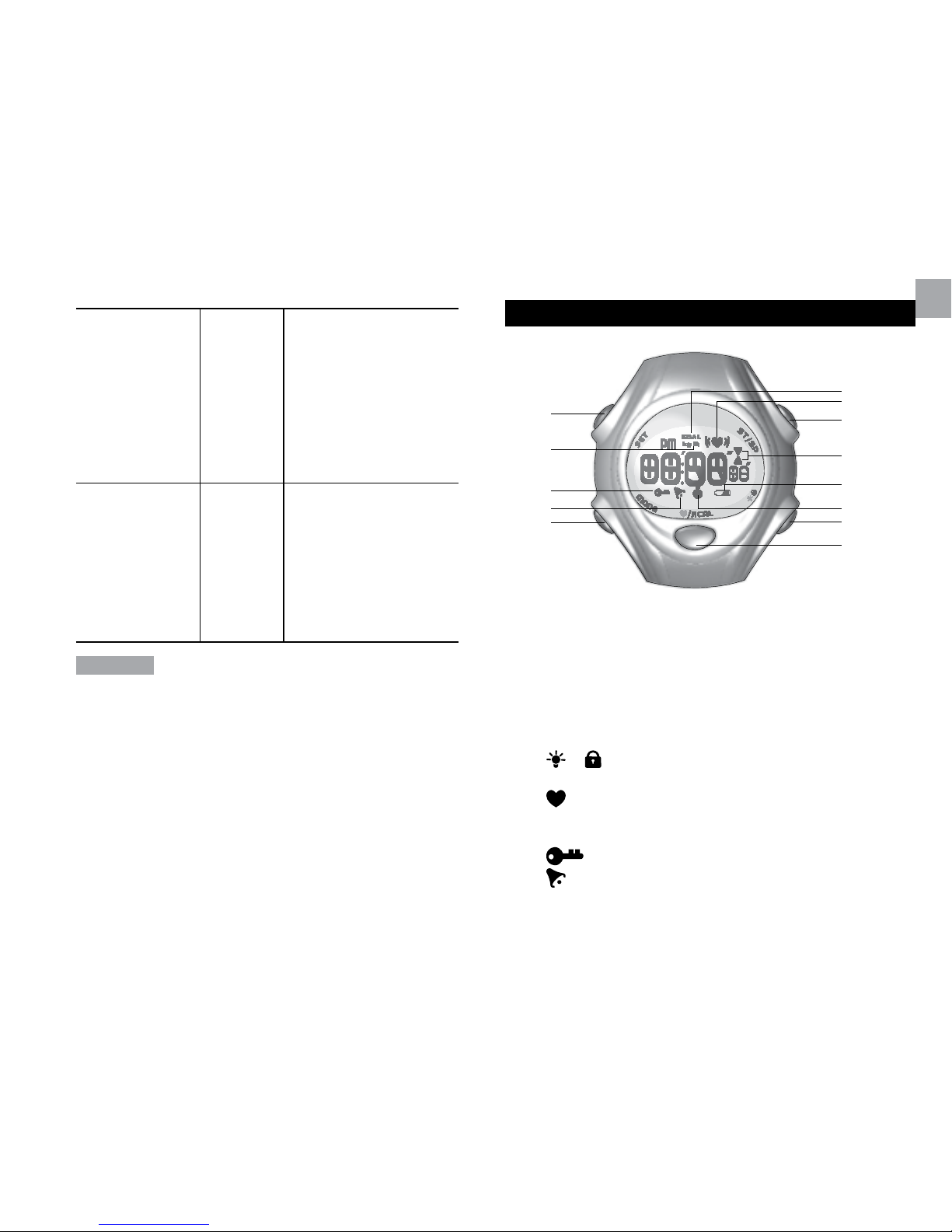

RECEIVER / WRIST WATCH CONTROL BUTTONS
1
6
9
10
3
11
12
13
4
5
7
8
2
1. SET button: Changes values in Settings mode;
turns the alarm ON /OFF in Alarm mode; resets the
stopwatch.
2. MODE button: Changes operating modes or press
and hold to enter Settings mode.
3. START / STOP button: Starts or stops the
stopwatch.
4. / button: Turn on backlight; lock / unlock
keypad
5. / KCAL button: Displays your heart rate or press
and hold to activate the high / low heart rate alert.
6. Kg / Lb: Weight units in Kilograms or in pounds
7. : Indicates keypad is locked
8. : Indicates alarm is ON
9. KCAL calorie icon
SE128 EN R5.indd 3 2007.7.6 10:27:25 AM

EN
4

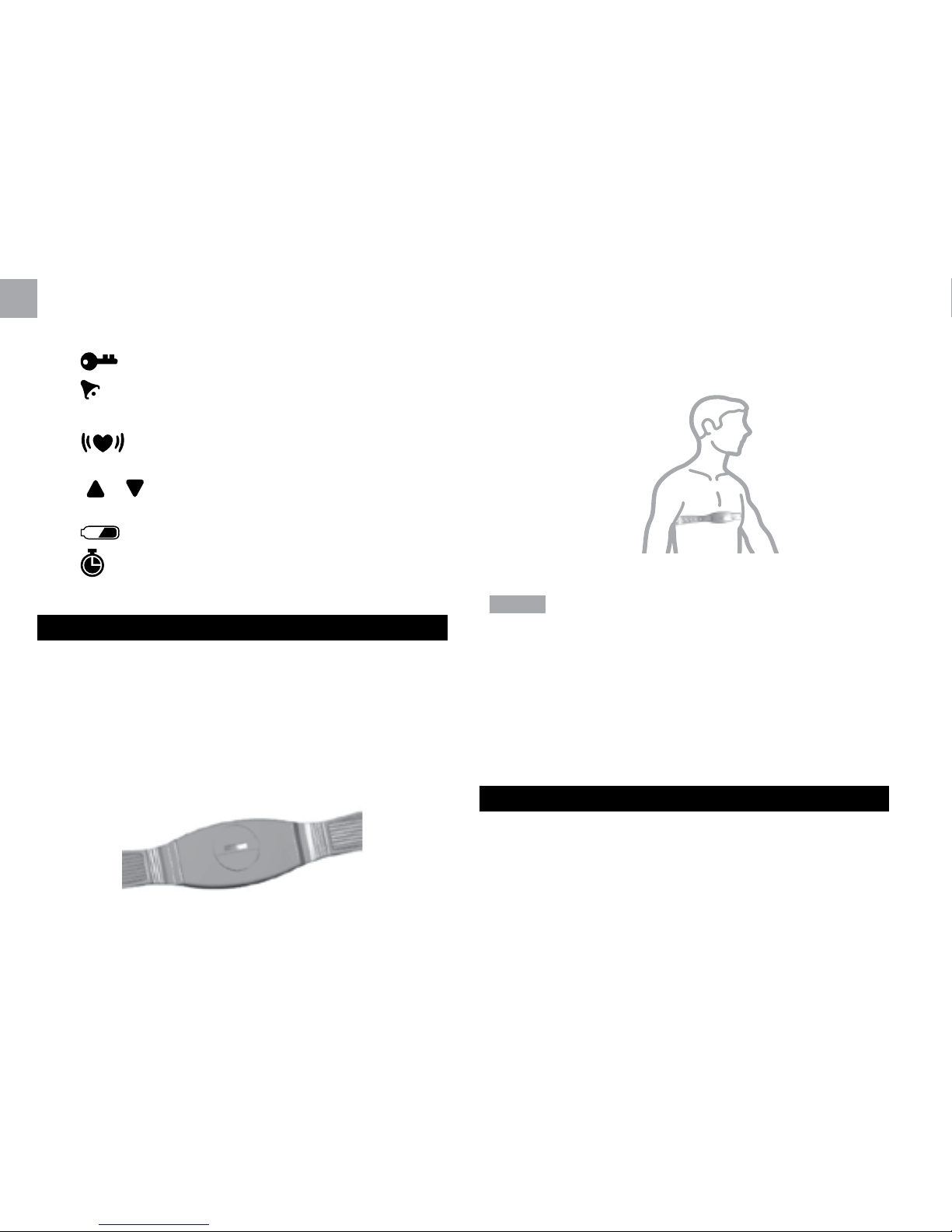

10. heart rate icon, fl ashes to indicate successful
connection with the chest belt.
11. / Upper / Lower heart rate limits achieved
12. low battery icon
13. stopwatch icon
THE TRANSMITTER
The transmitter is used to count your heartbeat and
transmit the data to the receiver. To put it on:
1. Wet the conductive pads on the underside of the
transmitter with water or a conductive gel to help
establish a solid contact.
2. Strap the transmitter across the chest. Adjust the
strap until the transmitter sits snugly below the
pectoral muscles for an accurate heart rate signal.
HINTS
• The position of the transmitter affects its performance.
Move the transmitter along the strap for the best
transmission. Avoid areas with dense chest hair.
• In dry, cold climates, it takes the transmitter a while
to function steadily. This is normal, as the conductive
pads need a fi lm of sweat to improve contact with
the skin.

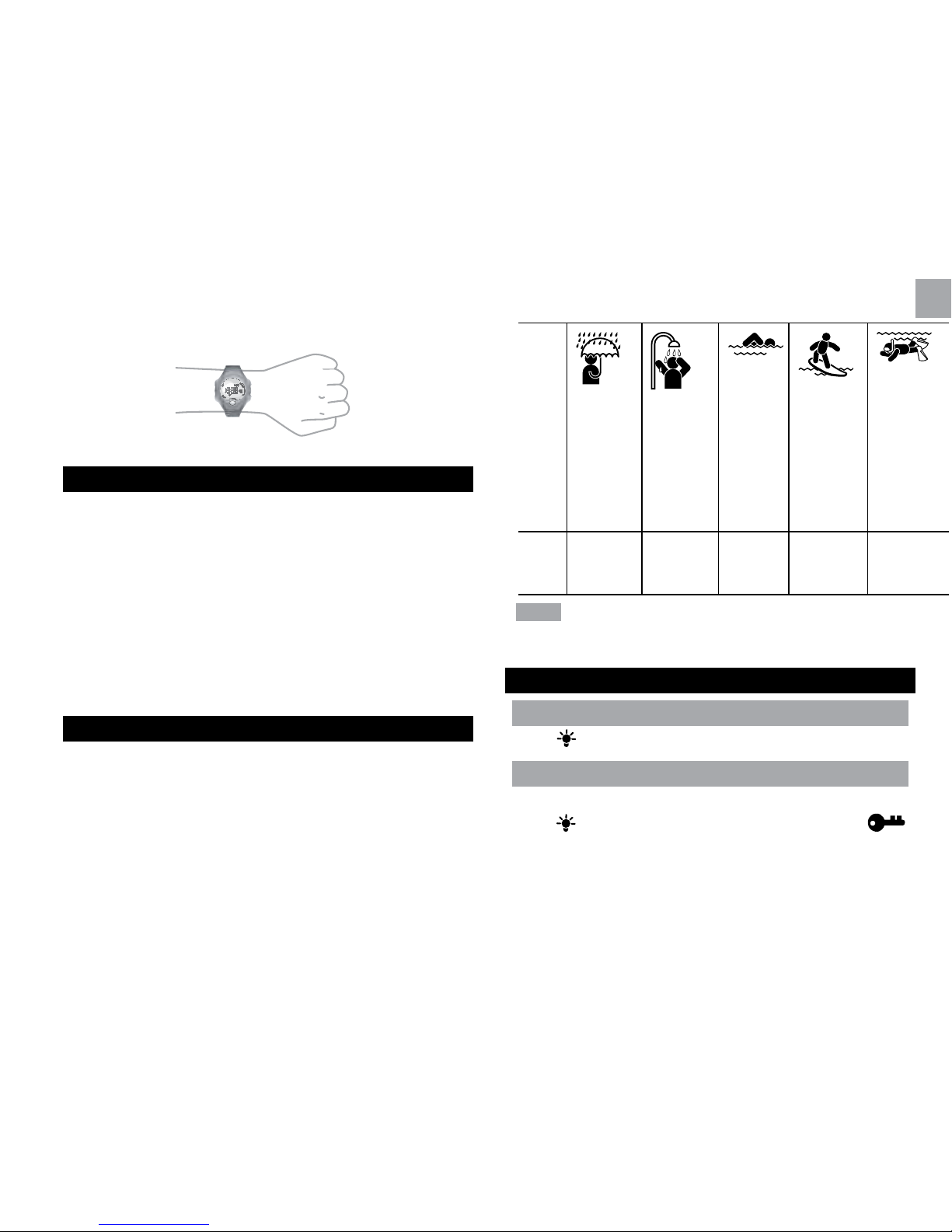

THE RECEIVER
The receiver comes in the format of a wristwatch.
SE128 EN R5.indd 4 2007.7.6 10:27:28 AM

EN
5
EFFECTIVE RANGE
The transmitter and receiver will start transmitting and
receiving signals after the batteries are in place. When
the battery is full, both units can be worn or mounted up
to 76 cm (30 inches) apart.
If signals become unsteady:
• Shorten the distance between the transmitter and
receiver.
• Re-adjust the position of the transmitter.
• Check the batteries. Replace them when
necessary.
USE IN THE WATER
The SE128 wristwatch is water-resistant up to 50
meters (164 feet).
RAIN
SPLASHES
ETC
SHOWERING
(WARM/
COOL
WATER
ONLY)
LIGHT
SWIMMING
/ SHALLOW
WATER
SHALLOW
DIVING/
SURFING/
WATER
SPORTS
SNORKELING
/ DEEP
WATER
DIVING
50 M /
164
FEET OK OK OK OK NO
NOTE Set the unit before exposing it to excessive water.
Pressing the keys while in the water or during heavy
rainstorms may cause water to enter the unit.
OPERATION
THE BACKLIGHT
Press to turn backlight ON for 5 seconds.
ACTIVATING KEYPAD LOCK
To toggle keypad lock ON / OFF:
Press and hold for 2 seconds. indicates
keypad is locked.
OPERATING MODES
CLOCK
ALARM STOPWATCH
SE128 EN R5.indd 5 2007.7.6 10:27:32 AM

EN
6
Press MODE to switch between:
• Clock mode
• Alarm mode
• Stopwatch mode
HR / KCAL MODE
HEART RATE MEASURMENT
Press / KCAL to enter HR Measurement mode. Press
MODE to return to previous mode.
NOTE When no signals are received or the measurement is
out of range for five minutes, the receiver will automatically
return to the previous operating mode.
HEART RATE LIMITS
The heart rate limits help you determine if you are
exercising within your training zone.
• If you go above your limits will flash
• If you go below your limits will flash
To set the heart rate limits:
1. Press / KCAL to navigate to HR measurement
mode.
2. Press and hold MODE until appears.
3. Press SET to choose the lower limit, then press
MODE to confirm.
4. Press SET to choose the upper limit , then press
MODE to confirm.
NOTE The upper limit must exceed the lower limit. The
transmitter will adjust the ranges automatically according to
the data entered. You can also activate the heart rate limit
alert function, so the transmitter will emit a beeping sound
when the limits are exceeded.
To activate the heart rate limits alarm:
1. Press / KCAL to Navigate to HR measurement
Mode.
2. Press and hold / KCAL.

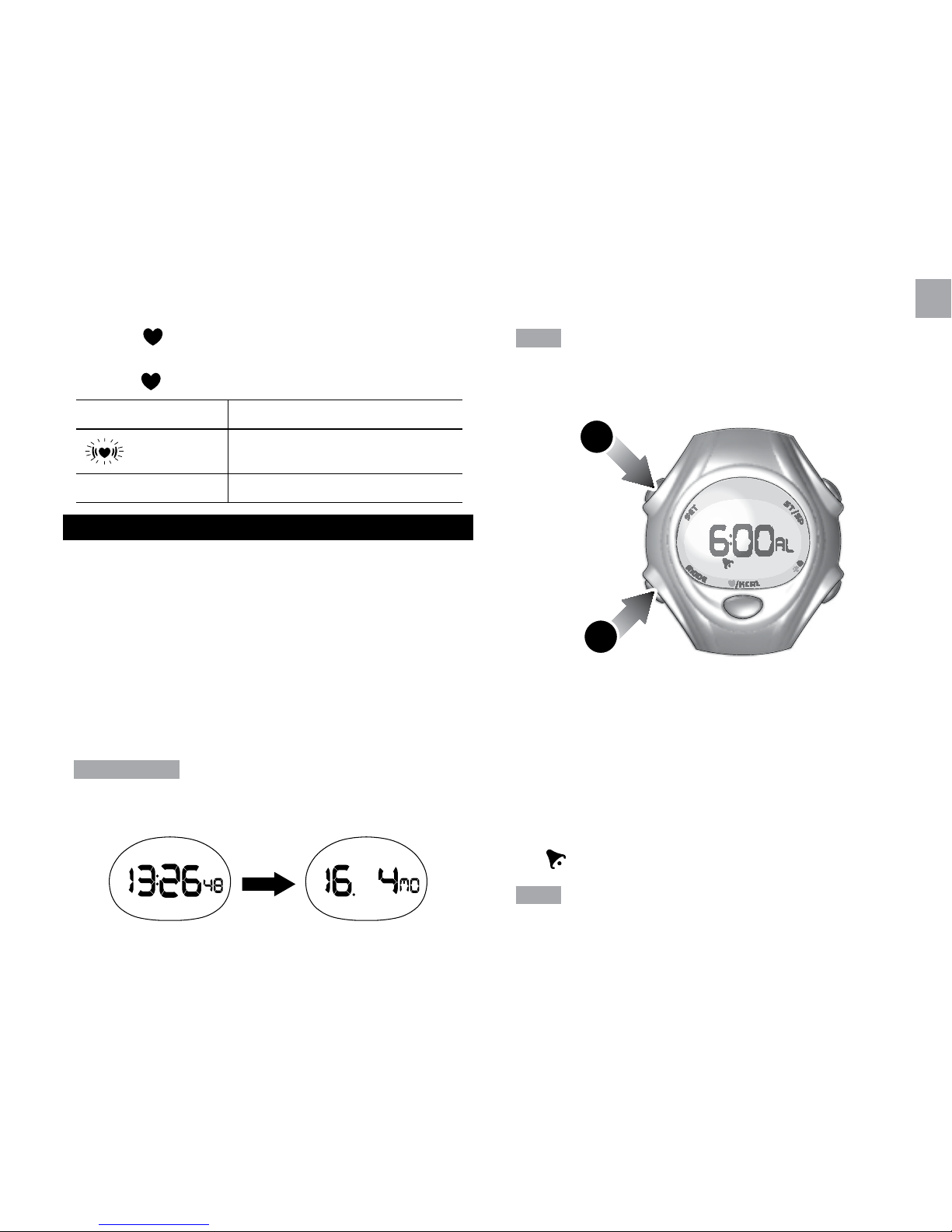

ICON HIGH / LOW ALARM
On
No Icon Off
TIME AND DATE
To set the time and date:
1. Press MODE to navigate to Clock mode.
2. Press and hold MODE to enter settings.
3. Press SET to scroll through the setting options. The
setting sequence is as follows: 12 / 24-hour time;
SE128 EN R5.indd 6 2007.7.6 10:27:35 AM

EN
7
hour; minute; day-month / month-day; month; day;
day of the week.
4. Press MODE to confi rm.
TIP Press and hold SET to rapidly scroll through value
settings.

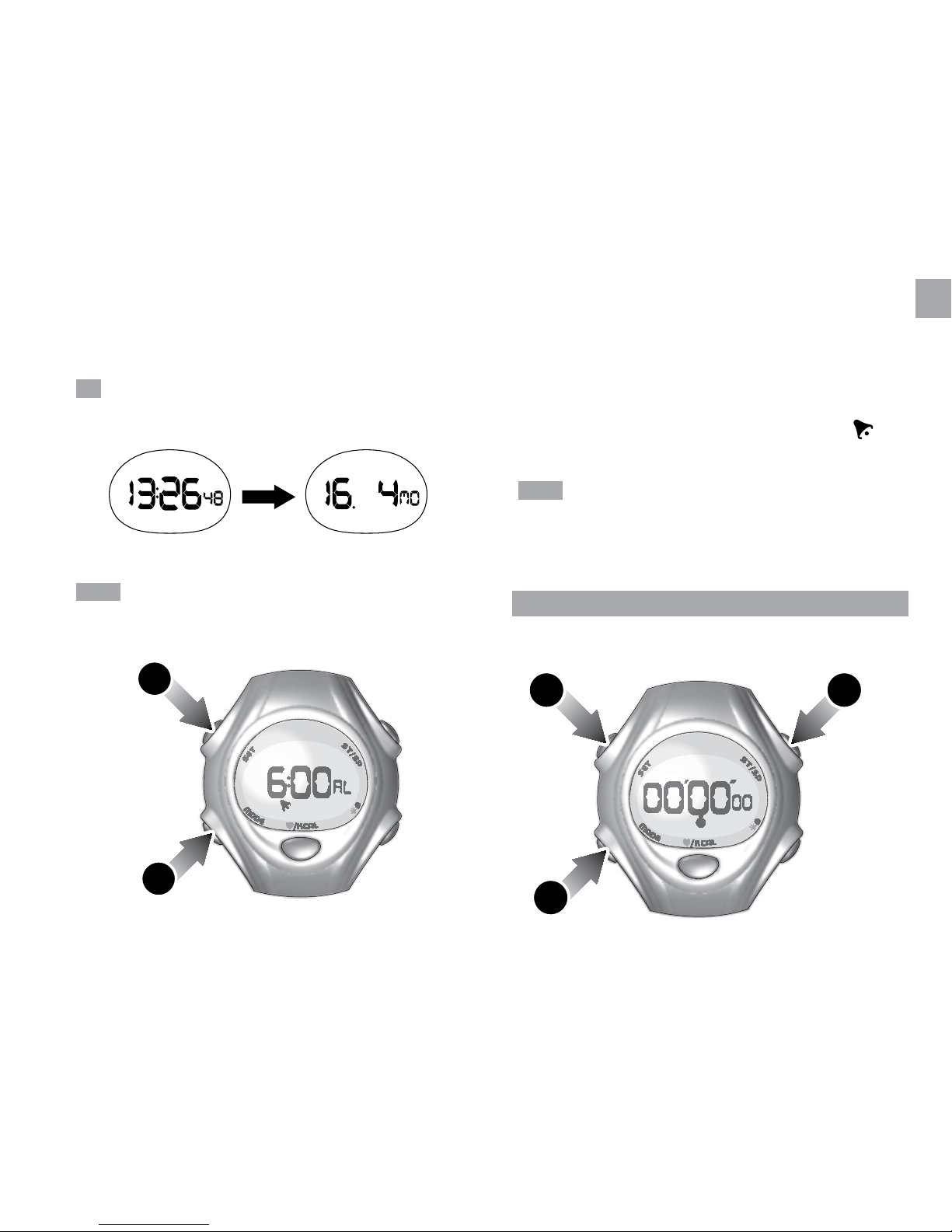

To display the date:
Press SET in Clock mode.
NOTE If no key is pressed for ten seconds, the display will
return to Clock mode.
To set the alarm:
• Press MODE to navigate to Alarm mode.
2
1
• Press and hold MODE to enter settings.
• Press SET to scroll through the setting options. The
setting sequence is as follows: hour; minute.
• Press MODE to confi rm.
To activate or deactivate the alarm:
1. Press MODE to navigate to Alarm mode.
2. Press SET to turn the alarm on or off. A will
indicate that the alarm has been activated.
NOTE When the alarm clock is activated, it will sound at
the set time every day. Press any button to stop the alarm
for that day. The alarm clock is still active and will set off
again the following day.
STOPWATCH
To use the stopwatch:
• Press MODE to Navigate to Stopwatch mode.
1
32
SE128 EN R5.indd 7 2007.7.6 10:27:38 AM

EN
8
• Press ST/SP to start the stopwatch.
• Press ST/SP to stop the stopwatch.
• Press and hold SET to reset.
NOTE Unless you stop the stopwatch, “ ” will blink in all
modes to remind you that the stopwatch is still timing.
USER DATA
To access the full benefits of this product, set up your
user data before you exercise. This will automatically
enable the watch to calculate the level of calories
burned when exercising. This information helps you
track your progress over time.
To set user data:
1. Press / KCAL to navigate to HR measurement
mode.
2. Press and hold to MODE to enter USER DATA
mode.
3. Press MODE to scroll through the setting options.
The setting sequence is as follows: set Lower
limit; set Upper limit; set Age; set Weight unit; set
Weight.
4. Press SET to increase values.
5. Press MODE to confirm.
NOTE You must enter your user data to enable the calorie
count function.
To view the amount of calories burnt:
• Press / KCAL to navigate to HR mode.
• Press / KCAL to view calories burnt.
NOTE The calorie display will only appear for approximately
3 seconds.
ADDITIONAL INFORMATION
BATTERY
The SE128 uses a CR2032 lithium battery for the
transmitter and a CR2032 for the receiver. Both are
included with the unit. When the receiver battery is
running low, the low battery indicator will light up
on the watch display.
If the heart rate readings become erratic or stop, your
transmitter battery may need replacing.

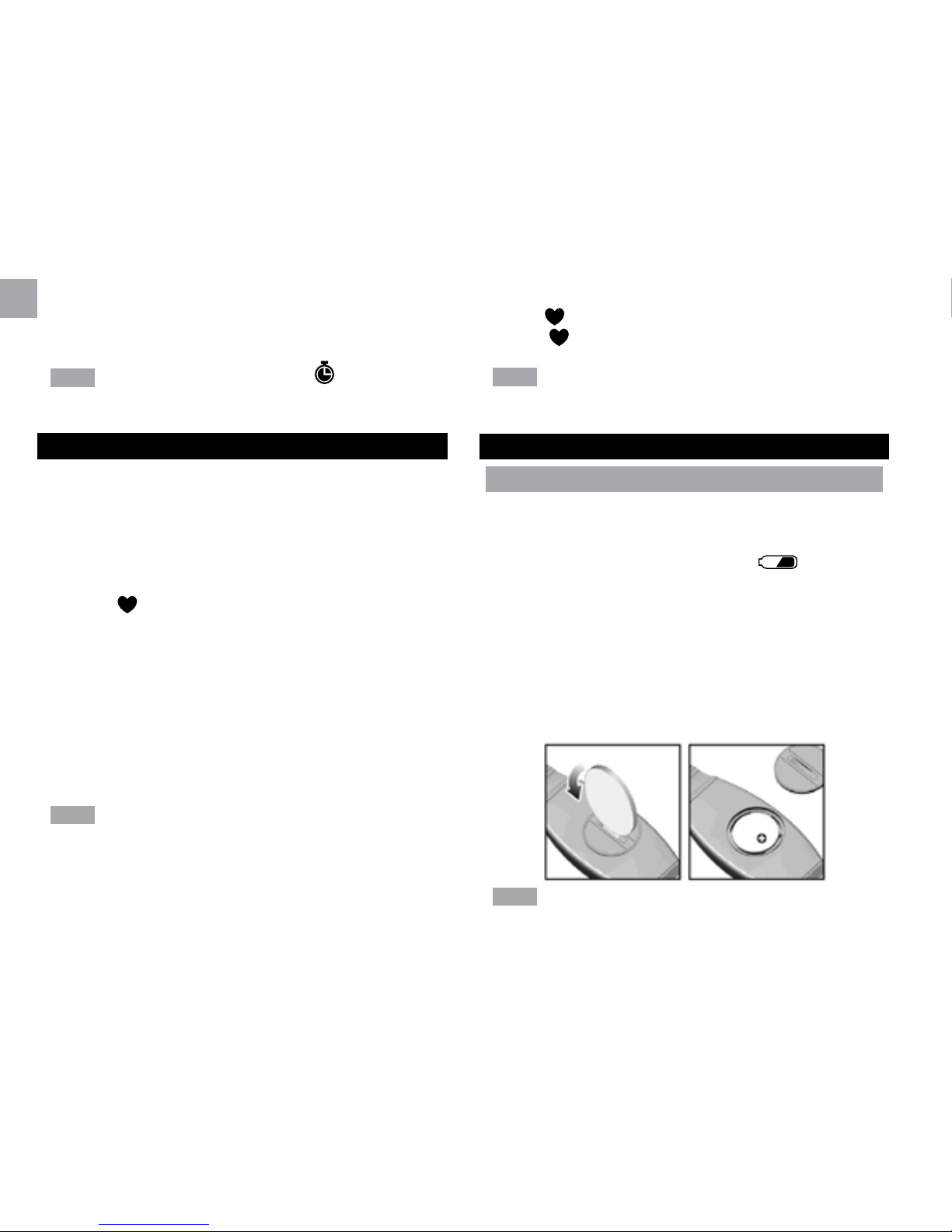

To change the battery:
1. Open the transmitter battery lid with a coin by turning
it counterclockwise.
2. Insert a new CR2032, 3V lithium battery.
3. Replace the battery compartment door.
NOTE Take care not to touch the two contacts otherwise
the battery can discharge. If you are unsure about the
SE128 EN R5.indd 8 2007.7.6 10:27:40 AM

EN
9
procedure consult your dealer.
ENERGY SAVING FEATURE
If the watch receives no transmitter signal after 5
minutes, the SE128 will switch back to the previous
display mode.
SPECIFICATIONS
Real time clock 12/24 hour with hour /
minute / second
Stopwatch 00:00:00 to 29:59:59 (hrs:
min: sec)
Heart rate 30 - 240 bpm
Upper limit 80 - 240 bpm
Lower limit 30 - 220 bpm
Calorie range 0 - 9999 kcal
Power
Watch 1 x CR2032 3V
battery
Chest belt 1 x CR2032 3V
battery
Operating temp -10°C to +50°C (14°F to
122°F)
Storage temp -20°C to +60°C (-4°F to
140°F)
Water resistant Up to 50 meters (164 feet)
without pressing keys
PRECAUTIONS
To ensure you use your product correctly and safely,
read these warnings and the entire user manual before
using the product:
• Use a soft, slightly moistened cloth. Do not use
abrasive or corrosive cleaning agents, as these may
cause damage. Use luke warm water and mild soap
to clean the watch and chest belt thoroughly after
each training session. Never use the products in hot
water or store them when wet.
• Do not bend or stretch the transmitter part of the
chest belt.
• Do not subject the product to excessive force, shock,
dust, temperature changes, or humidity. Never
expose the product to direct sunlight for extended
periods. Such treatment may result in malfunction.
• Do not tamper with the internal components. Doing
so will terminate the product warranty and may
cause damage. The main unit contains no user-
serviceable parts.
• Do not scratch hard objects against the LCD display
as this may cause damage.
• Take precautions when handling all battery types.
• Remove the batteries whenever you are planning to
store the product for a long period of time.
• When replacing batteries, use new batteries as
specified in this user manual.
• The product is a precision instrument. Never attempt
to take this device apart. Contact the retailer or our
customer service department if the product requires
servicing.
• Do not touch the exposed electronic circuitry, as
there is a danger of electric shock.
• Do not use the chest belt in aircrafts or hospitals.
The use of radio frequency products can cause
SE128 EN R5.indd 9 2007.7.6 10:27:40 AM

EN
10
malfunctions in the control devices of other
equipment.
• Check all major functions if the device has not been
used for a long time. Maintain regular internal testing
and cleaning of your device. Have your watch
serviced by an approved service center annually.
• When disposing of this product, do so in accordance
with your local waste disposal regulations.
• Due to printing limitations, the displays shown in this
manual may differ from the actual display.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products.
If you’re in the US and would like to contact our
Customer Care department directly, please visit:
www2.oregonscientific.com/service/support.asp
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp.
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Heart
Rate Monitor (model: SE128) is in compliance with
EMC directive 89/336/CE. A copy of the signed and
dated Declaration of Conformity is available on request
via our Oregon Scientific Customer Service.
SE128 EN R5.indd 10 2007.7.6 10:27:40 AM
