Oregon Scientific BAR182HG User manual

1
GB
DIGITAL WEATHER FORECASTER
WITH REMOTE THERMO-HYGRO
SENSOR AND RADIO CONTROLLED
CLOCK
MODEL NO.: BAR182HG
USERS MANUAL
INTRODUCTION
Congratulations on your purchase of the Weather forecaster ith
cable free sensor and radio-controlled calendar clock (BAR182HG).
This unit has a large four-line liquid crystal display (LCD) for
displaying eather forecast information, in/outdoor temperatures
and relative humidity, radio frequency (RF) controlled calendar
clock, clock display of 2nd time-zone and dual daily alarms. Also,
the main unit can support up to three remote sensors.
Other features include eekday display in four abbreviated
languages, crescendo alarm and interchangeable clock display
modes.
MAIN FEATURES: MAIN UNIT
MODEL NO. BAR182HG
CLOCK
ON
ON
/
/
OFF
OFF
ON
ON
/
/
OFF
OFF
HI
HI
/
/
LO
RESET
TEMP RH AL
A
I
A1
B
C
D
E
F
G
H
J
K
R
S
Q
L
M
N
O
P
All manuals and user guides at all-guides.com
all-guides.com

2
GB
A . FRONT DISPLAY
A four line easy-to-read LCD
A1. WEATHER FORECAST WINDOW
Graphically illustrates a eather forecast
B. [ ] BATTERY-LOW INDICATOR
Activates hen the remote-sensor or main unit battery po er
is lo
C. [ ] RADIO-RECEPTION SIGNAL
Indicates the condition of radio reception
D. [
1
] / [
2
] ALARM-ON ICONS
Appears hen the alarm is activated
E. [((1))] / [(( ))] ALARM ICONS
Appears hen the respective alarm time is displayed
F. [ MODE ] BUTTON
Changes the display mode of the clock and alters time/date
setting
G [ ALARM ] BUTTON
Displays the alarm time, or changes the alarm set time
H. [ MEM ] BUTTON
Displays minimum and maximum temperature and
humidity readings, and erases memory data
I. [ CHANNEL ] BUTTON
Toggles among the remote sensor channels
CLOCK :
J. [ ON / OFF ] BUTTON
Enables or disables the daily alarms
K. [ ] BUTTON
Decreases the value of a setting
L. [ I ] BUTTON
Advances the value of a setting
TEMP. % RH ALARM :
M. [ ON / OFF ] BUTTON ( TEMP/% RH ALARM )
Enables / disables HI/LO temp alarm and HI/LO % RH alarm
N. [ HI/LO ] BUTTON ( TEMP/% RH ALARM )
- Set the upper or lo er temperature and humidity alarm limits
- Confirms alarm settings
O. [ I ] BUTTON ( TEMP/% RH ALARM )
Advances the value of the settings for the HI / LO temperature
and humidity alarm.
P. [ RESET ] BUTTON
Returns all settings to default values
Q. WALL-MOUNT HOLE
For mounting the unit on a all
R. BATTERY COMPARTMENT
Accommodates four (4) UM-3 or AA size batteries
S. REMOVABLE TABLE STAND
For standing the main unit on a flat surface
All manuals and user guides at all-guides.com

3
GB
FEATURES: REMOTE THERMO-HYGRO
SENSOR
A. TWO-LINE LCD
Displays the current temperature and humidity monitored by
the remote unit
B. LED INDICATOR
Flashes hen the remote unit transmits a reading
C. °C/°F SLIDE SWITCH
Selects bet een Centigrade (°C) and Fahrenheit (°F)
D. CHANNEL SLIDE SWITCH
Designates the remote unit Channel 1, Channel 2 or Channel
3
E. RESET
Returns all settings to default values
F. BATTERY COMPARTMENT
Accommodates t o UM-4 or AAA-size batteries
G. BATTERY DOOR
H. WALL-MOUNT HOLDER
Supports the remote unit in all-mounting
I. REMOVABLE TABLE STAND
For standing the remote unit on a flat surface
BEFORE YOU BEGIN
For best operation,
1. Assign different channels to different remote units.
2. Insert batteries for remote units before doing so for the main unit.
3. Place the main unit as close as possible next to the remote unit,
reset the main unit after installing batteries. This ill ensure
All manuals and user guides at all-guides.com

4
GB
easier synchronization bet een the transmission and reception
of signals.
4. Position the remote unit and main unit ithin effective
transmission range, hich, in usual circumstances, is up to 30
meters.
Note that the effective range is vastly affected by the building
materials and here the main and remote units are positioned. Try
various set-ups for best result.
Though the remote units are eather proof, they should be placed
a ay from direct sunlight, rain or sno .
BATTERY INSTALLATION: MAIN UNIT
1. Remove the Table-stand from the main unit as sho n.
2. Gently slide do n the battery compartment door.
3. Insert four UM-3 or AA size alkaline batteries.
4. Replace the battery compartment door and the table stand.
BATTERY AND CHANNEL INSTALLATION:
REMOTE UNIT
The remote thermo-hygro sensor unit uses t o (2) UM-4 or AAA
size alkaline batteries.
Follo these steps to install / replace batteries:
1. Remove the scre s on the battery compartment.
2. Select the channel number on the [CHANNEL] slide s itch.
3. Select the temperature display unit on the °C/°F slide s itch.
4. Insert the batteries strictly according to the polarities sho n
therein.
5. Replace the battery compartment door and secure its scre s.
Replace the batteries hen the lo -battery indicator of the particular
channel lights up on the main unit. (Repeat the steps described in
section BEFORE YOU BEGIN)
Note that once a channel is assigned to a remote unit, you can only
change it by removing the batteries or resetting the unit.
All manuals and user guides at all-guides.com

5
GB

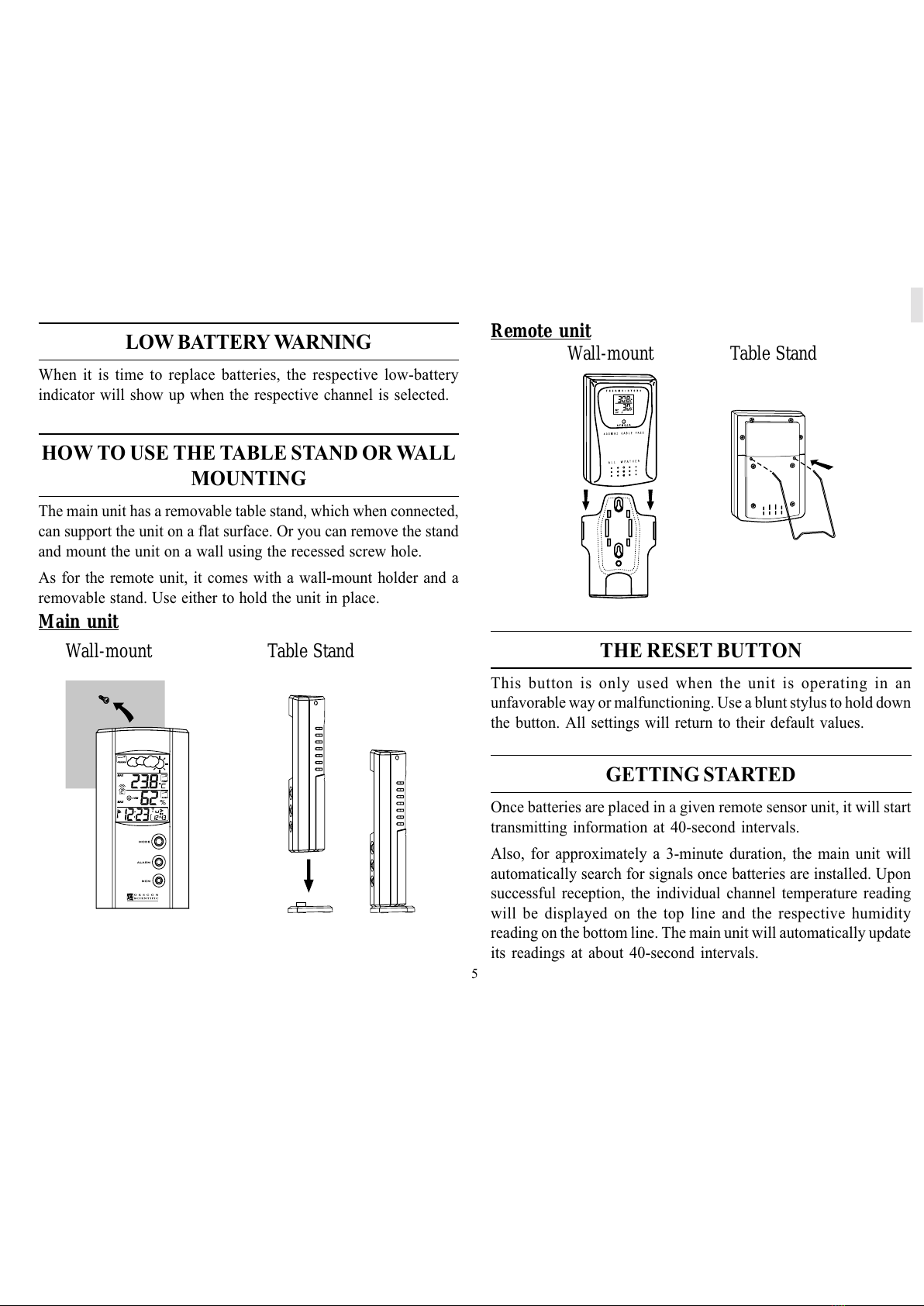

LOW BATTERY WARNING
When it is time to replace batteries, the respective lo -battery
indicator ill sho up hen the respective channel is selected.
HOW TO USE THE TABLE STAND OR WALL
MOUNTING
The main unit has a removable table stand, hich hen connected,
can support the unit on a flat surface. Or you can remove the stand
and mount the unit on a all using the recessed scre hole.
As for the remote unit, it comes ith a all-mount holder and a
removable stand. Use either to hold the unit in place.
Main unit
Wall-mount Table Stand
Remote unit
Wall-mount Table Stand
THE RESET BUTTON
This button is only used hen the unit is operating in an
unfavorable ay or malfunctioning. Use a blunt stylus to hold do n
the button. All settings ill return to their default values.
GETTING STARTED
Once batteries are placed in a given remote sensor unit, it ill start
transmitting information at 40-second intervals.
Also, for approximately a 3-minute duration, the main unit ill
automatically search for signals once batteries are installed. Upon
successful reception, the individual channel temperature reading
ill be displayed on the top line and the respective humidity
reading on the bottom line. The main unit ill automatically update
its readings at about 40-second intervals.
All manuals and user guides at all-guides.com

6
GB
If no signals are received, blanks --- ill be displayed and the
kinetic ave icon ill not sho .
To force a signal search:
 Press and hold [CHANNEL] & [MEM] for 2-seconds to
enforce a 3-minute search.
This is useful in synchronizing the transmission and reception of
the remote and main units.
Repeat this step henever you find discrepancies bet een the
reading sho n on the main unit and that on the respective remote
unit.
HOW TO CHECK REMOTE AND INDOOR
TEMPERATURE & HUMIDITY
Display of readings from a remote sensor or the main unit is a one-
step procedure. The remote sensor channel or the main unit display
is indicated in a box under the kinetic- ave icon.
To display temperature / humidity readings from the main unit:
 Press [CHANNEL] until a dot is displayed in the box under the
kinetic- ave.
To display temperature / humidity readings from a remote
sensor:
 Press [CHANNEL] until the appropriate remote sensor channel
is displayed in the box under the kinetic- ave.
DISCONNECTED SIGNALS
If ithout obvious reasons the display for a particular channel goes
blank, press [CHANNEL] & [MEM] to enforce an immediate search.
If that fails, check:
1. The remote unit of that channel is still in place.
2. The batteries of both the remote unit and main unit. Replace as
necessary.
Note that hen the temperature falls belo freezing point, the
batteries of outdoor units ill freeze, lo ering their voltage supply
and the effective range.
3. The transmission is ithin range and path is clear of obstacles
and interference. Shorten the distance hen necessary.
TRANSMISSION COLLISION
Signals from other household devices, such as door bells, home
security systems and entry controls, may interfere ith those of this
product and cause temporarily reception failure. This is normal and
does not affect the general performance of the product. The
transmission and reception of temperature and humidity readings
ill resume once the interference recedes.
Indoor
Display
Designated
Display
Remote
Display
Channel 1
Kinetic-wave
Icon
Remote
Display
Channel 2
Remote
Display
Channel 3
All manuals and user guides at all-guides.com
all-guides.com

7
GB

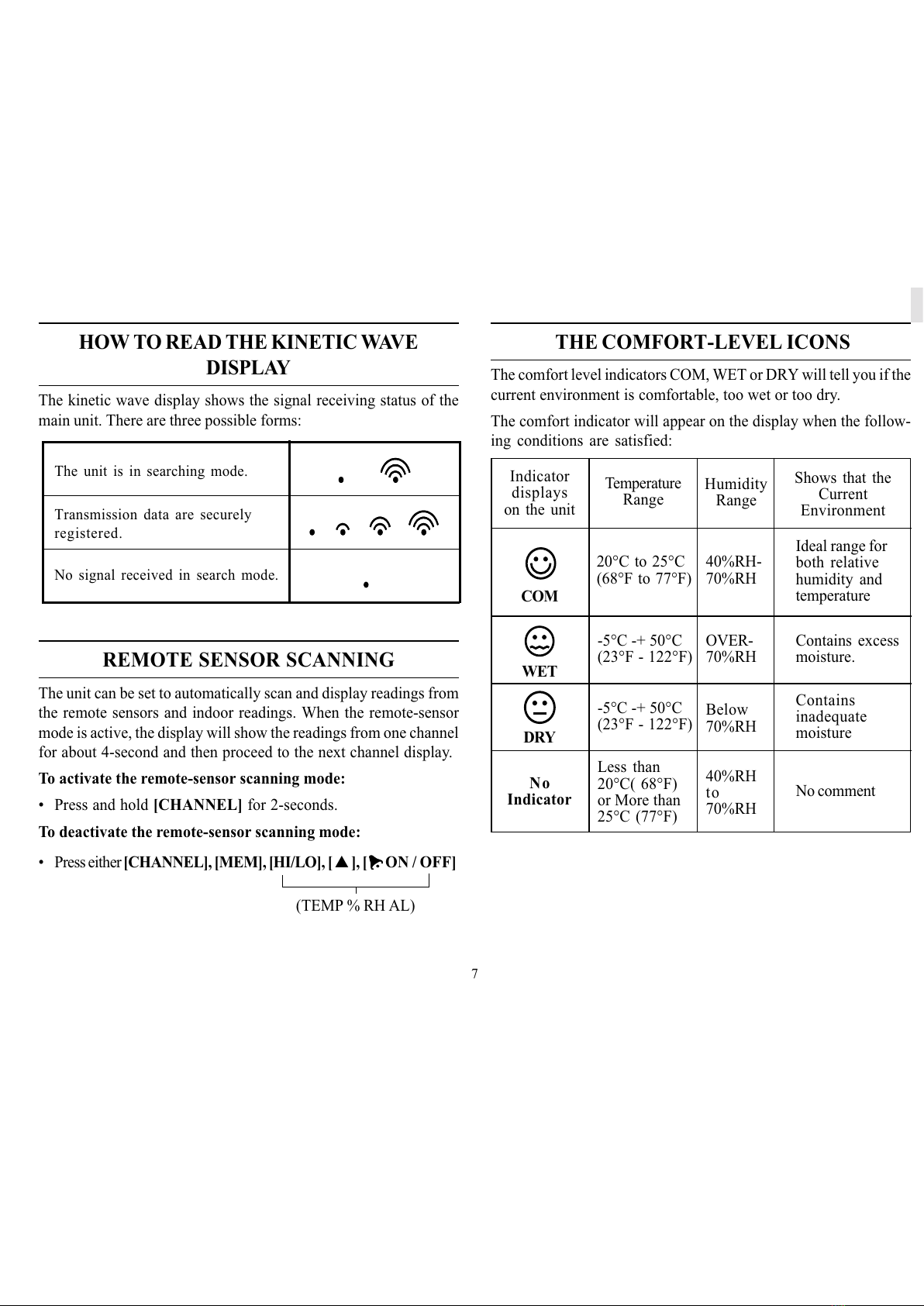

HOW TO READ THE KINETIC WAVE
DISPLAY
The kinetic ave display sho s the signal receiving status of the
main unit. There are three possible forms:
The unit is in searching mode.
Transmission data are securely
registered.
No signal received in search mode.
REMOTE SENSOR SCANNING
The unit can be set to automatically scan and display readings from
the remote sensors and indoor readings. When the remote-sensor
mode is active, the display ill sho the readings from one channel
for about 4-second and then proceed to the next channel display.
To activate the remote-sensor scanning mode:
 Press and hold [CHANNEL] for 2-seconds.
To deactivate the remote-sensor scanning mode:
 Press either [CHANNEL], [MEM], [HI/LO], [ I ], [ ON / OFF]
(TEMP % RH AL)
THE COMFORT-LEVEL ICONS
The comfort level indicators COM, WET or DRY ill tell you if the
current environment is comfortable, too et or too dry.
The comfort indicator ill appear on the display hen the follo -
ing conditions are satisfied:
Indicator
displays
on the unit
COM
WET
Temperature
Range
20°C to 25°C
(68°F to 77°F)
-5°C -+ 50°C
(23°F - 122°F)
-5°C -+ 50°C
(23°F - 122°F)
Humidity
Range
40%RH-
70%RH
OVER-
70%RH
Belo
70%RH
Sho s that the
Current
Environment
Ideal range for
both relative
humidity and
temperature
Contains excess
moisture.
Contains
inadequate
moisture
No
Indicator
Less than
20°C( 68°F)
or More than
25°C (77°F)
40%RH
to
70%RH
No comment
DRY
All manuals and user guides at all-guides.com

8
GB
TEMPERATURE, HUMIDITY & PRESSURE
TREND INDICATORS
The temperature-trend, humidity-trend and pressure trend indicators
sho the trends of collected readings. Arro s indicate a rising,
steady or falling trend.
Note: If the readings goes above or belo the measuring range of
the main unit or the remote unit ( stated in specification), the display
ill sho HHH or LLL.
MAXIMUM AND MINIMUM TEMPERATURE
AND HUMIDITY
The maximum and minimum recorded temperature and humidity
readings ill automatically be stored in the memory.
To display the maximum and minimum display memory:
1. Select the channel to be checked.
2. Press [MEM] once to display the maximum temperature
and humidity and again the minimum temperature and humidity.
The respective indicators, MAX or MIN ill be displayed.
To clear the memory:
 Press and hold [MEM] for 2-seconds.
If you press [MEM] no , the maximum and minimum recordings ill
have the same values as the current ones until different readings are
recorded.
HOW TO USE CHANNEL-1 TEMPERATURE/
HUMIDITY ALARM
Upper and lo er temperature and humidity limits for channel-1 can
be set so that an alarm activates hen the limits are exceeded.
The high and lo temperature and humidity displays are selected
by sequentially pressing [ HI/LO ].
Rising
Arrow indicator
Humidity Trend Steady Falling
Rising
Arrow indicator
Temperature
Trend Steady Falling
Rising
Arrow indicator
Pressure Trend Steady Falling
All manuals and user guides at all-guides.com

9
GB

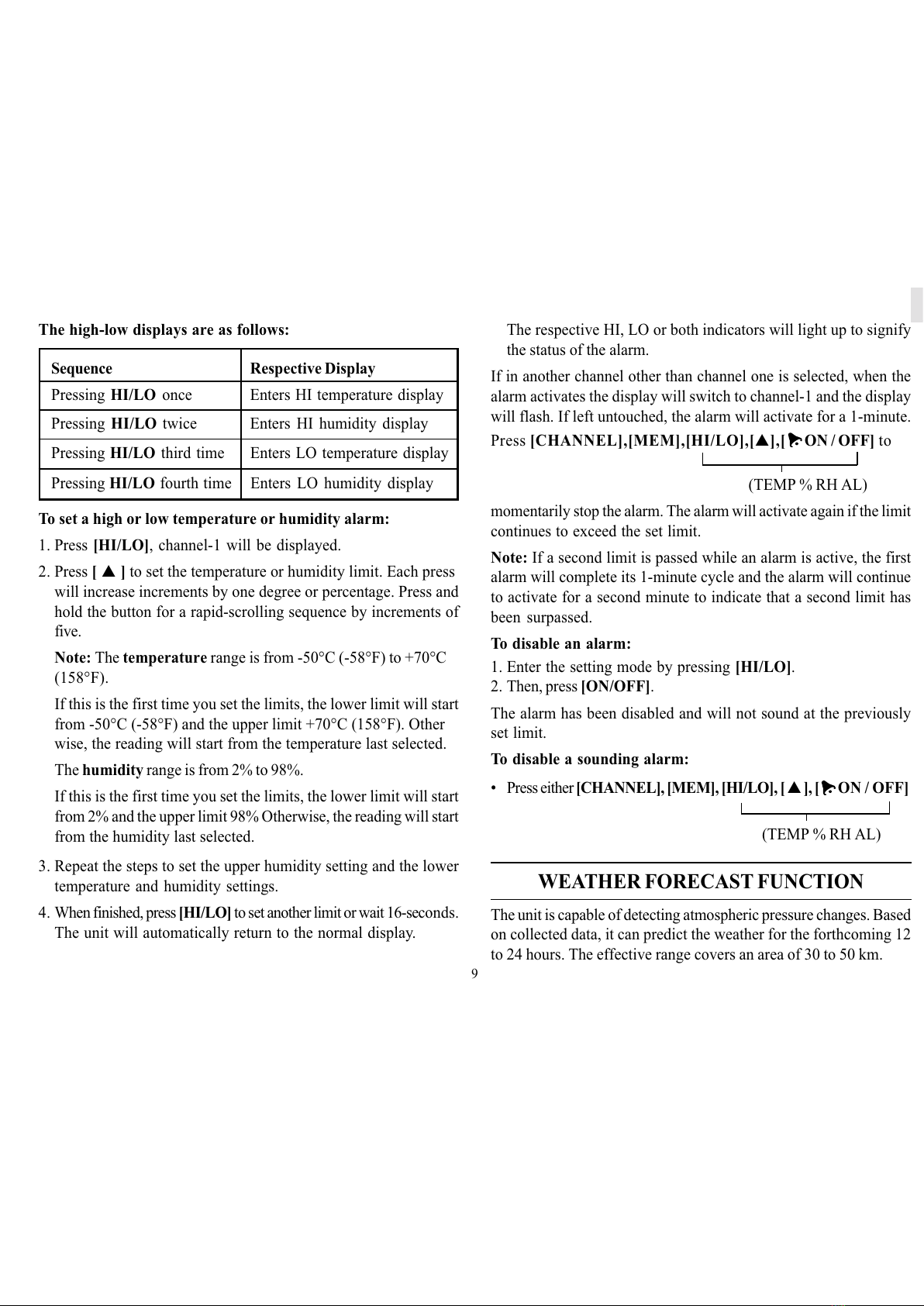

The high-low displays are as follows:
To set a high or low temperature or humidity alarm:
1. Press [HI/LO], channel-1 ill be displayed.
2. Press [I] to set the temperature or humidity limit. Each press
ill increase increments by one degree or percentage. Press and
hold the button for a rapid-scrolling sequence by increments of
five.
Note: The temperature range is from -50°C (-58°F) to +70°C
(158°F).
If this is the first time you set the limits, the lo er limit ill start
from -50°C (-58°F) and the upper limit +70°C (158°F). Other
ise, the reading ill start from the temperature last selected.
The humidity range is from 2% to 98%.
If this is the first time you set the limits, the lo er limit ill start
from 2% and the upper limit 98% Other ise, the reading ill start
from the humidity last selected.
3. Repeat the steps to set the upper humidity setting and the lo er
temperature and humidity settings.
4. When finished, press [HI/LO] to set another limit or ait 16-seconds.
The unit ill automatically return to the normal display.
The respective HI, LO or both indicators ill light up to signify
the status of the alarm.
If in another channel other than channel one is selected, hen the
alarm activates the display ill s itch to channel-1 and the display
ill flash. If left untouched, the alarm ill activate for a 1-minute.
Press [CHANNEL],[MEM],[HI/LO],[I],[ ON / OFF] to
(TEMP % RH AL)
momentarily stop the alarm. The alarm ill activate again if the limit
continues to exceed the set limit.
Note: If a second limit is passed hile an alarm is active, the first
alarm ill complete its 1-minute cycle and the alarm ill continue
to activate for a second minute to indicate that a second limit has
been surpassed.
To disable an alarm:
1. Enter the setting mode by pressing [HI/LO].
2. Then, press [ON/OFF].
The alarm has been disabled and ill not sound at the previously
set limit.
To disable a sounding alarm:
 Press either [CHANNEL], [MEM], [HI/LO], [ I ], [ ON / OFF]
(TEMP % RH AL)
WEATHER FORECAST FUNCTION
The unit is capable of detecting atmospheric pressure changes. Based
on collected data, it can predict the eather for the forthcoming 12
to 24 hours. The effective range covers an area of 30 to 50 km.
Sequence Respective Display
Pressing HI/LO once Enters HI temperature display
Pressing HI/LO t ice Enters HI humidity display
Pressing HI/LO third time Enters LO temperature display
Pressing HI/LO fourth time Enters LO humidity display
All manuals and user guides at all-guides.com

10
GB
Cloudy
SunnyForecast Rainy
Slightly Cloudy
Indicator
displays
on the unit
NOTE:
1. The accuracy of a general pressure-based eather forecast is
about 70% to 75%.
2. The eather forecasts from this unit are predictions that cover
the next 12 to 24 hours. It may not necessarily reflect the current
situation.
3. The Sunny icon, as applies to nighttime, implies clear eather.
CALENDAR CLOCK DISPLAY MODES
The BAR182HG supports four time display modes in the sequence
of:
MODE 1. Hour-Minute-Second (of local time)
Day-Month (of local time)
MODE . Hour-Minute-Day of the Week (of local time)
Day-Month (of local time)
MODE 3. Hour-Minute-Day of the Week (of local time)
Hour-Minute (of alternate time zone)
MODE 4. Hour-Minute-Day of the Week (of second time zone)
Day-Month (of alternate time zone)
Each press on the [MODE] button ill toggle the display in the
above order.
Note: The bottom line of the display ill be replaced by the alarm
time if the [ ALARM ] button is pressed.
ABOUT RADIO RECEPTION
The BAR182HG is designed to automatically synchronize its
calendar clock once it is brought ithin range of the Frankfurt
DCF77 radio signal.
When the BAR182HG is ithin range, its radio-control mechanism
ill override all manual settings.
When the unit is receiving radio signal, the RADIO RECEPTION
signal ill start to blink. A complete reception generally takes
about 2 to 10 minutes, depending on the strength of the radio signal.
When the reception is complete, the RADIO RECEPTION signal
ill stop blinking. The strength of the reception ill remain until
the next scanning cycle backs place.
For better reception, place the clock a ay from metal objects and
electrical appliances to minimize interference.
All manuals and user guides at all-guides.com

11
GB

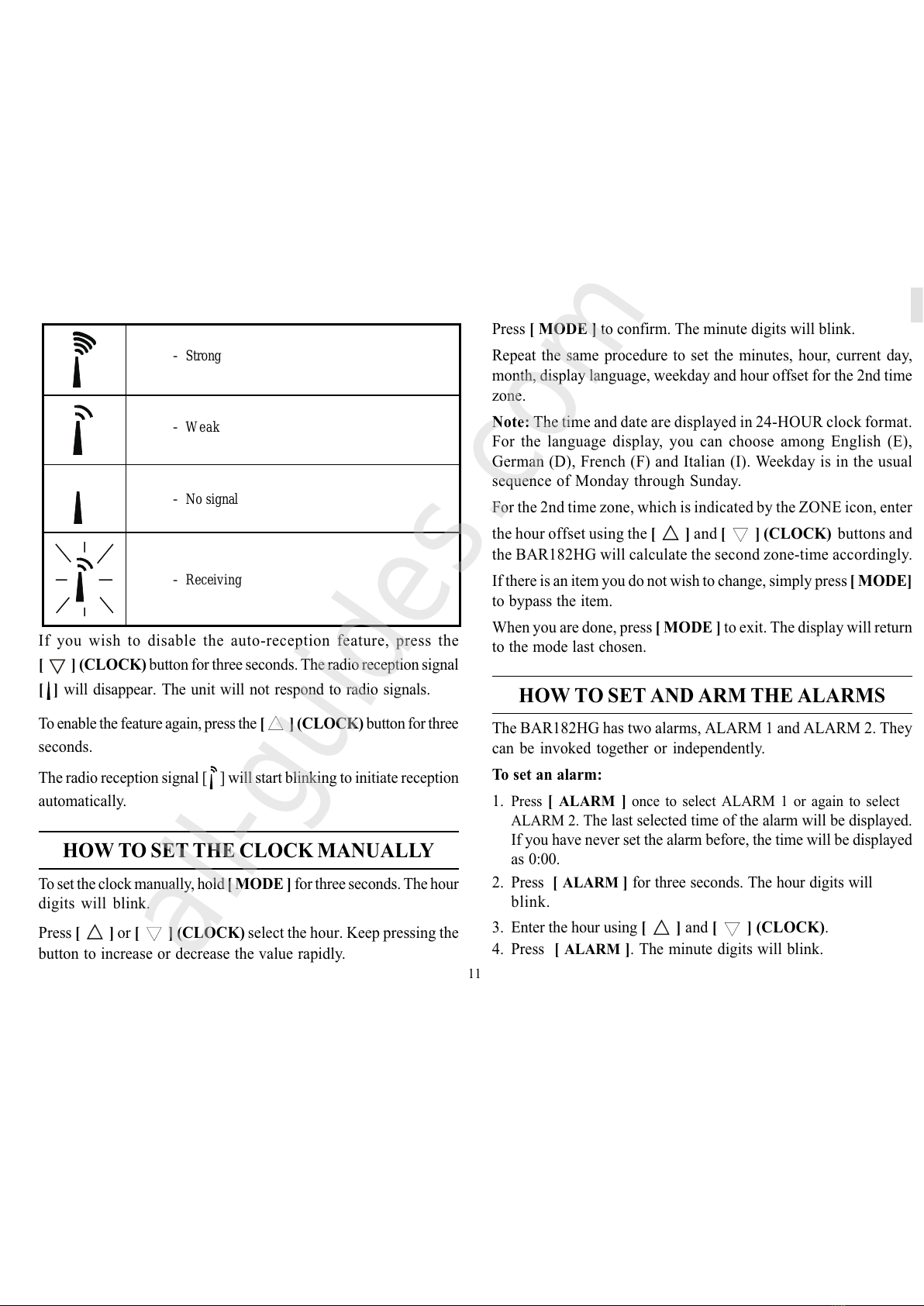

If you ish to disable the auto-reception feature, press the
[ ] (CLOCK) button for three seconds. The radio reception signal
[] ill disappear. The unit ill not respond to radio signals.
To enable the feature again, press the [ ] (CLOCK) button for three
seconds.
The radio reception signal [ ] ill start blinking to initiate reception
automatically.
HOW TO SET THE CLOCK MANUALLY
To set the clock manually, hold [ MODE ] for three seconds. The hour
digits ill blink.
Press [ ] or [ ] (CLOCK) select the hour. Keep pressing the
button to increase or decrease the value rapidly.
Press [ MODE ] to confirm. The minute digits ill blink.
Repeat the same procedure to set the minutes, hour, current day,
month, display language, eekday and hour offset for the 2nd time
zone.
Note: The time and date are displayed in 24-HOUR clock format.
For the language display, you can choose among English (E),
German (D), French (F) and Italian (I). Weekday is in the usual
sequence of Monday through Sunday.
For the 2nd time zone, hich is indicated by the ZONE icon, enter
the hour offset using the [ ] and [ ] (CLOCK) buttons and
the BAR182HG ill calculate the second zone-time accordingly.
If there is an item you do not ish to change, simply press [ MODE]
to bypass the item.
When you are done, press [ MODE ] to exit. The display ill return
to the mode last chosen.
HOW TO SET AND ARM THE ALARMS
The BAR182HG has t o alarms, ALARM 1 and ALARM 2. They
can be invoked together or independently.
To set an alarm:
1. Press [ ALARM ] once to select ALARM 1 or again to select
ALARM 2. The last selected time of the alarm ill be displayed.
If you have never set the alarm before, the time ill be displayed
as 0:00.
2. Press [ ALARM ] for three seconds. The hour digits ill
blink.
3. Enter the hour using [ ] and [ ] (CLOCK).
4. Press [ ALARM ]. The minute digits ill blink.
- Strong
- Weak
- No signal
- Receiving
All manuals and user guides at all-guides.com
all-guides.com

12
GB

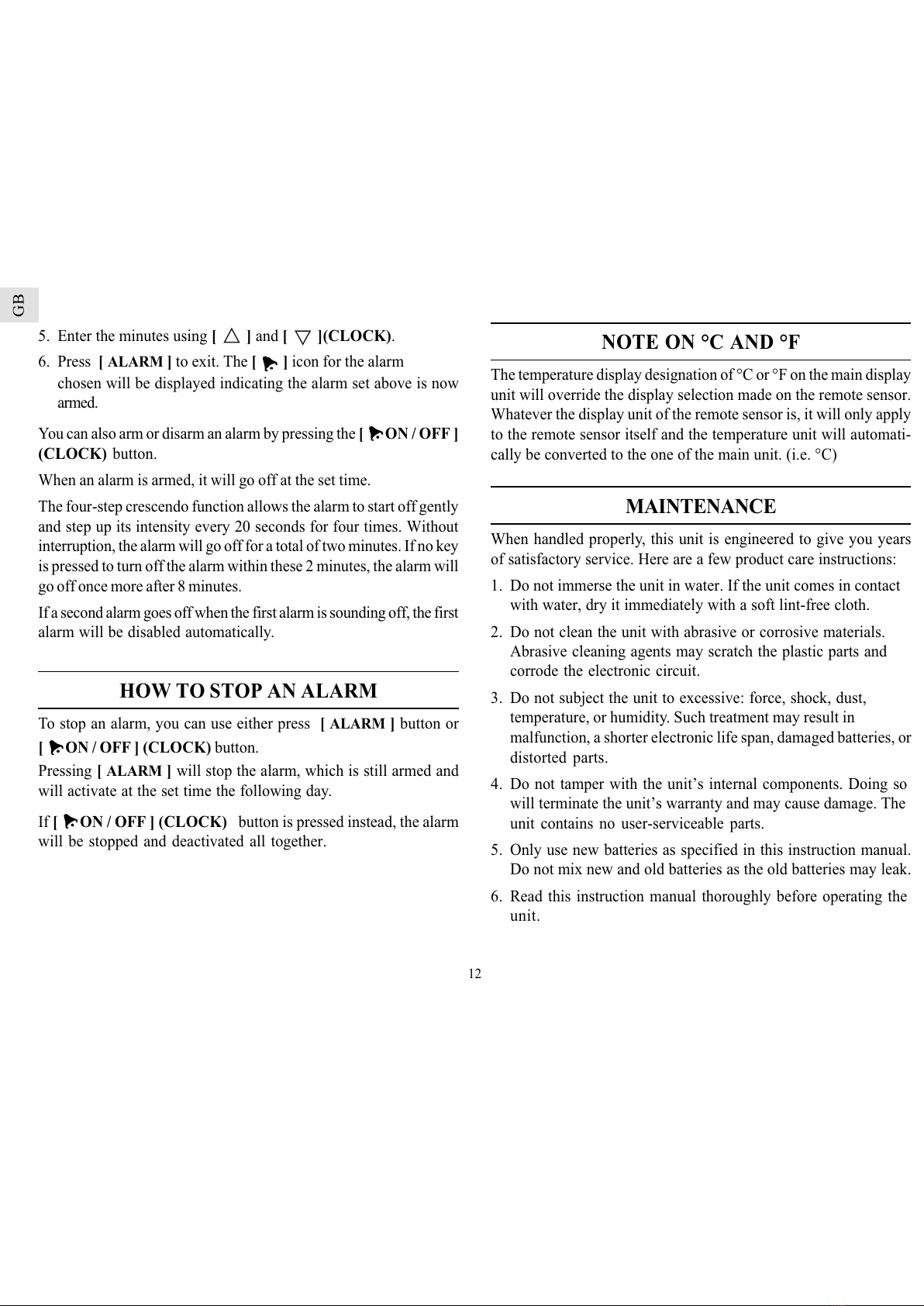

5. Enter the minutes using [ ] and [ ](CLOCK).
6. Press [ ALARM ] to exit. The [ ] icon for the alarm
chosen ill be displayed indicating the alarm set above is no
armed.
You can also arm or disarm an alarm by pressing the [ ON / OFF ]
(CLOCK) button.
When an alarm is armed, it ill go off at the set time.
The four-step crescendo function allo s the alarm to start off gently
and step up its intensity every 20 seconds for four times. Without
interruption, the alarm ill go off for a total of t o minutes. If no key
is pressed to turn off the alarm ithin these 2 minutes, the alarm ill
go off once more after 8 minutes.
If a second alarm goes off hen the first alarm is sounding off, the first
alarm ill be disabled automatically.
HOW TO STOP AN ALARM
To stop an alarm, you can use either press [ ALARM ] button or
[ ON / OFF ] (CLOCK) button.
Pressing [ ALARM ] ill stop the alarm, hich is still armed and
ill activate at the set time the follo ing day.
If [ ON / OFF ] (CLOCK) button is pressed instead, the alarm
ill be stopped and deactivated all together.
NOTE ON °C AND °F
The temperature display designation of °C or °F on the main display
unit ill override the display selection made on the remote sensor.
Whatever the display unit of the remote sensor is, it ill only apply
to the remote sensor itself and the temperature unit ill automati-
cally be converted to the one of the main unit. (i.e. °C)
MAINTENANCE
When handled properly, this unit is engineered to give you years
of satisfactory service. Here are a fe product care instructions:
1. Do not immerse the unit in ater. If the unit comes in contact
ith ater, dry it immediately ith a soft lint-free cloth.
2. Do not clean the unit ith abrasive or corrosive materials.
Abrasive cleaning agents may scratch the plastic parts and
corrode the electronic circuit.
3. Do not subject the unit to excessive: force, shock, dust,
temperature, or humidity. Such treatment may result in
malfunction, a shorter electronic life span, damaged batteries, or
distorted parts.
4. Do not tamper ith the units internal components. Doing so
ill terminate the units arranty and may cause damage. The
unit contains no user-serviceable parts.
5. Only use ne batteries as specified in this instruction manual.
Do not mix ne and old batteries as the old batteries may leak.
6. Read this instruction manual thoroughly before operating the
unit.
All manuals and user guides at all-guides.com

13
GB

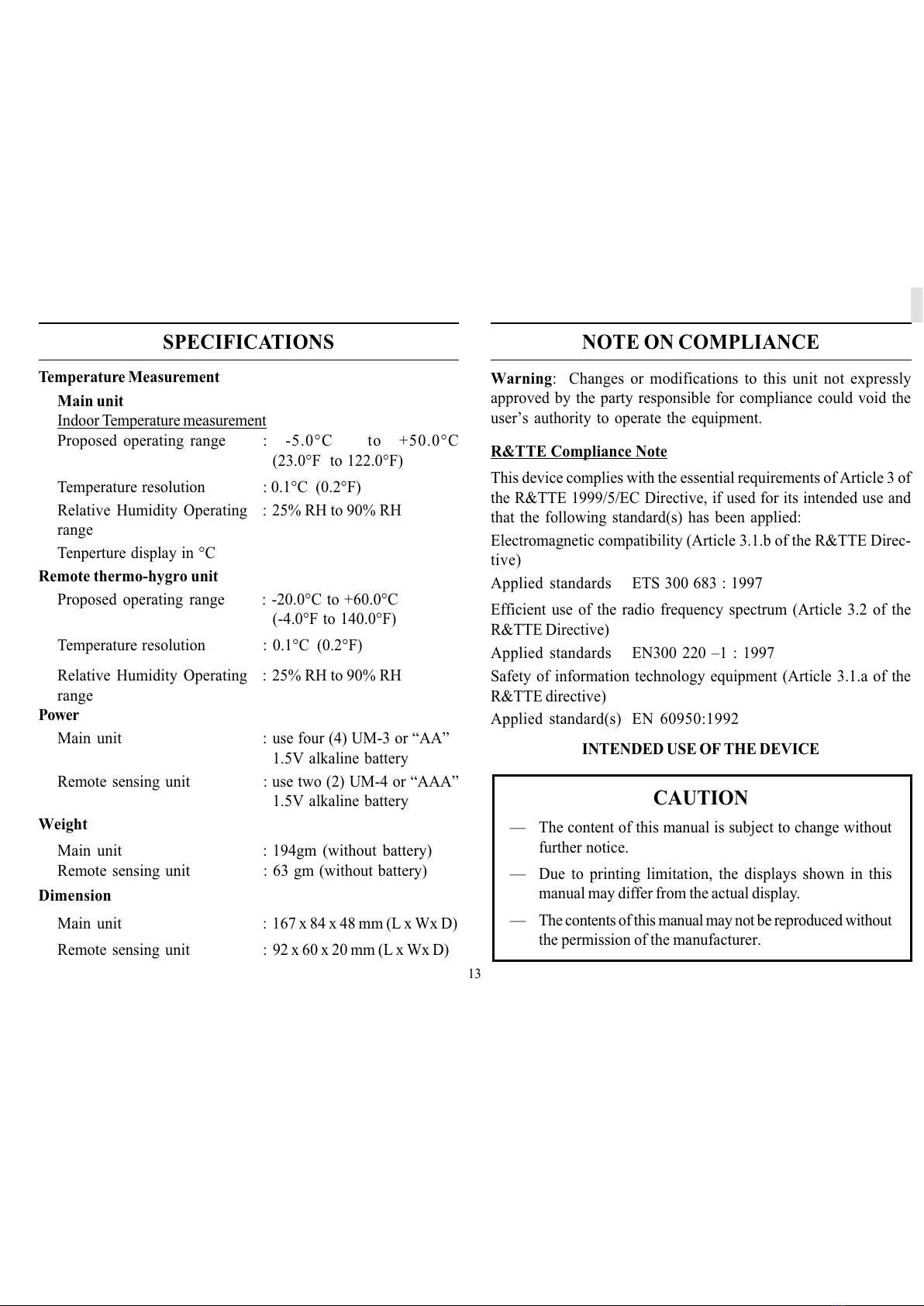

SPECIFICATIONS
Temperature Measurement
Main unit
Indoor Temperature measurement
Proposed operating range : -5.0°C to +50.0°C
(23.0°F to 122.0°F)
Temperature resolution : 0.1°C (0.2°F)
Relative Humidity Operating : 25% RH to 90% RH
range
Tenperture display in °C
Remote thermo-hygro unit
Proposed operating range : -20.0°C to +60.0°C
(-4.0°F to 140.0°F)
Temperature resolution : 0.1°C (0.2°F)
Relative Humidity Operating : 25% RH to 90% RH
range
Power
Main unit : use four (4) UM-3 or AA
1.5V alkaline battery
Remote sensing unit : use t o (2) UM-4 or AAA
1.5V alkaline battery
Weight
Main unit : 194gm ( ithout battery)
Remote sensing unit : 63 gm ( ithout battery)
Dimension
Main unit : 167 x 84 x 48 mm (L x Wx D)
Remote sensing unit : 92 x 60 x 20 mm (L x Wx D)
NOTE ON COMPLIANCE
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
users authority to operate the equipment.
R&TTE Compliance Note
This device complies ith the essential requirements of Article 3 of
the R&TTE 1999/5/EC Directive, if used for its intended use and
that the follo ing standard(s) has been applied:
Electromagnetic compatibility (Article 3.1.b of the R&TTE Direc-
tive)
Applied standards ETS 300 683 : 1997
Efficient use of the radio frequency spectrum (Article 3.2 of the
R&TTE Directive)
Applied standards EN300 220 1 : 1997
Safety of information technology equipment (Article 3.1.a of the
R&TTE directive)
Applied standard(s) EN 60950:1992
INTENDED USE OF THE DEVICE
CAUTION
 The content of this manual is subject to change ithout
further notice.
 Due to printing limitation, the displays sho n in this
manual may differ from the actual display.
 The contents of this manual may not be reproduced ithout
the permission of the manufacturer.
All manuals and user guides at all-guides.com

14
GB

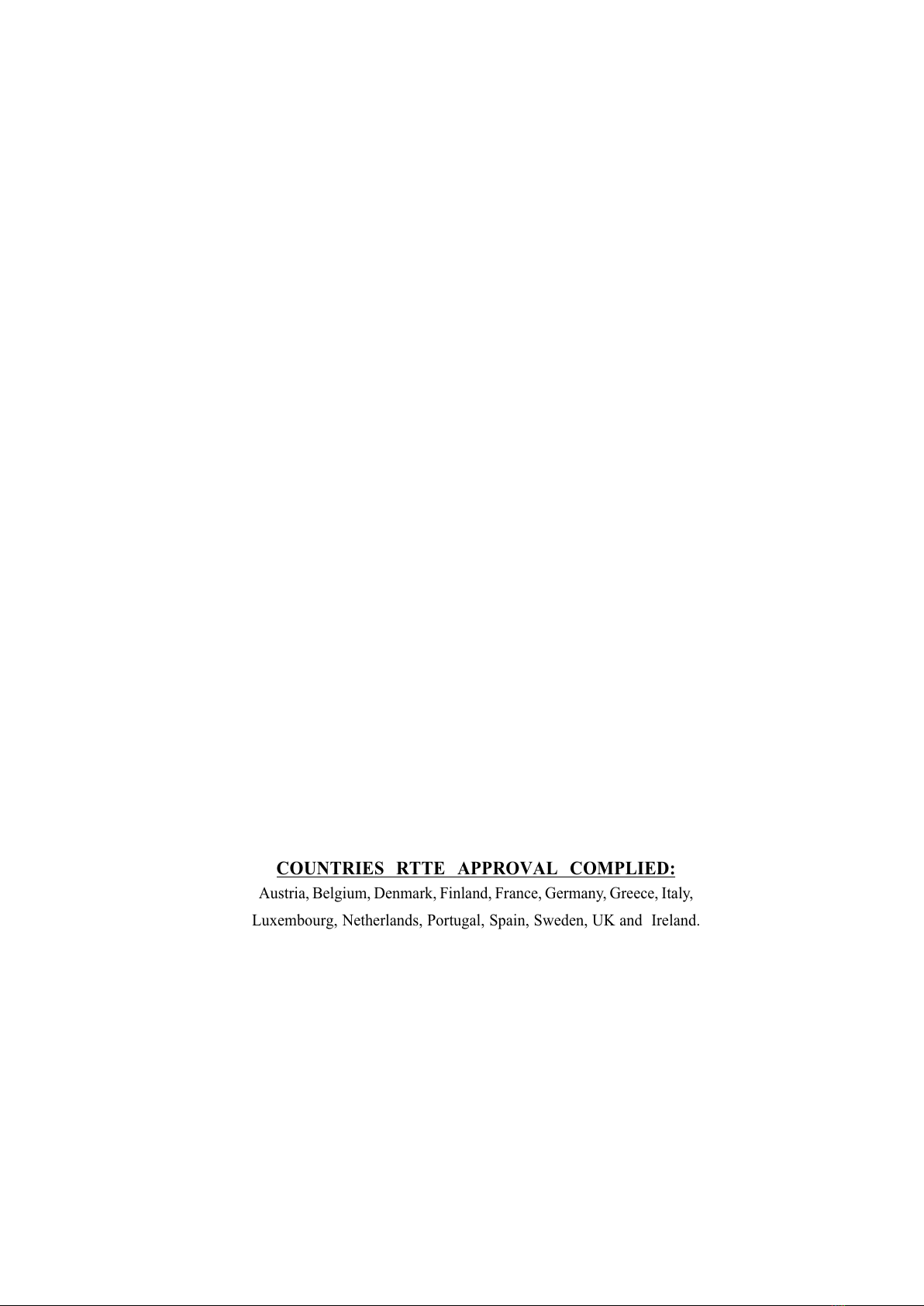

COUNTRIES RTTE APPROVAL COMPLIED:
Austria, Belgium, Denmark, Finland, France, Germany, Greece, Italy,
Luxembourg, Netherlands, Portugal, Spain, S eden, UK and Ireland.
All manuals and user guides at all-guides.com
