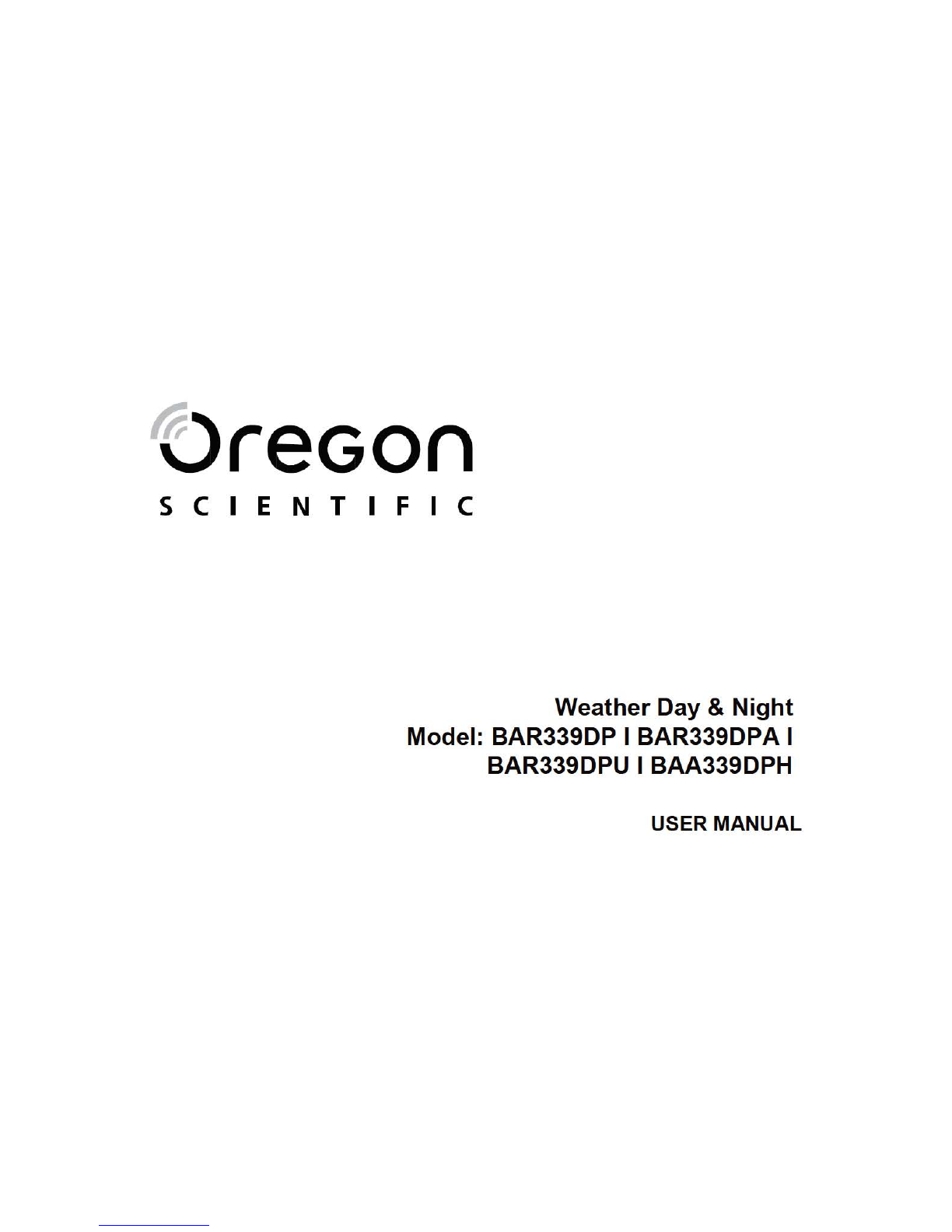

Oregon Scientific BAR339DP User manual

'b reGon
SCIENTIFIC
Weather Day & Night
Model: BAR339DP I BAR339DPA I
BAR339DPU I BAA339DPH
USER MANUAL

1
Weather Day & Night
Model: BAR339DP I BAR339DPA I
BAR339DPU I BAA339DPH
USERMANUAL
Overview ............................................................................ 2
Front View ....................................................................... 2
Back View ....................................................................... 3
Remote Sensor ............................................................. 3
Getting Started ................................................................. 3
Main Unit Installation .................................................... 3
Remote Sensor Installation ........................................ 4
Clock ................................................................................... 5
Clock Reception ............................................................ 5
Manually set Clock ....................................................... 6
Alarm ................................................................................... 6
Weather Forecast ............................................................ 6
Temperature ..................................................................... 7
Projection .......................................................................... 7
Backlight ............................................................................ 7
Reset ................................................................................... 7
Specifications .................................................................. 8
Main Unit ......................................................................... 8
Remote RF Clock Thermo Sensor ............................ 8
Precautions ....................................................................... 8

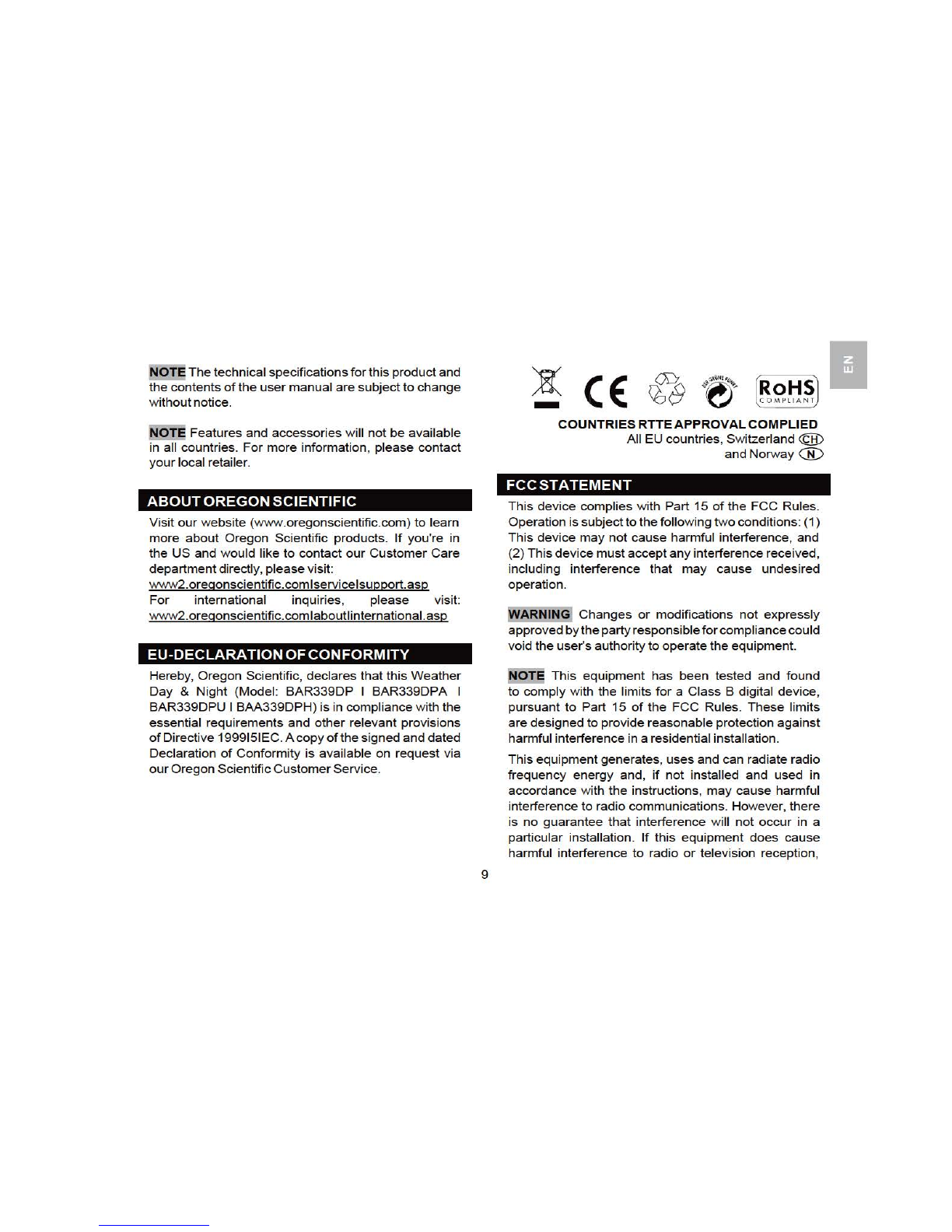

About Oregon Scientific ............................................... 9
EU-Declaration of Conformity .................................... 9
FCC Statement ................................................................. 9
Declaration of Conformity ........................................ 10
CONTENTS
EN

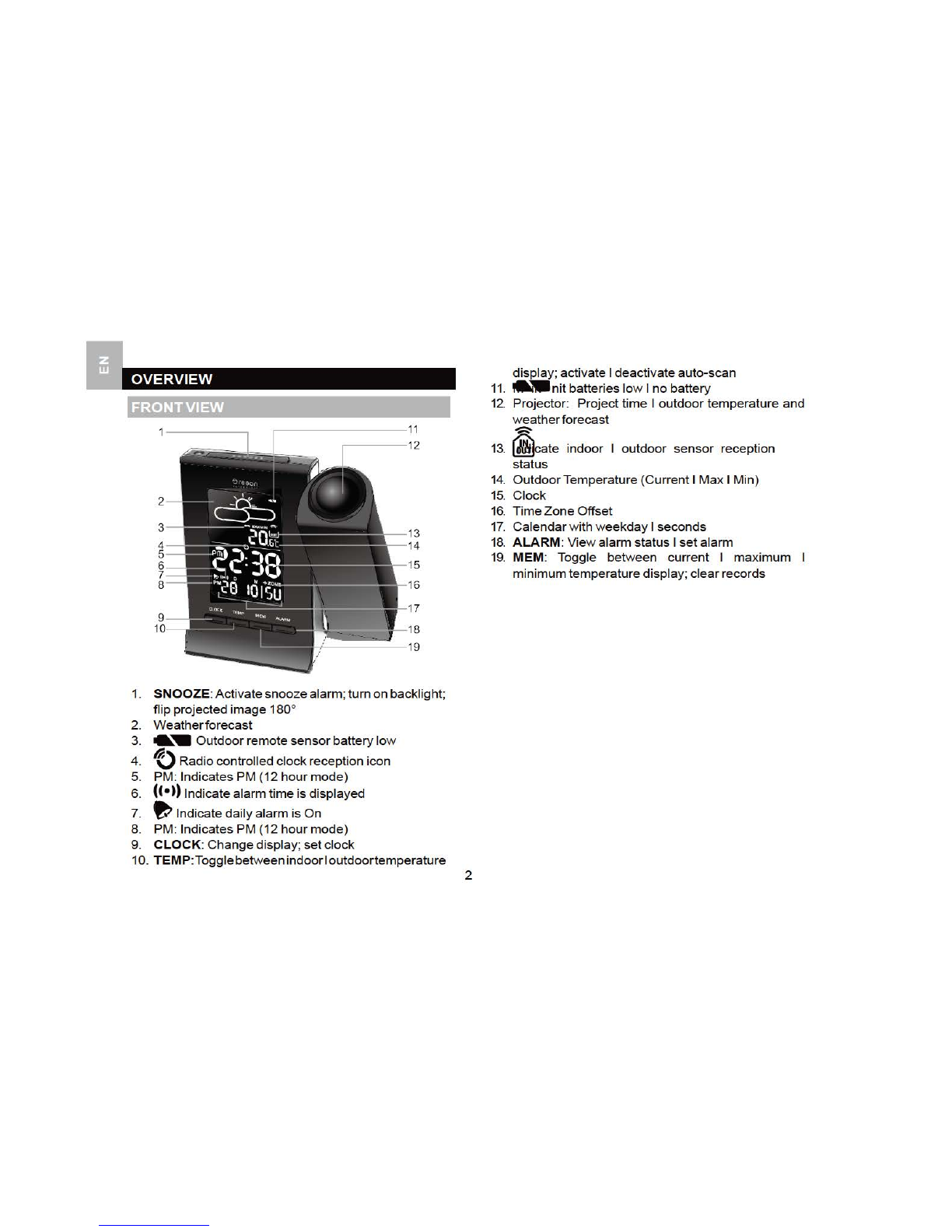

OVERVIEW
FRONT VIEW
~-------- 11
~--- 1 2
2
13
14
15
16
9
10
17
18
------ 19
1. SNOOZE : Act i vate snooze alarm ;turn on bac kli ght ;
fl ip projected i mage 180 °
2. Weathe r forecast
3. 6. 'W Outdoor r emote senso r battery lo w
4. 'b Radio controlled cloc k reception icon
5. PM: Indi cates PM (12 hou r mode )
6. (<•>)Indicate alarm time is displayed
7. ~Ind i cate da ily alarm is On
8. PM: Indi cates PM (12 hou r mode )
9. CLOCK : Change display; set clock
10 . TEMP :Toggl ebe tw een i ndoorloutdoo r tempe rature 2
di sp l ay ; act i vate I deact i vate auto-scan
11 . .Wn it batter ies lo w I no battery
12. Projector: Pro ject time I outdoor temperature and
w eather forecast
~
13. rilcate i ndoor I outdoor sensor recept i on
status
14. Outdoo r Temperature ( Cur r ent I Max I Min)
15. Cloc k
16. Time Zone Offset
17. Calendar withw ee k day I seconds
18. ALARM:View al arm status I set alarm
19. MEM: Toggle betw een current I maximum
mini mum tempe rature display; cl ear records

1. FOCUS Wh ee l: Adjust project io n focus
2.
ACIDCAdaptorsocket
3. A :Screase I increase va l ue of the setting;
enab le I disable clock recept ion
4.
SEARCH : Initi ate sensor search
5. OC I OF: Select temperature unit
6.
LIGHT ONIOFF : Turn backlight continuously On
(adaptor installed) I only when SNOOZE key is
pressed
7.
RESET : Reset unit to defaultsettings
8.
PROJECTION OFF- CLOCK - AUTO : Se l ect
projectiondisplay 3
9. Battery compartment
FRONT VIEW
1----
THERMO•RF C\. OC K
SENSO R

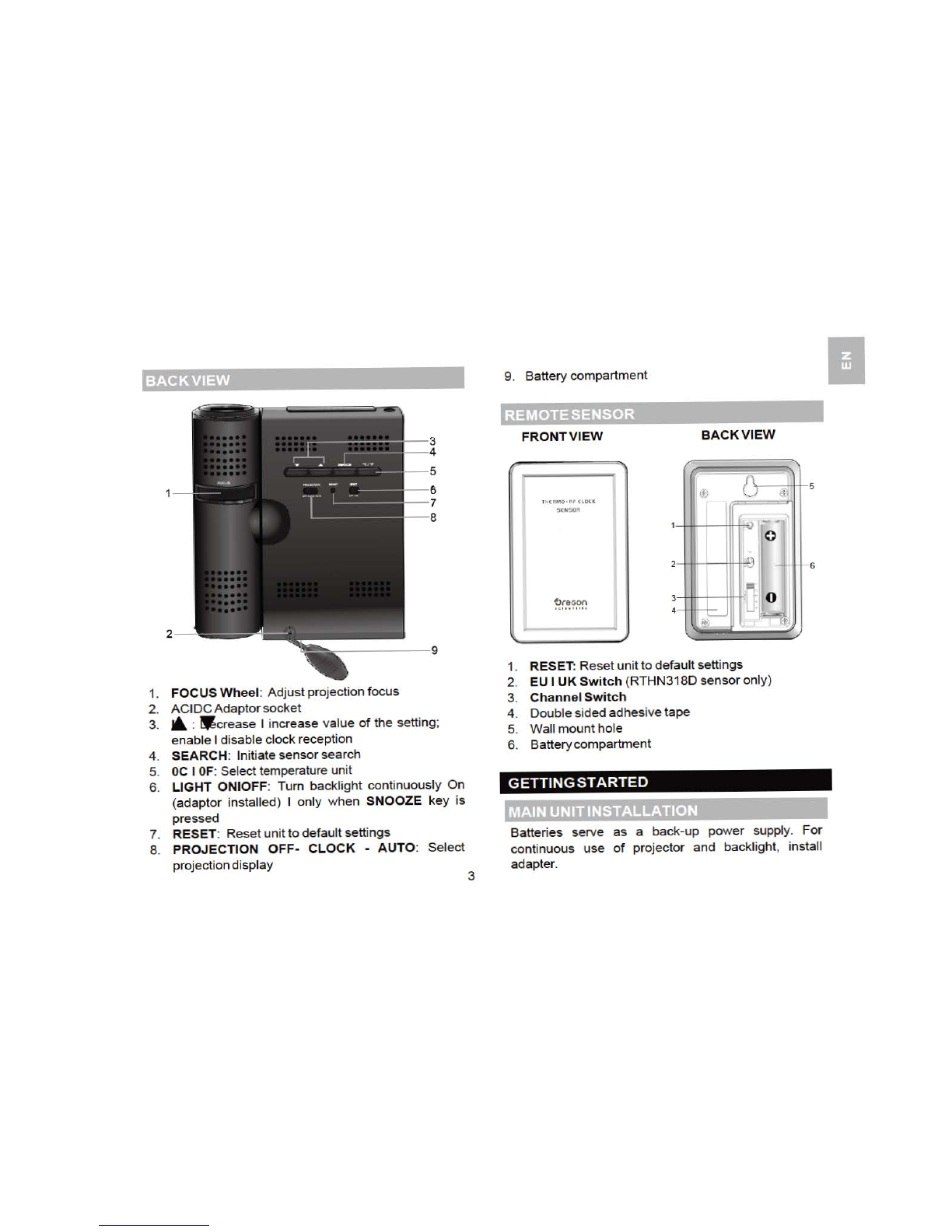

BACK VIEW
1. RESET : Reset un it to de f au lt setti ngs
2. EU I UK Swit ch (RTHN318D sensor only)
3.
Ch a nn el Swit ch
4. Double si
ded adhesive tape
5. Wall mount hole
6. Batterycompartment
GETTING STARTED
Batteries serve as a back-up po w er supply. For
cont i nuous use of projector and back l ight , install
adapte
r.
I

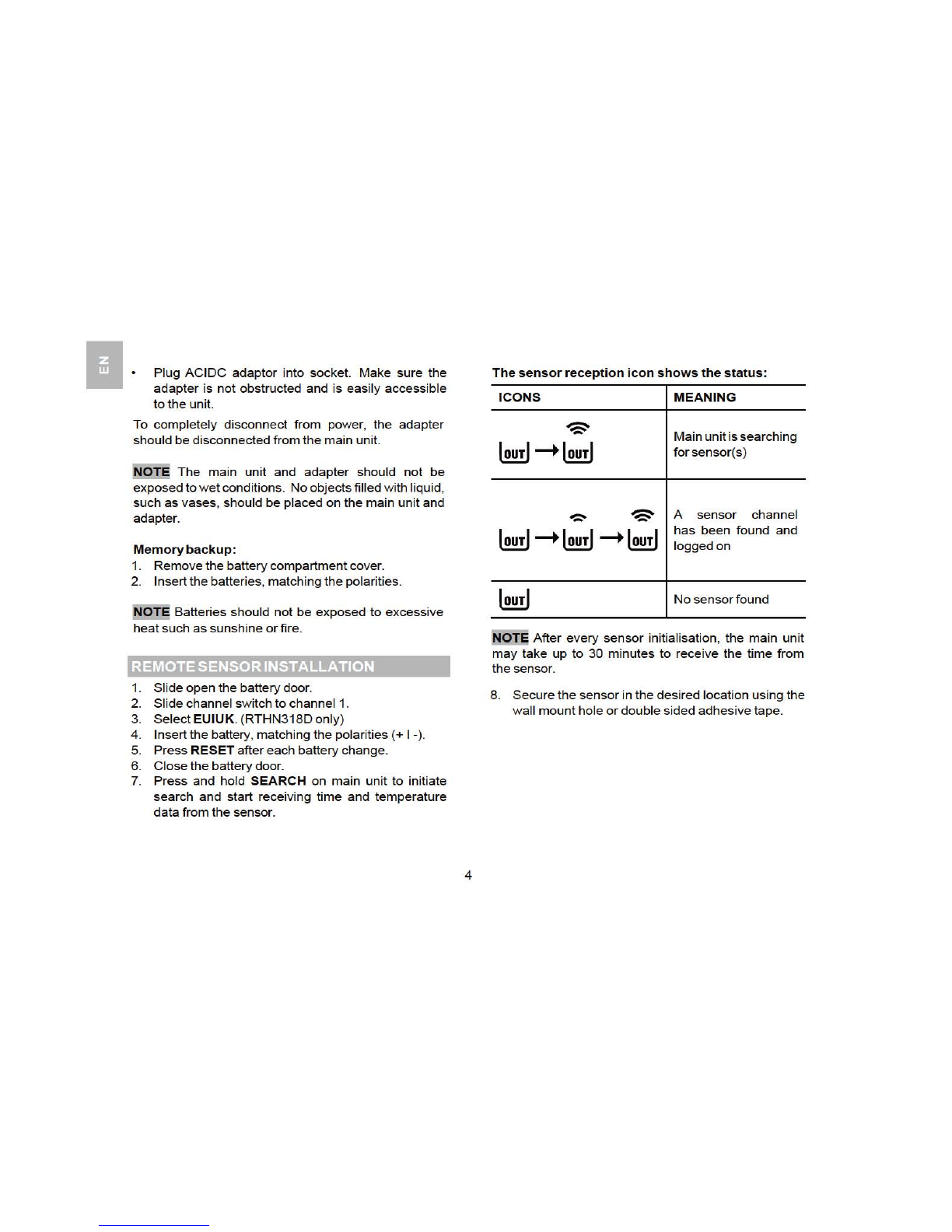

I ·Plug ACIDC adaptor into socket. Make sure the
adapter is
not obstructed and is easily accessible
tothe unit.
To completely disconnect from power, the adapter
should be disconnected from the main unit.
NOT 1 The main unit and adapter should not be
exposedtow
et conditions. No objectsfilled with liquid,
such as vases, should be placed on the ma in unit and
adapte
r.
Mem ory b ac kup:
1. Remove the batterycompartment cove r.
2. Insertthe batteries, matching the polarities.
OT E Batteries should not be exposed to excessive
heatsuch as sunshine or fire.
REMOTE SENSOR INSTALLATION
1. Slide open the battery door.
2. Slide channel switchto channel 1.
3.
Se lect EUIUK . (RTHN31 8D only)
4. Insertthe battery, matching the polar ities(+ 1-).
5. Press RESETaftereach battery change.
6. Cl
ose the batterydoo r.
7. Press and hold SEARCH on main unit to initiate
search and start receiving ti
me and temperature
data from the sensor.
4
Th e se n so r r ec ep tion i co n sh ows t he st atus:
ICONS MEANING
Main unit is searching
fo rsensor(s)
A sensor channel
has been found and
loggedon
No sensor found
NOTE After every sensor initialisation, the main unit
may take up to 30 minutes to receive the time from
the senso r.
8. Secure the sensor inthe des ired l ocat ion using the
wall mounthole or double sided adhesi ve tape.

,..
~
,---
· ~
I
o..-- c
~
..........
_J
.. • Q

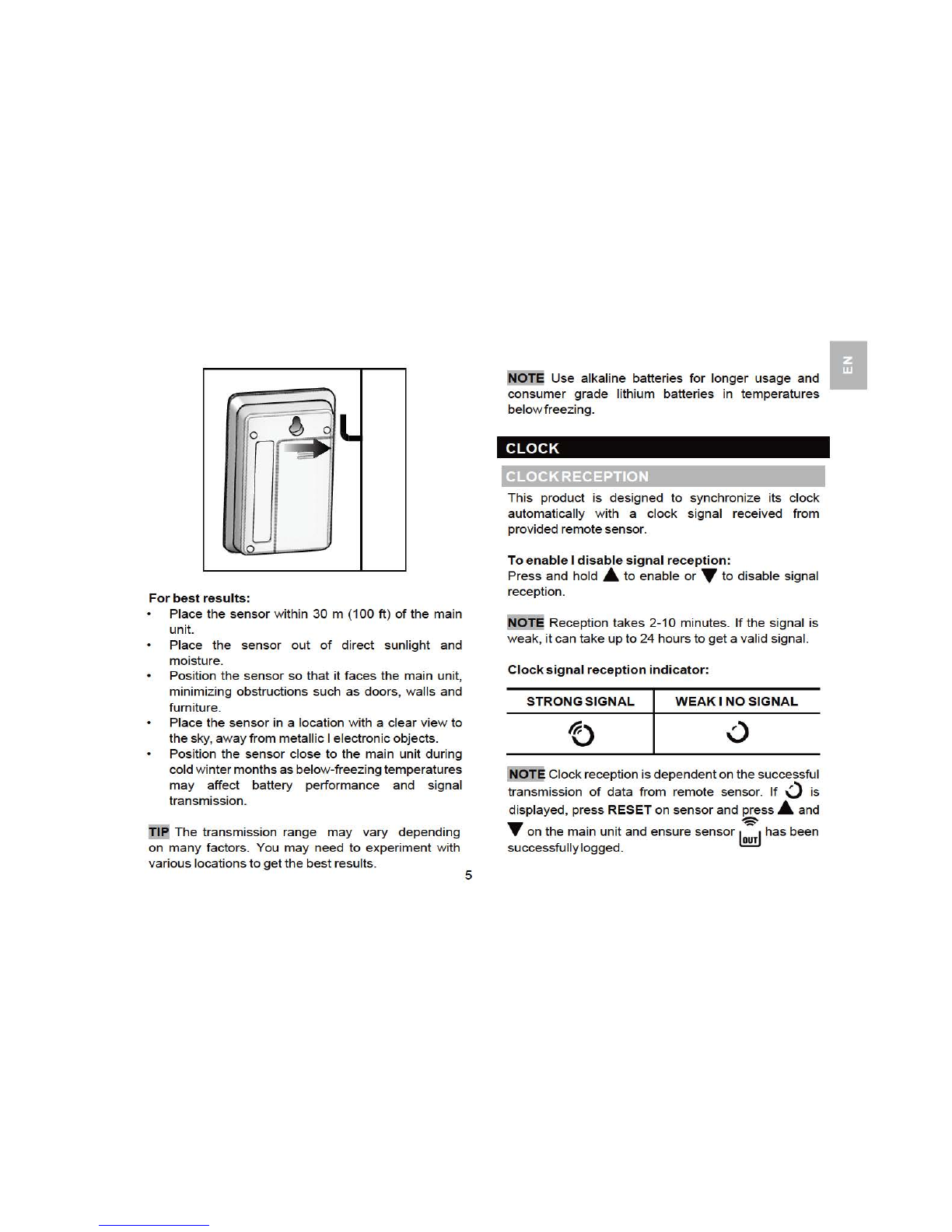

For b est r es ul ts :
Place the sensor within 30 m ( 100 ft) of the main
unit.
Place the sensor out of di r ect sunlight and
moisture .
Pos iti on the sensor so that it faces the main un i t,
minimizing obstruct i ons such as doo rs, walls and
furniture.
Place the senso r in a l ocat i on with a cl ear view to
the sky,aw ay from metallic I electronic objects.
Pos iti on the sensor cl ose to the ma in unit during
co ld winter months as below-freezing tempe ratur es
may affect battery perfo r mance and signal
transmiss i on .
iT I P. The transm i ss i on range may vary depend i ng
on many factors. You may need to expe r iment with
va ri ous l ocat i ons to get the best r esu lts. 5
NOTE U se alkaline batteri es for l onge r usage and
consumer grade lithium batter ies in temperatu r es
be low freez ing.
CLOCK
CLOCK
RECEPTION
This pr oduct is des i gned to synch r on i ze i ts clock
automat i cally with a cl ock signal r ece ived from
pr ov i ded r emote senso r.
To e nabl e I disabl e signal r ece pti o n:
Pr ess and ho ld A to enab le or T to di sable si gna l
reception.
NOTE Recept i on takes 2- 10 minutes . If the si gna l is
w eak , it can take up to 24 hou rs to get a va l id si gna l.
Cl oc k s ignal r ec ep tion indi ca to r:
STRONG SIGNAL WEAK I NO SIGNAL
NOTE Cl ock reception is dependent on the success ful
tr ansmiss i on of data from r emote senso r. If ~ is
displayed , pr ess RESET on sensor and press A and
~
T on the main unit and ensure sensor , _: _, has been
l!!!!!J
success fullyl ogged.
I

I

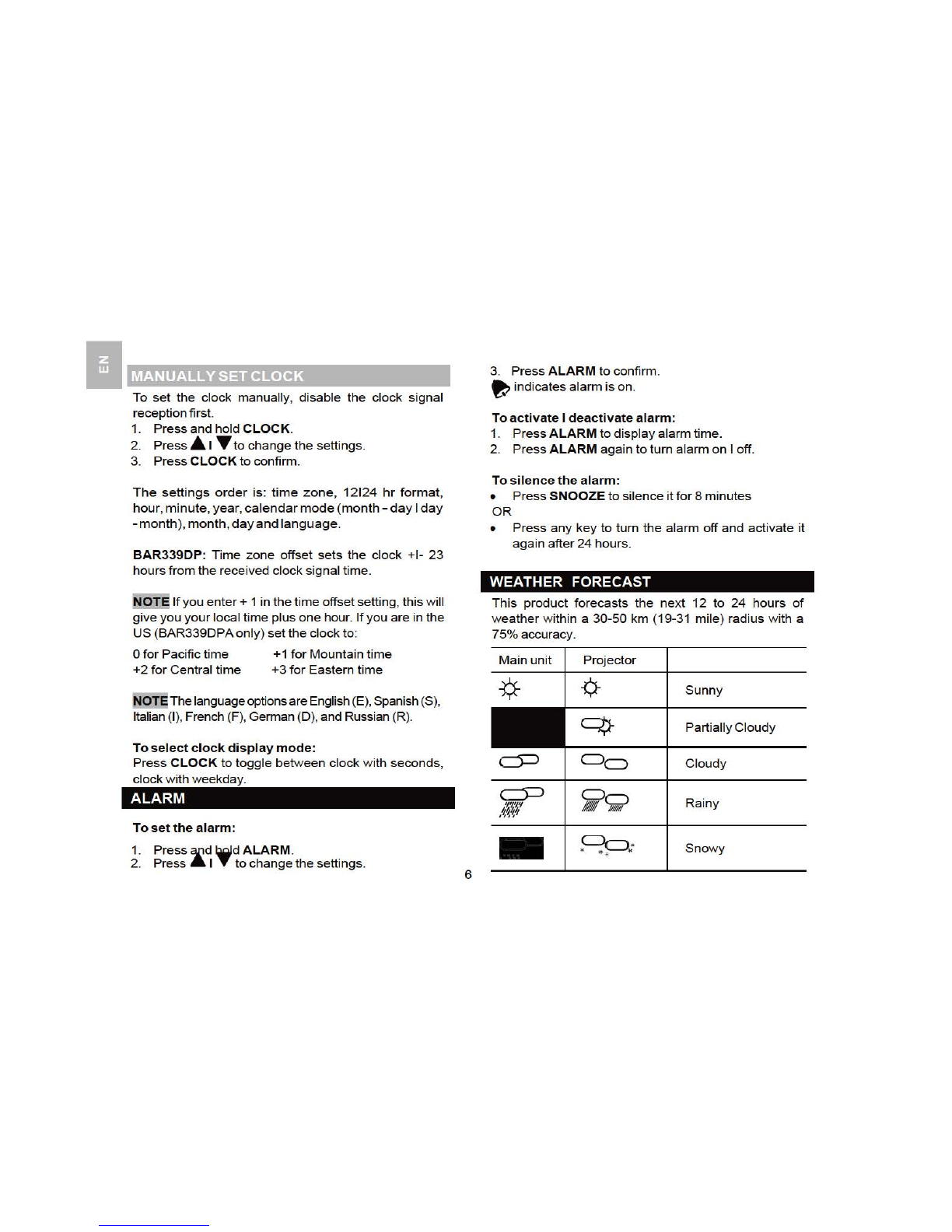

MANUALLY SET CLOCK
To set the cl ock manually, di sab le the cl ock signal
recepti on first.
1. Pr
ess and hold CLOCK .
2. Pr
ess .A.1 Y to change the settings.
3. Pr
ess CLOCK to confirm.
The settings order is : time zone , 12124 hr format ,
hour , minute ,year, calendar mode ( month - day I day
- month ), month, day and language.
BAR339DP: Time zone offset sets the cl ock +I- 23
hoursfrom the received clock signal time.
NOTE If you enter+ 1 in theti me offsetsetting, thiswill
giveyou y our local ti me pl us one hou r. Ifyou are in the
US (BAR339DPAonly) setthe cl ock to:
0 for Pac ific ti me
+2 for Central time
+1 for Mountain time
+3 for Eastern ti me
NOTEThelanguageoptionsareEnglish (E),Spanish(S),
Italian(I),French (F),German (D),and Russian (R).
To select clock display mode:
Press CLOCK to toggle be tw een clock with seconds,
cl oc kwithweek day .
ALARM
To set the alarm:
1. Pr ess qpd ~d ALARM .
2. Press A I T to change the settings. 6
3. Press ALARM to confirm.
~ indicatesalarm is on .
To activate I deactivate alarm:
1. Pr ess ALARM to di sp lay alarm time.
2. Pr
ess ALARM aga in to turn alarm on I off .
To silence the alarm:
• Pr ess SNOOZE to silence it for 8 minutes
OR
• Pr ess any key to turn the alarm off and activate it
again after24 hours.
WEATHER FORECAST
Th is product forecasts the next 12 to 24 hours of
weather within a 30 -5 0 km (19-31 mile) radius with a
75% accuracy.
Main unit Projector
-¢-
Sunny
qJ-
Partially Cl oud y
C)C)
Cloudy
~<;?
Rainy
-
~ * :
·+ Sno
wy

7
TEMPERATURE
To toggle between indoor I outdoor temperature
display:
Press TEMP .
Totoggletemperatureunit:
Press 0C I 0F.
Toauto-scan betweensensors:
Press and hold TEMP .
Todeactivateauto-scanfunction:
Press TEMP .
Totogglebetweencurrent,minimumandmaximum
records for indoor I outdoor:
Press MEM repeatedly.
To clearrecords:
Press and hold MEM .
To project weather forecast and time:
 Press SNOOZE when PROJECTION switch is in
OFFmode
OR
 Slide PROJECTION switch to CLOCK mode for
continuousdisplay.
To project weather forecast and activate toggling
display of time I outdoor temperature:
 Slide PROJECTION switchtoAUTOmode.
Todeactivateprojection:
 Slide PROJECTION switchtoOFF mode.
To focus image:
 Turn FOCUS wheel.
NOTE If projection is illuminated, do not look directly
into the projector.
Thisunitprojectstime,outdoortemperatureinformation
andweatherforecast for yourconvenience.
NOTE Install adapter to use projection feature.
Tolipprojectedimageby1800:
 Press SNOOZE .
Toactivate continuousbacklight:
• Slide LIGHT - ONIOFF switchtoON.
Todeactivatecontinuousbacklight:
• Slide LIGHT - ON I OFF switch to OFF (Press
SNOOZE to activate LED backlight for 5 seconds).
Press RESET to return to the default settings.
RESET
BACKLIGHT
PROJECTION
EN

8
•Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
•Do not cover the ventilation holes with any items
suchasnewspapers, curtains etc.
•Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
•Do not clean the unit with abrasive or corrosive
materials.
•Do not tamper with the unit's internal components.
This invalidates the warranty.
•Only use fresh batteries. Do not mix new and old
batteries.
•Images shown in this manual may differ from the
actualdisplay.
•When disposing of this product, ensure it is
collected separately for special treatment and not
asnormal household waste.
•Placement of this product on certain types of
wood may result in damage to its finish for which
Oregon Scientific will not be responsible. Consult
the furniture manufacturer's care instructions for
information.
•Thecontents ofthismanual maynotbereproduced
without the permission of the manufacturer.
•Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
•Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartmentbefore first use.
PRECAUTIONS
SPECIFICATIONS
MAIN UNIT
REMOTE RF CLOCK THERMO SENSOR
EN
TYPE
DESCRIPTION
L x W x H
142 x 42 x 158 mm
(5.59 x 1.65 x 6.22 in)
Weight
270g(9.52 oz) without battery
Power
5VAC adaptor
2 x CR2032 batteries
(forbackup)
TYPE
DESCRIPTION
L x W x H
64 x 25 x 98 mm
(2.52 x 0.98 x 3.86 in)
Weight
80 g (2.8 oz) without battery
Temperaturerange
-20°C to 60°C (-4°F to 140°F)
Resolution
0.1°C(0.2°F)
Signalfrequency
433MHz
Transmissionrange
30 m (98 ft) unobstructed
No.of channels
5
Power
1 x UM-3 (AA) 1.5 V batteries

NOTE The technical specifications for th is productand
the contents of the user manual are sub j ect to change
withoutnotice.
NOTE Featur es and accessories will not be availab le
in all countr ies. For more information, please contact
you r local retail er .
ABOUT OREGON SCIENTIFIC
Vi sit our w ebs ite (www .oregonscientific. com ) to learn
more ab ou t Oregon Sc i ent ific products. If you're in
the US and would like to cont act our Customer Care
departmen t directly, please visit:
www 2. oregonsc ientific. comlserv i celsupport . asp
For internati ona l i nquines , please vis it:
www 2. oregonsc ientific. comlabout l in t erna tional. asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Sc ientific, declares t hat this Weathe r
Day & Night (Model:
BAR339DP I BAR339DPA I
BAR339DPU I
BAA339DPH ) is in com pliance with the
essential requirements and ot he r r elevant p rov isi ons
of Directive 1999151EC.A copy of the signed and da t ed
Declaration of Conformity is ava ilable on request via
our
Oregon Sc ientific Cus t omer Service.
9
! CE
Ro HS
COMP LI ANT
COUNTRIESRTTEAPPROVALCOMPLIED
All EU countr ies, Switzerl and@
and Norway®
FCC STATEMENT
Th is device complies with Part 15 of the FCC Rul es .
Operation is sub j ect to the fo llowi ng two conditions:(1)
Th is dev ice may no t cause harmful interference, and
(2)
Th is dev ice mus t acce pt any interfer ence received,
i nc luding interference t hat may cause undesired
operation.
WARNING Changes or modificati ons not expressly
approvedby the partyresponsible fo r comp li ance could
vo id the user 's author i ty to operate t he equ ip men t.
NOTE This equ ip men t has been t es ted and found
to comply with the limi ts fo r a Class B digital dev ice,
pursuant to Part
15 of the FCC Rules. These limi ts
are designed to prov i de reasonab le protec tion agai nst
harmful interference in a resi den tial installation.
This equ ip men t gene r ates , uses and can radi ate radio
frequency energy and, if not installed and used in
accordance with
the instructions, may cause harmful
interference to r ad io commun ications. Ho wever, there
is no gua rantee t hat interference will not occur in a
particul
ar installation. If this equ ip ment does cause
harmful interfer ence to r ad io or t elev ision r ecept i on ,
I

which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment
andreceiver.
 Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
 Consult the dealer or an experienced radio I TV
technician for help.
Manufacturer: IDTTechnologyLimited
Address: Block C,9IF,Kaiser Estate,
Phase 1, 41 Man Yue St.,
HungHom,Kowloon,
HongKong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received,
including interference that may cause undesired
operation.
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientific.comIserviceforallenquiries.
We
Name: Oregon Scientific,Inc.
Address: 19861SW95
th
Ave.,Tualatin,
Oregon97062USA
TelephoneNo.: 1-800-853-8883
declare that the product
Product No.: BAR339DP I BAR339DPAI
BAR339DPUIBAA339DPH
ProductName: Weather Day & Night
10
DECLARATIONOFCONFORMITY
EN
