Oregon Scientific EB833 User manual

EN
1
TABLE OF CONTENTS
Introduction ............................................................. 2
Description Of Parts ............................................... 2
Installing And Replacing Batteries ........................ 3
General Operation Of The Altimeter ...................... 4
•Altitude Calibration ................................................. 6
•Units Of Measurement For Altitude ........................ 6
•About The Altitude Change Graph ......................... 6
•Altitude History Display .......................................... 7
•About Altitude Change Memory ............................. 7
•Clearing Altitude Memory, Max / Min Altitude
Memory, And Vertical Ascent / Decent Memory .... 7
•The Altitude Alarm ................................................. 8
•Altitude Sampling Rate .......................................... 8
•Notes On Altimeter Functions ................................ 9
General Operation Of Barometer And Weather
Forecast Functions ................................................. 9
•Barometric Pressure Calibration .......................... 10
•Units Of Measurement For Barometric Pressure . 10
Altimeter / Barometer
with
Weather Forecasts and Clock /
Calendar
Model: EB833
User’s Manual
•About The Pressure Change Graph .................... 11
•Pressure History Display ...................................... 11
•Notes On Barometer Functions ........................... 11
General Operation Of Time And Date Functions 12
•Time And Date ..................................................... 13
•Daily Alarm ........................................................... 13
•Deactivating The Alarm ........................................ 14
•Count-Up Timer ................................................... 14
•Temperature Display ............................................ 14
Resetting The Unit ................................................ 14
Maintenance .......................................................... 15
Specifications ........................................................ 15
About Oregon Scientific ....................................... 17
EB833(EN3) 8/31/04, 3:40 PM1

EN
2
A weather forecast device, the EB833 uses barometric
information to make forecasts as sunny, slightly cloudy,
cloudy, and rainy. It also has a built-in thermometer.
As a timepiece, this unit functions as a clock / calendar,
daily alarm, and count-up timer.
To optimize the usefulness of this device, be sure to read
this instruction manual carefully before use, and keep it
handy for future reference.

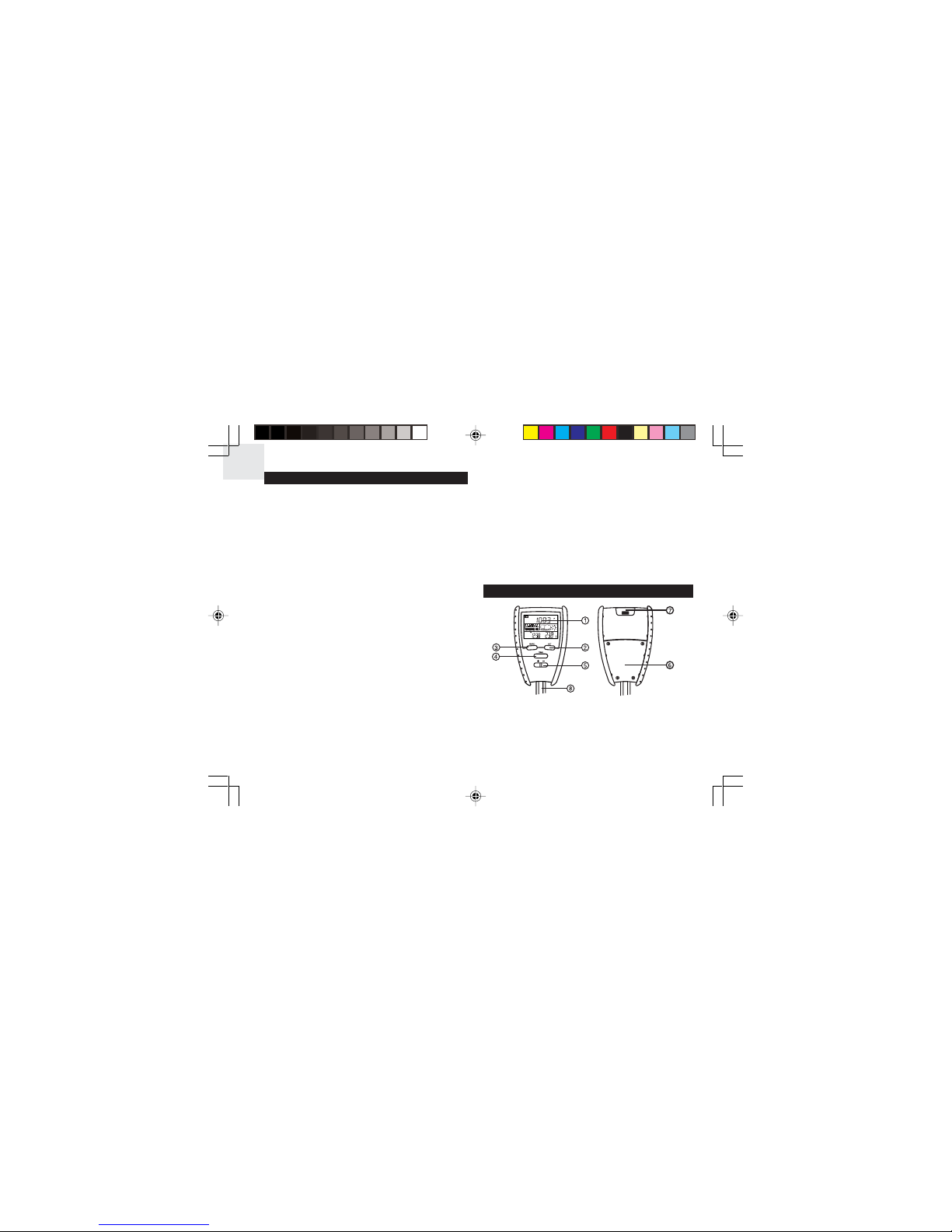

DESCRIPTION OF PARTS
Liquid Crystal Display (LCD)
-Large easy-to-read 3-line LCD
[ALT] Altimeter Button
-Alternates between Altimeter displays
INTRODUCTION
Thank you for your purchase of the Altimeter / Barometer
(EB833). Designed to be durable, this unit is constructed
for rugged outdoor use.
The EB833 has three primary functions.
1. Altimeter
-Functions related to altitude measurement.
2. Barometer and Weather Forecast Device
-Functions related to weather forecasts and
atmospheric pressure.
3. Clock, Calendar, and Count-Up Timer
-Functions related to time, date, and count-up timer.
An altimeter, the EB833 will measure and display current
altitude readings, changes between two elevations, and
maximum and minimum altitudes. The unit stores altitude
data and can indicate changes in altitude for a 12-hour
period or calculates the total accumulation of elevation
ascents over a given period of time. In addition, the user
can set an altitude alarm that will activate when specified
elevations are reached.
The EB833 is also a barometer. It measures and displays
current pressure readings, and provides a barometric
history and a bar graph showing barometric changes
over a 12-hour period.
EB833(EN3) 8/31/04, 3:40 PM2

EN
3
[BARO] Barometer Button
- Alternates between Barometric displays
√TIME Button
-Alternates between Time displays
[+ -] Button
-Changes the value of a setting
-Clears memories
-Activates / deactivates alarm
-Selects units of measure
-Switches from fast to slow sampling rate
≈Battery Compartment
-Houses 2 (two) CR-2032 batteries
-RESET Button
∆Sensor Vents
-Openings for atmospheric sensitive sensors
≥Neck Cord
-Facilitates carrying around the neck or attached to
a rucksack or belt

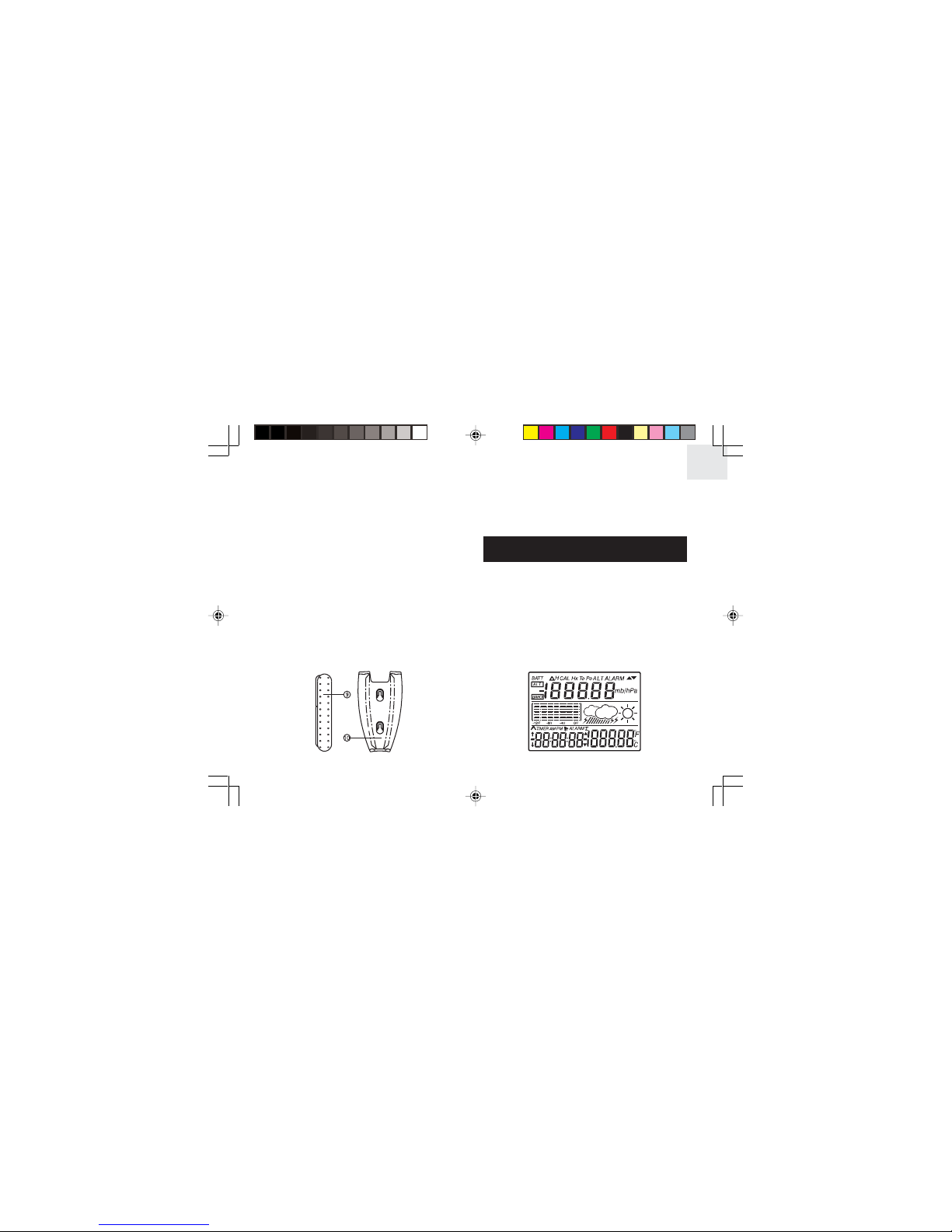

FULL SEGMENT DISPLAY
Hand Grips
-Rubberized grips that prevent the unit from being
accidentally dropped
Wall-Mount Bracket
-to mount unit to wall or vertical surfice
INSTALLING AND REPLACING OF
BATTERY
The EB833 operates with 2 (two) CR-2032 Lithium
batteries that are included with all new units. During
initial packaging, the batteries were insulated with a red
tape so as to maximize the shelf life of the product.
Before use, remove the insulation tape by gently pulling.
Upon removal, the display will show a full-segment
display for 3 seconds; it will then enter the Normal
Altitude Display.
EB833(EN3) 8/31/04, 3:40 PM3

EN
4
GENERAL OPERATION OF THE ALTIMETER
In Altimeter Mode, by detecting changes in air pressure,
the EB833 determines a given altitude level.
Subsequently, the unit can be set to show changes in
altitude and maximum / minimum elevations. It can store
altitude-related data and display elevation trends over a
12-hour period of time. The unit can also display the net
total of accumulative ascents.
A small icon indicates that the unit is in Altimeter
Mode and that the displays are altitude related.
To view display sequences in Altimeter Mode:
1. Press [ALT] to move between various Altimeter
Mode displays.
Normal Altitude Display
The first display in Altimeter Mode.
NOTE If the unit is being used for the first time, it will
automatically enter the Normal Altimeter Display.
Display shows:

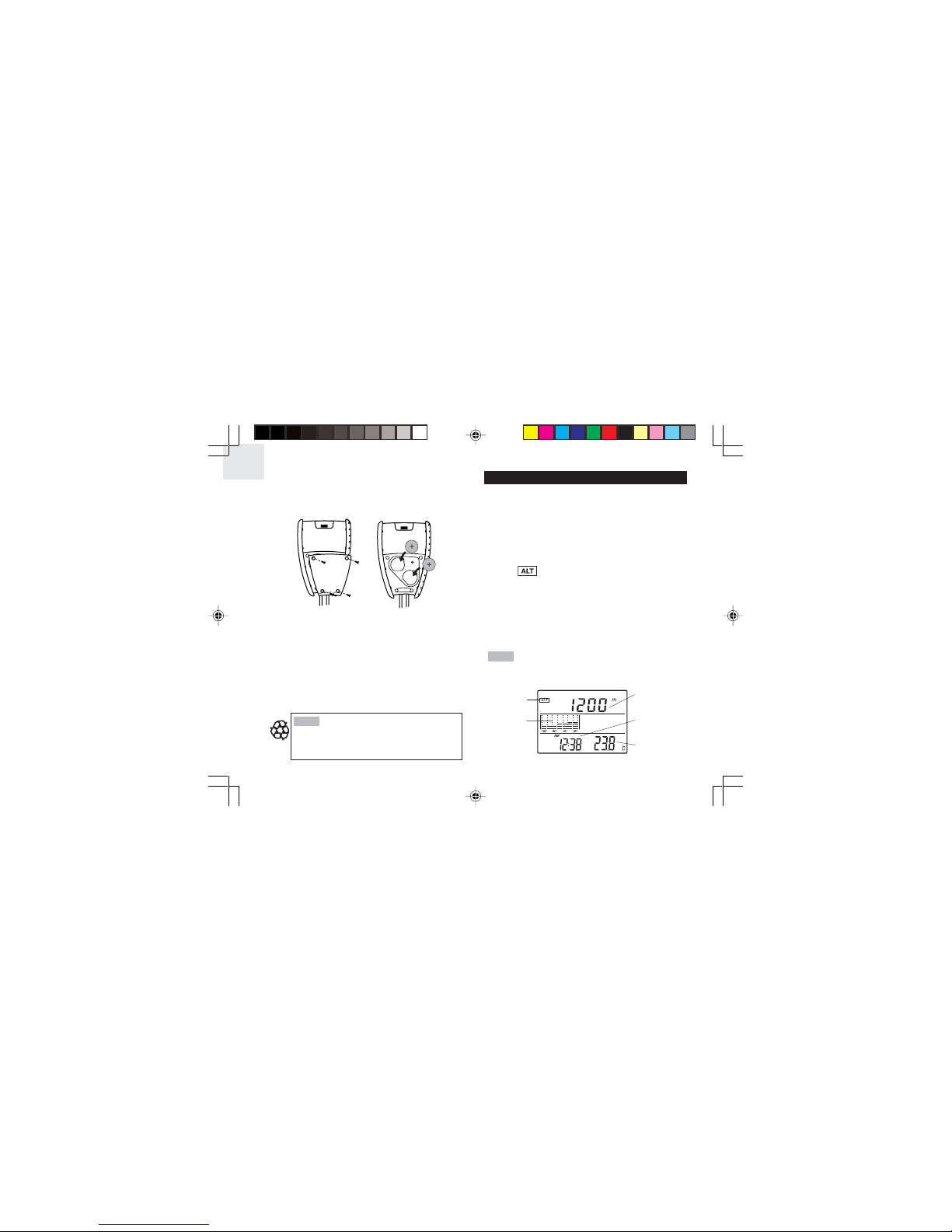

Follow these steps to install or replace batteries:
1. Open battery cover located at the back of the unit by
removing screws.
2. Insert 2 (two) new CR-2032 Lithium batteries.
3. Replace the battery cover.
A battery-low indicator [ BATT ] will show on the display
when the batteries require changing.
It is recommended that when the user is stationary at one
elevation, that the unit is placed in Barometer Mode. The
Altimeter Mode may shorten battery life. Stored altitude
related data is not affected by having the unit in Barometer
Mode for extended periods of time.
NOTE Disposed of improperly, batteries can be
harmful. Protect the environment by taking
exhausted batteries to authorized disposal
stations.
CURRENT
ALTITUDE
CURRENT
TIME
NORMAL ALTITUDE DISPLAY
ALTITUDE
ICON
ALTITUDE
TREND
GRAPH
CURRENT
TEMPERATURE
EB833(EN3) 8/31/04, 3:40 PM4

EN
5

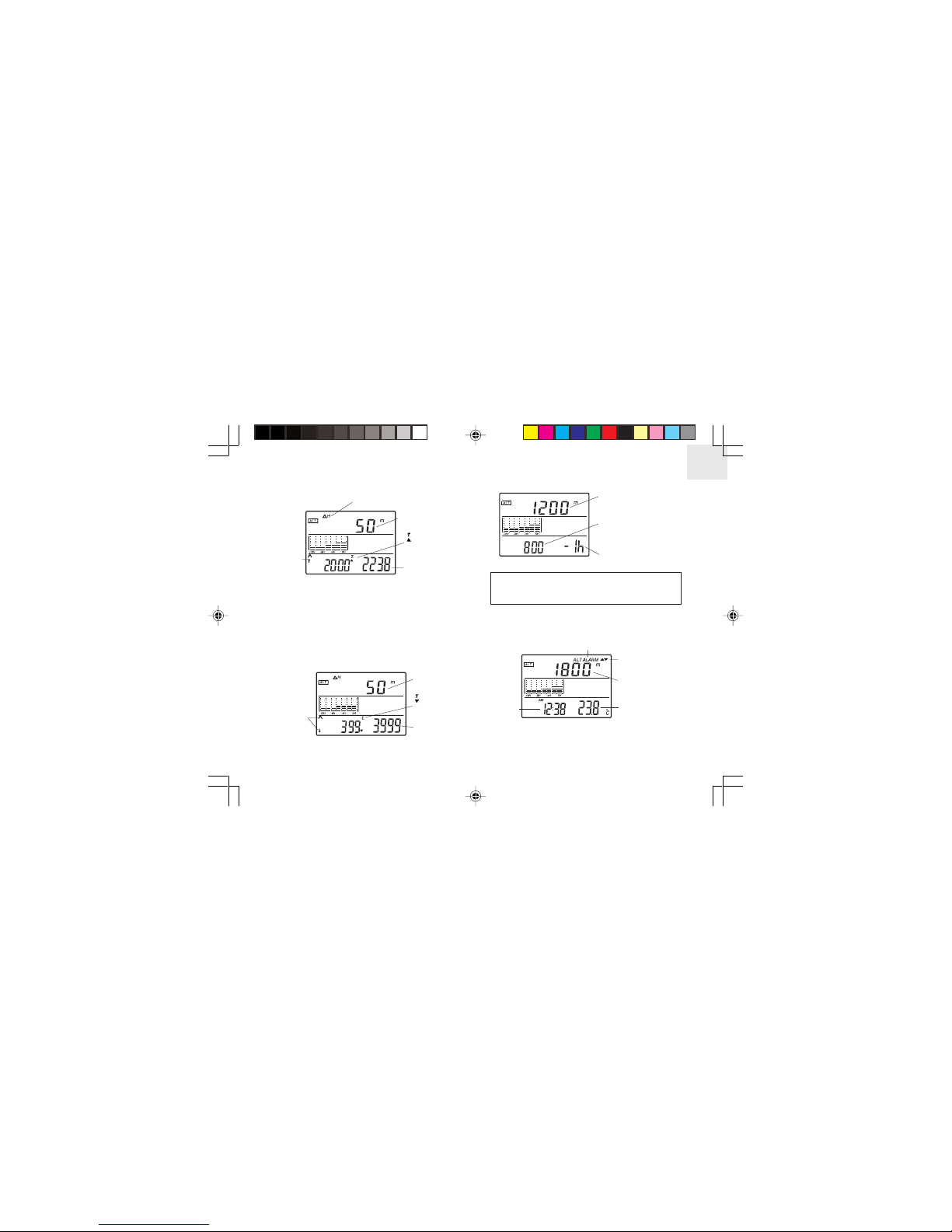

2. Press [ALT] to view the Altitude Max Memory
Display.
Display shows:
3. Press [ALT] again, to view the Altitude Min Memory
Display.
Display shows:
4. Press [ALT] again, Altitude History Display.
Display show:
*Previous altitude levels can be displayed for up to
12-hours. Press [+] or [-] to display previous altitude
levels at one-hour intervals for the past 12-hours.
5. Press [ALT] again to view the Altitude Alarm Display.
Display shows:
6. Press [ALT] again, the unit will return to the Normal
Altitude display.
CHANGE IN
ALTITUDE
ALTITUDE MIN MEMORY
DISPLAY
MINIMUM
ALTITUDE
REACHED ACCUMULATIVE
VERTICAL
DECENT
MEMORY
ACCUMULATIVE
VERTICAL
DECENT ICON
CHANGE IN
ALTITUDE
ALTITUDE CHANGE
INDICATOR
THE
ACCUMULATIVE
VERTICAL
ASCENT MEMORY
ALTITUDE MAX MEMORY
DISPLAY
ACCUMULATIVE
VERTICAL
ASCENT ICON
MAXIMUM
ALTITUDE
REACHED
ONE HOUR
PREVIOUS*
CURRENT ALTITUDE
ALTITUDE HISTORY DISPLAY
CORRESPONDING
ALTITUDE LEVEL AT
THE INDICATED
TIME
ALARM ON/OFF
INDICATOR
ALARM DISPLAY
INDICATOR
ALTITUDE LEVEL
WHERE THE ALARM
WILL ACTIVATE
CURRENT
TEMPERATURE
CURRENT
TIME
ALTITUDE ALARM DISPLAY
EB833(EN3) 8/31/04, 3:40 PM5

EN
6
ALTITUDE CALIBRATION
If the altitude on the display is different from the actual
current altitude, the unit can be manually calibrated to
reflect the true altitude level.
To calibrate the altitude:
1. In Normal Altitude Display.
2. Press and hold [ALT] and [TIME] simultaneously for
about 2 seconds. The CAL Hx indicator shows on the
display and the current altitude digits start flashing.
3. Press [+] or [-] to adjust the altitude reading by 1
meter. For rapid acceleration of measurement
adjustments, press and hold.
4. Press [ALT] to confirm and return to the Altitude
Display.
Example:
Point C: A point where the altitude, as indicated by a
marking stone or post, is 1500m. At this point
set the current altitude to 1500m.
NOTE The unit will return to Normal Altimeter Display if
no buttons are pressed for one-minute during the
calibration sequence.
UNITS OF MEASUREMENT FOR ALTITUDE
Altitude measurements can be displayed in feet (ft) or
meters (m).
To change the altitude units of measure:
1. In Normal Altitude Display.
2. Simultaneously, press and hold the [+] and [-] to
select between meters or feet.
ABOUT THE ALTITUDE CHANGE GRAPH
In Normal Altitude Display, the EB833 graphically display
altitude levels at 2-hour time intervals for the past 12
hours. Each vertical bar on the altitude graph represents
a 2-hour time period. Each horizontal line represents
pressure changes equal to + /- 200m.
The Altitude Change Graph is viewed in all the Altimeter
Mode displays.
( 2 HOURS PER COLUMN )
EB833(EN3) 8/31/04, 3:40 PM6

EN
7
Point B: At this point, check the Altitude Change Memory.
The unit will display the net vertical difference
between point A and point B.
CLEARING ALTITUDE MEMORY, MAX / MIN
ALTITUDE MEMORY, AND VERTICAL
ASCENT / DECENT MEMORY
Altitude related memories are cleared sequentially. During
the sequence, correct information can be bypassed by
pressing [ALT].
NOTE To clear the maximum altitude reached memory,
first enter MAX Altitude Display. Alternately, enter MIN
Altitude Display to clear the minimum altitude reached
memory.
To clear Altitude Mode Memories:
1. Enter Altitude Max (or Altitude Min) Display.
2. Press and hold [ALT] for about 2 seconds, the
change-in-altitude digits flash.
NOTE To bypass any section without making changes
to the memory, press [ALT].
3. Press [+] or [-], the change-in-altitude digits will reset
to 0 m./ft.
4. Press [ALT], and proceed to the maximum (or
minimum) height reached memory. The subsequent
maximum (or minimum) altitude digits flash.
ALTITUDE HISTORY DISPLAY
In addition to having altitude information displayed as a
graph, altitude history can also be displayed numerically.
To numerically display previous altitude levels:
1. Enter the Altitude History Display
2. Press [+] or [-] to display the corresponding altitude
history for a specified time period up to –12 hours.
ABOUT ALTITUDE CHANGE MEMORY
The EB833 can monitors the change in altitude between
two points. The unit displays the net vertical difference
between points of a descent / ascent. Upon clearing the
altitude memory, the current altitude reading is used as
a base from which the unit starts recording changes.
Point A: At this point, reset the Altitude Change Memory
to 0 m./ ft. The EB833 will immediately start
recording new changes in altitude.
EB833(EN3) 8/31/04, 3:40 PM7

EN
8
activate at the specified elevation.
7. Press [ALT] again and the Altimeter exits the setting
sequence. If the alarm is set to activate at a specified
altitude, the will be displayed.
NOTE The unit will return to the Altimeter Display if no
buttons are pressed for 2 minutes.
The altitude alarm setting ranges is between –500m and
7000m.
ALTITUDE SAMPLING RATE
The EB833 automatically samples altitude level at a rate
of 2 seconds or 15 minutes.
When detecting a significant change in altitude, the unit
will automatically increase the Altitude Sampling Rate to
2-second intervals.
When maintained at the same elevation for 10 minutes
or longer, the device will automatically decrease the rate
at which altitude samples are taken.
To manually force a change in the frequency at
which altitude samples are taken:
1. In Normal Altimeter Display.
2. Press and hold (+) for about 2 seconds. The Altitude
Sampling Rate will increase to 2-second intervals.
3. Press and hold (-) for about 2 seconds. The Altitude
Sampling Rate will decrease to 15-minute intervals.
5. Press [+] or [-], the memory resets to the current
actual altitude.
6. Press [ALT], and proceed to the accumulative vertical
ascent / decent memory. The subsequent
accumulative vertical ascent / decent digits flash.
7. Press [+] or [-], the vertical ascent / decent memory
resets to 0 m. / ft.
8. Press [ALT] a last time and the unit returns to the
Altitude Max (or Min) Memory Display.
NOTE The EB833 will return to Altitude Max/Min Memory
Display if no buttons are pressed for 1 minute.
THE ALTITUDE ALARM
The Altitude Alarm can be set to activate when a specific
altitude is reached.
To set the altitude alarm:
1Enter Altitude Alarm Display.
2. Press and hold [ALT] for above 2 seconds. The
indicator will display.
3. Press the [+] and [-] to increase / decrease the
altitude reading. Press and hold for 100-meter
acceleration increments.
4. Press [ALT]
5. Press [+] or [-] to deactivate the alarm (the
indicator disappears) or [+] or [-] to activate the alarm
(indicator appears).
6. Press [ALT], the ALTALARM indicator stops flashing.
The indicator will appear and the alarm will
EB833(EN3) 8/31/04, 3:40 PM8

EN
9
NOTES ON THE ALTIMETER FUNCTIONS
Altitude readings may be affected by air pressure change.
Sudden changes in pressure, temperature and weather
may cause an inaccurate altitude reading.
The unit cannot distinguish between change of air
pressure caused by a weather change or by an altitude
change. However, accurate functioning of the unit can
be maintained by following a few simple steps.
To ensure that accurate altitude readings are
maintained:
- At the start of a journey, switch the unit to the
Altimeter Display Mode. The last barometric pressure
will remain stored until the unit is switched back to the
Barometer Display Mode.
-When a journey is completed, or if the unit is
maintained at the same altitude for extended periods,
it is recommended to switch to the Barometer Display
Mode.
- If a journey is particularly long or extended over a
long distance of varying altitudes, occasionally
compare the unit’s displayed altitude against known
actual altitudes. If necessary, manually calibrate the
altitude to maintain correct altitude readings.
GENERAL OPERATION OF THE
BAROMETER AND WEATHER FORECAST
FUNCTIONS
In Barometric Mode, by detecting changes in air pressure,
this unit makes weather predictions. Illustrated weather
forecasts symbols indicate forecasts as sunny, slightly
cloudy, cloudy, and rainy.
Displayed forecast symbols are intended indicate weather
forecasts for the coming 12 to 24 hours. The radius of the
forecast is approximately 30 to 50 km.
A small icon indicates that the unit is in Barometric
Mode and that the displays are barometer related.
NOTE
1. The accuracy of weather forecasts, when only using
atmospheric pressure trends, are approximately 70
to 75 percent.
2. The weather forecasts from this unit are predictions
that cover the next 12 to 24 hours. It may not
necessarily reflect the current situation.
3. The "Sunny" icon, as applies to nighttime, implies
clear weather.
LCD
DISPLAYS
ON THE
UNIT
FORECAST SLIGHTLY CLOUDY CLOUDY RAINY
SUNNY
EB833(EN3) 8/31/04, 3:40 PM9

EN
10
To View Different Displays in Barometric Mode:
1. Press [BARO] to move between barometric functions.
Normal Barometric Display
The first display in Barometric Display Mode.
NOTE The unit will automatically enter Normal Barometric
Display when first entering the Barometric Mode.
Display shows:
2. Press [BARO] again to view the Barometric
Pressure History Display
Display shows:
* Previous barometric levels can be displayed for up
to 12 hours. Press [+} or [-] to display previous
barometric levels at one hour intervals for the past
12 hours.
3. Press [BARO] again, to return to the Normal
Barometer Display.
BAROMETRIC CALIBRATIONS
At sea level or near a reliable source like a weather
station, the barometer can be calibrated.
To calibrate the barometric function:
1. Enter Normal Barometric Display.
2. Simultaneously press and hold [BARO] and [TIME]
for about 2 seconds. The “CAL Po” will be displayed
and the current barometric digits will flash.
3. Press [+] or [-] to adjust barometric readings.
4. Press [BARO] to return to the Barometric Display
Mode.
UNITS OF MEASURE FOR BAROMETRIC
PRESSURE
Barometric units of measurement can be displayed as
mb, hpa, and inHg.
To change the units of measurement:
1. Enter the Normal Barometric Display.
WEATHER
FORECAST
INDICATORS
CURRENT
TEMPERATURE
CURRENT
TIME
CURRENT
PRESSURE
PRESSURE
CHANGE
TREND
GRAPH
NORMAL BAROMETRIC DISPLAY
ONE HOUR
PREVIOUS*
BAROMETRIC HISTORY DISPLAY
CORRESPONDING
BAROMETRIC
PRESSURE
LEVEL AT THE
INDICATED TIME
BARO ICON
EB833(EN3) 8/31/04, 3:40 PM10
