TABLE OF CONTENTS
About this guide ......................................................... 2
Product overview ........................................................ 3
Getting started ........................................................... 8
Batteries ............................................................... 8
AC power adapter ................................................ 8
Switch between modes ........................................ 8
Change settings ................................................... 9
Remote unit setup ....................................................... 9
Clock ....................................................................... 10
Alarm ....................................................................... 11
Calendar .................................................................. 12
Moon phase ............................................................. 13
Barometer ................................................................ 13
Weather forecast ...................................................... 14
Temperature & humidity ............................................ 15
Radio ....................................................................... 17
Backlight ................................................................. 19
Reset system ........................................................... 20
Safety and care ....................................................... 20
Warnings ................................................................. 20
Troubleshooting ....................................................... 21
Specifications .......................................................... 23
Additional resources ................................................ 26
PS M03 English R18 7/16/03, 1:04 PM1

EN
2
ABOUT THIS GUIDE
Congratulations on your selection of the Philippe Starck
with Oregon Scientific Full Weather Station with Radio
Controlled Clock and AM / FM Radio (PS-M03 /
PS-M03U).
This powerful device bundles time keeping, alarm,
indoor and wireless outdoor temperature and humidity
monitoring, weather forecasting, and digital-tuned AM/
FM radio into a single tool you can use from the
convenience of your home.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
In this box, you will find:
•Main unit
•Remote unit
•Batteries
•AC power adapter
PS M03 English R18 7/16/03, 1:04 PM2

EN
3
PRODUCT OVERVIEW
TOP AND BATTERY COMPARTMENT VIEW
DESCRIPTIONS
1. Snooze / Light button (12, 19)
2. Light sensor ( 19)
2
1
PS M03 English R18 7/16/03, 1:04 PM3

EN
4

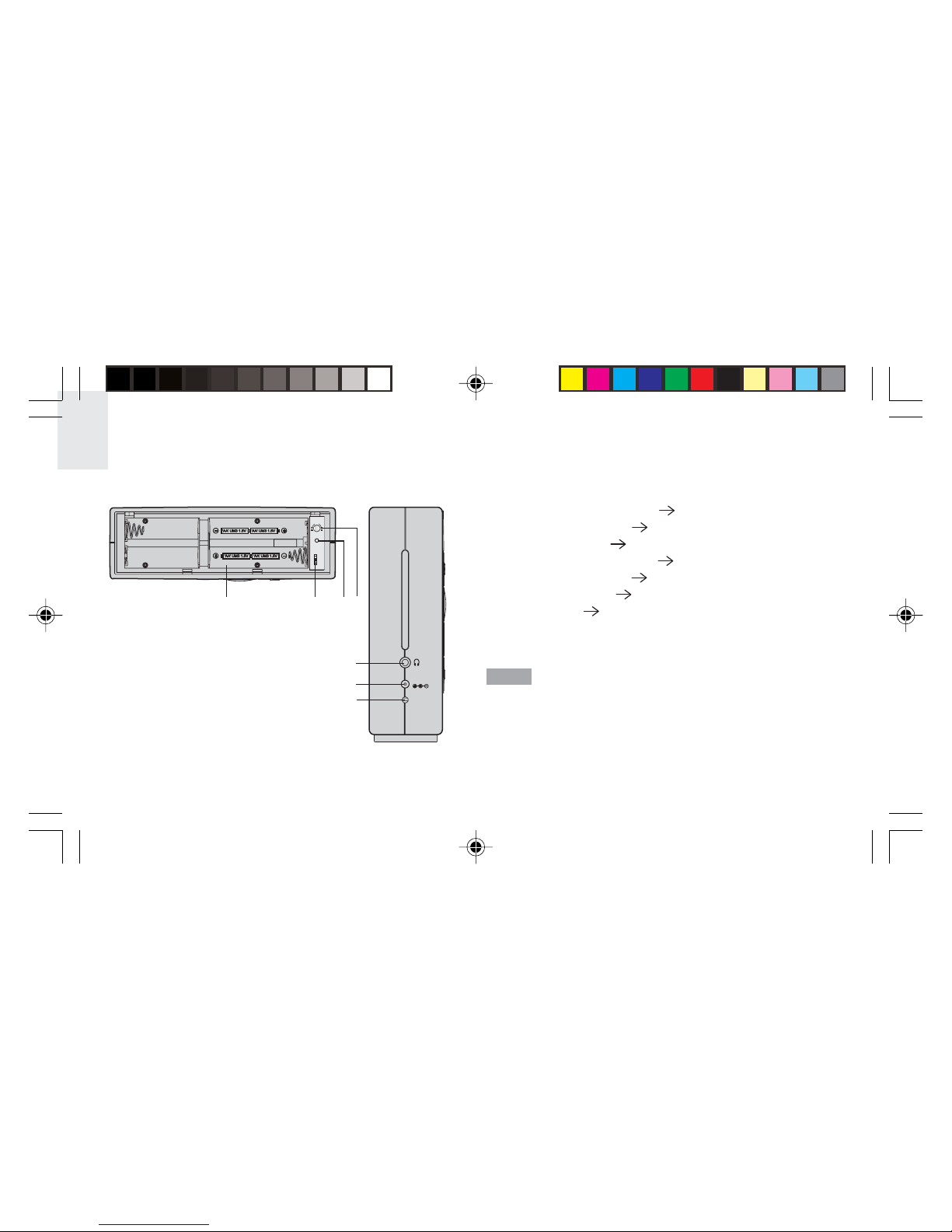

BOTTOM AND SIDE VIEW DESCRIPTIONS
1. Battery compartment ( 8)
2. Backlight switch ( 19)
3. Reset button ( 8, 20)
4. Light sensitivity knob ( 19)
5. Headphone jack ( 18)
6. DC input jack (8)
7. Antenna (17)
AC power adapter not shown.NOTE
RESET
SENSOR
ON
LIGHT
OFF
AUTO
LIGHT
DC 7.5V
13
2
5
7
6
4
PS M03 English R18 7/16/03, 1:04 PM4

EN
5
LCD DISPLAY DESCRIPTIONS
1. Low battery icon ( 8)
2. Clock (10)
3. Barometer (13)
4. Weather forecast ( 14)
5. Moon phase (13)
6. Calendar ( 12)
7. Temperature and humidity (15)
8. Alarm (11)
9. Radio (17)
1
2
3
4
5
6
7
8
9
PS M03 English R18 7/16/03, 1:04 PM5

EN
6

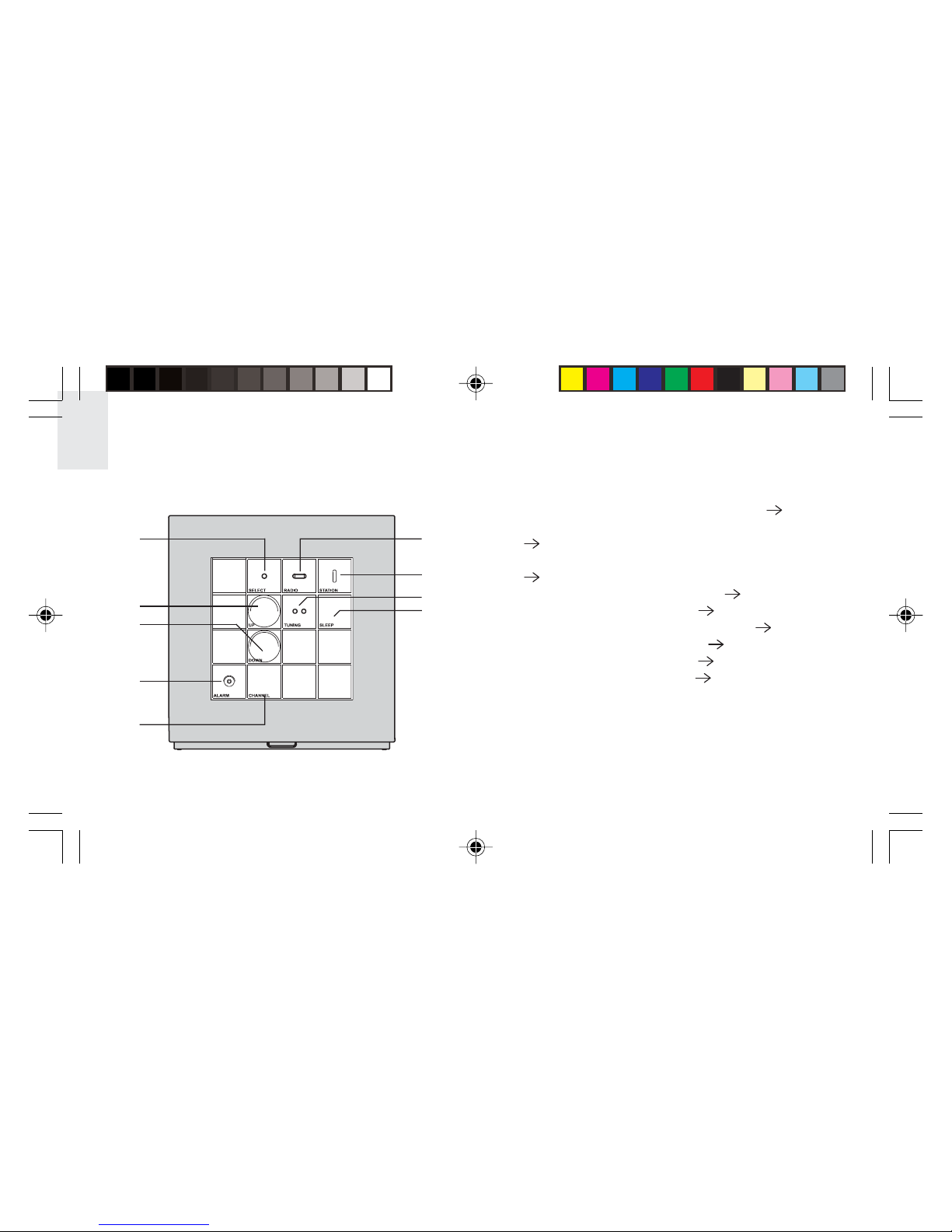

BACK VIEW BUTTON DESCRIPTIONS
1. Select - switch modes / change settings (8, 9)
2. Up - increase setting / activate auto-synch
(10)
3. Down - decrease setting / deactivate auto-synch
(10)
4. Alarm -activate / deactivate alarm (12)
5. Channel - switch remote unit ( 15)
6. Radio - turn radio or radio alarm on/off (12, 17)
7. Station -select a preset station (18)
8. Tuning - select AM/FM band ( 18)
9. Sleep - activate Sleep Timer (18)
1
2
3
4
8
7
9
5
6
PS M03 English R18 7/16/03, 1:04 PM6

EN
7
REMOTE UNIT DESCRIPTIONS
1. Temperature / Trend display (15, 17)
2. Low battery icon (8)
3. Humidity / Trend / Comfort Level display
(15, 16, 17)
4. °C/°F switch (9)
5. Channel switch (9)
6. Reset button (8, 20)
7. Battery compartment (8)
8. Wall mount hole
9. Battery compartment lid
1
25
3
4
6
7
8
9
PS M03 English R18 7/16/03, 1:04 PM7

EN
8
GETTING STARTED
BATTERIES
Batteries for the remote and main units are supplied
with this product. Replace them whenever the low
battery signal ( ) displays. Remove the battery
compartment lid on the bottom of the main unit, and
insert the batteries. Use a small Phillips screwdriver to
remove the remote unit compartment lid. Be sure to
match the correct polarity, as shown in the battery
compartment. Before you close the lid, press the
RESET button with the point of a blunt object (such as
a ball point pen).
Insert the batteries in the remote unit before
you set up the main unit. Do not use rechargeable
batteries.
AC POWER ADAPTER
An AC power adapter is supplied for use with the main
unit. You must connect the power adapter if you wish to
use the continuous backlight feature. It is also
recommended for use with the Radio. The jack is
located on the side of the unit.
If the AC power becomes unavailable, the unit
will automatically switch to battery power.
SWITCH BETWEEN MODES
Press SELECT. The selected mode will flash. The
display will stop flashing if no key is pressed within
5 seconds.
NOTE
NOTE
PS M03 English R18 7/16/03, 1:04 PM8

EN
9
CHANGE SETTINGS
Press and hold SELECT for 2 seconds. Then, press
UP or DOWN to change each setting. Press SELECT
to switch options.
REMOTE UNIT SET UP
Up to 3 remote units can be used with this product to
monitor outdoor temperature and humidity. The
measurement unit (°C or °F) and channel number
(1, 2, or 3) switches are located in the battery
compartment, and should be set prior to installation.
Additional remote units sold separately. If you
are using more than one remote unit, be sure to select a
different channel number for each unit.
INSTALLATION
Mount the remote unit on a flat surface using the recess
hole on the back of the unit.
For best results:
•Before you insert the batteries, select the
measurement unit and channel number first.
•Place the unit out of direct sunlight and moisture.
•Do not place the remote unit more than
20 - 30 meters (60 - 90 feet) from the main
(indoor) unit.
• Position the unit so that it faces the main (indoor)
unit. Minimize obstructions such as doors, walls,
and furniture.
You may need to experiment with various locations to
get the best reception.
NOTE
PS M03 English R18 7/16/03, 1:04 PM9

EN
10
CLOCK
This product can automatically synchronize the date and
time with official time-keeping organizations in Frankfurt,
Germany (PS-M03) or Rugby, England (PS-M03U).
When the unit is within 1500 km (932 miles) of a RF
signal, the reception icon will blink during reception.
RECEPTION
Reception takes 2 - 10 minutes to complete. Once
complete, the icon will stop blinking.
For best results, place the unit away from metal
or electrical objects, and near a window with a clear
view to the sky.
TO DISABLE OR ENABLE AUTO-
SYNCHRONIZATION
In Clock mode, press DOWN for 2 seconds to disable
the auto-synchronization. The unit will not respond to
radio signals until you reactivate the synchronization.
To enable auto-reception, press UP for 2 seconds.
NOTE
Strong signal Weak signal No signal
PS M03 English R18 7/16/03, 1:04 PM10

EN
11
SET OR CHANGE THE CLOCK
1. Press SELECT to switch to the Clock Mode.
The time will flash.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the 12/24-hour format, hour, and minute.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
ALARM
When activated, the Melody Alarm starts quietly, then
gradually becomes louder. It shuts off after two
minutes. The LCD display lights up for the first
8 seconds.
The Radio alarm turns on the Radio automatically. It will
turn off after 2 hours.
SET ALARM
1. Press SELECT several times until the Alarm
area flashes.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the hour, minute, and alarm type ( for
Melody Alarm or for Radio Alarm). Press UP
or DOWN to change the setting. Press SELECT
to confirm.
If you choose , also select the melody (1 - 7)
and volume level (Lo or Hi).
PS M03 English R18 7/16/03, 1:04 PM11

EN
12
If you choose , use the radio control buttons
to select the AM/FM band, radio station and
volume level (18).
4. Press SELECT again when you are finished.
SNOOZE
Press the SNOOZE/LIGHT button the top of the unit
to temporarily disable the alarm for 8 minutes. The
alarm icon will blink while Snooze is activated.
TO TURN THE ALARM OFF OR ON
Press RADIO to turn the radio alarm off. Press any
other button to turn the melody alarm off.
To turn the alarm off completely (deactivate it for the
next day), press ALARM.
CALENDAR
SET DATE
Clock auto-synchronization must be deactivated before
you manually set the date. (10)
1. Press SELECT several times until the calendar
area flashes.
2. Press and hold SELECT for 2 seconds to enter
the calendar setting mode.
3. Select the year, month, date, and language.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
The language options are (E) English, (F)
French, (D) German, (I) Italian, and (S) Spanish.
NOTE
PS M03 English R18 7/16/03, 1:04 PM12

EN
13
MOON PHASE
Press SELECT until the Calendar Area flashes. Then,
press UP or DOWN to change the date and view the
corresponding moon phase.
BAROMETER
This product tracks barometric pressure changes over
the past 24 hours to provide the weather forecast
(14) and a trend line showing the direction of
barometric change. Barometric changes are measured
by the main (indoor) unit.
BAROMETRIC TREND
The barometric trend arrow for the last 30 minutes is
always displayed.
Trend Description Pressure change
(mb/hPa)
Rising
Steady
Falling
1 hr 6 hrs
+1+3
Steady Steady
-1 -3
PS M03 English R18 7/16/03, 1:04 PM13

EN
14
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of
weather within a 30 to 50 km (19 - 31 mile) radius with
70 to 75 percent accuracy. The weather forecast is
always displayed.
VIEW THE LAST 24 HOURS
Press SELECT 2 times until the Barometer Area
flashes. Then, press UP or DOWN to view the last
24 hours history.
SET UNIT AND ALTITUDE
You can set the unit of measurement (mb/hPa or inHg)
and altitude. Setting the altitude allows the product to
take more accurate barometric measurements.
1. Press SELECT 2 times until the Barometer Area
flashes.
2. Press and hold SELECT for 2 seconds.
3. Select altitude (-100 meters to 2500 meters in
increments of 10) and the unit of measurement
(mb/hPa or inHg). Press UP or DOWN to
change the setting. Press SELECT to confirm.
Clear Partly Cloudy Cloudy Rainy
PS M03 English R18 7/16/03, 1:04 PM14

EN
15
CLEAR MIN / MAX RECORDS
While viewing Min/Max records, press and hold UP or
DOWN for 2 seconds until a beep sounds. This clears
the previous measurements from the memory.
SELECT REMOTE UNIT CHANNEL
While in the Temperature / Humidity Mode, press
CHANNEL to switch between CH 1, 2, or 3, or press
and hold CHANNEL for 2 seconds to enter Auto scan
mode. If only 1 remote unit is in use, you will not be
able to change channels or Auto scan. If you select
"Auto", the channel will change every 3 seconds. To
deactivate, press and hold CHANNEL for 2 seconds
again.
TEMPERATURE AND HUMIDITY
With the press of a button, you can check the current
indoor or outdoor temperature, humidity percentage,
comfort level, trend, and record measurements.
Outdoor measurements are collected by the remote
unit.
Temperature is given at the top; humidity is below.
VIEW MIN / MAX / CURRENT MEASUREMENTS
Press SELECT 3 times until the Temperature and
Humidity Areas flash. Press UP or DOWN to scan the
readings.
PS M03 English R18 7/16/03, 1:04 PM15

EN
16
SENSOR SEARCHING
If there is no remote unit signal, the temperature and
humidity measurements will be blank. Check the remote
unit batteries, or press and hold UP and DOWN for
2 seconds to search for the remote unit(s).
Signals from household electrical appliances
such as doorbells and home security systems can
cause temporary reception failures between the indoor
and outdoor units. This is normal and does not affect
the general performance of the product.
Reception will automatically resume once the
interference ends.
COMFORT ZONE
The indoor and outdoor comfort zones are shown for
the following conditions.
NOTE
Searching No sensor Sensor found
Zone
Comfort
20 - 25 °C
(68 - 77 °F)
40 - 70%
Wet
Any >70%
Any
Dry
<40%
RelativeHumidity
Temperature
PS M03 English R18 7/16/03, 1:04 PM16

EN
17
SET UNIT
While in Temperature / Humidity Mode, press SELECT
for 2 seconds. Press UP or DOWN to switch between
°C and °F. Press SELECT to confirm.
RADIO
You can listen to Phase Lock Loop (PLL) digital radio
broadcasts with this product.
ANTENNA
The antenna wire is located on the side of the unit.
Position it for the best reception.
TURN THE RADIO ON OR OFF
Press the RADIO button.
TRENDS
The trend arrow for the last 30 minutes always displays.
Indoor and outdoor temperature and humidity trends are
shown separately.
+0.5 °C+3%
SteadySteady
-0.5 °C-3%
Trend Temperature Relative Humidity
PS M03 English R18 7/16/03, 1:04 PM17

EN
18
VOLUME
Press UP or DOWN. There are 8 volume levels.
SWITCH AM/FM BAND
Press TUNING to enable auto tuning. Press again to
switch AM/FM band.
SELECT STATION
Press STATION. There are 16 preset channels:
8 for FM and 8 for AM.
TUNING
Press TUNING. Then, press UP or DOWN to scan the
available frequencies. Press and hold UP or DOWN for
2 seconds to auto-scan. The scanning will stop when
an available frequency is found.
STORE STATION TO MEMORY
Press STATION for 2 seconds. The assigned number
(1 - 8) will show in the Radio Area.
SLEEP TIMER
Press SLEEP. To change the timer length
(0 - 120 minutes in increments of 10) press UP or
DOWN. The radio automatically turns off when the
timer reaches 0. To manually turn off the radio, press
RADIO.
HEADPHONES
The headphone jack is located on the side of the unit.
Use the headphones for stereo-quality radio listening.
PS M03 English R18 7/16/03, 1:04 PM18

EN
19
3. The Light sensitivity knob is located in the
battery compartment. Rotate to adjust.
4. When activated, the continuous backlight will be
half as bright as usual. To achieve full
brightness, press SNOOZE/LIGHT.
BACKLIGHT
Press SNOOZE/LIGHT to illuminate the backlight for
5 seconds.
CONTINUOUS BACKLIGHT
The AC power adapter must be plugged in to use this
feature ( 8).
1. The BACKLIGHT switch is located in the battery
compartment. Move it to the “ON” position to
enable the continuous backlight. Move it to the
“OFF” position to disable.
2. Move it to the “AUTO” position to enable
continuous backlight controlled by light intensity.
When activated, the backlight will be on
whenever the unit perceives that the room is dark.
RESET
ON OFF AUTO
LIGHT SENSOR
E
O
I
LIGHT
PS M03 English R18 7/16/03, 1:04 PM19
