Oregon Scientific RAR502X User manual

Multi-zone
LCD weather station
USER MANUAL
RAR502X

EN
1
Multi-zone LCD weather station
Model: RAR502X
USER MANUAL
INDEX
Overview ................................................................... 2
Front view .............................................................. 2
Back view............................................................... 2
Sensor.................................................................... 3
Getting started.......................................................... 3
Remote sensor installation..................................... 3
Main unit installation .............................................. 3
Synchronising and placing sensors ....................... 4
Name tags.............................................................. 5
Weather forecast ...................................................... 5
Temperature and humidity ...................................... 5
Mold alert ............................................................... 5
Troubleshooting ..................................................... 5
Reset.......................................................................... 6
Specifications........................................................... 6
Precautions............................................................... 7
About Oregon Scientific .......................................... 7
EU-Declaration of conformity.................................. 8
Information for users ............................................... 8
FCC statement.......................................................... 8
Declaration of conformity ....................................... 9

EN
2
OVERVIEW
FRONT VIEW
6
5
4
3
2
1
1. Weather forecast
2. : mold alert
3. Main unit batteries low
4. Temperature and humidity for location where main
unit is placed
5. Temperature and humidity for location where sensor
is placed
6. Customisable name tags
BACK VIEW
1
4
5
2
3
1. Wall mount hole
2. Battery compartment
3. Collapsible table stand
4. °C / °F: select temperature unit
5. RESET: reset unit to default settings

EN
3
SENSOR
This product can work with up to 3 sensors at any one time
to capture temperature and relative humidity readings in
various locations around the home.
A complete set of 3 sensors are provided in this package,
while replacement wireless remote sensors can be
purchased separately.

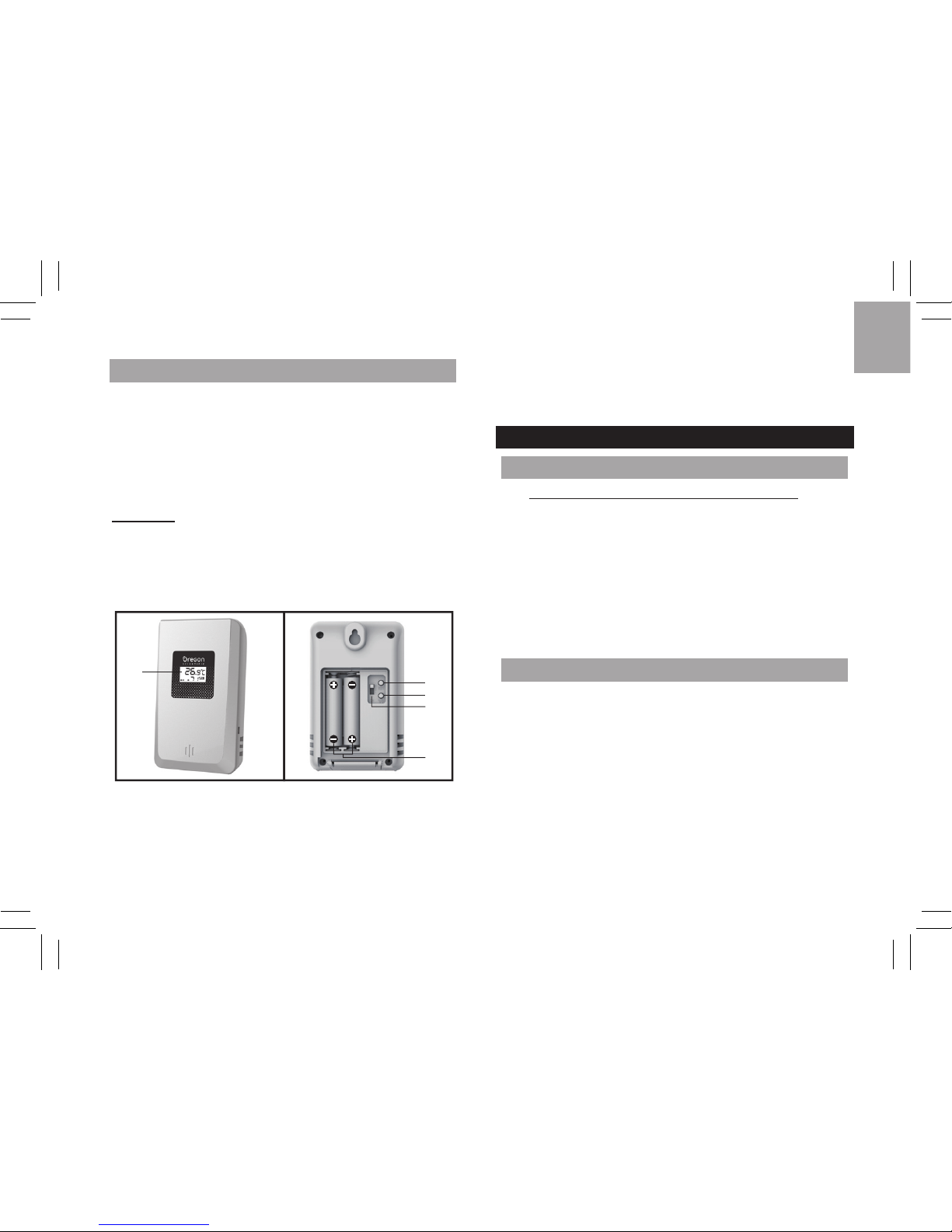

THGR221
This sensor conveniently displays the temperature /
humidity which makes it especially suited for locations
where you would like to see this data at a glance without
having to refer each time to the main unit, such as
children’s room.
1
2
3
4
5
1. LCD display: Shows the channel number,
temperature and humidity readings.
2. TEST: Searches for weather station
3. °C / °F: Select temperature unit
4. CHANNEL switch
5. Battery compartment
GETTING STARTED
REMOTE SENSOR INSTALLATION
1. Step applicable only to THGR221:
Open the battery compartment cover.
2. Slide channel switch to select channel 1. Ensure
you use a different channel for the other sensors
(2, 3).
3. Insert the batteries, matching the polarities.
4. Press TEST after each battery change.
5. Replace the battery compartment cover.
MAIN UNIT INSTALLATION
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.

EN
4
The battery icon may appear in the following
areas:
AREA MEANING
Main unit
environment area Main unit batteries low
Remote sensor
environment area
Remote sensor batteries
low
NOTE
• We recommend that you use alkaline batteries with
this product for longer usage and lithium batteries in
temperatures below freezing.
• Batteries should not be exposed to excessive heat
such as sunshine or fire.
SYNCHRONISING AND PLACING SENSORS
The main unit will automatically search for new
sensor reset within the last 30 minutes. If unit failed to
synchronise with remote sensor, reset both the main
unit and sensor or try selecting a different channel, then
reinstall the batteries and press TEST.
The remote sensor reception icons will show the following
status:
ICONS MEANING
Main unit is searching
for sensor(s), time
interval (4 minutes)
A sensor has been
found and logged on
(normal working model)
and “--.-“No sensor found
Place the remote sensor within 100 m (328 ft) from the
main unit.
TIP
• When placing sensors, remember the intended
location for each sensor. Refer to channel switch
position (1, 2, 3) and match with channel icon
displayed directly above name tag.
• The transmission range may vary depending on
many factors. You may need to experiment with
various locations to get the best results.
For best results:
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to
the sky, away from metallic / electronic objects.

EN
5
NAME TAGS
Name tags can be inserted in the main unit (see front
view diagram).
There are 3 blank name tags provided in this package.
You can write on the blank tags the name of the locations
where the sensors are being installed.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
forecast within a 30-50 km (19-31 mile) radius.
Weather forecast area
ICON DESCRIPTION
Sunny
Partly cloudy
Cloudy
Rainy
Snowy
TEMPERATURE AND HUMIDITY
To toggle temperature unit:
• Using a thin blunt instrument, press °C / °F to toggle
between °C / °F.
MOLD ALERT
This product features moisture alert function to inform
users that there is a high risk of mold forming and should
therefore take preventive measures.
The mold alert icon will flash when humidity is 60%
or above and will stop flashing and disappear when the
humidity falls below 60%.
TROUBLESHOOTING
DISPLAY AREA PROBLEM
LL.L Temperature Reading is below
range
LL Humidity
HH.H Temperature Reading is above
range
HH Humidity
--.- or --% Temperature
and Humidity
Sensor is not
logged or does
not have humidity
function

EN
6
RESET
Main unit: Using a thin blunt instrument, press RESET
to return to default settings.
Sensor: Reinstall the batteries and press TEST.
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 134 x 27 x 134 mm
(5.3 x 1.1 x 5.3 in)
Weight 240 g (8.46 oz)
without battery
Signal frequency 433 MHz
Temperature range -5°C to 50°C
(23°F to 122°F)
Humidity range 25% - 95%
Power 4 x UM-4 (AAA) 1.5 V
batteries
REMOTE SENSOR (THGR221)
TYPE DESCRIPTION
Dimensions
(L x W x H)
95 x 60 x 27 mm
(3.74 x 2.4 x 1.06 in)
Weight 50 g (1.76 oz) without battery
Humidity range 20% - 95%
Humidity display
range
2%-98%
Humidity accuracy 20% - 40%: +/- 7%
40% - 80%: +/- 5%
80% - 95%: +/- 7%
Temp. unit °C / °F
Temperature
outdoor range
-20°C to 60°C (-4°F to 140°F)
Temperature display
range
-50°C - 70°C (-58°F -158°F )
Temperature
accuracy
-20°C to 0°C (-4°F to 32°F):
+/- 2.0°C (+/- 4.0°F)
0°C to 40°C (32°F to 104°F):
+/- 1.0°C (+/- 2.0°F)
40°C to 60°C
(104°F to 140°F):
+/- 2.0°C (+/- 4.0°F)
RF frequency 433MHz
Transmission Up to 100 meters (328 feet)
with no obstructions
Channel no. 3
Batteries 2 x UM-4 (AAA) 1.5V

EN
7
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Placement of this product on certain types of
wood may result in damage to its finish for which
Oregon Scientific will not be responsible. Consult
the furniture manufacturer’s care instructions for
information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before first use.
• Should there be any discrepancy between the
English and other language versions, the English
version shall apply and prevail.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientific.com to learn
more about Oregon Scientific products.
For any inquiry, please contact our Customer Services
at [email protected].
Oregon Scientific Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.

EN
8
EU-DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientific Global
Distribution Limited, declares that the radio equipment
type Multi-zone LCD weather station (Model: RAR502X)
is in compliance with 2014/53/EU Directive. The full text
of the EU Declaration of Conformity is available at the
following internet address:
http://global.oregonscientic.com/customerSupport.php
COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland
and Norway N
CH
INFORMATION FOR USERS
Pursuant to and in accordance with Article
14 of the Directive 2012/19/EU of the
European Parliament on waste electrical
and electronic equipment (WEEE), and
pursuant to and in accordance with Article
20 of the Directive 2013/56/EU of the
European Parliament on batteries and accumulators
and waste batteries.
The barred symbol of the rubbish bin shown on the
equipment indicates that, at the end of its useful life, the
product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries
must be removed from the equipment before it is given
as waste. To remove the batteries/accumulators refer
to the specifications in the user manual. Therefore, any
products that have reached the end of their useful life
must be given to waste disposal centers specializing
in separate collection of waste electrical and electronic
equipment, or given back to the dealer when purchasing
a new WEEE, pursuant to and in accordance with Article
14 as implemented in the country.
The adequate separate collection for the subsequent
start-up of the equipment sent to be recycled, treated
and disposal of in an environmentally compatible way
contributes to preventing possible negative effects on
the environment and health and optimizes the recycling
and reuse of components making up the apparatus.
Abusive disposal of the product by the user involves
application of the administrative sanctions according to
the laws in force.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
