Oregon Scientific RAR502S User manual

EN
1
Colour LCD Multi-zone
weather station
Model: RAR502S
USER MANUAL
INDEX
Overview ................................................................... 2
Front view .............................................................. 2
Back view............................................................... 2
Side view................................................................ 3
Sensor.................................................................... 3
Getting started.......................................................... 4
Remote sensor installation..................................... 4
Main unit installation .............................................. 4
Connect AC Adapter .............................................. 5
Synchronising and placing sensors ....................... 5
Name tags.............................................................. 5
Weather forecast ...................................................... 6
Temperature and humidity ...................................... 6
Mold alert ............................................................... 6
Troubleshooting ..................................................... 6
Reset.......................................................................... 7
Specifications........................................................... 7
Precautions............................................................... 8
About Oregon Scientific .......................................... 8
EU-Declaration of conformity.................................. 9
FCC statement.......................................................... 9
Disposal Information for users ............................. 10

EN
2
OVERVIEW

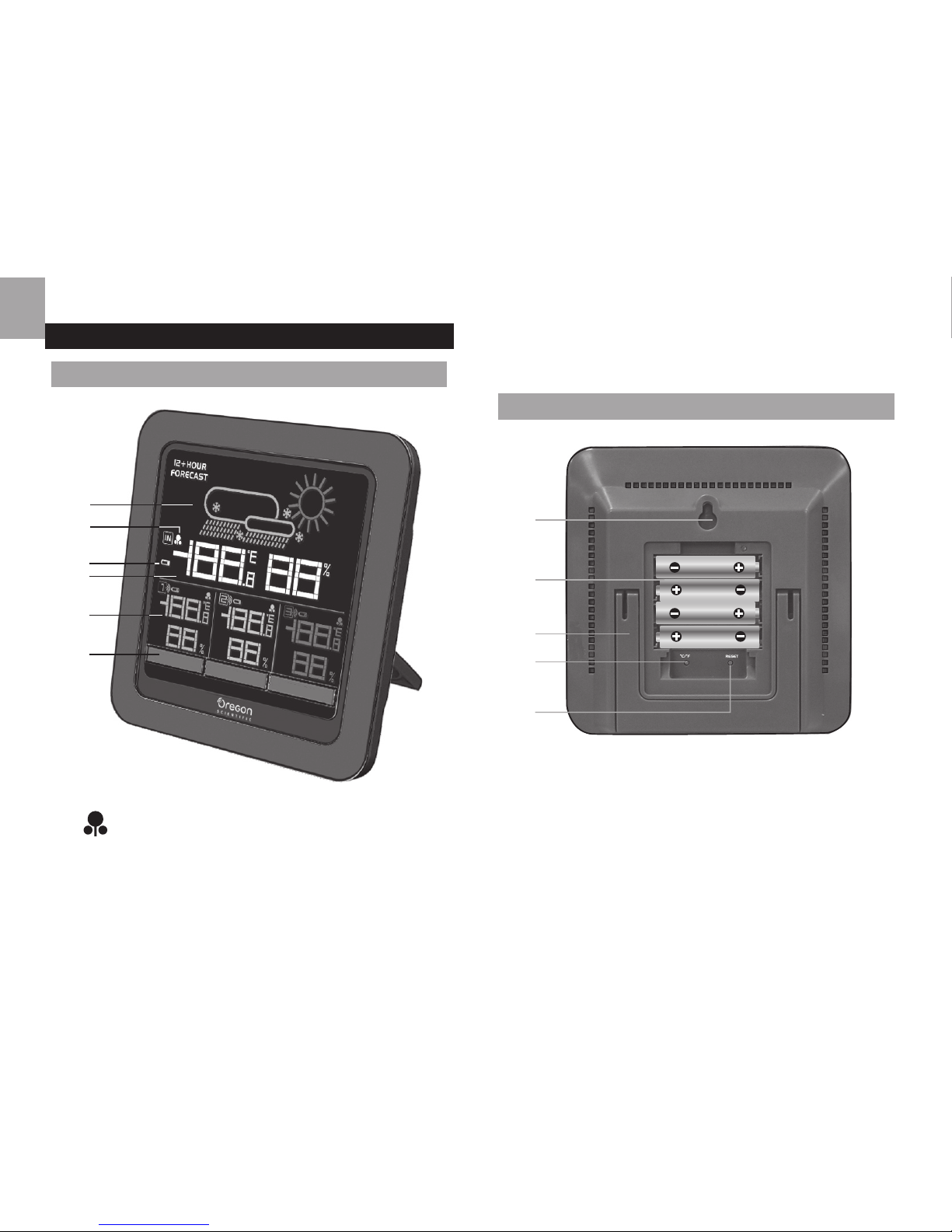

FRONT VIEW
6
5
4
3
2
1
1. Weather forecast
2. : mold alert
3. Main unit batteries low
4. Temperature and humidity for location where main
unit is placed
5. Temperature and humidity for location where sensor
is placed
6. Customisable name tags
BACK VIEW
1
4
5
2
3
1. Wall mount hole
2. Battery compartment
3. Collapsible table stand
4. °C / °F: select temperature unit
5. RESET: reset unit to default settings

EN
3

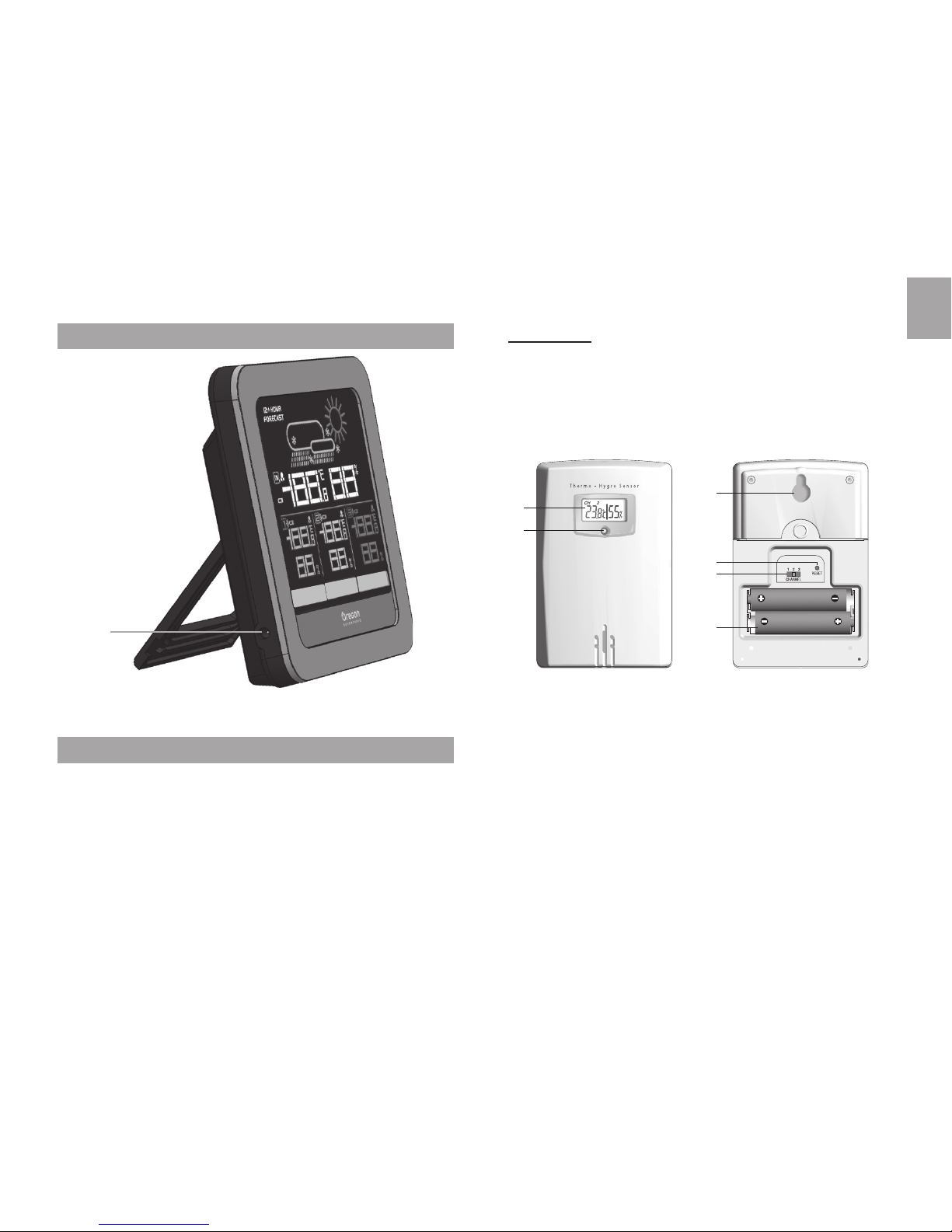

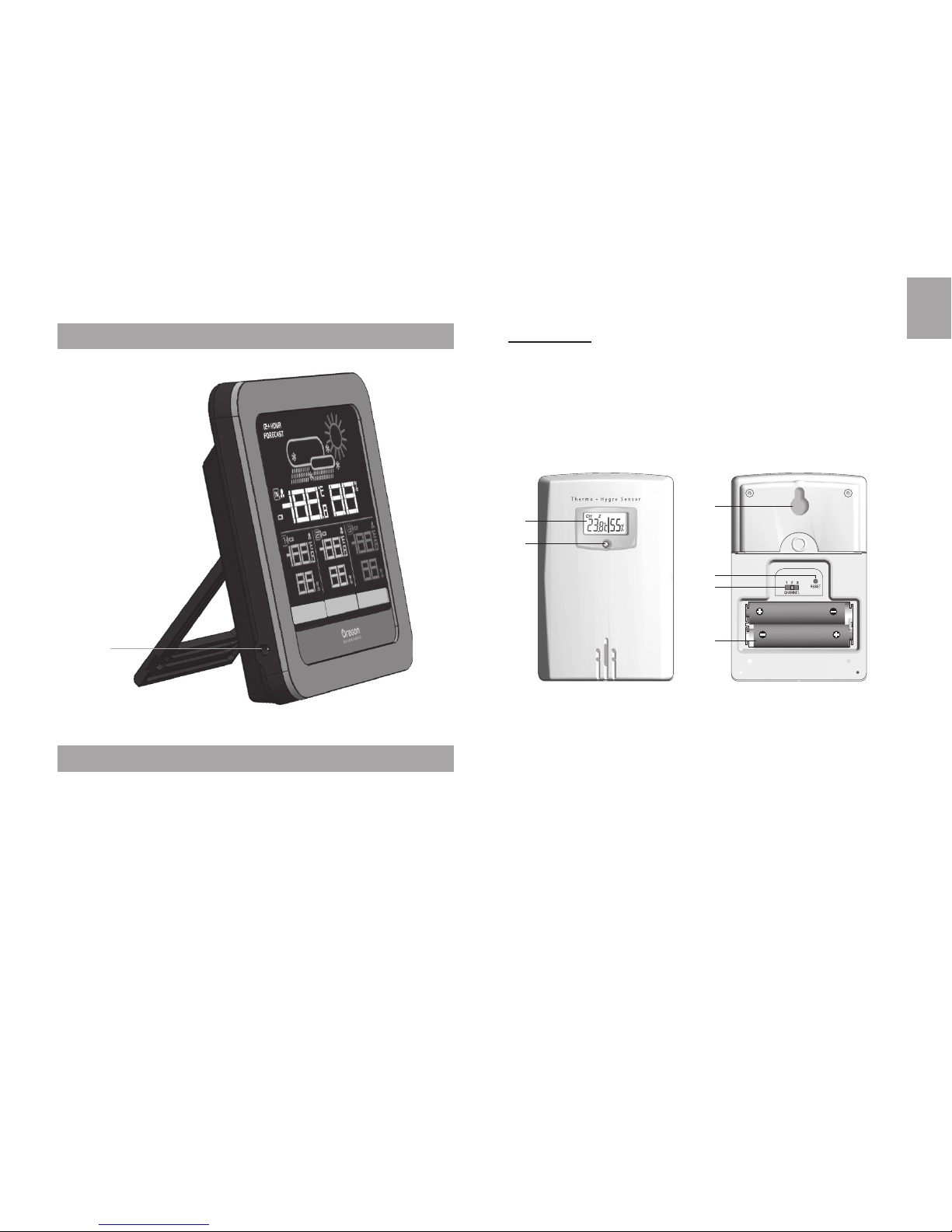

SIDE VIEW
1
1. AC power adapter jack
SENSOR
This product can work with up to 3 sensors at any one time
to capture temperature and relative humidity readings in
various locations around the home.
A complete set of 3 sensors are provided in this package,
while replacement wireless remote sensors can be
purchased separately.
THGR122N
This sensor conveniently displays the temperature /
humidity which makes it especially suited for locations
where you would like to see this data at a glance without
having to refer each time to the main unit, such as
children’s room.
2
1
3
4
5
6
1. LCD display
2. LED status indicator
3. Wall mount hole
4. RESET
5. CHANNEL switch
6. Battery compartment

EN
4

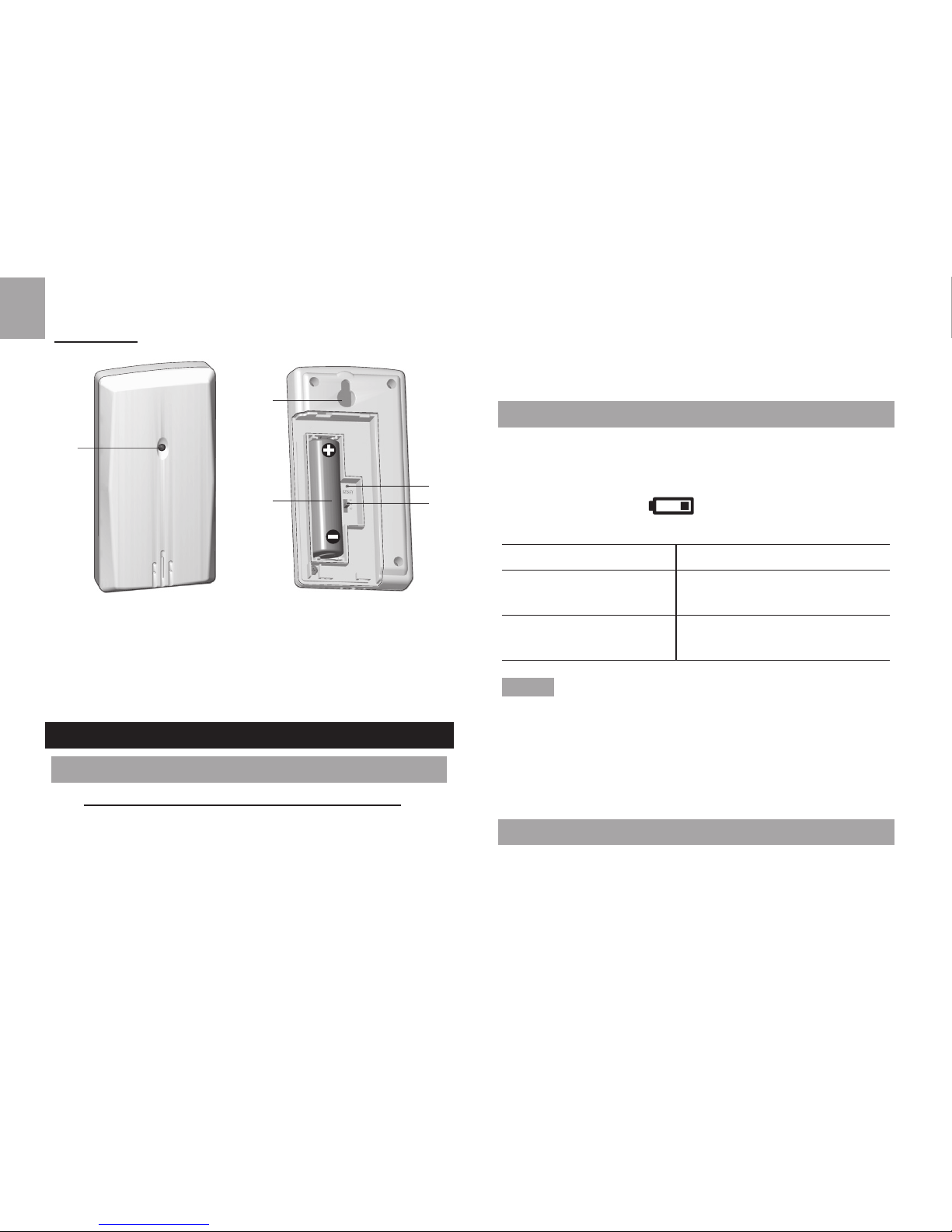

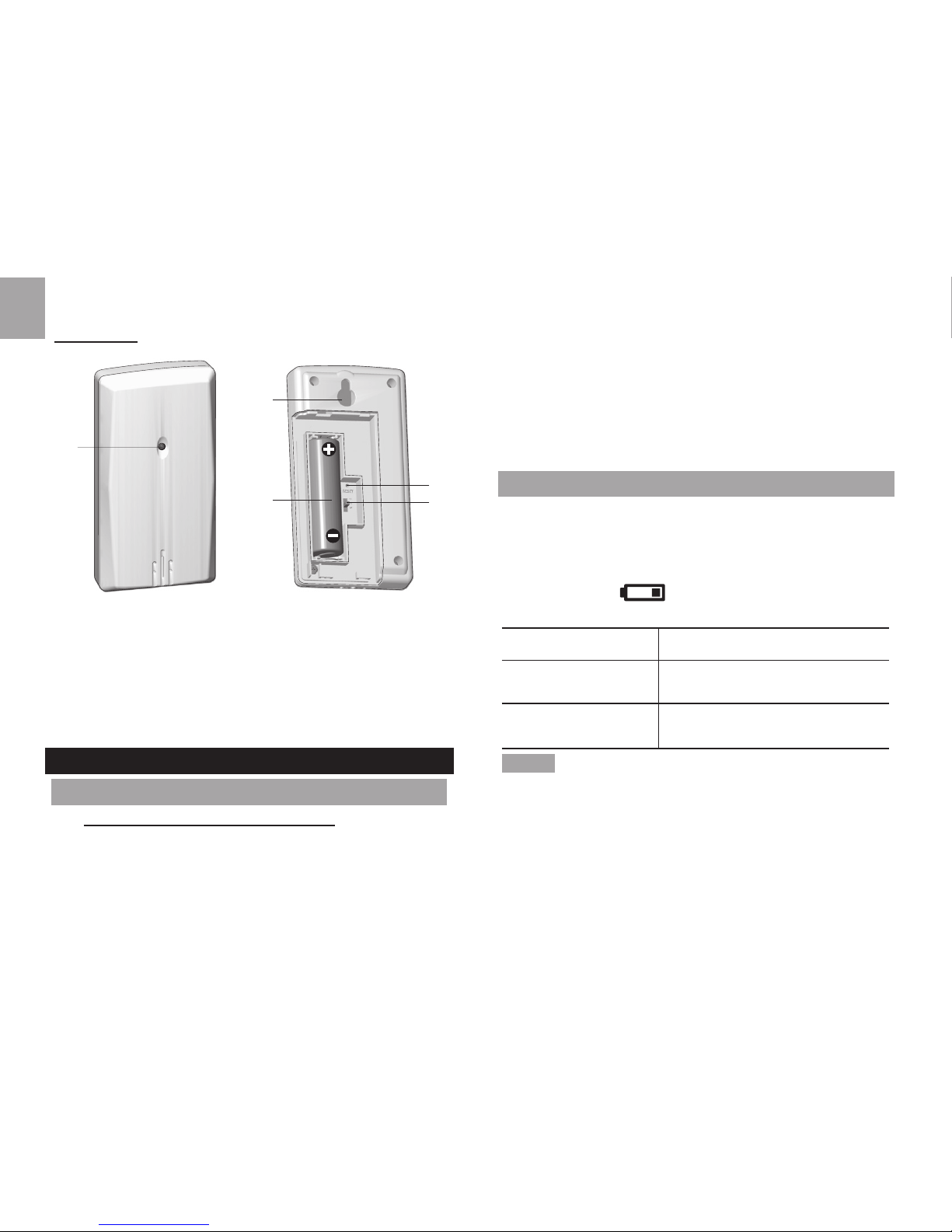

THGN132N
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
GETTING STARTED
REMOTE SENSOR INSTALLATION
1. Step applicable only to THGR122N:
Using a Philips screwdriver, open the battery
compartment cover.
2. Slide channel switch to select channel 1. Ensure
you use a different channel for the other sensors
(2, 3).
3. Insert the batteries, matching the polarities.
4. Press RESET after each battery change.
5. Replace the battery compartment cover.
MAIN UNIT INSTALLATION
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
The battery icon may appear in the following
areas:
AREA MEANING
Main unit
environment area Main unit batteries low
Remote sensor
environment area
Remote sensor batteries
low
NOTE
• We recommend that you use alkaline batteries with
this product for longer usage and lithium batteries in
temperatures below freezing.
• Batteries should not be exposed to excessive heat
such as sunshine or fire.

EN
5
CONNECT AC ADAPTER
Connect the supplied power adapter to the power jack,
then plug into a standard AC outlet.
NOTE
• The batteries are only for back-up use. Always
connect the unit to the power grid source via AC/DC
adapter.
• Make sure the adapter is not obstructed and is
easily accessible to the unit.
•The base station and adapter should not be exposed
to wet conditions. No objects filled with liquid, such
as vases, should be placed on the base station and
adapter.
• To completely disconnect from power, unplug adapter
from the mains.
SYNCHRONISING AND PLACING SENSORS
The main unit will automatically search for new
sensor reset within the last 30 minutes. If unit failed to
synchronise with remote sensor, reset both the main
unit and sensor or try selecting a different channel (and
press RESET).

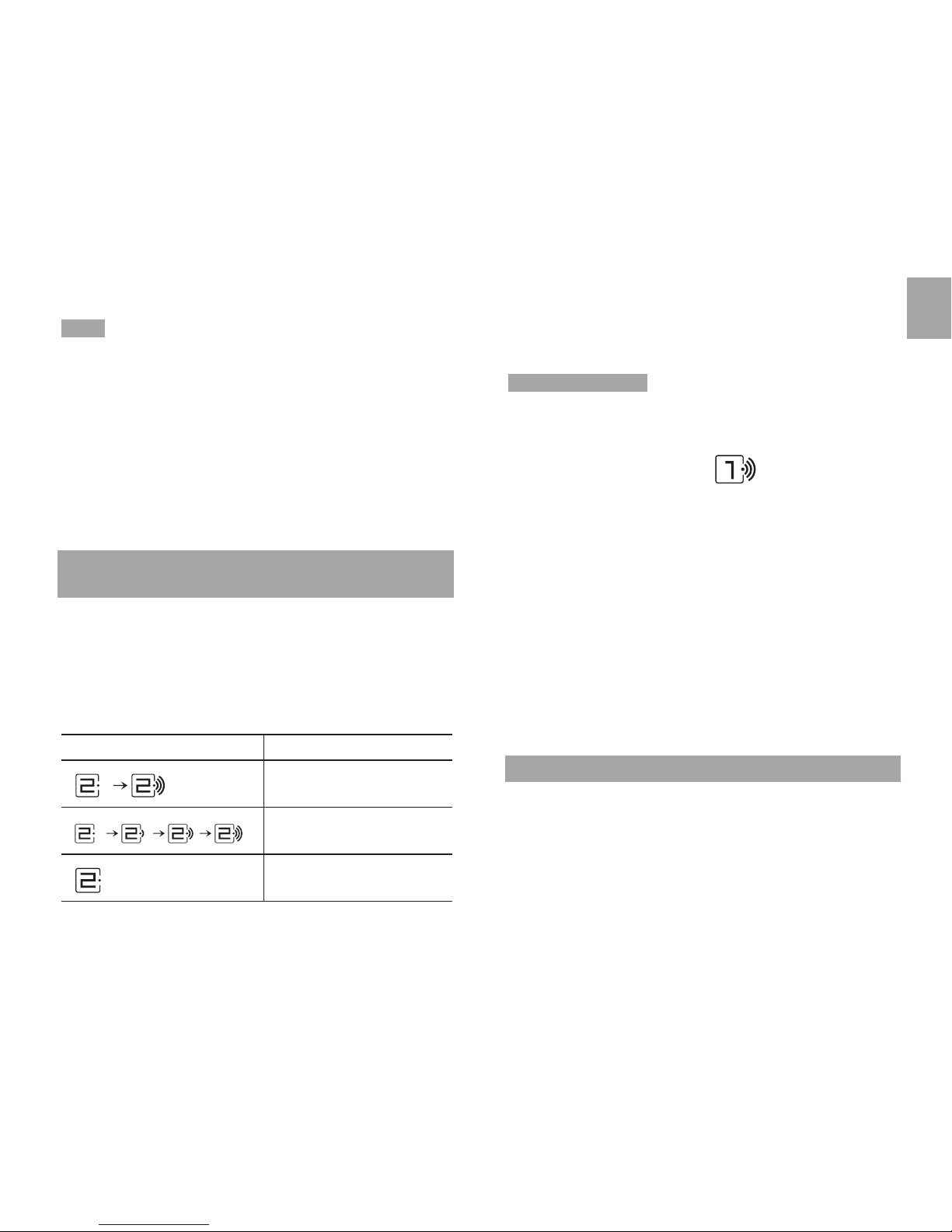

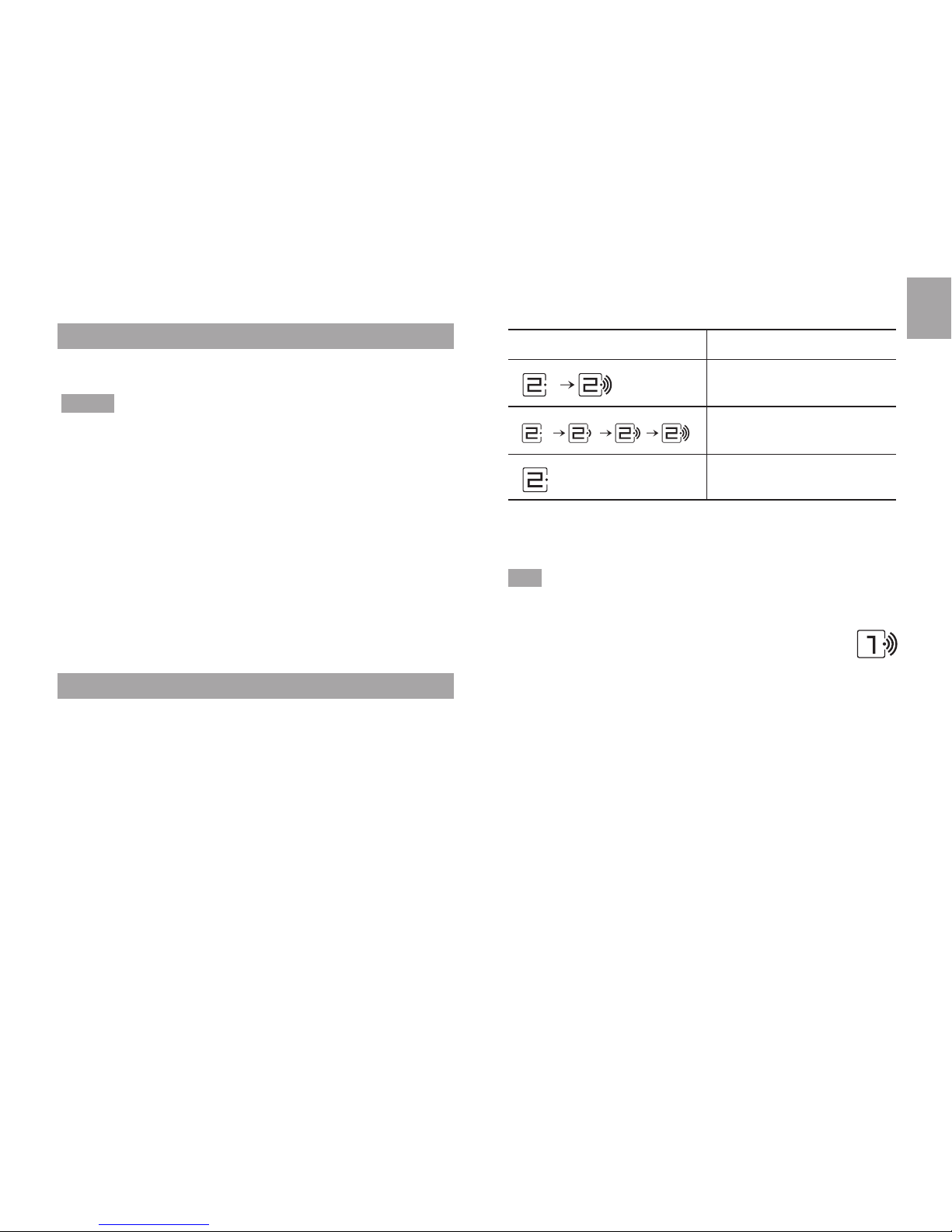

The remote sensor reception icons will show the following
status:
ICONS MEANING
Main unit is searching
for sensor(s)
A sensor has been
found and logged on
and “--.-“No sensor found
Place the remote sensor within 30 m (98 ft) from the
main unit.
TIP
• When placing sensors, remember the intended
location for each sensor. Refer to channel switch
position (1, 2, 3) and match with channel icon
displayed directly above name tag.
• The transmission range may vary depending on
many factors. You may need to experiment with
various locations to get the best results.
For best results:
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to
the sky, away from metallic / electronic objects.
