Oregon Scientific Starck PSM06A User manual

Full Weather Station with Radio-Controlled
Clock, Projection and AM/FM Radio
(Model #: PS-M06 / PS-M06U)
User Manual
PS M06 English Cover 7/1/03, 1:52 AM1

1
EN
TABLE OF CONTENTS
About this guide ........................................................ 2
Product overview ....................................................... 3
Getting started .......................................................... 8
Batteries ............................................................... 8
AC power adapter ................................................ 8
Switch between modes ......................................... 9
Change settings .................................................... 9
Remote unit setup ...................................................... 9
Clock ...................................................................... 10
Alarm ...................................................................... 11
Calendar ................................................................. 12
Moon phase ............................................................ 13
Barometer ............................................................... 13
Weather forecast ..................................................... 15
Temperature & humidity ........................................... 15
Radio ...................................................................... 18
Backlight ................................................................. 19
Projector ................................................................. 20
Reset system ........................................................... 21
Safety and care ....................................................... 21
Warnings ................................................................. 22
Troubleshooting ....................................................... 23
Specifications .......................................................... 25
Additional resources ................................................ 28
PS M06 English R19 7/16/03, 1:05 PM1

2
EN
In this box, you will find:
•Main unit
•Remote sensor
•Batteries
•AC/DC power adapter
ABOUT THIS GUIDE
Congratulations on your selection of the Philippe Starck
with Oregon Scientific Full Weather Station with
Radio-Controlled Projection Clock and AM/FM Radio
(PS-M06 / PS-M06U). This powerful device bundles
time keeping, alarm, indoor and wireless outdoor
temperature and humidity monitoring, weather
forecasting, projection, and digital-tuned AM/FM radio
into a single tool you can use from the convenience of
your home.
Keep this manual handy as you use your new product. It
contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
PS M06 English R19 7/16/03, 1:05 PM2

3
EN
PRODUCT OVERVIEW
TOP VIEW
DESCRIPTIONS
1. Snooze / Light button (12, 19, 20, 21)
2. Light sensor (19)
3. Projection lens (20)
2
1
3
PS M06 English R19 7/16/03, 1:05 PM3

4
EN

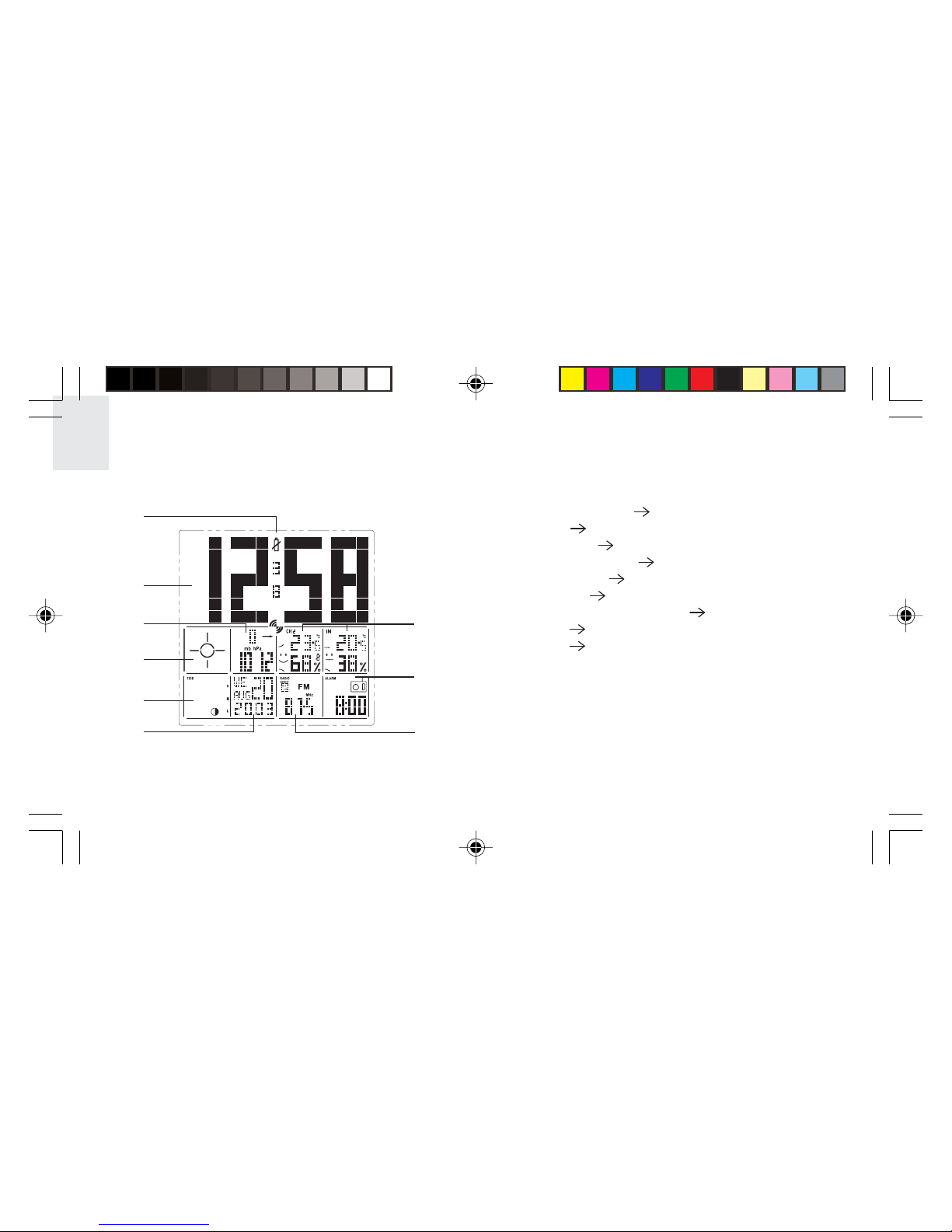

LCD DISPLAY DESCRIPTIONS
1. Low battery icon ( 8)
2. Clock (10)
3. Barometer (13)
4. Weather forecast (15)
5. Moon phase ( 13)
6. Calendar ( 12)
7. Temperature and humidity (15)
8. Alarm ( 11)
9. Radio (18)
1
2
3
4
5
6
7
8
9
PS M06 English R19 7/16/03, 1:05 PM4

5
EN
BUTTON DESCRIPTIONS
1. Select - switch modes / change settings ( 9)
2. Focus - focus projector ( 21)
3. Up - increase setting / activate auto-synch
(11)
4. Rotation - rotate projector ( 20)
5. Alarm -activate / deactivate alarm ( 12)
6. Channel - switch remote unit ( 16)
7. Radio - turn radio or radio alarm on/off
(12, 18)
8. Station - select a preset station ( 18)
9. Tuning - select AM/FM band ( 18)
10. Sleep - activate Sleep Timer ( 19)
11. Down - decrease setting / deactivate auto-synch
(11)
BACK VIEW
ALARM
SELECT
UP
DOWN
CHANNEL
ROTATION
FOCUS RADIO STATION
TUNING SLEEP
1
2
3
410
8
11
9
5
6
7
PS M06 English R19 7/16/03, 1:05 PM5

6
EN
DC 7.5V
BOTTOM AND SIDE VIEW DESCRIPTIONS
1. Battery compartment ( 8)
2. Backlight switch (19)
3. Reset button ( 8, 21)
4. Light sensitivity knob ( 20)
5. Headphone jack ( 19)
6. DC power input jack (8)
7. Antenna (18)
AC power adapter not shown.
NOTE
3
14
2
6
5
7
PS M06 English R19 7/16/03, 1:05 PM6

7
EN
REMOTE UNIT DESCRIPTIONS
1. Temperature / Trend display (15, 17)
2. Low battery icon (8)
3. Humidity / Trend / Comfort Level display
(15, 17)
4. °C/°F switch (9)
5. Channel switch (9)
6. Reset button (8, 21)
7. Battery compartment ( 8)
8. Wall-mount hole
9. Battery compartment lid
1
25
3
4
6
7
8
9
PS M06 English R19 7/16/03, 1:05 PM7

8
EN
GETTING STARTED
BATTERIES
Batteries for the remote and main units are supplied
with this product. Replace them whenever the low
battery signal ( ) displays. Remove the battery
compartment lid on the bottom of the main unit, and
insert the batteries. Use a small Phillips screwdriver to
remove the remote unit compartment lid. Be sure to
match the correct polarity, as shown in the battery
compartment. Before you close the lid, press the
RESET button with the point of a blunt object (such as
a ball point pen).
Insert the batteries in the remote unit before
you set up the main unit. Do not use rechargeable
batteries.
AC POWER ADAPTER
An AC power adapter is supplied for use with the main
unit. You must connect the power adapter if you wish to
use the continuous projection or backlight features. It is
also recommended for use with the Radio. The jack is
located on the side of the unit.
If the AC power becomes unavailable, the unit
will automatically switch to battery power.
NOTE
NOTE
PS M06 English R19 7/16/03, 1:05 PM8

9
EN
SWITCH BETWEEN MODES
Press SELECT. The selected mode will flash. The
display will stop flashing if no key is pressed within
5 seconds.
CHANGE SETTINGS
Press and hold SELECT for 2 seconds. Then, press
UP or DOWN to change each setting. Press SELECT
to switch options.
REMOTE UNIT SET UP
Up to 3 remote units can be used with this product to
monitor outdoor temperature and humidity. The
measurement unit (°C or °F) and channel number
(1, 2, or 3) switches are located in the battery
compartment, and should be set prior to installation.
Additional remote units sold separately. If you
are using more than one remote unit, be sure to select a
different channel number for each unit.
INSTALLATION
Mount the remote unit on a flat surface using the recess
hole on the back of the unit.
For best results:
•Before you insert the batteries, select the
measurement unit and channel number first.
•Place the unit out of direct sunlight and moisture.
•Do not place the remote unit more than
20 - 30 meters (60 - 90 feet) from the main
(indoor) unit.
NOTE
PS M06 English R19 7/16/03, 1:05 PM9

10
EN

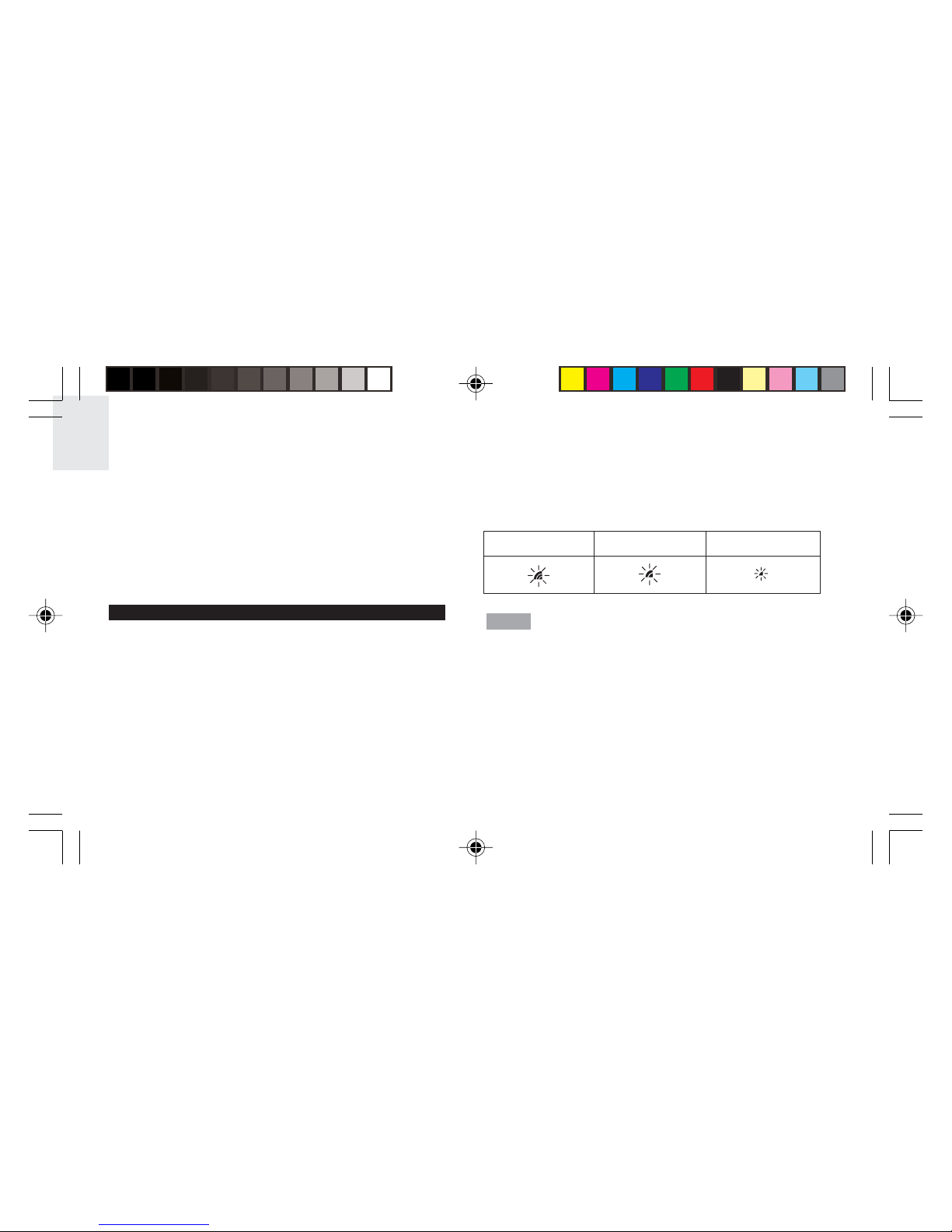

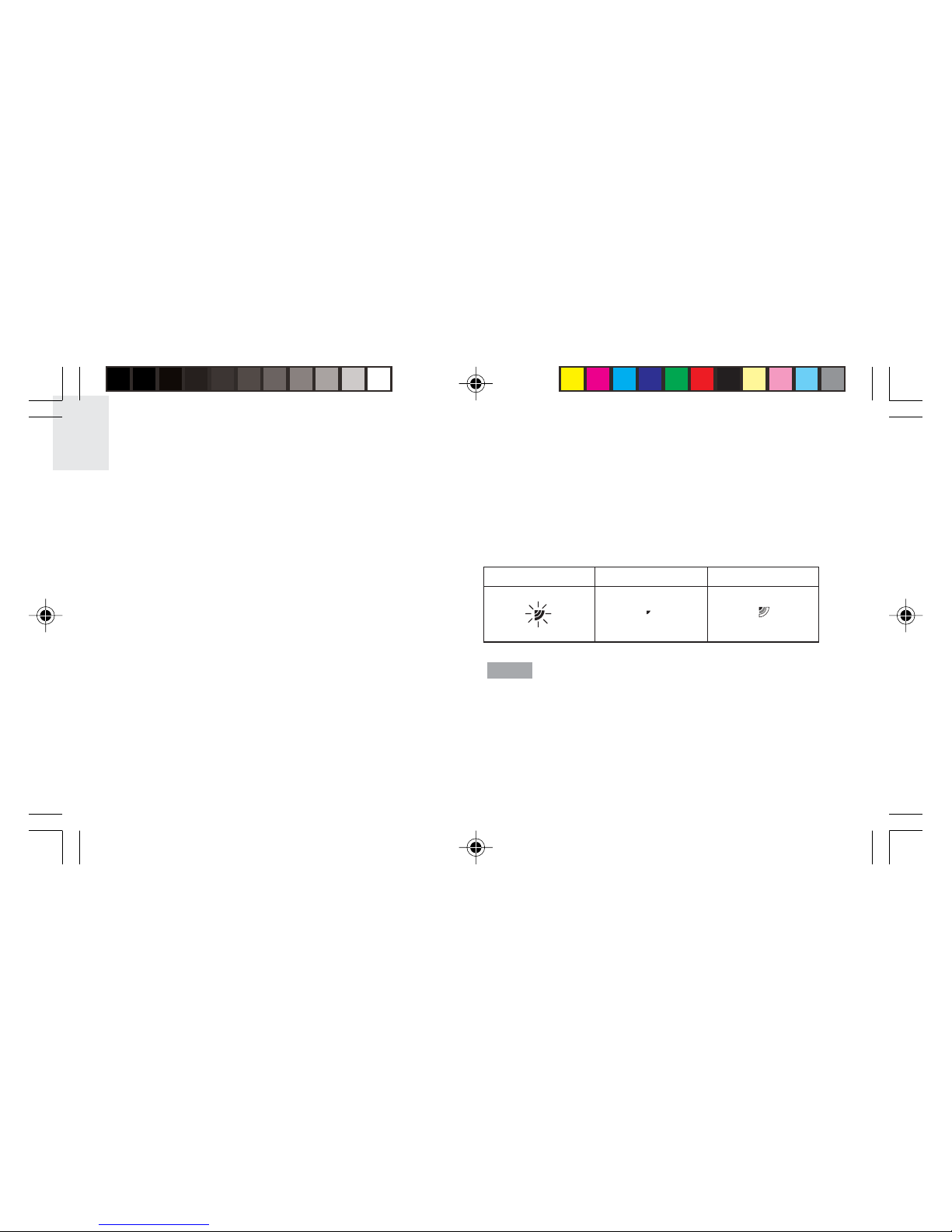

Strong signal Weak signal No signal
For best results, place the unit away from metal
or electrical objects, and near a window with a clear
view to the sky.
• Position the unit so that it faces the main (indoor)
unit. Minimize obstructions such as doors, walls,
and furniture.
You may need to experiment with various locations to
get the best reception.
CLOCK
This product can automatically synchronize the date and
time with official time-keeping organizations in Frankfurt,
Germany (PS-M06) or Rugby, England (PS-M06U).
When the unit is within 1500 km (932 miles) of a RF
signal, the reception icon will blink during reception.
RECEPTION
Reception takes 2 - 10 minutes to complete. Once
complete, the icon will stop blinking.
NOTE
PS M06 English R19 7/16/03, 1:05 PM10

11
EN
TO DISABLE OR ENABLE AUTO-
SYNCHRONIZATION
In Clock mode, press DOWN for 2 seconds to disable
the auto-synchronization. The unit will not respond to
radio signals until you reactivate the synchronization.
To enable auto-reception, press UP for 2 seconds.
SET OR CHANGE THE CLOCK
1. Press SELECT to switch to the Clock Mode.
The time will flash.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the 12/24-hour format, hour, and minute.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
ALARM
When activated, the Melody Alarm starts quietly, then
gradually becomes louder. It shuts off after two
minutes. The LCD display lights up for the first
8 seconds.
The Radio alarm turns on the Radio automatically. It will
turn off after 2 hours.
SET ALARM
1. Press SELECT several times until the Alarm
area flashes.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the hour, minute, and alarm type ( for
Melody Alarm or for Radio Alarm). Press
PS M06 English R19 7/16/03, 1:05 PM11

12
EN
UP or DOWN to change the setting. Press
SELECT to confirm.
If you choose , also select the melody (1 - 7)
and volume level (Lo or Hi).
If you choose , use the radio control buttons
to select the AM/FM band, radio station and
volume level ( 18).
4. Press SELECT again when you are finished.
SNOOZE
Press the SNOOZE/LIGHT button on the top of the
unit to temporarily disable the alarm for 8 minutes. The
alarm icon will blink while Snooze is activated.
TO TURN THE ALARM OFF OR ON
Press RADIO to turn the radio alarm off. Press any
other button to turn the melody alarm off.
To turn the alarm off completely (deactivate it for the
next day), press ALARM.
CALENDAR
SET DATE
Clock auto-synchronization must be deactivated before
you manually set the date. (11)
1. Press SELECT several times until the calendar
area flashes.
2. Press and hold SELECT for 2 seconds to enter
the calendar setting mode.
PS M06 English R19 7/16/03, 1:05 PM12

13
EN
3. Select the year, month, date, and language.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
The language options are (E) English, (F)
French, (D) German, (I) Italian, and (S) Spanish.
MOON PHASE
Press SELECT until the Calendar Area flashes. Then,
press UP or DOWN to change the date and view the
corresponding moon phase.
BAROMETER
This product tracks barometric pressure changes over
the past 24 hours to provide the weather forecast
(15) and a trend line showing the direction of
barometric change. Barometric changes are measured
by the main (indoor) unit.
NOTE
PS M06 English R19 7/16/03, 1:05 PM13

14
EN

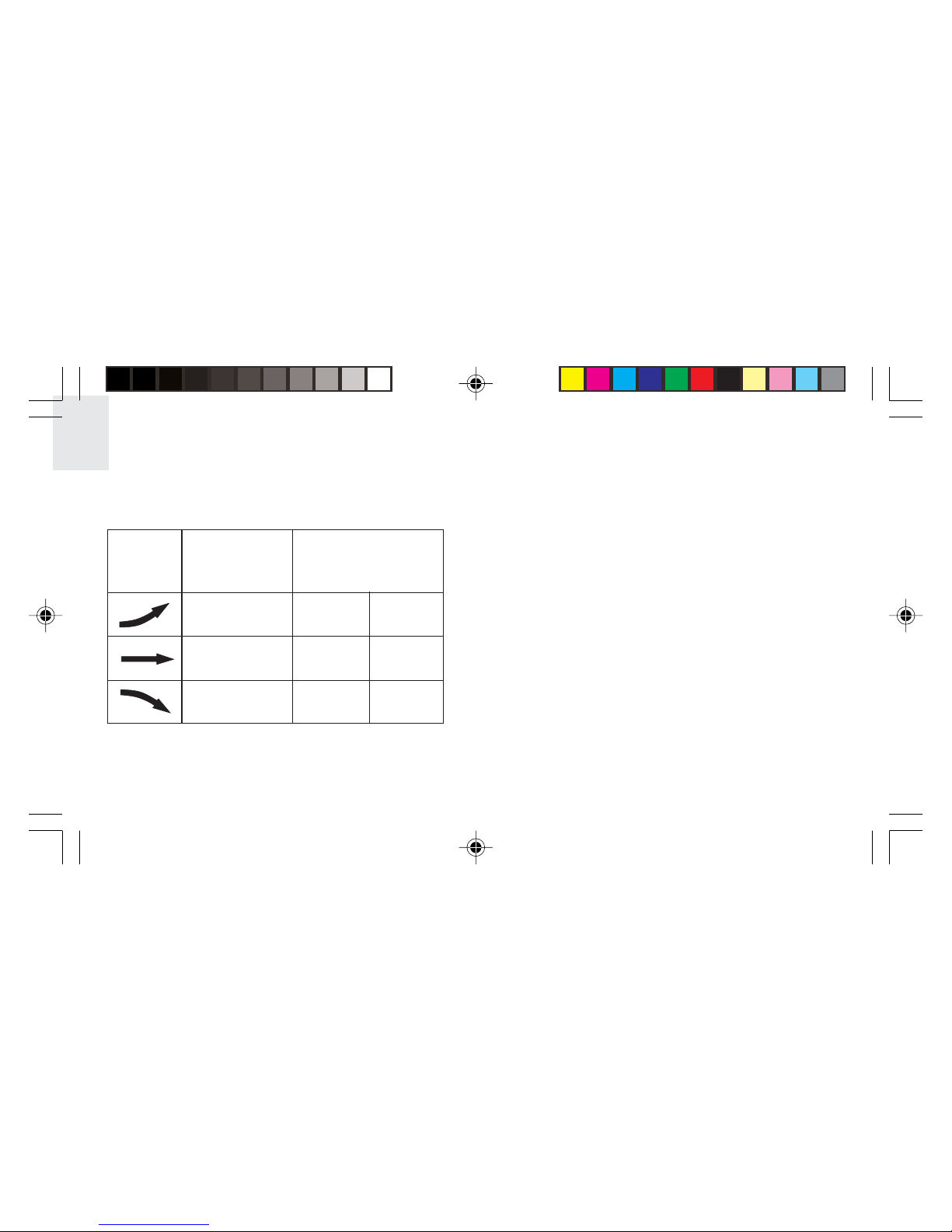

BAROMETRIC TREND
The barometric trend arrow for the last 30 minutes is
always displayed.
Trend Description Pressure change
(mb/hPa)
Rising
Steady
Falling
1 hr 6 hrs
+1 +3
Steady Steady
-1 -3
VIEW THE LAST 24 HOURS
Press SELECT 2 times until the Barometer Area
flashes. Then, press UP or DOWN to view the last
24 hours history.
SET UNIT AND ALTITUDE
You can set the unit of measurement (mb/hPa or inHg)
and altitude. Setting the altitude allows the product to take
more accurate barometric measurements.
1. Press SELECT 2 times until the Barometer Area
flashes.
2. Press and hold SELECT for 2 seconds.
3. Select altitude (-100 meters to 2500 meters in
increments of 10) and the unit of measurement
(mb/hPa or inHg) and press UP or DOWN to
change the setting. Press SELECT to confirm.
PS M06 English R19 7/16/03, 1:05 PM14

15
EN
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of
weather within a 30 to 50 km (19 - 31 mile) radius with
70 to 75 percent accuracy. The weather forecast is
always displayed.
TEMPERATURE AND HUMIDITY
With the press of a button, you can check the current
indoor or outdoor temperature, humidity percentage,
comfort level, trend, and record measurements.
Outdoor measurements are collected by the remote
unit.
Temperature is given at the top; humidity is below.
VIEW MIN / MAX / CURRENT MEASUREMENTS
Press SELECT 3 times until the Temperature and
Humidity Areas flash. Press UP or DOWN to scan the
readings.

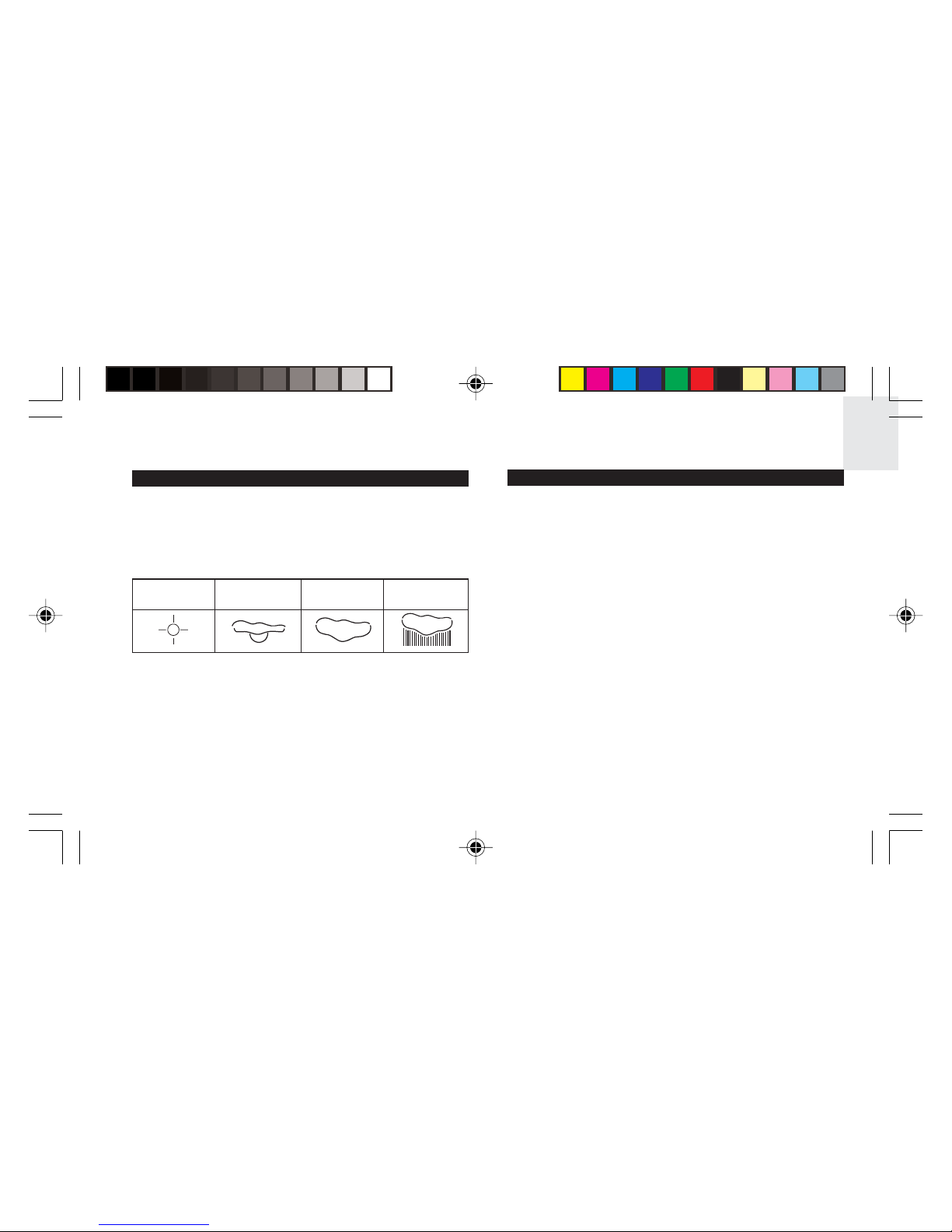

Clear Partly Cloudy Cloudy Rainy
PS M06 English R19 7/16/03, 1:05 PM15

16
EN
Searching No sensor Sensor found
Signals from household electrical appliances
such as doorbells and home security systems can
cause temporary reception failures between the indoor
and outdoor units. This is normal and does not affect
the general performance of the product. Reception will
automatically resume once the interference ends.
CLEAR MIN / MAX MEASUREMENTS
While viewing Min/Max records, press and hold UP or
DOWN for 2 seconds until a beep sounds. This clears
the previous measurements from the memory.
SELECT REMOTE UNIT CHANNEL
While in the Temperature / Humidity Mode, press
CHANNEL to switch between CH 1, 2, or 3, or press
and hold CHANNEL for 2 seconds to enter Auto scan
mode. If only 1 remote unit is in use, you will not be able
to change channels or Auto scan. If you select "Auto",
the channel will change every 3 seconds. To deactivate,
press and hold CHANNEL for 2 seconds again.
SENSOR SEARCHING
If there is no remote unit signal, the temperature and
humidity measurements will be blank. Check the remote
unit batteries, or press and hold UP and DOWN for
2 seconds to search for the remote unit(s).
NOTE
PS M06 English R19 7/16/03, 1:05 PM16

17
EN
COMFORT ZONE
The indoor and outdoor comfort zones are shown for
the following conditions.
TRENDS
The trend arrow for the last 30 minutes always displays.
Indoor and outdoor temperature and humidity trends are
shown separately.
Zone
Comfort
20 - 25 °C
(68 - 77 °F)
40 - 70%
Wet
Any >70%
Any
Dry
<40%
RelativeHumidity
Temperature
+0.5 °C+3%
SteadySteady
-0.5 °C-3%
Trend Temperature Relative Humidity
PS M06 English R19 7/16/03, 1:05 PM17

18
EN
SET UNIT
While in Temperature / Humidity Mode, press SELECT
for 2 seconds. Press UP or DOWN to switch between
°C and °F. Press SELECT to confirm.
RADIO
You can listen to Phase Lock Loop (PLL) digital radio
broadcasts with this product.
ANTENNA
The antenna wire is located on the side of the unit.
Position it for the best reception.
TURN THE RADIO ON OR OFF
Press the RADIO button.
VOLUME
Press UP or DOWN. There are 8 volume levels.
SWITCH AM/FM BAND
Press TUNING to enable auto-tuning. Press again to
switch AM/FM band.
SELECT STATION
Press STATION. There are 16 preset channels:
8 for FM and 8 for AM.
TUNING
Press TUNING. Then, press UP or DOWN to scan the
available frequencies. Press and hold UP or DOWN for
2 seconds to auto-scan. The scanning will stop when an
available frequency is found.
PS M06 English R19 7/16/03, 1:05 PM18

19
EN
STORE STATION TO MEMORY
Press STATION for 2 seconds. The assigned number
(1 - 8) will show in the Radio Area.
SLEEP TIMER
Press SLEEP. To change the timer length
(0 - 120 minutes in increments of 10) press UP or
DOWN. The radio automatically turns off when the
timer reaches 0. To manually turn off the radio, press
RADIO.
HEADPHONES
The headphone jack is located on the side of the unit.
Use headphones for stereo-quality radio listening.
BACKLIGHT
Press SNOOZE/LIGHT to illuminate the backlight for
5 seconds.
CONTINUOUS BACKLIGHT
The AC power adapter must be plugged in to use this
feature ( 8).
1. The BACKLIGHT switch is located in the battery
compartment. Move it to the “ON” position to
enable the continuous backlight. Move it to the
“OFF” position to disable.
2. Move it to the “AUTO” position to enable
continuous backlight controlled by light intensity.
When activated, the backlight will be on
whenever the unit perceives that the room is
dark.
PS M06 English R19 7/16/03, 1:05 PM19
