Orient ECL208S User manual

Fast User Guide for Electronic Cabinet Lock ECL208S
The ECL208S is an electronic cabinet lock which is
powered by 2 AAA 1.5V alkaline batteries.
It can be unlocked with user codes or RFID user cards,
also with mechanical keys in case of emergency.
Only one master – master code or master card, factory
master setting is under master code “22446688” which
is the factory user code.

Master Code
To manage of user codes, master card, user cards and
working modes. The digit of master code can be any
4~10 digits.
Master Card
Created by master code and same function as master
code.
User Code (Max. 100 Codes)
Used to unlock the ECL208S. It can be any 4~10 digits.
User Card (Max. 100 Cards)
Used to unlock the ECL208S.
Open with User Code
1. Press the user code one by one via keypad;
2. Confirm it with , until “beep” sounds and
green LED lights;
3. While LED green lights, turn lock knob to move cam
90°, then open door.
Open with User Card
1. Present the user card in front of reader range until
“beep” sounds and green LED lights;
2. While LED green lights, turn lock knob to move cam
90°, then open door.
Remark: the door must be closed manually – turn lock
knob and move back cam to close position.
ECL208 has 2 working mode, default working mode or
security working mode.
Default Working Mode:
open with user code or user card.
Security Working Mode:
open with user code and user card

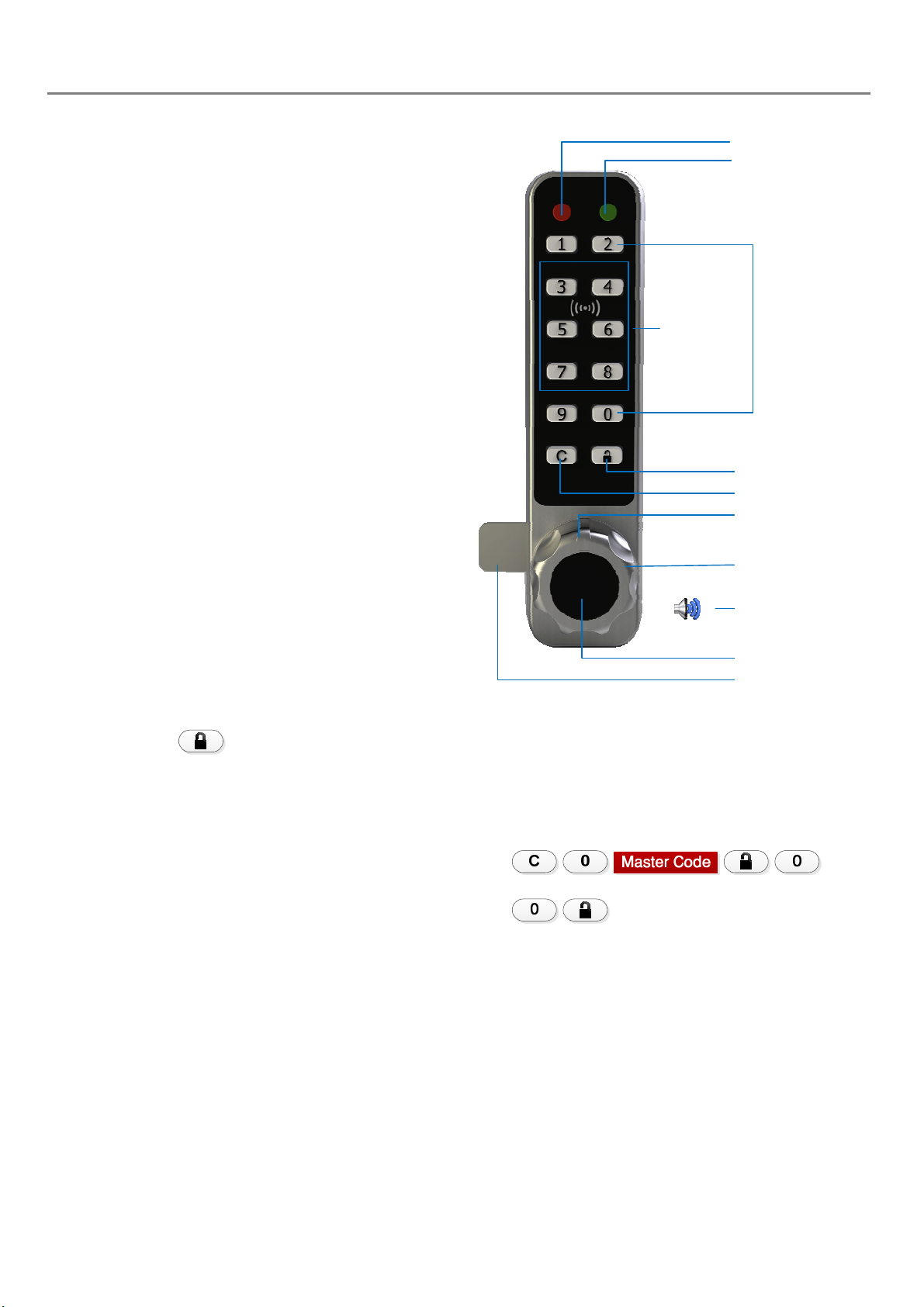

Red LED
Green LED
Delete/Cancel Button
Unlock Button
Start Position Mark
Lock Knob
Cylinder Cover
RFID Key Card
Reading Range
PIN Code Keypad
Buzzer Indicator
(Invisible)
Cam
Security Working Mode:
open with user code and user card
How to reset to factory setting
1.
2. To take battery out and press button 1 or 2 with holding,
then to put the battery to power on,
To hear sounds with 1 short beep tone and 1 long beep
tone. After 2 seconds to hear another 1 short beep tone
then LED green and red flash alternative to confirm it is
successful to back factory setting.
Anti-peep Function
Successful to open if the last 15 input digital numbers
included a string valid user code.
Example: 12345 is valid user code. You can input the below
code to open the door: 11009123452372361.

Master Code/Master Card and User Codes/User Cards Management
Function Operation
Factory Master Code
Factory User Code
Change master code
Add master card
Add user code …
…
Add user card …
…
Delete an user code …
…
Reset ECL208S
Delete all key cards
Delete all user codes
Delete all user codes
and all key cards
Set Default Mode
Set Security Mode
