ORIGO OG857 User manual

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
Origo Electronic Co.,LTD. www.origoelec.com
Document Information
Version
Time
Description
Remark
V1.0.0
2019-9-21
Preliminary version
Mike
V1.0.0
OG857
LoRaWAN Indoor Pico Gateway User Manual

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 1 -
Table of Contents
1. General Description ........................................................................................................................................... - 2 -
2. Features ........................................................................................................................................................... - 2 -
3. Mechanical and interfaces ................................................................................................................................. - 3 -
4. Specification ....................................................................................................................................................... - 4 -
5. Gateway config guide ................................................................................................................................. - 5 -
6. Installation ...................................................................................................................................................... - 9 -
7. Packing List ................................................................................................................................................... - 11 -

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 2 -
1. General Description
OG857 is designed to be a fully compliant LoRaWAN gateway, with WiFi and ethernet as the backhaul（4G
Optional）. It includes one or two LoRa concentrator, which provides up to 16 programmable parallel
demodulation paths. This gateway is perfectly designed for indoor public network extension or for ad-hoc
indoor private coverage, like manufacturing, logistics or industrial sites requiring continuous connectivity
for their IoT applications.
2. Features
l LoRaWAN™ network compliant
l Channels: Up to 16 concurrent channels
l Supports ethernet and WIFI，4G （Optional）backhaul
l Based on OpenWrt system
l Compact size:126*148*49 mm ±0.3mm
l Simple to mount and install
l EU868, US915, AS923，AU915Mhz， IN865MHz and CN470 versions available.
Ordering information
Table 2.1ordering info
No.
Item
Description
1
OG857-U
902-928MHz,Suitable for USA ,Australia, Asia ,Korea, Japan etc..
2
OG857-E
863~870MHz，for Europe
3
OG857-C
470-510MHz, for China
4
OG857-W
433MHz，for China or Europe.

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 3 -
3. Mechanical and interfaces
3.1 Mechanical Diagram
Dimensions: 126*148*49 mm
3.2 LED indicator
The following figure shows the LoRa gateway connectors and interfaces on the front and back panels.
No.
Indicator
State
Description
1
WIFI LED
Solid Green
WIFI connected
Blinking
Blinking 1s during data transmission
2
4G LED
Solid Green
4G connected
Blinking
Blinking 1s during data transmission
3
LoRa1 LED
Solid Green
LoRa1 Connected
Blinking
Blinking 1s during data transmission
4
LoRa2 LED
Solid Green
LoRa2 Connected

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 4 -
Table 3.2 LED i ndi cator
3.3 Buttons and Interfaces
No.
Button/interface
Description
Remark
1
Power button
With red led indicator
2
Reset button
Long press 5S to reset the device
3
SIM card slot
Insert 4G SIM card
4
DC IN 5V
Power supply : 5V/2A，DC2.1
5
WAN/LAN port
Backhaul through Ethernet
6
LoRa antenna connector
Connect LoRa antenna, SMA type
7
WiFi antenna connector
Connect 2.4G WIFI antenna , SMA type
8
4Gantenna connector
Connect 4G antenna , SMA type
Table3.3 Buttons and inter fa c e s
4. Specification
Hardware:
Communication:
− CPU: MT7688AN
− 10/100M Ethernet*1,
− Core： MIPS24KEc
− 150M WIFI rate，support 802.11b/g/n
− Frequency：580MHz
− LED indicator
− RAM: DDR2, 128M
− Secure VPN, No external IP address required
− FLASH: SPI Flash 32M
− LoRaWAN™ compliant (433~510MHz or 863~928MHz , Opt）
Power supply:
− LoRa™ Sensitivity -142.5dBm, up to 16 LoRa™ demodulators
− DC5V/2A
− More than 10km in LoS and1～ 3km in dense environment
− Average power consumption: 5W
GENERAL INFORMATION:
Enclosure:
− Dimensions: 126*148*49 mm
− Alloy
− Operation temperature: -40 oC~+80 oC
Install:
− Storage temperature: -40 oC~+80 oC
− Strand mount/wall mount、
− Weight：0.875KG
Blinking
Blinking 1s during data transmission
5
Power LED
Solid Red
Power on
Off
Power off

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 5 -
5. Gateway config guide
5.1 Power on
Power on the device and connect the LAN port
5.2 Config Internet protocol TCP/IPv4
Control Panel→Network&internet→networking properties→TCP/IPv4.
Change computer access IP to fixed IP: 192.168.15.1

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 6 -
5.3 Login the server
After the gateway is powered on for 2 minutes , enter the following address in Google Chrome.
192.168.15.1
Login with your user name and password. (User name: admin, Password: Admin17)
5.4 Change Password
Click User→Password→Type new password→Confirm→Save →Refresh the page
5.5 Network config
5.5.1 View network status

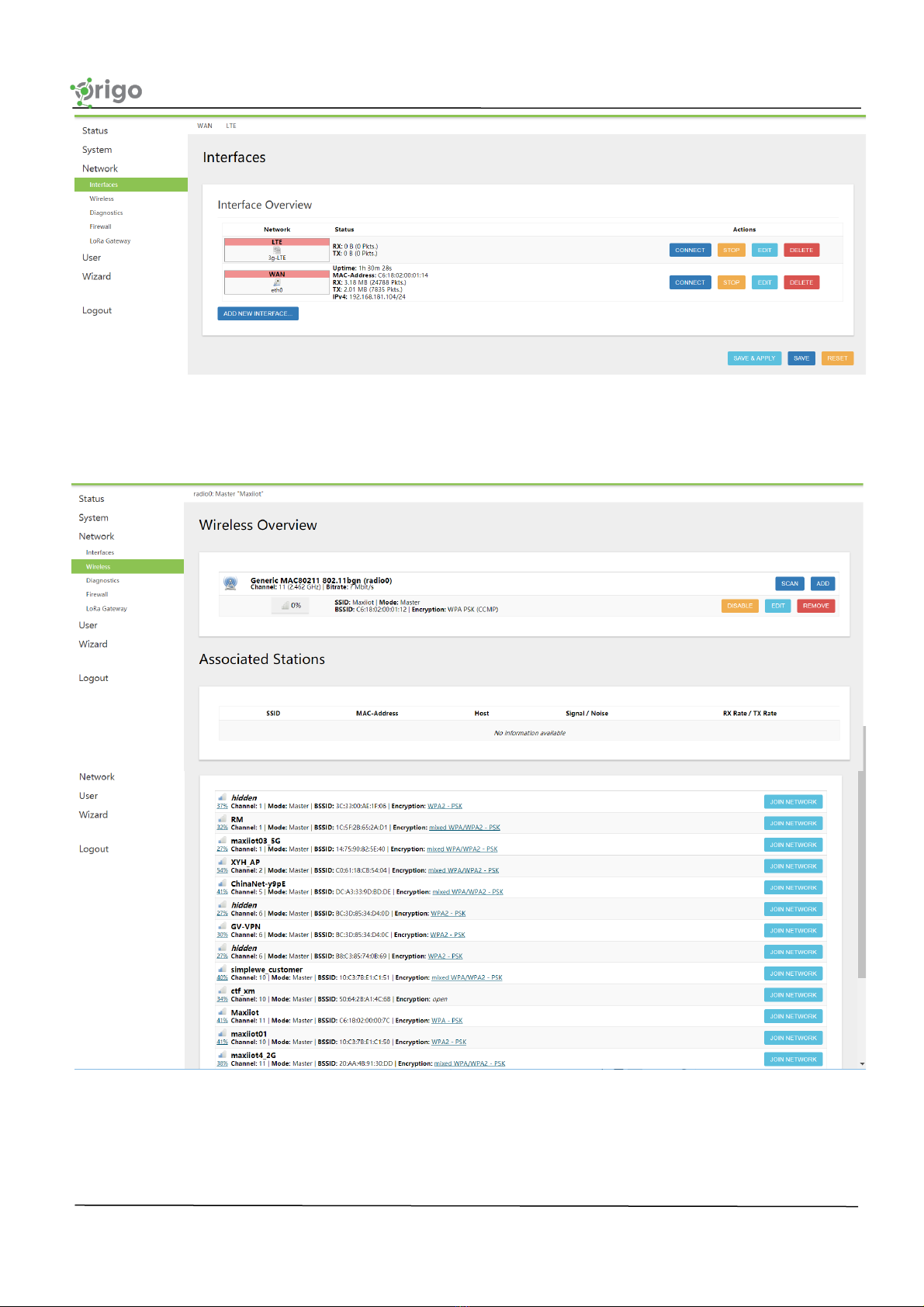

Click Network→Interfaces to view the network status

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 7 -
5.5.2 Connect to a wireless network
Click Network→Wireless→Scan→Choose the wireless network you want to join→Add

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 8 -
5.6 LoRa Config
5.6.1 Server address setting
5.6.2 Gateway parameters setting

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 9 -
5.7 Reset
Press and hold the Reset button for 5 seconds to reset the device
Factory default setting:
User name: admin, Password: Admin17
Local IP address：192.168.15.1
Remote server port: 10000
All wireless network cleared
6. Installation
OG857 series gateway has 2 instllation methods:
6.1 Desktop
Put the gateway on a flat surface such as the top of a table, then adjust antenna direction
accordingly, which is suitable for temporary demonstration and debugging.
6.2 Wall Mounting
Install the gateway bracket:
Step1:Select installation position on wall and mark the locations where the screw holes for the

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 10 -
screws will be drilled.
Step 2 :Drill hales in the wall and plug in plastic extension pipes, then place the gateway bracket
onto the marked location with holes aligned.
Step3:Tighten the screw.
Place gateway into bracket
Step1: Connect 4G /LoRa/WIFI antennas
Step2: Connect power adapter, put the SIM card into the slot, or connect the Ethernet cable. when
gateway is powered on , check the LED status, make sure gateway is working normally.
Step3: Attach gateway to bracket, make the hook in the gateway align to the bracket grooves, push
the gateway upward (in a direction shown with a blue arrow) and look it to the bracket.
NOTES:
l The gateway should be handled gently without violent collisions and drops.
l The gateway should be mounted on a flat and dry surface with little dust and good ventilation.
Do not expose the gateway to rain, water leakage and any humidity.

LoRaWAN indoor gateway_OG857_User manual_V1.0.0
- 11 -
7. Packing List
Gift box package, G.W:1.7KG, Dimensions: 350*300*100mm
No.
Item
QTY(PCS)
Remark
1
OG857 gateway
1
2
Power Code
1
EU/US/CH standards optional
3
Ethernet cable
1
4
WIFI/4G antenna
1
5
LoRa antenna
1
5
Wall mount bracket
1
6
User manual
1
7
Warranty card
1
