ORION Images 20PVMV User manual
Installation and User’s Guide
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may
differ from that depicted herein
LCD MONITOR
20” VALUE SERIES PUBLIC VIEW
MONITOR (PVM)
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damages.
Keep this user’s guide book for later use.
This safety instruction has “Warning” & “Caution” as below
Warning - If the user does not follow this instruction,
it may cause the serious damage to the user.
Caution - If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Warning
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug
are defective and the wall outlet is not
tight, please do not use them.
Never remove the back over and
touch the inside of the monitor.
If you need a service, please
contact the service center.
Installation and User’s Guide
http://www.orionimages.com
3
7300 Bolsa Avenue, Westminster CA 92683
Warning
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
Unplug this product from the wall outlet, when
It does not operate for a long time.
W
WA
AR
RN
NI
IN
NG
G:
:
How to fix
Do not open this product as it contains high voltage inside.
It may create an electric shock.
It the user disassembles and remove the back cover, it does not make sure
to make up for the damages and do a service and exchange the monitor.
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, tum it off and
Unplug the signal cables and the power code
From the wall outlet.
When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the inner-
wires and cause overheating and fire.
Installation and User’s Guide
http://www.orionimages.com
5
7300 Bolsa Avenue, Westminster CA 92683
Cautions
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
For cleaning, unplug the monitor from the
Wall outlet. Do net use the liquid cloth.
Use the soft cloth.
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
FCC RF INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
N
O
TE
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio, TV technician for help.
Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the users authority to operate such equipment.
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus
set out in the radio interference re
g
ulation of Canadian De
p
artment of communications.
Installation and User’s Guide
http://www.orionimages.com
7
7300 Bolsa Avenue, Westminster CA 92683
2
SAFETY INSTRUCTION
.
12-3
1-1 Warning 4-5
1-2 Caution
6
FCC STATEMENT
.2
8
3-1 Parts 93-2 How to Install 103-3 Remote Controller
23
INFORMATION TO USER
.6
24
TROUBLESHOOTING
.7
25
LIMITED WARRANTY
.8
8
INSTALLATION
.3
12
5-1 SOURCE Setting 12-22
5-2 Menu Setting (CAMERA, VIDEO2, DVI, VGA, S-VIDEO)
12
OSD MENU SETTING
.5
11
4-1 Specifications 11
FEATURES
.4
2. TABLE OF CONTENTS
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
3. INSTALLATION
3-1 Parts
Power Cord VGA Cable
User’s Guide
Battery
Remote Control
TFT LCD Monitor
POWER
VIDEO1 VIDEO2 S-VIDEO
RGB AUTO COLORTEMP.
DVI HDMI COMP
CAMERA MEDIA S.SET
SCANMODE
MENU/EXIT
P.INPUT
P.SWAP STILL
P.LOC P.SIZE
KEYLOCK
VOL+
PIP
MUTE
ENTER
Installation and User’s Guide
http://www.orionimages.com
9
7300 Bolsa Avenue, Westminster CA 92683

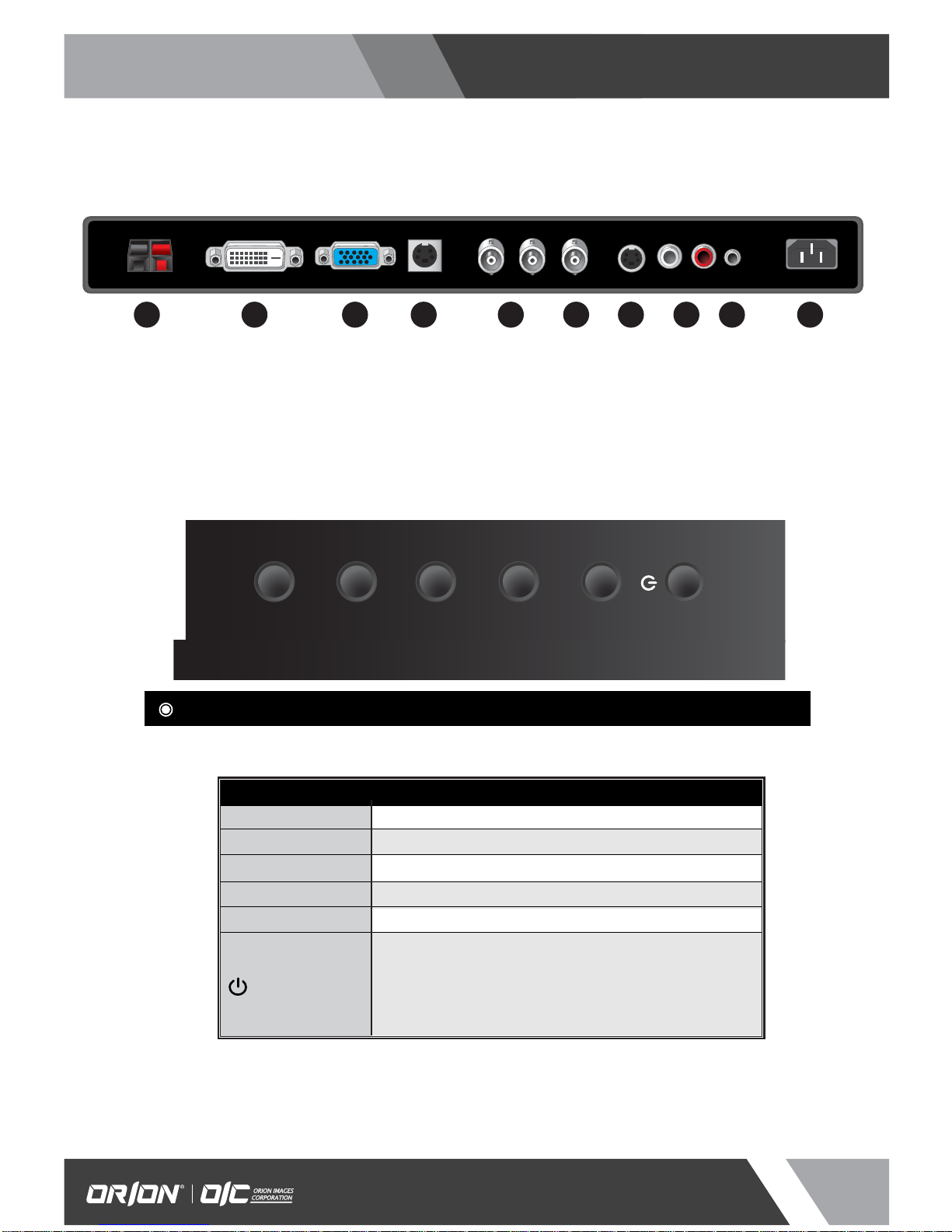

3-2 How to Install
*WARNING:
Tilting more than 10 degrees to the front or 30 degrees to the back
may cause collapse of the product.
1. DC 24V Input
2. DVI-D In
3. VGA (15 Pin D-Sub)
4. S-VIDEO Input
5. Video In / Out
6. Camera Output
7. S-Video Ouput
9. PC Audio Input
10. AC Input
8. Audio Input (L + R)
1 2 3 4 5 6 7 8 9 10
SHORT KEY FUNCTION
MENU
SOURCE
UP
DECREASE
INCREASE
MODE
OSD Key Function
Activates and exit the OSD
Select input source, and OSD menu
Control OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF. There will be a few seconds
delay before the display appears.The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.
MENU
SOURCE
UP
DECREASE
INCREASE
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683

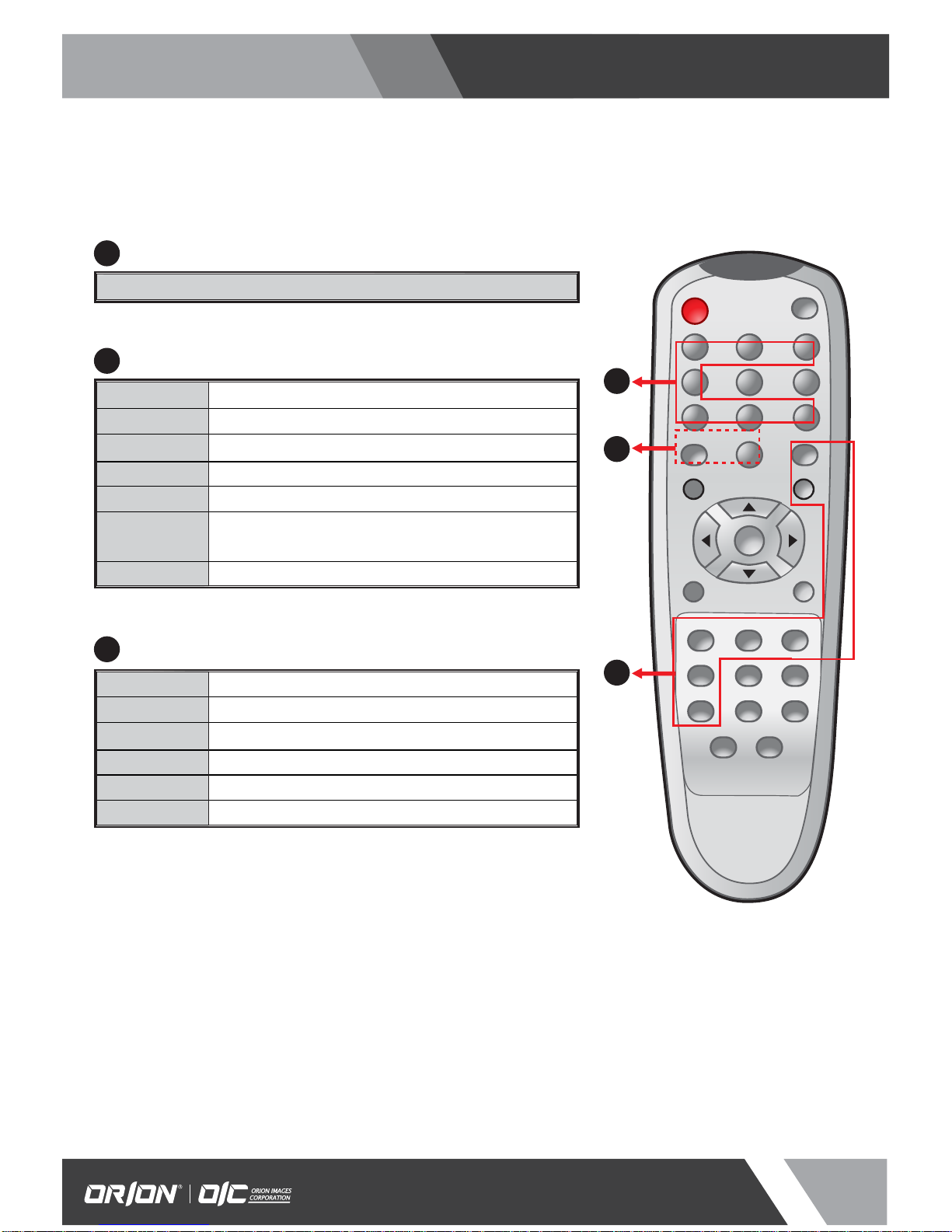

3-3 Remote Controller
POWER
VIDEO1 VIDEO2 S-VIDEO
RGB AUTO COLORTEMP.
DVI HDMI COMP
CAMERA MEDIA S.SET
SCANMODE
MENU/EXIT
P. INPUT
P. SWAP STILL
P. LOC P. SIZE
KEYLOCK
VOL+
PIP
MUTE
ENTER
A
B
B
C
Turn the monitor ON or OFF
Temporarily silences the sound
Adjust the color temperature of the screen
Change the scan mode of the screen. (FULL/ UNDER / OVER)
Activates and exits the OSD menu
Activates/deactivates PIP/PBP mode
Prevent unauthorized operation of the equipment by locking
the buttons
PVM Input
ASOURCE SELECT
POWER
MUTE
COLOR TEMP
SCAN MODE
MENU/EXIT
KEY LOCK
STILL
C
Activates / deactivates PIP/ PBP mode
Selects an input source for the sub picture
Selects a location for the sub picture
Selects the size of the sub picture
Swaps the main and sub picture
Alternates between main and sub audio input
PIPMenu
PIP
P. INPUT
P. LOC
P. SIZE
P. SWAP
P. SET
Press the button to select the desired input source
Installation and User’s Guide
http://www.orionimages.com
11
7300 Bolsa Avenue, Westminster CA 92683
4. FEATURES
4-1 Specifications
Audio
Dimension / Weight
Power
20.1 Inch
1600 x 1200 @ 60Hz
1
1
1 / 0
1 / 2
NTSC / PAL
< 18ms
16.7 Million
4 : 3
800 : 1
0.255 x 0.255 mm
300cd/m2
178 / 178
Screen Size
Max. 80W
DC 24V / 5A
Yes
1 (L + R)
Max. Resolution
LCD BLU
Panel Type
Pixel Pitch
Brightness
Contrast Ratio
Aspect Ratio
Viewing Angle (H/V)
Display Color
Response Time
Video System
Video In / Out (BNC Type)
S-Video In / Out
VGA In (15 PIn D-Sub)
Audio In (RCAType)
PC Stereo In
Built-In Speaker
Dimension
Dimension (w/o stand)
Net. Weight
Consumption: < On
Electrical Ratings
Camera WDR Camera
Tilt Swivel Camera
2 : 1 interlace
1/3" Sony Super HAD double SCAN CCD
Horizontal : 560 TV Lines
Camera Type
Mechanical Design
Scanning System
Image Sensor
Resolution
18.94" x 18.02" x 2.93"
18.33" x 12.20" x 1.417"
9.3Kg (20.5 lbs)
*Design and specifications are subject to change without notice
Interface
Model No. 20PVMV
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683

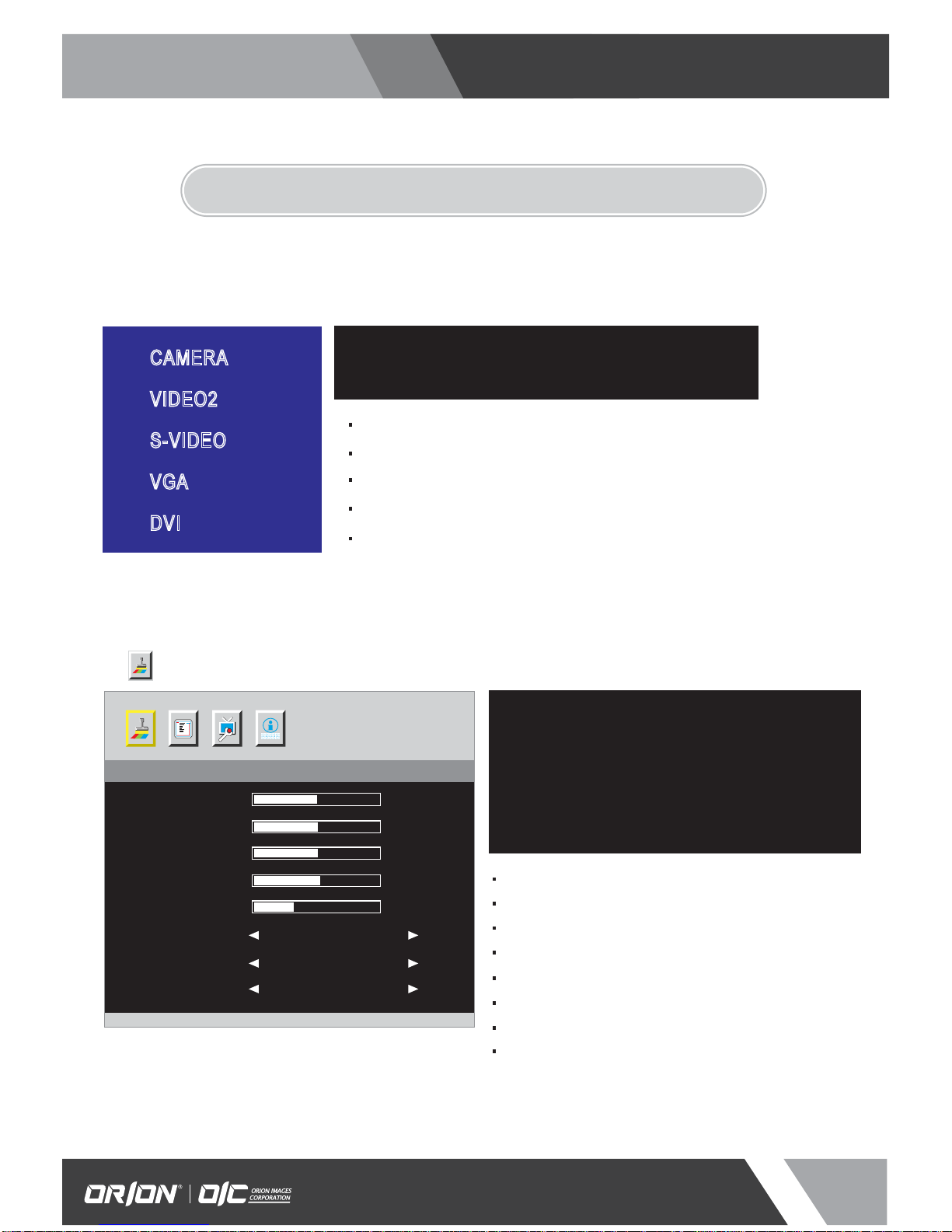

5. OSD (On Screen Display) Setting
5-1 SOURCE Setting
5-2 MENU Setting (Camera, Video2, S-Video, VGA & DVI)
CAMERA: Camera input source
Inputs can be set to CAMERA, VIDEO2, S-VIDEO, VGA & DVI mode.
A. PICTURE MENU setting
VIDEO2: Video 2 input source
S-VIDEO: Seperate Video and Y/C input source
VGA: RGB input source
DVI: DVI input source
CAMERA
VIDEO2
S-VIDEO
VGA
DVI
Use SOURCE button to chose or switch
the source setting.
1.
Contrast: Adjust visual color contrast
Brightness: Adjust color brightness
Hue:Adjust red, green, blue, and yellow of color
Saturation: Adjust intensity of color in the image
Sharpness:Adjust sharpness of visual image
Mode: Options to switch screen mode
Color Tone: Options to change color tone screen
Aspect Ratio: Options to switch screen display ratio
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Press the MENU key to access menu.
1.
Select INCREASE or DECREASE to locate
PICTURE Menu.
2.
3. Use the UP button to highlight a selection.
4. Press INCREASE or DECREASE to adjust
the setting of selected item.
Installation and User’s Guide
http://www.orionimages.com
13

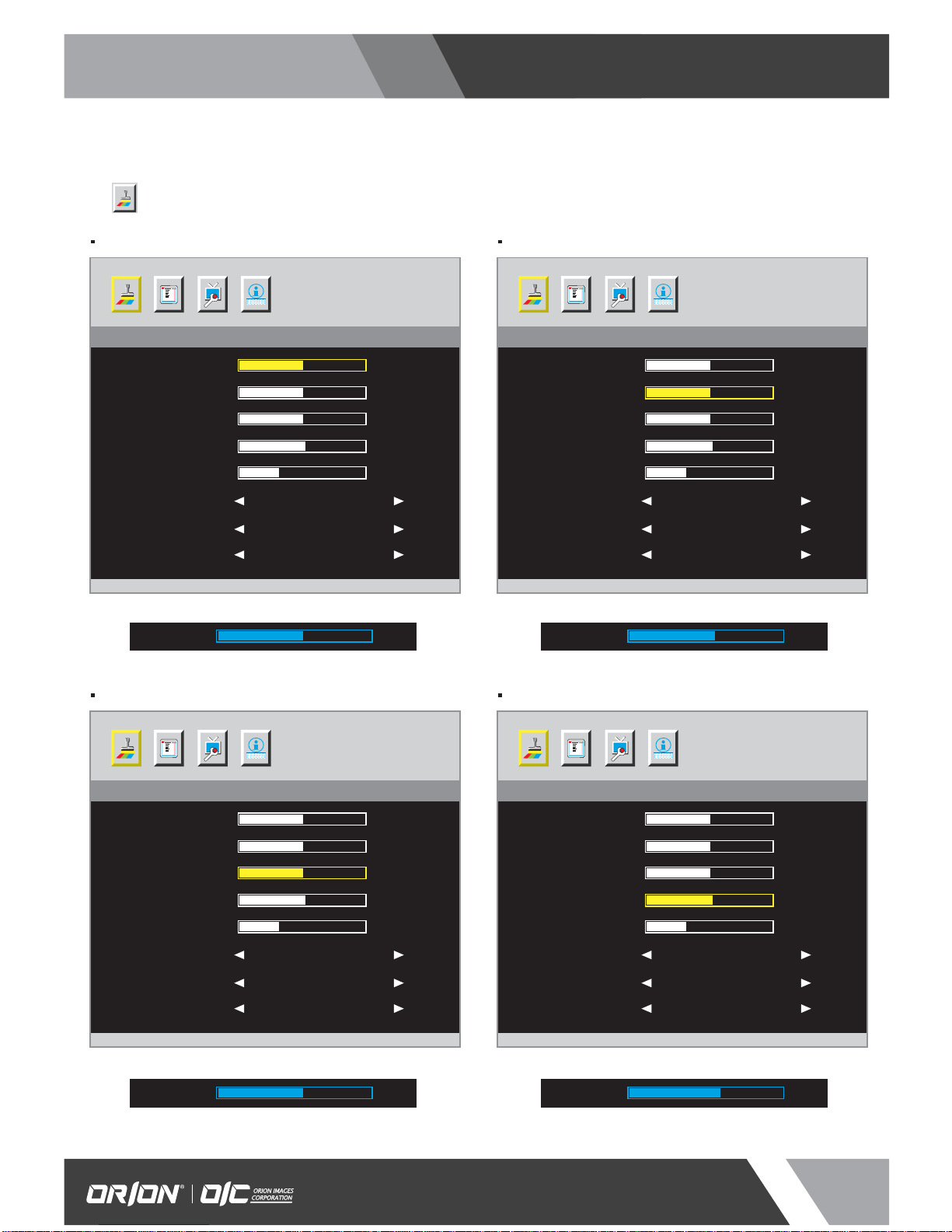

7300 Bolsa Avenue, Westminster CA 92683
Default setting is 50 and adjustable from range of 0 to 100
Contrast
A. PICTURE MENU setting.
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is 50 and adjustable from range of 0 to 100
Brightness
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is 50 and adjustable from range of 0 to 100
Hue
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is 51 and adjustable from range of 0 to 100
Saturation
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
50Contrast 50Brightness
50Hue 51Saturation
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
Default setting is 32 and adjustable from range of 0 to 100
Sharpness
A. PICTURE MENU setting.
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is “User” and picture Mode setting can be
set to Dynamic, Indoor and Window
Mode
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is “Normal” and Color Tone setting can be
set to Cool or Warm
Hue
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
Default setting is “Full” andAspect Ratio of screen can be
set to 14:9, Normal, 16:9, Zoom1 and Zoom2
Saturation
Contrast
Brightness
Hue
Saturation
Sharpness
Mode
Color Tone
Aspect Ratio
50
50
50
51
32
User
Normal
Full
32Sharpness
Installation and User’s Guide
http://www.orionimages.com
15
7300 Bolsa Avenue, Westminster CA 92683
Default setting is “15 sec” and OSD Duration setting can be
set to 30 sec, 45 sec, 60sec or Off
OSD Duration
Default setting is “50” and OSD H-Position setting can be
set to range of 0 to 100
OSD H-Position
50
OSD H-Position

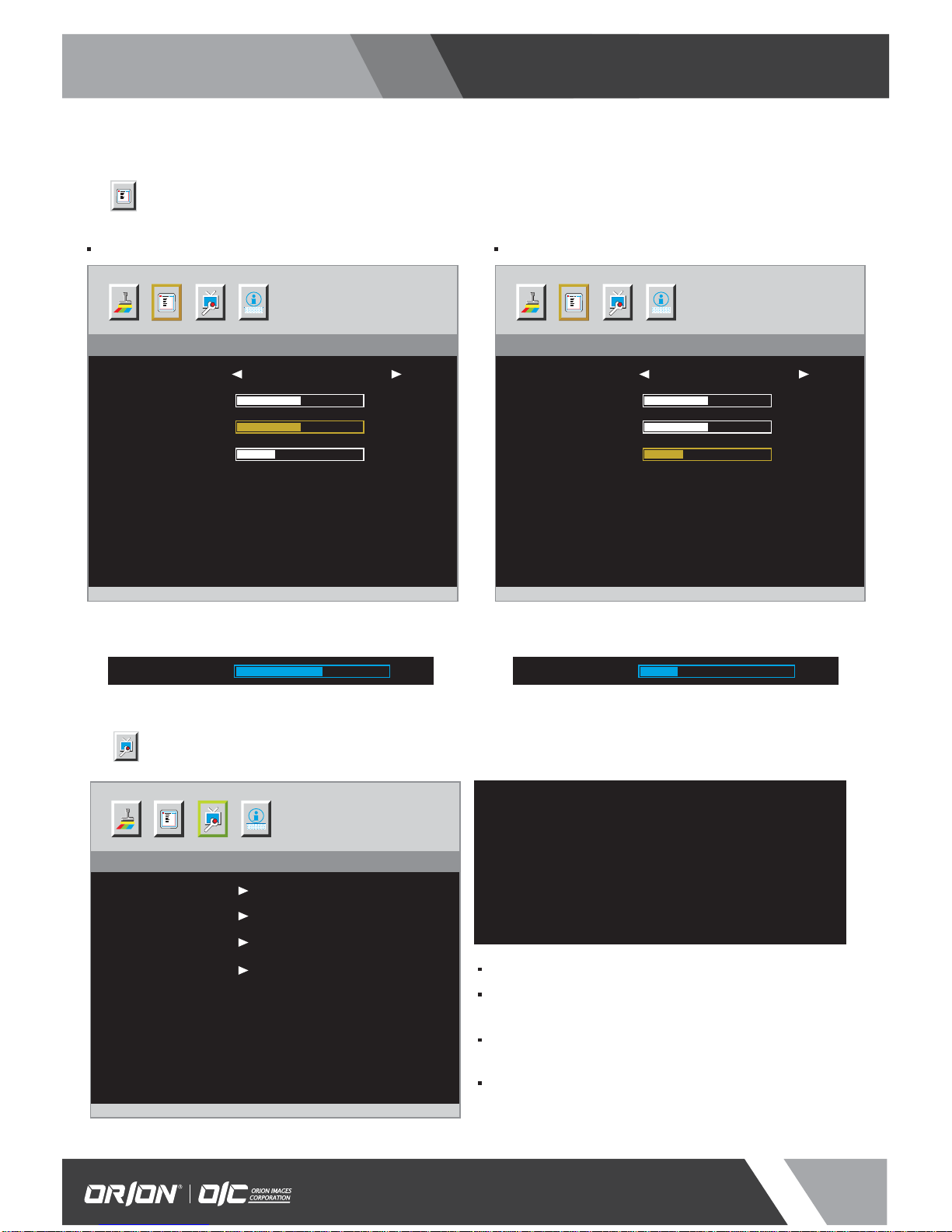

B. OSD MENU setting
OSD Duration: Duration of OSD menu on the screen
OSD H-Position: Adjust horizontal position of
OSD menu displayed on the screen
Adjust vertical position of
OSD menu displayed on the screen
OSD V-Position:
OSD Halftone: Adjust transparancy of OSD munu
OSD
OSD Duration
OSD H-Position
OSD V-Position
OSD Halftone
15 sec
Press the MENU key to access menu.
1.
Select INCREASE or DECREASE to locate
OSD Menu.
2.
3. Use the UP button to highlight a selection.
4. Press INCREASE or DECREASE to adjust
the setting of selected item.
OSD
OSD Duration
OSD H-Position
OSD V-Position
OSD Halftone
15 sec
OSD
OSD Duration
OSD H-Position
OSD V-Position
OSD Halftone
15 sec
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
Default setting is “50” and OSD V-Position setting can be
set to range of 0 to 100
OSD V-Position
Default setting is “17” and OSD Halftone setting can be
set to range of 0 to 100
OSD Halftone
B. OSD MENU setting
OSD
OSD Duration
OSD H-Position
OSD V-Position
OSD Halftone
15 sec
OSD
OSD Duration
OSD H-Position
OSD V-Position
OSD Halftone
15 sec
50
OSD V-Position 17
OSD Halftone

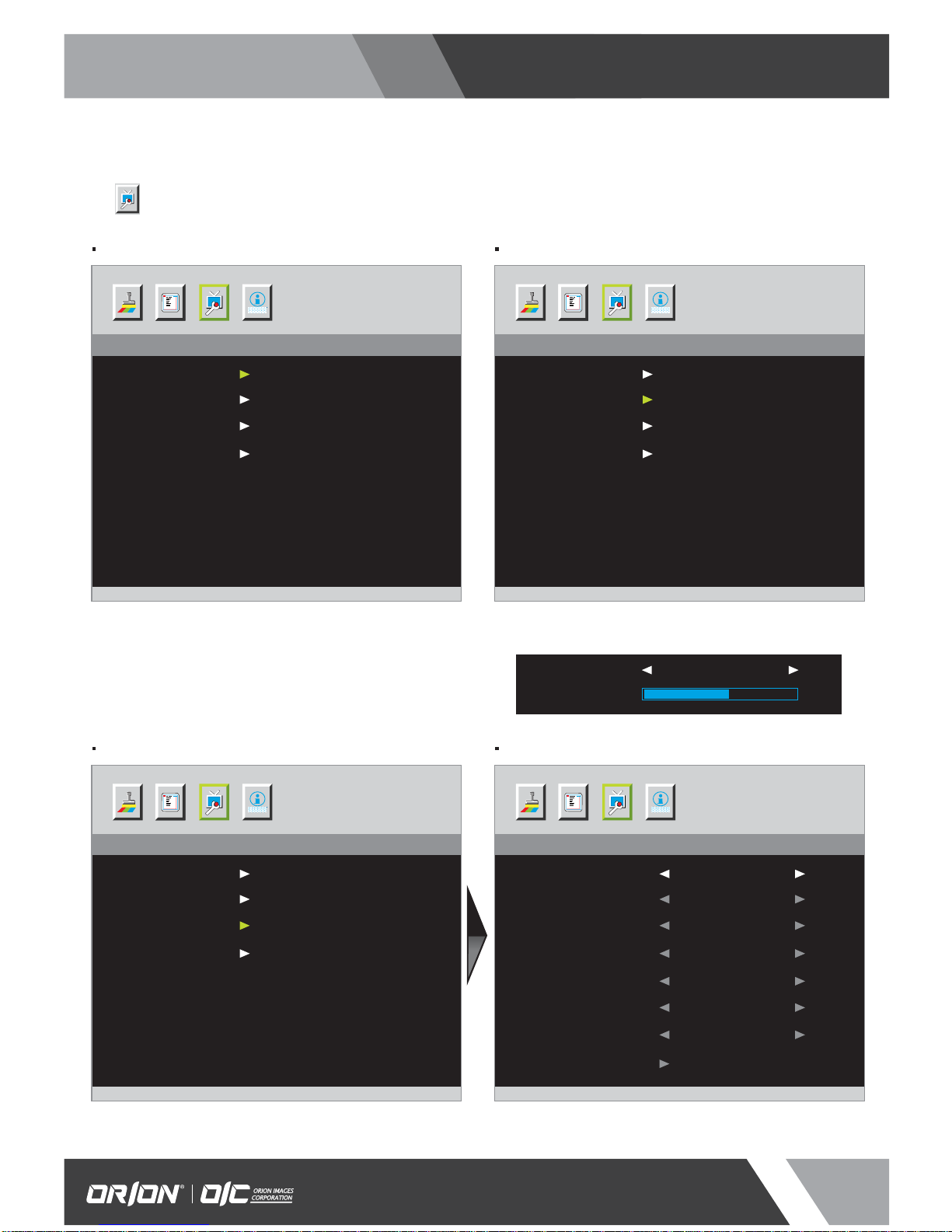

C. SYSTEM MENU setting
Factory Reset: Default manufacturer system setting
Audio: Adjust audio ON / OFF and controls system
audio volume setting
Changing status upon manual or automated
command, or by detection
Automatically switching the SOURCE
of monitor
Trigger:
Auto Switching:
SYSTEM
Factory Reset
Audio
Trigger
Audio Switching
Press the MENU key to access menu.
1.
Select INCREASE or DECREASE to locate
SYSTEM Menu.
2.
3. Use the UP button to highlight a selection.
4. Press INCREASE or DECREASE to adjust
the setting of selected item.
Installation and User’s Guide
http://www.orionimages.com
17
7300 Bolsa Avenue, Westminster CA 92683
Set to manufacturer default setting
Factory Reset
50
Mute ON
Volume
C. SYSTEM MENU setting
SYSTEM
Factory Reset
Audio
Trigger
Audio Switching
Set Trigger manual or auto to send signal when pulse has
detected Default Trigger setting is “Off” and other Trigger options
are not enable until set to “On”
Trigger
SYSTEM
Factory Reset
Audio
Trigger
Audio Switching
Trigger (Setting Options)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
ControlsAudio volume and sound setting. Mute setting
can be ON or OFF, Volume range is between 0 to 100
Audio
SYSTEM
Factory Reset
Audio
Trigger
Audio Switching
Off
External
Camera
VGA
On
10
Low
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683
Default Trigger Enable setting is “Off” and once set
to On, other Trigger options are enable
Trigger (Trigger Enable)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Default Trigger Type is “External” and can be set to
Internal mode
Trigger (Trigger Type)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Default Trigger On Input setting is “Camera” and can be
set to Video2, S-Video, DVI mode
Trigger (Trigger On Input)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Default Trigger Off Input setting is “VGA” and can be
set to DVI mode
Trigger (Trigger Off Input)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Installation and User’s Guide
http://www.orionimages.com
19
7300 Bolsa Avenue, Westminster CA 92683
Default Trigger Buzzer setting is “Off” and can be set to
“On” for Buzz Sound
Trigger (Trigger Buzzer)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Default Trigger Time is “10” second and can be set to
between range of 5 to 60 second
Trigger (Trigger Time)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Default Trigger Option setting is “Low” and can be
set to High
Trigger (Trigger Option)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Trigger PIP Set has options to display PIP setting when
Trigger Enable setting is set to PIP (see page 20)
Trigger (Trigger PIP Set)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
Installation and User’s Guide
http://www.orionimages.com
7300 Bolsa Avenue, Westminster CA 92683

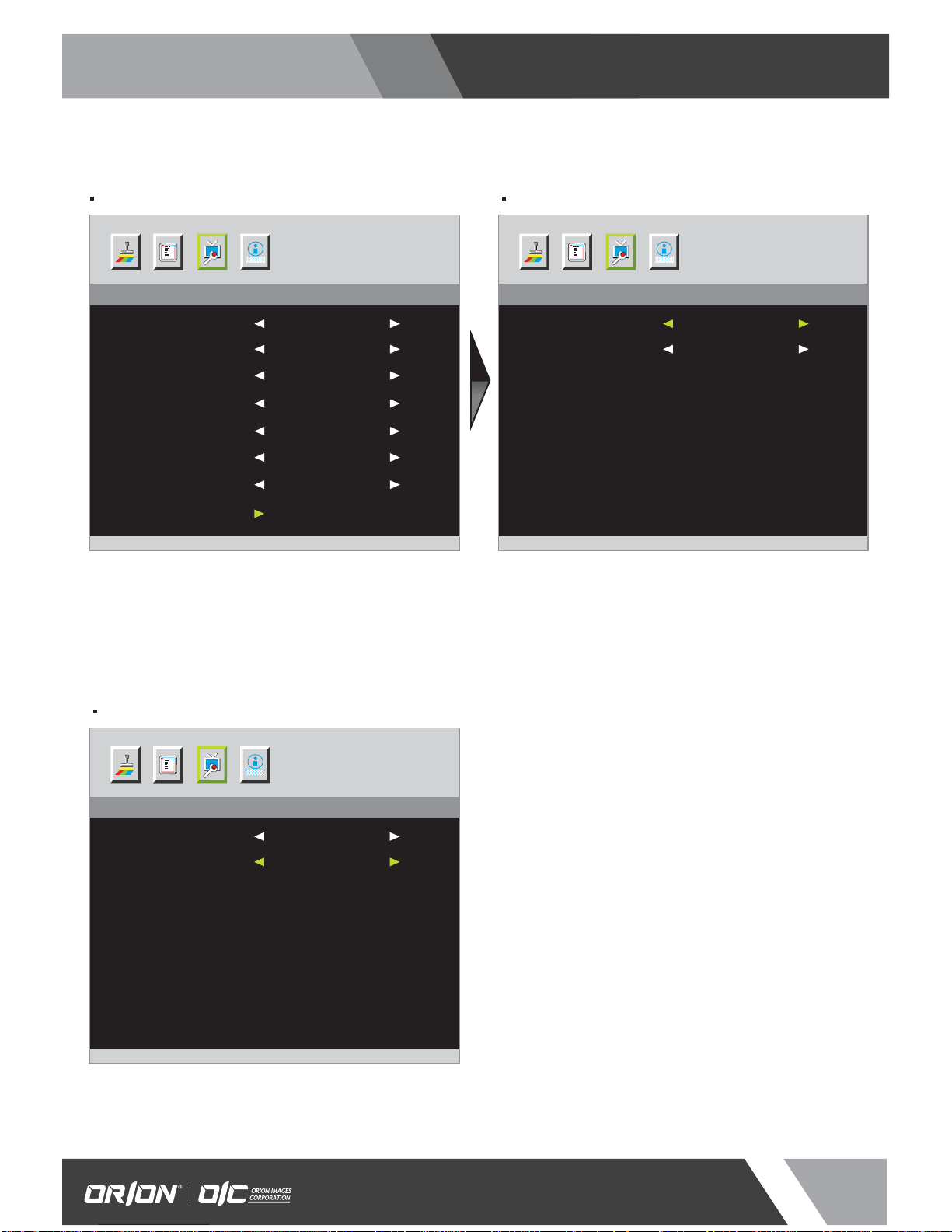

Default setting of PIP Position is “R-Up” and can be set to
L-Up, L-Down or R-Down for PIP display on the monitor
Trigger PIP Set Trigger PIP Set (PIP Position)
SYSTEM
Trigger Enable
Trigger Type
Trigger On Input
Trigger Off Input
Trigger Buzzer
Trigger Time
Trigger Option
Trigger PIP Set
On
External
Camera
VGA
On
10
Low
SYSTEM
PIP Position
PIP Size
R-Up
Medium
Default setting of PIP Size is “Medium” and can be set to
Small or Large size of PIP display on the monitor
Trigger PIP Set (PIP Size)
SYSTEM
PIP Position
PIP Size
R-Up
Medium
Table of contents
Other ORION Images Monitor manuals
ORION Images
ORION Images PREMIUM WIDE ASPECT RATIO Series User manual
ORION Images
ORION Images R4NDHDN Series User manual
ORION Images
ORION Images LCD VALUE SERIES User manual
ORION Images
ORION Images 42HSDI User manual
ORION Images
ORION Images TM7 User guide
ORION Images
ORION Images 32PVMV User manual
ORION Images
ORION Images 7" TFT-LCD MONITOR User manual
ORION Images
ORION Images OIC PREMIUM WIDE ASPECT RATIO Series User manual
ORION Images
ORION Images 23HSDI3G User manual
ORION Images
ORION Images KHIP Series User manual
