ORION Images 7" TFT-LCD MONITOR User manual

Installation and User’s Guide
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein
Installation and User’s Guide
7” TFT-LCD MONITOR
(SECURITY)
TEST MONITOR LCD SERIES (TM)

2
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg2
* Follow this safety instruction to use the monitor properly and prevent the damages.
* Keep this user’s guide book for later use.
Warning Statements
* This safety instruction has “ Warning” and “ Caution” as below.
WARNING: If the user does not follow this instruction,
it may cause the serious damage to the user.
CAUTION: If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Never remove the back over and touch
the inside of the monitor. If you need a
service, please contact the service center.
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into this
product as they may result in a risk of fire
or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug are
defective and the wall outlet is not tight,
p
lease do not use them.

3
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg3
Warning Statements
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-
hands.
When lightning and thundering, unplug
the monitor from the wall outlet and never
touch it.
Unplug this product from the wall outlet,
when It does not operate for a long time.
When smoking and noising from the
monitor, unplug the product from the wall
outlet and contact a service center.
How to fix
1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

4
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg4
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface. When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Before carrying the monitor, tum it off
and Unplug the signal cables and the
power code From the wall outlet.
Take the power plug out from the wall
outlet. Do not pull the cable. It may
snap the inner wires and cause
overheating and fire.
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands
or the sharpened material hardly.
For cleaning, unplug the monitor from
the Wall outlet. Do net use the liquid
cloth. Use the soft cloth.
Do not use the chemical liquid for
cleaning. It may cause fading and
breakage.

5
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg5
TABLE OF CONTENTS
1. INSTALLATION .................................................................................................................
1.1 Parts ……....................................................................................................................
2. FEATURES …..................................................................................................................
2.1 Display Mode …….……..............................................................................................
3. OSD SETTING
..
....
.
.......................................................
.................
..................................
3.1 Connections & Controls
5. TROUBLESHOOTING
..
....
.
.......................................................
.................
.....
...............
.
..
....
.
.......................................................
.................
...............
6. LIMITED LIFETIME WARRANTY
..
....
.
.......................................................
.................
....
4. INFORMATION TO THE USER
..
....
.
.......................................................
................
.........
3.2 OSD Menu Control
..
....
.
.......................................................
.................
...................
....
3.3 Controls
..
....
.
.......................................................
.................
...................
......
..
...........
..
3.4 Battery
..
....
.
.......................................................
.................
...................
......
..
..............
.
.
.
6
6
7
7
8
8
12
13
11
8
9
10

6
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg6
INSTALLATION
1.1 P
a
r
ts

7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg7
FEATURES
VIDEO
Screen Size 7”
Pixel Type Active Matrix TFT
Max. Resolution 1440 x 234
Pixel Pitch 0.107 x 0.370mm
Brightness 500 cd/㎡
Contrast Ratio 300 : 1
Aspect Ratio 5:4
Viewing Angle (H/V) 120 / 70
Active Area 154.08(W) x 86.58(H) mm
Display Color Full Color
Video System NTSC / PAL

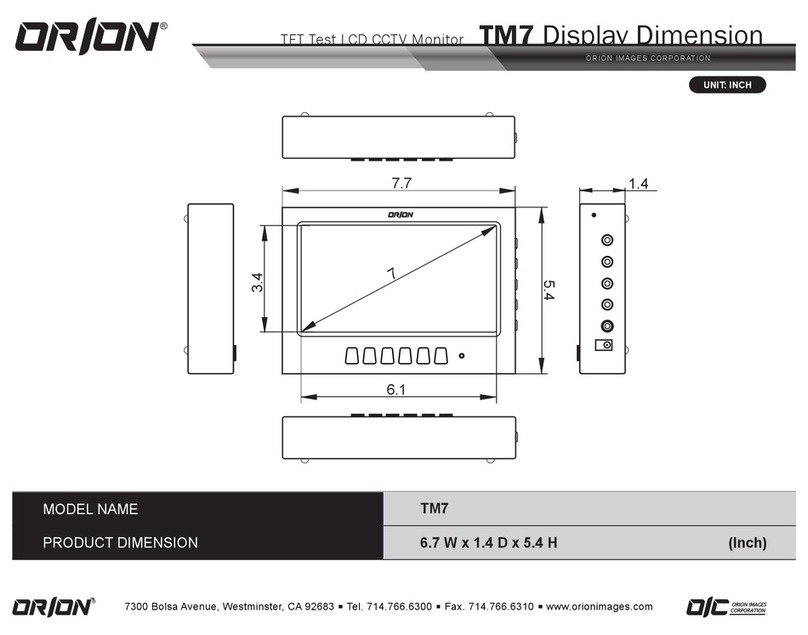

MECHANICAL
Packing Dimension
W x H x D 7.70” x3.35” x 1.42”
Weight 4lbs
Power Consumption 7W
Power Source DC12V / 520mA
2.2 Specifications

8
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg8
POWER OPERATING & CONNECTION
① Video 1 Input
② Video 2 Input
③ Video Output
④ Audio Input (optional)
⑤ Audio Output (optional)
⑥ DV12V Power Input
⑦ OSD Menu
⑧ “+” Increase (Default to Brightness)
⑨ “-” Decrease (Default to Brightness)
⑩ Left-Right-Up-Down Reverse
⑪ Video Input Selector
⑫ Main Power
⑬ LED Power Indicator
To control the Brightness of picture use
“+”, or “-” to change to the desire picture
quality.
To control the Contrast of picture use “+”,
or “-” to change to the desire picture
quality.
To control the Volume of sound use “+”,
or “-” to increase or decrease the sound of
the volume.
3.1 Connections and Controls
3.2 OSD Menu Control

9
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg9
To switch the video input use “I / II” to select NTSC
Video 1 or Video 2.
To view the Rear Camera select “U/D” button to see
the reverse image
3.3 Controls

10
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg10
3.4 Battery
Energy Saving Li-ion Rechargeable Battery
To charge the battery press “On-Off” switch to “On”
position then charge the battery at least 10 hours to fully
charged. To avoid unnecessary power loss make sure
switch to “Off” position after use.
Please note indicator of Green and Red LED light is
on/off during charging the battery. Please make sure 10
hours lead time is recommended when charging the
battery.

11
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg11
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one more
of the following measures:
The manufacturer is not responsible for any Radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate
the equipment."
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
zConsult the dealer or an experienced radio / TV technician for help.
WARNING:

12
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg12
TROUBLESHOOTING
* When the following troubles are occurred, follow the trouble shooting. Before contacting a
service center.
Troubleshooting Troubleshooting Tip
1. Make sure if the power supply is connected property
2. Turn on the power.
The screen doesn’t show up
3. Select the input signal right for the connected port.
The screen is too light or to dark Control the BRIGHTNESS
The screen size is not fit for the PC
signal Press the AUTO key among keys in the front.
(It is used only in the PC signal)
The screen color shows strange in
the PC signal In the FUNCTION menu of OSD menu, perform the AUTO-
ADJUST.

13
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg13
2Year Limited Warranty
Contact Orion Images
All Orion Images products carry a limited warranty from ship date against defects in materials
and workmanship. Orion Images is not liable for improper installation that results in damage to
mounts, adapters, display equipment or personal injury.
In the event of missing and/or damage equipment, or technical questions, the
following information can help in the completion of the installation.
Address: 7300 Bolsa Avenue, Westminster, CA 92683
Tel: [phone] / Fax: [phone]
Email: [email protected]
Website: http://www.orionimages.com
