Orion 32" User manual

USER'S MANUAL
Read this manual carefully and retain for future reference
32” LED Television

2. SAFETY PRECAUTIONS
1. PREFACE
7.REMOTE CONTROL
2
2
4
5
8. MENU OPERATION
25
9. TROUBLESHOOTING AND ADVICE
26
10. TV SPECIFICATIONS
12
16
SOUND MENU
PICTURE MENU
TIME MENU
CHANNEL MENU
INPUT SOURCE
Multimedia(USB) MENU
OPTION MENU
16
19
18
14
18
Remote Control Instructions in TV mode
Remote Control Instructions in Teletext/USB mode
Remote Control Setup
8
11
10
3. TV Bracket assemble
5. IN THE CARTON
6. FRONT BACK CONNECTIONS OF LED
4. Desktop TV Bracket Installation & Assebly
6
7
1

2
1.PREFACE
Thank you for buying this TV ! Please read this manual thoroughly before operating the TV. Make
sure the TV was not damaged in transit. If the TV is damaged, do no install it and contact your dealer.
Check that you have all the accessories according to the model.
2.SAFETY PRECAUTIONS
Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the TV to fall.
Minimum distances
10cm
20cm
10cm 5cm
Put the TV on a stable surface.
Do not place any material on the TV.
Do not block or cover the ventilation openings on the
If you have a wall mount, check that it is steady.
TV.
Do not use the TV with fixtures other than those provided or
suggested by the manufacturer.
Keep the TV dry and away from humidity.
Keep the TV away from heat sources.

3
Unplug the before cleaning it. Do not use solvent or liquid
clean the TV.
TV to
Only clean the TV with a soft and dry cloth.
Unplug the TV during lightening storms or when unused for long
periods of time.
In case of troubleshooting, do not use spare parts other than
those suggested by the manufacturer. Using inadequate spare
parts can lead to electric shocks, short-circuits fire or other
incidents.
1. An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a
protective earthing connection.
2. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
3. Where the MAINS plug is used as the disconnect device, the disconnect device shall remain
readily operable.
4. To reduce the risk of fire or electric shock，do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids,
such as vases, shall not be placed on the apparatus.
5. The Company will provide the Customer with first wall mount free of cost, any changes or new
wall mounts hence forth will be chargeable.
6. The Company suggests the TV be mounted at eye level to get the best viewing experience.
If the customer wishes to place it at any other angle then the viewing experience will differ accordingly.
7. Once the LED/LCD has been mounted, the responsibility of its maintenacnce lies with the customer.
The company is in no way liable for any damages that may occur due to falling/dust gathering/moisture
accumulation etc.
8. If the set is cold, there may be a small flicker when the set is switched on. This is normal there is
nothing wrong with the set.
9. Some dot defects may appear on the screen. Like Red.Green or Blue spots. How ever, this will
have no impact or effect on TV/Monitor perforance.
WARNING:To prevent the spread of fire, keep candles or other open flames away from this product
all times.

4
3. TV Bracket assemble
5
Please follow the user manual about bracket assemble to fix the TV.

5
4. Desktop TV Bracket Installation & Assebly

6

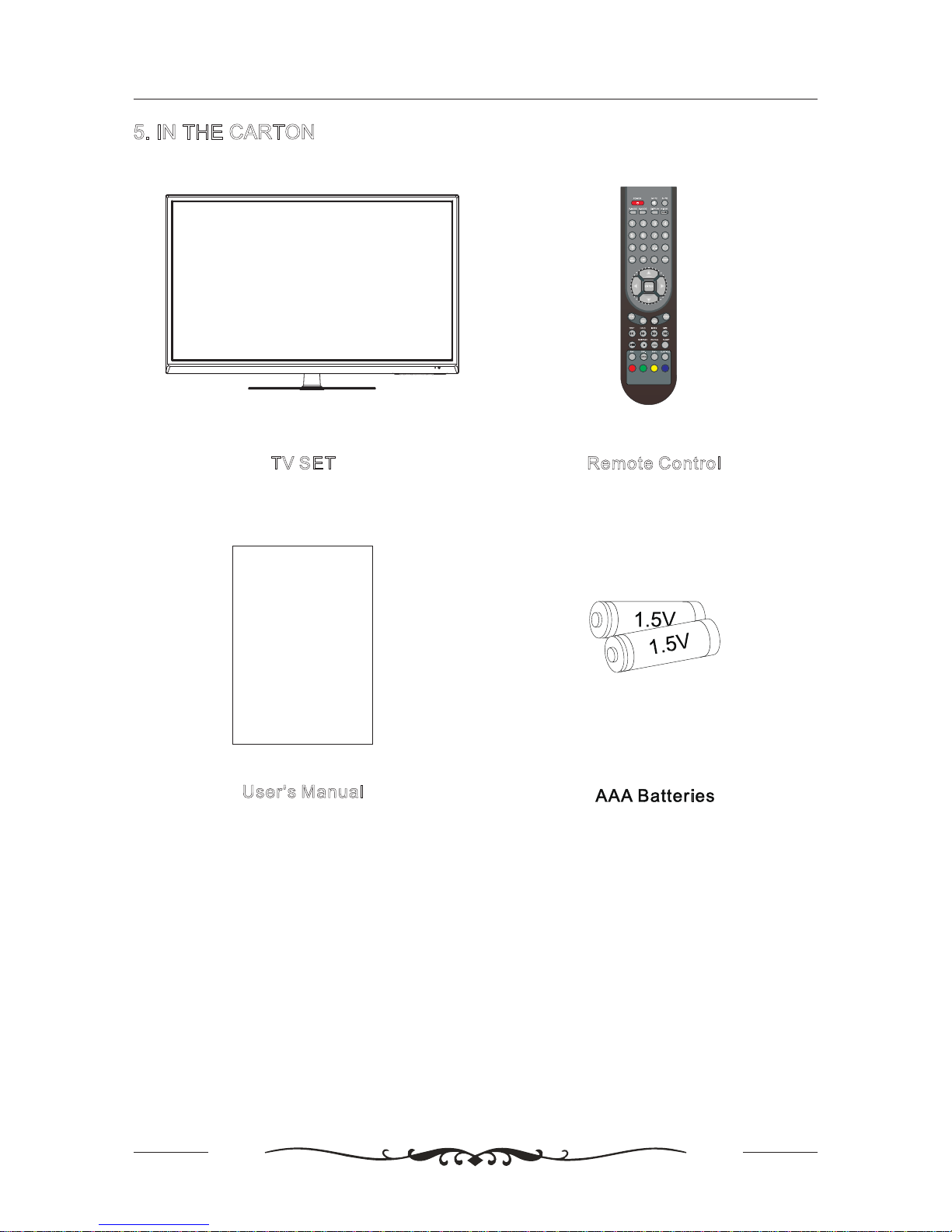

5. IN THE CARTON
Remote ControlTV SET
USER'S MANUAL
User's Manual
MEDIA

RF IN VIDEO L R
USB
PC
AUDIO YPbPr
HDMI1 HDMI2 HDMI3 VGA
SCART
6. FRONT & BACK CONNECTIONS OF LED
Back View and Control Connections
Front View
7
1. : Connect to a headphone set.
2. HDMI: Connect the HDMI output jack of DVD.
3. SCART: Connect the SCART output jack of VCR or DVD.
4. RF IN: Connect the antenna.
5. VGA: Connect the PC-RGB output jack of PC.
6. PC AUDIO : Connect the right Audio out put jack of PC.
7. USB: Connect to the External drive.
8. VIDEO/Audio(L/R) Connect the Video Audio output jack of
DVD or VCR.
9. YPbPr: Connect the YPbPr output jack of DVD or VCR.
1. Press“SOURCE”to select the input source.
2. Press “MENU”to bring up the main menu on the screen.
3. Press“CH+”or “CH-” .
4. Press“VOL+”or “VOL-”to increase or decrease the
sound level.
5. Press“POWER” button to turn standby mode on or off.
6.
.
. .
to change channels
ON/OFF LED Indicator: Shows red in standby mode
and green while your TV is turned on
7 IR Sensor: Infrared sensor for the remote control
SOERCE

7. REMOTE CONTROL
8
1.
Turn the LED TV ON or OFF.
2.MUTE
Press to mute the sound. Press again or press VOL+ to
un-mute the TV.
3.
P.MODE
Press to select the picture modes.
5.S.MODE
Press this button to change the audio mode.
6.DISPLAY
Press to display the source and channel's information.
7.NICAM
Press to select the NICAM modes.
7.AUDIO
Audio select button.
8.NUMBER BUTTONS
The numerical keys are used for selecting the number of
the channel.
9.
Return to the previous channel viewed.
10.-/--
Press this button to enter Channel List.
11.TV MENU
Press to enter or exit the setup menu.
12.EXIT
Press to exit all the OSD on the screen.
13.MEDIA
Press to enter USB menu.
14.SOURCE
Press SOURCE to display the OSD input source, Press ▲▼
to select an input source, and then press ENTER to confirm.
15.THUMBSTICK( ▲/ ▼/◄ / ►/ ENTER)
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
16.CH+/CH-
Press to scan through channels.
17.VOL+/VOL-
Press to increase/decrease the sound level.
POWER
AUTO
Press to do auto configuration directly(In VGA mode).
4.
MEDIA
45
12 3
67
8
910
1211 13 14
15
16 17
Remote Control Instructions in TV mode

MEDIA
9
18.
Zoom can change display size.
19.SLEEP
Lets you select amount of time before your TV turn itself off
automatically.
20.Color button
Color buttons (respectively red, green, yellow and blue)
used in a few sub-menus.
21.FAV
Displays the selected favorite programs.
22.FAV-
Displays the selected favorite down programs.
23.FAV+
Displays the selected favorite up programs.
ZOOM
Remote Control Instructions in TV mode
18 19
20
21 22 23

MEDIA
10
Remote Control Instructions in Teletext/USB mode
24.
Press 0-9 to select a teletext page.
25.▲/ ▼
Page up and page down.
26.CH+/CH-
Page up and page down.
27.SUBTITLE
In Teletext mode, press to display P.100.
28.
Select Time Shifting Mode "off" in the menu, then the
“teletext" can be available.
◄◄
Playing backward fast.
29.HOLD
Hold on or off for current page display.
►►
Playing forward fast.
30.SUBPAGE
Sub coded page access.
Press to stop playing.
31.REVEAL
Reveal or hidden the hidden words.
32.INDEX
Request the index page.
Skip backward button.
33.SIZE
Change display size in teletext mode.
Skip forward button.
34.
Press to pause the playback.
35.REPEAT
Repeatedly play the title or chapter continuous.
36. Blue Button
Press to change back light between High, Middle,
Low and Off mode.
NUMBER BUTTONS
TEXT
Switch on or off the teletext mode.
24
25
26
27
28 29
30 31
32 33
34
35
36

Remote Control Setup
11
Place the remote control on a even surface and insert the supplied batteries into the remote control
as follows.
1. Softly push the back cover to open the battery compartment.
2. Insert two batteries(1.5V size AAA ),please make sure the polarity matches the marks inside the
compartment.
3. Softly press the back cover to close it.

12
8 . MENU OPERATION
CHANNEL Menu
Note
all other input modes.
Channel menu can be only selected under ATV mode. The CHANNEL menu is disabled while in
Press MENU button display the main menu, use CHANNEL ,
, .
to ◄► to select menu press OK or
to enter and press menu to return to the main menu
▼
Move Menu
MEN U OK
Select Exit
EXI T
CHANNEL
Auto Scan
ATV Manual Tuning
Program Edit
In ATV mode press the MENU button to enter the main menu. A window will appear, use ◄►
to scroll through the following menu headings: CHANNEL, PICTURE, SOUND, TIME, OPTION.
Press ▼ or OK to enter the sub menus under the headings listed above.
While in MENU mode, press the MENU button to return to the previous menu window, or press
EXIT to exit menu mode completely.
and
Auto Scan
Exit
EXIT
Menu
MENU
9%474.00 MHz(TV)
TV :0Programme(s)
Auto Scan
You can manually tune in the CHANNEL menu.Auto Scan
ATV Manual Tuning
You can manually tune ATV channels in the CHANNEL menu.
ATV Manual Tuning
Storage To 1►◄
DK ►◄
►◄
►◄
►◄
Current CH 1
Search
Fine-Tune
Frequency 511.31 Mhz
Exit
EXIT
Move Save
PAL ►◄

13
Storage to
System
Select the system using the ◄► buttons.
Current CH
Displays the current channel number, press the ◄► buttons to choose the channel you wish to modify.
Search
Press the ◄► buttons to scan through the frequencies to find new channels.
Fine tune
In case of bad reception, you can press the ◄► buttons to make fine adjustments to the tuning.
After manual tuning is complete, please press the RED key to save any found channels.
press the ◄► buttons to change the numbered location of the found channel.
Use to navigate through the Program Edit window.▲▼
DELETE
Press the RED button to delete the highlighted channel, a red circle will appear next to the channel
name.
Press the RED key again to confirm delete.
Press MENU to return to the main menu.
Program Edit
CH.NAME SKIP FAV Type
Program Edit
ATV
ATV
ATV
702 BBC Radio 2
703 BBC Radio 3
704 BBC Radio 4
714 heat
1 C-26
2 C-44
3 C-56
2 ABC TV Meihour
20 ABC HDTV ATV
ATV
Menu
MENU
ENTE R
OK Delete Swap Skip
Rename FAV
FAV
SWAP
Press ▲▼ to select the channel , press yellow button to enter the SWAP mode, then press ▲/▼
to move the channel location, press yellow button again or press OK to confirm.
Press MENU to return to the main menu.
Select
ATV
ATV
ATV
ATV
Rename
Modify current channel name, only used in ATV mode.
Press green button to enter RENAME mode, then use the ◄►▲▼ change name.
Press green button again or press menu button to confirm.

14
FAV
Set your favorite
FAV button.
A logo will appear next to the channel name. When you are viewing you can press the FAV button
to see a list of your favorite channels.
channel by pressing the ▲ ▼ buttons to highlight the channel, then press the
Move
MEN U OK
Select E XI T
Move Menu
MEN U OK
Select Exit
EXI T
PICTURE Menu
Picture Mode
Picture Mode Standard
Adjust Exit
EXIT
Menu
MENU
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Red
Standard
50
50
50
50
50
Normal
Red
Green
Blue
Aspect Ratio
Noise Reduction
PC Setting
50
50
50
16:9
On
Press to select the picture mode,press MENU to return to the main menu.
You can select from the following preset modes - Dynamic, Standard, Mild or User.
Only User mode allows the adjustment of Contrast, Brightness, Colour and Sharpness, Tint is only
available to adjust for NTSC.
◄►
Press MENU button display the main menu, use PICTURE ,
, .
to ◄► to select menu press OK or
to enter and press menu to return to the main menu
▼
Contrast
Contrast / Brightness / Color / Sharpness/Tint
Adjust Exit
EXIT
Menu
MENU
50
In User mode, select from Contrast/Brightness/Colour/Sharpness using ▲▼ and press ◄► to
make adjustments.
SKIP
Press ▲ ▼ to select the channel you wish to skip.
Press the BLUE button, a logo will appear next to the channel name and the channel will be skipped
when you scroll through the channels.
Press the BLUE button again on the highlighted channel to disable the skip function.
Press MENU to return to the main menu.
Menu Exit

15
Color Temperature Normal
Color Temperature
Red/Green/Blue
In User mode press to select Red/Green or Blue, .
Press MENU to return main menu.
▲▼ then press ◄► to adjust
to the
You can select from the following preset modes Cool, Normal or Warm. Only User mode allows
adjustment of Red, Green and Blue values.
Adjust Exit
EXIT
Menu
MENU
Aspect Ratio
◄►
Press to highlight Aspect Ratio and OK to enter. A window will appear at the bottom of the screen,
press to scroll through the following options to get the best fit picture on your screen - 16:9,
ZOOM 1, ZOOM 2, 4:3.
▲▼
Noise Reduction
Press to highlight Aspect Ratio and OK to enter.
Use ◄►to select from noise reduction modes as follows: Off, .
Note
Noise Reduction is not available in PC mode.
▲▼
On
Auto Adjust
Select “Auto Adjust”and press , the unit will automatically adjust all items.
H.Position
Allows you to use buttons to adjust the Horizontal Position.
V.Position
Allows you to use buttons to adjust the Vertical Position.
Size
Allows you to adjust the width of image.
Phase
Allows you to adjust the definition.
►
◄►
◄►
PC Setting
Auto Adjust
H Position.
V Pos .. ition
Size
Phase
50
50
50
30
Exit
EXIT
Menu
MENU
Move
PC Setting( Only available in PC mode).
Source
TV
AV
YPBPR
VGA
HDMI 1/2/3
USB 1/2
4:3, 16:9, Zoom 1, Zoom 2
4:3, 16:9
4:3, 16:9, Zoom 1, Zoom 2
4:3, 16:9, Zoom 1, Zoom 2
4:3, 16:9, Zoom 1, Zoom 2
Aspect Ratio modes available
4:3, 16:9

16
Treble/ Bass /Balance
Use to select the Treble /Bass /Balance, and press to adjust.
Treble and Bass are only adjustable in User mode.
Auto sound adjusting. Press to set ON/ FF.
Surround sound settings, press ◄► to set ON/OFF.
▲/▼ ◄►
Auto Volume
◄► O
Surround sound
Move Menu
MENU O K
Select Exit
EXIT
31/May 14:25
Off
Off
Off
On
TIME
I
I
I
I
I
I
I
I
Clock
Off Time
On Time
Sleep Timer
Auto Sleep
TIME Menu
Press MENU button display the main menu, use ,
, .
to ◄► to select TIME menu press OK or
to enter and press menu to return to the main menu
▼
I
I
I
I
Press MENU button display the main menu, use ,
, .
to ◄► to select SOUND menu press OK or
to enter and press menu to return to the main menu
▼
Sound mode
Press ◄► to select from the following sound modes: User, Standard, Music, Movie and Sports.
Press MENU or OK to confirm.
Sound Mode Music
Adjust Exit
EXIT
Menu
MENU
Move Meun
MENU O K
Select Exit
EXIT
SOUND Menu
Treble
Bass
Balance
Auto Volume
Surround Sound
Sound Mode Standard
50
50
0
Off
Off
SOUND

17
Off Time
Repeat
Hour
Minute
Once
13
28
Move Menu
MENU
Exit
EXIT
Press .MENU to confirm and return to TIME menu
On time
Press .MENU to confirm and return to TIME menu
Sleep time
following Sleep times: 10, 20, 30, 60, 90, 120, 180, 240 minutes or Off to disable the Sleep time
function. Then press OK or MENU to confirm.
Press OK to enter Sleep Time sub menu,use . You can select from the▲▼ to set the sleep time
On Time
Repeat
Hour
Minute
Source
Channel
Volume
◄ ►
Once
◄ ►
12
◄ ►
00
◄ ►
ATV
◄ ►
1
◄ ►
30
Move Menu
MENU
Exit
EXIT
You can specify a time, input source, channel and volume for the TV to turn on.
Press to select Repeat mode and use ◄► to select your preference as above.
Use ▲▼ to select the other parameters and ◄► to adjust.
▲▼
Auto Sleep
.
This function allows you to set your TV to automatically turn off after 10 minutes if the TV detects
no signal from the inputs.
Press ◄►to select ON/OFF
Clock
Date
Month
Year
Hour
Minute
Move Menu
MENU
Exit
EXIT
Clock
◄ ►
20
◄ ►
May
◄ ►
2010
◄ ►
13
◄ ►
25
Press to set the Date/Month/Year/Hour/Minute, press MENU to confirm and return to
Time menu.
◄►▲▼
Off time
You can set a time for the TV to turn off automatically. The Repeat mode allows the unit to be set to
turned off Once, Every day, Mon-Fri, Mon-Sat, Sat-Sun or only Sun, use ◄► to select your preference.
Once the Repeat setting has been made, press ▲▼ to select Hour and Minute settings, use ◄►
to adjust.

Move Menu
MENU
OK
Select Quit
EXIT
English
WEST
45S
On
OSD Language
TXT Language
OSD Duration
Blue Screen
Restore Default
OPTION
Input Source
ATV
AV
YPBPR
VGA
HDMI1
HDMI2
HDMI3
SCART
USB
Select OK
OK
Exit
EXIT
...
18
Press MENU to display main menu, use ,
enter, press MENU to return to main menu.
◄►to select OPTION menu then press OK or ▼to
OSD Language
Press to OSD Language, use to set language.▲▼ select the ◄► OSD
OSD Duration
▲▼ to select the ◄► to select the
the screen.
Press OSD Duration, use amount of time the OSD will remain on
Restore factory default
nter second menu, use to select yes no , .Press OK to e ▲▼ “ ” or “ ” and press OK again to confirm
Blue Screen
Press to set the Blue Screen ON/OFF.◄►
OPTION Menu
Change input
Press source button to display the source menu . Use ,
confirm.
▲▼ to select the input source press OK to
INPUT SOURCE
TXT Language
Press to TXT Language, use to set TXT language.▲▼ select the ◄►

19
Inserted USB device info
2.0 will be displayed. When no device is attached it will display 'No Device'.
Displays USB version of the device that is attached, for example if a USB 2.0 device is attached,
Operation guide
Operational buttons on the remote ◄► , Menu and OK.▲▼
◄ ►/
▲ ▼/
OK/Enter
Multimedia main board keypress instruction:
The follows only list MM page and other relavant function, Menu, sleep and other system
function is not included.
Enter submenu.
Turn up/down.
Move Focus to left/right, it can circle move.
Disc
Show the current disc.
Multimedia style
Choose from the menu across the top of the screen which file type you would like to play: Photo,
Music, Movie or Text.
DISC (HDD)
HDD Discs.Shows the inserted Each disc is assigned a letter from Conwards.
Multimedia PHOTO’s submenu layout:
Disc:C
Multimedia main menu style:
Multimedia(USB) Menu
Discs
Multimedia
Operation
USB Status
Inserted USB
device info
USB 2.0
USB Status
If a compatible USB is attached the logo will appear blue. If not USB is attached the logo will be grey.
Move Menu
MENU O K
Select
Exit
EXIT
