Orion XTR102D User manual

Subwoofers
XTR124D
XTR152D
XTR154D
XTR102D
XTR104D
XTR122D

ATTENTION
FOR ANY QUESTIONS,
ISSUES, RETURNS OR WARRANTY
DO NOT contact the retailer, we recommend that
you contact our service department for any and all
assistance at [email protected].
We will do our best to resolve any problem in a
professional and timely manner.
Thank you for purchasing this Orion product. Orion products
are specifically engineered and designed for the mobile audio
environment. This manual contains important information about
installation, set-up procedures and integrating your new Orion
product into your vehicle. With proper care and installation, your
new product will provide you with many years of high performance
listening enjoyment. We recommend having an Authorized Orion
Dealer install your new product for optimal performance. Before
installing your new product, please read through the manual to fully
understand the application.
Before making any electrical connections, make sure that you
disconnect the battery’s ground cable to prevent the possibility
of short circuits or damage to your electronic equipment. If your
vehicle’s stereo (head unit) comes with an Anti-theft code, DO NOT
disconnect the battery. If you have the access code for the stereo
(head unit), please refer to the vehicle’s owner’s manual.
!!
WARNING: This product can expose you
to chemicals including DEHP which is known
to the State of California to cause cancer, birth
defects or other reproduction harm. For more
information go to www.P65warnings.ca.gov.

TABLEOFCONTENTS...................................................................................................2
FEATURES.............................................................................................................3
SPECIFICATION..........................................................................................4-5
WIRING CONFIGURATION..................................................................................6-10
BUILDING AN ENCLOSURE....................................................................................11
ENCLOSURE DETAILS...............................................................................................12
ENCLOSURE RECOMMENDATION................................................................13-18
WARNING & DISCLAIMER......................................................................................19
TROUBLESHOOTING.............................................................................................20
WARRANTY.........................................................................................................21-22
TABLE OF CONTENTS
WHAT’S IN THE BOX
1 x XTR Subwoofer
1 x Trim Ring
1 x Mounting Template
1 x Owner’s Manual
1 x Window Sticker

FEATURES
3

SPECIFICATIONS
4
Model Number XTR102D XTR104D XTR122D XTR124D XTR152D XTR154D
Fs (free-air resonance, Hz) 25 26.5 27.1 28.3 23.8 24.5
Vas (equivalent compliance, cu.
ft.)
1.861 1.775 2.535 2.618 4.872 4.377
Vas (equivalent compliance,
liters)
52.690 50.253 71.785 74.140 137.950 122.822
Qms (Q, mechanical) 16.275 14.001 12.849 11.502 9.803 12.044
Qes (Q, electrical) 0.483 0.535 0.549 0.545 0.458 0.51
Qts (total driver Q) 0.469 0.515 0.526 0.520 0.412 0.495
Re (DC resistance, ohms) 3.93 7.62 3.82 7.37 3.91 7.20
Z (nominal impedance, ohms) 4 8 4 8 4 4
Efciency (1W @ 1M, db) 84.41 84.65 87.38 87.27 89.26 90.22
Xmas (one way linear excursion,
in.)
0.476 0.498 0.476 0.476 0.487 0.476
Xmas (one way linear excursion,
mm)
12.075 12.65 12.075 12.075 12.363 12.075
RMS POWER WATTS 500 500 600 600 750 750
NOMINAL POWER WATTS 1000 1000 1200 1200 1500 1500
MAX MUSIC POWER WATTS 2000 2000 2400 2400 3000 3000
Mms (total moving mass, grams) 143.83 134.21 177.45 157.55 297.18 292.37
Cms (mechanical compliance,
m/N)
0.282 0.269 0.194 0.201 0.151 0.142
BI (motor strength, Tesla-M) 13.55 17.82 14.51 19.47 21.99 28.05
Sd (effective radiating area, sq.
cm.)
363.05 363.05 510.71 510.71 804.25 804.25
Sd )effective radiating area, sq.
in.)
56.273 56.273 79.16 79.16 124.659 124.659
Frequency Range (Hz) 20-250 20-250 20-250 20-250 20-250 20-250
Energy Bandwidth Product
(EBP)**
42 44 44 45 35 31

SPECIFICATIONS
5
Model Number XTR102D XTR104D XTR122D XTR124D XTR152D XTR154D
Physical Dimensions
Speaker Displacement (cu ft) 0.05 0.05 0.077 0.077 0.143 0.143
Speaker Outer Diameter (inches/
mm)
10.67/271 10.67/271 12.56/319 12.56/319 15.43/392 15.43/392
Mounting hole diameter (inches/
mm)
9.10/230 9.10/230 10.91/277 10.91/277 13.59/345 13.59/345
Mounting depth (inches/mm) 5.31/135 5.31/135 6.22/158 6.22/158 8.54/217 8.54/217
Magnet Weight (Oz) 44.0 44.0 55.0 55.0 88+88 88+88
Basket diameter (inches/mm) 263.5/10.37 263.5/10.37 311.2/12.25 311.2/12.25 384.2/15.13 384.2/15.13
Recommended Enclosures
Typical sealed enclosure (cu. ft.) 1.00 1.00 1.50 1.50 2.00 2.00
Vented enclosure (cu. ft.) *** 1.00 1.00 1.50 1.50 3.00 3.00
Port tuning frequency (Hz) 40.00 40.00 40.00 40.00 36.00 36.00
Port diameter (inside, inches) 3.00 3.00 4.00 4.00 4.00 4.00
Port square equivalent (inches) 2.659x2.659 2.659x2.659 3.545x3.545 3.545x3.545 3.545x3.545 3.545x3.545
Port length (inches) 9.88 9.88 11.26 11.26 5.42 5.42

6
Series - One Speaker (Dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with voice coils
in series results in a 4 ohm load to the amplifier
Parallel - One Speaker (Dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with voice coils
in parallel results in a 1 ohm load to
the amplifier
Parallel - One Speaker (Dual 4 ohm voice coils)
One dual 4 ohm voice coil woofer with voice coils
in parallel results in a 2 ohm load to
the amplifier
Series - One Speaker (Dual 4 ohm voice coils)
One dual 4 ohm voice coil woofer with voice coils
in series results in a 8 ohm load to the amplifier
WIRING CONFIGURATION

7
Parallel - Two Speaker (Dual 4 ohm voice coils)
Two dual 4 ohm voice coil woofer with voice coils
in parallel and the two woofers in parallel
results in a 1 ohm load to the amplifier
Series/Parallel - Two Speaker (Dual 2 ohm voice coils)
Two dual 2 ohm voice coil woofer with voice coils
in series and then parallel the two series
woofers results in a 2 ohm load to
the amplifier
WIRING CONFIGURATION

8
WIRING CONFIGURATIONWIRING CONFIGURATION
Series/Parallel - Three Speaker (Dual 4 ohm voice coils)
Three dual 4 ohm voice coil woofer wired in
series and then parallel the three
woofers for a resulting
2.67 ohm load to the
amplifier
Series/Parallel - Three Speakers (Dual 2 ohm voice coils)
Three dual 2 ohm voice woofer with voice coils of each
woofer wired in series and then parallel the three
woofers for a resulting 1.33 ohm load
to the amplifier.

9
WIRING CONFIGURATION
Series/Parallel - Four Speakers (Dual 4 ohm voice coils)
Four dual 4 ohm voice coil woofer should be wired with
the voice coil on each woofer in series and then
parallel the four woofer for a resulting
2 ohm load to the amplifier
Series/Parallel - Four Speakers (Dual 2 ohm voice coils)
Four dual 2 ohm voice coil woofers should be wired with
the voice coil on each woofer in series and then
parallel the four woofer for a resulting
1 ohm load to the amplifier

10
WIRING CONFIGURATION
2 Amplifiers - One Speaker (Dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with each voice coil
connected to an individual amplifier, resulting in a
2 ohm load to each amplifier
2 Amplifiers - One Speaker (Dual 4 ohm voice coils)
One dual 4 ohm voice coil woofer with each voice coil
connected to an individual amplifier, resulting in a
4 ohm load to each amplifier

11
If you’re planning to build your own enclosure and are confused
in what type of enclosure best suits your needs this page will
help you choose what enclosure best fits your needs. There are
many different types of enclosures. The two most common used
enclosures are sealed and vented enclosure. This page will show
the advantages and disadvantages of the two enclosures.
ADVANTAGES OF A SEALED ENCLOSURES
•High power handing capability
•Great transient response
•Tolerant of minor enclosure size variation
•Easy to construct
•Smooth roll off (12dB/octave)
DISADVANTAGES OF A SEALED ENCLOSURES
•Requires a woofer with a long excursion for better low bass
frequency response.
•Can have lower sensitivity than ported enclosures.
•When using high power and small enclosures, the woofer is not in an ideal
cooling environment.
•Lower bass as compared to a properly tuned vented enclosure
above the ported tuning frequency.
ADVANTAGES OF A VENTED ENCLOSURE
•Increased output around vented tuning
•Higher power handling above the port tuning frequency
•Extended frequency response
•Magnet is in a good cooling environment
•Handles higher bass frequencies with less distortion
DISADVANTAGES OF A VENTED ENCLOSURE
•Vented enclosure transient response is not as good as sealed
boxes because of the resonant effect of the vent tuning
•Midrange sound coming from inside the enclosure through the vent
can produce unpleasant sound coloration.
•Loss of cone movement control below vent tuning, which can re
sult in high distortion and mechanical failure of the driver.
•Lower power handling below the port tuning frequency
BUILDING AN ENCLOSURE

12
ENCLOSURE DETAILS
ENCLOSURE DERTAILS
1. Parameters listed are for conventional applications only, for further help
please call Sound Pros Tech Support.
2. At least 0.75” MDF (Medium Density Fiberboard) is recommended for any
XTR enclosure.
3. Recommended enclosures are NET box volumes, speaker and port
displacement are calculated into the volume of the enclosure, you will need
to add these volumes to calculate GROSS volume for the enclosure.
NOTES
* Due to the high power capabilities and long excursion of the XTR woofers,
the Thiele/Small Parameters were calculated and measured using Klippel
analyzer system.
** Energy Bandwidth Product (EBP) is determined by the following formula Fs/
Qes=EBP. EBP values of 50 and lower suggest a sealed enclosure is best, 50 to
90 means the subwoofer versatile and 90 and above mean vented Enclosure is
recommended.
*** Subsonic lter should always be used and adjusted specically for vented
box designs.

13

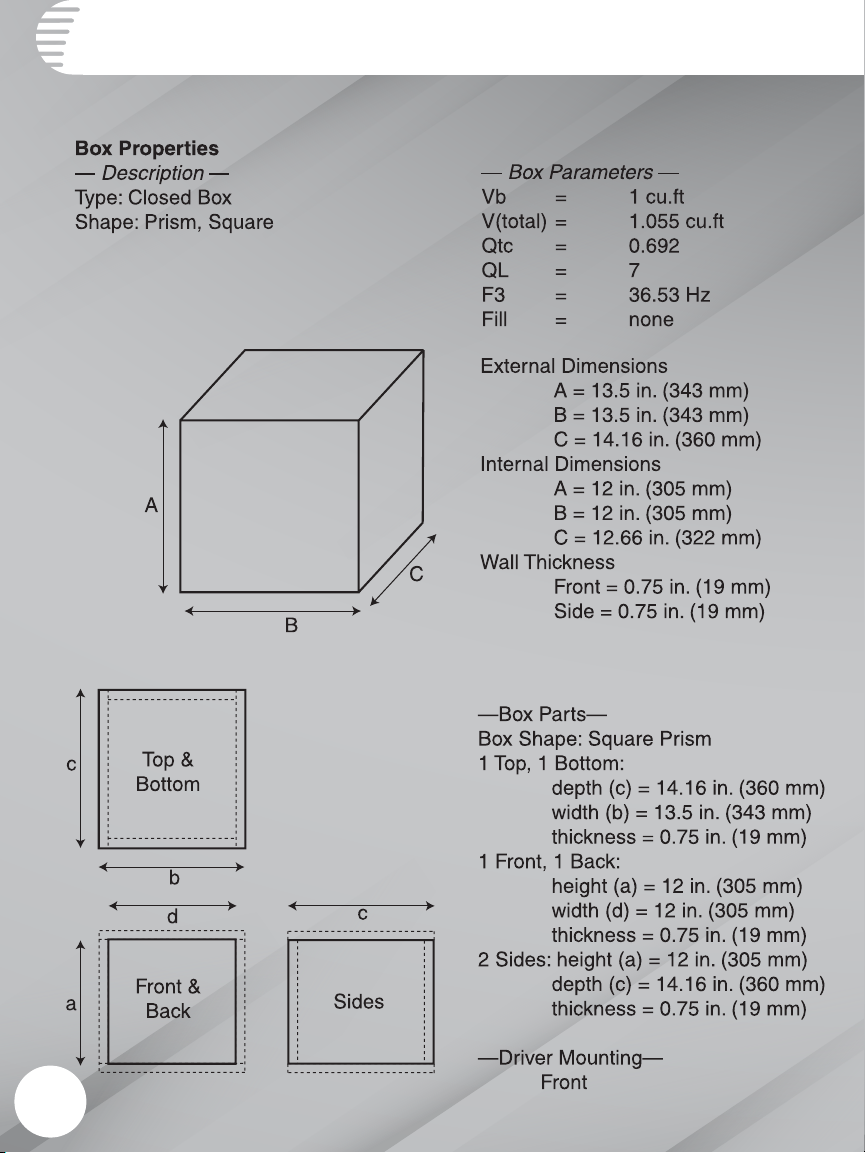

XTR102 & XTR104 SEALED ENCLOSURE RECOMMENDATIONS
ENCLOSURE RECOMMENDATION

14
ENCLOSURE RECOMMENDATION
XTR102 & XTR104 VENTED ENCLOSURE RECOMMENDATIONS

ENCLOSURE RECOMMENDATION
15
XTR122 & XTR144 SEALED ENCLOSURE RECOMMENDATIONS

ENCLOSURE RECOMMENDATION
XTR122 & XTR144 VENTED ENCLOSURE RECOMMENDATIONS
16

17
ENCLOSURE RECOMMENDATION
XTR152 & XTR154 SEALED ENCLOSURE RECOMMENDATIONS

18
ENCLOSURE RECOMMENDATION
XTR152 & XTR154 VENTED ENCLOSURE RECOMMENDATIONS

WARNING & DISCLAIMER
19
Investigate the layout of your vehicle thoroughly before drilling
or cutting. Take care when you work near the gas tank, gas lines,
hydraulic lines, electrical components and electrical wiring. Do
not use the equipment unmounted. Attach this system securely
to prevent damage, particularly in the event of an accident
or aggressive driving. Do not mount the system so that wire
connections are unprotected or are subjected to pinching or
damage from nearby objects. Before connecting or disconnecting
power connections at the system power terminals, disconnect the
+12V DC wire at the battery end. Confirm that your source unit
and other equipment are turned off while connecting the input
terminals. If you need to replace the power fuse, replace it only
with a fuse identical to the amperage recommended. Using a fuse
of different type or rating may result in damage to the system,
which is not covered by the manufacturer’s warranty. Do not
install any product where it may be subjected to excessive heat,
moisture and dust or where it may be repeatedly kicked, brushed or
bumped. Make absolutely sure that the terminals for the products
are connected to the proper inputs and outputs from the music
source. Never run the wiring on the outside of the vehicle or under
it where it can be damaged by road hazards or any moving parts of
the vehicle. Use existing wire channels, sills, panels and molding
strips inside the vehicle to hide the wiring for safety and a neat
appearance.
DISCLAIMER
IMPORTANT: Never cut any metal that is an integral part of the
vehicle’s safety or structural support system. If you are unsure, it is
best to have the product professionally installed by an Authorized
ORION Dealer. Never sacrifice your safety for sound.
