ORKA EH-PTC User manual

1
INSTRUCTIONS MANUAL

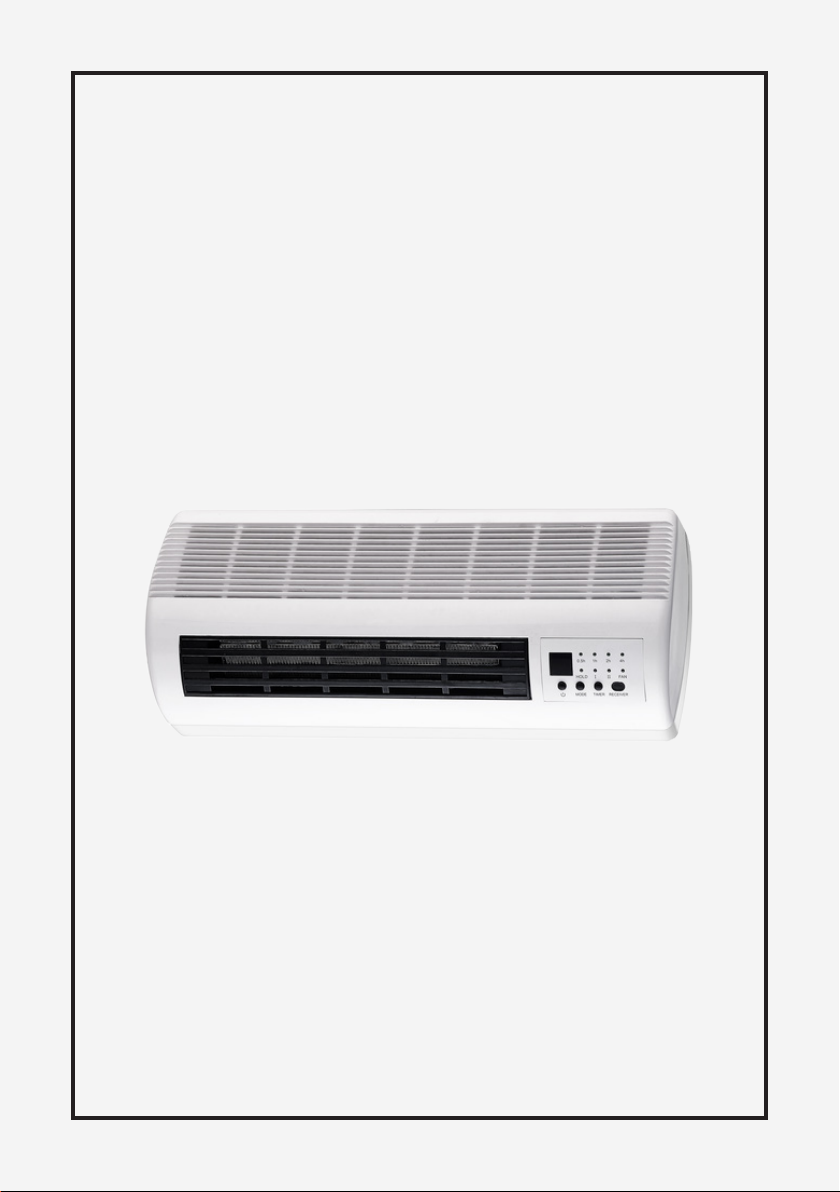

WALL MOUNTED HEATER
MODEL NO.: EH-PTC

2
INTRODUCTION
• Before using your new heater, please carefully read through the following
instrucons. KEEP THIS BOOKLET IN A SAFE PLACE SO THAT YOU MAY
CONSULT IT LATER.
• Aer removing the packaging, make sure that the appliance is in good
condion.
• The packaging materials may contain plasc, screws etc, which may be
hazardous and therefore should not be le within the reach of children.
IMPORTANT SAFEGUARDS
Thank you for buying our product. Please read this instrucon carefully before
operang the heater. Keep this operang instrucon for future reference.
• The heater should secured horizontally to the wall and with the air outlet
facing down. The heater to be installed on a at surface and out of reach of
children.
• Please do not use the heater in a place with potenal of combusble or
explosive gas. Do not cover or obstruct the air outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualied person in order to avoid a hazard.
• The heater must not be located immediately below an electrical socket. The
electrical socket must be equipped with earth wire, its capacity should be
250V~10A or exceed 250V~10A. The socket and the power plug should
be in good connecng condion.
• If nobody is in using or you are repairing the heater, please pull o the plug.
• Please don’t touch the heater by the wet hand or other conductor.
• If motor is not working properly, please stop it immediately.
• 8. Whilst using the heater, please do not open the outside door or window
connually, otherwise it will inuence the heang eect.
• 9. If want to shut o the heater, press the on/o switch to o, then the
heater will keep the fan working 30 seconds unl it blowing out cool wind,
then the heater will stop working, and you may pull o the plug.
• 10. Do not use this heater in bathroom zones 0, 1 or 2. Safe zone only.
• 11. Timer sets the heater working me.
• 12. Remote control, please use 1 baery.
• 13. The baery must be removed from the appliance before it is scrapped.
• 14. The baery is to be disposed of safely.
• 15. The heater must be installed at least 2 meters above the oor.
• 16. If the heater needs to be repaired out of warranty period, please
contact qualied electrican or our company authorized maintenance
department for advice.
• 17. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilies or lack
of experience and knowledge if they have been given supervision or

3
instrucon concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• 18. Children of less than 3 years should be kept away unless connuously
supervised.
• 19. Children aged from 3 years and less than 8 years shall only switch
on/o the appliance provided that it has been placed or installed in its
intended normal operang posion and they have been given supervision
or instrucon concerning use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
• 20. CAUTION —some parts of this product can become very hot and cause
burns. Parcular aenon has to be given where children and vulnerable
people are present.
SPECIFICATIONS
Model names Voltage Power
EH-PTC
(BP6204 L) 220-240V 50/60Hz 2000W
INSTALLING THE DEVICE
The heater shall be installed and used according to the safe standard.
To avoid all dangers, follow the safety instrucons.
- The installaon must be done by the service agent or similarly qualied
persons in order to avoid a hazard.
- Important! Make sure that there are no electric cables or other installaons
(for example water pipes) near the drill holes. Make sure that the appliance
is securely and vercally ed to the wall.
Get two holes on the wall 2 m above the oor and near the corner more 25
mm, be sure to make the diameter just as same as the expanding pipe. Fix two
screws on the expanding pipe, keep the ps of the screws out for 10mm, and
hang up the machine aer the screws are xed enough.
385

4
OPERATION INSTRUCTION
1. Before inserng the plug into an electrical outlet, make sure that the
electrical supply in your area matches that on the rang label on the unit.
2. Carefully remove the heater from the plasc bag and the carton.
3. Place the heater on a rm, at, level surface, seng the master buon to
“-”posion, plug the cord set into a AC220-240V~ electrical outlet. There
will be a “BEEP” sound and the “Powerlight is on and the heater display will
show the default temperature, it will blink for 5 seconds.
1) HEATING PERPARE
Set me
Before turn on the heater,set the me as right me.Press remote control “ ”
buon, light on control panel,LED display shows 00:00 and “Mo”light on.
HOUR Press “Set” buon one me,LED display front “00” ashes, press “
two buons set the Hours from 01--00(01=1 o’clock,02=2 o’clock...00=24
o’clock ect.)
MINUTE Press “Set” buon again,LED display behind “00” ashes, press “
two buons set the minutes from 00--59(01=1 Minute,02=2 Minute ect.)
WEEK Press “Set” buon again,“Mo”light ashes ,press “ two buons set
the week from Mo--Su (Mo=Monday...Su=Sunday ect.)
PS: Press “Set” buon, screen shows number will ashes 5 seconds, you should
operate in me, otherwise appliance will get back to standby.
(Appliance will keep the right me unl power o)
2) General Using OPERATION
1. Turn the heater ON by pressing the ON/OFF main buon ,the unit will
blow the cold air and “ ” light is on.
2. Pressing the “MODE” buon ,the unit will blow the warm air and both“ ”
and “ ” lights are on.
3. Pressing the “MODE” buon second mes,the unit will blow the hot air and
both “”“” lights are on.
4. Pressing the “MODE” buon Three mes,the unit will blow the cold air and
“Fan/M” light is on.
PS: On control panel “ ” buon, press 1st me is COOL AIR; 2nd mes is
WARM AIR; 3rd mes is HOT AIR; 4th mers is SWING FUNCTION; 5th mes
is OFF,pls noted it.

5
3) 24H Timer FUNCTION
1. Open the appliance as working condions,(fan,warm,hot are all ok).Control
panel “ ” buon and remote control “ ” buon are same operate way.
2. Press “ ” buon ,set the mer up to 24 hours,keep press “ ” buon to
increase the hours from 00--24(00=close,01=1hour,02=2 hours...24=24
hours ect.) and the “ ” light is on.
PS: set as “00” means no set mer ,the “” light is o.
4) THERMOSTAT INSTRUCTIONS
1. Open the appliance as working condions,(fan,warm,hot are all ok).This
funcon only through by Remote control.
2. To adjust temperature, press the “ ” to set the desired temperature and
the temperature set from 10O to 49Owith the control panel “ ” light on.
3. When the air temperature drops 2 degree below the set temperature,the
heater will start heang with ”I/W”(1000W).
4. When the air temperature drops 4 degree below the set temperature ,the
heater will start heang with”II/H”(2000W).
5. When the air temperature high 1 degree or ≤ the set temperature,the
heater will blow the cold air .
5) Week Timer FUNCTION
1. Open the appliance as working condions,(fan,warm,hot are all ok).This
funcon only through by Remote control.
2. Frist press “ ” buon,then press “ ” two buons select which model
you want.This funcon have 6 models, P1-P5 is smart model,
appliance have own schedule,pls check the details as below:
Week/
Model
Mo TU WE TH FR SA FR
P1 8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
P2 18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
P3 8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
8:00-
17:00
P4 18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
18:00-
07:00
OFF OFF
P5 OFF OFF OFF OFF OFF 00:00-
24:00
00:00-
24:00

6
3.P6 is user-dened,press “ ” two buons select P6 model,
WEEK Press “ ” buon 1st me,”” lights on, means “Monday”.
HOUR Press “ ” buon 2nd mes, LED display front “00” ashes,
press “ ” two buons set the Hours from 01--00(01=1 o’clock,02=2
o’clock...00=24 o’clock ect.)
MINUTE Press “ ” buon 3rd mes, LED display behind “00” ashes “ ”
two buons set the Hours from 00--59(01=1 Minute,02=2 Minute ect.)
With the “ ” light on,it means open me.
HOUR Press “ ” buon 4th mes, LED display front “00” ashes,
press “ ” two buons set the Hours from 01--00(01=1 o’clock,02=2
o’clock...00=24 o’clock ect.)
MINUTE Press “ ” buon 5th mes, LED display behind “00” ashes “ ”
two buons set the Hours from 00--59(01=1 Minute,02=2 Minute ect.)
With the “ ” light on,it means close me.
The above are nised set Monday Timer.
4. Press “ ” buon once more, “ ” lights on,means “Tuesday”. Pls noted
that the operate with open me HOUR/MINUTE and close me HOUR/
MINUTE are all same as before Monday.
5. From Monday-Sunday are all set nished,press “ ” buon on remote
control 7th mes to set from Monday to Sunday’s temperature and press “
” two buons,select the temperature which you need,the temperature
range from 10oC to 49oC.
PS: In Week mer funcon,when you set today’s temperature,the thermostat
funcon will start,the rules same as 4) THERMOSTAT INSTRUCTIONS,pls
noted.
You can set dierent open me ,closed me and temperature within whole
week.
6) Window Open Funcon
1. Open the appliance as working condions,(fan,warm,hot are all ok).This
funcon only through by Remote control.
2. Press “ ” buon, the “ ” light is on.The appliance is working as smart
saving energy models.(In this funcon,the appliance is check and record
environment temperature in immediately.It will stop working, when the
appliance check the environment are drop ≥ 3oC.The user should restart
the appliance with “ON/OFF” buon)
3. Press “ ” buon again, the “ ” light is o.Window Open Funcon is
closed.

7
7) Delay Funcon ( This funcon only through by Remote control.)
1. This funcon can be use should be t two points :
1. the appliance is in the standby state.
2. before the appliance working.
This funcon only through by Remote control.
2. Press “ ” buon light on LED display, then press “ ” buon one me, the
“Delay” light and ”I/W” light are on.press “ ” two buons set the Hours
from 01--24(01=1 o’clock,24=24 o’clock...00=Closed ect.)
---------------------------------------------------------This is open me
3. Press “ ” buon again, the “Delay” light and ”II/H” light are on. Press “ ”
two buons set the Hours from 01--24(01=1 o’clock,24=24 o’clock...00=Closed
ect.)
---------------------------------------------------------This is close me
PS: Press “ ” buon,screen shows number will ashes 5 seconds,you should
operate in me, otherwise appliance will get back to standby, you need press “
” buon to awaken the appliance and reset again all.
(This funcon is one-me and must be reset if the power is cut o.)
8) Child-Lock Funcon
1. This funcon only through by Remote control.When appliance are plug
in,this funcon can be used in any models.
2. Press “ ” buon one me, all lights and LED display are closed ,only
“Power” light on.In this condion, either control panel or remote control can
not operate the appliance for any funcon.
3. Press “ ” buon again, all lights are on and both control panel and remote
control are use to succeed.
CONTROL PANEL VIEW:

8
REMOTE CONTROL VIEW:
1. Remote control, please use Lithium baery CR2025 3V.
2. The remote control power buon is labeled as such
1. “ON/OFF” Main power buon
2. “24H” Seng mer from 1-24 hours
3. “MODE” COLD,WARM,HOT 3 seng for selecon
4. “Swing” Louver swing up and down
5. “LOCK” Child-Lock funcon for heater
6. “AUTO” Window Open Funcon
7. “Tem.” Display room temperature
8. “Delay” Set the open and closed me of heater
9. “W.Timer” Set the mer of one week
10. “+” Increase
11. “-” Decrease
12. “Set” Set real me

9
OVERHEAT PROTECTION
This heater is protected with an overheat protecon that switches o the
appliance automacally in case of overheang. For example: due to the total or
paral obstrucon of the vents. In this case, unplug the appliance, wait about
30 seconds for it to cool and remove the object which is obstrucng the vents.
Then switch it back on as described above. The appliance should now operate
normally. If the problem persist, please contact Customer Service for assistance.
CLEANING & MAINTENANCE
• Before undertaking any cleaning or maintenance on the appliance,
disconnect it from the power supply.
• For cleaning it is recommended to use a so moist rag and neutral
detergent. Do not use an abrasive cloth or devices which could aect
the appearance of the appliance. Check that the hot air outlet and the
venlaon inlet are free of dust and dirt.
During cleaning, be careful not to touch the heang elements.
• To open the lter on the back for cleaning, press the top of plasc net at
back.
• In case of breakdown and/or poor funconing of the appliance, disconnect
the appliance from the power supply and contact an authorised repairer.
NOTE: As a result of connual improvements, the design and specicaons of
the product within may dier slightly to the unit illustrated on the packaging.
ENVIRONMENT
Meaning of the crossed-out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collecon facilies. Contact your local council for informaon
regarding the collecon systems available.
If electrical appliances are disposed of in landlls or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging
your health and well-being.

HYGIENE SERVICES YORKSHIRE LTD
Emley Business Park
Hudderseld HD8 9QY
Tel: [phone]
www.orkahandyheat.co.uk
