ORO DC12V-AC220V User manual

Product
Product Manual Manual
Power
Power inverter/ups inverter/ups
Shenzhen
Shenzhen ORO ORO Power Power Equipment Equipment CO.,LTD CO.,LTD
Address
Address : :Dunfa Dunfa industrial industrial park, park, Building Building 6 6layer, layer, Hangcheng Hangcheng Road Road ,Xixiang ,Xixiang
Gushu,Baoan
Gushu,Baoan District,Shenzhen,Guangdong,China District,Shenzhen,Guangdong,China
Before designing and during the production, the safety of operators and products all have been
considered. Please following this users instructions strictly to operate or install the machine in
case of personal injury or accident occur.
(1)The installation of the inverter should be done by professionals or under the assistance of the local
dealer.
(2)Verify whether the input DC voltage range meets the requirements ±15% and the correctness of
voltage polarity.
(3)Confirm the grade of load device voltage ,power should not be more than rated output power of
the inverter
(4)Do not flow any liquid inside the inverter, or with a damp cloth to wipe the machine casing. Can
not be directly Contact the inverter input and output terminals when the machine is running,
especially with wet hands, otherwise electric shock injury will occur.
(5)If you need to change the working environment under the normal working state, do not change its
connection, your operated should be assistance and confirmation by the professionals or supplier.
(6)The operating environment of inverter should be well-ventilated, temperature range -20-45
degrees, keep away from the ignition sources spot and direct sunlight, Can not run in the
condensation, dust environment. During the operating, the heat is normal phenomenon, should
maintain the ventilation, clean installation environment, in particular, can not block the ventilation
holes.
(7)Minors can not use this product.
(8)Confirm weather the inverter can be connected with the earth wire,Live line and Zero line can not

be reversed, the diameter shall comply with the conditions of safe use, for the cable, keep it as
short as possible.
(9)Do not open the case of the inverter without any special circumstances; otherwise we will not
classify it as product warranty matter.
(10)Please keep this manual for future reference.
Attention:
A.Do not use in life-sustaining equipment without permission.
B.Do not use in high precision electrical equipment,need professional person`s confirmation.
C.Use to power computer,built-in power supply should be brand power.
Warring：
No battery reverse connect.No wire zone line reverse connect.
Do not using during flammable and explosive air. Pay attention to spark.
Please connect battery first then no disorder.
1.INV-A1 Solar inverter introduction:
This kind of power inverter upgraded and promote completely according to the adavantages and
disadvantages of old ones,use latest power efficiency technology.with high convert efficiency,stable
performance,low no load consumption,strong overload capacity,strong anti-jamming capability;
supply pure sine wave AC power for commercial,industry,communication,civilian,army.It is suitable
for DC12V 24V 48V 72V Solar power system,power air condition,TV set,cash register,fridge,
washing machine,computer,electrical tool,lighting,industry equipment,communication
equipment.etc.
2.Function:
（1）:Description of the diagram
A、Give priority to the use of AC
Step1：When Utility Grid input is normal,AC power the load directly and recharge battery.
Step2：When Utility Grid shut off,the system will switch to give priority to the use of DC in 5ms
automatically, ensuring normal working.
Step3：When Utility Grid is recovery, system will switch to give priority to use of AC and recharge

battery.
B、Give priority to the use of DC
Recharge battery mainly from solar energy,Utility Grid assist recharging.
Step1：When Utility Grid is normal,voltage of battery higher than 11V,DC turn into AC through
inverter and power load.
Step2：When the voltage of battery is lower than 11V,the system switch to Utility Grid automatically
and recharging battery.
Step3：When the voltage of battery up to 13.5V, system switch to photovoltaic power and power the
load.
Step4： When both Utility Grid and photovoltaic power broke down, battey will shut off when voltage
lower than 10v
If Utility Grid is normal,AC will power load and recharge the battery.
If Utility Grid still broke down, photovoltaic power recharge battery until voltage up to 12v and turn
on with conversion mode.
(2): Intelligent charge
1) Charge different kinds of batteries,refer to the parameter of product(page five of this
manual)
2)Three charge stages
Stage 1: the charger will run at full current in CC mode until the charger reaches the boost voltage.
Activate battery,promote power.(constant-current charging)
Stage2: the charger will keep the boost voltage in Boost CV mode.give battery enough time to absorb
energy,protect battery and electrode form over charge,extend life time.(constant-voltage charging)
Stage3:when the battery is full,It will turn into float voltage automatically to keep full power and
check battery power all the time,stop working when charge finish to save power..(Float charging)
(4)Power save mode(detect time is 5s):when boot under this mode,no load power consumption is
1w-6w,only CPU works,It will detect system cyclically,when load more than 30w ,system will boot
and enter normal working mode ,when load is less than 30w,It will enter energy-saving mode

in5s.This mode save unnecessary power.
3.Characters
1、Pure sine wave output; do not harm electrical equipment, effective protection of the load; comes
with UPS conversion function, high-speed conversion, the conversion time less than 5ms; ensure
uninterrupted electricity;
2、CPU management, intelligent control, modular composition, which is more convenient for
after-sale maintenance;
3、LED + LCD display, a visual display of all operating parameters of the machine,
4、High conversion efficiency,The conversion efficiency is 90-95% in half load situation ; more
than 99% in commercial situation; low-consumption, under the save power mode,the consumption is
between 1W ~ 6W; High efficiency and energy conservation.
5、Increased electricity auxiliary charging function; powerful charging function, three-stage
intelligent charging for different types of batteries, such as sealed lead-acid batteries, open lead acid
batteries, gel batteries, seven kinds of batteries,Note:lithium batteries need to setting as customers
use specifications before the delivery.
6、Intelligent temperature control fan, more energy and longer life.
7、This series of products with a carrying capacity, superior anti-load capacity, it can with load of
water pumps, air conditioners, refrigerators, etc.rated power 1KW inverter can drive 1P air
conditioning, rated power 2KW inverter can drive 2P air conditioning, 3KW inverter 3P can drive air
conditioning
8、Using the most advanced frequency circuit design, with a new top-level electronic material, good
stability, low failure rate, long life, normal use life can reach more than eight years;
9、Perfect protection features: Low voltage protection, high voltage protection, high temperature
protection, short circuit protection, leakage protection, over-current protection, over-load protection,
low voltage recovery, high voltage recovery, Intelligent temperature control fan,fault alarm, fault
recovery etc comprehensive protection

10、Power efficiency designing,resisting harmonic wave and inductive load ,safe and stable.
11、The frequency of 50/60HZ automatic selection,give priority to use AC and DC with automatic
adjustment.display dynamic schematic diagram,comprehensive functions.easier to use.
12、Pure copper transformer , blind post and wire.High density conformal coating.Double ball
bearing mute dc fan,Large LCD screen,Large current terminals,Best electric components,best
packing,safe,efficient and high level.
4.Type and specification
Specification Type Discribtion
DC12V-AC220V
300W， 600W， 800W， 1KW， 1.5KW， 2KW，
3KW
1：AC voltage：
AC110V/100V/120V/230V/
240V
2：Charge from Utility
Grid，UPS function
3： Frequency 50HZ/60HZ，
automatic selection
DC24V-AC220V
300W， 600W， 800W， 1KW， 1.5KW， 2KW，
3KW，4KW，5KW，6KW
DC48V-AC220V
300W，600W，800W，1KW，1.5KW，2KW，
3KW，4KW，5KW，6KW，7KW，8KW，
10KW，12KW
DC72V-AC220V
1.5KW，2KW，3KW，4KW，5KW，6KW，
7KW，8KW，10KW，12KW
（postscript：DC36V and any other would be customized.)
5.Parameters
Solar inverter parameters specifications
Power Specifications 300W~12KW
DC Input Specifications
Rated Voltage Specifications DC12/24/48/72V-AC220V DC12/24/48/72V-AC110V
Operating Voltage
Range(Normal Operating
Battery Voltage)
10V-16V (DC12V)
20V-32V (DC24V)
40V-64V (DC48V)
60V-96V (DC72V)
Low Voltage Alarm(alarm to
alert users when battery’s
voltage is over low)
10.5Vdc ± 0.3Vdc （12V）
21.0Vdc ± 0.6Vdc （24V）
42.0Vdc ± 1.2Vdc （48V）

63.0vdc ± 1.8Vdc （72V）
Low Voltage Shut off (shut off
when battery’s voltage is over
low)
10.0Vdc ± 0.3Vdc （12V）
20.0Vdc ± 0.6Vdc （24V）
40.0Vdc ± 1.2Vdc （48V）
60.0Vdc ± 1.8Vdc （72V）
Low Voltage Recovery
(Automatic Boot when
battery’s voltage returns to
normal)
12.0Vdc ± 0.3Vdc (12V)
24.0Vdc ± 0.3Vdc (24V)
48.0Vdc ± 0.3Vdc (48V)
72.0Vdc ± 0.3Vdc (72V)
High Voltage Alarm and shut
off ( alarms and shut off when
the battery’s voltage is over
high)
16Vdc ± 0.3Vdc （12V）
32Vdc ± 0.6Vdc （24V）
64Vdc ± 1.2Vdc （48V）
96Vdc ± 1.8Vdc （72V）
High Voltage Recovery
(Automatic boot when battery’s
voltage returns to normal)
15.5Vdc ± 0.3Vdc （12V）
31.0Vdc ± 0.6Vdc （24V）
62.0Vdc ± 1.2Vdc （48V）
93.0Vdc ± 1.8Vdc （72V）
Inverter Efficiency ≥90%
DC-priority type, battery low
voltage conversion point when
there is utility electricity bypass
( battery voltage is lower than
this, turn to utility electricity to
supply)
11Vdc ± 0.3Vdc （12V）
22Vdc ± 0.6Vdc （24V）
44Vdc ± 1.2Vdc （48V）
66Vdc ± 1.8Vdc （72V）
DC-priority type, after
turning to utility electricity to
supply, the battery low
voltage recovery point (when
the battery’s voltage is higher
than this, turn to battery to
supply electricity)
13.5Vdc ± 0.3Vdc （12V）
27.0Vdc ± 0.6Vdc （24V）
54.0Vdc ± 1.2Vdc （48V）
81.0Vdc ± 1.8Vdc （72V）
AC Input Specifications
Rated Voltage Specifications 220VAC System 110VAC System
Input Voltage Waveform Sine wave (utility electricity
or generator)
Sine wave (utility electricity
or generator)
Rated Input Voltage 220Vac/230Vac/240Vac 110Vac/120Vac/130Vac
Low Voltage Shut off 180Vac±4% 85Vac±4%
Low Voltage Recovery 195Vac ±4% 90Vac ±4%
High Voltage Shut off 260Vac±4% 135Vac±4%
High Voltage Recovery 255Vac±4% 130Vac±4%
Utility Electricity Charging rule
Three Stages:
Constant current charging (constant stage)→constant
voltage(constant voltage stage)→float (constant voltage stage)
Utility Electricity Supply ≥98%

Efficiency
Conversion Time (AC to DC) <4ms
Conversion Time (DC to AC) <8ms
AC output specifications
Rated output voltage (V) 220Vac/230Vac/240Vac 110Vac/120Vac/130Vac
Output Voltage Range ±10% rms
Rated output frequency(Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz(Optional)
Power Factor 1.0
Output Waveform Pure sine wave
Waveform distortion
rate( THD ) ≤3% ( Linear load )
Dynamic Response( 0～100% ) 5%
Peak Factor ( CF ) 3:1
Overload Protection
(SMPS load)
(110%<Load<125%) ±10% ：after 15 minutes disconnecting
the output voltage
(125%<Load<150%) ±10% ：after 1 minute disconnecting the
output voltage
(Load>150%) ±10% ：after 20 seconds disconnecting the
output voltage
Other notes
Continuous operation time Continuous operation
Normal Boot no-load Depletion ≤Rated Power×2.5%
No-load Depletion of
energy-saving mode ≤6W
Safety Certification CE(EN62040-1) EMC ：EN62040-2, C2
Communication Interface RS232 / (Customizable）
Cooling Temperature-controlled variable speed fan cooling (Ventilation
condition)
Noise( dB、1 meter ) ＜60dB
Ambient temperature ( ºC ) -10～+45
Storage Temperature( ºC ) -20～+55
Using Environment Humidity 0-95% relative humidity（No condensation）
Altitude( m ) ≤5000( More than 1000 m, derating )
Display Way LED Indicator +LCD Display
Alarm Way Buzzer sounds alarm
Protection Functions Low voltage protection, high voltage protection, high
temperature protection, short circuit protection, leakage
protection, overcurrent protection, overload protection, low
recovery, high recovery, intelligent temperature control, solid
barrier alarm
Protection Level IP20 / Customizable

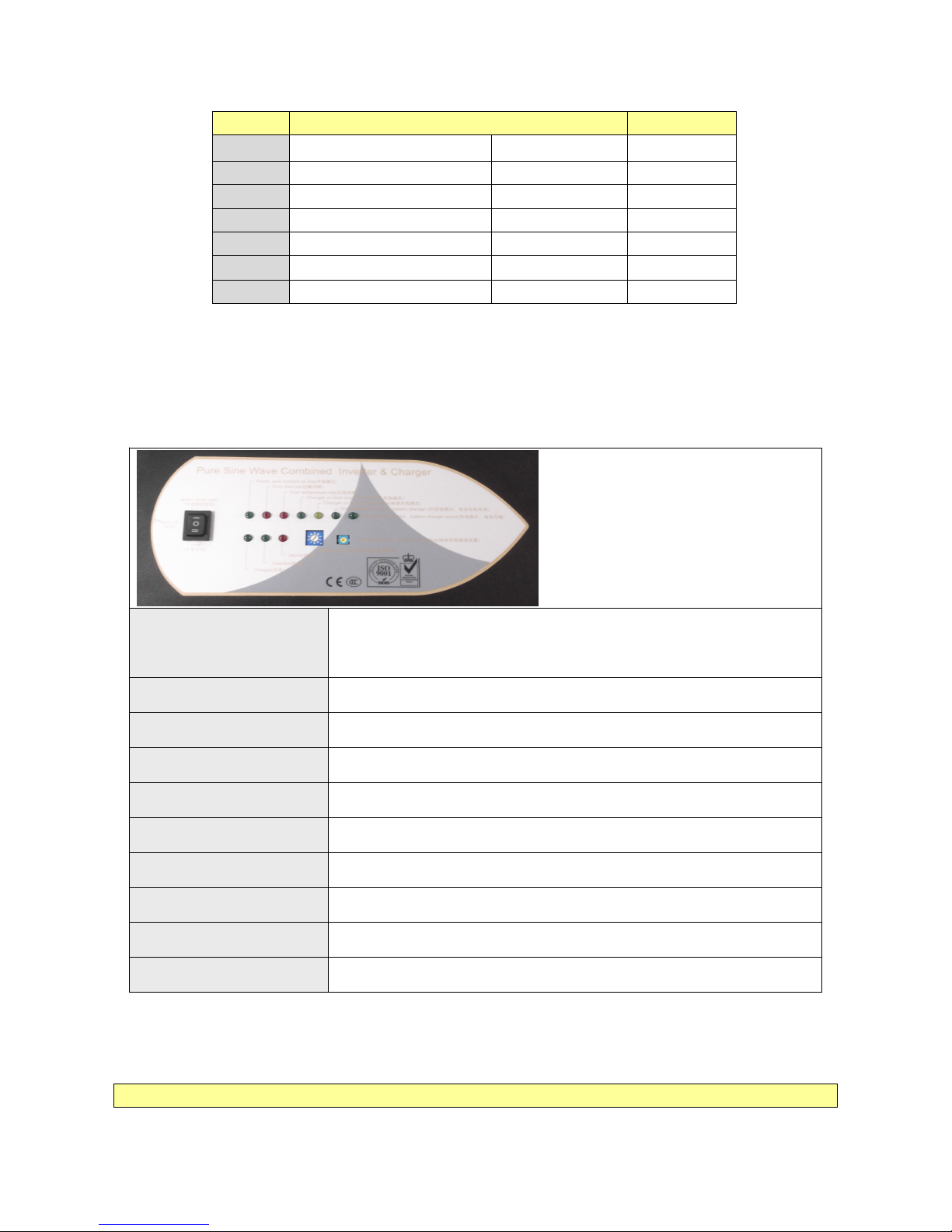

6、The battery type set
Because of the batteries have many types, different types of them have different charging parameters,
to effectively protect batteries, we specially design a rotary switch of selected batteries types on the
inverter’s panel. As long as to select the corresponding gear of battery’s type, our inverter can be
guaranteed the most suitable charging specification.
Gear description:
7. Specification of utility grid charging mode
Model Specification
1KW 2KW 3KW 4KW 5KW 6KW
DC Voltage 12
V24V 12V 24V 12V 24V 24V 48V 24V 48V 24V 48V
Charge current 35
A20A 65A 35A 75A 45A 65A 35A 70A 40A 75A 50A
DC Voltage 48
V72V 48V 72V 48V 72V 72V 72V 72V
Charge current 9A 6A 15A 10A 30A 15A 20A 25A 30
MCB 10A 20A 30A 30A 30A 30A

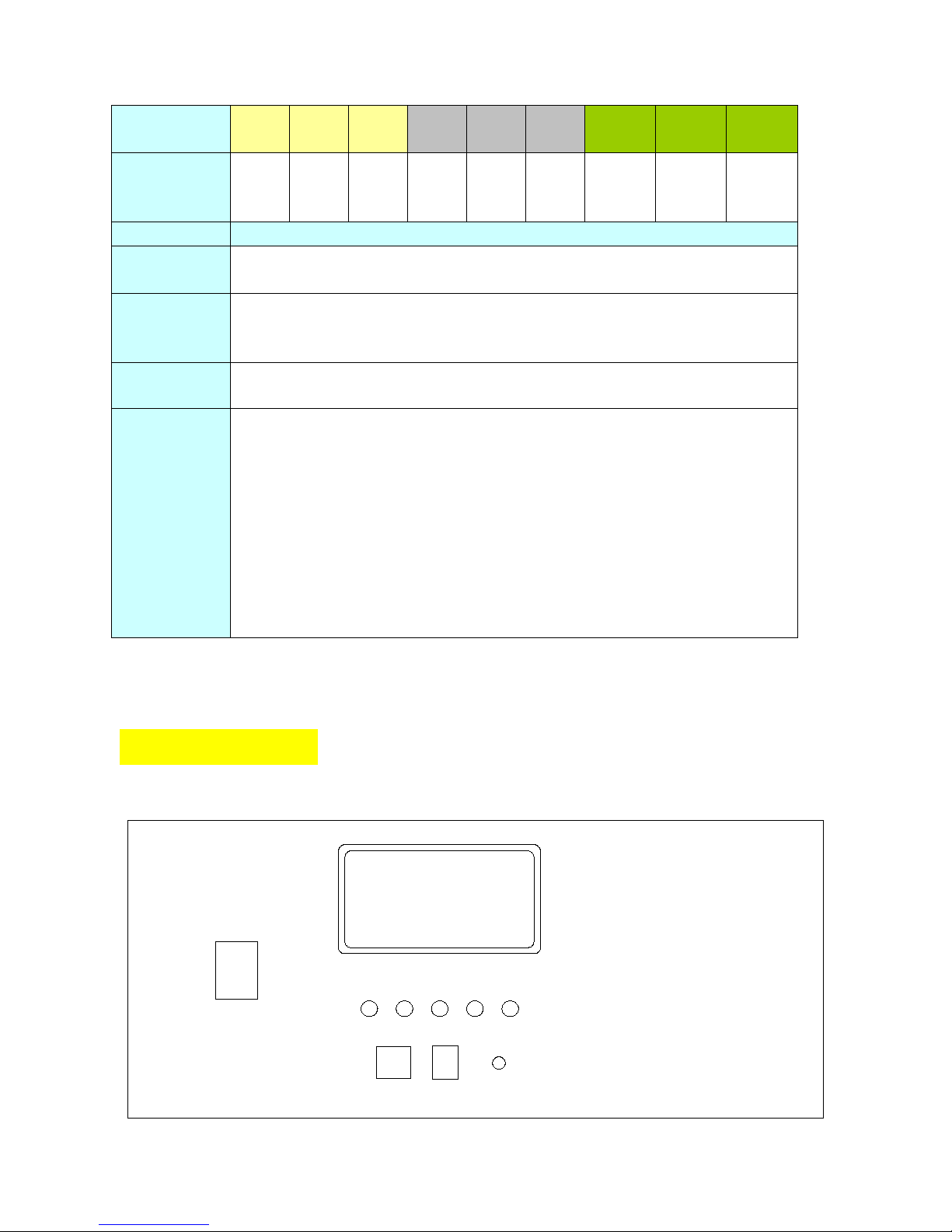

Model Specification
8KW 10KW 12KW
Switch
Gears
Description of
corresponding
batter’s type
Open-circuit Floating Charging
Voltage Voltage
12V 24V 48V 12V 24V 48V
0Cancell Charge Not charging (cancell utility grid charging function)
1 Gel USA 14.0 28.0 56.0 13.7 27.4 54.8
2 AGM 1 14.1 28.2 56.4 13.4 26.8 53.6
3 AGM 2 14.6 29.2 58.4 13.7 27.4 54.8
4 Sealed lead acid 14.4 28.8 57.6 13.6 27.2 54.4
5 Gel EURO 14.4 28.8 57.6 13.8 27.6 55.2
6 Open lead acid 14.8 29.6 59.2 13.3 26.6 53.2
7 Calcuim 15.1 30.2 60.4 13.6 27.2 54.4
8De-acidification 15.5 31.0 62 Shut off after 4 hours
9 Not used - - - -

DC Voltage 48V 60V 72V 48V 60V 72V 48V 60V 72V
Charge current
(±5A) 60 50 40 70A 60A 50A 80A 70A 60A
MCB 50A
Initial Charge
Voltage According to battery type
Charger
short-circuit
protection
Circuit Breaker
Charging Rule Constant current charging( Constant current stage) → constant voltage
charging (constant voltage stage) → float charging (constant voltage stage)
Charge Stage
Transition
Definitions
Boost CC Stage：If AC input is applied, the charger will run at full current in CC
mode until the charger reaches the boost voltage.
Boost CV Stage: the charger will keep the boost voltage in Boost CV mode .Then
drop the voltage down to the float voltage. The timer has a minimum time of 1 hour
and a maximum time of 12 hours.
Float Stage: In float mode, the voltage will stay at the float voltage.
If the AC is reconnected or the battery voltage drops below 12Vdc/24Vdc, the
charger will reset the cycle above.
If the charger maintains the float state for 10 days, the charger will reset the
cycle.
8、Status description
(1)、LCD panel description
Unit OFF
（关机） CH
INV Alarm
P-Save
节电 市电 逆变 充电 故障
AC
电池类型
BAT Type
Next Page
翻页
50 AC
DC
60
SW
Power Saver Auto
节电模式开机
Boot
正常开机

Boat
switch
“First grade”power save
Detect load automatically, when load≥
30w,boot,otherwise stay by
“Zero grade”turn off Turn off
“Second grade”boot Normal working mode
P-Save First green indicator on, stand for saving power
mode(load≤30w)
AC Second green indicator on, stand for AC utility grid
supply electricity mode
INV Third yellow indicator on, stand for battery inverter to
supply power Mode
CH Fourth GREEN indicator on, stand for utility grid is
charging to battery
Alarm Fifth RED indicator on, stand for inverter Alarm
Battery type “10 dial-up switch”set battery type：refer to part 6
Two
dial-up
50/60 Set frequency by yourself: 50HZ or 60HZ
AC/DC Choose way of supplying:(Give priority to AC or DC)
Next Page Press the button , can turn page and open a backlight.
(2)、LCD display
1)
Inverter status:
P-Grid status:（No outload display）
Broken status：
Broken description(Table-1)
Bat-Vol：012.5V
Out-Vol：220.0V
Out-Fre：50HZ
Status：Inverter
Welcome....
Input AC：220.5V
Outload：068%
Normal
Bat-Vol：012.5V
Out-Vol：220.0V
Out-Fre：50HZ
Status：P-Grid
Input AC：220.5V
Normal
Welcome.....
Input Ac：220.5V
Fault：TX 000000
Welcome...
Bat-Vol：012.5V
Out-Vol：220.0V
Out-Fre：50HZ
Status：P-Grid

Postscript：TX 000000 “TX”means monitor can`t connect inverter well.built-in wire broken.
E.G:”100000”stand for battery is under-voltage.
(3) 、Indicator descriptions
POWER SAVER ON
First green indicator on, stand for Power Saver Mode (power saver load
≦30W)
OVER LOAD Second RED LED indicator on, stand for Over Load
OVER TEMP Third RED LED indicator on, stand for Over Temperature
FLOAT CHARGE Forth GREEN LED indicator on, stand for Float Charging Mode
FAST CHARGE Fifth Yellow LED indicator on, stand for Fast Charging Mode
INVERTER ON Sixth GREEN LED indicator on, stand for Inverter Mode
UTILITY GRID Seventh GREEN LED indicator on, stand for AC Mode
CHARGER Eighth GREEN LED indicator on, stand for Battery Charger Mode
INVERTER Ninth GREEN LED indicator on, stand for Inverter Mode
ALARM Tenth RED LED indicator on, stand for Alarm
(4)、Alarm and protection
Broken alarm
Broken type display
B0 Communication broken （0-Nor 1-Bro）TX 000000
B1 Battery down voltage （0-Nor 1-Bro）100000
B2 Inverter broken （0-Nor 1-Bro）010000
B3 Fan broken （0-Nor 1-Bro）001000
B4 Output overload （0-Nor 1-Bro）000100
B5 Output circuit （0-Nor 1-Bro）000010
B6 Battery broken （0-Nor 1-Bro）000001

Low-voltage Red LED Lighting, and the buzzer beep 0.5s every 5s
Over-voltage Red LED Lighting, and the buzzer beep 0.5s every 1s, and shut down after
60s.
Invert Mode
Over-Load
110%< load<125%, no alarm in 14 minutes, beeps every 5s in 15th minute,
and shut down after 1 minutes.
125% <load<150%, beeps 0.5s every 1s , and shut down after 60s.
Load>150%, shut down after 20s.
Over Temperature Cooling fin temp. ≥105ºC, Over temp red LED Lighting, every 1s beeps 0.5s ;
Protection
Over Temperature
Protection Cooling fin temp. ≥105ºC, start to protect after 30 seconds(Shutdown Output)
Back-Feed
Protection Yes(Automatic Restart)
The resumption of
work after fault Mode of operation: restart the inverter

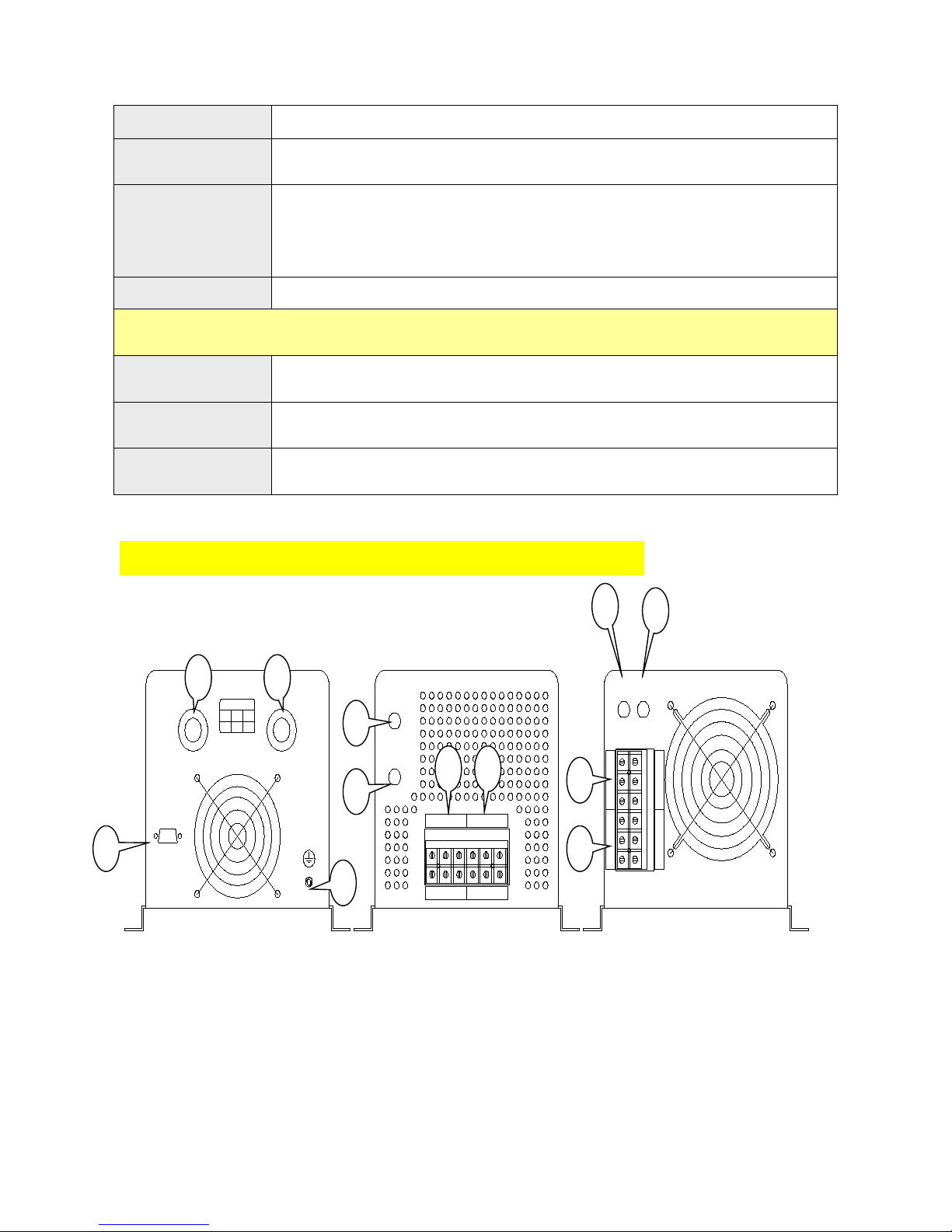

9.The Connection Instruction of Solar / wind power inverter
(1)、Horizontal type 300W-6KW connection instruction
DC+DC-
Remote port
DC INPUT
12V24V48V
Charger
input protect
Inverter
output protect
AC INPUT AC OUTPUT
EL EN L N
红色
黑色 Charger
input protect
Inverter
output protect
AC INPUT
AC OUTPUT
E
L
E
N
L
N

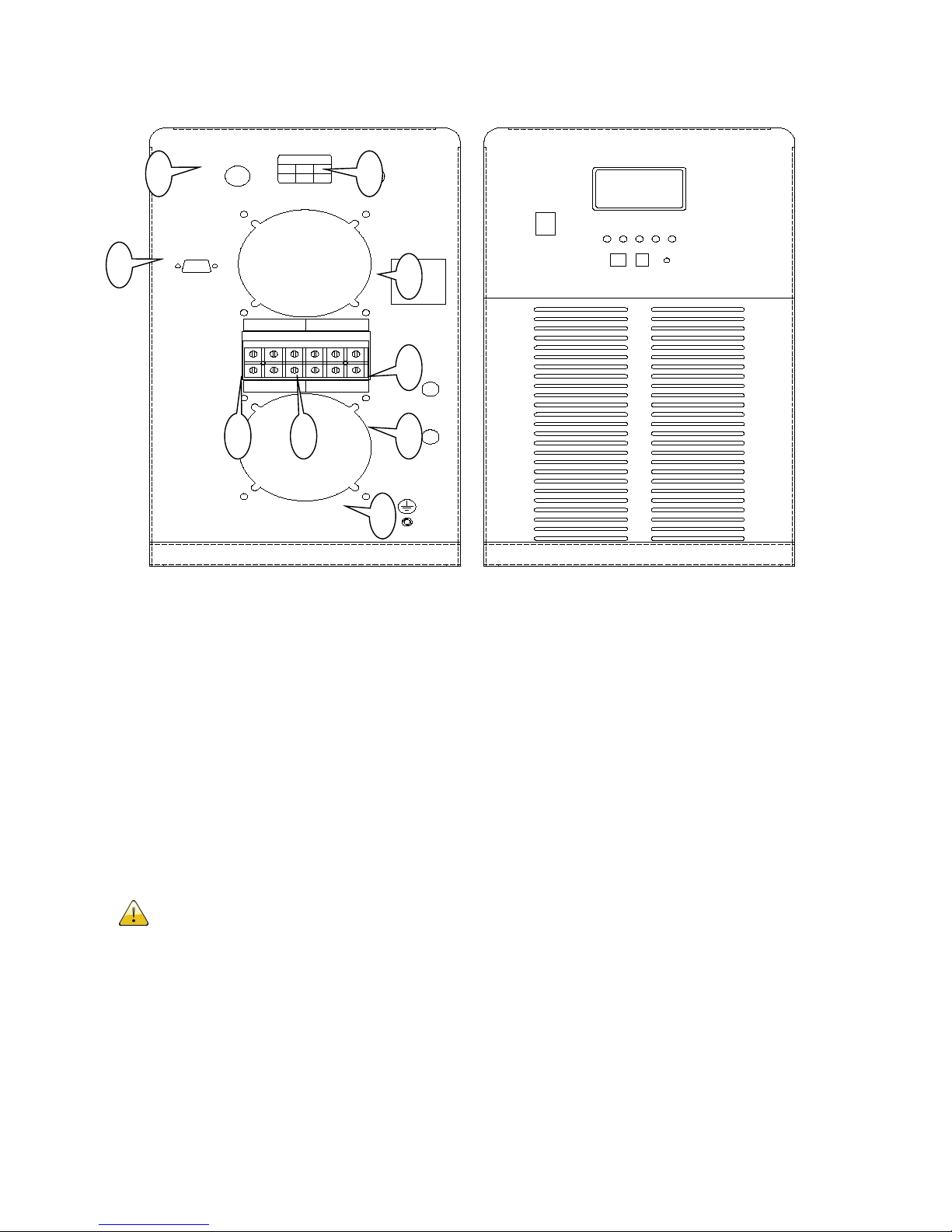

(2)、Connection instruction of vertical type 1-6KW
6
5
5
5
4
2
5
5
3
2
7
2
6
5
8
2
7
2
8
2
1
5
2
5

D C +D C - D C I N P U T
1 2 V 2 4 V 4 8 V
R em o te p o r t
Charger
input protect
Inverter
output protect
A C I N P UT A C O U T PU T
EL EN L N
黑 色 红 色
A C O U T PU T
M A X 8 A
Unit OFF
（关机） C H INV AlarmP-Save
节 电 市 电 逆 变 充 电 故 障
A C
电池类型
BAT Type
Next Page
翻 页
5 0 A C
D C
6 0
S W
Power Saver Auto
节电模式开机
B o o t
正 常 开 机
(3)、Definition description of 300W-6KW inverter：
DC port（battery port）attention:Level of DC voltage
①、“DC-”negative electrode （connect battery negative electrode）black blinding post
②、“DC+”positive electrode(connect battery positive electrode) red blinding post
③、“Remote port” signal indicate、Control interface and back ground RS232 (customize)
④、“E” ground line
⑤、“Charger input protect” Utility grid input charging over-current protector
⑥、“Inverter output protect” Inverter power output over-current protector
AC input port,output port. Attention:Level of AC voltage
⑦、“AC INPUT ” ：“L”Live line “N”zero line “E”ground line
⑧、“AC OUTPUT” ：“L”Live line “N”zero line “E”ground line
⑨、“AC OUTPUT” ：multifunctional socket Max8A
Attention ：No AC input and output reverse connecting!
No live line and zero line reverse connecting!
No DC input and output reverse connecting!

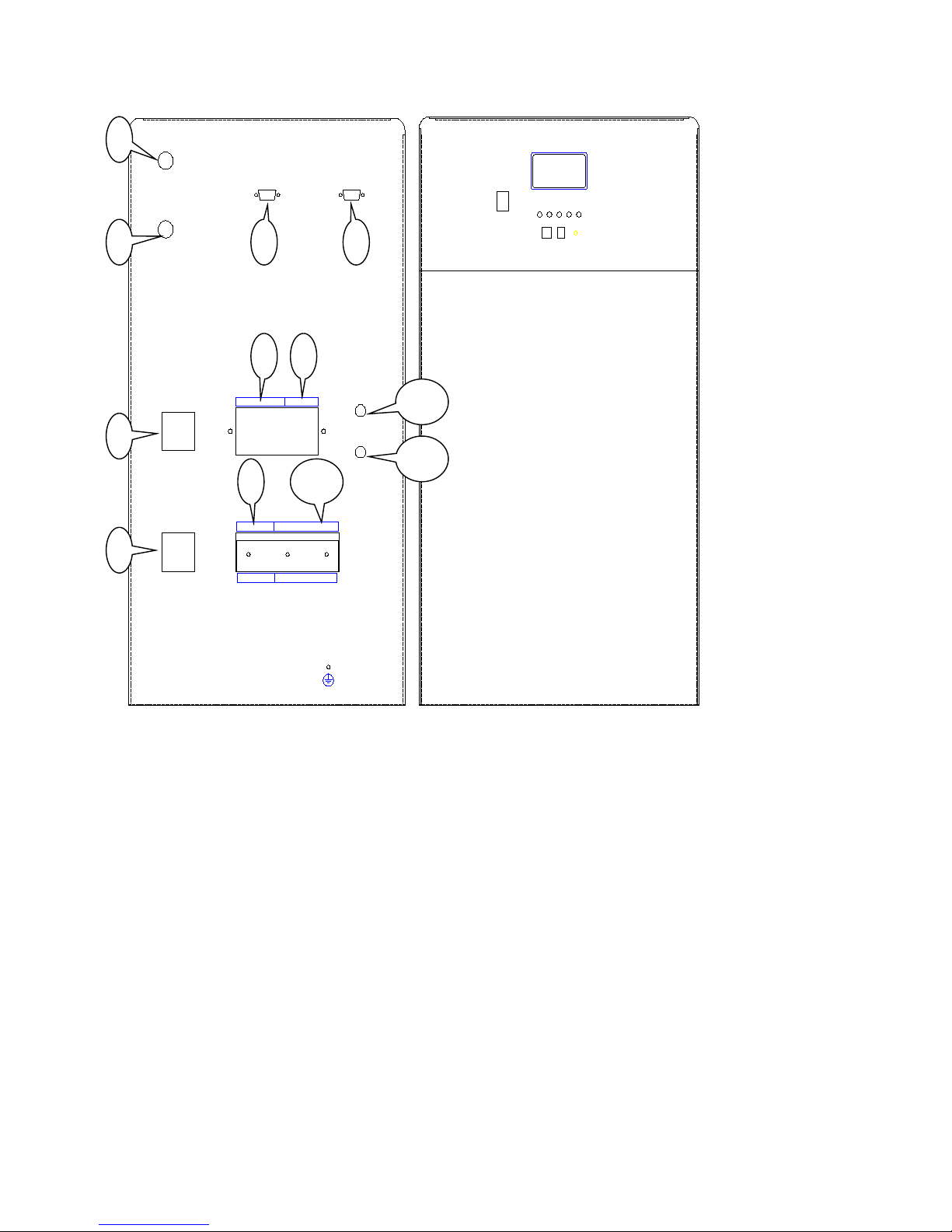

(4)、Connection instrument of Vertical type 7-12KW
3
2
1
5
2
5
4
5
7
5
8
5
6
5
5
5
9
5

L2L EN L1 N1
AC INPUT AC OUTPUT
N2 E
DC-
DC+
CHG INV Alarm
PS-ON
节电 市电 逆变 充电 故障
AC
Next page
电池类型
翻页
正常开机
节能开机
关机
BAT type
Charger
input protect
Inverter
output protect Solar / UPS
Inverter ＆ Charger
OFF
ON
PS-ON
50 AC
DC60
DIP-SW
AC OUTPUT
MAX 8A
AC OUTPUT
MAX 8A
AC IN SW AC OUT SW
Remote port RS232
(5)、Definition description of 7-12KW inverter ：
①、“DC-”negative electrode (connect battery negative electrode) black blinding post
②、“DC+”positive electrode(connect battery negative electrode)red blinding post
③、“Remote port”DB-9-6、DB-9-7、DB-9-8、DB-9-9(customize)
④“RS232” back ground RS232
DB-9-2 TX
DB-9-3 RX
DB-9-5 GND
⑤⑥⑩ “AC OUTPUT” two multifunctional sockets output, Max current of each one is 8A
“AC OUTPUT” two terminal ac input,
“L1、L2” power line “N1、N2”zero line “E”ground line
⑦“AC INPUT SW” air switch of ac input
⑧“AC OUTPUT SW”air switch of ac output
⑨、“AC INPUT ” ：“L”power line “N”zero line “E”ground line
11“Inverter output protect” Inverter power output over-current protector
12“Charger input protect” Utility grid input charging over-current protector
11
5
2
2
2
6
2
4
5
7
2
8
2
9
2
1
5
3
5
10
12

Attention：No AC input and output reverse connecting!
No power line and zero line reverse connecting!
No DC input and output reverse connecting!
10、Description of Temperature-control fan （Give priority to DC）
Control Item Start Stop speed
Temperature of
radiator
T≤60℃T﹥65℃OFF
65℃≤T﹤85℃T≤60℃or T≥85℃50%
T﹥85℃T≤80℃100%
Charge current
I≤15% I≥20% OFF
20%﹤I≤50%Max I≤15% or I ≥50% Max 50%
I﹥50% Max I≤40% Max 100%
Load rate
（inverter）
Load﹤30% Load ≥30% OFF
30%≤Load﹤50% Load≤20% or Load ≥50% 50%
Load≥50% Load ≤40% 100%
Temperature of
system
55℃﹥T≥42℃50%
T≥55℃100%

Postscript：√means light，×means no light
Appendix 1.Instruction of LCD inverter Indicator and Buzzer
Status Item
POWER
SAVER
ON
P-grid inverter charge alarm buzzer
Line Mode
CC × √ × √ × ×
CV × √ × √ × ×
Float × √ × √ × ×
Standby × √ × × × ×
Inverter mode Start on × × √ × × ×
Power saver √ × × × × ×
Alarm Mode
Battery Low-volt × × √ × √ beep 0.5s
every 5s
Battery Over-volt × × √ × √ beep 0.5s
every 1s
Overload on
invert mode × × √ × √
Refer to
“Audible
alarm”
Over-Temp on
invert mode × × √ × √ Beep 0.5s every 1s
Over-Temp on
P-grid mode × √ × √ √ beep 0.5s every 1s
Over charge × √ × √ √ beep 0.5s
every 1s
Broken Mode
Fan broken × × × × × beep
continuous
Battery Over-volt × × √ × × beep
continuous
Over-load on
Inverter mode × × × × × beep continuous
Over-Temp × × × × × beep
continuous
Over-charge × × × √ × beep
continuous
Short circuit × × × × × beep
continuous

Appendix2：Instruction of general type indicator and buzzer
Postscript：√means light，×means no light, cc means constant current, cv means constant voltage
Status
Item
Indicator light
buzzer
Power
save
overl
oad
Over
-tem
p
flo
at
c
c
inv
erte
r
P-g
rid
cha
rge
inverte
rbroken
Line Mode
CC × × × × √ × √ √ × × ×
CV
× × × ×
√,
bl
in
k × √ √ × × ×
Float charge × × × √ × × √ √ × × ×
Standby × × × × × × √ × × × ×
Inverter mode Turn on × × × × × √ × × √ × ×
Power saver √ × × × × × × × × × ×
Alarm Mode
Battery
Low-vol × × × × × √ × × √ √ beep 0.5s every 5s
Battery
over-vol × × × × × √ × × √ √ beep 0.5s every 1s
Overload on
invert mode × √ × × × √ × × √ √
Refer to “Audible
alarm”
OverTemp on
invert mode × × √ × × √ × × √ √ Beep 0.5s every 1s
OverTemp on
P-Grid × × √ × √ × √ √ × √ beep 0.5s every 1s
Over charge × × × × √ × √ √ × √ beep 0.5s every 1s
Broken Mode
Fan broken × × × × × × × × × × beep continuous
Battery
over-vol × × × × × √ × × √ × beep continuous
Overload on
Inverter mode × √ × × × × × × × × beep continuous
Over-Temp × × √ × × × × × × × beep continuous
Over charge × × × × √ × × √ × × beep continuous
Short circuit × × × × × × × × × × beep continuous

Appendix3: Product Warranty Cards
Warranty Card
Products name Item number
Model Purchase date
Warranty
Buyer
Contacts Tel
Distributor
Maintenance Record
date
