Preventing re and explosion hazards
Working with the inverter may produce arcs or sparks. Thus, the inverter should not
be used in areas where there are inammable materials or gases requiring ignition
protected equipment.
These areas may include spaces containing gasoline powered machinery, fuel tanks,
battery compartments.
Precautions when working with batteries
• Batteries contain very corrosive diluted Sulphuric Acid as electrolyte.
Precautions should be taken to prevent contact with skin, eyes or clothing.
• Batteries generate Hydrogen and Oxygen during charging resulting in
evolution of explosive gas mixture. Care should be taken to ventilate the
battery area and follow battery manufacturer’s recommendations.
• Never smoke or allow a spark or ame near the batteries.
• Use caution to reduce risk of dropping a metal tool on the battery. It could
spark or short circuit the battery or other electrical parts and could cause an
explosion.
• Remove metal items like rings, bracelets and watches when working with
batteries. Batteries can produce short circuit current high enough to weld a
ring or the like to metal causing a severe burn.
• If you need to remove a battery, always remove the Negative terminal from the
battery rst.
Make sure that all the accessories are off so that you do not cause a spark.
The Inverter Installation Kit consists of two cables and the fuse arrangement for
connecting the battery to the inverter in a safe manner.
Installation and wiring compliance
Installation and wiring must comply with
the local and National Electrical Codes and
must be done by a CERTIFIED ELECTRICIAN.
SECTION 1 | Important Safety Precautions
!

4 | SAMLEX AMERICA INC.
Fuse Protection in the Battery Circuit
A battery is an unlimited source of current. Under short circuit conditions, a battery
can supply thousands of Amperes of current. If there is a short circuit along the length
of the cables that connect the battery to the inverter, thousands of Amperes of current
can ow from the battery to the point of shorting and that section of the cable will
overheat, the insulation will melt and the cable will ultimately break. This interruption
of very high current will generate a hazardous, high temperature, high energy arc
with accompanying high pressure wave that may cause re, damage nearby objects
and cause injury. To prevent an occurrence of hazardous conditions under short circuit
conditions, an appropriate fuse should be used in the battery circuit that has the
required current interrupting capacity (Termed AIC – Ampere Interrupting Capacity).
For this purpose, a fuse with AIC rating of 10000A at 14V / 5000A at 32V, or higher
should be used.
The following types of fuses are included in the Kit:
• 400A, 125 VDC, Model JLLN 400 manufactured by Littelfuse
- AIC of 20,000A
- UL Class “T” rated, UL listed as per UL Standard 248-15
• Marine Rated Battery Fuse (MRBF Series) made by Cooper Bussmann
- Voltage rating of max 58 VDC
- Current ratings of 100A (MRBF-100), 200A (MRBF-200) and 300A (MRBF-300)
- AIC of 10000A at 14VDC, 5000A at 32 VDC and 2000A at 58 VDC
- Ignition protected as per SAE J1171
- Weather Proof (IP66)
!
CAUTION
The fuse should be placed as close to the battery’s POSITIVE terminal as
possible, preferably within 7” of the battery terminal.
Sizing of Cables to Reduce Voltage Drop, Heating and Power Loss
Flow of electric current in a conductor is opposed by the resistance of the conductor.
The resistance of the conductor increases linearly as the length of the conductor is
increased and decreases as the cross-section (thickness) of the conductor is increased.
Flow of current through the resistance of the conductor produces voltage drop and
power loss due to heating. Voltage drop due to resistance of the conductor increases
linearly as the current increases.
Power loss because of heating due to resistance of the conductor increases by the
square of the increase in the current - e.g. if the current increases 2 times, the heating
/ power loss increases 4 times. Thus, it is desirable that thicker and shorter conductors
be used to reduce the undesirable effects of voltage drop, heating and power loss.
The size (thickness / cross-section) of the conductors is designated by AWG (American
Wire Gauge). Please note that a smaller AWG # denotes a thicker size of the conductor
up to AWG #1. Wires thicker than AWG #1 are designated AWG #1/0, AWG #2/0,
AWG #3/0 and so on. In this case, increasing AWG # X/0 denotes thicker wire.
SECTION 2 | General

4 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 5
DC input circuit of an inverter is required to handle very large DC currents. Cables
and connectors from the battery to the inverter should be properly sized to ensure
minimum voltage drop, minimum heating and minimum power loss between the
battery and the inverter. Thinner cables and loose connections will result in larger
voltage drop, increased loss of power and consequent reduction in efciency, poor
inverter performance and will produce abnormal heating that may lead to risk of
insulation melt down and re.
For safety against overheating and consequent deterioration of the insulation
and possibility of re, Table 310.17 of the National Electrical Code (NEC) species
the maximum current carrying capacity (Ampacity) of various types of cables for
installation in free air. Apart from the consideration of safety as explained above,
reducing the voltage drop as a result of longer distance of the cable between the
battery and the inverter is also important for improving the efciency of the DC input
side of the inverter system. Longer distance between the battery and the cable will
require thicker cable. Normally, the thickness of the cable should be such that the
voltage drop from the battery terminal to the inverter is as low as possible, preferably
less than 5%.
Inverters are designed to operate normally within a specied lower and upper input
voltage range. The lower operating voltage limit of inverters is normally 10V, 20V and
40V for 12V, 24V and 48V battery systems respectively. When this limiting voltage is
seen at the input terminal of the inverter, it will shut down due to low input voltage
protection. Thus, if there is excessive voltage drop in the input connection between
the battery and the inverter due to thinner cable / longer distance / larger current, the
inverter will shut down even if the battery is fully charged.
As the distance between the battery and the inverter may vary depending upon the
user requirement, 10 ft length of cable is provided in the Inverter Installation Kits for
convenience. The specications of the Kits include the approximate voltage drops for
distances of 3, 6 and 10 ft. between the battery and the inverter.
Please note that for the purposes of the calculation of the voltage drop based on the
resistance per unit length, the length of the cable has been taken as twice the distance
between the battery and the inverter to include the overall length of the Positive and
Negative cables (e.g. if the distance between the battery and the inverter is taken as
3 ft., the length of the cable has been taken as 6 ft. for calculation purposes).
Please ensure that the distance between the battery and the inverter is kept as short
as possible to limit the voltage drop to less than 5%. Cut off the extra length of cable
if the distance between the battery and the inverter is less than 10 ft.
Characteristics of the Cable Provided with the Kits
We have provided the highest quality, industrial/ welding grade, exible cable with
the Kits. These cables are designed for use as motor and power leads where exibility
and portability are required. The inherent nature of the design makes the cables
suitable for battery cables for automotive and renewable energy applications.
SECTION 2 | General

6 | SAMLEX AMERICA INC.
Key features of the cable provided with the Kits are as follows:
• 600V rating
• Very wide operating temperature of -50C to 105C
• High strand count, annealed, copper conductors for high exibility.
• Ethylene Propylene Rubber (EPR) jacket provides the high 600V insulation and
resistance to abrasion, oils, acids and heat.

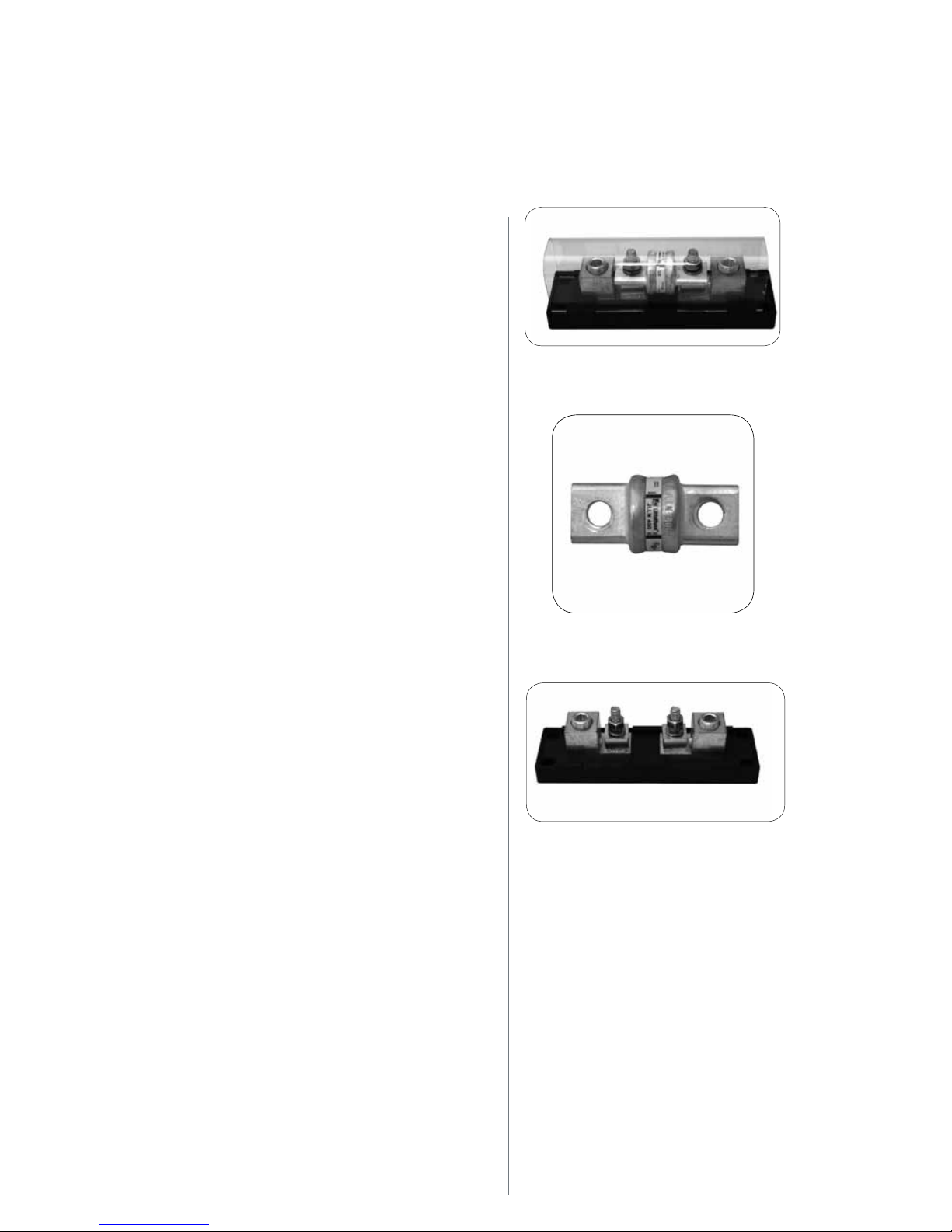

Characteristics of Fuses and Fuse Holders Provided with the Kits
DC-1000-KIT, DC-2000-KIT and DC-2500-KIT are provided with 100A, 200A and 300A
fuses respectively (Fig. 3.3). These fuses are Marine Rated Battery Fuses (MRBF-XXX
Series) made by Cooper Bussmann.
The MRBF Fuse provides easy, practical weatherproof and economical circuit
protection in tight space constraints. The fuse is installed between the Positive Battery
Terminal Stud and the Positive Battery Cable with the help of a special Clamping
Fixture. The Clamping Fixture consists of the following:
• Clamping Fixture Bar (CFBAR), Fig. 3.4. Has a base plate for connecting to the
battery stud (with a hole to accommodate battery stud of up to stud size 3/8” /
M10) and a stud (size M-8) for connecting the MRBF fuse and the battery cable.
• Stainless Steel nut (thread size M8, will require ½” or 13 mm wrench for
tightening), Flat Washer and Spring Washer, Fig. 3.5.
• An Insulating Cap, Fig. 3.6. It slides over the base plate of CFBAR and is used to
insulate the exposed stud and the nut of the CFBAR.
Tools Required
• Wire Cutting Tool and Wire Stripper (for DC-3500-KIT)
• ½” Wrench and 5/16” Allen Key (for Samlex DC-3500-KIT)
• Appropriate screw driver or wrench depending on the DC input terminal
of your inverter.
• Crimping tool and heat shrink tubing (if ring terminal for the inverter end is
being changed to t DC input terminals of the inverter).
SECTION 2 | General

6 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 7
DC-1000-KIT, DC-2000-KIT, AND
DC-2500-KIT INSTALLATION INSTRUCTIONS
Preparing Cable Termination for Inverter End
• The cables provided in the kits have copper ring
terminals on both the ends.
• The ring terminal may not t the DC input
terminal on the inverter and may need to be
reshaped / replaced with cable lugs provided
with the inverter.
• Some inverters require Pin Type of terminal lugs
to t DC input connectors with a cylindrical
hole and set screw. As the terminal lug tted on
the cable is made of copper which is malleable,
it can be beaten with a hammer to form a
pin shape of the required diameter to t the
cylindrical hole.
• It may be necessary to remove the cable lug and
crimp the new lug provided with the inverter.

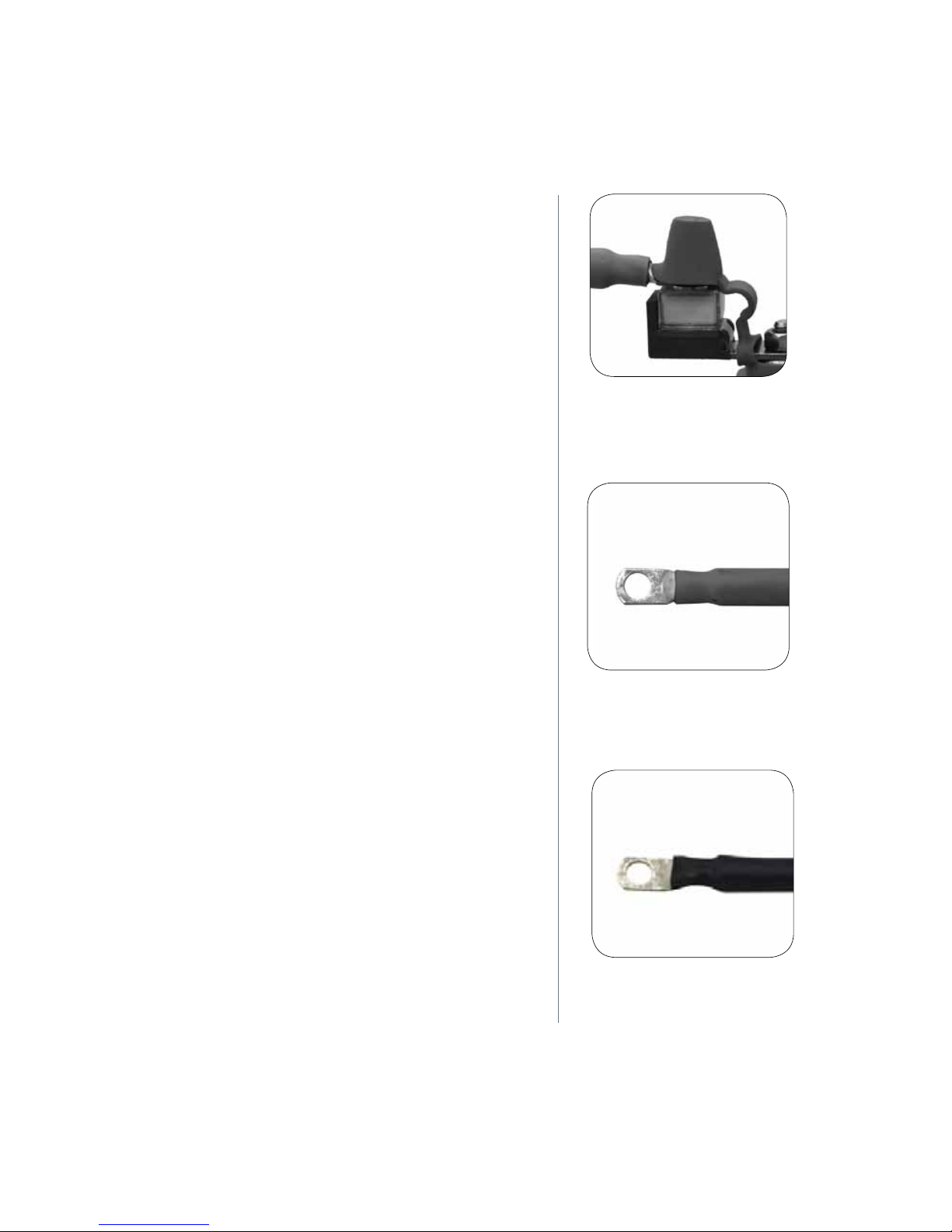

A. Identify the Positive & Negative cables
• Positive cable: Red color with terminal lugs at
each end as in Fig. 3.1.
• Negative cable: Black color with terminal lugs
at each end as in Fig. 3.2.
B. Connect one end of the Positive cable to the
Positive terminal of the inverter (usually Red in color).
The terminal lug may need to be shaped/replaced to t
the inverter terminal (see details above).

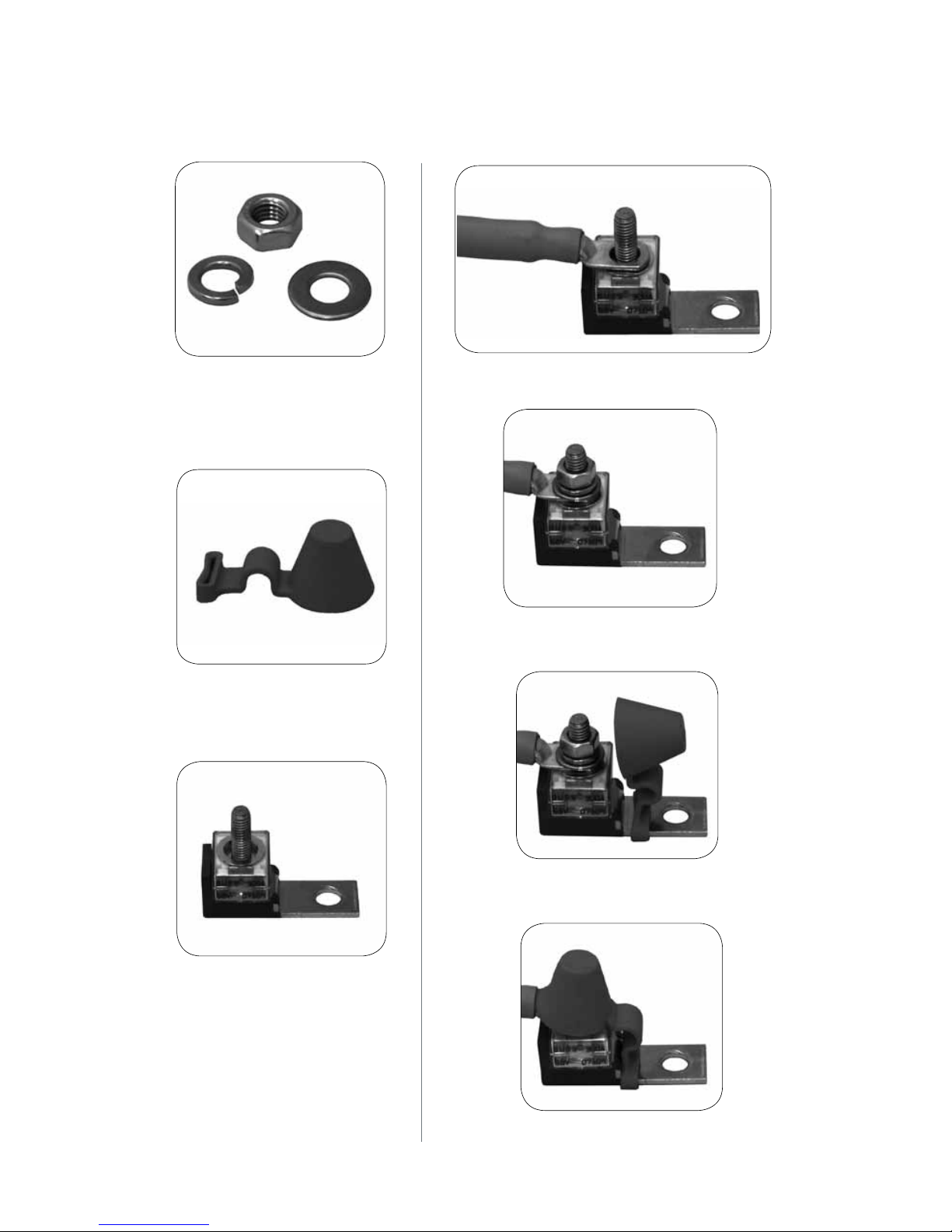

C. Identify the components of the Fuse Assembly.
Refer to Figures 3.3 to 3.6.
D. Place the MRBF fuse onto the stud provided on
the CFBAR. See Fig.3.7.
E. Next, place the cable lug (crimped to the free end
of the Positive cable) onto the CFBAR stud so that it sits
over the fuse MRBF. See Fig. 3.8.
F. Next, attach the at washer, the spring
washer and the M-8 nut on to the CFBAR stud and
tighten the nut with a ½” wrench. See Fig. 3.9.
G. Slide the Insulating Cap onto the rectangular strip
of the CFBAR and then place the hood portion over the
exposed portion of the stud of the CFBAR. See Figures
3.10 and 3.11.
Fig. 3.2. Negative Cable End
Fig. 3.1. Positive Cable End
Fig. 3.3. Marine Rated Battery
Fuse (MRBF)
Fig. 3.4. Clamping Fixture
Bar (CFBAR)
SECTION 3 | Installation Instructions

8 | SAMLEX AMERICA INC.
Fig. 3.10. Insulating Cap slid over the
rectangular portion of CFBAR
Fig. 3.11. CFBAR with tted fuse MRBF
Fig. 3.9. MRBF Fuse and Positive
cable xed to the CFBAR
Fig. 3.7. MRBF Fuse inserted
onto the stud on CFBAR
Fig. 3.6. Insulating cap
Fig. 3.5. M-8 Nut, Flat Washer
and Spring Washer
Fig. 3.8.
SECTION 3 | Installation Instructions

8 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 9
DC-1000-KIT, DC-2000-KIT, AND
DC-2500-KIT INSTALLATION
INSTRUCTIONS (continued)
H. Bolt the CFBAR to the Positive terminal stud
of the Battery usually denoted by the ‘+’ sign as
shown in Fig. 3.12.
I. Connect one end of the Negative cable to the
Negative terminal of the inverter (usually Black in
color). The terminal lug may need to be reshaped/
replaced to t the inverter terminal (see details
above).
J. Connect the other end of the Negative cable
to the battery Negative terminal stud, usually
denoted by the ‘-’ sign.
K. Please ensure that all the connections
are tight.
DC-3500-KIT INSTALLATION
INSTRUCTIONS
A. Identify the Positive & Negative Cables:
Positive cable: Red color with terminal lugs at each
end as in Fig. 3.13.
Negative cable: Black color with terminal lugs at
each end as in Fig. 3.14.
Fig. 3.12. Installed
arrangement
Fig. 3.13. Positive cable end
Fig. 3.14. Negative cable end
SECTION 3 | Installation Instructions

10 | SAMLEX AMERICA INC.
DC-3500-KIT INSTALLATION
INSTRUCTIONS (continued)
B. The Class T Fuse Assembly (Fig. 3.15)
consists of the following components
assembled as one unit:
Class T Fuse – Fig. 3.16: This is rated at 125V,
400A. It is UL Class “T” rated and UL listed as
per UL Standard 248-15. It has AIC (Ampere
Interrupting Capacity) of 20,000A
Fuse Holder – Fig. 3.17: This consists of a
breglass insulated base with studs / bolts
(5/16” diameter, 18 Threads Per Inch) and
nuts (requires ½” size wrench) for holding
the fuse. The two terminals for cable entry
are designed for #4/0 cable (Hole size is
0.6” / 15.5 mm). Hexagonal headed socket
screws (requires Allen Key size 5/16”) are
used to clamp the cable ends.
Snap on cover : Made of clear polycarbonate
and provides touch safety.
C. The fuse should normally be installed
within 7 inches of the Positive Terminal of
the battery. Cut the Positive cable based on
the desired location of the Class “T” Fuse
Assembly using an appropriate wire cutter.
Strip 1.05” of the insulation at the cut
ends using a suitable wire stripper. Please
ensure that the innermost layer of the tape
separator is completely removed.
See Fig. 3.18.
D. Insert the bare ends of the cable into
the hole for the cable entry and tighten
the screw down terminals rmly. Fix the
clear polycarbonate snap on cover for touch
safety. See Fig. 3.19.
Fig. 3.15. Class “T” Fuse Assembly
Fig. 3.16. Class “T” Fuse
Fig. 3.17. Fuse Holder
SECTION 3 | Installation Instructions

10 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 11
NOTE:
The diameter of the hole in the screw down terminal for the cable entry is 0.6” and
is just big enough for the diameter of the bare AWG #4/0 stranded cable. The ends of
the strands towards the cut face of the cable may get bent, frayed or spread outwards
during cutting causing the diameter of the cable near the cut face to increase slightly.
The strands towards the cut face need to be pressed together closely to reduce
the diameter near the cut face to less than 0.6”. To keep the strands towards the
cut face pressed together for easier entry into the terminal for cable entry, tightly
wrap insulation tape around 0.2” to 0.3” from the cut face. If required, straighten
and compress the bent, frayed, or spread out ends to reduce the diameter to the
minimum.
Insert the leading 0.2” to 0.3” bare portion into the hole and remove the insulating
tape to insert the bare end of the cable fully.
Please ensure that all the strands get inserted into the hole and that no strand(s) is
left forced out of the hole.
Fig. 3.18. Battery end of Positive cable cut and prepared for inserting into the Class “T” Fuse Assembly
Fig. 3.19. Fitted Class “T” Fuse Assembly
SECTION 3 | Installation Instructions

12 | SAMLEX AMERICA INC.
E. Connect the terminal lug of the shorter section of the cut Positive cable to the
Positive terminal of the Battery, usually denoted by the ‘+’ sign (see Fig. 3.20).
F. Connect the terminal lug of the longer section of the cut Positive cable to the
Positive terminal of the inverter (usually Red in color). The terminal lug may need to
be reshaped/replaced to t the inverter terminal (see details above).
G. Connect one end of the Negative cable to the Negative terminal of the inverter
(usually Black in color). The terminal lug may need to be reshaped/replaced to t the
inverter terminal (see details above).
H. Connect the other end of the Negative cable to the battery Negative terminal,
usually denoted by the ‘-’ sign. When the lug of the Negative cable rst makes
contact with the Negative terminal of the battery, a spark may be observed. This is
normal. This spark occurs because of the initial charging current of the input side
capacitors inside the inverter.
I. Ensure that all the connections are tight.
Fig. 3.20. Positive cable connection to the battery – with Class “T” Fuse Assembly
DC-3500-KIT INSTALLATION
INSTRUCTIONS (continued)
SECTION 3 | Installation Instructions

12 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 13
SECTION 4 | Specications
Model DC-1000-KIT DC-2000-KIT DC-2500-KIT DC-3500-KIT
Cable Gauge AWG #4 AWG #2 AWG #2/0 AWG #4/0
Length of Cable
Supplied 10 feet 10 feet 10 feet 10 feet
Voltage Drop Distance
12V System 3 ft. 1.3 % 1.6 % 1.2 % 1.0 %
6 ft. 2.5 % 3.2 % 2.3 % 2.0 %
10 ft. 4.2 % 5.3 % 3.9 % 3.3 %
24V System 3 ft. 0.6 % 0.8 % 0.6 % 0.5 %
6 ft. 1.3 % 1.6 % 1.2 % 1.0 %
10 ft. 2.1 % 2.7 % 1.9 % 1.7 %
Fuse Size 100 Amp* 200 Amp* 300 Amp* 400 Amp*
Hardware
Included
6 Nos. 11.5”
Black Tie Wraps
6 Nos. 1/2”
Cable clamps
6 Nos. #8 x ¾”
Pan head
screws
6 Nos. 11.5”
Black Tie Wraps
6 Nos. 1/2”
Cable clamps
6 Nos. #8 x ¾”
Pan head
screws
6 Nos. 11.5”
Black Tie Wraps
6 Nos. 3/4”
Cable clamps
6 Nos. #8 x ¾”
Pan head
screws
6 Nos. 11.5”
Black Tie Wraps
6 Nos. 1”
Cable clamps
6 Nos. #8 x ¾”
Pan head
screws
Suitability for
Inverter Types
12 Volt
600-1000 Watt
24 Volt
600-2000 Watt
12 Volt
1000-2000 Watt
24 Volt
2000-3000 Watt
12 Volt
2000-2500 Watt
24 Volt
3000-4000 Watt
12 Volt
2500-3500 Watt
24 Volt
4000-6000 Watt
* See notes page 14.

14 | SAMLEX AMERICA INC.
NOTES
1.0 The current ratings of the fuses are less than the ampacity (maximum current
carrying capacity) of the cables based on NEC Table 310.17 for free air, ambient
temperature of 30°C / 86°F and temperature rating of conductor at 90°C / 194°F.
2.1 Voltage drop is calculated by multiplying the current ow in the cable by the
resistance of the cable. Distances 3 ft., 6ft. and 10 ft. are the running distances
between the battery and the inverter. The resistance of the cable is calculated for the
total length of the cable – from the Positive of the battery to the inverter and back
to the Negative of the battery. Thus, the total length of cable is taken as 2 times the
running distance between the battery and the inverter. For example, for running
distance of 3ft., the resistance will be calculated for 6 ft.
2.2 Percentage voltage drop is calculated with respect to 12V and for 12V system and
24V for 24V system.
2.3 Resistance of the cable in Ohms per ft. is based on ambient temperature of 25°C.
Resistances of the 4 sizes of cables and the current considered for calculating voltage
drops are shown below:
Cable
Size
Resistance in
Ohms / ft.
Value of Current for
Calculating Voltage Drop
AWG #4 0.0002533 100A
AWG #2 0.0001593 200A
AWG #2/0 0.000077 300A
AWG #4/0 0.00005 400A
3.0 Specications are subject to change without notice
SECTION 4 | Specications
*

14 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 15
SECTION 5 | Warranty
2 YEAR LIMITED WARRANTY
Samlex Inverter Installation Kits manufactured by Samlex America, Inc. (the “Warran-
tor“) are warranted to be free from defects in workmanship and materials under normal
use and service. The warranty period is 2 years for the United States and Canada, and is
in effect from the date of purchase by the user (the “Purchaser“).
Warranty outside of the United States and Canada is limited to 6 months. For a warranty
claim, the Purchaser should contact the place of purchase to obtain a Return Authoriza-
tion Number.
The defective part or unit should be returned at the Purchaser’s expense to the author-
ized location. A written statement describing the nature of the defect, the date of pur-
chase, the place of purchase, and the Purchaser’s name, address and telephone number
should also be included.
If upon the Warrantor’s examination, the defect proves to be the result of defective
material or workmanship, the equipment will be repaired or replaced at the Warran-
tor’s option without charge, and returned to the Purchaser at the Warrantor’s expense.
(Contiguous US and Canada only)
No refund of the purchase price will be granted to the Purchaser, unless the Warrantor
is unable to remedy the defect after having a reasonable number of opportunities to do
so. Warranty service shall be performed only by the Warrantor. Any attempt to remedy
the defect by anyone other than the Warrantor shall render this warranty void. There
shall be no warranty for defects or damages caused by faulty installation or hook-up,
abuse or misuse of the equipment including exposure to excessive heat, salt or fresh
water spray, or water immersion.
No other express warranty is hereby given and there are no warranties which extend
beyond those described herein. This warranty is expressly in lieu of any other expressed
or implied warranties, including any implied warranty of merchantability, tness for the
ordinary purposes for which such goods are used, or tness for a particular purpose, or
any other obligations on the part of the Warrantor or its employees and representatives.
There shall be no responsibility or liability whatsoever on the part of the Warrantor or
its employees and representatives for injury to any persons, or damage to person or
persons, or damage to property, or loss of income or prot, or any other consequential
or resulting damage which may be claimed to have been incurred through the use or
sale of the equipment, including any possible failure of malfunction of the equipment,
or part thereof. The Warrantor assumes no liability for incidental or consequential dam-
ages of any kind.
Samlex America Inc. (the “Warrantor”)
www.samlexamerica.com

Contact
Information
Toll Free Numbers
Ph: 800 561 5885
Fax: [phone]
Local Numbers
Ph: 604 525 3836
Fax: [phone]
Website
www.samlexamerica.com
USA Shipping Warehouse
Kent WA
Canadian Shipping Warehouse
Delta BC
Email purchase orders to
[email protected]
11013-DC-1000-2000-2500-3500-KIT-0213
MAN 10013

Information
de Contact
Numéros gratuits
Tel : [phone]
Fax : [phone]
Numéros locaux
Tel : [phone]
Fax : [phone]
Site internet
www.samlexamerica.com
Entrepôt
aux ÉU
Kent, WA
Entrepôt
au Canada
Delta, BC
Adresse email pour
passer une commande
[email protected]
11013-DC-1000-2000-2500-3500-KIT-0413-FRENCH
MAn 10013

14 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 15
SEcTION 5 | Garantie
GARANTIE LIMITÉE DE 2 ANS
KITS D’INSTALLATION DE L’ONDULEUR, fabriqués par Samlex America, Inc. (le « Garant »)
sont garantis d’être non défectueux dans la conception et dans les matériaux, moyennant
une utilisation et un service normaux. La période de la garantie est de 2 ans aux États-Unis
et au Canada, et prend effet le jour de l’achat par l’utilisateur (« l’Acheteur »).
La garantie hors des États Unis et du Canada est limitée à 6 mois. Pour une réclamation
concernant la garantie, l’Acheteur devrait contacter le point de vente où l’achat a été
effectué an d’obtenir un Numéro d’Autorisation pour le Retour.
La pièce ou l’unité défectueuse devrait être retournée, aux frais de l’acheteur, à l’endroit
autorisé. Une déclaration écrite énumèrant la nature du défaut, la date et le lieu d’achat
ainsi que le nom, l’adresse et le numéro de téléphone de l’Acheteur devraint également
être compris.
Si, à l’examination de la demande, par le Garant, le défaut est vraiement le résultat
d’un matériau ou d’un assemblage défectueux, l’équipement serait réparé ou remplacé
gratuitement et serait renvoyé à l’Acheteur, aux frais du Garant, (Les États-Unis et Le
Canada uniquement).
Aucun remboursement du prix d’achat sera accordé à l’Acheteur, sauf si le Garant est
incapable de remédier le défaut après avoir eu plusieurs occasions de le faire. Le service de
la garantie doit être effectuer uniquement par le Garant. Toutes tentatives de remédier
le défaut par quelqu’un d’autre que le Garant, rendent cette garantie nulle et sans effet.
Il existe aucune garantie concernant les défauts ou dommages causés par une installation
défectueuse ou inadaptée, par l’ abus ou une mauvaise utilisation de l’équipement, y
compris, une exposition excessive à la chaleur, au sel, aux éclaboussures d’eau fraiche ou
une immersion dans l’eau.
Aucune autre garantie exprès est accordée et il ’existe aucune garantie qui s’étendent au
delà des conditions décrites par la présente. Cette garantie est la seule garantie valable
et reconnue par le Garant, et prédomine sur d’autres garanties implicites, y compris les
garanties implicites liées à la garantie de qualité marchande, à l’usage pour des objectifs
habituels pour les quels telles marchandises sont utilisées, ou l’usage pour un objectif
particulier, ou toutes autres obligations de la part du Garant ou de ses employés et
représentants.
Il ne doit pas exister de responsabilité ou de dettes de la part du Garant ou de ses
employés et représentants, en ce qui concerne les blessures corporelles, ou les dommages
de personne à personne, ou les dégâts sur une propriété, ou la perte de revenus
ou de bénéces, ou autres dommages collatéraux, pouvant être rapportés comme
ayant survenus au cours de l’utilisation ou de la vente du matériel, y compris tous
dysfonctionnements ou échecs du matériel, ou une partie de celui-ci. Le Garant assume
aucune responsabilité concernant toutes sortes de dommages accidentales ou indirects.
Samlex America, Inc. (le « Garant »)
www.samlexamerica.com

14 | SAMLEX AMERICA INC.
NOTES
*1,0 Les classications actuelles des fusibles sont inférieures à l’intensité (capacité
maximale de courant) des câbles, en fonction du Tableau NEC 310,17 à l’air libre,
à une température ambiante de 30°C / 86°F et une classication thermique du
conducteur de 90°C / 194°F.
2,1 La chute de tension est calculée en multipliant le ux de courant dans le câble
par la résistance du câble. Les distances de 90cm, 1,80m et 3m sont les distances
totales entre la batterie et l’onduleur. La résistance du câble est calculée pour
la longueur totale du câble, de la borne positive de la batterie à l’onduleur, et
encore, de l’onduleur jusqu’à la borne négative de la batterie. Ainsi, la longueur
totale du câble est mesurée doublement entre la batterie et l’onduleur. Par exem-
ple, pour une longueur totale de 90cm, la résistance est calculée pour 1,80m.
2,2 Le pourcentage de la chute de tension est calculé avec 12V pour le système 12V
et 24V pour le système 24V.
2,3 La résistance du câble en Ohms par mètre est basée sur la température ambiante
de 25°C / 77°F. Les résistances des 4 tailles des câbles et le courant considéré pour
le calcul des chutes de tension sont indiquées ci-dessous :
Taille du
câble
Resistance en
ohms /mètre
Valeur du courant pour calculer
la chute de tension
AWG #4 0,0008443 100A
AWG #2 0,000531 200A
AWG #2/0 0,0002567 300A
AWG #4/0 0,0001667 400A
3,0 Les spécications peuvent être modiées sans préavis.
SECTION 4 | Spécications

12 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 13
SECTION 4 | Spécications
Modèle DC-1000-KIT DC-2000-KIT DC-2500-KIT DC-3500-KIT
Calibre du câble AWG #4 AWG #2 AWG #2/0 AWG #4/0
Longueur du
câble fourni 3 mètres 3 mètres 3 mètres 3 mètres
Chute de
Tension
Distance
Système 12V 90 cm 1,3 % 1,6 % 1,2 % 1,0 %
1,80 m 2,5 % 3,2 % 2,3 % 2,0 %
3 m 4,2 % 5,3 % 3,9 % 3,3 %
Système 24V 90 cm 0,6 % 0,8 % 0,6 % 0,5 %
1,80 m 1,3 % 1,6 % 1,2 % 1,0 %
3 m 2,1 % 2,7 % 1,9 % 1,7 %
Taille du fusible 100 Amp* 200 Amp* 300 Amp* 400 Amp*
Equipment inclut 6 Nos, 29cm / 11,5”
Attaches
Autobloquantes
6 Nos. 1,25cm/1/2”
Crampons à Câbles
6 Nos.
#8 x 1,88 cm/¾”
Visses à tête
cylindrique
6 Nos. 29cm/11,5”
Attaches
Autobloquantes
6 Nos. 1,25cm/1/2”
Crampons à Câbles
6 Nos.
#8 x 1,88 cm/¾”
Visses à tête
cylindrique
6 Nos. 29cm/11,5”
Attaches
Autobloquantes
6 Nos. 1,25cm/1/2”
Crampons à Câbles
6 Nos.
#8 x 1,88 cm/¾”
Visses à tête
cylindrique
6 Nos. 29cm/11,5”
Attaches
Autobloquantes
6 Nos. 1,25cm/1/2”
Crampons à Câbles
6 Nos.
#8 x 1,88 cm/¾”
Visses à tête
cylindrique
Compatibilité des
types d'onduleurs
12 Volt
600-1000 Watt
24 Volt
600-2000 Watt
12 Volt
1000-2000 Watt
24 Volt
2000-3000 Watt
12 Volt
2000-2500 Watt
24 Volt
3000-4000 Watt
12 Volt
2500-3500 Watt
24 Volt
4000-6000 Watt
* Voir les notes à la page 14.
