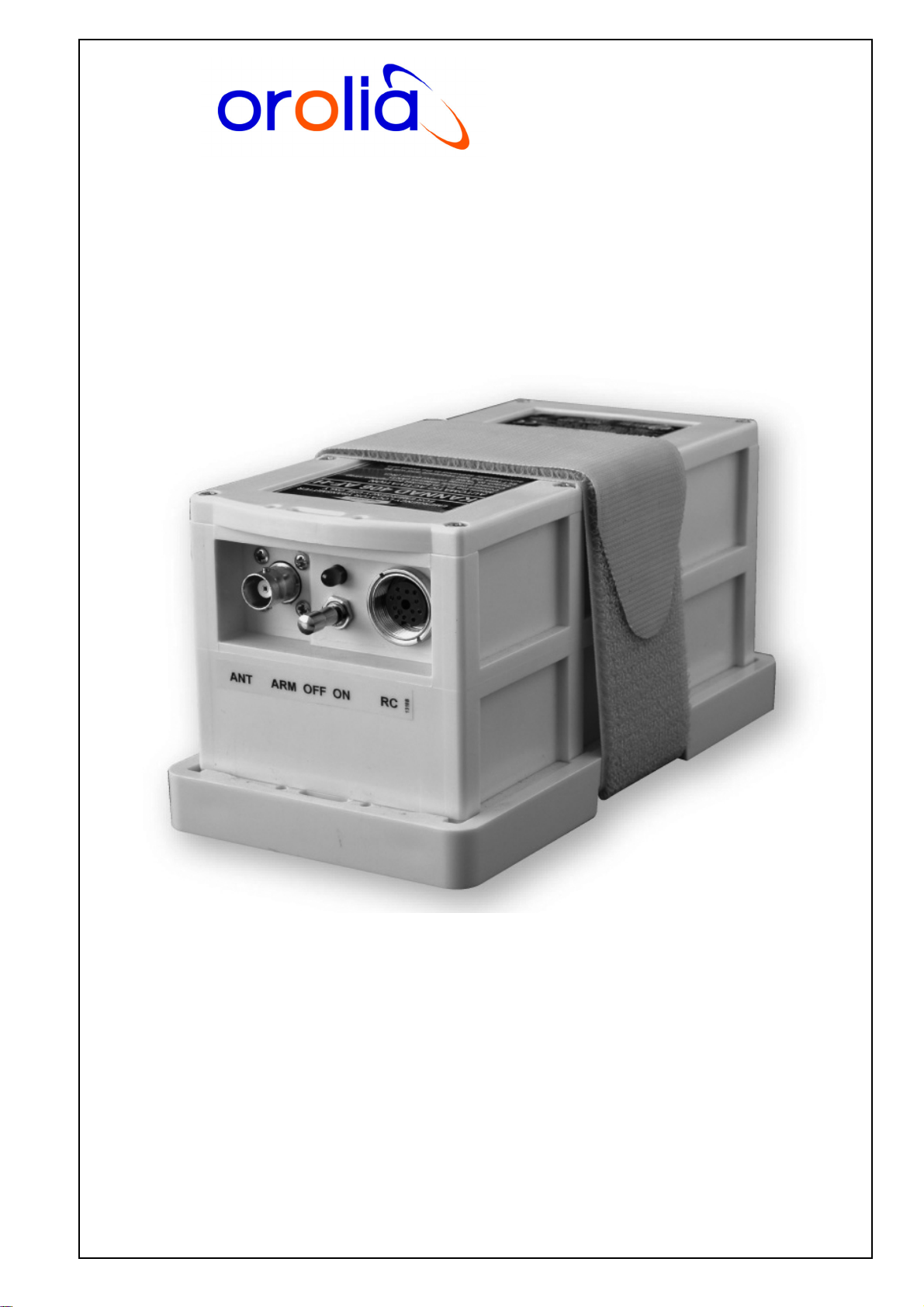

Orolia KANNAD 406 AF User manual

DMA174S
TP PAGE : 1
Date of rev. MAR 30/2020
Revision 16
First issue: SEP 02/1999
Emergency Locator Transmitter
Orolia S.A.S.
INSTALLATION MANUAL
OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
P/N : S1821502-02 KANNAD 406 AF transmitter
P/N : S1822502-02 KANNAD 406 AF-H transmitter
P/N : S1821502-06 KANNAD 406 AF(6D) transmitter
P/N : S1820511-01 Mounting bracket, 1 strap
© 2020 OROLIA S.A.S. ALL RIGHTS ARE STRICTLY RESERVED.

Users are kindly requested to notify Orolia S.A.S of any
discrepancy, omission or error found in this manual.
Please report to our customer support:
E-mail: [e-mail]
Tel.: [phone]
This document is copyright © 2020 OROLIA S.A.S. All rights are strictly
reserved. This document and any attached materials contains proprietary
and confidential information and data and is the sole property of Orolia®
S.A.S. and/or its affiliates.
The documents, any attached materials and/or information contained
therein must not be used, disseminated, or distributed except for the
agreed purpose. unauthorized use, reproduction, or issue to any third
party is not permitted without the prior written consent of Orolia S.A.S.
This document is to be returned to the orolia group when the agreed
purpose is fulfilled.
©2020 Orolia S.A.S. Allrigths are strictly reserved.

INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
RECORD OF REVISIONS
ROR PAGE: 1
MAR 30/2020
© 2020 Orolia S.A.S. All rigths are strictly reserved.
REV. Nb REVISION DATE INSERTION DATE BY
01
02
03
04
05
06 OCT 14/2003 OCT 14/2003 J. S.
07 NOV 19/2003 NOV 19/2003 J. S.
08 APR 23/2004 APR 23/2004 J. S.
09 JAN 24/2005 JAN 24/2005 J. S
10 JUN 27/2005 JUN 27/2005 J. S.
11 FEB 01/2008 FEB 01/2008 J. S.
12 JUN 23/2008 JUN 23/2008 J. S.
13 APR 26/2010 APR 26/2010 J. S.
14 JUL 22/2013 JUL 22/2013 J. S.
15 NOV 15/2017 NOV 15/2017 C.L.G.
16 MAR 30/2020 MAR 30/2020 C.L.G.

INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
RECORD OF REVISIONS
ROR PAGE: 2
MAR 30/2020
© 2020 Orolia S.A.S. All rigths are strictly reserved.
PAGE INTENTIONALLY LEFT BLANK

LIST OF EFFECTIVE PAGES
LEP PAGE: 1
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
SUBJECT PAGE DATE
Title Page
TP 1 MAR 30/2020
Record of Revisions
ROR 1 MAR 30/2020
ROR 2 MAR 30/2020
List of Effective Pages
LEP 1 MAR 30/2020
LEP 2 MAR 30/2020
LEP 3 MAR 30/2020
LEP 3 MAR 30/2020
Table of Contents
TOC 1 MAR 30/2020
TOC 2 MAR 30/2020
TOC 3 MAR 30/2020
TOC 4 MAR 30/2020
Introduction
INTRO 1 MAR 30/2020
INTRO 2 MAR 30/2020
System Overview
1 MAR 30/2020
2 MAR 30/2020
3 MAR 30/2020
4 MAR 30/2020
5 MAR 30/2020
7 MAR 30/2020
8 MAR 30/2020

LIST OF EFFECTIVE PAGES
LEP PAGE: 2
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
System Functional Description and Operation
101 MAR 30/2020
102 MAR 30/2020
103 MAR 30/2020
104 MAR 30/2020
105 MAR 30/2020
106 MAR 30/2020
107 MAR 30/2020
108 MAR 30/2020
Installation / Removal
201 MAR 30/2020
202 MAR 30/2020
203 MAR 30/2020
204 MAR 30/2020
205 MAR 30/2020
206 MAR 30/2020
207 MAR 30/2020
208 MAR 30/2020
209 MAR 30/2020
210 MAR 30/2020
211 MAR 30/2020
212 MAR 30/2020
SUBJECT PAGE DATE

LIST OF EFFECTIVE PAGES
LEP PAGE: 3
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
Check
301 MAR 30/2020
302 MAR 30/2020
303 MAR 30/2020
304 MAR 30/2020
Troubleshooting
401 MAR 30/2020
402 MAR 30/2020
Schematics and Diagrams 501 MAR 30/2020
502 MAR 30/2020
503 MAR 30/2020
504 MAR 30/2020
503 MAR 30/2020
504 MAR 30/2020
Servicing
601 MAR 30/2020
602 MAR 30/2020
SUBJECT PAGE DATE

LIST OF EFFECTIVE PAGES
LEP PAGE: 4
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
PAGE INTENTIONALLY LEFT BLANK

TABLE OF CONTENTS
TOC PAGE: 1
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
INTRODUCTION...................................................................................... 1
SYSTEM OVERVIEW .............................................................................. 1
COSPAS-SARSAT System.................................................................... 1
Description..............................................................................................................1
World coverage with the COSPAS-SARSAT system.............................................2
Environmental improvements of ELTs....................................................................2
G-Switch (shock detectors).....................................................................................2
KANNAD 406 ELTs Presentation...........................................................3
LINE REPLACEABLE UNITS ................................................................ 4
Transmitter .............................................................................................................4
Bracket ...................................................................................................................4
Remote Control Panel ............................................................................................ 4
External antenna ....................................................................................................4
Design features...................................................................................... 5
General...................................................................................................................5
Mechanical design..................................................................................................5
Compatibility list..................................................................................... 6
Remote control panels (RCP).................................................................................6
DIN-12 connector or programming dongles............................................................6
ELT-NAV System Interface.....................................................................................6
External antennas...................................................................................................7
KANNAD 406 AF..................................................................................................7
KANNAD 406 AF-H and KANNAD 406 AF(6D)...................................................7
SYSTEM FUNCTIONAL DESCRIPTION AND OPERATION ............. 101
Transmitter......................................................................................... 101
Controls.............................................................................................. 102
Working mode information.................................................................103
Off.......................................................................................................................103
Self-Test ............................................................................................................. 103
Armed.................................................................................................................103
On.......................................................................................................................104
Endurance.......................................................................................... 105
Electrical characteristics..................................................................... 106
Electrical interface .............................................................................................. 106
Technical Specifications..................................................................... 107
Activation............................................................................................ 108
Standby mode for automatic activation...............................................................108
Manual activation................................................................................................108
Reset.................................................................................................. 108
Manual reset.......................................................................................................108
Reset with Remote Control Panel.......................................................................108
Self-Test............................................................................................. 108

TABLE OF CONTENTS
TOC PAGE: 2
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
INSTALLATION / REMOVAL.............................................................. 201
Registration and Programming.......................................................... 201
Pin programming option ..................................................................................... 201
ELT and bracket installation............................................................... 203
Installation recommendations............................................................................. 203
FAA Recommendations................................................................................... 203
TSO C126a Section 5 b. Application Data Requirements ............................... 203
RTCA DO-182 Recommandations................................................................... 203
RTCA DO-204a Requirements........................................................................ 203
Bracket installation ............................................................................................. 204
KANNAD 406 AF installation ........................................................................... 205
KANNAD 406 AF-H installation........................................................................ 206
KANNAD 406 AF (6D) installation ................................................................... 207
ELT installation................................................................................................... 208
Antenna Installation ........................................................................... 209
Antenna Installation Recommendations............................................................. 209
FAA Recommendations................................................................................... 209
RTCA DO-204 Requirements for ELT location................................................ 209
Antenna installation procedure........................................................................... 210
First power up .................................................................................... 211
ELT Removal..................................................................................... 212
CHECK......................................................................................... 301
Self-test.............................................................................................. 301
Periodicity........................................................................................................... 301
Self-test procedure............................................................................................. 301
ELT operational tests......................................................................... 302
Installation without programming dongle............................................................ 302
Installation with programming dongle................................................................. 302
RCP operational tests........................................................................ 303
406 and 121.5 MHz transmission test................................................ 304
ELT-Antenna link................................................................................................ 304
406 MHz............................................................................................................. 304
121.5 MHz.......................................................................................................... 304
TROUBLESHOOTING......................................................................... 401
General.............................................................................................. 401
Faults on Self-test.............................................................................. 401
Visual indicator................................................................................................... 401
3+1 flashes ...................................................................................................... 401
3+2 flashes ...................................................................................................... 401
3+3 flashes ...................................................................................................... 401
3+4 flashes ...................................................................................................... 401

TABLE OF CONTENTS
TOC PAGE: 3
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
SCHEMATICS & DIAGRAMS............................................................. 501
Outline Dimensions............................................................................ 501
Drilling Mask ...................................................................................... 502
Wiring................................................................................................. 503
ANT AV200, outline dimensions and drilling mask............................ 504
ANT AV300, outline dimensions and drilling mask............................ 505
ANT560, outline dimensions and drilling mask.................................. 506
SERVICING ......................................................................................... 601
Maintenance Schedule ...................................................................... 601
Periodic inspection............................................................................................. 601
Battery replacement........................................................................................... 601
Battery replacement requirements..................................................... 602

TABLE OF CONTENTS
TOC PAGE: 4
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
PAGE INTENTIONALLY LEFT BLANK

PAGE INTRO 1
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
INTRODUCTION
The instructions in this manual provide the information necessary for the
installation and the operation of KANNAD 406 AF, AF-H and AF (6D) ELTs.
Servicing instructions are normally performed by shop personnel.
For servicing and maintenance instructions, refer to relevant CMM.
For regulatory requirements, please consult your national aviation authority.

PAGE INTRO 2
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
PAGE INTENTIONALLY LEFT BLANK

PAGE: 1
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
SYSTEM OVERVIEW
1. COSPAS-SARSAT System
A. Description
Launched in the early eighties by the four founder countries (Canada, France,
Russia, USA), the COSPAS-SARSAT system provides satellite aid to search
and rescue (SAR) operations for maritime, aeronautical andterrestrial vehicles
anywhere in the world.
It uses distress beacons fitted on mobiles and a constellation of LEO and GEO
satellites which process the 406 MHz signal to ground stations (LUT) where
the beacon positions are determined with a precision of less than 2 NM.
Several types of beacons aredesigned tomatch thevarious applications ofthe
COSPAS-SARSAT system:
• EPIRB (Emergency Position Indicating Radio Beacon) for maritime
applications.
• ELT (Emergency Locator Transmitter) for aeronautical applications.
• PLB (Personal Locator Beacon) for land expeditions.
Figure 1: COSPAS-SARSAT System

PAGE: 2
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
B. World coverage with the COSPAS-SARSAT system
The major improvement is the use of the COSPAS-SARSAT system for
processing aeronautical emergencies.
The difference with the 121.5 / 243 MHz is that the 406 MHz transmission
carries digital data which enable the identification of the aircraft in distress and
facilitate SAR operation (type of the aircraft, number of passengers, type of
emergency).
The 406 MHz message is transmitted to the COSPAS-SARSAT satellites. This
message is downloaded to one of the 64 ground stations (44 LEOLUTs and 20
GEOLUTS).
The aircraft is located by Doppler effect by the LEO satellites with a precision
better than 2 NM (4 km) at any point of the earth.
C. Environmental improvements of ELTs
The certification of an ELT includes a range of severe mechanical tests:
• resistance to flame;
• impact and crush tests;
• resistance to 100 G and 500 G shocks;
• watertightness;
• antideflagration;
• extreme temperatures (-20°C to 55°C for more than 48 hours).
D. G-Switch (shock detectors)
The shock detectors currently equipping automatic ELTs are the cause of a
large number of false alarms. Major work has consisted in studying aircraft
crashes (study made by the " Crash Research Institute ") and evaluating the
acceleration amplitudes involved. As a consequence, G-Switch specifications
have been modified to optimize the accuracy of the crash detection.

PAGE: 3
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
2. KANNAD 406 ELTs Presentation
The KANNAD 406 AF / AF-H / AF (6D) are composed of:
1. a transmitter;
2. a mounting bracket;
3. a remote control panel (mandatory if ELT controls are not available from
the pilot’s position, refer to RTCA/DO-183, RTCA/DO-204, EUROCAE
ED-62);
4. an outside antenna;
5. a "Programming Dongle" for pin-programming function (option);
6. CS144 Interface Module (option).
The transmitter, bracket, Programming Dongle and CS144 Interface Module
are installed in the aircraft near the tail. The outside antenna is mounted on the
fuselage near the tail. The remote control panel is installed in the cockpit and
connected to the ELT with a 4 or 5 wire bundle.
Figure 2: ELT system description
The KANNAD 406 AF and AF(6D) are designed to be installed on fixed wing
aircraft or helicopters.
The KANNAD 406 AF-H is to be installed only on helicopters.

PAGE: 4
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
3. LINE REPLACEABLE UNITS
A. Transmitter
The KANNAD 406 AF / AF-H / AF (6D) is an ELT designed to be installed on
board aircraft to transmit a distress signal on 3 frequencies:
• 406 MHz (COSPAS-SARSAT frequency) for precise pinpointing and
identification of the aircraft in distress.
• 121.5 and 243 MHz used for homing in the final stages of the rescue
operations.
The KANNAD 406 AF / AF-H / AF (6D) are certified as Automatic Fixed (AF)
ELTs and only work with a three-frequency outside antenna.
B. Bracket
The bracket installed near the tail is designed to fix the ELT with a Velcro®
strap. This enables quick removal of the ELT for maintenance or exchange.
C. Remote Control Panel
A remote control panel is available for installation in the cockpit in order to
enable the pilot to monitor and control the ELT status.
The following controls are to be found on the panel:
• 3-position switch (ON, ARMED, RESET&TEST);
• red or amber visual indicator;
• beeper (on certain versions).
The remote control panel is connected to the ELT via a 4 or 5-wire cable
equipped with a "Programming Dongle" or a DIN 12 connector on the ELT side
and the connector corresponding to the Remote Control Panel version on the
other side.
D. External antenna
Theexternalantenna,also installednear thetail,canbeeitherrodorbladetype
according to aircraft speed.
Connection to the ELT will be carried out with a 50 Ohm coaxial cable (RG58
for example) ended with a BNC connector.

PAGE: 5
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
4. Design features
A. General
The KANNAD 406 AF / AF-H / AF (6D) belong to the AF type of ELTs which are
permanently attached to an aircraft.
B. Mechanical design
The KANNAD 406 AF / AF-H / AF (6D) are made of moulded plastic with
excellent mechanical resistance (ASA/PC, light yellow colour).
The housing is designed with no sharp edges.
Figure 3: KANNAD 406 AF / AF-H / AF (6D) with mounting bracket

PAGE: 6
MAR 30/2020
INSTALLATION MANUAL OPERATION MANUAL
KANNAD 406 AF / AF-H / AF (6D)
© 2020 Orolia S.A.S. All rigths are strictly reserved.
5. Compatibility list
A. Remote control panels (RCP)
B. DIN-12 connector or programming dongles
C. ELT-NAV System Interface
Orolia Designation Orolia Part Number
RC100 KIT S1820513-03
RC150 KIT S1820513-07
RC200 S1820513-11
RC200-NVG S1820513-14
RC300 S1820513-09
RC400 S1820513-05
RC500-320 S1820513-02
RC600 NVG (Y) S1820513-12
RC600 NVG (W) S1820513-13
RC800 S1820513-15
RC810 S1820513-23
Orolia Designation Orolia Part Number
DIN-12 connector S1820514-03
Programming dongle S1820514-01
Programming dongle A320 S1820514-04
Programming dongle A330-340 S1820514-05
Programming dongle Assy S1820514-06
Orolia Designation Orolia Part Number
CS144-RS S1825502-01
CS144-A S1825502-02
Connecting cable for CS144-RS or CS144-A S1825502-03
