Orpanic ECO 14T User manual

User Manual (EN)
Användarmanual (SV)
Brukerhåndbok (NO)
Ohjekirja (FI)
Lietošanas instrukcija (LV)
Brugervejledning (DK)
Model: 14T(x), 15T(x), 18T(x), 23T(x) & 23R(x)
Infrared heater
Thermostatic or Remote controlled versions
PRINT & WEB VERSION
PRODUCTS VERSION
®
®

2
Thank you for your choice of Opranic!
With the purchase of your new product, you have chosen a modern, high-quality appliance.
This manual has been designed for our Opranic ECO & NOVA & LAVA 14T, 15T, 18T/R and
23T/R. You have purchased a high quality, ecient and original Opranic-IR Infrared Heater.
Please read this manual thoroughly in order to attain a sustainable satisfaction with your
heater. Ensure you read‘Safety Instructions”in advance and use the product correctly.
Please keep this manual in a safe place for future reference and urgent needs.
For information please contact your country dealer or importer on www.opranic.com
Contact:
Webb www.opranic.com
E - mail: [e-mail]
Made in Turkey
Ver. 2.3
© Opranic 2017

3
TABLE OF CONTENTS
1. SAFETY ....................................................................................................... pag 4
1.1 Safety Instruction ......................................................................................... pag 4
1.2 Specications .........................................................................................................pag 4
1.3 Safe distances required for installation, high temperature and re protection .... pag 5
1.4 Maintenance and cleaning Instructions ......................................................... pag 5
1.5 Warranty .................................................................................................... pag 6
1.6 Repair and Service .................................................................................... pag 6
2. IP PROTECTION ....................................................................................... pag 6
3. INSTALLATION .......................................................................................... pag 7
3.1 Installation Instructions ........................................................................... pag 7
3.2 Installation Instructions Position + Distance ........................................... pag 8
3.3 Installation Instructions with right and wrong positions ....................... pag 8
4. OPERATING INSTRUCTIONS ................................................................. pag 9
5. TERMS OF WARRANTY .......................................................................... pag 10
EN

4
1. SAFETY
1.1 Safety Instruction
Read these instructions carefully before installation and use. Keep this manual for
future reference
Check whether your appliance and power cord are damaged before operating your applian-
ce. Check whether there is any crack, disjoint or scratch on the lament (heating tube). If any,
contact with your authorized technical service. If your appliance or power cord is damaged,
do not operate your appliance and return it to your technical service. Make sure that the
main electricity circuit is 220-240V and 50-60Hz and the connection is fused, for North Ame-
rica 110-120V 60Hz. Check the safety of the network. The fuse must be minimum 10A.
Do not use your Opranic heater together with another appliance plugged to the same multi-
ple sockets or connected to the same fuse.
• Use your appliance with a properly earthed plug.
• The earthed plug must fall outside heating eld and hot surface.
• The device shall not be used below the power socket.
• The power cord must not be left on or around the frame of your Opranic appliance.
• Unplug your appliance when you won’t operate it for a long term or will conduct cleaning
or maintenance.
• If the device is assembled to spaces such as bathroom, care should be taken to assemble
the device so that people having shower cannot contact with the device and control buttons.
• The unit must only be used by people older than 8 years .
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
1.2 Specications
Eco/Nova series has a lifetime of approx. 4000/6000 hours on the heating element.
Lava series has a life time of approx. 8000 hours on the heating element.
model ECO/NOVA
14T/15T
LAVA
14T/15T
ECO/NOVA
18T/18R
ECO/NOVA
23T/23R
LAVA
18T
LAVA
23T/23R
power 1400W/1500W 1400W/1500W 1800W 2300W 1800W 2300W
volt 230-240V
US - 110-120V
230-240V
US - 110-120V
230-240V
US - 110-120V
230-240V
US - 110-120V
230-240V
US - 110-120V
230-240V
US - 110-120V
dimensions
and weight
14,5 x 80,5 x 23,0 cm
5,7 x 31,7 x 9,1 inch
ECO 2,6Kg - NOVA 3,0Kg
14,5 x 92,5 x 23,0 cm
5,7 x 36,5 x 9,1 inch
ECO 2,9Kg - NOVA/LAVA 3,5Kg

5
1.3 Safe distances required for installation, high temperature and re protection
• Never install your appliance on a combustible surface (plastics, nylon, carton etc.)
• During operation the surfaces of the unit are hot!
• The unit must not be fully or partially covered with inammable materials, as overheating
can result in a re risk!
• This product is not designed to be used by children or persons with reduced physical or
mental ability or a lack of experience and knowledge, unless instruction regarding the pro-
duct's use has been given by a person with responsibility for their safety or that this person
supervises operation. Children must be kept under supervision to ensure they do not play
with the product.
• The heater is equipped with a protective grill to prevent contact or to prevent large objects
from touching the hot lamp. The unit must not be used without this protective grill.
• Ensure that there are no inammable materials gathered on or close to the heater.
• The free space to the inammable material in the direction of radiation must be at least 1
meter (3 feet).
• Do not place the heater directly under the electrical socket.
• The cable and plug must not be placed inside the hot radiant area.
• Do not stick anything into the protective grid.
• Do not make use of your heater to light up cigarette or similar materials.
WARNING –TO REDUCE THE RISK OF FIRE
1. Do not place any objects such as furniture, papers, cloths, and curtains closer than 1m (3
feet) to the front of the heater and keep them away from the sides and rear when the heater
is plugged in.
2. Do not place the heater near a bed because objects such as pillows or blankets can fall o
the bed and be ignited by the heater.
3. Always unplug the heater if it is not being used.
4. Avoid the use of an extension cord because the extension cord may overheat and cause
a risk of re. However, if you have to use an extension cord, the cord shall be 2mm (14 AWG)
minimum size and rated not less than 10A.
5. Do not operate within 7.6m (25 feet) of ammable material (gasoline, alcohol etc.)
6. Never block the front grill of the heater.
7. Never attempt to service the heater without disconnecting its power source.

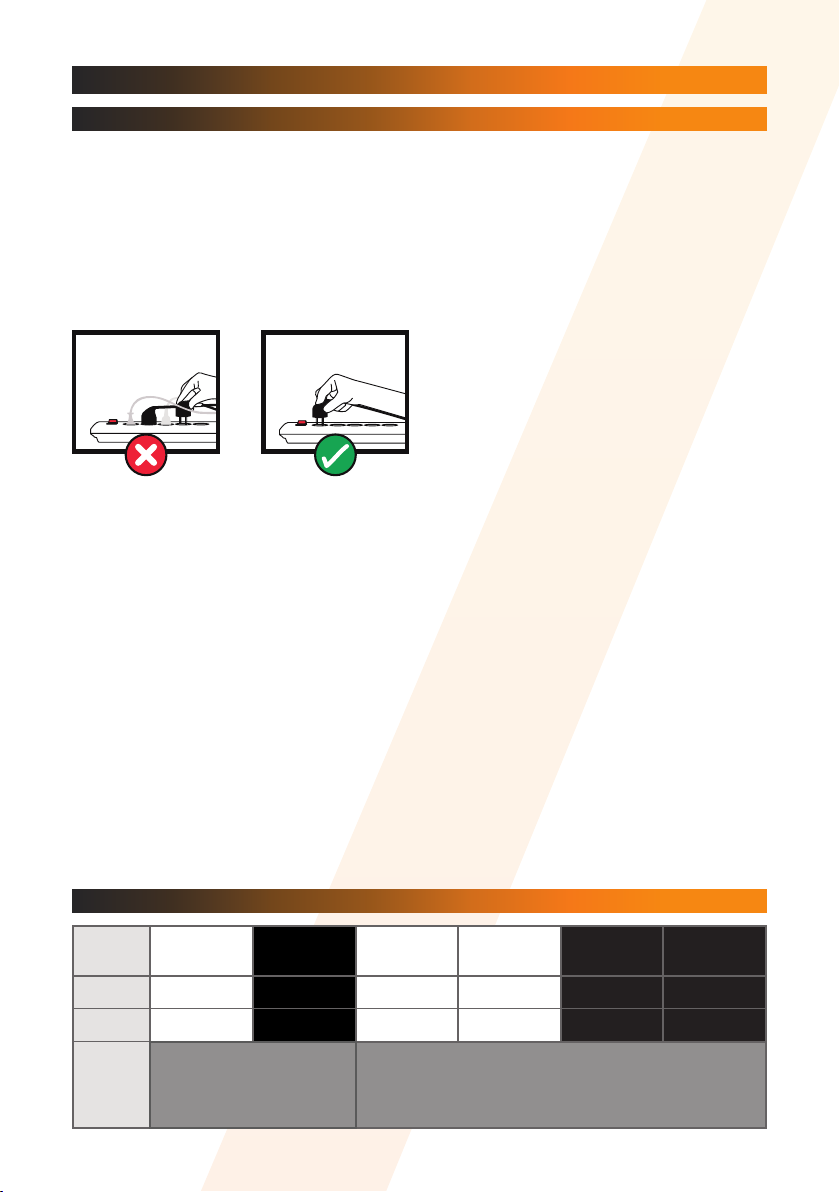

1.4 Maintenance and cleaning Instructions
• Unplug your heater rst.
• Never pull your power cable to unplug your heater
• Unplug power cable
EN

6
When the unit is used for the rst time or after a long period of disuse, smoke or odour may
result from dust or dirt that has collected on the element. This is completely normal and
disappears after a short time. The power supply to the unit must be disconnected during
all service, repair and maintenance work. The unit has no moving parts so the maintenance
requirement is small, but it must be kept clean and free from dust and dirt. If the reector
is not clean the thermal radiation from the unit will decrease and the heater will become
hotter. A large amount of dirt can cause overheating. The surface of the reector is sensitive
and must be cleaned with care. If the reector is dirty it must be cleaned or replaced by a
specialist.
1.5 Warranty
The warranty for Opranic Eco, Nova and Lava series is 2 years. Please read the warranty sec-
tion for terms for the warranty.
1.6 Repair and Service
Attention! Only technical services and persons authorized by Opranic may serve, repair and
replace the parts of this heater.
2. IP PROTECTION
IP (Ingress Protection) code in a product is a coding system dened for indicating protecting
levels provided by a case against access to dangerous section, entry of foreign materials
and water and for providing additional information about such protection. Protection class
number, the IP, is referred using a two digit number (IP XY). First digit (X) indicates protection
against gross particles (and of course against people) and second digit refers to protection
against uids. In general, the higher the digit is, the more protection provided to the product.
IP21 - Dripping water
Providing protection against
large objects ( ngers ) with
a diameter of 12,5 mm and
against dripping water (vertica-
lly falling drops) shall have no
harmful eect.
Electrical components in
Opranic IP21 protected pro-
ducts can be used under rain
protected and closed areas.
IP34 - Splash-proof
Providing protection against large
objects ( hand tools ) with a dia-
meter of 2.5 mm and against water
splashing against the enclosure
from any direction.
Electrical components in Opranic
IP34 protected products can safely
be used in outdoor environments.
IPX5 - Protection against water jets
Provides protection against large
objects ( tools ) with a diameter of 2.5
mm and water projected by a nozzle
(6.3 mm) against the enclosure from
any direction.
Electrical components in Opranic IPX5
protected products can safely be used
in outdoor environments.
Please read the label on the back of the heater for the IP level of your Opranic heater.

7
3. INSTALLATION

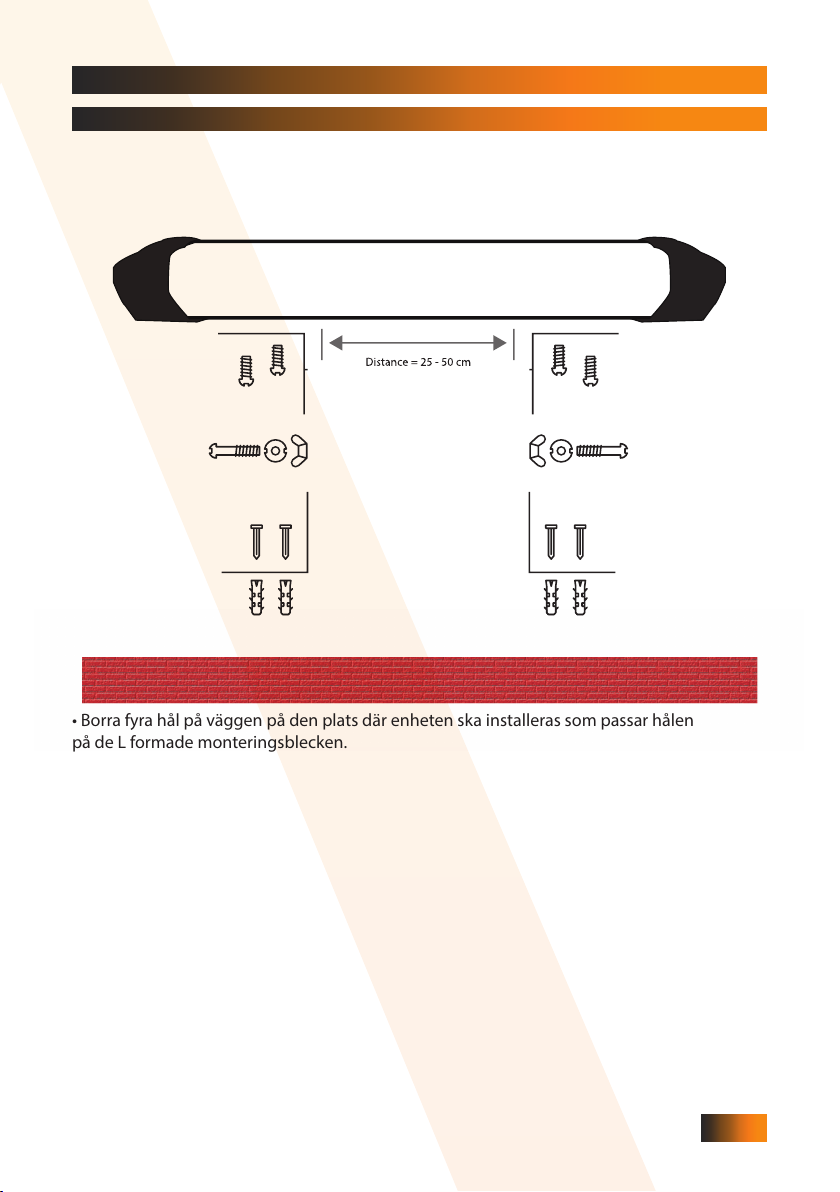

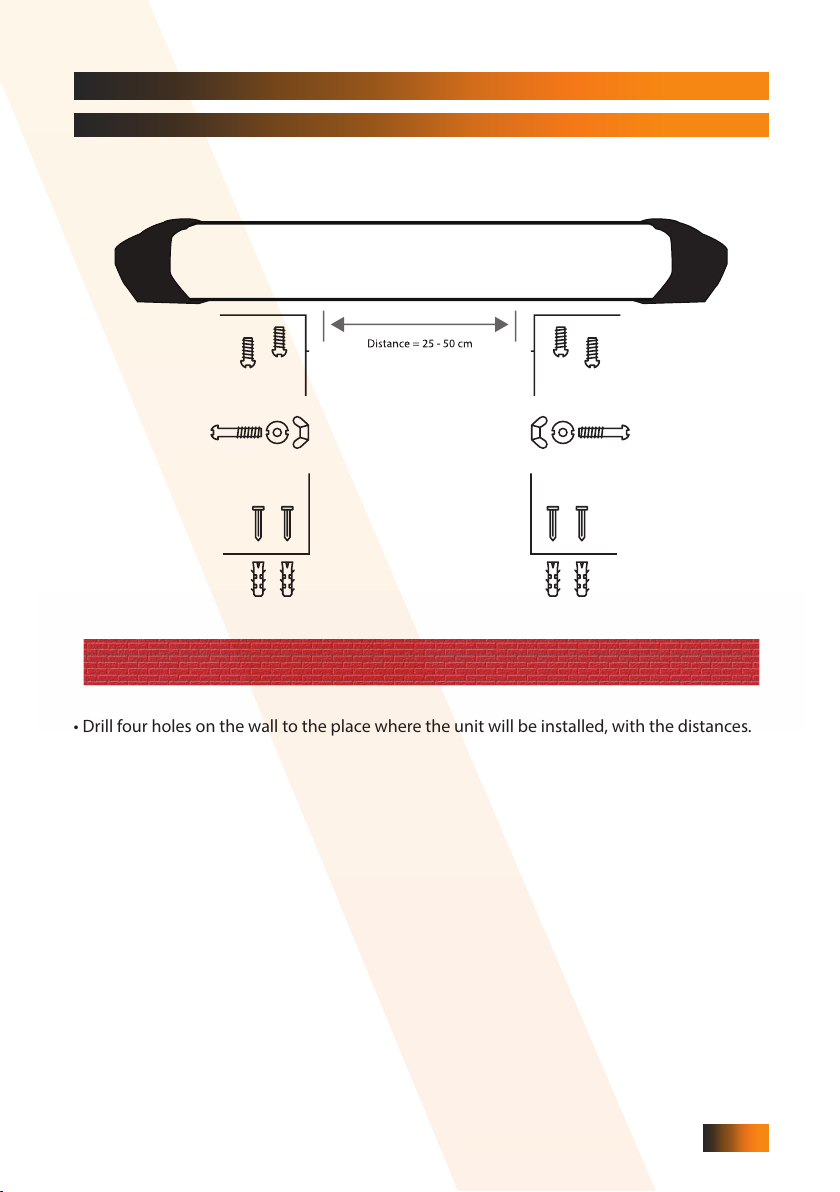

3.1 Installation Instructions
Attention! The appliance must be installed on the solid surfaces like concrete, wood or metal etc.
Never install on ammable surfaces! (Plastics, nylon vinyl etc.)
• Drill four holes on the wall to the place where the unit will be installed, with the distances.
• Insert the wall plugs (if needed), supplied with the unit, into the holes.
• Mount two of the L shaped legs on the wall using the screws supplied with the unit.
• Mount the other L legs on the unit using the four screws and the small wrench as shown in
(corresponding nuts are already built in on the body of the unit)
• Mount and x the L shape legs on the wall and on the unit respectively, using the bolts and
nuts and the washers and tighten.
• Depending on the area to be heated the angle of the unit can be adjusted between 0-45
degrees by the help of M8 Bakelite head bolt and nut xture.
• The heater can be mounted on the ceiling.
Warning! In case of an installation on the ceiling the heater may discolour the surface
depending on the surface material.
• Before operating the unit joints should be checked once again.
EN

8
(1) (2) (3) (4) (5)
SE: Takfäste
SE: Brännbart material
SE: Golv
SE: Tak
SE: Vägg
GB: Ceiling bracket GB: Flammable material GB: Floor GB: Ceiling GB: Wall
DE: Decken-halterung DE: Entammbares Material DE: Boden DE: Decke DE: Wand
TU: Tavan
TU: Yanıcı madde
TU: Zemin
TU: Tavan
TU: Duvar
ES: Soporte de techo ES: Material inamable ES: Suelo ES: Techo ES: Pared
FR: Console de montage au plafond FR: Matériau inammable FR: Sol FR: Plafond FR: Mur
A
B
min 45º
50

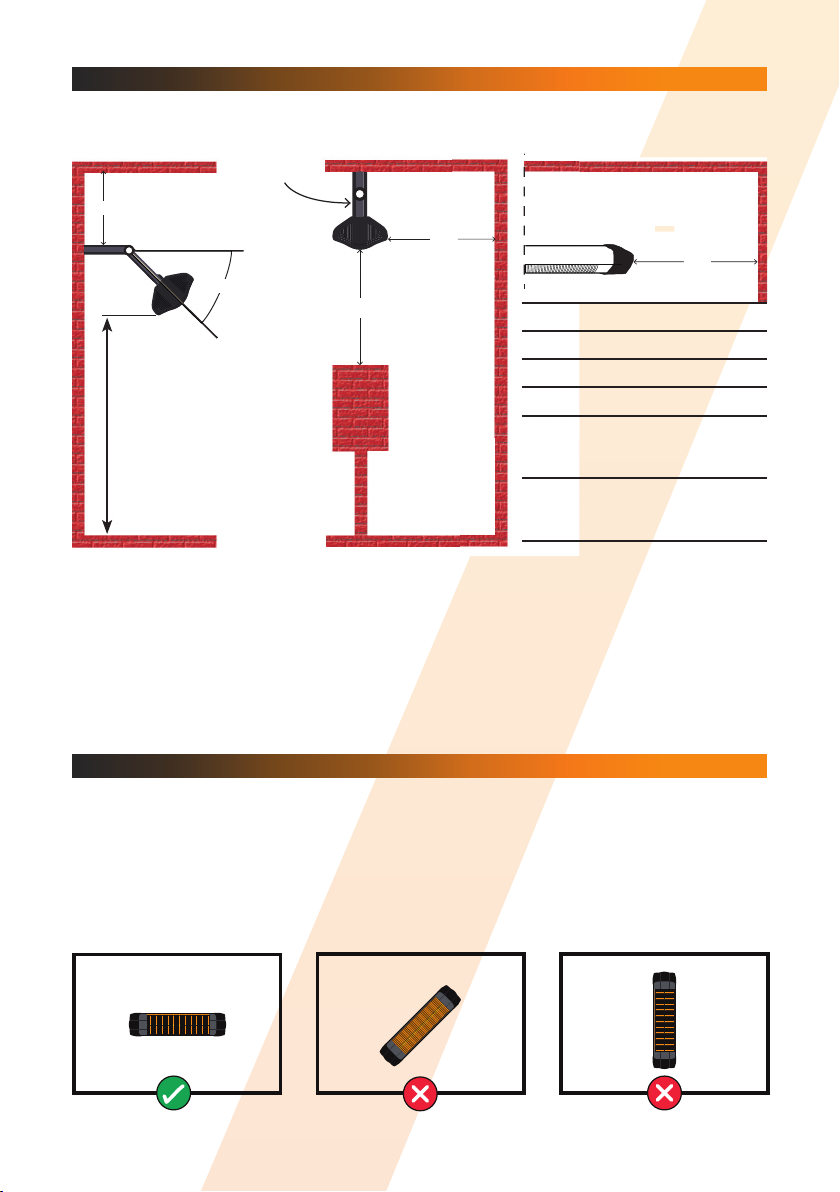

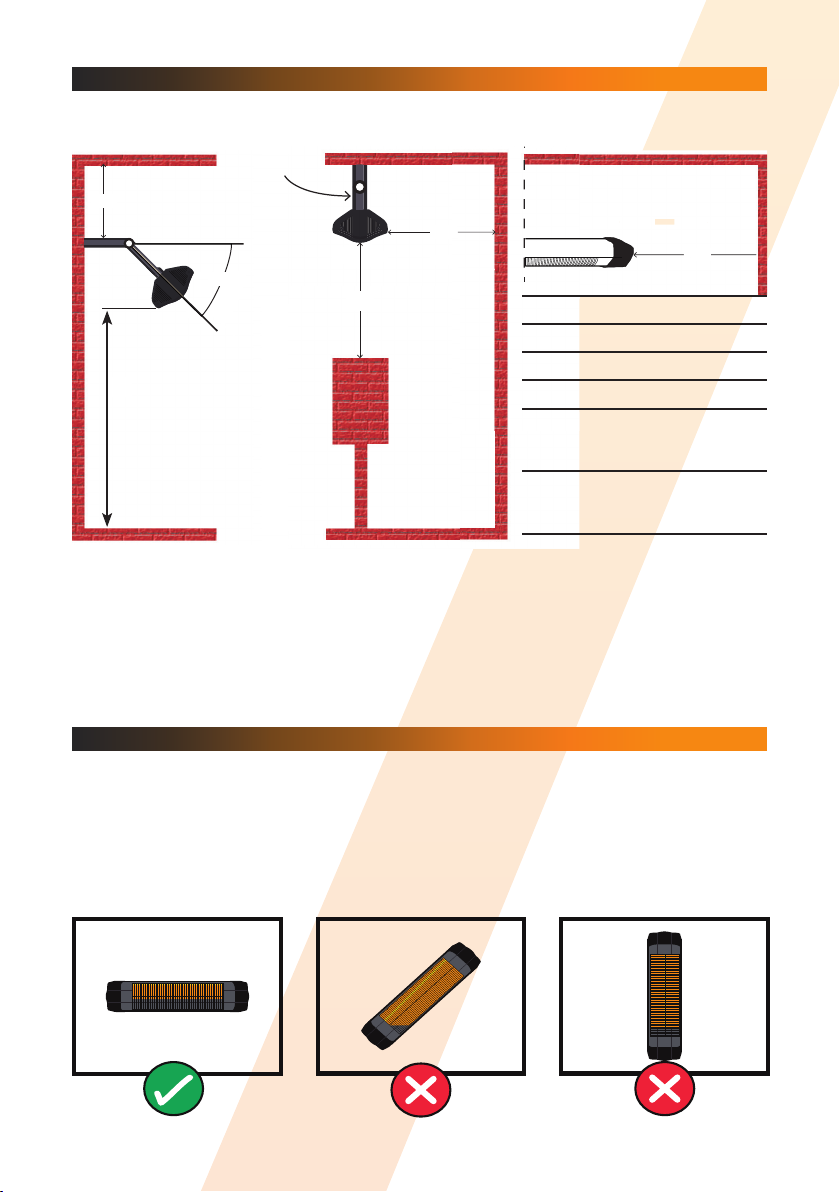

3.2 Installation Instructions Position + Distance
For minimum safety distances in case of horizontal installations. For minimum distances
from coverage area and other objects please see gure.
3.3 Installation Instructions with right and wrong positions
DIRECT YOUR HEATER TOWARDS THE MOST APPROPRIATE ANGLE
Do not let the light go out through the window, glasses etc. as the heater primarily heats the
locations onto which its light falls
NOTE: Opranic Eco, Nova and Lava series can only be used horizontally!
Maximum tilt / angle is 5 degrees.
If more than 5 degrees is used the heater will be damaged in a short time.
Minimum distance cm inch
Flammable material (2) A 100 39
Floor (3) B 180 71
Ceiling (4) min 45 down C 20 8
Ceiling 0
< 1800W
>1800W
C
40
60
16
24
Wall (5)
< 1800W
>1800W
D
40
60
16
24
C
D
D
1

9
4. OPERATING INSTRUCTIONS
Thermostatic version (Eco, Nova and Lava 14T/15T/18T/23T, the “T”
stand for thermostatic controlled)
You can adjust then thermostat level according to your comfort.
The heater operates constantly when the thermostat is at the
highest level.
You may reduce the energy consumption by adjusting the
thermostat according to your comfort
Switching OFF
When the appliance is not operated for long a term, cle-
aning or maintenance is conducted or when the location
of the heater is changed, the electricity connection is
turned o unplugging the power cord and adjusting the
thermostat in“0” mode.
Remote controlled version
(Eco, Nova and Lava 18R/23R
the“R” stands for remote controlled)
1. Point the remote control towards the receiver whilst using it.
Remote control will not work from a distance when strong ligh-
ting or sunlight is present. In this case, use the remote control just
in front of the control panel.
2. When you select a function with the remote control you will hear a‘beep’.
3. To turn on or o your heater press red button
4. To select heating level press the buttons between 1-5 as per your requirement.
Use two AAA batteries in your remote control .When the remote control is not used for a
long period, please remove the batteries to avoid leakage and damage.
Do not allow water or liquid to get into the remote control.
I
II
III
IV
V
®
®
off
max 6
5
4
3
2
on 1
EN

10
5. TERMS OF WARRANTY
Warranty by Opranic does not cover the defects arising out of the improper use the applian-
ce. The warranty does not cover the situations below:
1. The damages and defects arising out of improper use.
2. The damages and defects having occurred during the transportation after the delivery of
the product to the customer by the company.
3. The damages and defects arising out of low or excessive voltage, ungrounded plug usage,
faulty electricity systems, operating the appliance in dierent voltage values other than
specied in the instructions.
4. The damages and defects arising out of re and lightening.
5. The damages and defects arising out of repairs and maintenance by persons other than
Authorized Services.
6. The defects arising out of the breach of the instructions in the manual.
7. The damages and defects arising out of the transportation of the product instead of repair.
Attention! Faulty maintenance and cleaning are not covered by the warranty.
1. The dust and polluters in the environment.
2. Damage in the reector or lament due to faulty cleaning.
3. Faulty installation or dismantlement.
4. Operating with damaged lament, frame or power cord.
Above mentioned defects and services are not covered by the warranty.
Should this product be proven defective in workmanship or material, the consumer's sole
remedies shall be such repair or replacement as provided by the terms of this warranty.
Under no circumstances shall Opranic be liable for any loss or damage, direct, consequential,
or incidental, arising out of the use of or inability to use this product.
This warranty will be voided if the certicate of warranty lacks the stamp and signature of the
supplier as well as the date of purchase.
This warranty will become void if the serial number (if applicable), model number identica-
tion, or brand have been wholly or partially removed or erased.
All Opranic brand products have CE certicate
This symbol on the product or its packaging indicates that the appliance cannot be treated
as normal domestic trash, but must be handed in at a collection point for recycling electric
and electronic appliances.
Your contribution to the correct disposal of this product protects the environment and the
health of your fellow men. Health and the environment are endangered by incorrect dispo-
sal. Further information about recycling of this product can be obtained from your local town
hall, your refuse collection service, or in the store at which you bought the product.
