Osprey Talon G1 User manual

© 2016 Osprey Video AG. Osprey®is a registered trademark of Osprey Video AG. All other trademarks are the property of their respective owners. Product specifications and availability may
change without notice.
Osprey® Talon G1 Decoder User
Guide

1
Contents
Overview....................................................................................................................................3
Warranties ....................................................................................................................................... 3
Product Description ......................................................................................................................... 4
Audience .......................................................................................................................................... 4
Warnings.......................................................................................................................................... 4
Installing additional software .......................................................................................................... 6
Connecting to the Internet .............................................................................................................. 6
Package contents ............................................................................................................................. 6
Getting Started..........................................................................................................................7
Prerequisites .................................................................................................................................... 8
Osprey Talon front panel diagram................................................................................................... 9
Osprey Talon back panel diagram.................................................................................................... 9
First time set up ............................................................................................................................. 10
Web Interface ................................................................................................................................ 11

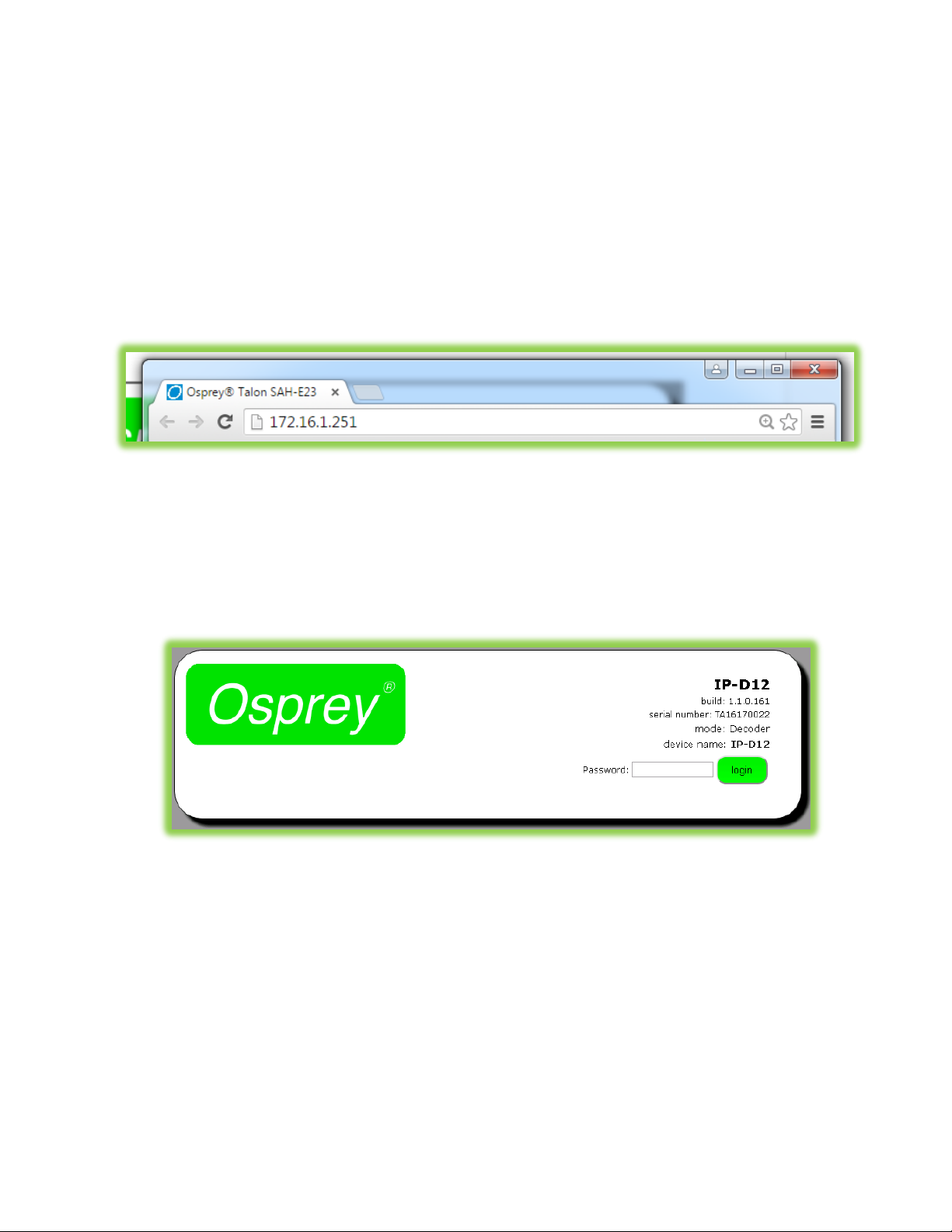

Login............................................................................................................................................... 11
Tab ID.......................................................................................................................................12
System Control Tab................................................................................................................13
Talon IP Setup ................................................................................................................................ 13
Device Management................................................................................................................14
Set Name........................................................................................................................................ 14
Set Password.................................................................................................................................. 14
Reboot............................................................................................................................................ 14

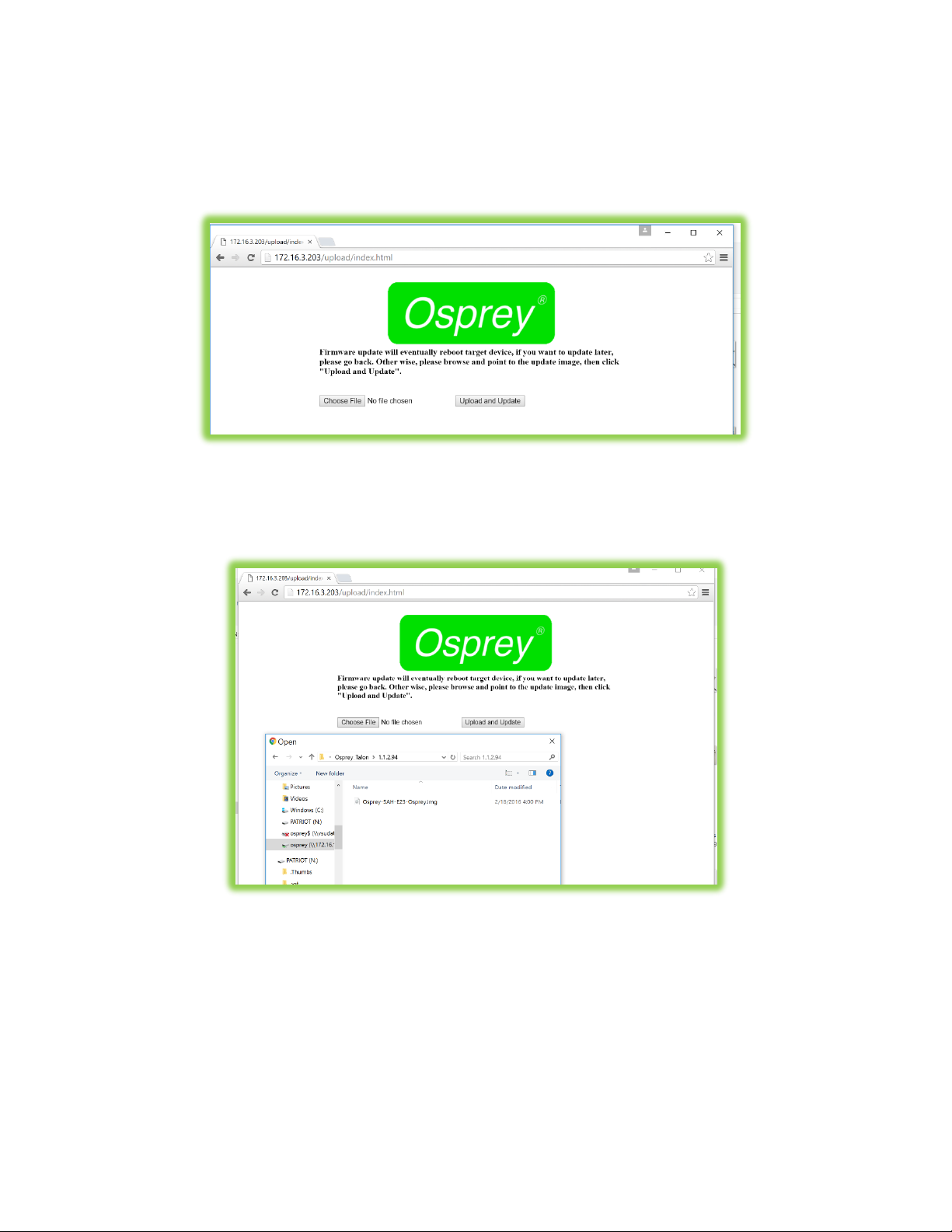

Update Firmware ........................................................................................................................... 15

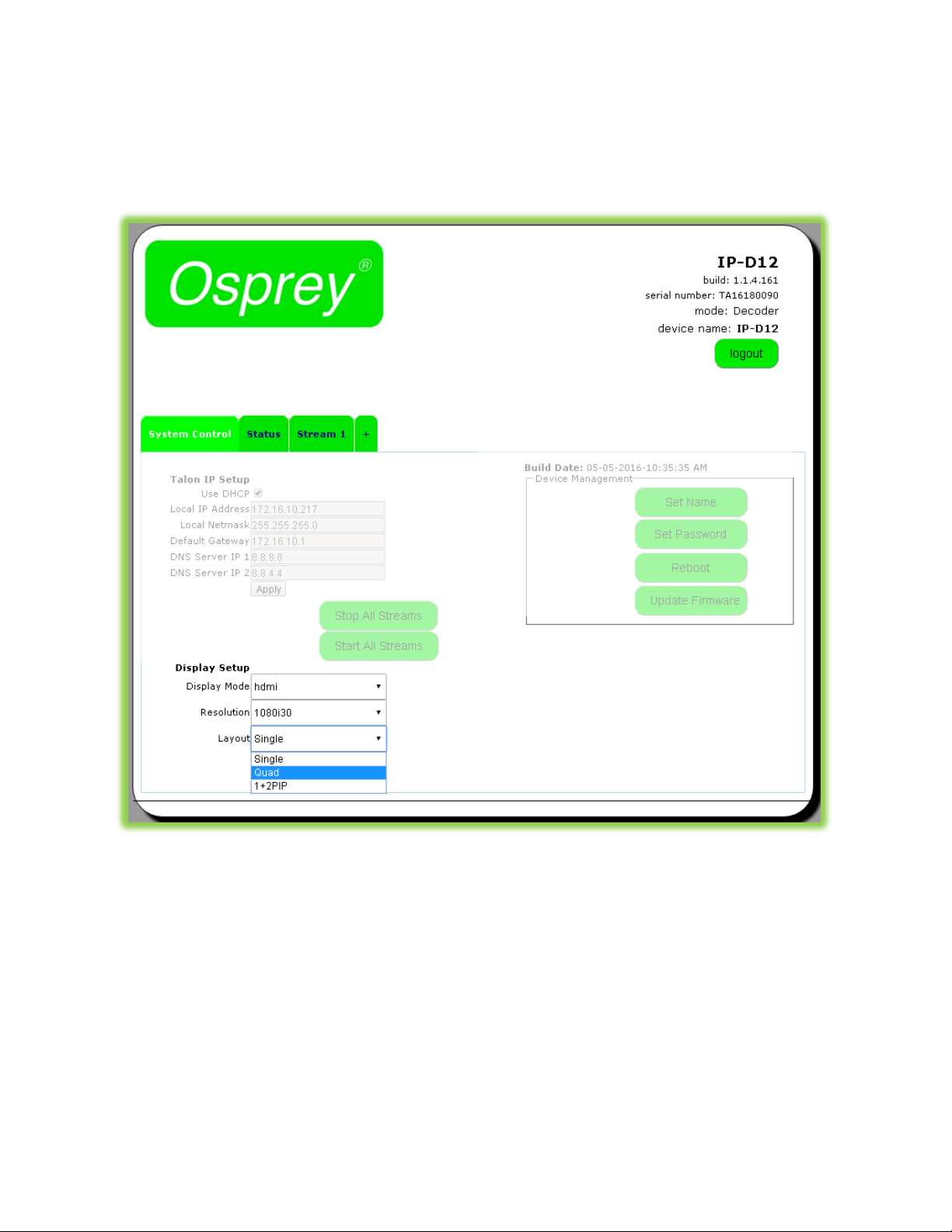

Display Setup................................................................................................................................ 17
Layout / Status Tab....................................................................................................................... 18
Decoder Setup / Input Type ......................................................................................................... 19
Decode from file........................................................................................................................... 20
Audio ............................................................................................................................................ 20
Channel Control Buttons................................................................................................................ 20
Creating Additional Streams .......................................................................................................... 21
Finding your decoder with Osprey BOSS....................................................................................... 21
Appendix: Osprey Hardware Specifications.........................................................................22

2
© 2016 Osprey Video AG. All rights reserved.
Osprey®is a registered trademark of Osprey Video AG. Microsoft®, Windows®is a registered trademark of Microsoft Corporation. Any
other product names, trademarks, trade names, service marks, or service names owned or registered by any other company and
mentioned herein are the property of their respective companies.
No part of this specification may be reproduced, transcribed, transmitted or stored in a retrieval system in any part or by any means without the express written consent of Osprey Video.
Osprey Video reserves the right to change any products herein at any time and without notice. Osprey Video makes no representations or warranties regarding the content of this document,
and assumes no responsibility for any errors contained herein.
FCC Notice
The Osprey Talon has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
If the above measures are unsuccessful, please consult the dealer or manufacturer of your radio or television receiver, or speak with an experienced radio/TV technician.
Shielded Cables: Connections between this device and peripherals must be made using shielded cables in order to maintain compliance with FCC radio emission limits.
Modifications: Modifications to this device not approved by Osprey Video could void the authority granted to the user by the FCC to operate the device.
Note to CATV Installer: This reminder is provided to call to the CATV installer’s attention Section 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Product Disposal Information
Dispose of this product in accordance with local and national disposal regulations (if any), including those governing the recovery and recycling of waste electrical and electronic equipment
(WEEE).
RoHS Compliant: Osprey Video is committed to compliance with the European directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment, Directive 2002/95/EC, the RoHS directive.
For current RoHS statement, visit www.ospreyvideo.com
Osprey Video, 1628 Valwood Pkwy, Suite 200, Carrollton, TX 75006 USA

3
Overview
Thank you for purchasing the Osprey® Talon series video decoder from Osprey Video. This user guide
provides step-by-step instructions for installing and using your new video decoder. For the latest Osprey
product information and news, visit our website at www.ospreyvideo.com.
Warranties
For complete warranty details, refer to the specific warranty included with each product. General
warranty information includes the following:
Limited Warranty
Osprey Video warrants its hardware products against
defects in material and workmanship under normal use
for the period of one year (12 months) from date of
sale. Where specific Osprey Video warranties exist that
provide more substantial coverage, notwithstanding
the warranty provisions herein, such product
warranties control and preempt or supersede the
warranty provisions herein.
Reseller Pass Through of
Standard Limited Warranties
Resellers pass the Osprey Video standard limited
warranties for the products through to the customer
without modification. Any modification of a product
voids the Osprey Video or any other existing or
available warranty.
FEEDBACK:
We greatly value your input. Please direct any questions, comments or support issues to
[e-mail]
[phone]

4
Product Description
The Osprey Talon is a small form-factor video decoder for RTP/UDP Unicast and Multicast streams.
Audience
The audience for this user guide includes anyone who uses or administers the Osprey Talon series. Users
should have a basic technical understanding of streaming media. This user guide provides information
on the Osprey Talon series only.
Warnings
Only trained and qualified personnel should install, replace, or service this equipment.
Do not attempt to open the case of the system. If you do, you incur a high risk of electrical shock that
may cause damage to the system or personal physical injury or death to you and/or others. No user-
serviceable parts exist inside the system. If you open the system case or make unauthorized changes to
the case, you void the warranty.
Install the system away from any heat sources. This remains vital to the safety of the product users. Do
not install the system near any heat sources such as:
Radiators
Heat registers
Stoves
Other heat-producing equipment
WARNING! Installing the system near heat sources could result in personal injury or
death.
Never insert objects of any kind into the system through any system openings, as the
objects may touch dangerous voltage points, short out parts, and result in a risk of
fire or electrical shock.
Do not stack the system atop or below other electronic devices as this can cause heat build-up and
vibration of the system. These conditions can damage the system thereby voiding the limited warranty.
You may stack multiple Osprey Talon units as these systems accommodate stacking.
Do not install the system in any area where the temperature is less than 5°C or more than 40°C. Transfer
from temperature extremes may cause condensation. Let the system remain unplugged at room
temperature for at least 45 minutes before connecting it.

5
Use an outlet with surge suppression or ground fault protection when using the system. Unplug the
power cord from the wall outlet, disconnect the network connection, and disconnect the lines between
the system and the video source for added protection:
During a lightning storm
During dangerous weather conditions
When the decoder remains unattended or unused for long periods
Reduce the risk of fire or electric shock. Do not expose the system to any rain or moisture. Exposing the
system to rain or other types of moisture could result in system damages. Do not place any liquids on or
near the system. If you place liquids in any form on or near the system, do so at your own risk, for you
incur a high risk of electrical shock that could occur and cause damage to the system.
WARNING! Exposing the system to rain or other types of moisture
could result in physical injury or death. Any liquids on or near
the system may result in electrical shock and personal injury or
death.
Refer all servicing to authorized service personnel. You must have authorized personnel only service any
damaged system. Relevant damage may occur with but is not limited to the following:
An unplugged or damaged power supply cord
Spilled liquid on the system
Fallen objects in or on the system
Appliance exposure to rain or other moisture or liquid
Failure to perform as described in the User Guide
A dropped system
Osprey Video assumes no liability or responsibility for any damaged system that clients continue using.
Use only attachments, accessories, or equipment specified by the manufacturer with the system. Using
accessories or attachments not recommended by the decoder manufacturer voids the Limited
Warranty.
Do not attempt to service the system yourself. If you open or remove covers, you may be exposed to
dangerous voltage. Such action voids the Limited Warranty. Refer all servicing issues to authorized
service personnel only.
The plug-socket combination that serves as the main disconnecting device must be accessible at all
times.
Protect the power cord from anyone walking on it and being strained or pinched particularly at plugs,
electrical receptacles, and the point where the power cord exits the system.
Do not use adapter plugs or remove the grounding prong from the power cable.

6
Use only the type of power source indicated on the marking label on the back panel of the unit to
operate the system. Unplug the system power cord by gripping the plug and removing it from the power
source. Do not pull the cord to remove the power source from the system.
Do not plug the system into a wall outlet that contains an overload of electrical cords or power
strips/extension cords. This type of overload may result in fire or electrical shock risks.
Always handle the system carefully. Always avoid excessive shock and vibration to the system. Excessive
shock or vibration can damage the system.
WARNING! Excessive shock or vibration to the system may result in electrical shock
and personal injury or death.
Installing additional software
The Osprey Talon systems run an embedded version of the Linux operating system (OS). Installation of
additional software on the Osprey Talon systems is not allowed.
Connecting to the Internet
Never connect an Osprey Talon system to the Internet through a direct connection without the use of a
firewall. We recommend taking precautions against unwanted access such as installing systems behind a
router or firewall. The speed of the router or switch should match or exceed the speed of the system’s
network card. See your network administrator for recommendations.
Package contents
Completely unpack all contents from the box and inspect each item for damage. Ensure that you have all
the components listed below:
System
Osprey Talon
Power Supply
AC to DC converter 12V International
Hardware
Mounting Brackets
WARNING! Read the installation instructions before connecting
the system to the power source.

7
Getting Started
Before you can use your Osprey Talon decoder, you first need to set up and configure it. This chapter is
dedicated to providing you with the details and step-by-step instructions you need to make your
installation as quick and easy as possible.
Here are three starting requirements:
AC power source (100 - 240 V)
IP connection and/or Internet connection on a dynamic host configuration protocol/domain name
server (DHCP/DNS) network.
A ‘configuration host’ system
A configuration host is a networked PC computer running a compatible HTML browser. The
browser on the host will be used to access the configuration web page on the Talon decoder.
There is also a small application called ‘Osprey BOSS’ that is used to locate and identify
Talon on the local network. BOSS works with PC, MAC and Linux. Once Talon has been
identified on the network any HTML browser can be used to configure your decoder.
The Osprey Talon decoder, an easy-to-use device that allows you to:
Connect to a compatible browser on a dynamic host configuration protocol/domain name server
(DHCP/DNS) network.
Configure and connect your audio and video stream to the Osprey Talon.
Select your output formats and settings.
Begin receiving your media stream.
You can configure and use the Osprey Talon straight from the box. Use the web interface for setting
options and controlling your Osprey Talon from another networked computer.
This section addresses the high-level actions you must perform to physically connect and set up your
Osprey Talon video decoder.

8
Prerequisites
Before connecting the Osprey Talon decoder, ensure you comply with the following prerequisites:
All packaged items are undamaged and in working order.
Your environment meets all starting requirements.
Safety instructions, notices, and warnings detailed in “Before you Begin” including:
FCC Notice
Environmental Notices
Warnings
You must complete the following tasks to setup the Osprey Talon decoder:
Address and comply with the prerequisites above.
Connect the Osprey Talon decoder using supplied power source.
Connect the Osprey Talon decoder to an IP network with DHCP enabled.
Access the ‘Configuration Host’computer on the same network.
Start the ‘Osprey BOSS’ application.
Select the Talon that matches your serial number.
Configure the Osprey Talon decoder.

9
Osprey Talon front panel diagram
You should familiarize yourself with the front panel controls for the Osprey Talon. Besides the Power
Switch and USB Port, there are indicator lights that are hidden until illuminated.
Osprey Talon front panel
A
Power On/Off
B
USB 2.0
Osprey Talon back panel diagram
A B C D
A
1G Ethernet
B
Service
C
HDMI
D
9 –17 VDC

10
Osprey Talon Status Lights
There are two lights on the front panel of Talon that indicate its status.
Single Red indicates that Talon’s power is on but is not ready.
Red and Orange indicates Talon is booting. A and B will flash half way through the boot cycle
Single Blue indicates that Talon is ready.
Blue an Orange indicates that Talon is decoding
First time set up
You should read all instructions, notices, and warnings in the previous section prior to getting started
with your new Osprey Talon hardware for the first time. Also, ensure you have all required parts and
meet all system requirements before installing this product.
Do not continue with the installation if you find any components missing or damaged. Contact the
Osprey reseller where you purchased your Osprey Talon system for assistance in obtaining any missing
or replacement parts.
Connecting to an electrical power source
The Osprey Talon ships with an AC to DC converter 12V.
To connect the power source:
1.
Attach the connector end of the AC/DC adapter to the Osprey Talon.
2.
Plug the other end of the cable into a wall outlet or surge protection enabled power strip
connected to a wall outlet or other common power source.
WARNING! The plug-socket combination must remain accessible
at all times as it serves as the main disconnecting device.
Do not work on the system or connect or disconnect cables
during periods of lightning activity.

11
Web Interface
Talon is configured and controlled exclusively from an internal webpage. This page was designed to
provide easy access to all of the configuration features of the Talon. Its simplicity makes it easy to use
even from tablets and smart phones.
Login
To login to the Talon page, first enter the IP address of Talon in a web browser (show below) and press
enter.
By default, the Talon receives its IP address via DHCP. If you are unable to determine the address of your
decoder, we have created an application for finding Talon and performing some critical remote
functions. Please consult the section labeled finding your decoder with Osprey BOSS at the end of this
user guide.
Your browser will be directed to the Talon Web Interface. The default password is ‘osprey’. For
increased security always change the default password.
Upon login, you will reach the home page of the web configuration site.

12
Tab ID
The tabs on the front page provide access to the available configuration features of the Talon.
System
Control
IP Setup, Set Device Name, Set Password, Update Firmware, Select
Mode
Status
Displays real time information regarding streams and inputs
Stream
1
Contains all streaming settings for one output stream including source
and output setup.
+
Selecting this item allows you to add additional decoding channels up
to a total of 4.

13
System Control Tab
This tab accesses most of the administrative functions of the Talon.
Talon IP Setup
By default, Talon receives its IP address via DHCP. If you need to use a manual address it can be set in
the IP setup dialog box on the System Control page. If you are not familiar with the settings found here
check with your system administrator before changing any settings.
Feature
(default)
Description
IP Address
Automatically Assigned
Sets the IP address
Netmask
Automatically Assigned
Sets the netmask
Gateway
Automatically Assigned
Sets the gateway
Use DHCP
Checked
Enables/Disables DHCP

14
Device Management
Device management tasks allow the configuration of operating system features. These features aren’t
accessed on a regular basis because they are not involved in the configuration of the decoder itself.
Set Name
The model designation for Talon is loaded as the default device name. To easily distinguish multiple
Talons, you can create a new name here.
Set Password
The default password is “osprey”. In order to maintain device security, it is recommended you change
the default password.
Reboot
Reboot performs a complete power reset of the device. Make sure you save all of your settings before
rebooting.

15
Update Firmware
Talon firmware can be easily updated. Osprey recommends that you check the Osprey Video webpage
upon receipt of your Talon to ensure that you have the very latest version. There are two methods.
Updating via the Talon Web page.
1. Download the update from the Osprey Video webpage and save it on the host computer.
2. Login to the Talon via the web page a click the System Setup tab.
3. Click the Update Firmware tab.
4. From the update page click Choose File.
5. From Explorer select the Image file. This can be on the host hard drive or on a Flash drive.
6. Click Upload and Update
7. Talon will install the new image and automatically restart.

16
Updating via Flash Drive
In the event you cannot access the Talon web page, it is possible to update directly from a Flash drive.
Insert a Flash drive in your host computer.
Format the drive as FAT (do not use FAT32 or NTFS)
Paste the image file to the root of the Flash drive.
Insert the Flash drive in the Talon USB port.
Restart the Talon
Wait at least 5 minutes until you are certain Talon has restarted.
Remove the Flash drive
Talon will silently update its image file and restart.
NOTE: For all image updates
Talon stores passwords, IP settings and Saved Profiles in non-volatile memory. These settings will be
saved and made available to the restored image.

17
Display Setup
You can set the Display Mode, Resolution and Layout on this page.
Display Mode
Currently the only available mode is HDMI. Later Talon versions my offer different output settings.
Resolution
Set the resolution to match the optimum settings for the display monitor or television.

18
Layout
Available settings are Single, Quad and 1+2PIP. For 1+2PIP the primary video will be Stream 1.
NOTE: Layout can be changed while the decoder is running. The screen will go blank for a few seconds
and then resume with the new layout. Any screen section that does not have a stream assigned to it will
appear black.
Status Tab
The Status tab provides gives basic status information about all of the decoder channels currently
running on Talon. Be sure to refresh the page to ensure your data is current.

19
Decoder Setup
All configuration for actual decoding is found under the tab marked “Stream (1)”. If your interface
doesn’t have a tab marked “Stream” simply click on the tab marked “+” and one will be created
automatically. Additional streams may be created by clicking the “+” up to a maximum of 4 streams.
Input Type
Talon Decoders accept RTP and UDP streams. Select the protocol of the input you wish to use. If the
stream in Unicast only the Port must be specified. If the stream is Multicast the dialog box opens to
allow the IP address of the stream.
