Osprey 4K-SC Operating instructions

HARDWARE ENCODER
4K60 10-bit
H265 HEVC | H264 AVC
Installation and Operation Guide V1.0
Models:
4K-SC
UHD-SC
TALON Encoder 1 www.ospreyvideo.com
© 2023 Osprey Video. All rights reserved. Osprey® is the registered trademark of Osprey Video. Any other product names, trademarks,
trade names, service marks, or service names owned or registered by any other company and mentioned herein are the property of
their respective companies. No part of this specification may be reproduced, transcribed, transmitted or stored in a retrieval system in
any part or by any means without the express written consent of Osprey Video. Osprey Video reserves the right to change any
products herein at any time and without notice. Osprey Video makes no representations or warranties regarding the content of this
document and assumes no responsibility for any errors contained herein.

TALON Encoder 2 www.ospreyvideo.com
Contents
Introduction
Hardware Features Talon 4K-SC
Buttons and LED’s Talon 4K-SC
Hardware Features Talon UHD-SC
Buttons and LED’s Talon UHD-SC
Network Configuration
Encoding Features
Web Interface - Configuration
Overview
Dashboard
System
Device Settings
USB Storage
Network Settings
Date & Time
LCD, LED, Button Config
Web Interface - Channel Setup
Output Protocol
Video Archiving
Streaming Protocols
RTMP, RTMPS, UDP
RTP, SRT
RTSP, WebRTC
Zixi
Video Encoding Settings
Audio Encoding Settings
Web Interface - Status Page
Web Interface - Actions
Start / Stop
Web Interface - Support
Firmware Updates
Factory Restore
Factory Defaults
Licensing
Optional Enterprise and Security Features
Dynamic DNS Configuration
VPN Status Front LED’s and Display
Secure Server (HTTPS)
Advisory Notice and Consent
KLV Metadata
Whitelist /Firewall
Open VPN
OpenConnect VPN
Opensource Listing
Safety and Compliance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

TALON Encoder 3 www.ospreyvideo.com
Hardware Features 4K-SC
Power
Switch
Power / Boot
LED
Status LED’s
Multi Function
Button
Status Display
GigE
Ethernet
USB 3.0
12G-SDI Loopout
12G-SDI
Input
HDMI 2.0 Input
12VDC Power
•Power Switch Physical ON/OFF Switch
•Power / Boot LED Red at Power Up, turning blue once booting process is complete
•Status LED’s Status LED’s that can be configured in Talon UI – System –IO Configuration
•Multi Function Button Start, Stop, Factory Reset (Hold until message “Release Button ….” appears on the display)
•Status Display Displayed information can be configured in Talon UI –System –IO Configuration
•GigE Ethernet One Gigabit Ethernet RJ45 connection
•USB 3.0 Save to File for an MP4 copy of the live stream
•12G-SDI Loopout Loopout of the SDI Input
•12G-SDI Input SDI Input up to DCI60
•HDMI 2.0 Input Non-HDCP compliant HDMI 2.0 input
•12VDC Power Locking 12V Power Input
•Talon Encoder
•Locking 12VDC / 36W Power Supply
•Mounting Brackets
In the box

TALON Encoder 4 www.ospreyvideo.com

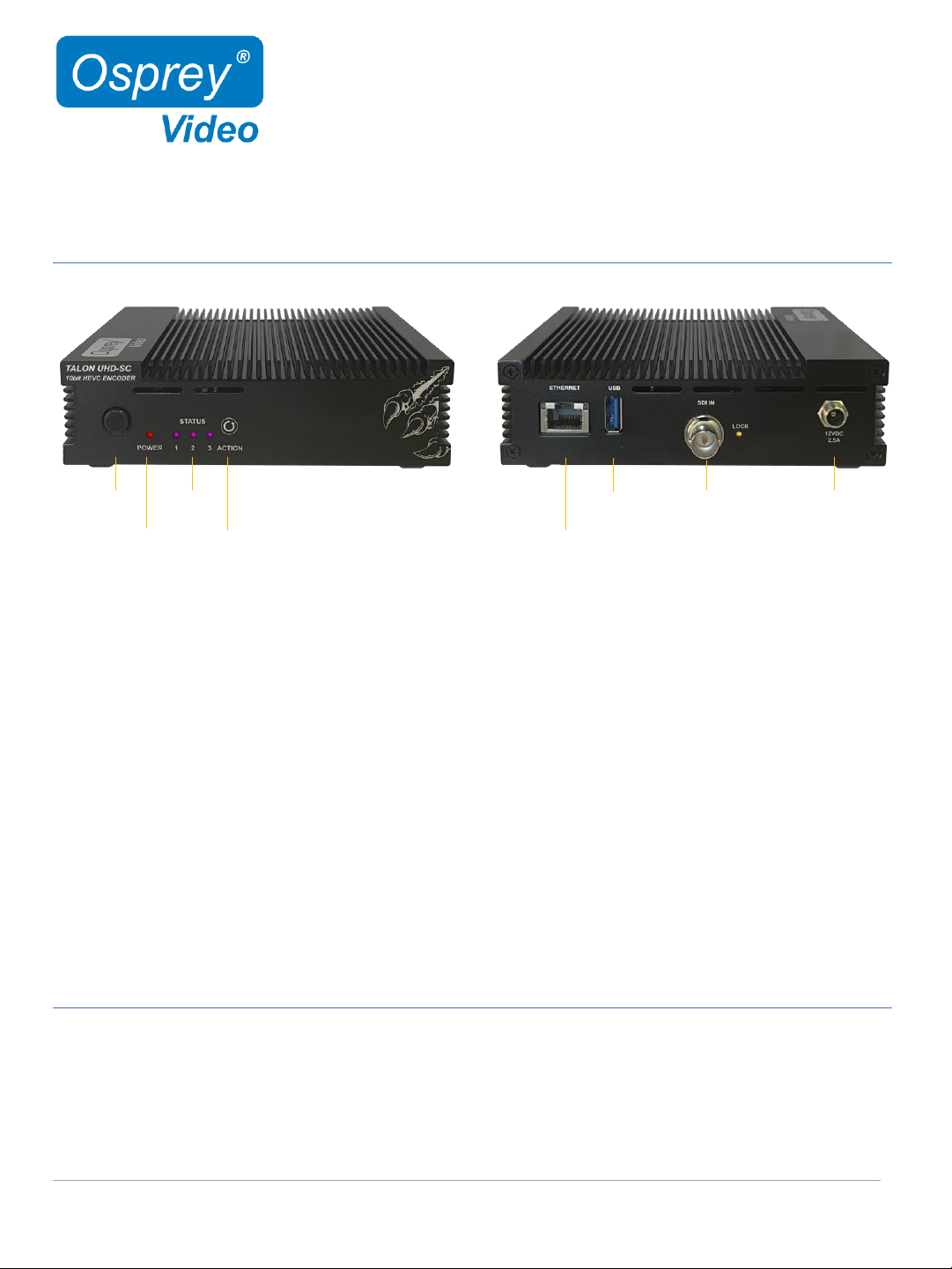

Hardware Features UHD-SC
Power
Switch
Power / Boot
LED
Status LED’s
Multi Function
Button
GigE
Ethernet
USB 3.0 12G-SDI
Input 12VDC Power
•Power Switch Physical ON/OFF Switch
•Power / Boot LED Red at Power Up, turning blue once booting process is complete
•Status LED’s Status LED’s that can be configured in Talon UI – System –IO Configuration
•Multi Function Button Start, Stop, Factory Reset (Hold until message “Release Button ….” appears on the display)
•GigE Ethernet One Gigabit Ethernet RJ45 connection
•USB 3.0 Save to File for an MP4 copy of the live stream
•12G-SDI Input SDI Input up to UHD60
•12VDC Power Locking 12V Power Input
•Talon Encoder
•Locking 12VDC / 36W Power Supply
•Mounting Brackets
In the box

TALON Encoder 5 www.ospreyvideo.com
Network Configuration
Important! Talon Encoders ship from the factory in DHCP mode. Please ensure your host PC and Talon are connected to the same
network supporting DHCP.
1. Connect Talon to your network using a CAT5 or faster Ethernet cable
2. Connect Talon to power using the supplied 12V adapter. Ensure the barrel connector is fully engaged and locked
3. Power up Talon with the front power switch
•Red “Power” LED will turn blue once the booting process is complete
•The assigned IP address will display (4K-SC only). This might take up to a minute

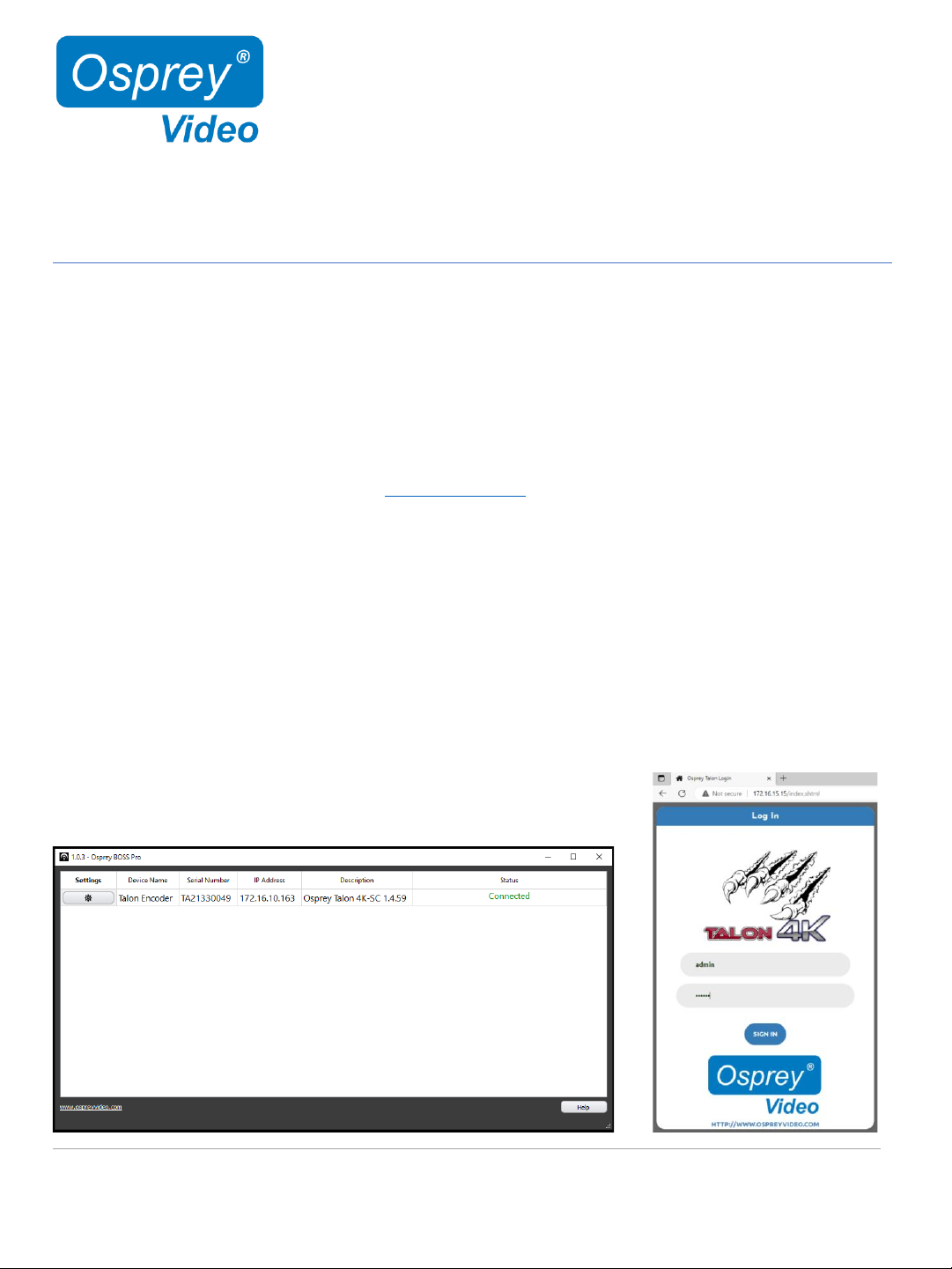

4. Connect to Talon from your host PC
•Option #1: Type the IP address into your web browser
•Option #2: Download “Boss Pro” from www.ospreyvideo.com to find all Talons on your network
5. Default login credentials
•Username: admin
•Password: osprey
Setting up Talon without Network access or with Network without DHCP server using APIPA
1. Verify your PC is set to Automatic IP
2. Connect Talon directly to your PC with an Ethernet cable (ensure the PC doesn’t have network connection though Wifi, USB, etc)
3. Follow above instructions beginning with step 2.
APIPA - Automatic Private IP Addressing (APIPA) is a feature of Windows-based OS -- included since Windows 98 and Windows ME --
that enables a Dynamic Host Configuration Protocol client to automatically assign an IP address to itself when there's no DHCP
server available to perform that function.

TALON Encoder 6 www.ospreyvideo.com
Encoding Features
•Simultaneous Streaming and Recording in H.265 or H.264 of 12G-SDI or HDMI* Input
•Option for two simultaneous independent encodes of a single input
•Segmented recording to Network Share or USB Drive
•16 Audio Channels of SDI or 8 Audio Channels of HDMI*
•Up and Down Scaling up to 4K
•Frame Rate Conversion
•De-Interlacing
•Color Space support up to 10-bit 4:2:2
•Preservation of Ancillary Data from SDI Input
* HDMI feature only available on Talon 4K-SC

TALON Encoder 7 www.ospreyvideo.com
Page Intentionally left blank

TALON Encoder 8 www.ospreyvideo.com

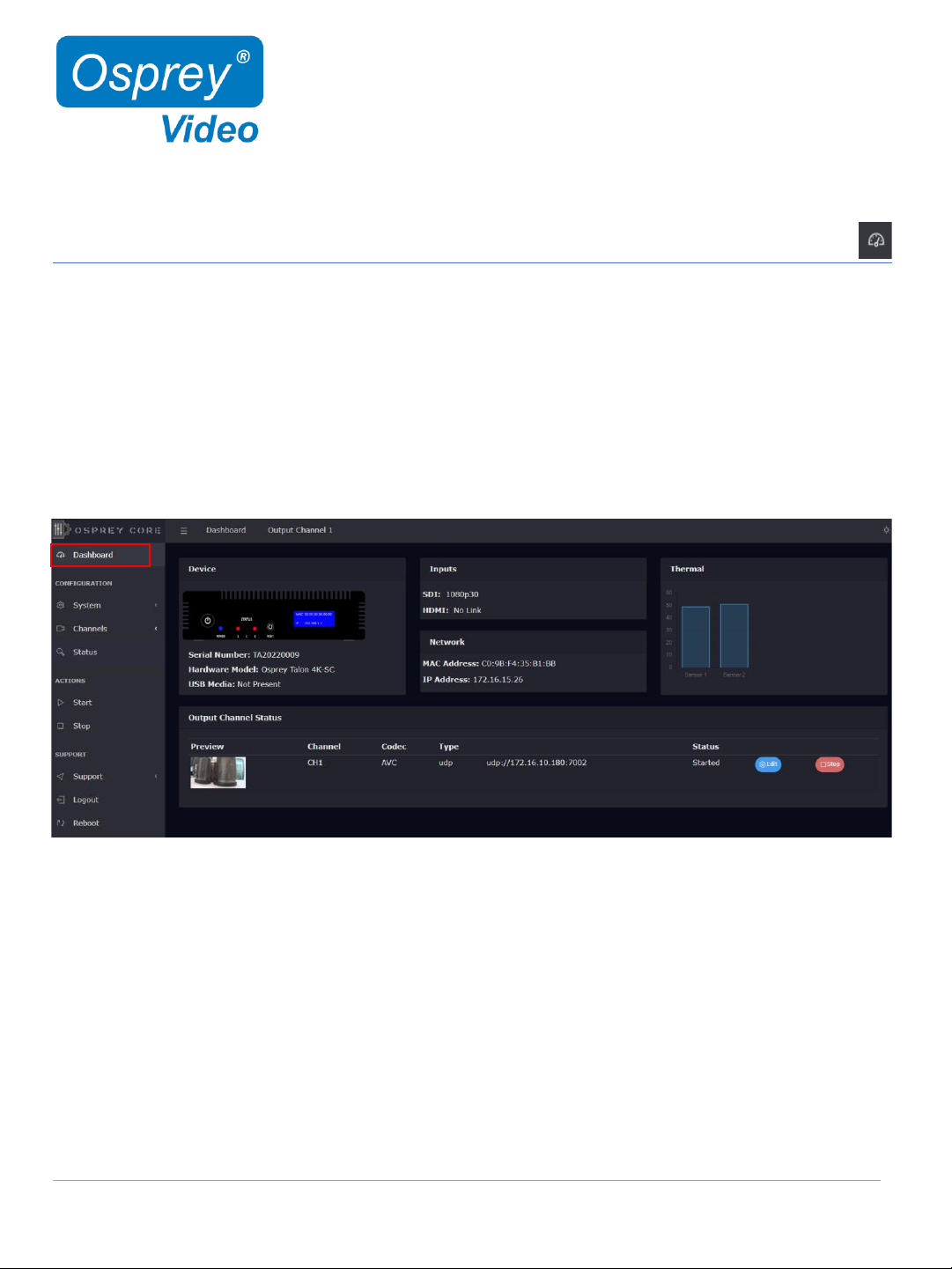

Web Interface - Dashboard
The Dashboard provides basic information about the status of your Talon and a video preview* of your output channel.
* Preview only supports up to 1080P60. If you are encoding above 1080P60 preview is de-activated to preserve encoding bandwidth
Overview
A web server in Talon allows for system control and stream settings via web browser. All commonly used Windows, Mac and Linux
web browsers are supported. Please ensure your device is connected to the same network as Talon (see Page 5 for further
instructions). To connect to the interface simply enter the IP address of your Talon into the web browser. Default login for a factory
default Talon is user: admin and password: osprey.

TALON Encoder 9 www.ospreyvideo.com
Web Interface Device Configuration
System Settings - Device Configuration
Name change your device name
User Name change user login name credentials
Password change user login password credentials
Front Panel Reset enable/disable front panel “ACTION” button reset feature
Network Discovery Network Discovery allows computers and devices to find one another when they are on the same
network. This service is turned ‘on’ by default. To stop Discovery services, select ‘off’. Note that
monitoring tools such as Osprey Boss require Discovery to locate Talon devices on the network.
Osprey Boss will not be able to see any system that has Discovery turned off
FTP Server on unit ftp server - default user: ‘talon’. Remote access to USB storage drive
FTP Password on unit ftp server - password: ‘access’. Remote access to USB storage drive
Remote Start/Stop enable remote start/stop feature from Panasonic SDI cameras
Show Video Preview disable “Dashboard Video Preview” to improve UI responsiveness and CPU usage
System Settings - Device Info
Generic system and firmware overview

TALON Encoder 10 www.ospreyvideo.com

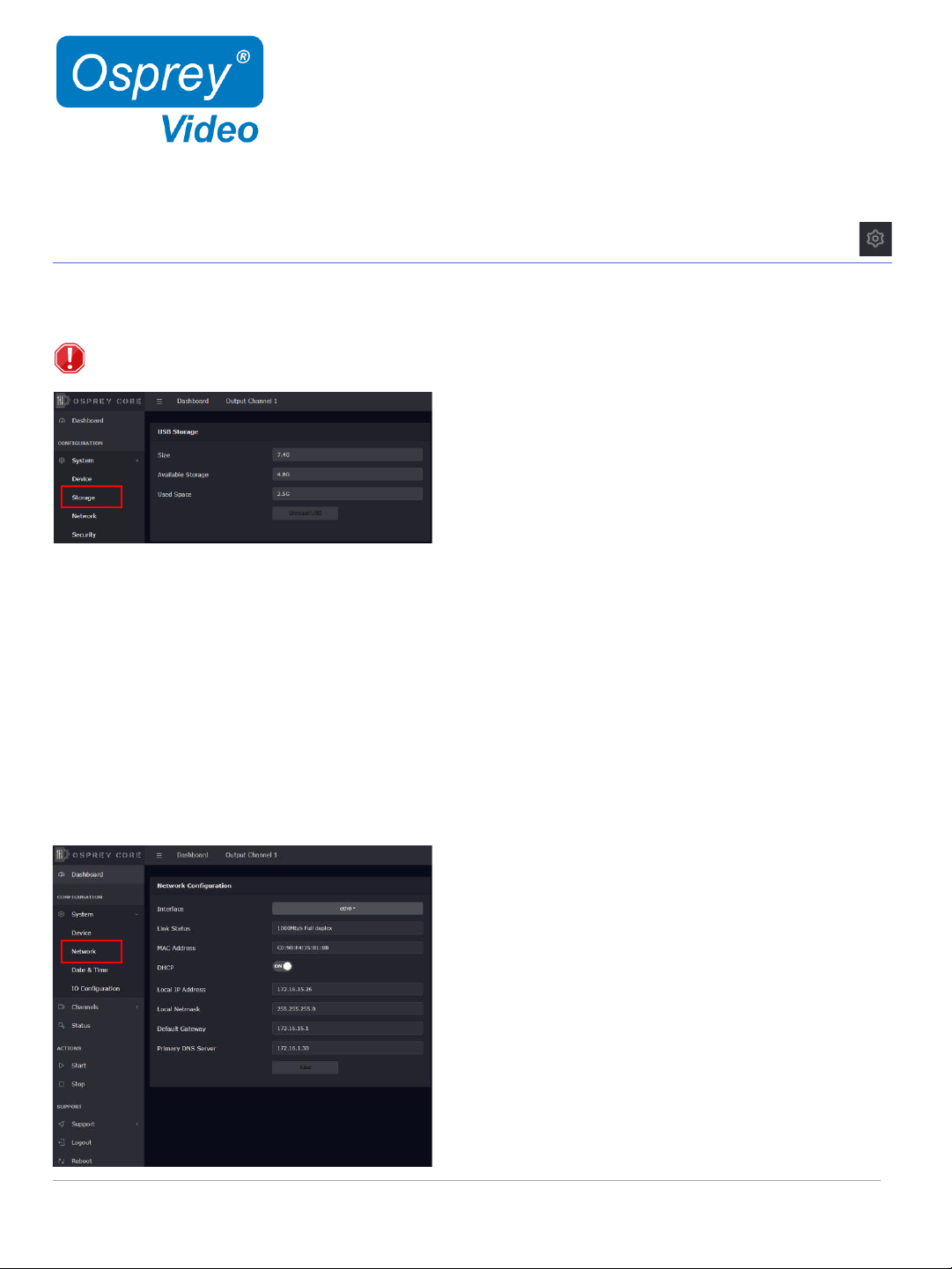

Web Interface –USB Storage and Network Configuration
System Settings –Network Configuration
Interface network port identification. If additional network devices are installed, they would be selectable here.
Link Status Indicates link speed 10/100/1000Mbps (not network speed) and port status, full or half duplex.
MAC Address Talon MAC ID
DHCP enable/disable DHCP
Local IP Address dynamic if DHCP is on. Otherwise, a new valid IP address can be entered here
Local Netmask dynamic if DHCP is on. Otherwise, a new valid netmask can be entered here
Default Gateway dynamic if DHCP is on. Otherwise, a new valid gateway can be entered here
Primary DNS Server dynamic if DHCP is on. Otherwise, a new valid DNS can be entered here
System Settings –Storage
Please refresh the browser page after inserting a USB drive as the page doesn’t dynamically refresh.
Always unmount the USB drive before unplugging it!!!

TALON Encoder 11 www.ospreyvideo.com

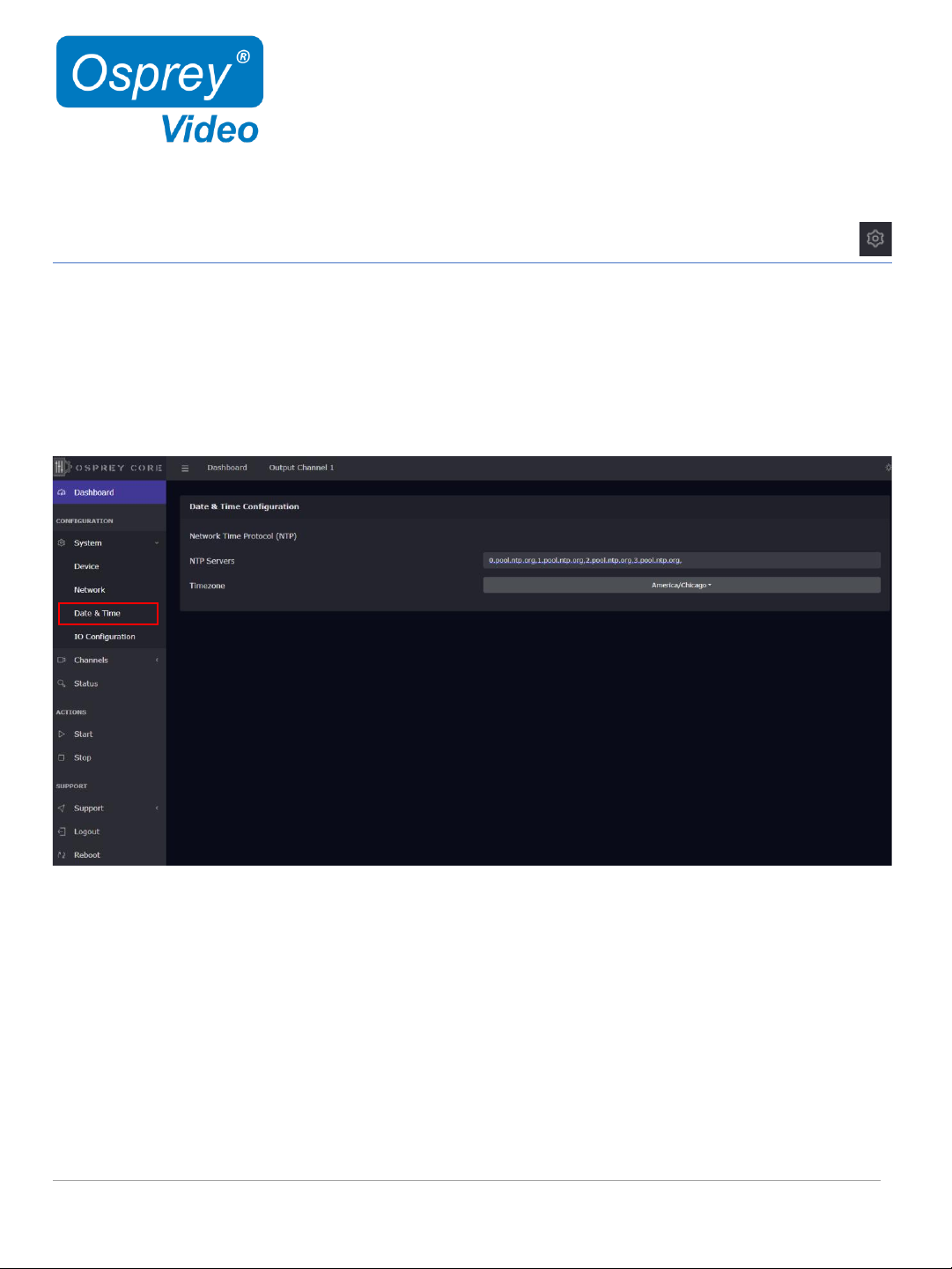

Web Interface –Date and Time
System Settings –Date & Time
NTP Servers preselect time servers, additional time servers can be manually added separated by ‘,’
Timezone your selected time zone

TALON Encoder 12 www.ospreyvideo.com

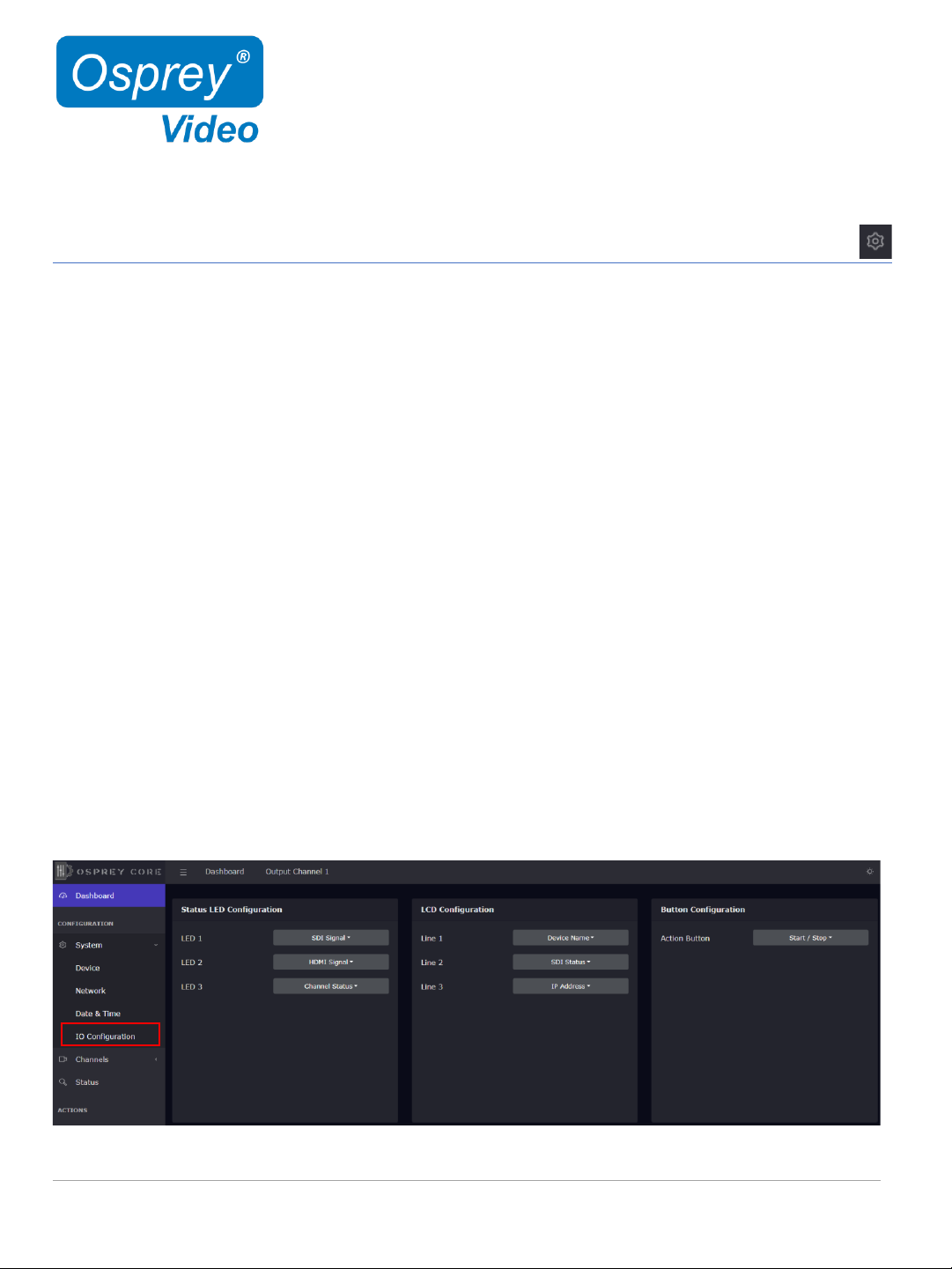

Web Interface –IO Configuration
System Settings –IO Configuration
The IO configurations can be changed while Talon is actively encoding
Status LED Configuration configure the front panel LED’s
Disabled: LED will always remain off
Channel Status: LED ON -> Talon is encoding, LED OFF -> Talon is idle
SDI Signal: LED ON -> valid input on SDI port, LED OFF -> no input on SDI port
HDMI Signal: LED ON -> valid input on HDMI port, LED OFF -> no input on HDMI port
LCD Configuration configure the front panel LCD Screen. Three of below options can be displayed simultaneously
Device Name
IP Address
Channel Status (encoding started or encoding stopped)
SDI Status (resolution and frame rate of SDI input will display)
HDMI Status (resolution and frame rate of HDMI input will display)
Firmware Version
Disabled (associated line will be blank)
Button Configuration enable/disable front button start/stop function

TALON Encoder 13 www.ospreyvideo.com

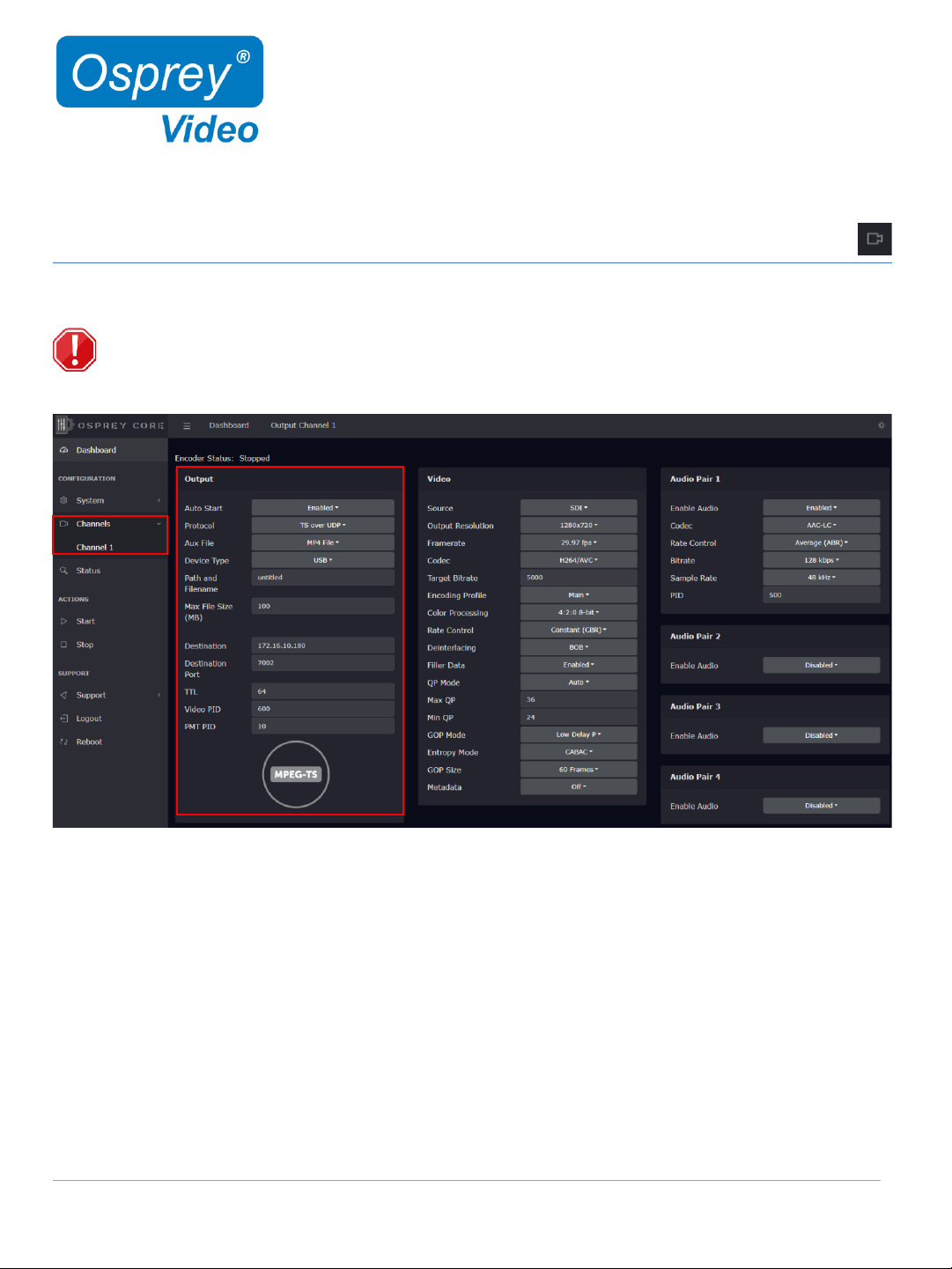

Web Interface –Channel Setup Output Protocol
Channel Setup - Output
Important: The selection of the output stream protocol dynamically changes the available options for video and audio
encoding. Therefore, the streaming protocol must always be set before proceeding to the video and audio settings.
Output Transport Stream
Auto Start auto start of encoder when input video is detected
Protocol streaming protocols and native integrations - see pages 15 through 18 for setup information
AUX File archive a copy of your stream in .mp4 –see page 14 for additional information
Protocol: When sending media over networks, protocol can mean Transport Protocol or Payload Format. For instance, TS over UDP
refers to using the MPEG-TS payload format to deliver media via the UDP protocol. Selecting which protocol to use will dictate several
other settings within the video and audio encoding sections. Selecting RTMP/RTMPS will limit the “codec” setting to “H.264”. Selecting
“TS over RTP” allows the selection of both “H.264” and “HEVC” for codec. Select “Protocol” first when setting up an encoder output and
the rest of the Video and Audio settings will conform to your Protocol selection.

TALON Encoder 14 www.ospreyvideo.com

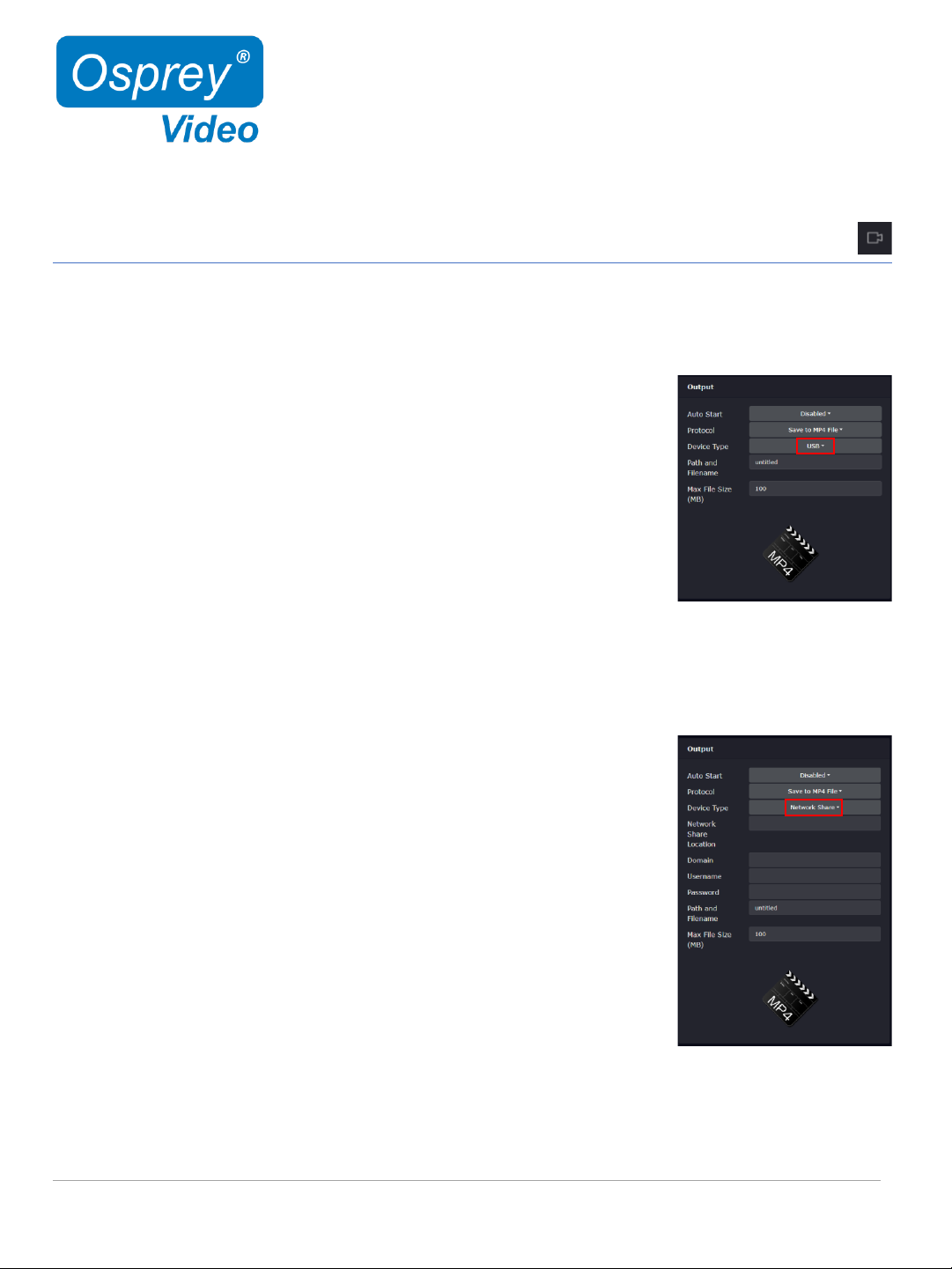

Web Interface –Video Archiving
Channel Setup –Video Archiving
Save MP4 to USB using the USB3.0 port in the back of Talon
•Only FAT and FAT32 formatted devices are accepted
•A correctly mounted drive will show in ‘Dashboard’,
•Unmount from ‘Dashboard’
•Files are never automatically deleted from the drive, if the folder fills up the encode will stop
with an error
Path and Filename Path to file location: /folder/filename
Maximum File Size file size in MB for each video segment
Output file format example:
ch1_filename_20230420-153253_0.mp4
ch{channelnumber}_{user_provided_filename}_{year}{date}-{time}_{indexnumber}.mp4
Save MP4 to Network Share
Network Share Location Network URI: //ip_address/myshare
Domain Domain name for authentication to the network share. If you
do not have a domain name, use the local computer name
you are connecting to.
Username Account username with permission to access the network
Password Password to account referenced above
Path and Filename Path to file location: /folder/filename
Max File Size file size in MB for each video segment
Output file format example:
ch1_filename_20230420-153253_0.mp4
ch{channelnumber}_{user_provided_filename}_{year}{date}-{time}_{indexnumber}.mp4

TALON Encoder 15 www.ospreyvideo.com

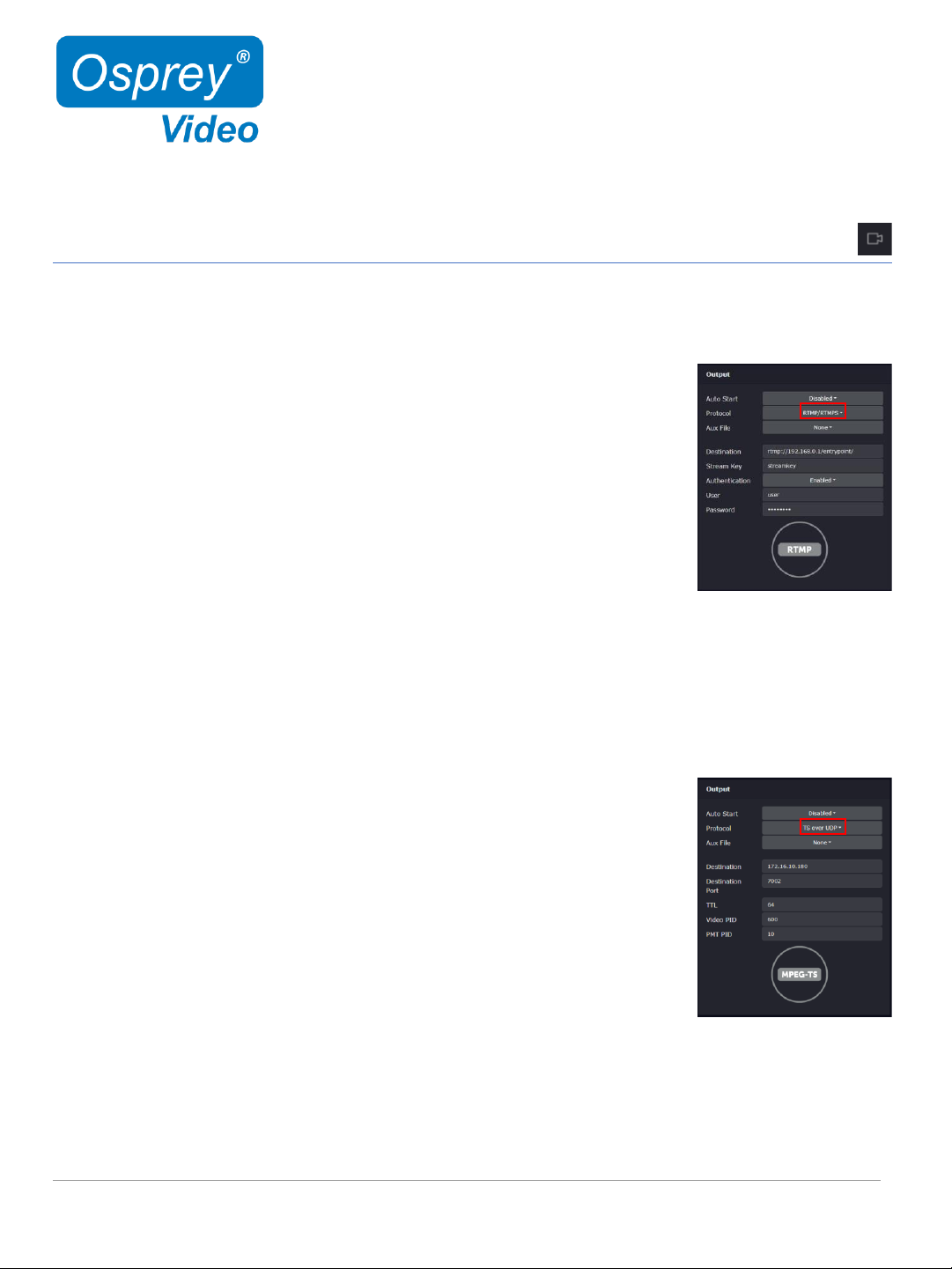

Web Interface –Transport Protocols RTMP, RTMPS, UDP
Channel Setup –Transport Protocols
RTMP/RTMPS (Real-Time Messaging Protocol)
Destination server address of your endpoint
Streamkey key assigned by your endpoint
Authentication enable/disable stream authentication
User username for authentication
Password username for authentication
Destination Stream URL Example: rtmp://a.rtmp.youtube.com/live2
TS over UDP (User Datagram Protocol)
Destination IP address of your endpoint
Destination Port UDP destination port
TTL destination time to live. Maximum number of ‘hops’ that data exists on
a network before being discarded (to prevent endless loops)
Video PID ID for your video transport stream
PMT PID PMT ID for your transport stream
Destination IP Example: 172.16.10.180
Destination Port Example: 7002
UDP is a connectionless protocol with minimal mechanisms. It doesn't require recipients to let the sender know that all data packets
have arrived, which can make it unreliable. This protocol is stateless and ideal for transmitting data to large numbers of clients. UDP
features multicast support for service discovery and broadcasting. Its low rate of retransmission delays makes it the perfect match
for real-time applications
RTMP is a legacy protocol developed by Adobe® to transfer audio and video files between a streaming server and the Adobe Flash
Player. With the phasing out of Flash, it has shifted its primary use case away from viewer-facing content delivery and toward
ingesting live streams through RTMP-enabled encoders.

TALON Encoder 16 www.ospreyvideo.com
Web Interface –Transport Protocols RTP, SRT
Channel Setup –Transport Protocols
TS over RTP (Real-Time Protocol)
Destination IP address of your endpoint
Destination Port IP address of your endpoint
Video PID ID for your video transport stream
PMT PID PMT ID for your transport stream
TS over SRT (Secure Reliable Transport)
SRT Mode selection of ‘caller’ or ‘listener’ mode
SRT Destination Address IP address of your endpoint (visible only in caller mode)
SRT Port port used to listen or transmit, default 2088
SRT Stream ID stream identification
Latency maximum accepted latency in ms. Should be set to >= 2.5 times
round trip time (RTT), default 125
Encryption enable/disable 128-bit encryption
Passphrase encrypted transmission, 16-character alpha-numeric
Video PID Video PID for transport stream
RTP is designed for end-to-end, real-time transfer of streaming media. The protocol provides
facilities for jitter compensation and detection of packet loss and out-of-order delivery, which are
common especially during UDP transmissions on an IP network.
SRT Mode ‘Listener’: The “agent” waits to be contacted by any peer caller. Note that a listener can
accept multiple callers, but Talon does not support this ability; after the first connection, it no longer
accepts new connections.
SRT Mode ‘Caller’: The “agent” (this application) sends the connection request to the peer, which must be listener, and this way it
initiates the connection.
SRT is known for its security, reliability, compatibility, and low-latency streaming it is the preferred protocol for members of the SRT
Alliance. This protocol does not rely on a single codec, which allows developers to pair it with any audio and video codecs they desire.

TALON Encoder 17 www.ospreyvideo.com

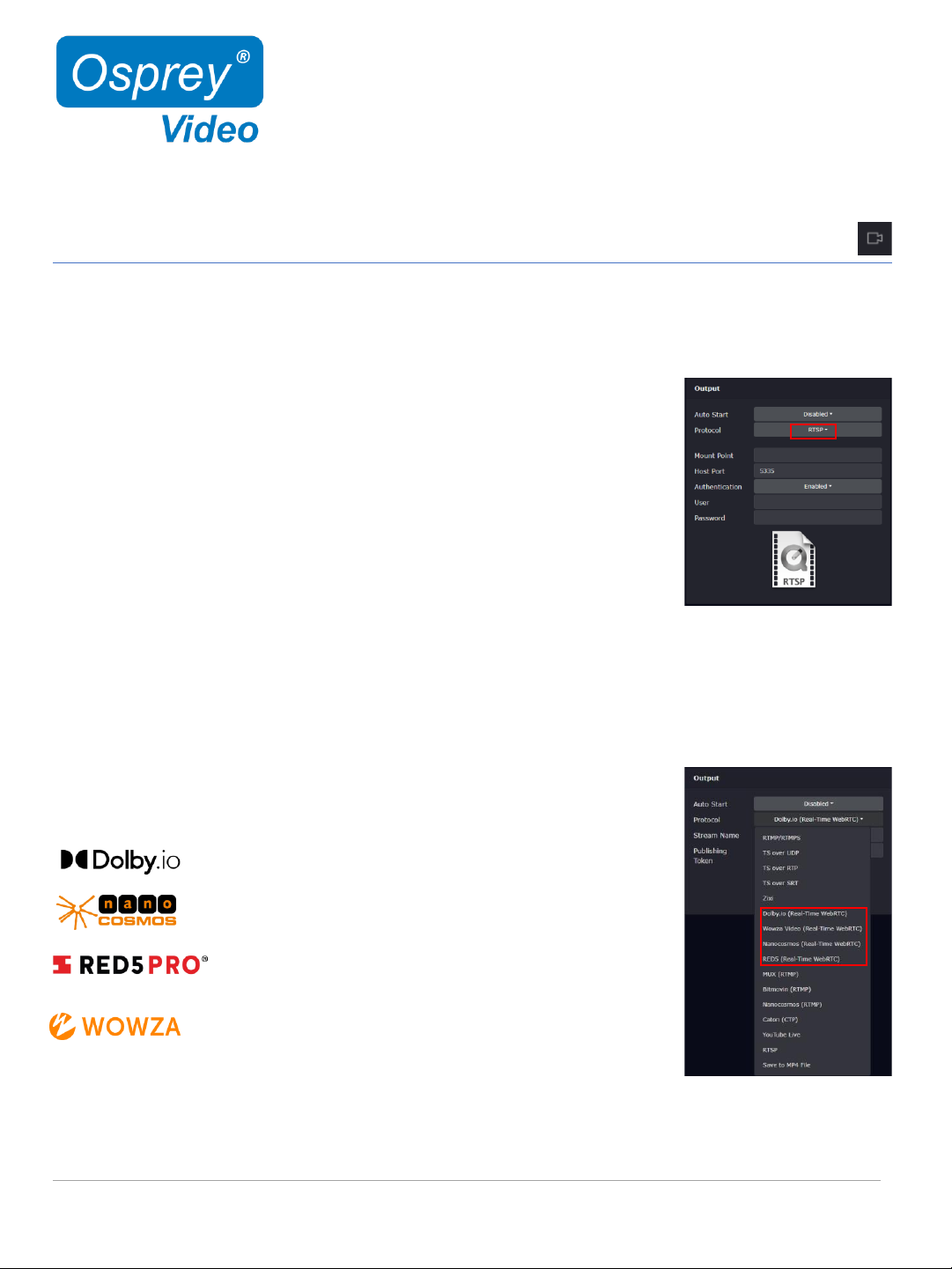

Web Interface –Transport Protocols RTSP, WebRTC
Channel Setup –Transport Protocols
WebRTC
Due to the open-source nature of webRTC, this is only available though custom integrations
currently supporting:
WebRTC is an open-source project that delivers video streams to viewers with real-time latency. Initially developed for text-based chat
apps and VoIP usage.. The WebRTC protocol is a low-latency streaming solution using WHIP.
RTSP (Real-Time Streaming Protocol)
Mount Point mount point port
Host Port host destination port
Authentication enable/disable stream authentication
User username for authentication
Password username for authentication
RTSP is a legacy protocol, it cannot transmit live streaming data alone and require RTSP servers to work together with RTP and other
protocols to accomplish their streaming tasks. It can deliver low-latency streaming to a select group of small audiences from a
dedicated server.

TALON Encoder 18 www.ospreyvideo.com
Web Interface - Zixi
Channel Setup –ZIXI
Remote ID the name that identifies the Feeder to the Broadcaster. Default is the serial number of the encoder. Do
not change unless Broadcaster configuration requires it.
Password/Secret this is the “Zixi Secret”. By default, any publish point in Broadcaster can be accessed by any encoder.
Zixi Broadcaster can provide a Feeder with a password which gives that encoder priority over any other
encoder connected to that publish point. If an encoder with the password attempts to connect, the
publish point will remove any other encoder connected to it and replace it with the password protected
version.
Encryption enable/disable AES-128, AES-192 or AES-256 stream encryption
Encryption Key cut and paste the encryption key provided by your Zixi Broadcaster in the allotted space.
Video PID the Default PID is 600. Any ID greater than 0 but less than 8192 may be used.
PMT PID the default PMT PID is 10. Other values can be used where specified by the transport stream.
Server Address IP address of the stream destination
Server Port port of the stream destination. The default is 2088
Session ID unique name of the stream. This name can be created by the user
or assigned by the Zixi Broadcaster.
Latency the latency setting or “smoothing” as it is sometimes referred to
in Zixi, enables transmission of the output at the correct rate.
Required when the receiving device is sensitive and can’t lock
onto the stream. Default setting is 100ms. The available range is
between 100 and 1000ms.
Max Bitrate specify the maximum expected bitrate for memory allocation.
Recommended: For CBR start with 10% higher than the stream
bitrate. For VBR use 2X the actual bitrate, which will prevent
buffer overruns (especially with VBR streams). Default: 5000.
Note – Overflows will typically occur when the Max Bitrate isn’t
sufficient.
Min Bitrate currently, min bitrate is not configured.
While not a protocol, Zixi defines itself as a “software-Defined video Platform (SDVP). Talon’s implementation was built upon the Zixi
SDK and serves as a Zixi Feeder. It can deliver to a Zixi Broadcaster, which can deliver to a decoder. The Talon cannot deliver Zixi
directly to another decoder.

TALON Encoder 19 www.ospreyvideo.com
Web Interface –Video Encoding Settings
Channel Setup - Video
Important: The selection of the output stream protocol dynamically changes the available options for video and audio
encoding. The options outlined in this chapter are based on UDP and might slightly differ from your settings.
Source select your input video source
Output Resolution for best quality and lowest latency it is recommended to match your input and output resolutions
Framerate for best quality and lowest latency it is recommended to match your input and output framerate
Codec select between HEVC (H.265) and AVC (H.264). Note that not all streaming protocols support HEVC.
Target Bitrate Target Bitrate is set based on the rate control method used. For CBR, the Target Bitrate equals the
bitrate to maintain throughout the encode. For VBR, it is the rate you want to average.
Maximum Bitrate maximum Bitrate is only enabled when VBR is selected. Maximum bitrate to be >= ‘Target Bitrate’
Encoding Profile different profiles are available depending on the codec:
HEVC - Main, Main 10, Main 4:2:2 10
AVC - Baseline, Main, High, High-10, High 4:2:2
Color Processing for best quality and lowest latency it is recommended to match your input and output color space.
The options change depending on the selected codec and encoding profile.

TALON Encoder 20 www.ospreyvideo.com
Web Interface –Video Encoding Settings
Rate Control select between CBR, VBR, QP and Low Latency. Constant QP means that the bitrate can vary greatly to
achieve the set QP. This can result in wild fluctuations of bitrate and is not recommended for live streaming.
Deinterlacing select the deinterlacing mode to encode progressive of an interlaced video input signal.
QP Mode ‘Auto’ or ‘Uniform’, default is ‘Auto’
Max QP Default ‘36’, a higher number results in a lower bitrate and lower quality (delta between max QP and
min QP should always be <12). Maximum is 51.
Min QP Default ‘24’, a higher number results in a lower bitrate and lower quality (delta between max QP and
min QP should always be <12).
GOP Mode Low Delay P/Low Delay B/Basic (IPPP)/Basic-B/Adaptive.
Choose ‘Low Delay P’ if you are unfamiliar with GOP settings.
B-Frames Number of B-frames between I-frames. 0 –4. This feature is only available for certain GOP modes.
GOP Size 5 –240 frames, choose twice your encoding framerate as default
Metadata OFF, CEA708, SMPTE-2038
QP: The Quantization Parameter controls the amount of compression for every macroblock in a frame. Large values mean that
there will be higher quantization, more compression, and lower quality. QP ranges from 0 to 51.
GOP: GOP parameters define the basic pattern of the video stream in terms of how the encoder uses I-, P-, and B- frames.
B-Frame: A compressed video frame which is reconstructed based on its differences from the previous and the subsequent frame
