FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 1
Installation and Operation Manual
FTD100Micro Series
8-bit Digital Series
1-ch Video
Fiber Optic Converter
OT Systems Ltd., 2014
Rev 1.2

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 2
Models covered in this manual
Single-Mode Transmitters
FTD100Micro-SST
FTD100Micro-SSTL
Single-Mode Receivers
FTD100Micro-SSR
FTD100Micro-SSRL
Multi-Mode Transmitters
FTD100Micro-SMT
Multi-Mode Receivers
FTD100Micro-SMR
Compatible with the following Series:
FTD100
FTD100M
FTD100-XXR3
Remark:
If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg.
FTD100Micro-FST

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 3
Table of Contents
(1) SAFETY INSTRUCTIONS .................................................................................................................................. 4
(2) PRODUCT OVERVIEW .................................................................................................................................... 5
2.1 INTRODUCTION .....................................................................................................................................................5
2.2 MODELS SELECTION TABLE ...................................................................................................................................... 5
(3) INSTALLATION................................................................................................................................................ 6
3.1 GENERAL ............................................................................................................................................................. 6
3.2 MICRO UNIT INSTALLATION......................................................................................................................................6
(4) CABLE CONNECTIONS & SETUP PROCEDURES................................................................................................ 7
4.1 SYSTEM CABLE CONNECTIONS .................................................................................................................................. 7
4.2 GROUND CONNECTIONS ......................................................................................................................................... 8
(5) OPERATIONAL GUIDES................................................................................................................................... 9
5.1 FTD100MICRO SERIES TRANSMITTER ......................................................................................................................9
5.2 FTD100MICRO SERIES RECEIVER ............................................................................................................................9
(6) SPECIFICATIONS........................................................................................................................................... 10
(7) DRAWINGS .................................................................................................................................................. 11
(8) WARRANTY INFORMATION ......................................................................................................................... 11
(9) CONTACT INFORMATION ............................................................................................................................. 11

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 4
(1) Safety Instructions
Please be familiar with all information in this manual prior to installation and
operation.
Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following
safety precautions apply.
Warning: Do not disconnect the fiber optic connector while the unit is powered up.
Exposure to Class I invisible optical radiation is possible when the internal fiber optic
connector is disconnected while the unit is powered up.
Caution: Any access to the controls, adjustments, or performing operations, which are
other than those specified may result in hazardous radiation exposure. Permanent eye
damage or other bodily injuries may be resulted from such exposure even for only
seconds.
Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 5
(2) Product Overview
2.1 Introduction
The FTD100Micro Series products comprise of either single-mode or multi-mode fiber optic
transmitters and receivers for the optical transmission of ONE forward (Tx → Rx) video on one
fiber. The products work at wavelengths of 1310nm or 1550nm with either a 9/125um or
62.5/125um fiber for single-mode or multi-mode transmission respectively.
A non-compressed 8-bit digital video transmission scheme is implemented which supports
video in NTSC, PAL and SECAM formats.
For single-mode transmission, we also offer specifically designed products for long-haul
transmissions up to 60km. These models include the letter “L” in the suffix, e.g.
FTD100Micro-SSTLfor Tx, FTD100Micro-SSRLfor Rx, etc.
The FTD100Micro Series units are available as standalone Micro sized cubicle, which can
be mounted horizontally or vertically wall-mounted on any fixture. The Micro unit comes with an
external power supply FT-PA/12V, which can be powered by local 110/220V power.
2.2 Models selection table
Mode
Model1
Description
Installation
requirements
Remarks
SIngle-Mode
FTD100Micro-SST
Single-mode 1-Ch Video Transmitter
Micro Unit
Horizontally or
vertically
wall-mounted
Micro sized
cubicle
FT-PA/12V
external
power
adaptor is
included for
the Micro
unit 2
FTD100Micro-SSTL
Single-mode Long-haul 1-Ch Video
Transmitter Micro Unit
FTD100Micro-SSR
Single-mode 1-Ch Video Receiver
Micro Unit
FTD100Micro-SSRL
Single-mode Long-haul 1-Ch Video
Receiver Micro Unit
Multi-Mode
FTD100Micro-SMT
Multi-mode 1-Ch Video Transmitter
Micro Unit
FTD100Micro-SMR
Multi-mode 1-Ch Video Receiver
Micro Unit
1If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100Micro-FST
2FT-PA/12V works under 100 -240VAC, 50/60Hz power supply

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 6
(3) Installation
3.1 General
All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.
The FTD100Micro Series (Fig. 3.1) units can be either horizontally or vertically wall-mounted,
or mounted on any fixture, etc. The Micro unit works with an external power supply FT-PA/12V
powered by local 110/220V power.
Fig. 3.1 Micro unit
3.2 Micro unit installation
a) Mount the clip (Fig. 3.2) onto a fixture, e.g. a plank, (either on the wall or on a flat surface)
with two screws piercing through the holes on the mounting frame to secure it in position.
(a) Front view (b) Side view
Fig. 3.2 Micro unit’s clip
b) The provided power supply should also be mounted on the same fixture or in the proximity
for connection of the supply cables to the unit, provided that an AC power supply socket is near
by for powering the adaptor.
c) Push the Micro unit into the clip to secure it in position. For details, please follow Fig. 3.3.

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 7

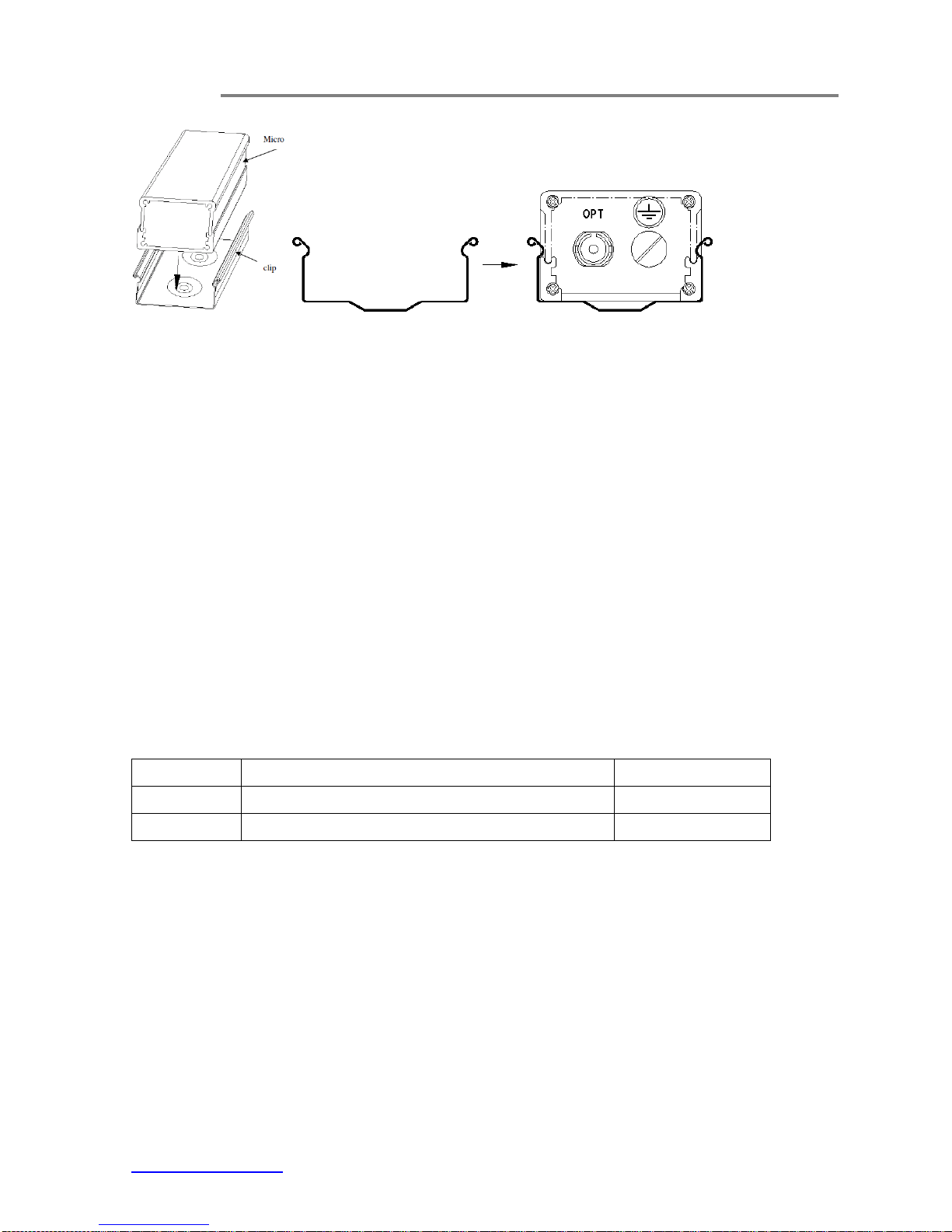

(a) Installation (b) Side view of the clip (c) Side view of the Micro unit pushed into the clip
Fig. 3.3 Micro unit installation on the clip
d) Connect all the signal inputs and outputs at the back of the unit with appropriate cables: fiber
optic cable for optical link, BNC cable for video input/output (Tx/Rx).
e) Once the unit is powered up, check that the red POWER LED on the unit is lit. If not, check
the power supply cable connections between the unit and the power supply socket.
f) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see
Operational Guides on this manual’s section (5)].
(4) Cable Connections & Setup Procedures
4.1 System cable connections
Signal Type
Cable Type
Connector
Optical
Single-mode or Multi-mode Fibers
ST (or FC) Connector
Video
Coaxial Video Cable
BNC Connector

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 8
Typical System Cable Connections Diagram:
Micro Transmitter Micro Receiver
Fig 4.1 Micro to Micro unit connection diagram
4.2 Ground connections
For enhanced safety to reduce the risks of electrical shock and physical damage, caused by
lightning and other power surges, as well as a connection to the surge suppresion devices in the
product, a screw terminal is provided on the Micro cabinets (Fig. 4.4). It is highly recommended
that the Micro unit have good ground connections to the buildings ground in accordance with the
local codes.
Fig. 4.4 Micro unit earth terminal location

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 9
(5) Operational Guides
5.1 FTD100Micro Series Transmitter
LED Indicators
Indicator
Colour
Description
PWR
Red
Lit when power is supplied to the Transmitter.
OL
Yellow
Lit when optical signal from receiver to transmitter is active.*
VIDEO IN / VIN
Green
Lit when video signal is fed into the VDEO IN connector.
* For products with uni-directional signal transmission, the OL LED on the Tx is not lit because optical signal from the Rx to the Tx is
always inactive.
Signal Ports
OPT -
ST (or FC) Optical Connector for fiber cable connection.
VIDEO IN -
BNC Video Connector for video signal input.
5.2 FTD100Micro Series Receiver
LED Indicators
Indicator
Colour
Description
PWR
Red
Lit when power is supplied to the Receiver.
OL
Yellow
Lit when optical signal from receiver to transmitter is active.
VIDEO OUT / VOUT
Green
Lit when video signal is received at VIDEO OUT connector.
Signal Ports
OPT -
ST (or FC) Optical Connector for fiber cable connection.
VIDEO OUT -
BNC Video Connector for video signal output.

FTD100Micro Series Installation & Operation Manual
www.ot-systems.com 10
(6) Specifications
MODELS*
PARAMETERS
FTD100Micro-SST(R)
(Single-Mode)
FTD100Micro-SST(R)L
(Single-Mode)
FTD100Micro-SMT(R)
(Multi-Mode)
OPTICAL
No. of Fiber / Connector
1 / ST(or FC)
1 / ST(or FC)
1 / ST(or FC)
Wavelength
1310 nm
1310 nm
1310 nm
Optical Power Budget
17 dB
24 dB
23 dB
Max Distance
40 km
60 km
4 km
ELECTRICAL VIDEO
Channel / Connector
1 / BNC
System
PAL, NTSC, SECAM
Bandwidth
≥6.0 MHz
Input/Output Impedance
75 Ohm
Input/Output Level
1.0 Vp-p typical
Differential Gain
< 1% typical
Differential Phase
< 1otypical
SNR
>60dB
POWER
Power consumption
12VDC @ 1.8W
Power supply
FT/PA12V DC Adaptor
Connector (Micro unit)
2-pin Screw Terminal
PHYSICAL
Weight
0.1 kg
Dimensions (W x H x D)
36.2 x 24.5 x 101 mm (MAX)
ENVIRONMENTAL
Operating Temperature
-40oC ~ +75oC
Storage Temperature
-40oC ~ +85oC
Relative Humidity
0 ~ 95% non-condensing
MTBF
>100’000 Hours
*If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100Micro-FST
