Outdoor Lifestyles DPALG-48 User manual

1
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
Models:
ODPALG-48
ODPALGST-48
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2.Extinguishanyopename.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplierorredepartment.
WARNING: For Outdoor Use Only.
WARNING
Donotstoreorusegasolineorotherammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury or property
damage. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
WARNING! Risk of Fire!
Donotinstallglassdoorsonthisreplace.
Glass doors could cause overheating of
adjacent structures.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent or home.
DANGER

2
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist....................3
1ProductSpecicandImportantSafetyInformation
A. ApplianceCertication ............................4
B. BTUSpecications...............................4
C. High Altitude Installations ..........................4
D. Non-CombustibleMaterialsSpecication. . . . . . . . . . . . . . 4
E. CombustibleMaterialsSpecication ................. 4
F. Electrical Codes .................................4
G. Fuel ..........................................4
2 Getting Started
A. Design and Installation Considerations ...............5
B. Tools and Supplies Needed ........................5
C. Inspect Appliance and Components..................6
3 Framing and Clearances

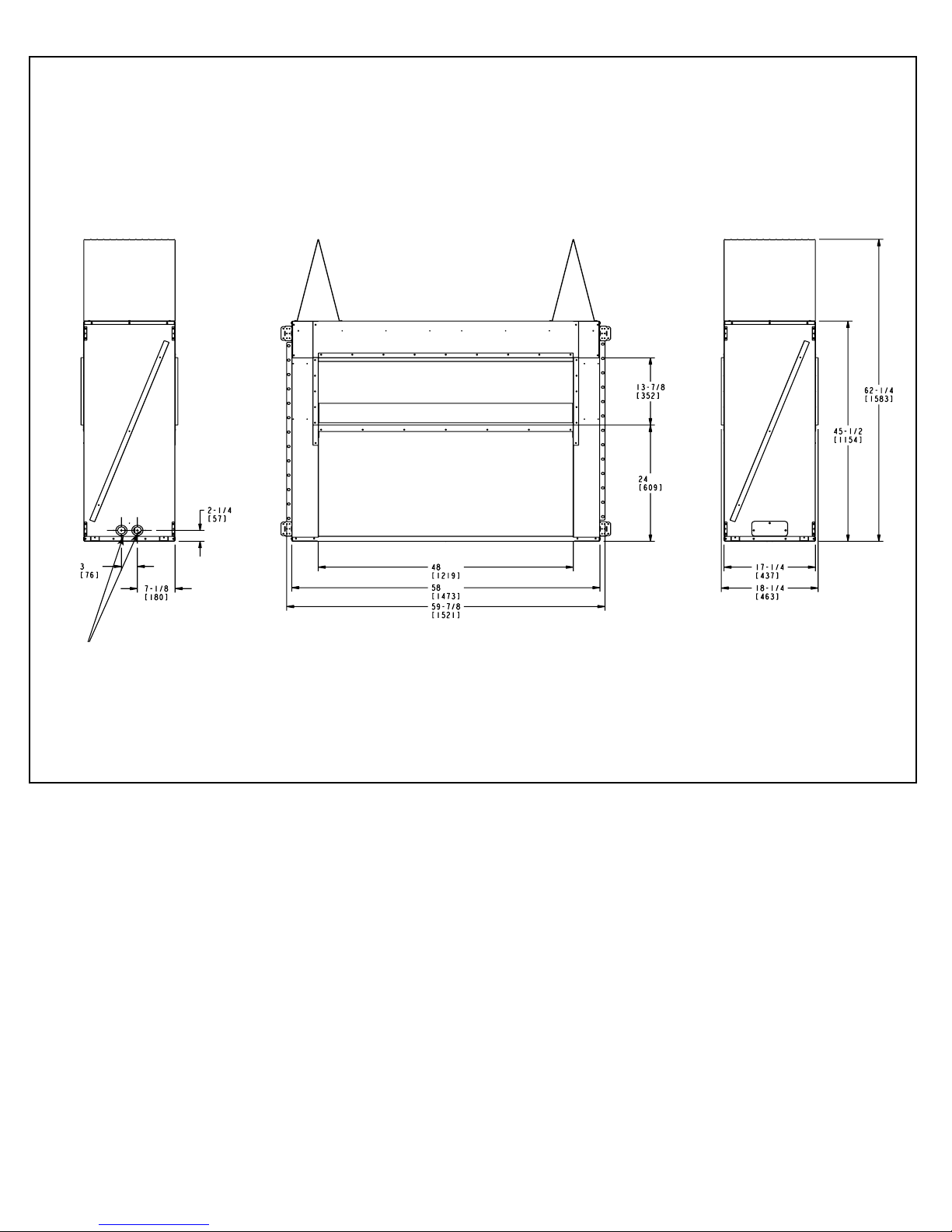

A. Appliance/Decorative Front Dimension Diagrams ....... 7
B. Clearances to Combustibles .......................9

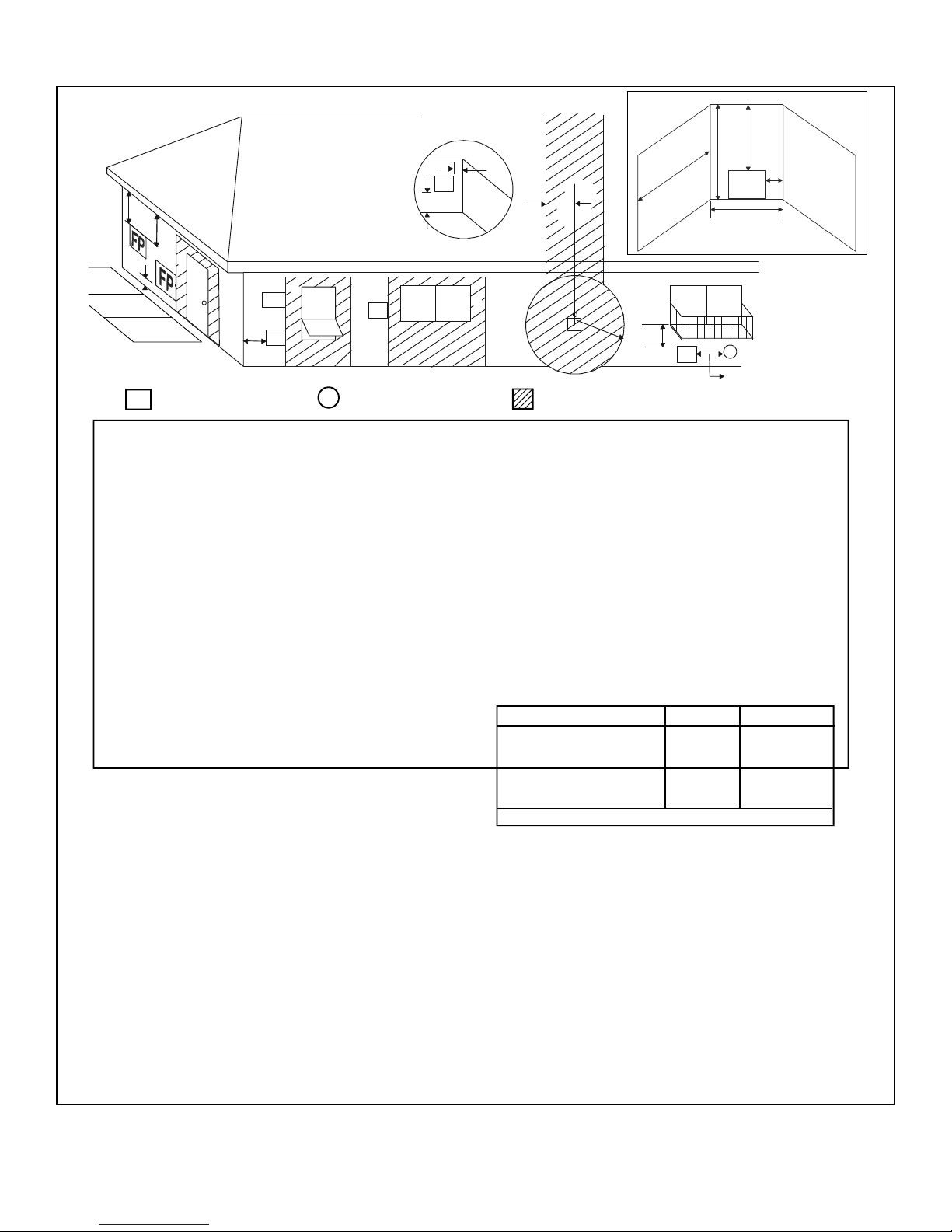

C. Vent Termination Minimum Clearances .............. 12
D. Hearth Extension/Floor Protection.................. 13
E. Stand-Alone Installation ..........................13

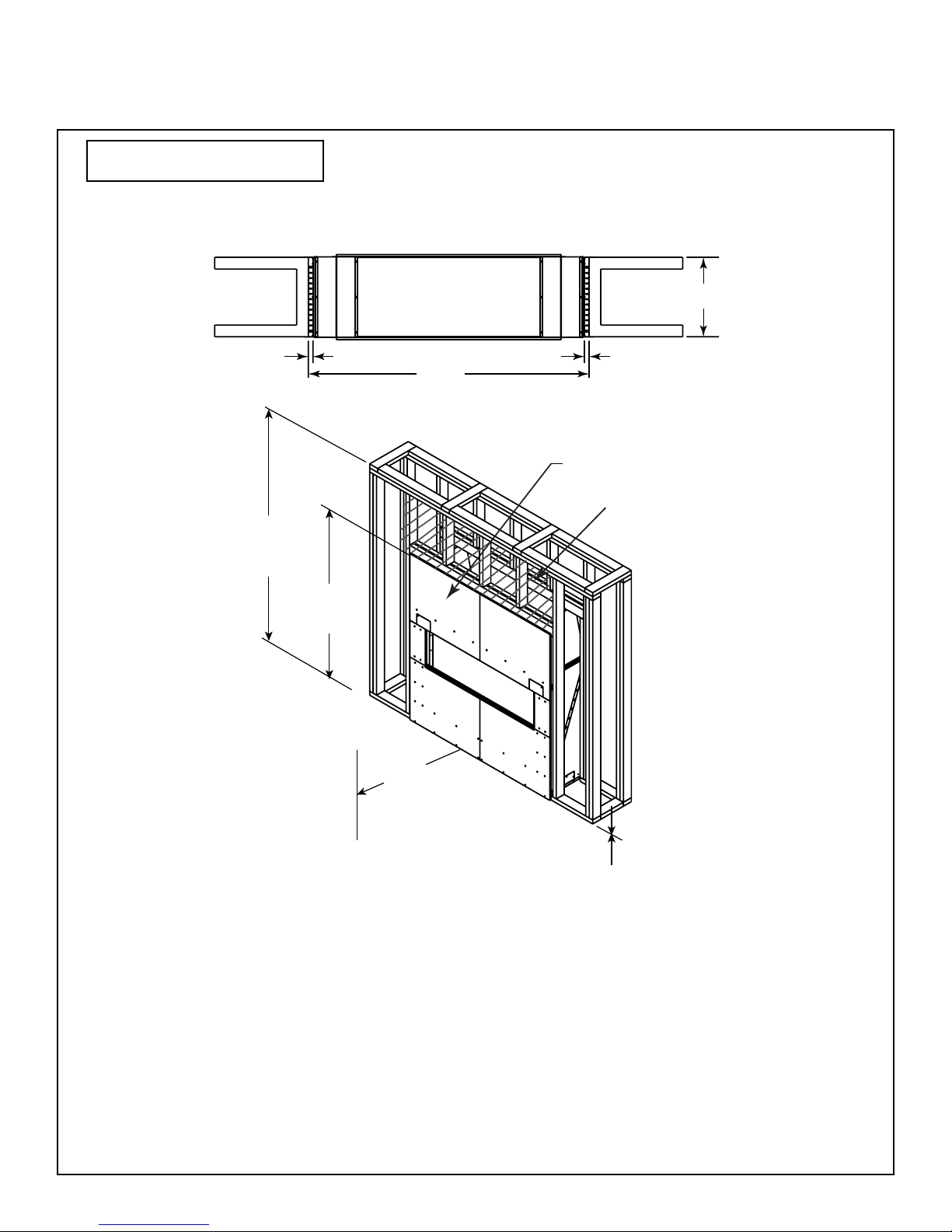

F. Built-in Installation .............................. 13
G. Moisture Resistance.............................13
4 Appliance Preparation
A. Securing and Leveling Appliance ...................14
B. Flashing ......................................14
5 Electrical Information
A. Wiring Requirements ............................15
B. IntellireWiring.................................15
C. Installing the Electrical ........................... 15
D. Wall Switch Control Panel ........................ 18
6 Gas Information
A. Fuel Conversion ................................19
B. Gas Pressure ..................................19
C. Gas Connection ................................ 19

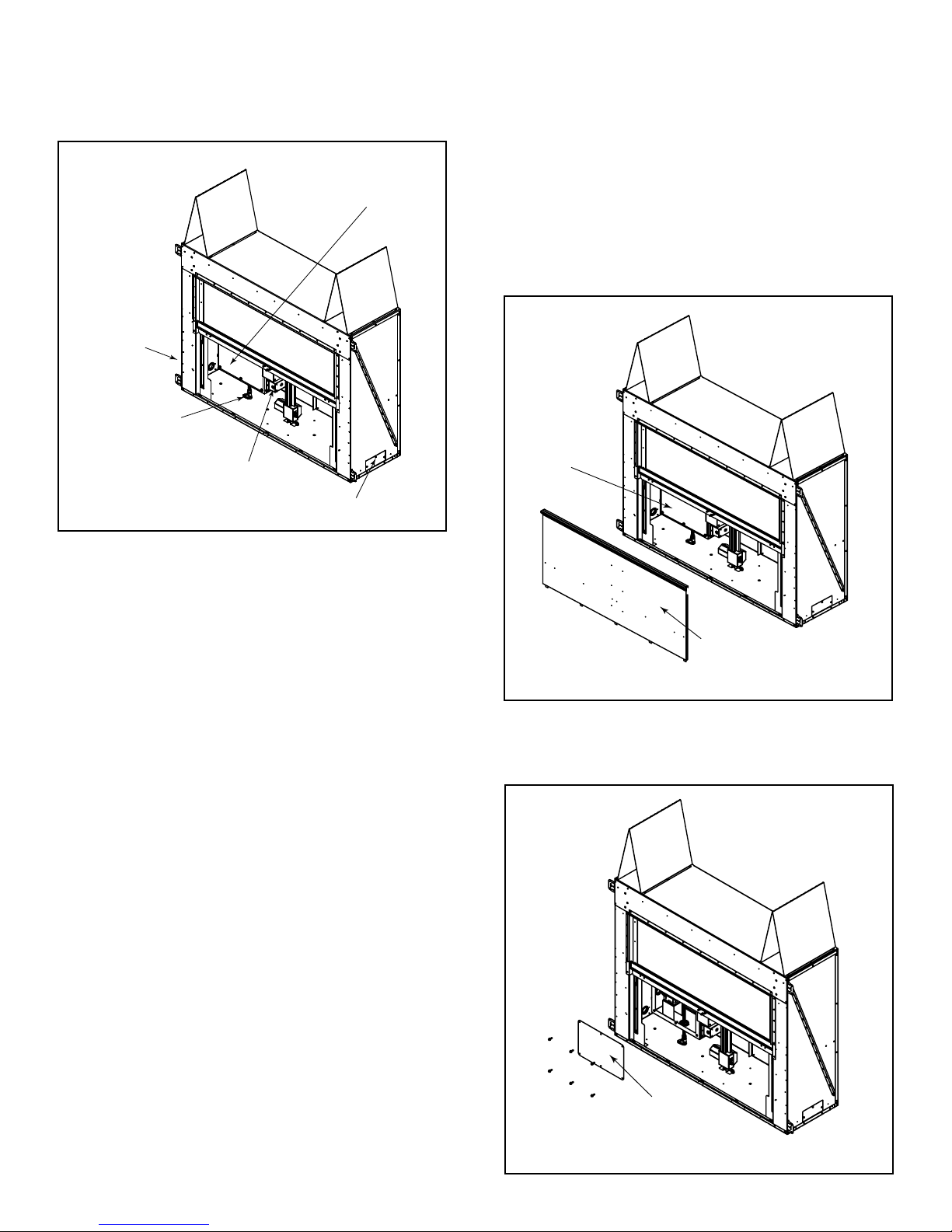

D. Valve Access ..................................20
E. High Altitude Installations .........................21
7 Finishing
A. Facing Material.................................22
B. Mantel and Wall Projections....................... 22
8 Appliance Setup
A. Remove the Shipping Materials ....................25
B. Clean the Appliance ............................. 25
C. Optional Accessories ............................25
D. Verify Pilot Shield ...............................25
E. Clear Crystal Media .............................25
F. Remove Media Placement Template ................25
G. Glass Windshields .............................. 25
9 Reference Materials
A. Accessories ...................................26
= Contains updated information.

3
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): ODPALG-48
ODPALGST-48
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install Section 3 & 4 (Pg. 7-14) YES IF NO, WHY?
Verified that the enclosure is sealed. ___________________________
Required non-combustible board is installed. ___________________________
Verified clearances to combustibles. ___________________________
Fireplace is leveled and secured. ___________________________
Electrical Section 5 (Pg. 15-18)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 6 (Pg.19-21)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure verified. ___________________________
Finishing Section 7 (Pg. 22-24)
Combustible materials not installed in non-combustible areas. ___________________________
Verified all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 8 (Pg. 25)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Media installed correctly. ___________________________
Mesh, doors, or decorative front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and verified no gas leaks exist. ___________________________
4082-312 6/15
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a fire or explosion.
ATTENTIONINSTALLER:
Follow this Standard Work Checklist

4
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
B. BTUSpecications
MODEL: ODPALG-48, ODPALGST-48
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Outdoor Decorative Gas Appliances
STANDARD: ANSI Z21.97-2014, CSA 2.41-2014
A. ApplianceCertication
D. NoncombustibleMaterialsSpecication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
E. CombustibleMaterialsSpecication
Materials made of or surfaced with wood, compressed pa-
per,plantbers,plastics,orothermaterialthatcanignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
F. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A110-120VACcircuitforthisproductmustbepro-
tected with ground-fault circuit-interrupter protection,
in compliance with the applicable electrical codes.
G. Fuel
This appliance must not be used to burn solid fuel.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1 ProductSpecicandImportantSafetyInformation 
C. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• IntheUSA:Reduceinputrate4%foreach1000feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
oricesize.
This product is listed to ANSI standards for “Outdoor Dec-
orative Gas Appliances” and “Gas Fired Appliances for
Use at High Altitudes.”
When an appliance is connected to a xed piping sys-
tem, the installation must conform with local codes, or in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or International Fuel Gas
Code.
Models
Max Input
BTUH
Natural Gas
OriceSize
Propane Ori-
ceSize
ODPALG-48
ODPALGST-48 43,000 0.125 .076(#48)

5
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
2 Getting Started
A. Design and Installation Considerations
ThePalazzoseriesgasapplianceisdesignedforoutdoor
use and may be installed as a stand alone unit or built
into a wall. It may be installed in screened porches and
lanais that meet these minimum requirements:
• Minimumporcharea-96squarefeet
• Minimumceilingheight-88in.
• Minimumdistancefromtopofapplianceopeningto
ceiling - 50 in.
A minimum of two walls can be screened but must be
open to outside ventilation. Minimum requirements are:
• Minimumscreenarea-64squarefeet
• Minimumscreentopheight-80in.
If this appliance is to be installed within a wall, you
must:
• Provideaccesstothegascontrols.
• Slopeoutdooroor(andhearth)awayfromappliance.
• Flashtheperimeteroftheappliance,cornersandthe
appliance face in a manner consistent with regional
practices as required to prevent water penetration
around the appliance or manage water that may
penetrate the appliance. See Section 3 for more
information regarding wall and enclosure construction.
The appliance may be installed on a wood or noncom-
bustible deck.
Refer to Section 3 for clearances.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult the authorities
having jurisdiction over restrictions, installation inspec-
tion and permits.
Before installing, determine the following:
• Wheretheapplianceistobeinstalled.
- Clearance to side walls
- Location of indoor appliance terminations, air inlets,
gas meters, etc.
- Doors
- Locationofthereplacetoadoorthatswingsopen
toensureitdoesnotinterferewiththereplacewhen
opened
- Windows
- Walkways
- Wires
- Possibilityofoodingorrunningwater
• Gassupplypipingrequirements.
• Electricalwiringrequirements.
• Framingandnishingdetails.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Hammer
Phillips screwdriver Manometer
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
3/4 in. wrench Crescent wrench
7/8 in. wrench 1/4 in. nut driver
7/16 in. wrench Pipe sealant
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this
appliance should be performed by
qualiedpersonnel.Hearth&Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.

6
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
C. Inspect Appliance and Components
• Carefullyremovetheapplianceandcomponentsfrom
the packaging.
• Removenoncombustiblemateriallocatedonfrontofthe
appliance.
• Removecrystalmediawhichispackagedseparatelyand
locatedbeneaththerebox.
• Removewallcontrolwhichislocatedonthetopstandoff.
• Removeblueprotectivecoating.
• Reportanydamagedinshipmenttoyourdealer.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installationtoensuremaximumsafetyandbenet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged,
incomplete or substitute components.
Hearth& HomeTechnologiesdisclaimsany responsibility
for, and the warranty will be voided by, the following actions:
• Installationanduseofanydamagedappliance.
• Modicationoftheappliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improperpositioningofthemedia.
• Installationand/oruseofanycomponentpartnotapproved
byHearth&HomeTechnologies.
Anysuchactionmaycausearehazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.

7
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
3 Framing and Clearances
A. Appliance Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Figure 3.3
and Figure 3.4.
Figure 3.1 Appliance Dimensions - ODPALG-48
ODPALG-48
Gas & Electric
Connections

8
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Figure 3.2 Appliance Dimensions - ODPALGST-48
ODPALGST-48
Gas & Electric
Connections

9
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
B. Clearances to Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Figure
3.3,3.4,3.5&3.6).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trafc and away from furniture and draperies.
WARNING! Risk of Fire or Burns! The appliance is hot
andwindmaycauseamestoreachoutinfront.
• Keepfurniture,draperiesandothercombustibles
away.
• Locatetheapplianceawayfromtrafcareas.
• Cleanupfallenleaves,branchesandothercombus-
tible materials before using the appliance.
• SeeFigure3.3,3.4&3.5forrequiredclearances.
•Onlyinstallonwoodorsolidnoncombustiblesurfaces
extending full width and depth to prevent damage.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase/enclosure must be properly blocked to prevent
blown insulation or other combustibles from entering and
making contact with the appliance.
• Failure to maintain airspace may cause overheating and
a re.

10
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
88 in. min.
(2235 mm)
floor to ceiling
0 in.
Combustible Object
36 in.
(914 mm)
Note: If this surface is
inside the building’s
warm air envelope... ...then this surface
must be an exterior
wall system.
62 3/8 in.
(1584 mm)
minimum
header height
Cement Board (supplied)
1 in.
(25 mm)
1 in.
(25 mm)
67-1/8 in.
(1706 mm)
60 in.
(1524 mm)
95 in.
(2412 mm)
1 in.
(25 mm)
18-1/8 in.
(459mm)
1 in.
(25 mm) 60 in.
(1524 mm)
Non-combustible material
required to ceiling height.
36 in. minimum
(914 mm)
from appliance front
36 in. minimum
(914 mm)
from appliance front
1 in.
(25 mm)
Note: For actual appliance
dimensions refer to Section 3.A.
Figure 3.3 Appliance Locations and Framing Dimensions - ODPALG-48
NOTICE: Vinyl siding must
not be placed between the
appliance opening and the
ceiling/overhang.
NOTICE: Flash the perimeter
of the appliance, corners
and the appliance face in a
manner consistent with regional
practices as required to prevent
water penetration around the
appliance or manage water that
may penetrate the appliance.
See Section 3.F. for more
information regarding wall and
enclosure construction.
ODPALG-48 SINGLE SIDED
NOTICE: Illustrations reect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/diagrams are not
drawn to scale. Actual installation may vary due to individual design preference.

11
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Note: For actual appliance
dimensions refer to Section 3.A.
Figure 3.4 Appliance Locations and Framing Dimensions - ODPALGST-48
NOTICE: Vinyl siding must
not be placed between the
appliance opening and the
ceiling/overhang.
NOTICE: Flash the perimeter of the appliance, corners
and the appliance face in a manner consistent with
regional practices as required to prevent water penetration
around the appliance or manage water that may penetrate
the appliance. See Section 3.F. for more information
regarding wall and enclosure construction.
ODPALGST-48 SEE THROUGH
NOTICE: Illustrations reect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/diagrams are not
drawn to scale. Actual installation may vary due to individual design preference.
88 in. min.
(2.88 m)
floor to ceiling
0 in.
Combustible Object
36 in.
(914 mm)
Cement Board (supplied 2 sides)
1 in.
(25 mm)
60 in.
(1524 mm)
1 in.
(25 mm)
17 in.
(431 mm)
62 3/8 in.
(1584 mm)
minimum
header height
Non-combustible
material required to
ceiling height.

12
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
FP = FIREPLACE OPENING X = AIR SUPPLY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED
O
N
P
R
Q
FP
(See Note 2)
D
E
L
FP
A
H
M
X
J or K
I
G
F
FP
FP
FP
FP
B
B
B
A = 24 in. . . . . . . . . . clearances above grade,
veranda, porch, deck or
balcony.
B = 12 in. . . . . . . . . . clearances to window or door
that may be opened, or to
permanently closed window.
20 in. . . . . . . . . . vinyl windows or siding.
D = 50 in. . . . . . . . . . vertical clearance to unventi-
lated soffit or to ventilated soffit
located above the terminal.
60 in. . . . . . . . . . vinyl clad soffits.
F = 9 in. . . . . . . . . . clearance to outside corner.
G* = 7 in. . . . . . . . . . clearance to inside corner,
non-vinyl siding.
H = 3 ft. (Canada) . not to be installed above a gas
meter/regulator assembly within
3 ft (914 mm) horizontally from
the center line of the regulator.
I = 3 ft. (USA)
6 ft. (Canada) . clearance to service regulator
vent outlet and electric service.
J = 9 in. (USA)
12 in. (Canada) . clearance to non-mechanical air
supply inlet to building or the
combustion air inlet to any other
appliance.
K = 3 ft. (USA)
6 ft. (Canada) . clearance to a mechanical air
supply inlet.
L = . . . . . . . . . . (See note 4)
M** = 50 in. . . . . . . . . . clearance under veranda, porch,
deck, balcony or overhang.
Not allowed: . . . . . . vinyl
N* = 14 in. . . . . . . . . . clearance to inside corner,
non-vinyl siding. (Alcove)
O = 50 in.
P = 88 in.
* 48 in. minimum for vinyl windows or vinyl siding.
** only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
Note 1: Local codes or regulations may require different clearances.
Note 2: Appliance in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1) There must
be a 3 ft minimum between terminations or between the
fireplace and termination. 2) All mechanical air intakes within 10
ft of a termination must be a minimum of 3 ft below the fireplace
hood. 3) All gravity air intakes within 3 ft of the fireplace opening
must be a minimum of 1 ft below the termination.
This fireplace is approved for installation onto screen porches with the
following guidelines:
Minimum porch area: 96 sq ft
Minimum ceiling height: 88 in.
Minimum of two walls must be screened
Minimum top of screen height, side walls: 80 in.
Minimum screen area: 64 sq ft
Note 3: There may be some odor and small amounts of soot associated
with burning outdoor gas fireplaces on a screened porch. Consider
prevailing wind direction for best flame performance.
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
QMIN RMAX
Palazzo 10 feet 2 x Q ACTUAL
1 additional termination cap Q + 3 feet 1 x Q ACTUAL
2 additional termination caps Q + 6 feet 2/3 x Q ACTUAL
3 additional termination caps Q + 9 feet 1/2 x Q ACTUAL
RMAX = (2 / # caps plus fireplace ) x QACTUAL
Alcove
Note 4: For appliances installed facing or opening onto public property or
property servicing more than one single family dwelling, such as
driveways, sidewalks, etc. refer to local building codes/regulations for
proper clearances.
C. Vent Minimum Clearances
Figure 3.5 Minimum Clearances

13
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Figure 3.6 Clearances to Combustibles
7 in.
(178 mm)
minimum - one side only.
Alcove installations require
14 in. (356 mm) from each side
of the firebox opening.
88 in.
(2235mm)
minimum
height
Additional
Structure or
Sidewall
Ceiling or
Overhang
50 in.
(1270 mm)
minimum
*
* Non-combustible material
(cement board) required from
bottom of appliance opening to
ceiling.
Noncombustible mat’l
WARNING! Risk of Fire! Com-
ply with all minimum clearances to
combustibles as specied. Framing
or nishing material closer than the
minimums listed must be constructed
entirely of non-combustible materials
(i.e., steel studs, concrete board, etc).
D. Hearth Extension/Floor Protection
This application does not require a hearth extension.
E. Stand-Alone Installation
This appliance may be installed as a stand-alone unit.
• Construct a stand-alone framing of combustible or
noncombustible materials.
• Cementboardorothernoncombustiblematerialcan
be applied directly to the face of the appliance.
• Airspaceclearancesarenotrequiredforstand-alone
construction with noncombustible materials.
• Tapeandsealalljointsandcorners.
• Provide proper ashing and moisture management
if installed on surfaces that may rot or otherwise be
damaged by water. (See also Section 4.B.)
When the stand-alone surround is constructed com-
pletely of noncombustible materials, stand-offs may be
removed to permit a smaller structure.
F. Built-in Installation
When this appliance is installed into a wall, we recom-
mend that the wall be an exterior wall system.
• SeeframingmeasurementsinFigure3.3and3.4.
• You must maintain 1 in. (25mm) air space at the back
and sides. See Figures 3.3 and 3.4.
• The header must not be placed below the top of the
top standoffs.
• Noncombustible wall sheathing material is required
from bottom of appliance opening to ceiling. (See
Figure 3.6)
G. Moisture Resistance
This outdoor appliance will shed moderate amounts of
water, but is not waterproof. This appliance must be en-
closed or covered with noncombustible nish material
andalljointssealedtopreventwaterinltration.
Thereboxwillnotperformasanexteriorwall.Moisture
penetration must be considered for construction that
places the appliance in structure walls or on moisture
sensitive surfaces.
When installed on exterior walls:Hearth&HomeTech-
nologies recommends that the chase be constructed out-
side the structure’s weather envelope. Where the plat-
formmeetsthewall,useaashingdetailsimilartothat
required for attached decks. Chase platforms, including
hearths should slope away from the structure at 1/8 in.
to 1/4 in. per foot. The appliance can be shimmed level.
• A 25 3/8 inch tall cement board has been provided for
this installation and has been fastened to the front of
the appliance for shipping purposes.
• Flashtheperimeteroftheappliance,cornersandthe
appliance face in a manner consistent with regional
practices as required to prevent water penetration
around the appliance or manage water that may
penetrate the appliance. See Section 3B and Figure
3.3 and 3.4 for more information regarding wall and
enclosure construction.

14
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
4 Appliance Preparation
Position, level, and secure the appliance.
• Placetheapplianceintopositiononeitherawoodor
noncombustiblecontinuousatsurface.
• Leveltheappliancefromsidetosideandfronttoback.
• Shimtheappliancewithnoncombustiblematerial,such
as sheet metal, as necessary.
• Chaseplatforms,includinghearthsshouldslopeaway
from the structure at 1/8 in. to 1/4 in. per foot.
• Nailingtabsmustbemovedfromshippingpositionto
installation position and secured to framing. Bend the
two nailing tabs out on each side. See Figure 4.1.
B. Flashing
• Flashtheapplianceinamannerconsistentwithregional
practices to prevent water penetration around the
appliance. Due to elevated temperatures across the top
oftheappliance,metalashingandhightemperature
sealant must be used.Adhesive polymeric ashing
materials may melt.
• Forbrick,stone,stuccoandsimilarconstruction,weep
screeds should be installed per regional codes.
• See Section 3.F. and Figures 3.3 and 3.4 for more
information regarding wall and enclosure construction
required to prevent moisture penetration into the
structure. The appliance will shed moderate amounts
of water but is not waterproof.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.

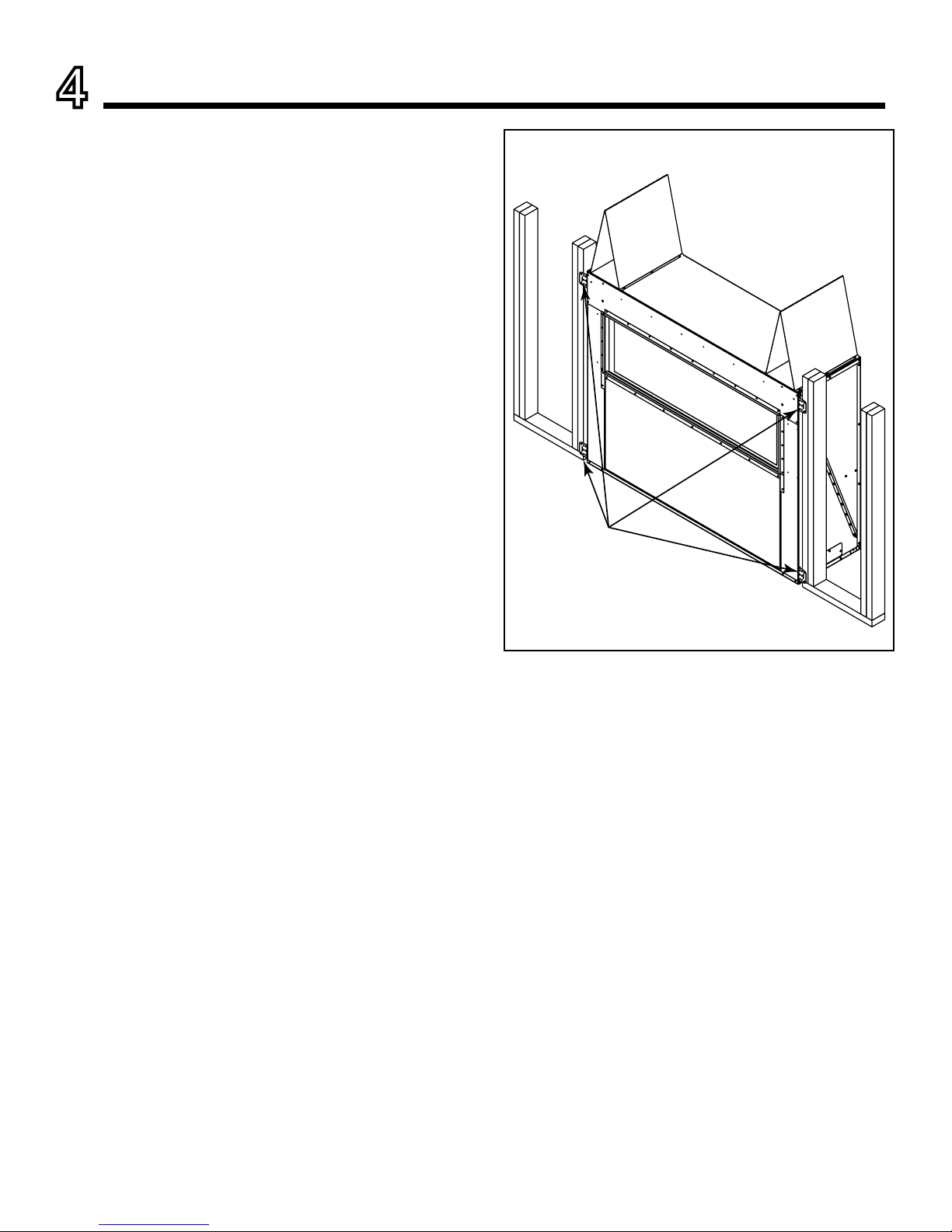

Figure 4.1 Positioning and Securing Nailing Tab
A. Securing and Leveling Appliance
Nailing Flanges
(both sides)

15
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
TotalElectrialRequirements:110-120Vac,60Hz.,less
than 12 Amperes
• Wire the appliance junction box to unswitched 110-
120 VAC. This is required for proper operation of the
appliance.
• A 110-120 VAC circuit for this appliance must be
protected with ground-fault circuit-interrupter protection
in compliance with the applicable electrical codes.
• Lowvoltageand110-120VACvoltagecannotbeshared
within the same wall box.
5 Electrical Information
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
Note: The Palazzo appliance MUST be connected to
a GFCI (Ground Fault Circuit Interrupt) protected circuit
breaker.
A. Wiring Requirements
B. IntelliFire Pilot Ignition System Wiring
• Wire the appliance junction box to 110-120 VAC for
proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
THIS APPLIANCE SUPPLIED STANDARD WITH:
• IntelliFirecontrolvalve(3V)
• Wall Switch Control - Operates Unit On/Off, Power
Screen Up/Down and LED lights.
•2RGBLEDoutdoorratedlightstrips(12V)
• Linearactuator,forpowerscreen(120V/5A).
• 12conductorwallswitchwire
C. Installing the Electrical
Note: ThePalazzoissuppliedwithtworubbergrommets
installed on the left side of the appliance for gas and
electricalconnections.SeeFigure3.1&3.2.Acover
plate is also provided on the right side of the appliance
in the event that gas and electrical must be run from
the right. If it is determined that gas and electrical are
to be run through the right side of the appliance, the
grommets and cover plates must be repositioned. See
Figure 5.1
Figure 5.1 Cover Plate
Figure 5.2 Junction Box
• RemoveLowerAccessPanelbyliftinguponthepanel
to disengage from hook and pull panel away from unit.
Set aside.
• Remove screws securing Junction Box & Mounting
Bracket as shown in Figure 5.2.
• Unplugtransformerandpowersupply.
Valve
Control Box
Gas & Electric
Pass Throughs
Manual
Shuto Valve
Junction Box
Cover Plate
Screws
Cover
Plate
Junction Box
Valve Cover
Box

16
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Figure 5.3 Junction Box
• DisassembleJunctionBox.SeeFigure5.3.
• Route a minimum 14/2 w/ground electrical wiring
through hole provided on the left side of the appliance.
• Wire&AssembleJunctionBox.SeeFigure5.4.
Grounding connection
to box (if box has a
grounding terminal)
Wire
connector
Junction
box
LINE cable brings
power from the GFCI Circuit
Outlet
Figure 5.4 Wiring
• ReinstallJunctionBox&MountingBracketremoved
in Step 2. See Figure 5.5.
• Plugintransformerandpowersupply.
Junction Box
Valve Cover
Box
Figure 5.5 Junction Box Mounting

17
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
Figure 5.6
RED
BROWN
PURPLE (+)
BLUE (-)
WHITE (+)
TAN (-)
GREY (-)
PINK (+)
YELLOW
ORANGE
GREEN
BLACK
C
NO
NC
+
-
C
NO
NC
+
-
C
NO
NC
+-
C
NO
NC
+-
C
NO
NC
+-
RED
LED
SWITCH
ON/OFF
SWITCH
ACTUATOR
SWITCH
GREEN
LED
SWITCH
BLUE
LED
SWITCH
12 PIN
CONNECTOR
RED
BROWN
PURPLE (+)
BLUE (-)
WHITE (+)
TAN (-)
GREY (+)
PINK (-)
YELLOW
ORANGE
GREEN
BLACK
12 PIN
CONNECTOR
12V DC ACTUATOR
To Juncon Box
LED WIRE HARNESS
LED LIGHT STRIPS
WIRE HARNESS
ORANGE
GREEN
12V POWER SUPPLY
GAS VALVE
CONTROL MODULE
3V AC POWER SUPPLY
PILOT ASSEMBLY
ORANGE
WHITE
BROWN WIRES
RED & BLACK WIRES (NOT USED)
LED WIRE HARNESS
WIRE HARNESS
WALL SWITCH ASSEMBLY
Diode (Type 1N4001)
Wiring Diagram

18
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
D. Wall Switch Control Assembly
ThePalazzoseriesoutdoorgasapplianceissuppliedwith
a wired wall switch control panel, a control mounting
box with cover, and trim ring. See Figure 5.7.
• Thewallswitchcontrolassemblyisshippedprewired
and mounted on appliance top standoff.
NOTE: Trim ring shipped in manual bag.
• Remove (2) screws securing wall switch control
assembly, to standoff.
• Install mounting box in the desired location prior to
nishingmaterialsbeinginstalled.SeeFigure5.8.
NOTE: Supplied wire allows for control assembly to
be mounted up to 8 ft. from appliance. 15 ft. control
wire extension kits are available (ODPALG-WH15), if
needed. A maximum of two extension kits (30 ft.) can
be used.
• Thecoverisdesignedtoprotecttheswitchduringthe
installationofnishingmaterialsaswellastoensure
the clearance necessary for future service of the control
panel.Removecoveroncenishingiscomplete.
• Thetrimringisdesignedtocoveranygapsleftbetween
smoothnishingmaterialssuchastile,stucco,etc.and
the control box.

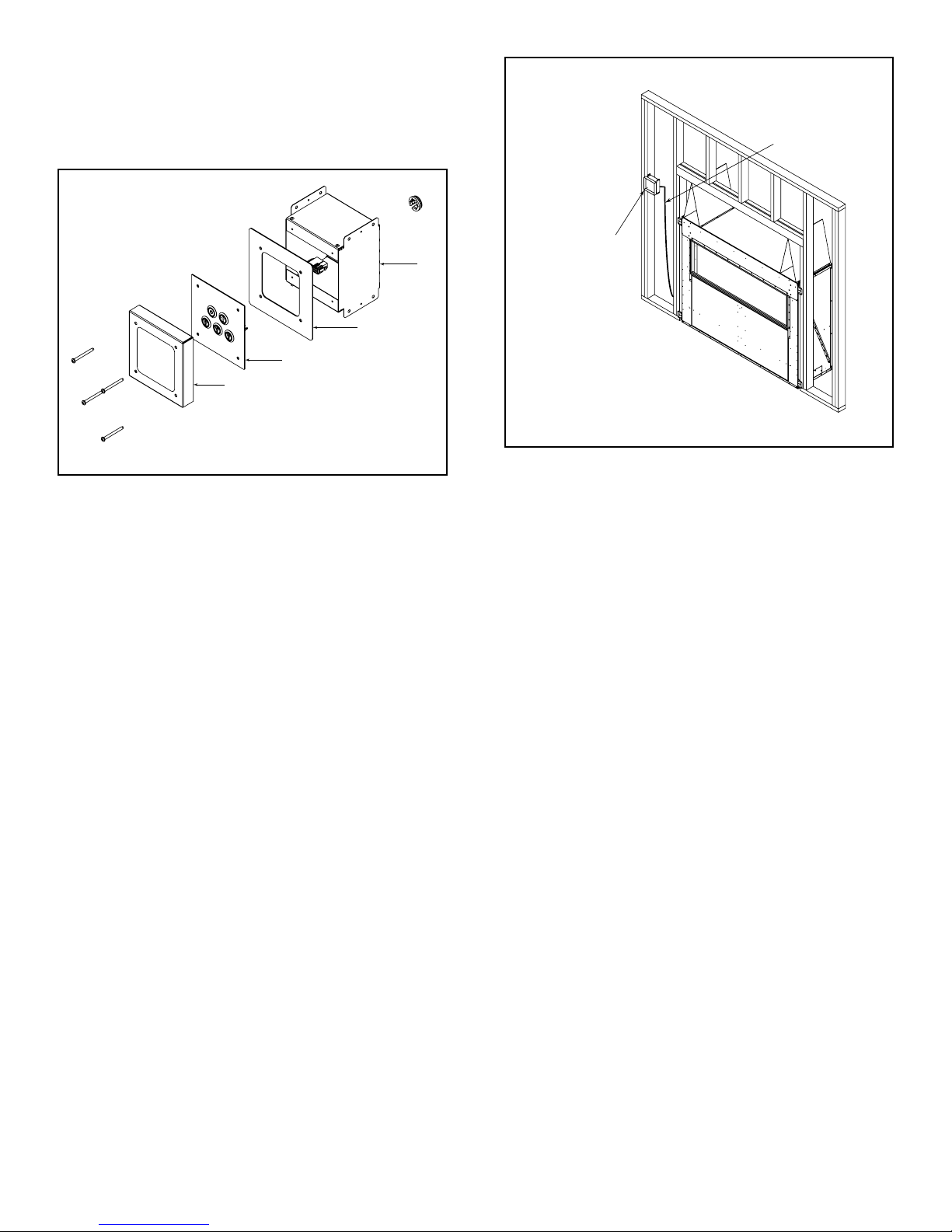

Figure 5.7 Wall Box Cover
Figure 5.8 Wall Switch Mounting
Control
Mounting Box
With Cover
Wall Switch
Wires
Mounting
Box
Trim
Ring
Control
Panel
Cover

19
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
A. Fuel Conversion
• Makesuretheapplianceiscompatiblewithavailablegas
types.
• The Palazzo series gas appliance is supplied from
the factory for use with natural gas. If a propane (LP)
conversion is required, kit LPK-ODPALG-48 must be
purchased in order to convert the unit for use with
propane.
• Conversions must be made by a qualified service
technicianusingHearth&HomeTechnologiesspecied
and approved parts.
B. Gas Pressure
• Optimumapplianceperformancerequiresproperinput
pressures.
• GaslinesizingrequirementswillbedeterminedinANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressurerequirementsare:
C. Gas Connection
• Refer to Reference Section 3 for location of gas line
access in appliance.
Note: ThePalazzoissuppliedwithtworubbergrommets
installed on the left side of the appliance for gas and
electrical connections. A cover plate is also provided on
the right side of the appliance in the event that gas and
electrical must be run from the right. If it is determined
that gas and electrical are to be run through the right
side of the appliance, the grommets and cover plates
must be repositioned. See Figure 6.1.
• The gap betweensupply pipingand gas accesshole
may be caulked with caulk with a minimum of 300ºF
continuous exposure rating or stuffed with non-
combustible, unfaced insulation to help prevent rodents
and insects from getting into the control area of the
appliance.
• Ensurethatgaslinedoesnotcomeincontactwithouter
wrap of the appliance. Follow local codes.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Installregulatorupstreamofvalveiflinepressureisgreater
than 1/2 psig.
6 Gas Information
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
Fire Risk.
ExplosionHazard.
High pressure will damage valve. Low
pressure could cause explosion.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
Thesepressurescanbeveriedthroughtheaccess
panel as shown in Section 6.D Valve Access.
When an appliance is connected to a xed piping sys-
tem, the installation must conform with local codes, or in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or International Fuel Gas
Code.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI 223.1. Installation
shouldbe done byaqualiedinstallerapproved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensedplumberorgastter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-off valve
andexiblegasconnectorareconnectedtothe1/2in.(13
mm) control valve inlet.
• Ifsubstitutingforthesecomponents,pleaseconsult
local codes for compliance.
Note: An individual manual shutoff valve (not supplied) is
required when installing this appliance. The manual shutoff
valve must be located in an easily accessible area, no more
than 6 feet from the appliance.

20
 OutdoorLifestylesbyHearth&HomeTechnologies•PalazzoInstallationManual•4082-311Rev.A•06/08/15
• Pipeincominggaslineintolowercompartment.
• Connect incoming gas line to the 1/2 in. (13 mm)
connection on manual shutoff valve.
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• Asmallamountofairwillbeinthegassupplylines.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire! DO NOT change valve settings.
This valve has been preset at the factory.
WARNING! Risk of Fire or Explosion! Gas build-up dur-
ing line purge could ignite.
• Purge should be performed by qualified service
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks or
open ames.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open ame. Fittings and connections could have loos-
ened during shipping and handling.
Valve
Control Box
Gas & Electric
Pass Throughs
Manual
Shuto Valve
Junction Box
Cover Plate
Figure 6.1 Lower Compartment
D. Valve Access
The valve and controls are located in the appliance con-
trol box. See Figure 6.2.
Priortonishingmaterials:
The control box and controls can be accessed from the
frontoftheappliance,priortonishingmaterialsbeing
added to the face of the appliance.
• RemoveLowerAccessPanelbyliftinguponthepanel
to disengage from hook, pull panel away from unit and
set aside. See Figure 6.2.
• Removescrewssecuringcontrolboxaccesspanel.
• Removecontrolboxloweraccesspanel.
See Figure 6.3.
Valve Control
Box
Lower Access
Panel
Figure 6.2 Lower Access Panel
Control Box
Access Panel
Figure 6.3 Control Box Access Panel
CAUTION! Damage to appliance may occur.
When test burning the Palazzo appliance, without glass
media installed on hearth pan, do not burn the appliance
for more than 30 seconds, as damage to the stainless
steel hearth pan/burner may occur.
