Outland Living OLVG-302 User manual

FMI BRANDS INC. 107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7
Toll Free: 1-888-514-1663 | Tel: [phone] | Email: [e-mail]
D. OLVG-302.000.V0
Owner’s
Manual
4BIN - VERTICAL GARDEN
Model number OLVG-302

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
En-1 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
Model number OLVG-302
NOTE TO INSTALLER:
Leave this guide with the consumer.
NOTE TO CONSUMER:
Please retain this guide for future use.
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
CAUTION:
Watch for sharp edges.
Wear protective gloves if necessary.
SUPPLIED PARTS & HARDWARE LIST:
PART # DESCRIPTION PICTURE
1 RIGHT TOP
FRAME (x1)
2
RIGHT
BOTTOM
FRAME (x1)
3 LEFT TOP
FRAME (x1)
4 LEFT BOTTOM
FRAME (x1)

En-2
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SUPPLIED PARTS & HARDWARE LIST (continued):
PART # DESCRIPTION PICTURE
5 CROSS BARS
(x2)
6 REAR LEGS
(x2)
7 BIN HANGER
(x8)
8M5x40mm
SCREW (x14)
PART # DESCRIPTION PICTURE
9 M5x45mm
SCREW (x2)
10 M5 NUT (x4)
11
PLASTIC
PLANTER BIN
(x4)
12 DRAIN PLUG
(x4)

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
En-3 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
SECTION 1: ASSEMBLY
STEP 1
Assemble the Rear Legs (Part 6) to the Bottom
Frames (Part 2 and 4) using the (2x) longest 45mm
screws (Part 9) and (2x) nuts (Part 10).
• Note: Both rear legs are identical, so it doesn’t
matter which you assemble first.
Support Pegs
Facing In Logos
Facing Out
Cross Bar
M5x40
Screws
(x8)
Cross Bar
Bottom Frame Assembly
M5 Nut
M5x45mm
SCREW (x2)
Left
Bottom
Frame
Rear Leg
Rear Leg
Right Bottom
Frame
STEP 2
Arrange the two bottom frame legs so the support
pegs for hanging bins are on the inside and the
OUTLAND Living™ logos are facing outwards.
STEP 3
Attach two of the Cross Bars (Part 5) to complete the
Bottom Frame assembly using (8x) 40mm screws
(Part 8).

En-4
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 1: ASSEMBLY (continued)
Left Top
Frame
Support
Pegs
Facing In
Cross Bar
M5x40
Screws (x4)
Support
Pegs
Facing In
Right
Top
Frame
M5x40
Screws (x2)
M5 Nuts
(x2)
STEP 4
Insert the Upper Frames (Part 1 and 3) into the Bottom Frame
assembly. Attach using (2x) 40mm screws (Part 8) and (2x)
nuts (Part 10).
• Note the bin hanger support pegs should be on the
inside, the same as the Bottom Frame.
STEP 5
Attach the third Cross Bar (Part 5) to complete the Top Frame
assembly using (4x) M5x40mm screws (Part 8).

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
En-5 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
SECTION 1: ASSEMBLY (continued)
SECTION 1: ASSEMBLY (continued)
STEP 6
Hang the Bin Hanger Brackets (Part 7) on the support pegs.
Bin Hanger
Support Peg
Bin Hanger

En-6
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 1: ASSEMBLY (continued)
STEP 7
Place Plastic Bins (Part 11) on the Bin Hanger Brackets.
STEP 8
Assembly is complete. Set the frame in the location where
you want to display it, before loading the frame with fully
loaded planter bins.
Note: Using the silicone stoppers (Drain Plugs, Part 12) is
optional. See section 2 for details.
Your OUTLAND Vertical Garden is ready to use indoors or
outdoors.
IMPORTANT: Always ensure your Vertical Garden stands straight
and level.
IMPORTANT: Always ensure all fasteners are firmly tightened.

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
En -7 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
APPROXIMATE DIMENSIONS
30”
760mm
23”
580mm
FRONT
GROUND
SIDE
65”
1650mm
WALL
The Vertical Garden frame measures approximately:
30”W x 23”D x 65”H (760mmW x 580mmD x 1650mmH).

En-8
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 2: PLANTER
GARDENING
PLASTIC PLANTER BINS
The plastic bins are made from 100% new
Polypropylene material (PP) and are food
safe (BPA free, phthalate free, lead free,
mercury free). The bins have a 3000hr
UV stabilizer to protect the plastic from
degrading in the outdoors.
The Drain Plugs (Part 12) are made from
food safe silicone.
DRAIN HOLES
We listened to the experts (our customers).
These bins do not come with drainage
holes. Not everyone wants drainage holes
in their planters. But, if you want to add
drainage holes, we suggest using a 1/4”
(6mm) drill bit (drill bit not included). This
way, if you change your mind later on
(because you might change your mind!),
you can use the 1/4” silicone stoppers we
have supplied you with to plug the holes.
1” WATER RESERVOIR
If you are going to drill a drainage hole,
we recommend the hole be placed
approximately 1 inch up from the bottom
of the bin, on the front face of the bin. This
will create a 1” water reservoir.
Outdoor Gardening? No need to install
the drain plug. Gardening without the
drain plug allows excess rain water to flow
through the bins to the ground below.
DRAINAGE LAYER
Some gardeners recommend placing
approximately one inch of drainage filler
(pottery, shells, gravel, etc.) at the bottom
of the planter bin, before adding the soil.
This is optional. The bottom of the planter
bins have raised features denoting the
drainage layer line.
TIP: Why add a drainage layer? Some
people do this to help prevent root rot.
What this does is create a small water
reservoir below the soil line. As the plant
roots will prefer to stay in the soil above,
they won’t sit in accumulated water, where
they can potentially grow root fungus. The
water in the lower drainage reservoir will
eventually evaporate up through the soil,
keeping the soil moist. If the planter has a
drain hole placed 1 inch from the bottom, a
one inch water reservoir can be maintained
and the layer of drainage material will
minimize soil being washed through the
hole.
1/4” (6mm)
Drill Hole
Recommended Drainage Hole
1.0”
(25.4 mm)
TIPS FOR WHEN YOU’VE DRILLED
A DRAIN HOLE
Gardening Indoors or on a Patio Deck?
Install the supplied Drain Plug (part 12).
a. Using the drain plug in the lowest
bottom bin prevents water drainage
and allows you to garden indoors,
or on your patio deck, with your
OUTLAND Vertical Garden.
b. Removing the drain plug allows
excess water to drain out of the lowest
plastic planter bin. When indoor, or
patio gardening, place a tray under the
bottom bin before removing the drain
plug.
IMPORTANT:
FACE THIS WAY FRONT. Ensure the
drain holes are placed front facing on
the hangers so water drains into each
bin below, in a cascading fashion, as
shown in the illustration. Otherwise,
water drainage will occur on the ground
(or floor) below.
FACE DRAIN
HOLES TO THE
FRONT
(CASCADING
DRAINAGE)
Drain Plug
Drainage
Layer Line

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
En-9 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
SECTION 2: PLANTER GARDENING (continued)
SECTION 3: SET UP INSPECTION
SEQUENCE
SOIL BUDGET ASSUMPTION:
The dimensions of the planter bins are approximately 26.5”L x
9.5”W x 8”H (675mmL x 240mmW x 200mmH)
Add your preferred volume of Potting Soil Mix. (Soil not included).
Plan your budget for 28L (25 Quarts) of soil mix per bin and/or
adjust the volume of soil to suit your need.
WATERING FEATURE
The OUTLAND Living vertical garden planter bins will rotate on the
support pegs to make watering your plants easy and convenient.
The Vertical Garden should be inspected before use and at least
annually. More frequent cleaning and/or adjustments may be
required as necessary.
Prior to each use:
• Ensure placement is on a level and firm surface able to hold the
fully loaded weight of the frame, which is approximately 60-
70Kg (130-160lb)
• Ensure no parts are missing and all fasteners are firmly
tightened.
SOIL BUDGET/1 BIN SOIL BUDGET/4 BINS
1 cubic foot (ft3)4 cubic feet (ft3)
.04 cubic yard (yd3).15 cubic yard (yd3)
25 Imperial Quarts 100 Imperial Quarts
28 Litres (L) 113 Litres (L)
CAUTION:
Do not tip the planter so far up that the bins fall out!
FEATURE: ROTATING BINS
MAKE WATERING EASY
AND CONVENIENT
26.5”
675mm
9.5”
240mm
8”
200mm

En-10
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 4: MAINTENANCE
Your Outland Vertical Garden is meant for indoor or outdoor use
and requires periodic maintenance to keep it in good condition.
• Should any part of this appliance become soiled or dirty, wipe
down with a damp wet cloth.
IMPORTANT: Do not use petroleum based, flammable or
corrosive cleaning products on or near this unit.
• Should you experience water dripping from the drainage holes
in ways which are obviously unintended, or detrimental to your
home, we recommend the following trouble shooting:
i. confirm the vertical garden is sitting level
ii. confirm each bin is sitting level on the bin hanger
iii. confirm each drainage hole is positioned above the bin
below
iv. confirm your lovely plants aren’t redirecting flow
v. If you’ve exhausted the above and pesky water seepage
is still finding its way (because we all know it sometimes
does!), we recommend to find a small piece of hose
or tubing to fit snugly inside the problematic drainage
hole(s). Align the tubing so the flow of dripping water
actually falls where you want it to fall.
This appliance is NOT a toy.
WARNING:
Do not climb on the Vertical Garden or use it as a ladder or
serious injury, property damage and/or death may occur.
WARNING:
Do not drag or push the Vertical Garden with fully loaded
planter bins! At worst, the frame could fall, causing serious
injury, or death. At minimum, it could damage your floors.
Always remove the planter bins before moving the frame.
SECTION 5: STORAGE
Your Vertical Garden has been designed to conveniently store away
when not in use.
• We recommend to store your Vertical Garden under cover
during winter, or when not in use.
Follow these instructions to ready for storage:
• Remove plastic Planter Bins from frame.
• Set aside the bin hanger brackets.
• Remove Rear Legs.
• Store conveniently. See you next season.
IDEAS FOR WHAT TO GROW
THIS LIST OF RECOMMENDED CROPS FOR YOUR
VERTICAL GARDEN IS BY NO MEANS COMPLETE,
BUT SHOULD HELP PROVIDE SOME IDEAS TO START
YOUR GREEN THUMB:
HERE IS A LIST OF ANNUALS FLOWERS WHICH YOU
MAY LIKE TO TRY IN YOUR VERTICAL GARDEN:
Note that plants grown in containers typically need to be watered
more frequently than plants grown in the ground. We recommend
to monitor your soil moisture and water regularly.
For best results, consult your local nursery for gardening tips when
purchasing your garden materials.
• Lettuce (leaf varieties)
• Spinach
• Radish
• Arugula
• Baby Carrots
• Beets
• Chard
• Onions (Green, Scallion)
• Asian Greens (Tatsoi, Pak
Choy, Mizuna, Gai-lon)
• Determinate (bush) tomato
plants (small cherry
tomatoes, salad varieties)
• Herbs (Basil, Thyme,
Tarragon, Rosemary,
Oregano, Cilantro, Dill,
Savory, Mint, Sage, Chives,
Bay, Parsley, Coriander,
Sorrel, Lemongrass)
• Alyssum
• Begonia
• Browallia
• Coleus
• Geraniums
• Impatiens
• Latana
• Lobelia
• Marigolds
• Periwinkle
• Nasturtiums
• Pansies
• Petunias
• Salvia
• Sanvitalia
• Snapdragons
• Thunbergia
• Zinnias

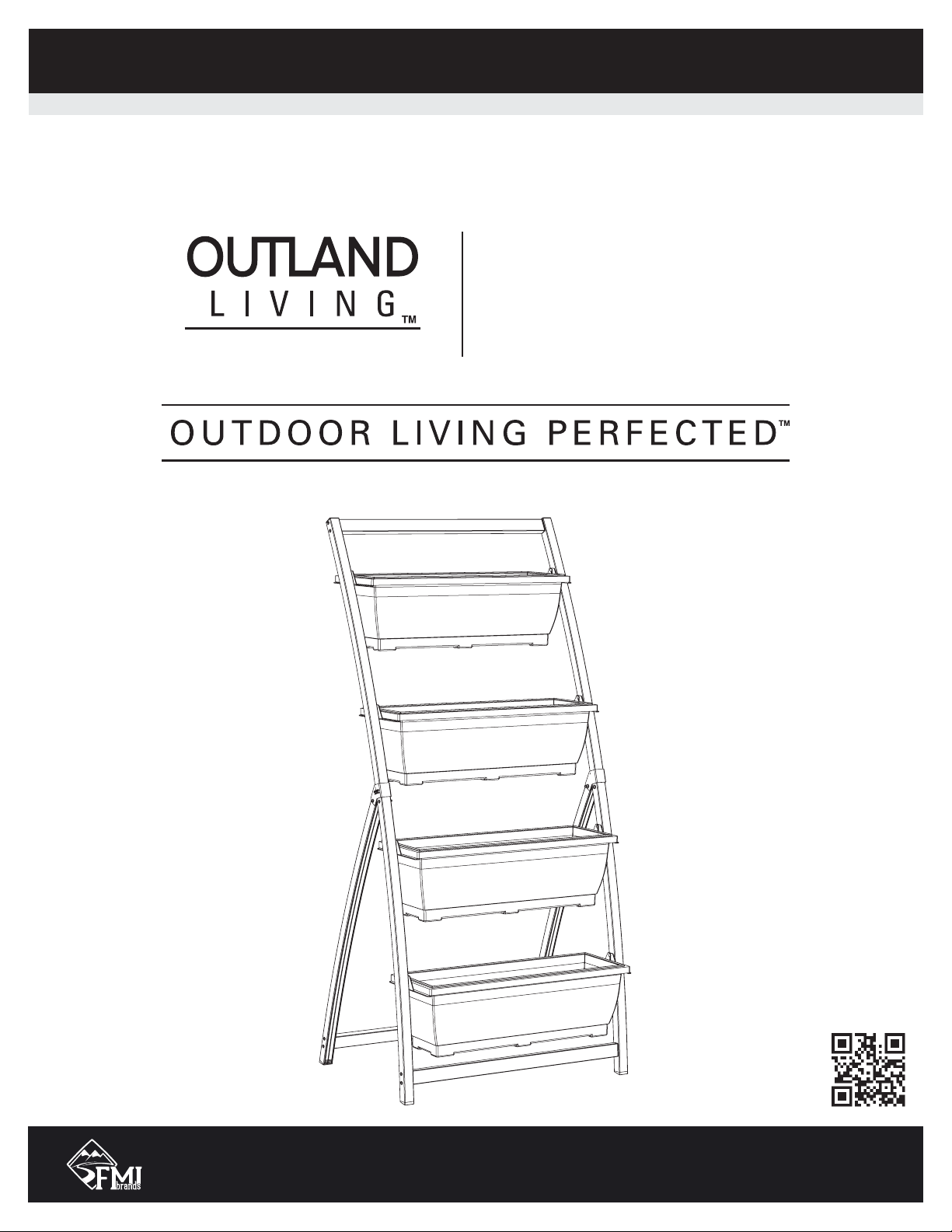

VERTICAL GARDEN
Owner & Safety Manual
D. OLVG-302.000.V0
E n -11 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL
STOP:
Do not return this product to the store.
If you need help or parts, call the OUTLAND Hotline: [phone]
Get help for:
Missing/damaged parts • Assembly • Troubleshooting • Warranty Assistance • Product Information
1 YEAR LIMITED WARRANTY
Customers in Canada and USA
All components are warranted by the manufacturer for a period of 1 year after date of purchase by
the original owner against defects in materials and workmanship under normal use. This warranty
does NOT cover normal wear and weathering, assembly and/or maintenance OR use in a commercial
application. At FMI Brands’ sole discretion, products under warranty will be repaired and/or replaced
at no charge to the customer. Any returns sent back to FMI Brands must be sent via prepaid freight
and in the original retail packaging.
Please register your OUTLAND Living product for proof of purchase and warranty at
http://outlandliving.com/register-products/
For more warranty information and details please contact FMI Brands Inc. at [e-mail]
FOR REPLACEMENT PARTS AND ACCESSORIES PLEASE VISIT
WWW.OUTLANDLIVING.COM
The owner’s manual is available as a free download from www.outlandliving.com
Replacement part orders can be sent by mail to the address on the cover of this booklet, or faxed to [phone]. Should you have any questions
or comments regarding this product, please do not hesitate to contact FMI Brands Inc. at [phone] or E-Mail to [e-mail].
