Oval PC2201 User manual

Ins. No. E
−
935
−
1-E
1
PULSE CHECKER
MODEL：PC2201
This manual has been prepared to provide you with the information pertinent to the PULSE
CHECKER. This product is fabricated and shipped from our factory under stringent quality control. With
the proper application of the information and knowledge contained in this manual, you will be able to ex-
pect the best possible results over a long service life of this instrument. Keep this manual at hand for your
quick reference.

E-935-1-E

CONTENTS
1. GENERAL ………………………………………………………………… 3
2. PART NAMES ……………………………………………………………… 3
3. SYSTEM CONFIGURATION ……………………………………………… 4
4. DESCRIPTION OF FUNCTIONS ………………………………………… 5
5. GENERAL SPECIFICATIONS ……………………………………………11
6. OUTLINE DIMENSIONS……………………………………………………11
7. STANDARD ACCESSORIES ………………………………………………11
This manual uses the precaution words
"NOTE", "CAUTION", and "WARNING" as explained below:
NOTE:
Notes are separated from the general text to bring the user's
attention to important information.
CAUTION:
Caution statements inform the user of hazards or unsafe practices
which could result in minor personal injury or product/property
damage.
WARNING:
Warning statements inform the user of hazards or unsafe practices
which could result in severe personal injury or death.

E-935-1-E
3
1. GENERAL
This pulse checker is designed for inspecting, adjusting and maintaining a wide variety of equipment
associated with pulse signals. It features two groups of functions - the input functions which include the
accumulation, frequency measurement, period measurement and gated accumulation of input pulses and
the output functions which include the digital selection of the reference frequency, frequency reduction
and output frequency programming by selecting % frequency reduction, the control of the number of
output pulses, as well as the selection of pulse width and generator type.
Despite these elaborate capabilities, this portable pulse checker is easy to use.
To derive maximum benefit from the instrument, we recommend that you familiarize yourself with the
instructions contained in this manual.
2. PART NAMES
No. NAME DESCRIPTION
1 DC IN Connector to the ac adaptor furnished
2 POWER Power switch
3 FUNCTION Input counter function select rotary switch
4 INPUT LEVEL Input pulse trigger level select rotary switch
5 INPUT COUNTER 8-digit LCD Input counter
6 RESET Input counter reset pushbutton switch
7 INPUT Input terminals to banana plugs of the furnished cords
8 FREQUENCY 4-digit decade switch for establishing the reference frequency
9 PRESET 8-digit decade switch for establishing the output pulse number
10 START Output counter "Start" pushbutton switch, LED (green) lighted
11 RESET Output counter "Reset" pushbutton switch, LED (yellow) lighted
12 STOP Output counter "Stop" pushbutton switch, LED (red) lighted
13 OUTPUT COUNTER 8-digit LCD output counter
14 RATING Reference frequency reduction rotary switch
15 %SETTER Reference frequency % setting rotary switch
16 WIDTH Output pulse width setting rotary switch
17 OUTPUT Output generator type select rotary switch
18 OUTPUT Output terminals to banana plugs of the furnished cords
19 Battery compartment cover
20 Carrying strap attachment fitting
21 Rubber foot
SUP SIG SIG GATEOV OV
OUTPUT INPUT
INPUTLEVEL INPUTCOUNTER
OUTPUTCOUNTER
FUNCTION
OUTPUTWIDTH%SETTERRATINGSTOPRESETSTART
PULSECHECKER PC2201
PRESET
FREQUENCY RESET
POWER DCIN
100
10
1
1K
10K
30 75
100
25
0
1
50
0.25
1.1
（ma）
PG30S
O.C
VOLT
PA11
P.A
PG30
PG20
OPTO
PERIOD
RATIO
105
15
COUNT
FREO
36
15
D.C
1.5
（V）
18 5786 9 20
21
1
2
19
10
11
12
13
14
15
16
17
3
4

E-935-1-E

TRIGGERLEVELSET GATE INPUTINTEGRATOR
WAVESHAPING
8-DIGITLCD
DISPLAY
4-DIGITDECADE
SWITCH
CRYSTAL
OSC.
%FREQUENCY
REDUCTION×1/6 SCALER×1/100
"END"
BUZZER BATCHCONTROLCIRCUIT FREQ.REDUCTION
8-DIGITDECADE
SWITCH
8-DIGITLCD
DISPLAY
COUNTCOLLATE OUTPUTCOUNTER
OUTPUTSIGNALSELECTCKT. PULSEWIDTHSHAPING
STABILIZEDVOLT
BATTERIES CHARGE/
DISCHARGE DC/DCCKT.
ACADAPTOR
100VAC
50/60Hz
UM-3Ni-CdBATTERY×6
COUNTING
SUSPENDED END
3. SYSTEM CONFIGURATION

E-935-1-E
5
4. DESCRIPTION OF FUNCTIONS
１. Power Functions
(1)“DC IN”connector…… Connects to the furnished AC adaptor.
(2)“POWER”switch …… Furnishes power to the circuitry when turned on. The Input and output counter
LEDs light up at the same time.
This checker operates on a two-way power supply system. When this switch is turned on with no
external power furnished through the ac adaptor, the instrument operates on internal batteries.
The batteries are of rechargeable type and good for about 5 hours of operation if fully charged in
24 hours. (Connected to an external power source through the ac adaptor, the batteries will be fully
charged in 24 hours with power switch off.)
When the battery terminal voltage drops below serviceable level, the input and output counter LCDs
begin to flicker.)
Although the checker is serviceable for 10 to 15 minutes with the LCDs flickering, it is recommended
that the batteries be recharged immediately or an ac power be furnished through the ac adaptor to
eliminate possible erratic operation.
The batteries should be replaced every year, although their life may vary depending on the given
operating conditions.
2. Input Functions
(1)“INPUT”terminals
“SIG” …… Input terminals to accept pulse signals with selectable trigger level.
“GATE”…… Input terminals to accept gate pulses.
Trigger level: 2.5V Hysteresis: 0.1V
Pulse width response: 1μs min.
Frequency response: 5Hz max.
“0V”: …… Common 0V line

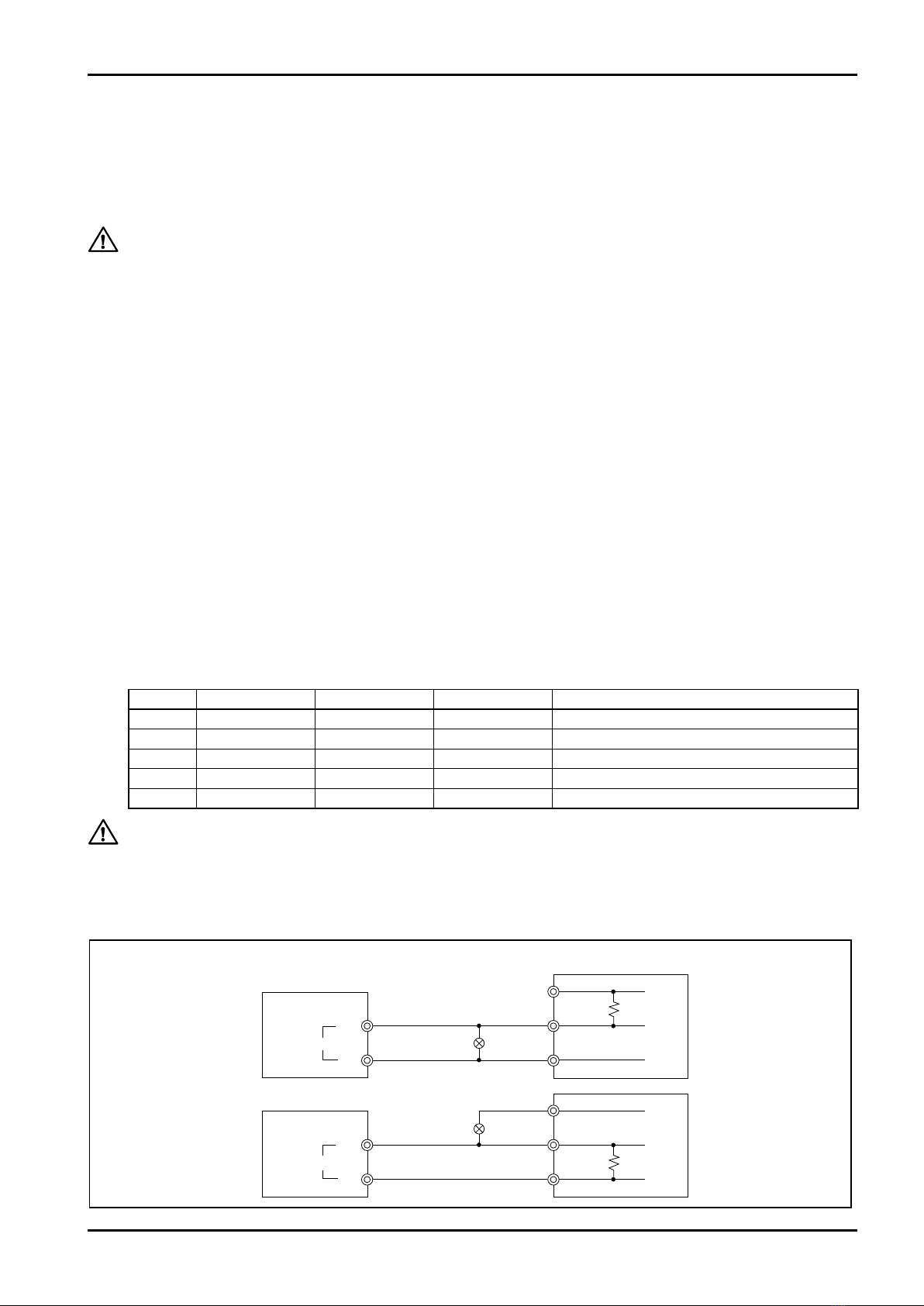

(2)“INPUT LEVEL”Select Switch
This checker has no internal power supply for pulse generators. It therefore cannot drive directly the
pulse generators described in the“Receive Signal”columns above.
So, couple with other receiving instrument which has an internal power supply and pick up its signal only.
In case of PA04, 05, 45 or PG60A (E), it may be“6”depending on the position of picking up the signal.
Select Trigger Level Hysteresis Response Freq. Receive Signal
15 1.5V 0.1V 300kHz Voltage pulse signal at IC level
OC 11.3kΩ20kΩ10kHz Pulse signal of no voltage (W/pull up resistor)
3 3.0V 0.1V 10kHz PG30
6 6.0V 0.2V 10kHz PG30S
18 18.0V 0.6V 10kHz PA04, 05, 45 and PG60A (E)
［18］ISCHOSEN
［6］ISCHOSEN
PC2201
PC2201
SIG
SIG
INPUT
INPUT
0V
0V
PULSE
GENERATOR
PULSE
GENERATOR
510Ω
510Ω
24V
24V
SIG
SIG
0V
0V
RECEIVINGINSTRUMENT
CAUTION:
CAUTION:

E-935-1-E

(3)“FUNCTION”Select Switch
Selects“INPUT COUNTER”functions.
“COUNT” …… Accumulated total counter
Counts the number of incoming pulses at“SIG”terminals.
“FREQ 1S”…… Frequency counter with one second gate
Counts the number of incoming pulses at“SIG”terminals for a period of one
second →Displays it for one second →Reset to“0”. The cycle above is
repeated.
Unit of measure displayed on the counter …… “Hz”
“FREQ 10S” … Frequency counter with 10-second gate
Counts the number of incoming pulses at“SIG”terminals for 10 seconds →2
sec. hold displayed →“0”reset.
This cycle is repeated.
Unit of measure displayed on the counter …… “Hz”
“PERIOD”…… Period counter with 1MHz pulses
Counts the period of incoming pulses at“SIG”terminals against the 1MHz
internal pulses and displays it, latched.
Unit of measure displayed on the counter …… μs
“RATIO” …… Gated accumulated total counter
Counts the number of incoming pulses at“SIG”terminals at the intervals of
pulses incoming through“GATE”terminals and displays it, latched.
(4)“RESET”Pushbutton Switch
Upon depression, the“INPUT COUNTER”is reset to“0”.
(5)“INPUT COUNTER”
An 8-digit LCD accumulated total counter. Its functions are selectable with“FUNCTION”select switch.
3. Output Functions
(1)“FREQUENCY”Preset Switch
Establishes the reference frequency of output pulses with 4-digit decade switch.
Preset coverage: 1 to 9999Hz (in 1Hz steps)
(2)“RATING”Select Switch
Selects the decimal point of the“FREQUENCY”reference frequency.
“1” …… The decimal point of 4-digit decade switch is □□□□. Hz
“10” …… The decimal point of 4-digit decade switch is □□□.□Hz
“100”…… The decimal point of 4-digit decade switch is □□.□□ Hz
“1K” …… The decimal point of 4-digit decade switch is □.□□□ Hz
“10K”…… The decimal point of 4-digit decade switch is 0.□□□□ Hz
(3)“% SETTER”Select Switch
Selects % frequency reduction of the reference frequency.
“100”…… Provides the reference frequency output with the decimal point chosen as above.
“75” …… Provides the reference frequency output ×0.75 with the decimal point chosen as above.
“50” …… Provides the reference frequency output ×0.5 with the decimal point chosen as above.
“25” …… Provides the reference frequency output ×0.25 with the decimal point chosen as above.
“0” …… No output is provided.
(4)“PRESET”Switch
Presets the number of output pulses with 8-digit decade switch.
Upon“START”button depression, the checker produces the number of pulses preset before it
comes to stop pulse generation automatically.
Preset coverage: 1 to 99999999 P (in 1P steps)

E-935-1-E

(5)“START”Pushbutton Switch
The checker produces a pulse train of the frequency selected by the switches“FREQUENCY”,
“RATING”and“% SETTER”for the number of pulses selected by the“PRESET”switch upon button
depression.
The“OUTPUT COUNTER”counts the output pulses being produced and the green LED on this
button lights up, indicating“COUNTING”.
(6)“STOP”Pushbutton Switch
At touch of this button, pulse output may be interrupted before the number of pulses established by
the“PRESET”switch is reached.
While pulse generation is interrupted, the“STOP”red LED on this button lights.
(7)“RESET”Pushbutton Switch
Resets the“OUTPUT COUNTER”to zero upon actuation of the button. It is inhibited while the
green“COUNTING”LED is illuminated, however.
When the accumulated total count on the“OUTPUT COUNTER”has reached the“PRESET”count,
the checker shuts off pulse output generation automatically; a buzzer sounds for about 1.5 seconds
and the yellow“END”LED on the button comes on. It remains illuminated until this button is pressed.
［Operations Sequence Time Chart］
(8)“OUTPUT COUNTER”
Counts the number of output pulses with an 8-digit accumulated total counter.
SIGNALPULSE
"START"BUTTON
"STOP"BUTTON
"RESET"BUTTON
ENDSIGNAL
"COUNTING"
"SUSPENDED"
"END"
OUTPUTPULSES
BUZZERSOUNDSFOR1.5SEC.APPROX.
The circuitry is so configured that definitely a single output pulse is always secured when the
“START”or“STOP”button is depressed at any state, any instant of signal pulses. Under no
circumstances, therefore, the checker produces spiky or otherwise distorted pulses.
CAUTION:

E-935-1-E

(9)“WIDTH”Select Switch
Selects output pulse width.
“1:1” …… Pulses with 1:1 ON/OFF ratio
“0.25”…… Pulses 0.25ms±10% wide (2000Hz or lower)
“1” …… Pulses 1ms±10% wide (500Hz or lower)
“50” …… Pulses 50ms±10% wide (10Hz or lower)
(10)“OUTPUT”Select Switch
Selects the generator type for output pulses.
“OPTO” …… A simulated output of OPTO 01/02 generator circuit
“PG20” …… A simulated output of PG20M generator circuit
Coupling conditions are 30V dc and 20mA max. because it provides an open
collector output of transistors rather than a relay counterpart.
“PG30” …… A simulated output of PG30 generator circuit
“P.A.” …… A simulated output of PA04/05/45 or PG60A (E) generator circuit
“PG30S” …… A simulated output of PG30S generator circuit
“O.C.” …… A simulated output of FLOWPET NX or PG60A (E) generator circuit
“VOLT” …… A voltage pulse output from 8V internal power source
“PA11” …… A simulated output of PA11 generator circuit

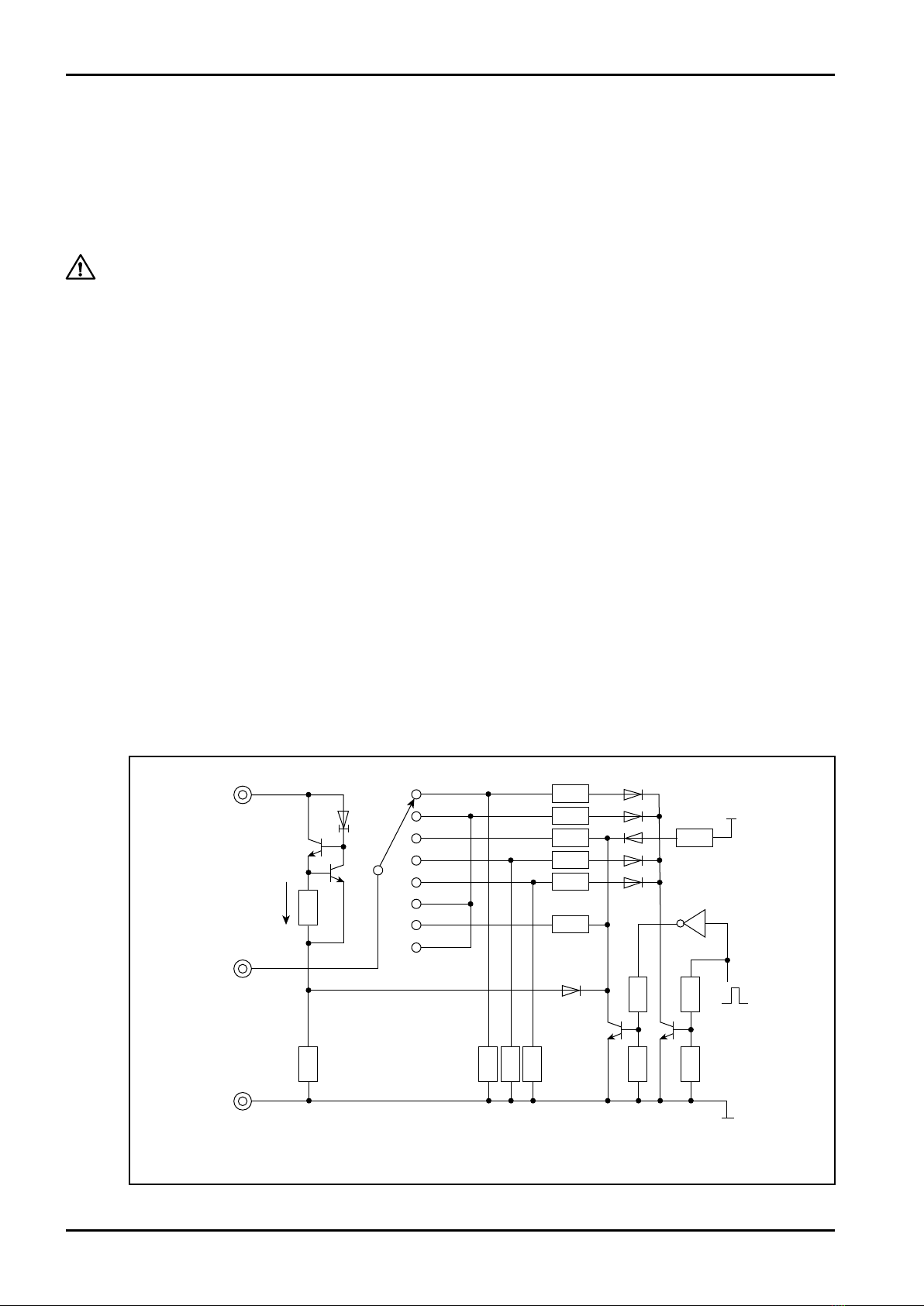

Simulated Output Circuit
SUP
SIG
0V
0V
30mA
27
240
7K5
5K6
1K2
5K1 5K1
100K 100K
OPTO
PG20
PG30
P.A
PG30S
O.C
VOLT
PA11
OUTPUT
5K1
8V
2K4
200
200
200
220
820
Figures in the box □ show the resistance values. (Examples: 100k→100kΩ, k5→.5kΩ)
Output frequency should be chosen within the conditions in brackets ( ) when you select a
particular fixed pulse width.
The ON/OFF ratio is 1/1 when the frequency is at maximum of the figure in the brackets ( ); the
OFF width becomes smaller progressively as the frequency exceeds that figure; at frequencies
twice that figure, or greater, pulses will overlap and no output will be produced: the "OUTPUT
COUNTER" will fail to count.
CAUTION:

E-935-1-E
9

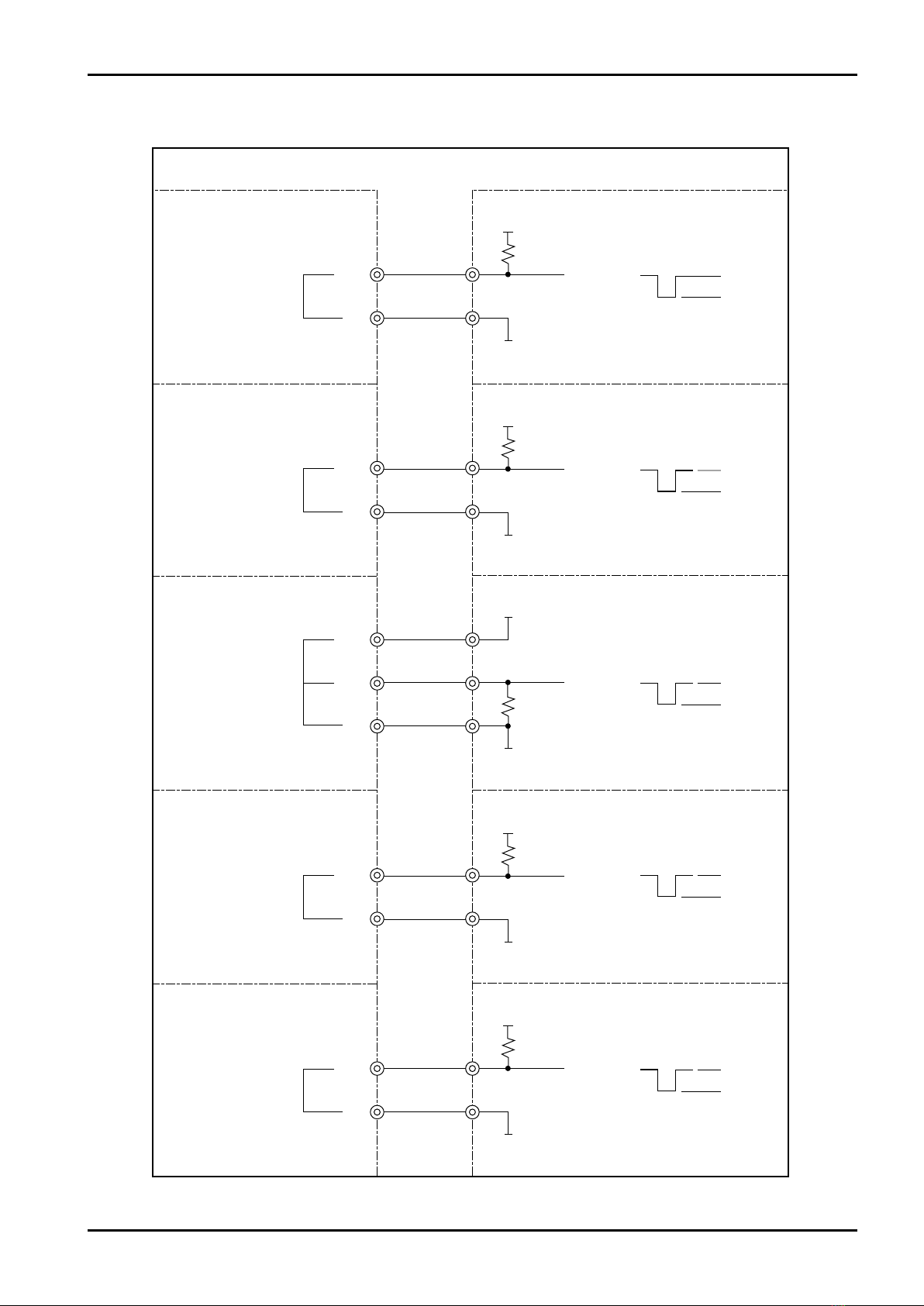

Output Hook-up
SIG
0V
SIG
0V
SIG
0V
SIG
0V
SUP
SIG
0V
Vcc（8.5V）
GND（0V）
1kΩ
7.4V
5.6V
PC2201
OUTPUT
［OPTO］
Vcc（13.5V）
GND（0V）
10kΩ（RECOMMENDATION）
（R=10kΩ）
（R=10kΩ）
13.4V
0.1V
［PG20］
［PG30］
Vcc（24V）
GND（0V）
510Ω
22.0V
14.3V
［P.A］
Vcc（13.5V）
30mA
GND（0V）
10kΩ以上
6.5V
0.1V
Vcc（13.5V）
GND（0V）
510Ω
9.6V
4.1V
［PG30S］
RECEIVING
INSTRUMENT (SIG.WAVEFORM)

E-935-1-E
10
SIG
0V
SIG
0V
SUP
SIG
0V
Vcc（13.5V）
GND（0V）
13.4V
0.1V
［O.C］
GND（0V）
10kΩ（RECOMMENDATION）
10kΩ（RECOMMENDATION）
（R=10kΩ）
（R=10kΩ）
（R=10kΩ）
5.1V
0.1V
［VOLT］
［PA11］
Vcc（32V）
GND（0V）
10kΩmin.
31.9V
1.0V
30mA
0.25or1or50ms0.25or1or50ms
PC2201 RECEIVING
INSTRUMENT (SIG.WAVEFORM)
SIG
0V
SIG
0V
SUP
SIG
0V
Vcc（13.5V）
GND（0V）
13.4V
0.1V
［O.C］
GND（0V）
10kΩ（RECOMMENDATION）
10kΩ（RECOMMENDATION）
（R=10kΩ）
（R=10kΩ）
（R=10kΩ）
5.1V
0.1V
［VOLT］
［PA11］
Vcc（32V）
GND（0V）
10kΩmin.
31.9V
1.0V
30mA
0.25or1or50ms0.25or1or50ms
PC2201 RECEIVING
INSTRUMENT (SIG.WAVEFORM)
・Voltage levels of signal waveform include an error of ±0.5V.
・Signal waveforms shown here indicate the position of fixed width when a fixed pulse width
is chosen.
CAUTION:
・In case of “PG20”, “O.C.” and “PA11”, because of a 200Ωprotective resistor in series with
the “SIG” output, voltage level L0of signal waveform varies with the resistance value of
the shunt resistor coupled to the power in the receiving instrument.
Voltage level L0
［V］≒ voltage Vcc ［V］÷shunt resistance value ［Ω］×200 ［Ω］
＋PC2201 output transistor “ON” voltage (0 to 0.5) ［V］

E-935-1-E
11
5. GENERAL SPECIFICATIONS
ITEM DESCRIPTION
Generator Accuracy Crystal oscillator 6±0.0001MHz
Power Source
2-way - AC adaptor or internal batteries
AC adaptor: 100/V ac±10%, 50/60Hz
Internal batteries: UM-3 Ni-Cd batteries (700mAh)×6
Power Consumption 5VAmax.
Ambient Temperature 0 to＋40℃
Finish Black
Weight 2 kilograms, approx. (accessories, internal batteries inclusive)
Standard
Accessories
Soft case …… 1
Carrying strap …… 1
AC adaptor (9V dc, 200mA) …… 1
External connection cords (terminated with alligator clip and banana plug) …… Red 4, black 2
6. OUTLINE DIMENSIONS
7. STANDARD ACCESSORIES
HANDLESLOT
ACADAPTORSLOT
POWERSWITCHSLOT
SOFTCASE
1EA.
ACCESSORYCASE
CARRYINGSTRAP
1EA.
ACADAPTOR
1EA.
ALLIGATORCLIP
BANANAPLUG
RED:4
BLACK:2
EXTERNALCORD
SUP SIG SIG GATEOV OV
OUTPUT INPUT
INPUTLEVEL INPUTCOUNTER
OUTPUTCOUNTER
FUNCTION
OUTPUTWIDTH%SETTERRATINGSTOPRESETSTART
PULSECHECKER PC2201
PRESET
FREQUENCY RESET
POWER DCIN
100
10
1
1K
10K
30 75
100
25
0
1
50
0.25
1.1
（ma）
PG30S
O.C
VOLT
PA11
P.A
PG30
PG20
OPTO
PERIOD
RATIO
105
15
COUNT
FREO
36
15
D.C
1.5
（V）
200 15 41
140
Unit：mm

E-935-1-E
All specications are subject to change without notice for improvement. 2019.02 Revised △
E-935-1-E (1)
