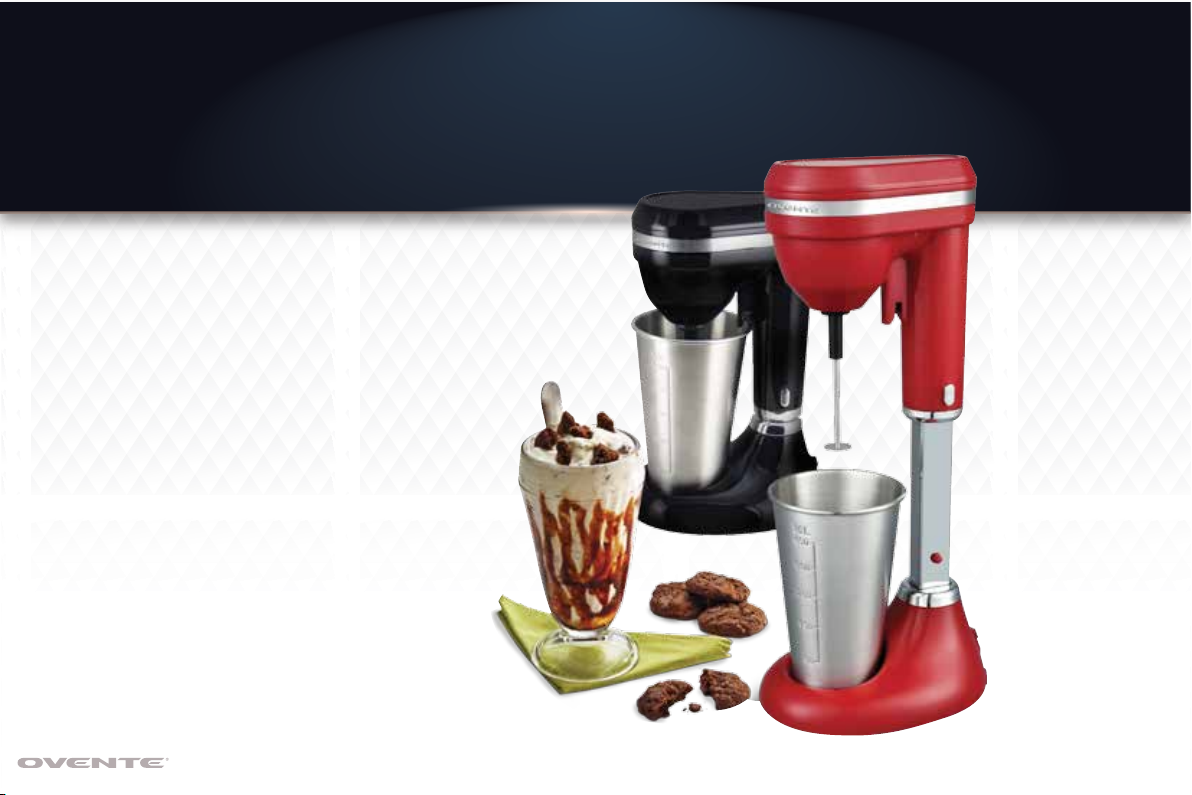

Ovente MS2090 Series User manual

Before use, please read this manual thoroughly and save for future reference.
ovente.com
Electric
Two-Speed
Drink Mixer
MS2090 Series

2ovente.com
Electric
Two-Speed
Drink Mixer
MS2090 Series

TABLE OF CONTENTS
4
5
7
8 - 9
9
10
..........
..........
..........
..........
........
..........
Important Safety
Parts and Features
Using the drink mixer
recipe
Care and maintenance
Electrical requirements
ELECTRIC TWO-SPEED DRINK MIXER
MS2090 series

4ovente.com
IMPORTANT SAFEGUARDS
When using your drink mixer, basic safety precautions should always be followed, including the following：
READ ALL INSTRUCTIONS.
Before using,ensure that the voltage specified complies with your home’s
voltage before plugging it in.
To protect against risk of electrical shock,do not immerse cord,plugs or
cooking unit in water or other liquids.
Close supervision is necessary when any appliance is used by or near
children.
Unplug from outlet when not in use and before cleaning.Allow to cool
before putting on or taking the parts off and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or when the
appliance malfunctions.
The use of accessory attachments,not recommended or sold by
appliance manufacturer,may cause hazards.
Do not use outdoors.
Do not let cord hang over the edge of a table or counter.
Do not let cord touch hot surfaces.
Do not place on or near a hot gas or electric burner,or in a heated oven.
To disconnect,remove plug from wall outlet.
Do not use appliance for other than intended use.
This drink mixer is for household use only.
This appliance is not intended to use by people (including children)with
reduced physical,sensory or mental capabilities.It is not intended for
people with lack of experience and knowledge,unless they have been
given supervision or instruction concerning the use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Keep the appliance and its cord out of reach of children less than 8
years.
Please ensure that the drive shaft and spindle are installed properly.
The food volume should not exceed the maximum capacity (8.5oz/250ml)
of the stainless steel cup.
The temperature for stirring the food should not exceed 176F.
The product is equipped with a safety lock.Only when the head is
pushed down to the cup,will the appliance work.
Normal Operating Time:3-minute Intervals
DO NOT IMMERSE MIXER IN WATER OR ANY OTHER LIQUIDS

5ovente.com
PArts & features
MIXER’S 100-WATT MOTOR
The motor makes it more powerful and efficient
when mixing ingredients
SAFETY SWITCH ROD
Prevents the motor from engaging the spindle
before the cup is in the safe place
SPINDLE
Equipment for mixing liquids and ingredients
STAINLESS STEEL CUP
A 15oz container that is used for combining your liquids
SPEED BUTTON
Features 2 different speed settings
RELEASE BUTTON
Lowers the spindle into the stainless steel cup
POSITIONING BOLT
It allows the motor head to move up the shaft
when the release button presses against it
COMPRESSIBLE SHAFT
Allows the motor head to be moved
into the upward or downward position

6ovente.com
ELECTRIC TWO-SPEED DRINK MIXER
MS2090 series
COOKIES & CREAM MILKSHAKE
Our Drink Mixer lets you enjoy the
classic combo of milk and cookies.
PEPPERMINT MILKSHAKE
Recharge and refresh yourself
with a rich and creamy peppermint shake.
CHOCOLATE MILKSHAKE
The kids are going to love a delicious
chocolate-flavored milkshake that
is perfect for any occasion.
COCKTAILS
Opt for a cocktail night with
your friends on a perfect weekend.

7ovente.com
USING THE DRINK MIXER
DRINK MIXER TIPS AND TRICKS
When using the drink mixer, basic safety precautions should always be followed, including the following：
1
2
3
4
5
6
7
8
9
Clean the parts before using the drink mixer for the first time.
Put the food or drink into the stainless steel cup under the specified
capacity.It is highly recommended to only fill the cup halfway (8.5oz)to
avoid spills when mixing.
The head will not lower unless the release button is pressed.(Drink mixer
has an extendable shaft,always push down the head down to the cup for
mixing.)
Ensure that the electricity supply is connected.
When the cup “snapped”in the safety switch rod,set control switch to
preferred speed in order to start the process.You can start with Speed 1
(LOW)then increase to Speed 2(HIGH).
For hard ice cream or very thick shakes,remove the container from the
base then support it with your hand;motor head must be in upward
position to hold the cup without the base.Make sure that the cup is still
touching the safety switch rod while you’re holding it because the drink
mixer will not start if the cup is not connected with it.With mixing shaft still
submerged in mixture,move the container around for more thorough
mixing.
During the stirring process,do not put raw material in the cup;you can
only add raw material in the cup after the electricity supply has been cut off
and when the machine has stopped working.
When finished,turn unit to O (off).Pour contents from container and serve.
Most drinks can be mixed in less than two minutes.
Whole fruits should not be used when making fruit drinks.Mash or puree
fruit;add to drink,and mix.
The cup must always be filled to at least the minimum level mark (150ml)
or the liquid will not reach the mixing shaft.When mixing thin mixtures,
such as powdered diet drinks,do not fill above maximum level mark (8
ounces/250 ml)or liquid may overflow while mixing.
For best results,all liquid ingredients should be as cold as possible.Milk
drinks will taste best if milk is ice cold.The colder the milk,the thicker and
more frothy the drink.
All syrups and powdered mixes should be added just before mixing to
prevent them from sinking to the bottom of the container.
The Drink Mixer does not crush ice.

8ovente.com
RECIPES
Always add liquid ingredients first then the remaining ingredients. Start mixing on 1 (LOW) then increase Speed to 2 (HIGH).
Process to desired consistency for about 1 to 2 minutes.
1
2
3
1
2
3
4
2cups of vanilla ice cream
½cup of milk
1-2 tsp peppermint extract or 1-2 tbsp peppermint syrup (to taste)
4crushed up candy canes
¼cup semi-sweet chocolate chips
Whipped cream for topping
Extra crushed candy cane to sprinkle on top
peppermint
milkshake
INSTRUCTIONS
Put ice cream,milk,extract and candy canes in cup.
Mix until smooth.
Add in chocolate chips and mix for a few seconds.
Top off with whipping cream and crushed candy cane.

9ovente.com
recipe
1
2
3
1
2
3
2scoops of Cookies and Cream Ice Cream
1/4 cup of milk
Whipped cream
Oreo cookies for garnish
INSTRUCTIONS
Combine two scoops of ice cream and milk in the cup.
When thoroughly mixed,pour into milkshake glasses.
Top with whipped cream and additional cookies.
COOKIES &
CREAM
MILKSHAKE
PEANUT BUTTER &
PRETZEL MILKSHAKE
1½ cups of vanilla ice cream
½ cup of milk
2tbsp creamy peanut butter
¼cup crushed finely crushed pretzels
*optional ~whipped cream to top
*optional ~chocolate sauce to line the glass
INSTRUCTIONS
Combine the ice cream,milk and peanut butter in the cup and mix until
smooth.
Line glass with chocolate sauce if desired,and put milkshake into glass.
Top with whipped cream and additional crushed pretzels.
3

Care and Maintenance
Voltage :120V
Power:1400W
Hertz:60Hz
ELECTRICAL REQUIREMENTS
Unplug the appliance.
Allow to cool before putting on or taking the parts off and before cleaning
the appliance.
Use water to clean the parts with food contact after using it.
Install the spindle properly to prevent malfunction or injuries.
Put warm water into the stirring cup when cleaning.
Press the switch on for about 10 seconds for cleaning the stirring cup.
Do not immerse the drink mixer into the water.
Drink mixer is not dishwasher safe.
Soft wet cloth can be used to polish the outside of the appliance,do not
immerse the drink mixer into water.
Do not use an abrasive brush,alcohol,etc.when cleaning the drink mixer.
When storing,keep this appliance in a dry,safe and well-ventilated place.
PROTECT THE ENVIRONMENT
This product must not be disposed together with the
domestic waste.This product has to be disposed at
an authorized place for recycling of electrical and
electronic appliances.By collecting and recycling
waste,you help save natural resources,and make
sure the product is disposed in an environmental
friendly and healthy way

OVENTE WARRANTY
ovente.com
Register your product within 30 days of purchase to activate its one-year limited manufacturer’s warrant at
ovente.com/register
NOTE:WARRANTY IS ONLY VALID IF YOU REGISTERED WITHIN 30 DAYS AFTER PURCHASE.
LIMITED ONE (1) YEAR WARRANTY:
Your product has a one (1) year warranty period from the date of purchase from an authorized retailer.In the event
that the product is defective,feel free to contact us to arrange for a replacement.This warranty only covers defects in
workmanship and materials.The warranty does not include damage due to abuse or misuse,any commercial use or
accidents.
LIMITATIONS
The warranty stated above is the only warranty applicable to this product.Other expressed or implied warranties are
hereby disclaimed.No verbal or written information given by the Manufacturer,its agents or employees shall create a
guarantee or in any way increase the scope and duration of this warranty.Repair or replacement as provided under
this warranty is the exclusive remedy of the consumer.The manufacturer shall not be liable for incidental or conse�
quential damages resulting from the use of this product.Any implied warranty of merchantability or fitness for a
particular purpose on this product is limited to the applicable warranty period set forth above except to the extent
prohibited by law.Consumer rights may vary from state to state.
Customer Support: ovente.com/support
Visit us at ovente.com
Facebook.com/ovente @oventeTweets @Ovente
