Ovislink AirLive WL-1000UR User manual

1
AirLive WL-1000UR
Broadband Router with Print Server
User’sManual

2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in
an information retrieval system, translated into any language, or transmitted in any form or by any
means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior
written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
The WL-1000UR has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and radiate
radio frequency energy and, if not installed and used in accordance with the instructions in this manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause interference, in which case the user, at his own expense, will be required to take
whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1
Class B.
The specification is subject to change without notice.

3
Table of Contents
Chapter 1 Introduction ........................................................................................................4
Functions and Features.................................................................................................4
Packing List.....................................................................................................................6
Chapter 2 Hardware Installation........................................................................................7
2.1 Panel Layout.............................................................................................................7
2.2 Procedure for Hardware Installation...........................................................................9
Chapter 3 Network Settings and Software Installation........................................................10
3.1 Make Correct Network Settings of Your Computer..................................................10
Chapter 4 Configuring WL-1000UR Wireless Broadband Router......................................11
4.1 Start-up and Log in................................................................................................12
4.2 Status.......................................................................................................................13
4.3 Wizard......................................................................................................................14
4.4 Basic Setting...........................................................................................................15
4.5 Port Forwarding......................................................................................................26
4.6 Firewall Settings.....................................................................................................30
4.7 Advanced Settings.................................................................................................43
4.8 Maintenance...........................................................................................................53
Chapter 5 Print Server......................................................................................................58
5.1 Configuring on Windows 95/98 Platforms................................................................58
5.2 Configuring on Windows NT Platforms ...................................................................61
5.3 Configuring on Windows 2000 and XP Platforms....................................................62
5.4 Configuring on Unix-like based Platforms ...............................................................67
5.5 Configuring on Apple PC ......................................................................................72
Appendix A TCP/IP Configuration for Windows 95/98......................................................73
Appendix B 802.1x Setting...............................................................................................78
Appendix C WPA-PSK and WPA....................................................................................84
Appendix D FAQ and Troubleshooting...............................................................................97
Reset to factory Default...............................................................................................97

4
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
1
1
1
I
I
In
n
nt
t
tr
r
ro
o
od
d
du
u
uc
c
ct
t
ti
i
io
o
on
n
n
Congratulations on your purchase of this outstanding WL-1000UR. This product is specifically designed
for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and
is easy to configure and operate even for non-technical users. Instructions for installing and configuring
this product can be found in this manual. Before you install and use this product, please read this
manual carefully for fully exploiting the functions of this product.
Functions and Features
Router Basic functions
zAuto-sensing Ethernet Switch
Equipped with a 4-port auto-sensing Ethernet switch.
zWAN type supported
The router supports some WAN types, Static, Dynamic, PPPoE , PPTP ,L2TP, Dynamic IP
with Road Runner.
zFirewall
All unwanted packets from outside intruders are blocked to protect your Intranet.
zDHCP server supported
All of the networked computers can retrieve TCP/IP settings automatically from this product.
zWeb-based configuring
Configurable through any networked computer’s web browser using Netscape or Internet
Explorer.
zVirtual Server supported
Enable you to expose WWW, FTP and other services on your LAN to be accessible to Internet
users.
zUser-Definable Application Sensing Tunnel
User can define the attributes to support the special applications requiring multiple
connections, like Internet gaming, video conferencing, Internet telephony and so on, then this
product can sense the application type and open multi-port tunnel for it.
zDMZ Host supported
Lets a networked computer be fully exposed to the Internet; this function is used when special
application sensing tunnel feature is insufficient to allow an application to function correctly.
zStatistics of WAN Supported
Enables you to monitor inbound and outbound packets

5
Wireless functions
zHigh speed for wireless LAN connection
Up to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing
(OFDM).
zRoaming
Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN
infrastructure.
zIEEE 802.11b compatible (11M)
Allowing inter-operation among multiple vendors.
zIEEE 802.11g compatible (54M)
Allowing inter-operation among multiple vendors.
zAuto fallback
54M, 48M, 36M, 24M, 18M, 12M, 6M data rate with auto fallback in 802.11g mode.
11M, 5.5M, 2M, 1M data rate with auto fallback in 802.11b mode.
Security functions
zPacket filter supported
Packet Filter allows you to control access to a network by analyzing the incoming and
outgoing packets and letting them pass or halting them based on the IPaddress of the source
and destination.
zDomain Filter Supported
Let you prevent users under this device from accessing specific URLs.
zURL Blocking Supported
URL Blocking can block hundreds of websites connection by simply a keyword.
zVPN Pass-through
The router also supports VPN pass-through.
z802.1X supported
When the 802.1X function is enabled, the Wireless user must authenticate to this router first
to use the Network service.
zSupport WPA-PSK and WPA
When the WPA function is enabled, the Wireless user must authenticate to this router first to
use the Network service
zSPI Mode Supported
When SPI Mode is enabled, the router will check every incoming packet to detect if this
packet is valid.
zDoS Attack Detection Supported

6
When this feature is enabled, the router will detect and log the DoS attack comes from the
Internet.
Advanced functions
zSystem time Supported
Allow you to synchronize system time with network time server.
zE-mail Alert Supported
The router can send its info by mail.
zDynamic dns Supported
At present,the router has 3 ddns.dyndns,TZO.com and dhs.org.
zSNMP Supported
The router supports basic SNMP function.
zRouting Table Supported
Now, the router supports static routing.
zSchedule Rule supported
Customers can control some functions, like virtual server and packet filters when to access or
when to block.
Other functions
zUPNP (Universal Plug and Play)Supported
The router also supports this function. The applications: X-box, Msn Messenger.
Packing List
zWireless broadband router unit
zInstallation CD-ROM
zPower adapter
zCAT-5 UTP Fast Ethernet cable

7
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
2
2
2
H
H
Ha
a
ar
r
rd
d
dw
w
wa
a
ar
r
re
e
e
I
I
In
n
ns
s
st
t
ta
a
al
l
ll
l
la
a
at
t
ti
i
io
o
on
n
n
2.1 Panel Layout
2.1.1. Front Panel
Figure 2-1 Front Panel
LED:
LED Function Color Status Description
POWER Power
indication Green On Power is being applied to this product.
Status System
status Green Blinking
Status is flashed once per second to indicate system
is alive.
USB USB port
activity Green On The USB port is linked.
On The WAN port is linked.
WAN WAN port
activity Green Blinking The WAN port is sending or receiving data.
W.LAN Wireless
activity Green Blinking Sending or receiving data via wireless
On An active station is connected to the corresponding
LAN port.
Link/Act.
1~4 Link status Green Blinking The corresponding LAN port is sending or receiving
data.
10/100 Data Rate Green On Data is transmitting in 100Mbps on the
corresponding LAN port.
RESET Button To reset system settings to factory defaults

8
2.1.2. Rear Panel
Figure 2-2 Rear Panel
Ports:
Port Description
PWR Power inlet
WAN The port where you will connect your cable (or DSL) modem or Ethernet router.
Port 1 - 4 The ports where you will connect networked computers and other devices.
USB (WL-1000UR, IP-1000UR)The port where you will connect your USB printer

9
2.2 Procedure for Hardware Installation
2. Decide where to place your WL-1000UR Wireless Broadband Router
You can place your WL-1000UR Wireless Broadband Router on a desk or other flat surface, or you
can mount it on a wall. For optimal performance, place your WL-1000UR Wireless Broadband
Router in the center of your office (or your home) in a location that is away from any potential
source of interference, such as a metal wall or microwave oven. This location must be close to
power and network connection.
2. Setup LAN connection
a. Wired LAN connection: connects an Ethernet cable from your computer’s Ethernet port to one of
the LAN ports of this product.
b. Wireless LAN connection: locate this product at a proper position to gain the best transmit
performance

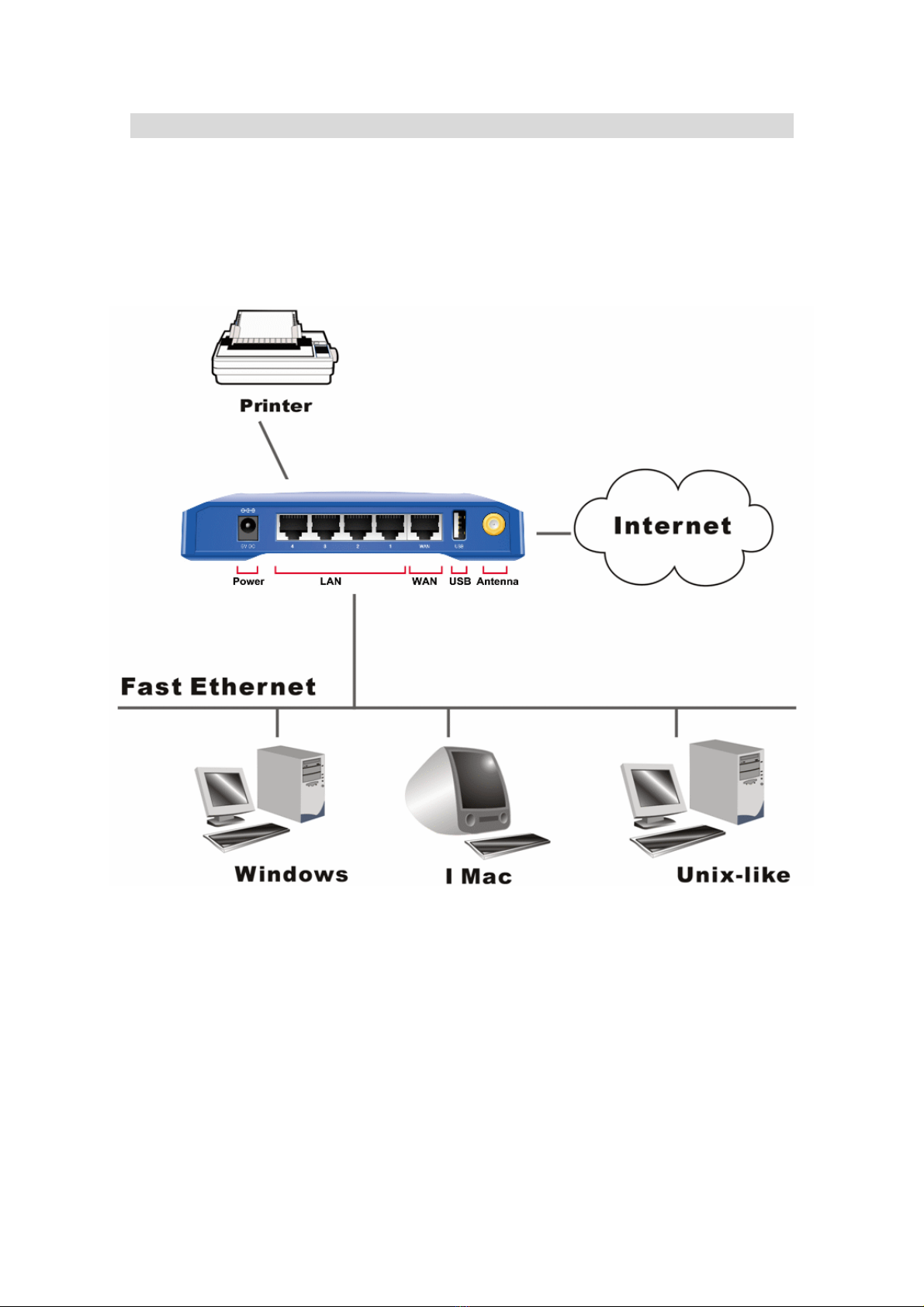

Figure 2-3 Setup of LAN and WAN connections for this product.
3. Setup WAN connection
Prepare an Ethernet cable for connecting this product to your cable/xDSL modem or Ethernet
backbone. Figure 2-3 illustrates the WAN connection.
4. Poweron
Connecting the power cord to power inlet and turning the power switch on, this product will
automatically enter the self-test phase. When it is in the self-test phase, the indicators M1 will be
lighted ON for about 10 seconds, and then M1 will be flashed 3 times to indicate that the self-test
operation has finished. Finally, the M1 will be continuously flashed once per second to indicate that
this product is in normal operation.

10
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
3
3
3
N
N
Ne
e
et
t
tw
w
wo
o
or
r
rk
k
k
S
S
Se
e
et
t
tt
t
ti
i
in
n
ng
g
gs
s
s
a
a
an
n
nd
d
d
S
S
So
o
of
f
ft
t
tw
w
wa
a
ar
r
re
e
e
I
I
In
n
ns
s
st
t
ta
a
al
l
ll
l
la
a
at
t
ti
i
io
o
on
n
n
To use this product correctly, you have to properly configure the network settings of your computers and
install the attached setup program into your MS Windows platform (Windows 95/98/NT/2000).
3.1 Make Correct Network Settings of Your Computer
The default IP address of this product is 192.168.1.254, and the default subnet mask is 255.255.255.0.
These addresses can be changed on your need, but the default values are used in this manual. If the
TCP/IP environment of your computer has not yet been configured, you can refer to Appendix A to
configure it. For example,
1. configure IP as 192.168.1.1, subnet mask as 255.255.255.0 and gateway as 192.168.1.254, or
more easier,
2. configure your computers to load TCP/IP setting automatically, that is, via DHCP server of this
product.
After installing the TCP/IP communication protocol, you can use the ping command to check if your
computer has successfully connected to this product. The following example shows the ping procedure
for Windows 95 platforms. First, execute the ping command
ping 192.168.1.254
If the following messages appear:
Pinging 192.168.1.254 with 32 bytes of data:
Reply from 192.168.1.254: bytes=32 time=2ms TTL=64
a communication link between your computer and this product has been successfully established.
Otherwise, if you get the following messages,
Pinging 192.168.1.254 with 32 bytes of data:
Request timed out.
There must be something wrong in your installation procedure. You have to check the following items in
sequence:
1. Is the Ethernet cable correctly connected between this product and your computer?
Tip: The LAN LED of this product and the link LED of network card on your computer must be
lighted.
2. Is the TCP/IP environment of your computers properly configured?
Tip: If the IP address of this product is 192.168.1.254, the IP address of your computer must be
192.168.1.X and default gateway must be 192.168.1.254.
