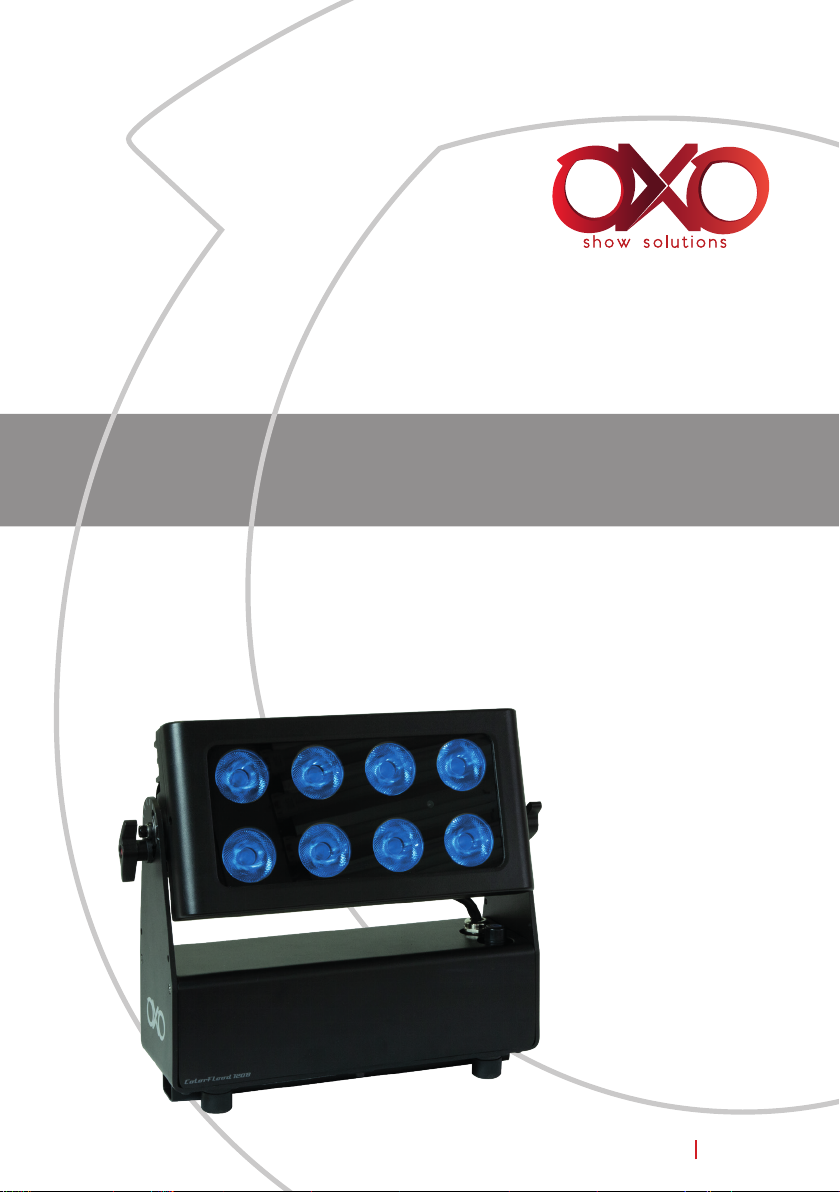

OXO ColorFlood 120B User manual

INSTRUCTION MANUAL
MODE D’EMPLOI
FOR YOUR OWN SAFETY, PLEASE READ THIS INSTRUCTION MANUAL
CAREFULLY BEFORE YOU INITIALLY START-UP
POUR VOTRE SÉCURITÉ, MERCI DE LIRE ATTENTIVEMENT
CE MODE D’EMPLOI AVANT D’UTILISER VOTRE PRODUIT
V1.0 06/2019
ColorFlood 120B

ENGLISH
COLORFLOOD 120 B - USER INSTRUCTION Page
1. In the box 4
2. Instructions 4
3. Overview 5
4. Operation guide 6
5. Technical data 25
6. Dimensions 25
FRANÇAIS
COLORFLOOD 120 B - MODE D’EMPLOI Page
1. Dans la boîte 26
2. Instructions 26
3. Vue d’ensemble 27
4. Utilisation 28
5. Données techniques 47
6. Dimensions 47

User Manual - COLORFLOOD 120B V1.0 07/2019 4/40
1. In the box
• 1 ColorFlood 120B
• 1 IR Remote
• 1 waterproof powerCON TRUE1 cable
• 1 Omega Clamp
• 1 Instruction Manual
2. Instructions
WARNING
• Read the instruction in this manual carefully and thoroughly, as they give important
information regarding safety during use and maintenance. Keep this manual with the unit,
in order to consult it in the future. If the unit is sold or given to another operator, make
certain that it always has its manual, to enable the new owner to read about its operation
and relative instructions.
• To prevent fire or shock hazard, do not expose this product under a high temperature.
• Take care not to damage the power cord.
• After having removed the packaging check that the unit is NOT damaged in any way.
• If in doubt, DON’T use it and contact an authorized dealer.
• NEVER use the unit under the following conditions:
- In places subject to vibrations or bumps.
- In places with a temperature of over 40 °C or less than 0 °C.
• DO NOT open the unit-there are no user serviceable parts inside.
• NEVER try to repair the unit yourself. Repairs by unqualified people could cause damage
or faulty operation. Contact your nearest dealer.
• Wait for at least one second to turn on the power after turning off this unit.
• Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left within
children’s reach, as it can be dangerous.
• STOP using the unit immediately In the event of serious operation problems and either
contact your local dealer for a check or contact us directly.
• DO NOT dismantle or modify the unit.
• If in doubt, DON’T use it and contact an authorized dealer.
• This unit must only be operated by adults. DO NOT allow children to tamper or play with it.

User Manual - COLORFLOOD 120B V1.0 07/2019 5/40
3. Overview
1 3 4 5 6 7
2
1. Power supply IN (powerCON True1)
2. Power supply OUT (PowerCON True1)
3. DMX IN (XLR 5)
4. DMX OUT (XLR 5)
5. Power ON/OFF
6. Display
7. Touch Buttons

User Manual - COLORFLOOD 120B V1.0 07/2019 6/40
4. Operation guide
A-Default display after start
In this part, we will describe all the information you could have as a direct view on the
default display. This will help you check quickly the state of the product.
PC : 8H
NO IR 95%
ADDR 001
09 CH
IR remote state
Battery state
Power mode Battery
Power Plug
Power control state
PC : 8H
NO IR 95%
ADDR 001
09 CH If DMX MODE display DMX Address and DMX Mode
PC : 8H
NO IR 95%
WDMX 001
09 CH
Display DMX Address and DMX Mode If WIRELESS is ac-
tive, projector paired with W-DMX emitter and DMX is OK
PC : 8H
NO IR 95%
WDMX 001
NOT CONNECTED
Display if WIRELESS is active, projector not paired with
W-DMX emitter.
PC : 8H
NO IR 95%
WDMX NO DMX
09 CH
Display if WIRELESS is active, projector is paired with
W-DMX emitter but DMX is Not OK
PC : 8H
NO IR 95%
RUN MODE
MANUAL Display if in MANUAL MODE
PC : 8H
NO IR 15%
RUN MODE
SLAVE Display if SLAVE of MASTER / SLAVE MODE

User Manual - COLORFLOOD 120B V1.0 07/2019 7/40
PC : 8H
NO IR 95%
RUN MODE
MANUAL MASTER Display if MASTER of MASTER / SLAVE MODE
Default display for IR Remote
PC
: 8
H
NO IR
9
5
%
R
U
N M
O
D
E
M
AN
U
AL MA
S
TE
R
Display if IR is UNACTIVE
PC
: 8
H
IR OFF
9
5
%
R
U
N M
O
D
E
REM
O
T
E
Display if IR is ACTIVE and OFF
PC
: 8
H
IR ON
9
5
%
R
U
N M
O
D
E
REM
O
T
E
Display if IR is ACTIVE and ON

User Manual - COLORFLOOD 120B V1.0 07/2019 8/40
B- Menu display
To enter and get out menu use «mode».
To navigate thru menu use «up» and «down» button. To validate use «enter»
1-DMX
ADDR To choose DMX ADDRESS
DMX
001 Change DMX Address value from 001 to 512
2-DMX
MODE To choose DMX MODE
MODE
05 CH
Change DMX Mode
4 modes available 05CH, 05CH16, 10CH, 10CH16
3-MANUAL
MODE To choose values of MANUAL MODE
DIMMER
001 Change Dimmer value from 000 to 255
RED
001 Change RED value from 000 to 255
GREEN
001 Change GREEN value from 000 to 255
BLUE
001 Change BLUE value from 000 to 255
WHITE
001 Change WHITE value from 000 to 255
SHUTTER
001 Change SHUTTER value from 000 to 255

User Manual - COLORFLOOD 120B V1.0 07/2019 9/40
MACRO COLOR
001
Change MACRO COLOR value from 000 to 054 (MACRO
COLOR have priority on color, it should be at 0 to release
MACRO COLOR)
COLOR SPEED
001
Change COLOR SPEED value from 000 to 255 Only
available for MACRO COLOR from 48 to 54
EFFECT MACRO
001 Change EFFECT MACRO value from 000 to 009
EFFECT SPEED
001
Change SPEED EFFECT value from 000 to 255 Only
available for EFFECT MACRO from 2 to 9
4-MASTER / SLAVE
MODE To choose MASTER/SLAVE MODE
MASTER / SLAVE
MASTER
If MASTER, product act as a MASTER
and will generate data on the DMX line.
MASTER / SLAVE
SLAVE
if SLAVE, product act as a Slave
See «Master/Slave Mode» topic here after
MASTER / SLAVE
OFF
If OFF, product act as a solo fixture
and will not generate data on the DMX line
5-WDMX
SETUP To set up wireless W DMX
WIRELESS
ON
If ON, wireless DMX is active and will search automa-
tically to connect to an emitter then product could take
DMX value from W-DMX emitter
RESET
NO Push yes to reset connection with W-DMX emitter

User Manual - COLORFLOOD 120B V1.0 07/2019 10/40
6-SETUP To set up product feature
POWER MODE To Set up Power Mode
POWER MODE
BATTERY
If BATTERY then product will work using internal
battery even if using power plug and could not be use in
this mode continusly with power plug.
If POWER PLUG then product will work using external
power plug and could be use continusly.
POWER CONTROL To set up Power Control
Power Control
6H
Change the Power according to the time you need to use
the product from OFF / 6h / 08h / 12h / 16h. The value
are here as an indication and based on RGBW at Full.
DISPLAY To set up Display option
DISPLAY LOCK
10s
Define the time before Display goes Dark and lock
10s / 30s / 1min / 5 min / NEVER
Push ENTER + MODE during 5s to unlock
NO DMX To set up NO DMX behaviour
NO DMX
HOLD
Define product behaviour after a DMX break
HOLD : keep the last DMX value
BLACKOUT : Go to dark
MACRO : Go to the last Macro used
RESET
DEFAULT To reset values to factory
RESET DEFAULT
OFF If ON reset values to factory

User Manual - COLORFLOOD 120B V1.0 07/2019 11/40
IR REMOTE To set REMOTE behavior
IR REMOTE
ACTIVE
If NOT ACTIVE, then you can not use the IR REMOTE
If ACTIVE, then you can use the IR REMOTE
7-INFO Display product information
TEMP INFO
39°C Display current Temperature
TIME OF USE
00001 h Display time of use
SOFTWARE
V1.00 Display software version
C- MASTER / SLAVE MODE
To use master slave mode, link product as a daisy chain with Master in first position.
Then choose MASTER then a mode for it (DMX/MANUAL) and put every slave in SLAVE then
slave product will act like the master.
If product is in MASTER mode then data is emited on the DMX line.

User Manual - COLORFLOOD 120B V1.0 07/2019 12/40
D-REMOTE CONTROL
IR Remote allow you to control the ColorFlood 120B
without console and make some complex effect fast
and easy.
Every action of the remote control have a visual
feedback on the display, then it’s easy to understand
what you are doing.
The IR receptor is on the front of the product on the
display side.
IR remote could be unactivated in the Menu to forbid
is use.
And if IR remote is activated in Menu, it could be put
ON or OFF with remote.
Here below the description of every button.
IF IR is ON, IR have priority on internal feature like «DMX / manual mode / Slave
mode», if IR is OFF priority get back to internal feature.
select dimmer feature, push + or - to change the value
Clear all value and get back to default :
dimmer = 100% / R = 0 / G = 0 / B = 0 / W = 0
Macro Color = 0 / Color Speed = 50% / Macro Effect = 0 / Effect Speed = 0
Select Macro Color feature, push + or - to change the value
Select Speed for Macro Color or Macro Effect, push + or - to change the value
If you only push SPEED, it’s Macro Color Speed
If you push EFFECT and then SPEED, it’s Macro Effect Speed
Select effect feature, push + or - to change the value
To add 1 step to selected feature, default feature is dimmer.
Add 1 Step for Macro Color and Effect feature
and add 10 steps to Dimmer / Speed / R / G / B / W values
To put at 100 % the selected feature

User Manual - COLORFLOOD 120B V1.0 07/2019 13/40
To substract 1 step to selected feature, default feature is dimmer.
Substract 1 Step for Macro Color and Effect feature
and substract 10 steps to Dimmer / Speed / R / G / B / W values
Select Red value, push + or - to change the value
Select Green value, push + or - to change the value
Select Blue value, push + or - to change the value
Put RGBW values at macro 39
Select Warm White value, push + or - to change the value
Put RGBW values at macro 14
Put RGBW values at macro 36
Put RGBW values at macro 20
Put RGBW values at macro 13
Put RGBW values at macro 34
Put RGBW values at macro 27
Put RGBW values at macro 44
Put RGBW values at macro 33
Put RGBW values at macro 18
Put RGBW values at macro 42

User Manual - COLORFLOOD 120B V1.0 07/2019 14/40
E- DMX CHART
MODE : 5CH - 8bits (5CH)
CHANNEL VALUES FUNCTION
1Dimmer
000 - 255 Intensity 0 to 100%
2Red
000 - 255 000 : Black out - 255 : red 100%
3Green
000 - 255 000 : Black out - 255 : green 100%
4Blue
000 - 255 000 : Black out - 255 : blue 100%
5White
000 - 255 000 : Black out - 255 : white 100%

User Manual - COLORFLOOD 120B V1.0 07/2019 15/40
MODE : 10CH - 16bits (5CH16)
CHANNEL VALUES FUNCTION
1Dimmer
000 - 255 Intensity 0 to 100%
2Dimmer Fine
000 - 255 Intensity 0 to 100%
3Red
000 - 255 000 : Black out - 255 : red 100%
4Red Fine
000 - 255 000 : Black out - 255 : red 100%
5Green
000 - 255 000 : Black out - 255 : green 100%
6Green Fine
000 - 255 000 : Black out - 255 : green 100%
7Blue
000 - 255 000 : Black out - 255 : blue 100%
8Blue Fine
000 - 255 000 : Black out - 255 : blue 100%
9White
000 - 255 000 : Black out - 255 : white 100%
10 White Fine
000 - 255 000 : Black out - 255 : white 100%

User Manual - COLORFLOOD 120B V1.0 07/2019 16/40
MODE : 10CH - 8bits (10CH)
CHANNEL VALUES FUNCTION
1Dimmer
000 - 255 Intensity 0 to 100%
2Red
000 - 255 000 : Black out - 255 : red 100%
3Green
000 - 255 000 : Black out - 255 : green 100%
4Blue
000 - 255 000 : Black out - 255 : blue 100%
5White
000 - 255 000 : Black out - 255 : white 100%
6SHUTTER
000 - 255 Strobe effect slow to fast
7COLOR MACRO
000 - 255 Color Macro. See Macros after DMX Charts
8
COLOR SPEED (Only available for Color Macro from 48 to 54)
000 - 000 Pause
001 - 255 slow to fast
9EFFECT MACRO
000 - 255 Effect Macro. See Macros after DMX Charts
10
EFFECT SPEED (Only available for Effect Macro 2 to 9)
000 - 000 Pause
001 - 255 slow to fast

User Manual - COLORFLOOD 120B V1.0 07/2019 17/40
MODE : 15 CH - 16bits (10CH16)
CHANNEL VALUES FUNCTION
1Dimmer
000 - 255 Intensity 0 to 100%
2Dimmer Fine
000 - 255 Intensity 0 to 100%
3Red
000 - 255 000 : Black out - 255 : red 100%
4Red Fine
000 - 255 000 : Black out - 255 : red 100%
5Green
000 - 255 000 : Black out - 255 : green 100%
6Green Fine
000 - 255 000 : Black out - 255 : green 100%
7Blue
000 - 255 000 : Black out - 255 : blue 100%
8Blue Fine
000 - 255 000 : Black out - 255 : blue 100%
9White
000 - 255 000 : Black out - 255 : blanc 100%
10 White Fine
000 - 255 000 : Black out - 255 : blanc 100%
11 SHUTTER
000 - 255 Strobe effect slow to fast
12 COLOR MACRO
000 - 255 Color Macro. See Macros after DMX Charts
13
COLOR SPEED (Only available for Color Macro from 48 to 54)
000 - 000 Pause
001 - 255 slow to fast
14 EFFECT MACRO
000 - 255 Effect Macro. See Macros after DMX Charts
15
EFFECT SPEED (Only available for Effect Macro 2 to 9)
000 - 000 Pause
001 - 255 slow to fast

User Manual - COLORFLOOD 120B V1.0 07/2019 18/40
F- Macros function
1. Color Macros
Color Macros include calibrated white and calibrated LEE colors (based on halogen 3200 K
source).
Number DMX Value Name
0000-003 No Function
1004-007 White 2700K
2008-011 White 3200K
3012-015 White 3500K
4016-019 White 4000K
5020-023 White 4500K
6024-027 White 5000K
7028-031 White 5600K
8032-035 White 6000K
9036-039 White 6500K
10 040-043 White 7000K
11 044-047 White 7500K
12 048-051 White 8000K
13 052-055 Mauve 126
14 056-059 Ultimate Violet 707
15 060-063 Dark Lavender 180
16 064-067 Cold Lavender 703
17 068-071 Light Lavender 052
18 072-075 Midnight Maya 508
19 076-079 Tokyo Blue 71
20 080-083 Zenith Blue 195
21 084-087 Elysian Blue 714
22 088-091 Just Blue 079
23 092-095 Sky Blue 68
24 096-099 Medium Blue 132
25 100-103 Glacier Blue 352
26 104-107 Steel Blue 117
27 108-111 Lagon Blue 172

User Manual - COLORFLOOD 120B V1.0 07/2019 19/40
Number DMX Value Name
28 112-115 Peacock Blue 115
29 116-119 Jade 323
30 120-123 Dark Yellow Green 090
31 124-127 Lee Green 121
32 128-131 Fern Green 122
33 132-135 Moss Green 089
34 136-139 Sally Green 505
35 140-143 Ice and a Slice 513
36 144-147 Light Amber 102
37 148-151 Surprise Peach 017
38 152-155 Dark Salmon 008
39 156-159 Madge 507
40 160-163 Light Red 182
41 164-167 Scarlet 024
42 168-171 Pink 157
43 172-175 Rose Pink 002
44 176-179 Magical Magenta 795
45 180-183 Bright Pink 128
46 184-187 Magenta 113
47 188-191 Lavander Tint 003
48 192-195 Rainbow chase 13 to 47
49 196-199 Frozen chase 18 to 25
50 200-203 Garden chase 26 to 33
51 204-207 Warm chase 34 to 41
52 208-211 Candy chase 42 to 47
53 212-215 Water color 19 and 22
54 216-219 Fire color 39 and 36
220-255 Reserved

User Manual - COLORFLOOD 120B V1.0 07/2019 20/40
2. Effect Macro
Number DMX Value Name
00-9 No Function
110-19 All LED 100% Full
220-29 Pulse - Ramp Up effect width 100%
330-39 Pulse - Ramp down effect width 100%
440-49 Hard dimmer width 15%
High 100% - Low 0%
550-59 Soft dimmer width 50%
High 100% - Low 40%
660-69 25% soft random efect
770-79 10% hard random effect
880-89 soft dimmer with random speed Width 60%
High 100% - Low 60%
990-99 soft dimmer with random speed width 45%
High 100% - Low 40%
100-255 Reserved
5. Technical data
Voltage AC100-240V, 47/63Hz (Auto-ranging)
Source 8 LED - 15 W - 4 in 1 - RGBW
Beam Angle 8°
Power Consumption 90 W
Control DMX / WDMX / RDM / IR Remote
DMX Control Channels 5 / 10 / 10 / 15 CH
IP Grade IP65
Working Temperature 0-40°c
Product dimension 371 x 126 x 304 mm
Product weight 6.50 kg
