oxytec CLEANAIR SKY Manual

!
OPERATING AND MAINTENANCE INSTRUCTIONS
CLEANAIR SKY
NT PLASMA UNIT WITH VOLUME PLASMA FOR
ROOM AIR DISINFECTION AND ODOUR ELIMINATION
!

! !
2
OPERATING AND MAINTENANCE INSTRUCTIONS
Table of contents
1. Safety instructions 5
1.1 Safety and warning labelling 5
1.2 Intended use 6
1.3 Foreseeable misuse 6
1.4 General safety instructions 6
2. Technical Data 8
3. The Cleanair Sky 9
3.1 Pre-filter stage 10
3.2 Fan 10
3.3 NTP-Electrode 10
3.4 Product filter 10
3.5 Activated carbon catalyst 10
3.6 Remote control 11
3.7 Time programs 11
4. First use 12
4.1 Preliminary remark 12
4.2 Scope of delivery 12
4.3 Assembly 12

!
3
OPERATING AND MAINTENANCE INSTRUCTIONS
5. Operation 14
5.1 Overview remote control 14
5.2 Switch on the unit 14
5.3 Select fan level 14
5.4 Power level 14
5.5 Switch off the unit 15
5.6 Display 15
!
6. Maintenance and Care 16
!
6.1 Cleaning 16
6.2 Change pre-filter 16
6.3 Change activated carbon filter 16
6.4 Maintenance intervals 17
6.5 Malfunction 17
6.6 Spare parts 18
!
7. General information 19
!
7.1 Transport 19
7.2 Disposal 19
7.3 Guarantee 19
7.4 Certificates 20
7.5 Service 22

! !
4
OPERATING AND MAINTENANCE INSTRUCTIONS
Current preliminary remark
In the fight against Corona, many talk about indoor air purifiers as an important
building block for a return to normality. Our Cleanair Sky has proven that it
massively reduces the risk of infection - even when the virus mutates. According
to a study by the Fraunhofer Institute for Building Physics (IBP), the device
eliminates corona viruses in indoor air by almost 100 percent. It achieves this in
two to three hours. The elaborate study meets all the requirements of the Federal
Environment Agency for realistic conditions. The situation was simulated in a
classroom.
Unlike many room air purifiers, the Cleanair Sky does not work with a HEPA filter in
which the living viruses get stuck and which has to be changed regularly under
elaborate protective measures. Instead, the Cleanair Sky uses a sophisticated, very
low-maintenance technology with low follow-up costs. In it, the room air flowing
through is briefly switched to the energetic state of NT plasma. In the process, the
molecules are positively charged and thus viruses, bacteria and germs are
destroyed. The air is sterilised in fractions of a second. Unlike all other plasma
processes on the market, the Cleanair does not only disinfect the air with
activated oxygen. In the NT plasma process, the air travels through the volume
plasma and is disinfected by oxidation. The Fraunhofer study has proven that this
does not result in any critical contamination of the room air by pollutants. The
device works so quietly that it does not disturb lessons or conversations in the
room.
But even after the Corona pandemic, the Cleanair has tangible advantages: It
ensures pleasantly fresh room air – even if in midsummer,
winter or when there are loud noises from outside. This makes it easier for
students to study and for people to concentrate better during office work.
Because it is effective against viruses of all kinds, the Cleanair also significantly
reduces the risk of infection from colds and other infections.
In addition, people with allergies to pollen, house dust or animal hair experience a
significant improvement in their symptoms.
The quiet units are a highly effective supplement to normal ventilation. They make
regular lessons possible again with disruption-free school hours that do not have
to be interrupted several times by shock ventilation.

!
5
OPERATING AND MAINTENANCE INSTRUCTIONS
1. Safety instructions
1.1 Safety and warning labelling
All
Warning of dangerous
electrical voltage
Motor/High-voltage
transformer
Rotating parts/Fan/Motor

! !
6
OPERATING AND MAINTENANCE INSTRUCTIONS
1.2 Intended use
The unit may only be operated under the following conditions:
• Operation exclusively in living, office and practice rooms without
condensing humidity
• Operation exclusively for air purification
No access by persons, including children aged 8 years and above, who are not
capable of using the appliance safely because of their physical, sensory or mental
capabilities or lack of experience or knowledge. They must not use the appliance
without supervision or instruction by a responsible person.
Maintenance of the unit only by instructed personnel.
1.3 Foreseeable misuse
Any use other than that specified under the intended use shall be deemed to be
improper use.
oxytec accepts no liability for consequences arising from improper use.
The guarantee does not apply to damage or defects caused by non-compliance
with the operating instructions.
1.4 General safety instructions
Read and observe the following safety instructions carefully.
Read and observe the operating instructions completely before using the appliance.
Keep the operating instructions available to users of the unit at all times.

!
7
OPERATING AND MAINTENANCE INSTRUCTIONS
Danger to life from electric shock:
An electric shock can lead to serious injuries
or even death.
• Do not operate a unit that is damaged.
• Only connect the unit to a mains voltage according to the type plate.
• Never repair the unit yourself.
• Do not make any modifications to the unit.
• The unit contains live parts.
• There is a danger to life if the housing is opened.
• Only use original accessories.
• When carrying out cleaning and maintenance work, always switch off the fuse
and secure it against being switched on again.

! !
8
OPERATING AND MAINTENANCE INSTRUCTIONS
2. Technical Data
Housing
Aluminium
Powder-coated
Power supply
Voltage 230 V
50 – 60 Hz
Power
<80 Watt
Power
Fixed connection
Cable length 80cm
Fan
Level 1 – 4 selectable
Fan speed 1
150 m³/h
<30dB
21 Watt
Fan speed 2
265 m³/h
<39dB
26 Watt
Fan speed 3
410 m³/h
<49dB
39 Watt
Fan speed 4
600 m³/h
<58dB
75 Watt
Filter
Pre-filter G4
NTP-Electrode
Product filter F9
Activated carbon catalyst
Net weight
13 kg
Dimensions
210 x 680 x 610 mm
(H x W x D)
Ambient-
temperature
Temperature range:
10°C – 30°C

!
9
OPERATING AND MAINTENANCE INSTRUCTIONS
3. The Cleanair Sky
Whether in waiting rooms, conference rooms, workrooms or living rooms.
– the air is enriched with bioaerosols as well as dust. These can become
become a source of infection in times of pandemic. The Cleanair inactivates
viruses, bacteria and spores highly effectively. The air currents in the room are
taken into account. The unit, which is suspended centrally under the ceiling,
ensures an even, optimal air exchange.

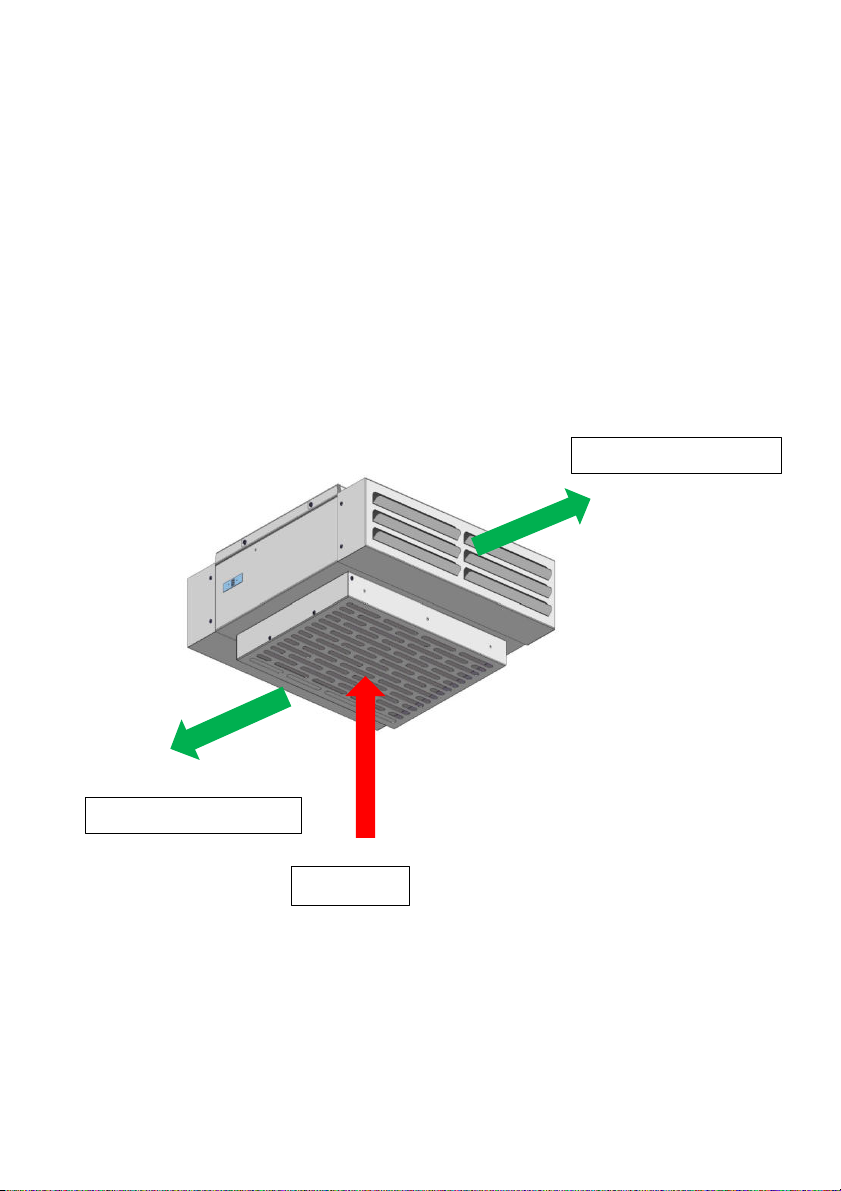

Air intake
Discharge direction
Discharge direction

! !
10
OPERATING AND MAINTENANCE INSTRUCTIONS
3.1 Pre-filter stage
A filter cassette with filter class G4 is installed in the intake in the base plate of the
unit. Its task is to remove the dust from the room air.
Changing the filter is very easy. The unit does not have to be opened for this.
3.2 Fan
An EC centrifugal fan with backward curved blades is installed. This guarantees
efficient and low-noise operation. The fan is preset to 4 power levels and can be
controlled via the remote control.
3.3 NTP-Electrode
The proprietary NTP electrode has been developed for air treatment. The volume
plasma it generates is capable of destroying or inactivating organic compounds
such as odours or microorganisms in fractions of a second. It has a minimal
energy consumption.
3.4 Product filter
The reaction in the volume plasma can lead to cluster formation. These dust
particles are then filtered out in the product filter with filter class F9.
3.5 Activated carbon catalyst
This activated carbon filter serves as a catalyst to eliminate odours and any ozone
that may have formed. It guarantees the safe use of the unit and is therefore also
monitored with the control unit.

!
11
OPERATING AND MAINTENANCE INSTRUCTIONS
3.6 Remote control
An infrared remote control allows the unit to be switched on and off and the
overrun levels to be selected.
3.7 Time programs
These levels can also be adjusted via the remote control.
Power level: In this level, the unit operates with a volume flow of 600 m³/h.
Because of the slightly higher volume, this level can be used during break times.
Its running time is set to 10 minutes. After that, the unit returns to the previous
stage.
Run-on: When the unit is switched off, it can run on for 30 minutes.
!

! !
12
OPERATING AND MAINTENANCE INSTRUCTIONS
4. First use
4.1 Preliminary remark
The unit was thoroughly checked and carefully packed before leaving the factory.
If the packaging is damaged or opened, check the unit for external damage
immediately upon receipt.
Never put a damaged unit into operation. In the event of a complaint, contact
your supplier immediately.
Observe the technical data as well as the safety instructions before the first
operation.
4.2 Scope of delivery
1 x Device
1 x Mounting plate
1 x Remote control
1 x Operating instructions
4.3 Assembly

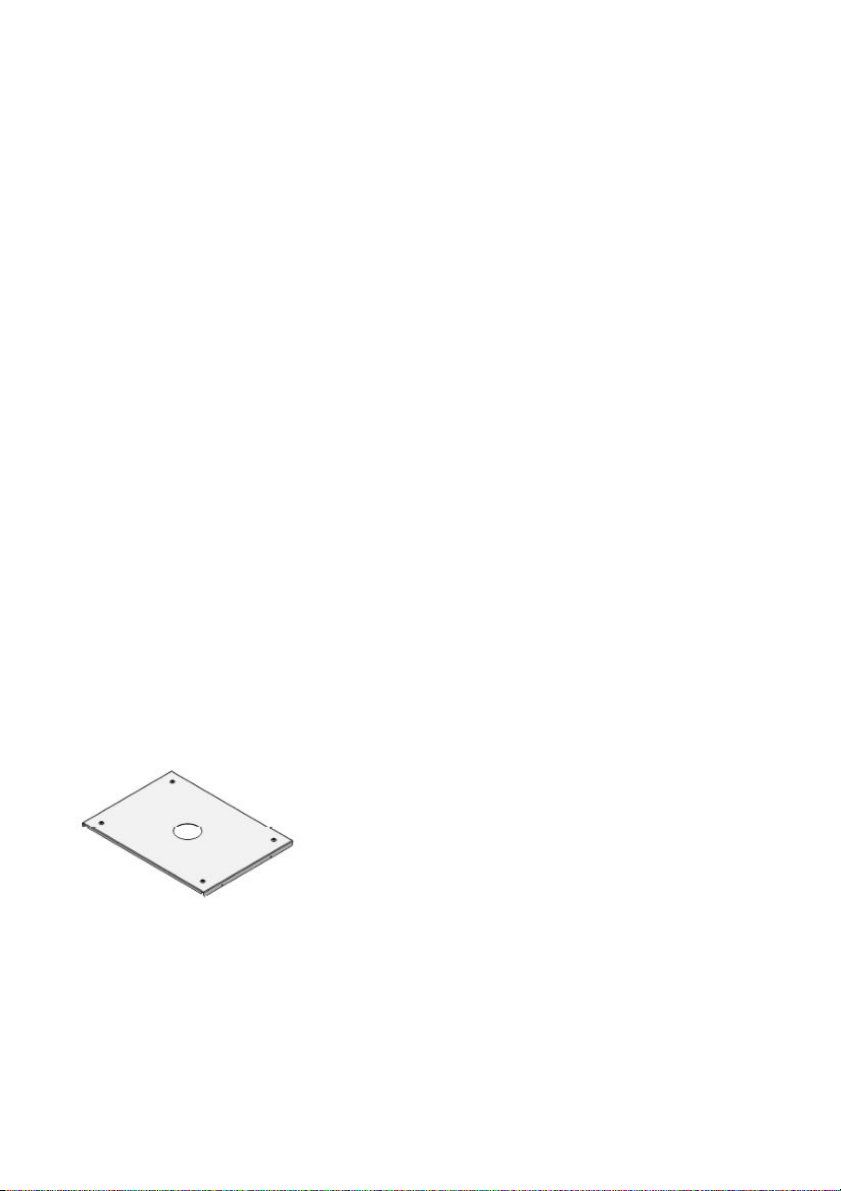

1.The mounting plate is fixed to the ceiling with
four screws. Select the dowels according to the
ceiling material and the dowel manufacturer's
specifications. Please pay attention to the
discharge direction of the unit.
2. Remove the protective strips from the two outlet grilles.
3. Connect the power cable to the connection cable on the unit.
4. Hang the unit in the mounting plate and secure it with the locking screws.

!
13
OPERATING AND MAINTENANCE INSTRUCTIONS

! !
14
OPERATING AND MAINTENANCE INSTRUCTIONS
5. Operation

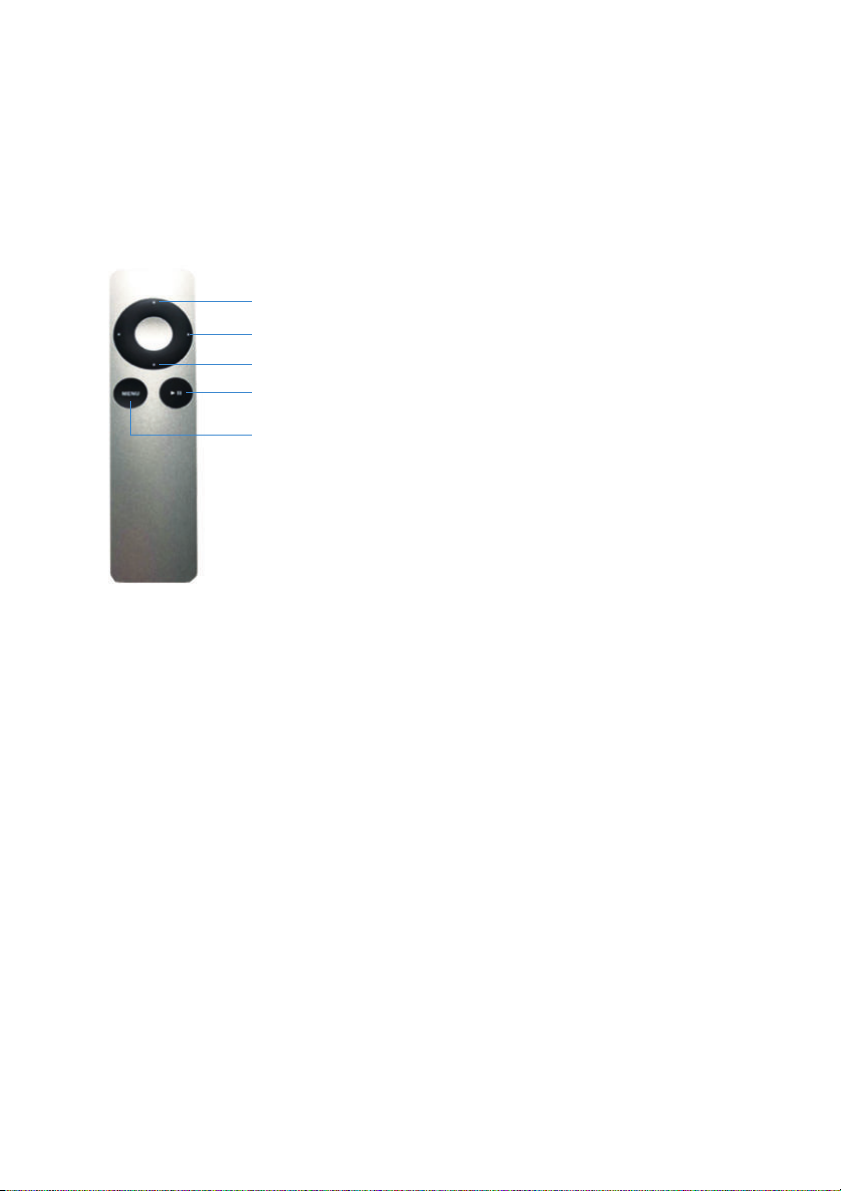

5.1 Overview remote control
5.2 Switch on the unit
Either Restore-Button: Unit starts in the stage, in which it was switched off.
Or Plus-Button: Unit starts with level 1.
5.3 Select fan level
!
Select the appropriate level (1 – 4) with the plus or minus key.
5.4 Power level
!
Press the pause button. The unit goes to level 4 for 10 minutes and then switches
back to the output level.
!
Plus-Button
Restore-Button
Minus-Button
Pause-Button
Menu-Button

!
15
OPERATING AND MAINTENANCE INSTRUCTIONS
5.5 Switch off the unit
!
Minus-ButtonLevel 0: The unit then switches off or to standby.
Or Menu-Button: Unit switches off after 30 minutes. During the display
flashes. The overrun can be switched off by pressing
the button again.
Or Restore-Button : Unit switches off, but saves the level for the next time it
is switched on.
Or switch off voltage: The next time the unit is switched on again to the same
level as before it was switched off.
5.6 Display
Level 0 = Unit is off, but on voltage
Level 1 – 3 = Normal running levels
Level 4 = Power Level
Next to the display is the infrared receiver to which the remote control should be
pointed when switching.

! !
16
OPERATING AND MAINTENANCE INSTRUCTIONS
6. Maintenance and Care
6.1 Cleaning
Clean the outer cover only with a soft cloth and not with abrasive or corrosive
cleaning agents.
6.2 Change pre-filter
Only change the filter when it is switched off. To change the prefilter, open the
inspection flap and pull out the filter cassette. Then install the new filter and close
the flap.
!
!
!
6.3 Change activated carbon filter

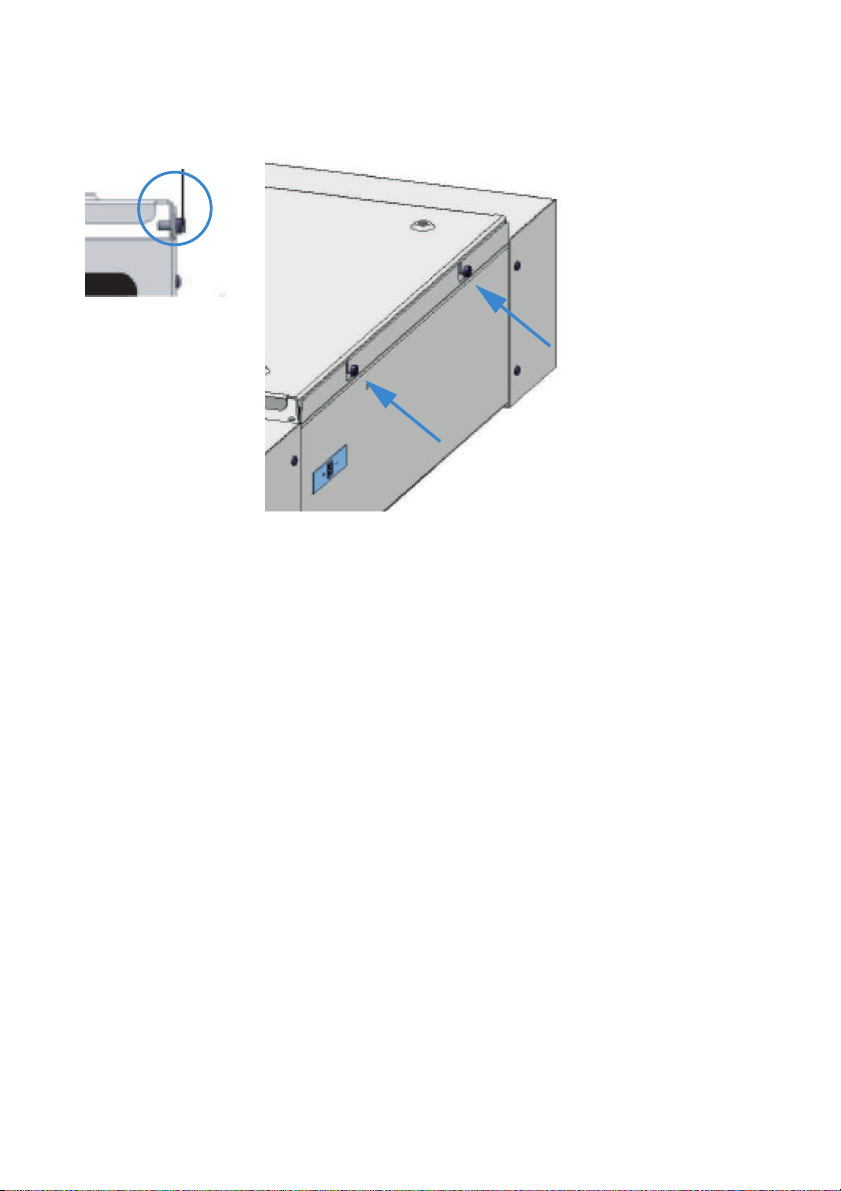

To change the filter, loosen the screws on the sides of the
outlet nozzles and remove the nozzles with the filter.
Replace the filter. Reinstall the outlet connection pieces
and tighten them with the screws.

!
17
OPERATING AND MAINTENANCE INSTRUCTIONS
!
Error message Meaning
F with number This fuse is defective.
L The fan has a malfunction.
H Pls change the activated carbon.
T The filter is not mounted correctly.
6.4 Maintenance intervals
Pre-filter: You should change the filter every 3 to 6 months by pulling out the filter
cartridge.Product filter and activated carbon catalyst: after 9000 operating hours.
Product filter and activated carbon catalyst: after 9000 operating hours.
With eight hours of operation per day, this corresponds to five years.
The unit indicates when it needs to be changed.
!
6.5 Malfunction
Unit cannot be switched on – Check the mains voltage!
!

! !
18
OPERATING AND MAINTENANCE INSTRUCTIONS
6.6 Spare parts
Product name
Description
Dimensions in mm
Filterset Sky
Replacement filter set consisting of
Prefilter G4
Product filter F9, 2
Activated carbon catalysts, 4
Prefilter Sky
Prefilter G4
392 x 495 x 24 (L x W x H)
Product filter F9
F9 Filters, 2
595 x 130 x 25 (L x W x H)
Carb Sky
Activated carbon catalysts, 4
595 x 130 x 25 (L x W x H)

!
19
OPERATING AND MAINTENANCE INSTRUCTIONS
7. General information
!
7.1 Transport
If possible, transport and ship the unit in its original packaging. Please pay
attention to the top and do not tilt the Cleanair Sky.
7.2 Disposal
You must not dispose of the Cleanair Sky in household waste. Its components are
separated and recycled. Otherwise, improper disposal can cause lasting damage
to the environment. According to the Electrical and Electronic Equipment Act
(ElektroG), as a consumer you are obliged to return electrical and electronic
equipment at the end of its service life free of charge to the manufacturer, the
point of sale or to public collection points.
7.3 Guarantee
We guarantee to repair any defects in the material and function of your device
free of charge for two years (for private customers) or one year (for companies
and business customers).
Your invoice is valid as a warranty certificate. Please contact your oxytec dealer
if required.
This guarantee does not apply if you treat the Cleanair Sky improperly and in case
of normal wear and tear. The guarantee also expires if you or a third party modify
anything on the unit.

! !
20
OPERATING AND MAINTENANCE INSTRUCTIONS
7.4 Certificates
Fraunhofer-Institut für Bauphysik IBP
Forschung, Entwicklung,
Demonstration und Beratung auf
den Gebieten der Bauphysik
Zulassung neuer Baustoffe,
Bauteile und Bauarten
Bauaufsichtlich anerkannte Stelle für
Prüfung, Überwachung und Zertifizierung
Institutsleitung
Prof. Dr. Philip Leistner
Prof. Dr. Klaus Peter Sedlbauer
Stv. Abteilungsleiterin:
Dr.-rer. nat. Andrea Burdack-Freitag
Bearbeiter:
M. Sc. Sabine Johann
Fraunhofer-Institut für Bauphysik IBP
Nobelstraße 12 | 70569 Stuttgart
Telefon [phone]
Telefax [phone]
www.ibp.fraunhofer.de
Fraunhoferstr. 10
|
83626 Valley
Telefon [phone]
Telefax [phone]
IBP-Bericht Nr. UHS-054/2021
Effizienz des Raumluftreinigers von oxytec
(Cleanair Sky L) auf die Reduktion und Inaktivierung
von luftgetragenen Viren
Durchgeführt im Auftrag der
oxytec AG
Herrn Dr. Christian Haverkamp
Bahnhofstr. 52
8001 Zürich
Schweiz
Der Bericht umfasst:
11 Seiten Text
4 Bilder
2 Tabellen
Valley, 22. Juni 2021
