Oypla 4714 User manual

Page 1
Model Code: 4714
Oypla.com LLP / www.oypla.com
User Manual
Model Code: 4714
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
20kW Industrial
Heater

Page 2
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
Make sure all fastenings are tightly in place and
everything is in order, before using the product.
This should be checked periodically by an adult.
Never carry out alterations or modifications to this
product.
This product is not a toy, and is only to be used for
its designated purpose.
This heater is not suitable for use as a primary
heating source.
Never leave the product unattended whilst it is in
operation. If you have to leave the product
unattended, even for a short while, always switch it
off.
Keep the product out of children’s reach, and do
not allow children to operate it.
Do not place the mains cable on or near any hot or
hazardous surface.
Do not touch the product if your hands are moist or
wet.
Do not attempt to move the product by pulling the
power cord.
Do not place the heater next to, or above, an
electrical socket.
Do not cover the heater in any way.
Do not place the heater close to flammable
materials or explosive gases/liquids.
Only place the heater in a position that will allow
for the flow of hot air not to be blocked.
This product is only for use outdoors or in a well-
ventilated indoor area.
Always unplug the heater when it is not in use.
Even at the lowest setting, the heater is still
operating, making it a potential fire hazard.
Clean only with a damp cloth. Do not use strong
industrial cleaning substances or abrasive materials
as these may damage the product.
Always unplug the product before cleaning.
Leave the product to cool fully after use (3 hours
minimum) before cleaning the product.
This product is not intended for use by children or
other persons without assistance or supervision if
their physical, sensory or mental capabilities
prevent them from using it safely.
Appliance plug must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with the appliance.
Always wear appropriate PPE, including gloves, face
masks and eye shields.
Do not operate this product if the cable, plug or
product is damaged in any way.
Parts of this product can become extremely hot
and can cause burns. Particular attention must be
given where children and/or vulnerable people are
present.
When using the heater for the first time, you may
notice an emission of smoke. This is quite normal
and it will stop after a short time. The heating
element is made from stainless steel and coated in
protection oil during production. The smoke is
caused by the oil when heated.
The appliance is not suitable for use outdoors in
damp weather, in bathrooms or in other wet or
damp environments. Avoid using the appliance in
rain or other damp conditions.
The appliance can become very hot and therefore
should be placed a safe distance away from any
flammable objects or furniture.
This appliance must not be placed directly below a
socket outlet.
Do not connect the appliance using an on/off timer
or other equipment which can automatically switch
the device on.
Never use an extension cord/reel or adapter plug
to power this product. If unavoidable, an extension
reel CAN be used, but only a suitable one.
The appliance must not be used in rooms where
flammable liquids or gases are used or stored.
Do not use this product in the immediate
surroundings of a bath, a shower or a swimming
pool.
Make sure the appliance is always under
surveillance, to keep children and animals away
from it.
Never remove the plug by pulling on the cord.
Keep the heater far away from objects such as
curtains, where the air inlet can easily be blocked.
Do not place the product on moving vehicles or
somewhere easy to be tipped over.
Always keep your work area clean and well lit.
Cluttered or dark areas invite accidents.
The power coupler is waterproof when not in use.
In order to prevent possible electric shock or
leakage current, never use the appliance with wet
or damp hands, or operate the appliance when
there is water, or any liquid, on the power cord.
WARNING: This product is powered using diesel, and creates a flame
whilst in use. It must only be used either outdoors or in very well-
ventilated areas, as it will produce both smoke and fumes. Please read
the instructions carefully for more specific details.

Page 3
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
Warnings
Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts
and the air intake.
Do not move the appliance when it is in operation
or when unplugged into the mains supply. Only
move the appliance once it has fully cooled, and
has been unplugged.
Never point the appliance directly at persons
nearby.
Only operate on a stable, level surface.
When not in use, store the heater in a dry, clean
area, covered if possible. This is to prevent dust
building up which can create a fire hazard.
Bulk fuel storage should be a minimum of 25ft from
heaters, torches, portable generators, or other
sources of ignition. All fuel storage should be in
accordance with national, state, or local
authorities.
Before each use, check that there are no fuel leaks.
If a fuel leak is found, do not use the product.
If the product is damaged or defective, please
contact [e-mail]
If operating the heater in a damp location is
unavoidable, use a residual current device (RCD)
protected supply.
Avoid unintentional starting. Ensure the switch is in
the off position before connecting the appliance to
the power source.
Check the heater thoroughly for damage. Do NOT
operate a damaged heater.
Do not insert any objects through the air intake or
outlet.
Only install the heater in a normal, upright position.
Never use in areas normally for habitation and/or
where children may be present. Not for domestic
use.
Use only with electrical power supply specified on
the rating label.
People with breathing problems should consult a
physician before using the heater.
If you show any signs of carbon monoxide
poisoning, including flu-like symptoms such as
headaches, dizziness, and/or nausea, consult a
doctor and cease use of the heater immediately.
⚠Failure to comply with the precautions and
instructions provided with this heater can result in
serious bodily injury, property loss/damage from
hazards of fire/explosions/burns/asphyxiation/carbon
monoxide poisoning/electrical shock, and even death.
⚠Fire, burn, inhalation and explosion hazard. Keep
solid combustibles such as building materials,
cardboard, and paper a safe distance away from the
heater. Never use the heater in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
⚠This heater must only be used in very well-
ventilated areas, or outdoors. Failure to do so exposes
a risk of fume inhalation and carbon monoxide
poisoning.
⚠This heater must always be powered off and
unplugged while left unattended.
⚠Never refuel/move/handle or service while the
heater is hot or in use.
⚠Always keep combustibles, like paper and wood, at

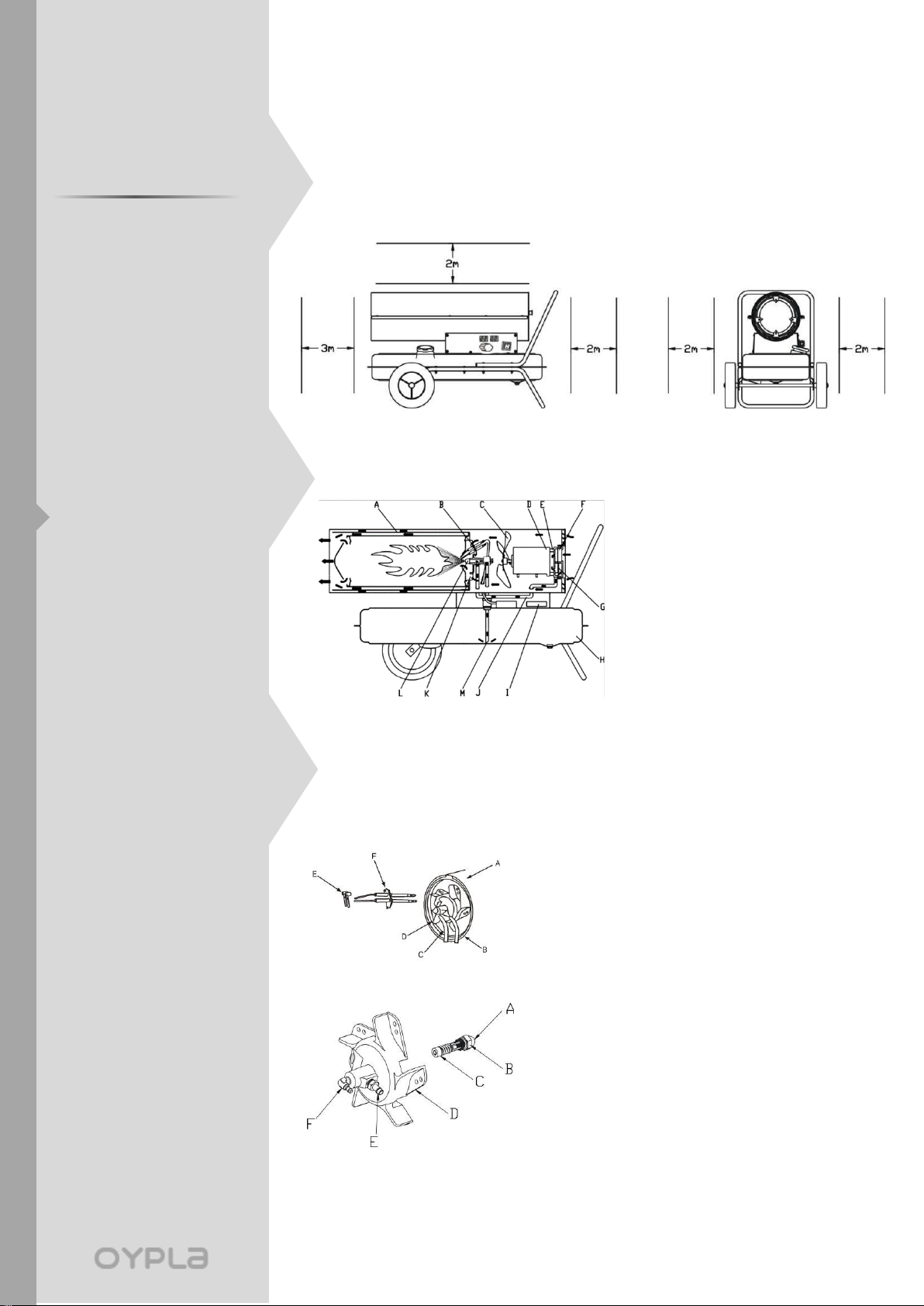

least 3 metres from the heater outlet and 2 metres
from the top, sides and inlet.
⚠Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. These pose an increased risk of electrical
shock.
⚠Diesel fuel is carcinogenic. Take care when
transporting, refuelling and storing diesel fuel. Always
clean up fuel spills with regard to local legislative
requirements.
⚠Using this heater in dusty or dirty conditions
creates a fire hazard. Avoid using the heater in such
conditions.
⚠Using this heater in close proximity to combustible
gases, liquids and other objects creates a serious
explosion and fire hazard. Never operate the heater
near such objects.
⚠When cleaning (using only a damp cloth), never
allow water to enter the inner parts of the heater. If
this happens, ensure the heater is thoroughly dry
inside and out before operating it.
⚠Smoke is to be expected when using the product
for the first few times, due to the protective
manufacturing oils burning away.
⚠This heater is only to be fuelled using diesel or
kerosene. Do not use any other substances as fuel.
NEVER use petrol, used oils, paint thinners, naphtha,
alcohol or other fuels of any kind. Use of incorrect fuel
may cause danger of explosion and death,
⚠Use only in accordance with national and local
regulations, directives, and all other relevant
restrictions.
⚠NEVER use in a room or area that also has
combustible gases or liquids present.
⚠When operating a heater, stay alert of what you
are doing and use common sense –avoid using the
heater if you are tired or under the influence of drugs,
alcohol or medication.
⚠Ensure the ground surrounding the heater is not
able to overheat –overheating may cause fire.

Page 4
Model Code: 4714
Oypla.com LLP / www.oypla.com
A. EG
B. G
C. G
D. G
E. G
F. G
G. G
H. G
I. Display Window
J. Thermostat Knob
K. Side Panel
L. Wheel
M. Fuel Cap
N. Lower Shell
O. Fuel Gauge
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
Heater Overview
A. Hot Air Outlet
B. Upper Shell
C. Rear Handle
D. Back Grill
E. Pressure Gauge
F. Fuel Tank
G. Lower Tube Frame
H. Power Switch
Assembly
1. Insert the wheel axle to the corresponding
hole of the lower tube frame. Slide the
wheel over the wheel axle and attach the
wheel caps.
2. Put the heater body onto the lower tube
frame, making sure that the 4 holes of the
handle frame match up with the
corresponding 4 holes on the lower tube
frame.
3. Insert screws into the holes, place flat
washers under the lower frame and
tighten the hexangular screws.
4. Insert other screws into the holes
respectively and use a screwdriver to
tighten them.
To ignite the heater, insert the plug into the socket, ensure the tank has
sufficient fuel, set the power switch to position “1” and the indicator should light
up. It will ignite automatically if the setting temperature is higher than the
ambient temperature shown on the LED digital display.
Switching the power switch to position “0”will switch the heater off.

Page 5
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
Safety Distance
(Whilst product operating)
Internal Diagram
A. Combustion Chamber
B. Spark Plug
C. Fan Blade
D. Motor
E. Pump
F. Air Intake Filter
G. Air Output Filter
H. Fuel Tank
I. Controller
J. Air Inlet Pipe
K. Flame Steady Plate
L. Oil Nozzle
M. Oil Pipe
Heater Construction Diagrams
Burner Head
Oil Nozzle
A. Burner Assembly
B. Air Inlet Pipe
C. Oil Inlet Pipe
D. Flame Steady Plate
E. High Voltage Line
F. Spark Plug
A. Oil Nozzle
B. Nozzle Core
C. Seal Ring
D. Flame Steady Plate
E. Air Pipe Fitting

Page 6
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
Pressure Adjustment
Air Pump
A. Screwdriver
B. Pressure Adjustment Screw
A. Pump Blade
B. Pump Cover
C. Air Intake Filter
D. Pressure Cover
E. Air Inlet Guard
F. Air Outlet Filter
G. Pump Core
H. Connecting Part
I. Pressure Gauge
Troubleshooting
a) Not Faults
b) Potential Faults –checks only to be completed by a qualified technician

Page 7
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
-Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a sponge dampened by
lukewarm water and a mild detergent, then dry using a clean cloth. Never perform this cleaning when the unit is
operating or plugged in.
-Regularly inspect the power cable. If worn, cracked or damaged have it replaced by a technical service.
-Before storing the heater, make sure it is perfectly cool and dry. Cover the unit with a plastic bag, put in its
packing box and store it in a dry, well-ventilated place.
-Clean only with a damp cloth. Do not use strong industrial cleaning substances or abrasive materials as these may
damage the product. Make sure the product is switched off, unplugged from the socket and been left for an hour
before cleaning, to remove the risk of electrical shock.
-Before starting any cleaning or maintenance task, shut down, unplug and let the heater cool down for at least an
hour.
-Do not attempt any electrical repair yourself. If the heater needs service or repair, contact a qualified technician.
-When cleaning, take care to make sure that water does not enter the unit.
-Do not spray water into the heater.
-Do not open the enclosure to clean the inner parts.
-Never use solvents, gasoline, toluene or similar aggressive chemicals to clean the heater.

Page 8
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1Front Cover
-
2Safety
Instructions
-
4Assembly
Instructions
-
4Ignition
-
5Diagrams
-
6 Trouble
Shooting
-
7Maintenance
-
7 Technical
-
8Back Cover
End
