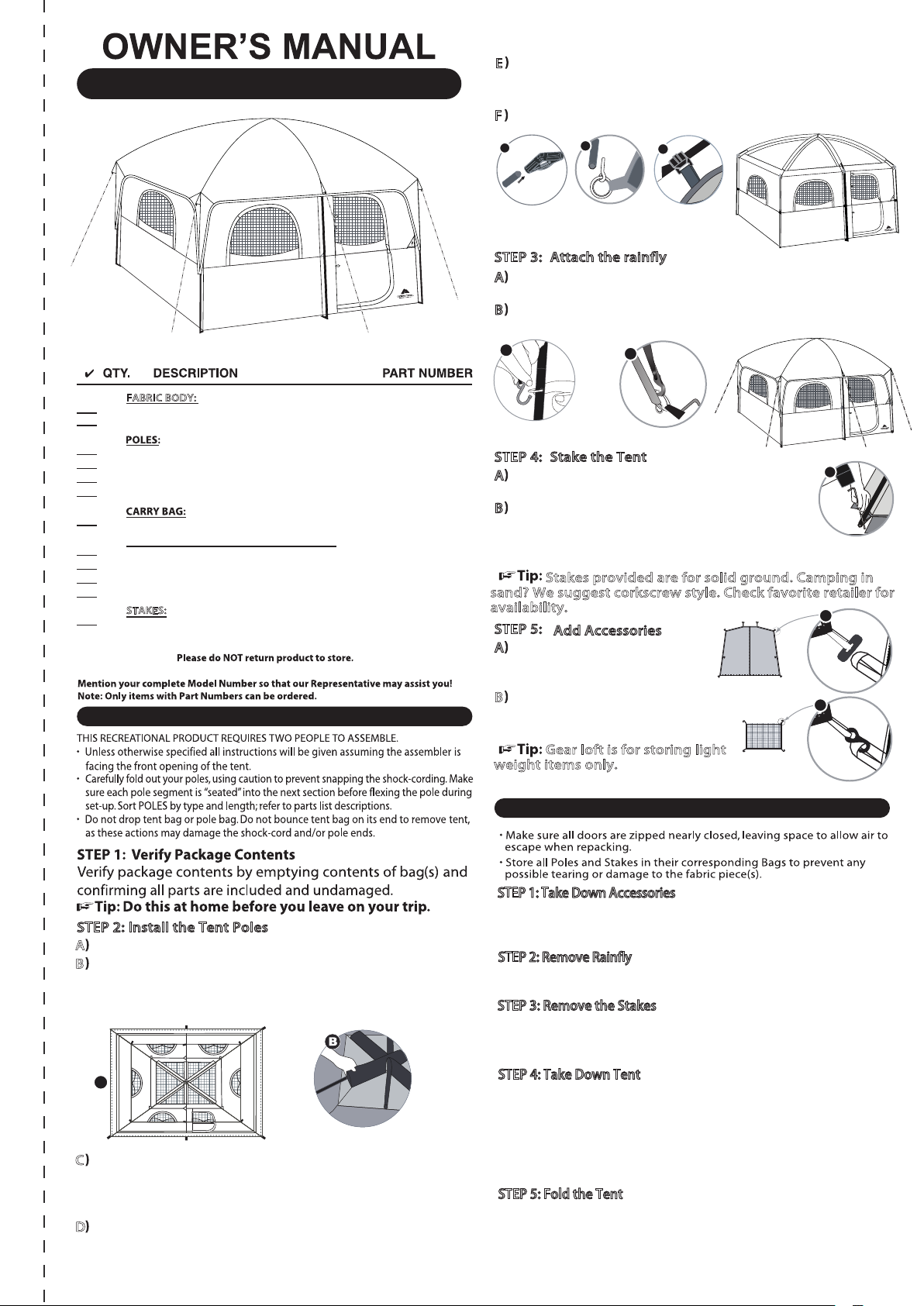

MODEL # WF-141484 14 PERSON TENT
14ft x 14ft x 84in/4.27m x 4.27m x 2.13m
Review your parts list above to make sure all parts listed above have included in your package.
Call our toll free number:1-877-579-1550 Monday-Friday 8:30 am - 5:30 pm EST
FABRIC BODY:
STAKES:
1
2
1
14
Tent Body
Fiberglass, Tent Roof Pole, Black
N/A
1Tent Fly N/A
FRPL-499BK
1Fiberglass, Center Roof Pole, Red FCPL-370RD
4Steel, chain-corded Side Leg Pole, Black SLPL-177BK
2Steel, chain-corded Center Leg Pole w/D-ring, Black SCPL-172BK
Carry Bag N/A
Steel stake STS-180
STEP 2: Install the Tent Poles
ASSEMBLY INSTRUCTIONS
C
B
A
Take Roof Poles (FRPL-499BK) and slide into the crossing sleeves.
Insert one end of each pole into the ribbed side of elbow connectors
at the corners. Gently flex the poles and secure the opposite side into
the ribbed side of elbow connectors. Poles will cross at the center.
Slide one end of a Center steel leg pole (SCPL-172BK) into the smooth
end of elbow connector, then secure the other end of the pole into
the pin-rings at base of the tent, repeat for the other center leg pole.
D
E
DISASSEMBLY INSTRUCTIONS
Slide one end of a side steel leg pole (SLPL-177BK) into the smooth end
of Elbow Connector, then secure the other end of the pole onto the
pin-rings at base of the tent, repeat for the other side leg poles.
Attach the plastic hooks on the tent to the leg poles.
F
6Elbow connector, 140 Dgr EC-2W140
1Pole Bag N/A
1Stake Bag N/A
6GROPE-3M-3
UNIVERSAL PARTS (some attached to fabric)
Guy Ropes: φ3mm, 3m
STEP 3:
A
Position rainfly over tent .Connect S-HOOK on the rainfly onto the D-
ringslocated at the top of the each leg pole.
Fasten the hook-and-loop tabs located on the rainfly onto
corresponding tent poles.
B
Attach the rainfly
STEP 4:
Stake tent by driving stakes through the webbing loops
and pin rings on tent base.
A
To secure guy lines, find the guy line plastic slider and
lock for the portion of the line opposite the knot. Pull
this portion forming a loop (works like a slip knot). Extend
guy line to ground and stake. Repeat with remaining guy lines.
B
Stake the Tent
STEP 5:
Attach the divider by pushing the
toggle through the fabric loops sewn
on the inside tent.
A
Attach Gear loft by using the plastic
S-hooks to hook into the fabric loops sewn on
the inside of the tent.
B
Add Accessories
Stakes provided are for solid ground. Camping in
sand? We suggest corkscrew style. Check favorite retailer for
availability.
Gear loft is for storing light
weight items only.
Select a smooth level site and spread out you tent.
Extend poles and sort into groups. Take the Center Roof Pole
(FCPL-370RD) and slide it into the middle roof sleeves of
corresponding color; finish securing by inserting both pole ends to
the ribbed side of center elbow connector.
A
O
-KA
E
..
PNE R
HG
1
2
3
4
5
6
7
8
9
99
0
1
11
2
1
EF
E
AA
A
A
B
STEP 4: Take Down Tent
A) Unfasten clips from the tent poles.
B) Remove poles from the pin-ring at base of tent and/or out of
grommets. Slide pole out carefully, pushing it through the sleeve away
from the end at which you are standing. By following these instructions
you minimize the risk of damaging the poles. Repeat for each pole.
C) Carefully fold poles and store them in the pole bag.
STEP 3: Remove the Stakes
Carefully remove stakes by pulling out the hook ends. Do not pull or tug
at the stake loops sewn onto the fabric body. Remove excess soil from
the stakes and store them in their bag.
STEP 1: Take Down Accessories
Detach Gear Loft by unhooking S-Hooks from fabric loops. Fold Gear Loft
for storage. Remove Divider Curtain by detaching toggles from fabric
loops. Fold for storage.
STEP 2: Remove Rainfly
Detach S-Hooks and nylon fasteners that hold down rainfly. Fold rainfly
storage.
STEP 5: Fold the Tent
Fold tent into a rectangular shape the same width as pole bag. Lay pole
bag at one end of fabric and roll tightly together, slowly squeezing air out
as you go. (Following these instructions will make it easier to fit tent into
bag.) Store tent in carry bag provided.
