Ozito 15W User manual

EGR-2050U
ELECTRIC ENGRAVER
15W
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough,
Wirral, CH62 3QG
0816
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage: 230-240V ~ 50Hz
Power: 15W (S2: 30min)
No Load Speed: 6,000/min
Accessory Diameter: 3mm
WHAT’S IN THE BOX
Electric Engraver
Stencil x 2 and Hex Key
ozito-diy.co.uk
All of our products undergo strict quality checks to ensure that they reach you in perfect condition.
In the unlikely event that your device develops a fault, please contact our service department at the
address shown on this guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which guarantee claims can be
made:
1. These warranty terms regulate additional warranty services, which the manufacturer mentioned
below promises to buyers of its new products in addition to their statutory guarantee claims are not
affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or manufacturing faults on a product
which you have bought from the manufacturer mentioned below are limited to either the rectication
of said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional
applications. A guarantee contract will not be created if the device has been used by commercial,
trade or industrial business or has been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect
installation, a failure to follow the operating instructions (for example connecting it to an incorrect
mains voltage or current type) or a failure to follow the maintenance and safety instructions or by
exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or
the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as
sand, stones or dust, transport damage), the use of force or damage caused by external forces (for
example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal
use of the device.
4. Your Product is guaranteed for a period of 36 months from the original date of purchase and
is intended for DIY (Do It Yourself) use only. Lithium Ion batteries and chargers are covered by a
12 month warranty. Warranty excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect being noticed. No guarantee
claims will be accepted after the end of the guarantee period. The original guarantee period
remains applicable to the device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts tted will not result in an extension of the guarantee period, and no
new guarantee will become active for the work performed or parts tted. This also applies if an
on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
THE PLACE OF PURCHASE WITH YOUR REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts, consumables and missing
parts as set out in the service information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

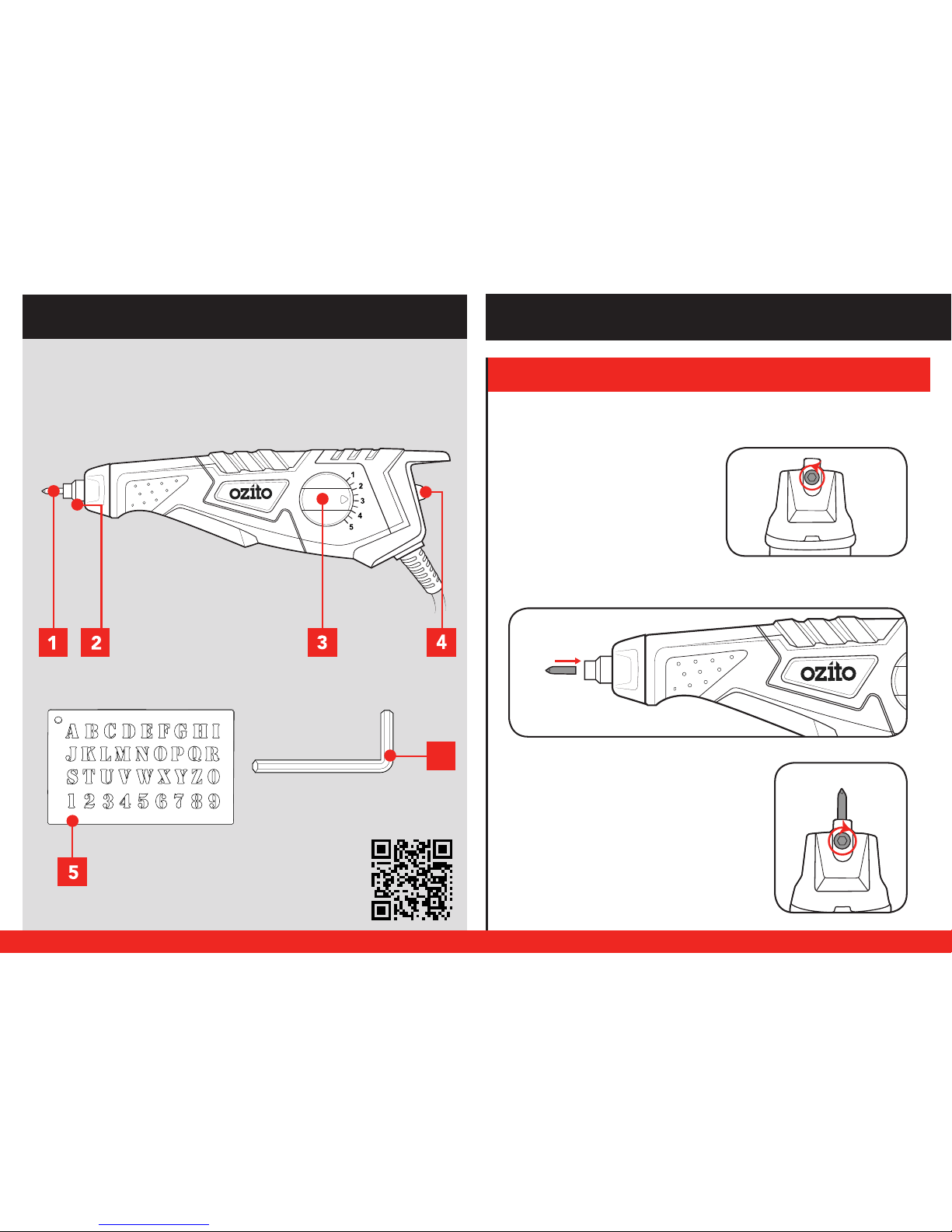

1 Engraving Tip
2 Tip Release Screw
3 Stroke Adjustment Dial
4 On/off Switch
ELECTRIC ENGRAVER
KNOW YOUR PRODUCT
6
5 Stencil x 2 6 Hex Key
Scan this QR Code with your
mobile device to take you to the
online manual.
ONLINE MANUAL
1. FITTING ENGRAVING TIP
1. Loosen the tip release screw
using the supplied hex key.
3. Secure engraving tip by
tightening the tip release
screw.
2. Fully insert engraving tip. It should petrude roughly by 8.5mm.
SETUP & PREPARATION
Caution: Ensure the tool is disconnected from the power supply
before performing any of the following operations.

2. ON/OFF SWITCH
OPERATION
The tool is recommended for use with a residual current device
with a rated residual current of 30mA or less. The stroke adjustment controls the stroke length and in turn the
engraving depth.
2. Set stroke adjustment dial to
desired setting.

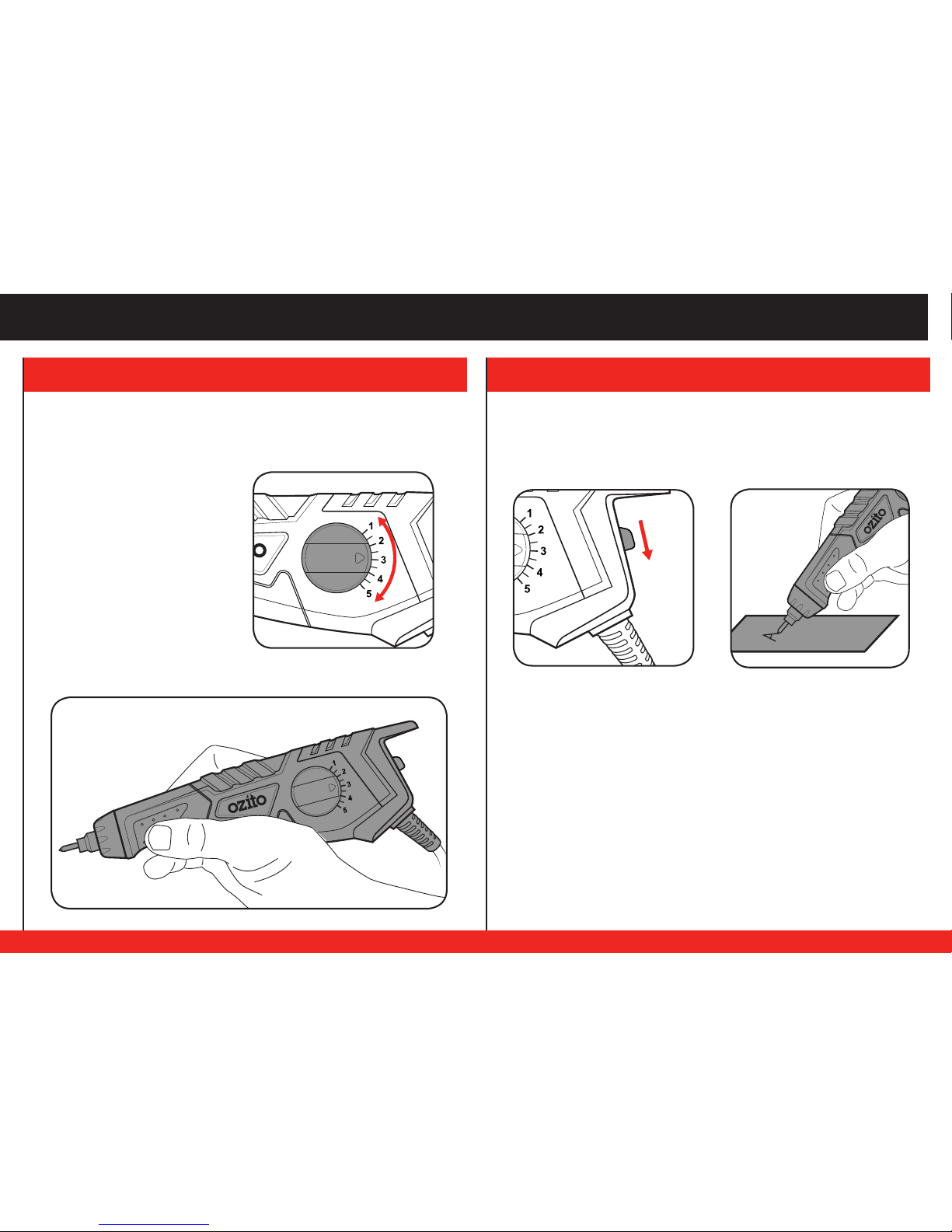

3. STROKE ADJUSTMENT DIAL
1. Turn the stroke adjustment
dial so that the marker
points to desired setting.
2. For a ne mark, set the
stroke adjustment dial to
lower settings.
3. For a deeper, thicker mark,
set the stroke adjustment
dial to a higher settings.
To turn on, push the
on/off switch down to
“I” position.
To turn off, push the
on/off switch up to
“O” position.

4. ENGRAVING
5. Use a light pressure while
guiding the point over the
work piece.
1. Connect the engraver to mains power and ensure the work piece
is properly secured.
3. Firmly hold the engraver like you would hold a pen.
2. Set stroke adjustment dial to
desired setting.
4. Turn the engraver on.
Note: It is recommended that you practice on a scrap piece of
material before you start.
2. Set stroke adjustment dial to
desired setting.
WARNING! Always wear safety glasses when using this tool.
5. ENGRAVING CONT.
EGR-2050U

WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Before you connect the equipment to the mains supply make sure that the data on the rating plate are
identical to the mains data.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
ELECTRICAL SAFETY
DESCRIPTION OF SYMBOLS
MAINTENANCE
• If the enclosure of the engraver requires cleaning, do not use solvents but a moist
soft cloth only. Never let any liquid get inside the engraver; never immerse any part
of the engraver into a liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the engraver by an unauthorised person or by mishandling of the
engraver.
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Read instruction manual
Wear eye protection Wear ear protection
noNo load speed

ENGRAVER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of
electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
WARNING!
● Always wear eye, eay and breathing protection.
● Do not apply too much pressure when engraving.
WARNING! The use of an accessory or attachment, other than those recommended in this Instruction
Manual, may present a risk of personal injury.
To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating
instructions to be found in the Manual. All persons who use and service the machine have to be accquainted
with this Manual and must be informed aboiut its potential hazards. Children and inrmed people must not use
this tool. Children should be supervised at all times if they are in the area in which the tool is being used. It is
also imperative that you observe the accident prevention regulations in force in your area. The same applies for
general rules of occupational health and safety.
The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from such
changes.
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tool’s construction and design:
● Damage to the lungs if an effective dust mask is not worn.
● Damage to hearing if effective earmuffs are not worn.
● Damage to eyes if effective googles are not worn.
● Risk of injury unless hands are kept well clear of cutting devices.

size 445 x 210 mm
Danger! - Read the operating instructions to
reduce the risk of inquiry
Caution! Wear ear-mus. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
rated during working or splinters, chips and dust
emitted by the device can cause loss of sight.
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
EGR-2050U
GB Additonal operating & safety instructions Electric Engraver
Service information
We have competent service partners in all countries named on the guarantee certi cate whose contact
details can also be found on the guarantee certi cate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Engraving bit
Consumables*
Missing parts
* Not necessarily included in the scope of delivery!
In the e ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info.
Please ensure that you provide a precise description of the problem and answer the following questions
in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Mayr/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Electric Engraver EGR-2050U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2012/46/EU
Emission No.:
Standard references: EN 60745-1; EN 60745-2-1; EN 60745-2-23;
EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 09.08.2016
First CE: 16 Archive-File/Record: NAPR014306
Art.-No.: 44.722.95 I.-No.: 11016 Documents registrar: R. Gehard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
Beiblatt_EGR_2050U.indd 1 15.09.2016 11:12:29

size 445 x 210 mm
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the
equipment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
This Electric Engraver is suited to engraving
metal, wood, glass, plastic and ceramics.
The equipment is to be used only for its
prescribed purpose. Any other use is deemed to
be a case of misuse. The user / operator and not
the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Input: .......................................230-240 V~ 50 Hz
Motor: ..................................... 15 W (S2 : 30 min)
No load speed: .....................................6,000/min
Accessory Diameter: ............................. 3.17 mm
Protection class: ...........................................II / &
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ........................ 65 dB(A)
KpA uncertainty .............................................. 3 dB
LWA sound power level............................ 76 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-mus.
The impact of noise can cause damage to
hearing.
Total vibration values (vector sum of three
directions) determined in accordance with EN
60745.
Vibration emission value ah= 1.76 m/s2
K uncertainty = 1.5 m/s2
The specied vibration value was established in
accordance with a standardized testing method.
It may change according to how the electric
equipment is used and may exceed the specied
value in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for
initial assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect
working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool
in accordance with instructions, certain
residual risks cannot be rules out. The
following hazards may arise in connection
with the equipment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear
protection is used.
3. Health damage caused by hand-arm
vibrations if the equipment is used over a
prolonged period or is not properly guided
and maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old
electric power tools have to be separated from
other waste and disposed of in an environment-
friendly fashion, e.g. by taking to a recycling
depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
Beiblatt_EGR_2050U.indd 2 15.09.2016 11:12:29
