Redsail X700 User manual

Laser Machine
User Manual
Model:X700,X900
R E D S A I L T E C H C O . , L T D

These are GB4 kinds of laser Engaving machines.
Laser is dangerous, please take care of your eyes
and skin, avoiding radiation of laser!

2
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
Catalog
1 Prolog.................................................................................................................................................... 3
2 Summary
2.1 Character..................................................................................................................................... 4
2.2 Main Area Instruction .................................................................................................................5
3 Machine Installation and Directions
3.1 Laser Tube Installation................................................................................................................6
3.2 Connection of water pipe, air pipe, air pump and water pump................................................... 6
3.3 Ventilator and ventiduct connection............................................................................................8
3.4 Light Tube Installation................................................................................................................ 8
3.5 Instruction of the power input/ output of equipment.................................................................. 9
3.6 Auxiliary Control Area Instruction..............................................................................................9
3.7 Connection of USB Cable.........................................................................................................10
4 Machine Operation
4.1 Software Installation................................................................................................................10
4.2 Adjustment of Optical Path......................................................................................................10
5 Machine Working.................................................................................................... 错误！未定义书签。
6 Machine Mainterance and Announcement
6.1 Ground wire Connection..........................................................................................................14
6.2 Machine Maintenance............................................................................................................... 14
6.3 Notes......................................................................................................................................... 16

3
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
1 Prolog
Thank you for choosing Redsail Products !
The user manual provides the users with installation, commissioning，parameter settings，
troubleshooting and daily maintenance of the relevant considerations and guidance.
In order to operate the machine correctly and safely, please be sure to read this user manual
and to know exactly of the operation before that you operate the machine. And please keep
well of the manual so that you can read it when you need it.
If you have any suggestions of our products or need our help，please make contact with us:
Tel: [phone]/57, fax [phone].
Notes:
Please be sure turn off the power when you are connecting the wire of the machine.
The electronic components inside of the machine are very sensitive to the static electricity, so do
not put other objects into the side of the machine or make other objects touch on the main circuit
board.
1. After turning off the AC power, the device¡s internal drives, motherboards, laser power
indicator light does not go out it shows that high pressure inside the device is still very
dangerous, do not touch the internal circuits and components.
2. Please be sure make the machine ground.

4
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
2 Summary
This Series laser cutting machine adopts with high performance exposure of drive wheels, with
high engraving and cutting speed，high running accuracy , positive and negative move
sensitivity traits and so on.
2.1 Specifications：
Model
X700
X900
Laser Type
Water cooling Co2 sealed glass
Control System
DSP
Control Software
AutoLaser
Working Type
Engraving/Cutting
File format supported
plt、ai、dxf、bmp、jpg、dst...
Interfere
USB/U disk, support from Coreldraw,AutoCAD to output
directly
Driver Type
Stepper Motor
Moving Type
High Speed Wheel
Laser Power
50W (optional 60W)
60W(optional 80-100W)
Cooling-down method
Water Cooling
Working Area（mm）
700*500
900*600
Up and Down Table
（mm）
200
Table
Knife Table（Optional Honeycomb table）
Front and Back feeding
Yes
Cover Protection function
Yes
Light
Yes
Exhausted fan
Yes
Air Assist
Yes
Red Dot
Yes
Rotary
Optional
Total Power
＜1000W
Voltage
AC 220V±10%/50~60HZ
Size（mm）
1160*870*950（50W）
1410*870*950（60W）
1360*970*950

5
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
2.2 Main Area Instruction
Note：1·Back Cover（For laser Tube, refer to 3.1), 2·Control Panel, 3·Auxiliary Control Area
4·Control Box，5·USB output，6·Main control area ，7·Ventilator connection area
8·water pipe/air pipe installation，9·Output socket，10·port for ground wire，11·Air plug
installation

6
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
3 Machine Installation and Directions
3.1 Tube Installation
（Figure 1)
Please refer to Figure 1 when you install the laser tube. According to Figure 1, solder the
anode wire (pink /thick line), the cathode wire (black/ blue line) in the correct location of laser
tube.(While soldering, please don¡t keep the electric soldering iron touching the welding point
in so long a time in case it burn out the laser tube),poor soldering is not allowed. After finish
soldering, please package the welding point with high voltage tape. After soldering, connect
the in/out water pipe with the entrance/exit on the laser machine (The connection of laser tube must
complete with the principle water come in from the anode and out from the cathode).
3.2 Connection of water pipe, air pipe, air pump and water cooler
3.2.1.1 (If your machine is matched with water pump)
附图 2（2-1）
1.Water inlet 2. Water outlet 3. Air inlet 4. Water outlet 5. Water inlet 6. Air outlet
Step：1--4 2--5 3--6

7
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
3.2.1.2 (If your machine is matched with water chiller)
Figure 2 （2-2）
Note:
1：water inlet 2：water outlet 3：air pipe 4：Air plug（signal input）5：water outlet（water
chiller）6：water inlet(water chiller) 7 air pump outlet 8：Air plug（signal output）9：
power input 220V 10：water inlet（water chiller）11：water outlet 12.Signal cable for water chiller
13.Water Pipe（2 pcs）14.Air Pipe
Step：13(1--5) 13(2--6 ) 14(3--7) 12（4--8）
3.2.1 Connection of water pipe, air pipe, air pump and water cooler
1) Please make the water chiller full of 3/4 water.
2) Please connect the water pipe, air pump and signal wire with the connectors at the
back of the machine according to the above Figure
3.2.2 Functions of accessories:
(1) Function of air pump:
To prevent smoke dusts which were generated in the processing of materials into the
gas nozzle to pollute the focus lens
Blow away the dust, avoid the different depth in the processing.
To prevent the smoking from the incendive materials in the processing.
(2) Function of Water Chiller:
Before machine working, please do make sure there is full of recycled water in the laser
tube, otherwise, it will damage the laser tube and can not be repaired. Please do keep the
water clean before you put it in the water cooler, dirty water will have bad effect on the
laser, and decrease the life of laser tube (Pure water is recommended). At the same time，

8
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
please pay attention to the water temperature, and keep the water temperature less than
35℃during the machine working, if temperature too high or too low, the laser machine
may not work peoperly, even to damage the laser tube. In winter, when you use laser
machine, keep the water temperature in the water chiller not less than 2℃. After finish one
day work, you must blow away the water in the laser tube in case frosts crack the laser
tube.

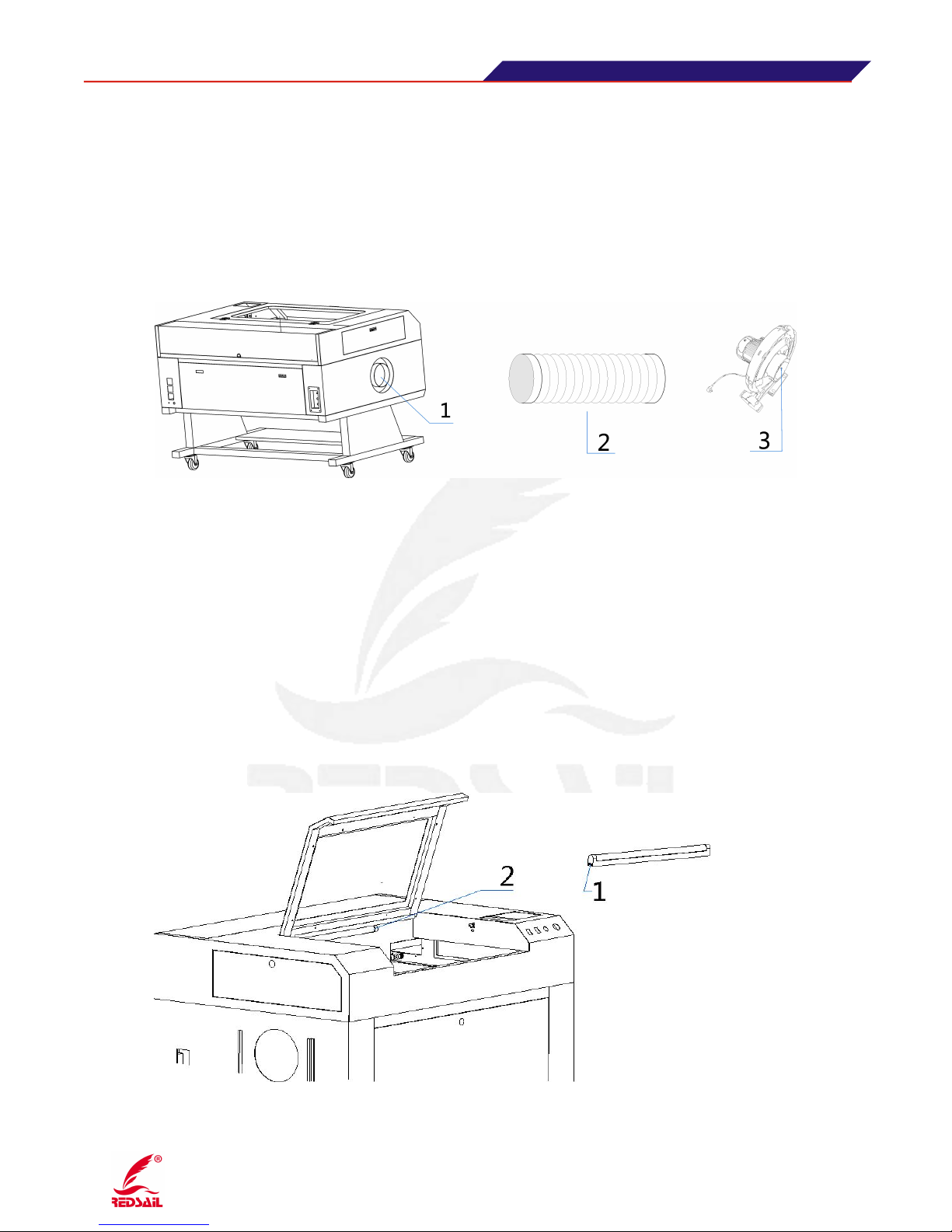

3.3 Ventilator and Ventiduct Connection
（Figure 3）
Note：1.Installation hole 2.Vent-Pipe 3.Exhausted Fan
Connection for the exhausted fan, Vent-pipe and machine:
(1)Put the air exhausted fan in well-ventilated place before connection(best placed out of the window),
for better exhaustsmoking。
(2) Following the above figure shows,put the ventiduct respectively connected with air exhaust fan
air inlet and machine’s air outlet, and for a reasonable Fixed,to improve the machine exhaust
efficiency
3.4 Light Tube Installation
（Figure 4）

9
Redsail Tech Co., Ltd
h t t p : / / w w w . h f l a s e r . c o m
Installation: As figure 4, put light tube (1) on the hold(2), and insert the tube power input plug into
tube hole.
3.5 Instructions of the power input / output of equipment
（Figure 5）
1：Main power switch : the total power of control equipment 2.Lamp switch: Control lighting inside
the device 3：Laser Switch: Control laser beam switch. 4：Input voltage: 220V
3.6 Auxiliary Control Area Instruction
（Figure 6）
1·Emergency stop switch: Control the power on/off for the main part, such as switch power supply,
laser power supply and so on.
2·Cover protection switch: control device to open and close the cover , the device processing and
pause function. The machine will work eigher the cover is opened or closed when the key is turned to
the right. When the key is opened and the cover is closed, the machine will begin to work by pressing
“OK” button on the control panel, the machine will stop working when opening the cover.
3·Red Dot indicator lamp(Optional): When open this switch, the indicator will be on(installed on
laser head), for fix origin point and fix the position of laser beam.
4·Spare
