Ozito PXTLS-900 User manual
CORDLESS
TORCH LIGHT
18V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
Number of LEDs: 1
Brightness: 250 Lumen
Weight: 0.2kg
PXTLS-900
WHAT’S IN THE BOX
Torch Light
ozito.com.au
Battery & Charger
sold separately
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
The purchased battery will be shipped in a low charge condition, and
requires charging prior to use. Allow several cycles of charging and
discharging (through use of the tool) for the battery to reach its optimum
performance / runtime.
1 Connect the charger into a mains power outlet.
4 The charger LED will
illuminate red signifying that
the battery is charging.
3 With the charger sitting on a
at surface, align the raised
ribs on the battery with
the recess in the charger
and slide onto the charger
ensuring a rm connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 The charger LED will
illuminate green once the
battery is fully charged.
Charging your lithium ion battery - Fast Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is fully charged
BOTH(Illuminated) Battery pack is too hot or too cold (charging
will begin automatically when battery reaches
correct charging temperature).
BOTH (Flashing) Defective battery. Never charge a defective
battery pack!
Remove battery pack from charger.
KNOW YOUR PRODUCT
1. BATTERY & CHARGING (sold separately)
SETUP & PREPARATION
CORDLESS TORCH LIGHT
1 2 3 4 5
1 LED Light
2 Rotating Head
3 On/Off Switch
4 Sure Grip Handle
5 Battery Seating
BATTERY & CHARGER (sold separately)
Compatible chargers
Eco charger PXCSCH-120
“ “ PXCG-120
Fast charger PXCFCH-030
“ “ PXCG-030
Compatible battery packs
1.5Ah PXCBAT-015
“ PXBP-150
3.0Ah PXCBAT-030
“ PXBP-300
5.2Ah PXCBAT-052
“ PXBP-520
CAUTION: THE CHARGER FOR THIS PRODCUT SHOULD
BE PROTECTED BY A RESIDUAL CURRENT DEVICE
(RATED AT 30mA OR LESS).
2. FITTING THE BATTERY
Battery Charge Indicator
The purchased battery is equipped
with a battery charge indicator to
show the state of the battery charge.
Press the charge indicator button and
look to see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state
of charge.
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate red signifying that the battery
is charging.
3 With the battery sitting on a at
surface, align the raised ribs
on the battery with the recess
in the charger and slide onto
the battery ensuring a rm
connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 When removing the charger
from the battery, rst press the
battery release tab, then slide
the charger from its position.
Charging your lithium ion battery - Eco Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged
RED (Flashing) Battery or Charger fault
RED & GREEN
(Flashing)
Battery pack is too hot or too cold (remove
battery from charger and store at room
temperature 20ºC. Insert battery again when
at correct charging temperature). If this
happens again, the battery is defective and
needs to be replaced.
Inserting & Removing the Battery (not included)
1 Align the ribs of the battery with the recess at the base of the
torch and push in until it clicks into place.
2 To remove, press and hold the battery release tab and pull
the battery away from torch.
a
b
Battery protection system
The tool is equipped with the battery protection system, which helps to
ensure a long service life.
The output power automatically cuts off during operation when the tool and/
or battery are placed under the following situations:
If this occurs, release the trigger switch and remove causes of overload,
then pull the switch trigger again to restart.
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use
or immediately after using the tool.
4. SWITCHING THE TORCH ON & OFF3. ADJUSTING THE ANGLE
OPERATION
PXTLS-900
Adjusting the Rotating Head
The torch head can be adjusted through a 90° rotation to aim
the light at the desired area.
2 To turn the torch
off, press the on/off
switch again.
2 To aim the torch away
from the ground, tilt the
head backward.
1 To turn the torch
on, press the on/off
switch.
1 To aim the torch closer to
the ground tilt the head
forward.
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Spare parts can be ordered from the Special Orders Desk
For further information, or any parts not listed here, visit
Australia 1800 069 486
SPARE PARTS
• After each use, blow air through the tool housing to ensure it is free
from all dust, dirt, etc. Build up of dust, dirt particles may cause the
tool to overheat and shorten the life of the tool.
• If the housing of the torch requires cleaning, do not use solvents but a
moist soft cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the
tool into liquid.
• When not in use, the torch should be stored in a dry, frost free location
not within the reach of children.
COMPLETELY STOPPED AND THE BATTERY IS REMOVED
PRIOR TO ANY MAINTENANCE.
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall out let.
Check the battery is rmly connected to the charging cradle.
Check that the charging jack is securely connected to the charging
cradle.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time. On the initial
charge, the battery requires 5 hours of charging. Subsequent charging
only requires 3-5 hours.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the torch by an unauthorised person
or by mishandling of the torch.
Warning Read instruction manual
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Transformer Energy
Rating (MEPS)
Double insulated
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50ºC
Electrical Emissions
Conformity (EMC)
no No load speed
VVolts Hz Hertz
ac/~ Alternating current
Direct current
dc/
Do not expose to rain.
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
The power supply for this products charger should be protected by a residual current device (rated at 30mA
or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING
INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the
charger, battery pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable bat-
teries. Any other use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft sur-
face that may result in excessive internal heat. Place the charger in a position
away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather
than the cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Have it checked by an electrician or power tool
repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer
when service or repair is required. Incorrect reassembly may result in a risk of
electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before at-
tempting any cleaning. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature
may reach or exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240
volts). Do not attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety
instructions and then follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is
charged when the air temperature is between 18 - 24ºC. Do not charge the bat-
tery pack in an air temperature below 10ºC or above 40ºC. This is important and
will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely
worn out. The battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the
battery pack breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
tool.
a. . Cluttered or dark areas invite accidents.
b.
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Distractions can cause you to
lose control.
2. Electrical safety
a.
Unmodied plugs and matching outlets will
reduce risk of electric shock.
b.
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Water entering a power tool will increase the
risk of electric shock.
d.
Damaged or entangled cords increase
the risk of electric shock.
e. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f.
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a.
A
moment of inattention while operating power tools may result in serious personal injury.
b. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c.
Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f.
Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c.
Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d.
Power tools are dangerous in the hands
of untrained users.
e.
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g.
Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use of any other battery packs
may create a risk of injury and re.
c.
to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
Liquid ejected from the battery may cause irritation or burns.
6. Service
a.
parts. This will ensure that the safety of the power tool is maintained.
BATTERY AND CHARGER SAFETY WARNINGS

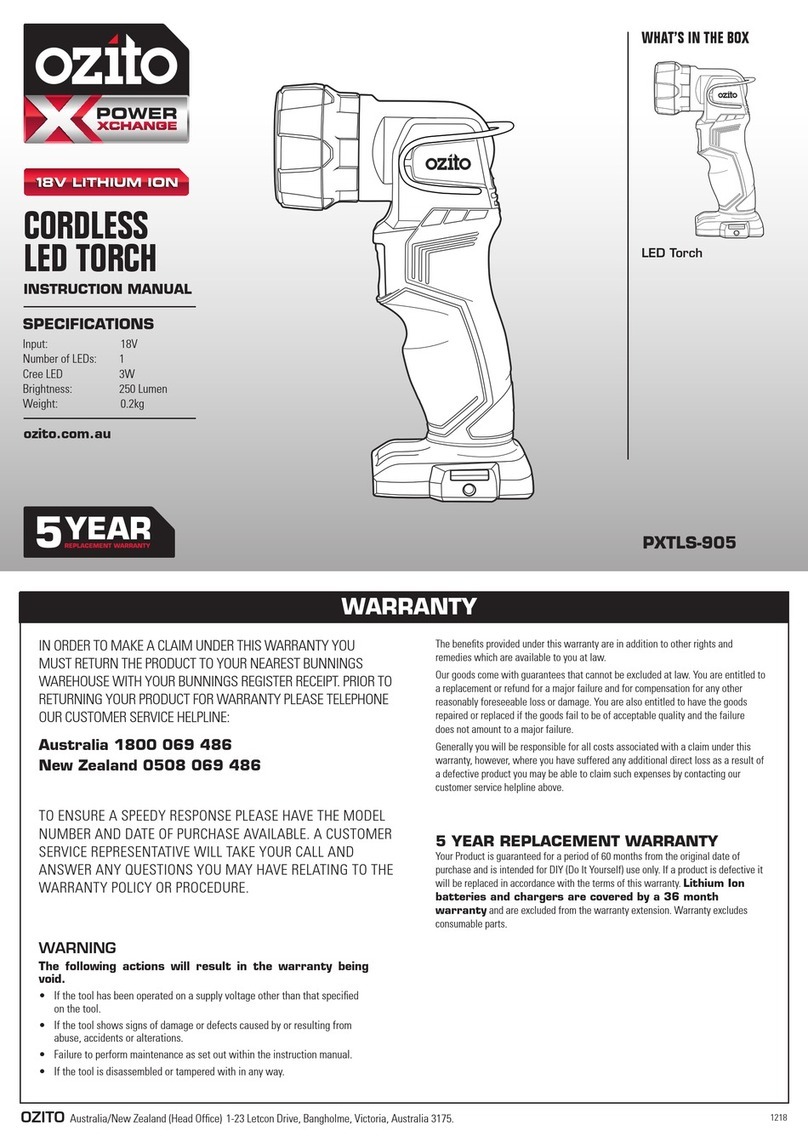

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0815
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. Lithium Ion batteries and chargers are
covered by a 36 month warranty. Warranty excludes consumable
parts.
Table of contents
Other Ozito Flashlight manuals
